Hyundai Genesis 2016 Owner's Manual - RHD (UK, Australia)

3-110
Convenient features of your vehicle

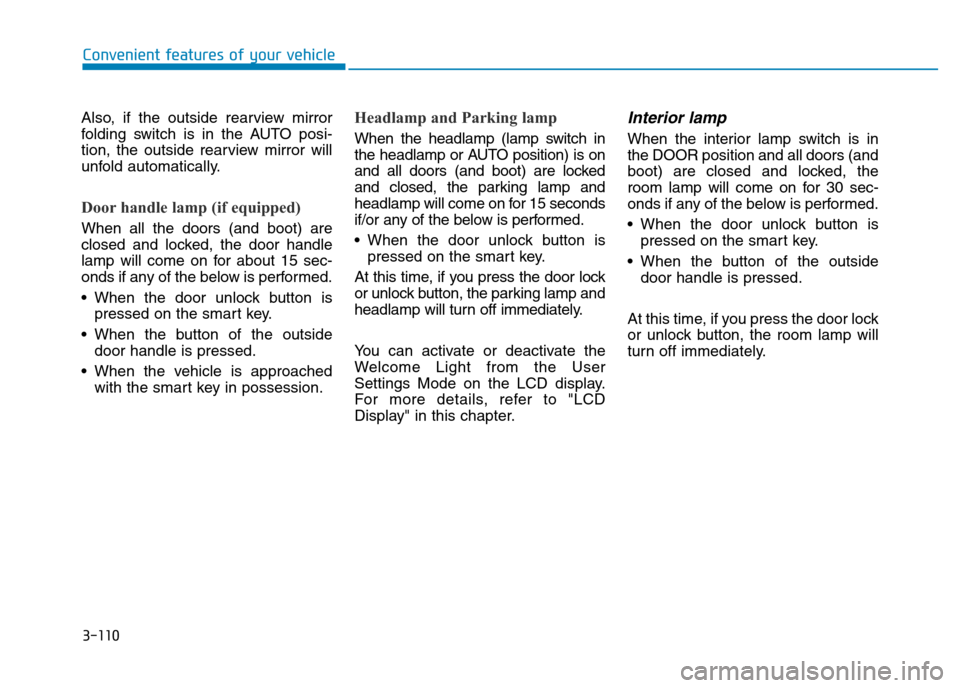

Also, if the outside rearview mirror
folding switch is in the AUTO posi-
tion, the outside rearview mirror will
unfold automatically.
Door handle lamp (if equipped)
When all the doors (and boot) are
closed and locked, the door handle
lamp will come on for about 15 sec-
onds if any of the below is performed.
• When the door unlock button is
pressed on the smart key.
• When the button of the outside
door handle is pressed.
• When the vehicle is approached
with the smart key in possession.
Headlamp and Parking lamp
When the headlamp (lamp switch in
the headlamp or AUTO position) is on
and all doors (and boot) are locked
and closed, the parking lamp and
headlamp will come on for 15 seconds
if/or any of the below is performed.
• When the door unlock button is
pressed on the smart key.
At this time, if you press the door lock
or unlock button, the parking lamp and
headlamp will turn off immediately.
You can activate or deactivate the
Welcome Light from the User
Settings Mode on the LCD display.
For more details, refer to "LCD
Display" in this chapter.
Interior lamp
When the interior lamp switch is in
the DOOR position and all doors (and
boot) are closed and locked, the
room lamp will come on for 30 sec-
onds if any of the below is performed.
• When the door unlock button is
pressed on the smart key.
• When the button of the outside
door handle is pressed.
At this time, if you press the door lock
or unlock button, the room lamp will
turn off immediately.

3-111
Convenient features of your vehicle
3

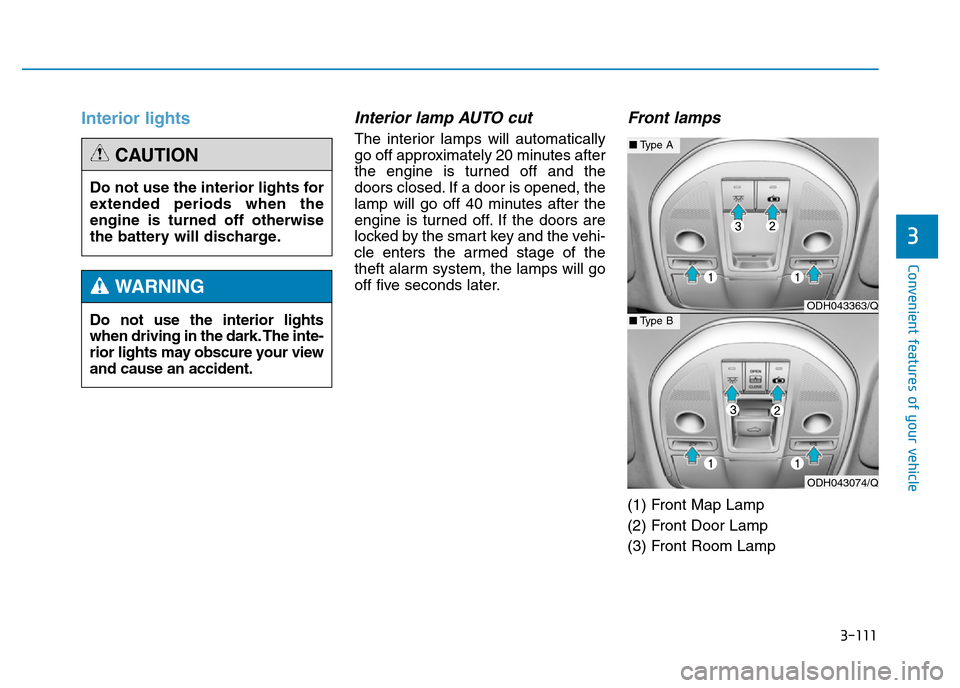

Interior lightsInterior lamp AUTO cut
The interior lamps will automatically
go off approximately 20 minutes after
the engine is turned off and the
doors closed. If a door is opened, the
lamp will go off 40 minutes after the
engine is turned off. If the doors are
locked by the smart key and the vehi-
cle enters the armed stage of the
theft alarm system, the lamps will go
off five seconds later.
Front lamps
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp Do not use the interior lights
when driving in the dark. The inte-
rior lights may obscure your view
and cause an accident.
WARNING
Do not use the interior lights for
extended periods when the
engine is turned off otherwise
the battery will discharge.
CAUTION
ODH043363/Q
ODH043074/Q
■Type A
■Type B

3-112
Convenient features of your vehicle

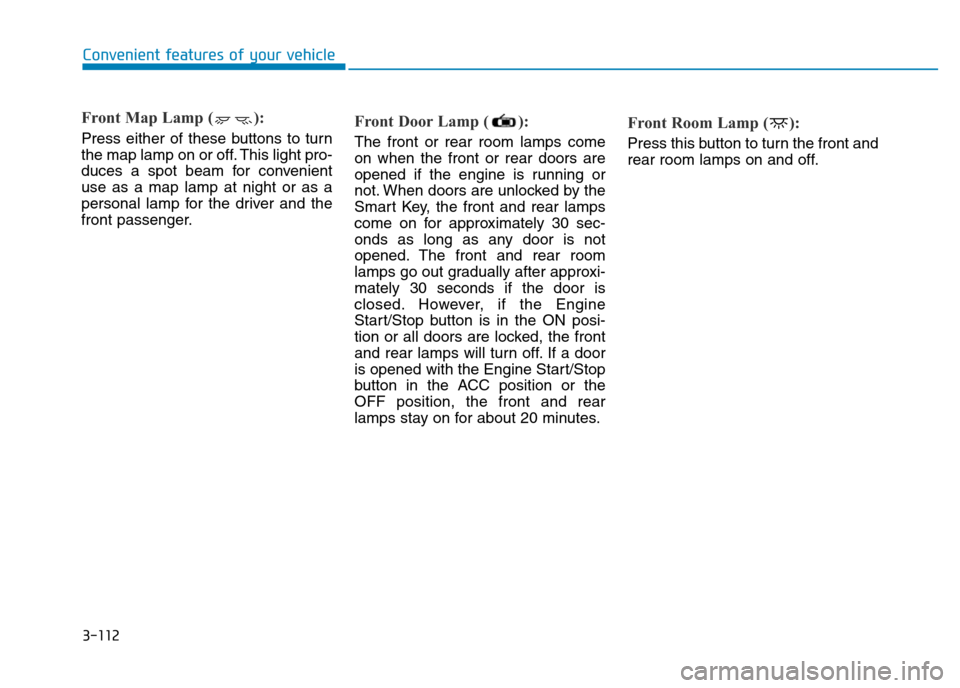

Front Map Lamp ( ):
Press either of these buttons to turn
the map lamp on or off. This light pro-
duces a spot beam for convenient
use as a map lamp at night or as a
personal lamp for the driver and the
front passenger.
Front Door Lamp ( ):
The front or rear room lamps come
on when the front or rear doors are
opened if the engine is running or
not. When doors are unlocked by the
Smart Key, the front and rear lamps
come on for approximately 30 sec-
onds as long as any door is not
opened. The front and rear room
lamps go out gradually after approxi-
mately 30 seconds if the door is
closed. However, if the Engine
Start/Stop button is in the ON posi-
tion or all doors are locked, the front
and rear lamps will turn off. If a door
is opened with the Engine Start/Stop
button in the ACC position or the
OFF position, the front and rear
lamps stay on for about 20 minutes.
Front Room Lamp ( ):
Press this button to turn the front and
rear room lamps on and off.

3-113
Convenient features of your vehicle
3

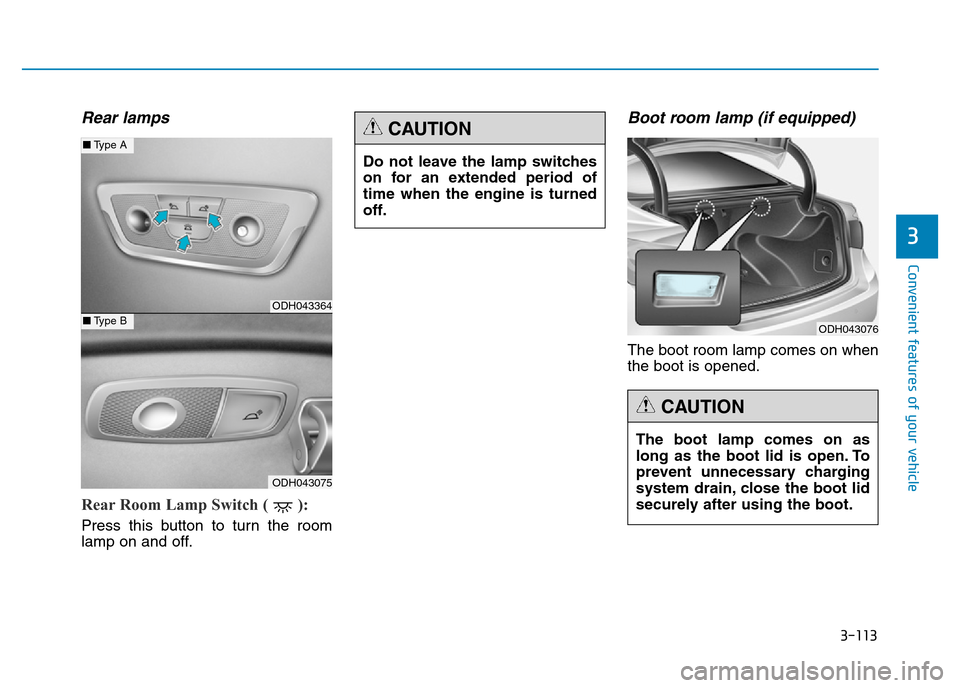

Rear lamps
Rear Room Lamp Switch ( ):
Press this button to turn the room
lamp on and off.
Boot room lamp (if equipped)
The boot room lamp comes on when
the boot is opened.
ODH043364
ODH043075
■Type A
■Type B
Do not leave the lamp switches
on for an extended period of
time when the engine is turned
off.
CAUTION
ODH043076
The boot lamp comes on as
long as the boot lid is open. To
prevent unnecessary charging
system drain, close the boot lid
securely after using the boot.
CAUTION

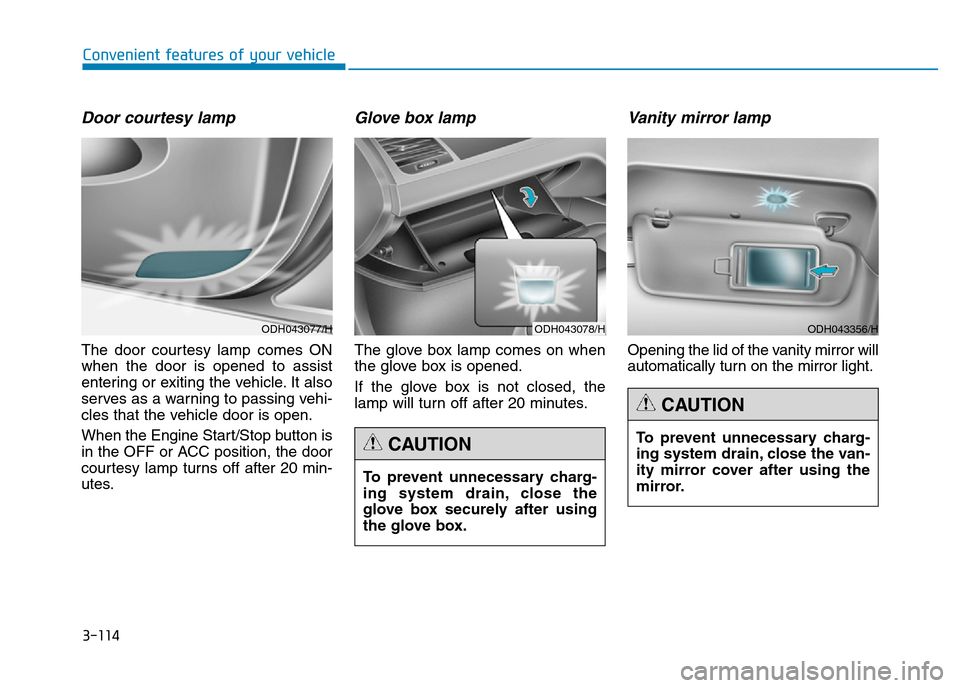

3-114
Convenient features of your vehicle
Door courtesy lamp
The door courtesy lamp comes ON
when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
When the Engine Start/Stop button is
in the OFF or ACC position, the door
courtesy lamp turns off after 20 min-
utes.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
If the glove box is not closed, the
lamp will turn off after 20 minutes.
Vanity mirror lamp
Opening the lid of the vanity mirror will
automatically turn on the mirror light.
To prevent unnecessary charg-
ing system drain, close the
glove box securely after using
the glove box.
CAUTION
ODH043078/HODH043077/H
To prevent unnecessary charg-
ing system drain, close the van-
ity mirror cover after using the
mirror.
CAUTION
ODH043356/H

3-115
Convenient features of your vehicle
3

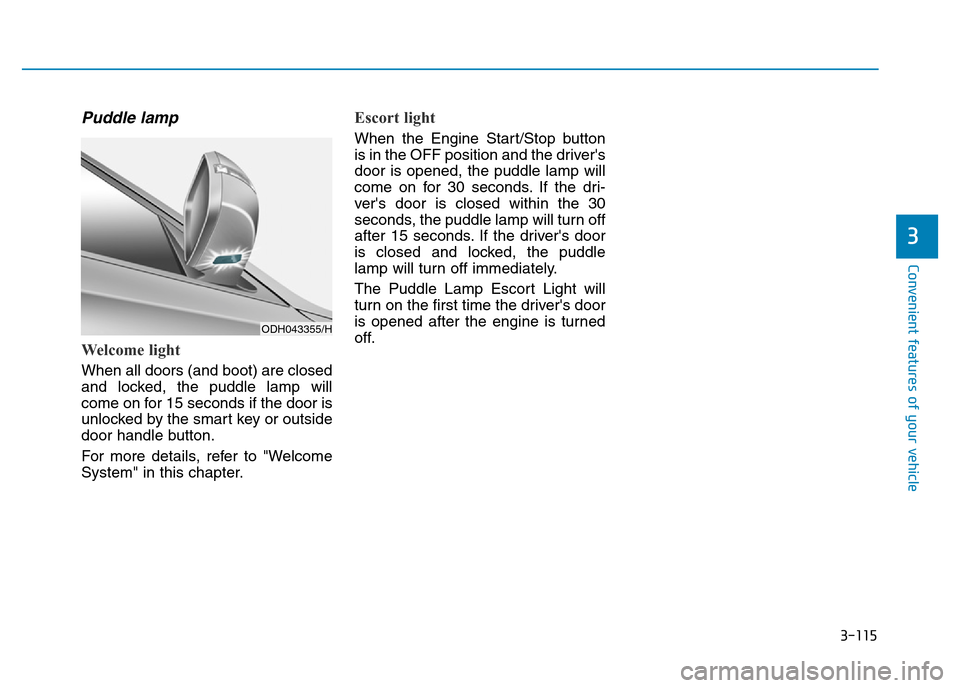

Puddle lamp
Welcome light
When all doors (and boot) are closed
and locked, the puddle lamp will
come on for 15 seconds if the door is
unlocked by the smart key or outside
door handle button.
For more details, refer to "Welcome
System" in this chapter.
Escort light
When the Engine Start/Stop button
is in the OFF position and the driver's
door is opened, the puddle lamp will
come on for 30 seconds. If the dri-
ver's door is closed within the 30
seconds, the puddle lamp will turn off
after 15 seconds. If the driver's door
is closed and locked, the puddle
lamp will turn off immediately.
The Puddle Lamp Escort Light will
turn on the first time the driver's door
is opened after the engine is turned
off.
ODH043355/H

3-116
Convenient features of your vehicle

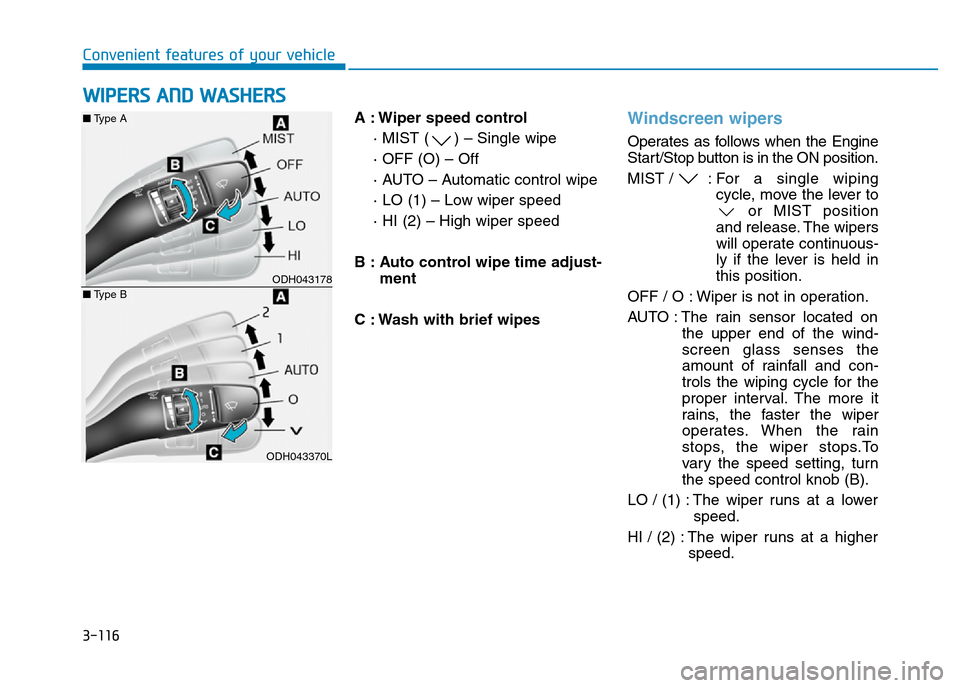

A : Wiper speed control
· MIST ( ) – Single wipe
· OFF (O) – Off
· AUTO – Automatic control wipe
· LO (1) – Low wiper speed
· HI (2) – High wiper speed
B : Auto control wipe time adjust-
ment
C : Wash with brief wipes
Windscreen wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST / : For a single wiping
cycle, move the lever to
or MIST position
and release. The wipers
will operate continuous-
ly if the lever is held in
this position.
OFF / O : Wiper is not in operation.
AUTO : The rain sensor located on
the upper end of the wind-
screen glass senses the
amount of rainfall and con-
trols the wiping cycle for the
proper interval. The more it
rains, the faster the wiper
operates. When the rain
stops, the wiper stops.To
vary the speed setting, turn
the speed control knob (B).
LO / (1) : The wiper runs at a lower
speed.
HI / (2) : The wiper runs at a higher
speed.
WIPERS AND WASHERS
ODH043178
ODH043370L
■Type A
■Type B

3-117
Convenient features of your vehicle
3

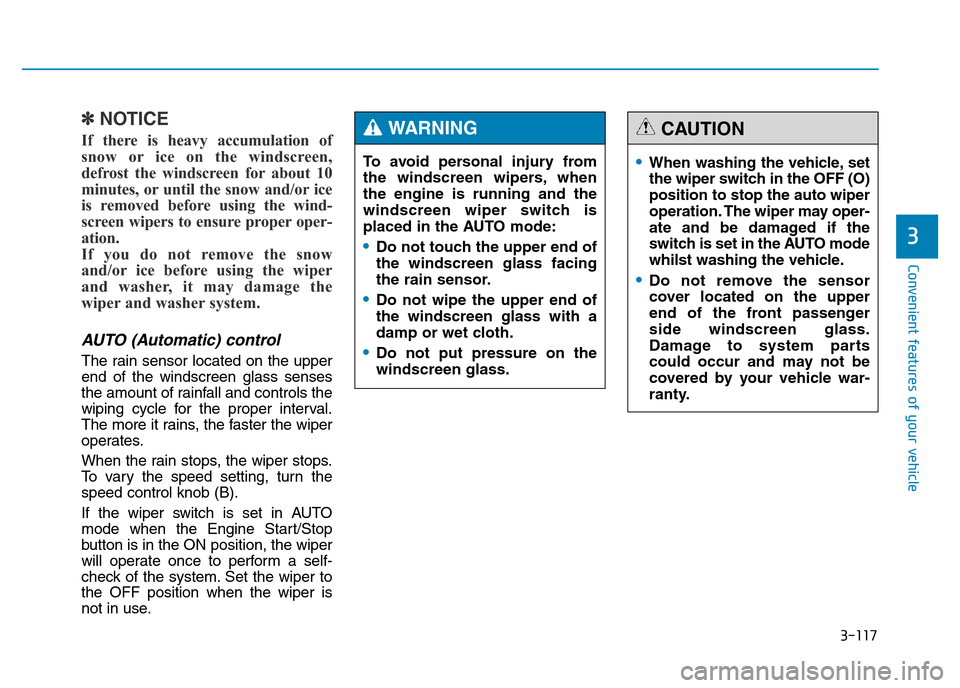

✽NOTICE
If there is heavy accumulation of
snow or ice on the windscreen,
defrost the windscreen for about 10
minutes, or until the snow and/or ice
is removed before using the wind-
screen wipers to ensure proper oper-
ation.
If you do not remove the snow
and/or ice before using the wiper
and washer, it may damage the
wiper and washer system.
AUTO (Automatic) control
The rain sensor located on the upper
end of the windscreen glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The more it rains, the faster the wiper
operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn the
speed control knob (B).
If the wiper switch is set in AUTO
mode when the Engine Start/Stop
button is in the ON position, the wiper
will operate once to perform a self-
check of the system. Set the wiper to
the OFF position when the wiper is
not in use.To avoid personal injury from
the windscreen wipers, when
the engine is running and the
windscreen wiper switch is
placed in the AUTO mode:
•Do not touch the upper end of
the windscreen glass facing
the rain sensor.
•Do not wipe the upper end of
the windscreen glass with a
damp or wet cloth.
•Do not put pressure on the
windscreen glass.
WARNING
•When washing the vehicle, set
the wiper switch in the OFF (O)
position to stop the auto wiper
operation. The wiper may oper-
ate and be damaged if the
switch is set in the AUTO mode
whilst washing the vehicle.
•Do not remove the sensor
cover located on the upper
end of the front passenger
side windscreen glass.
Damage to system parts
could occur and may not be
covered by your vehicle war-
ranty.
CAUTION

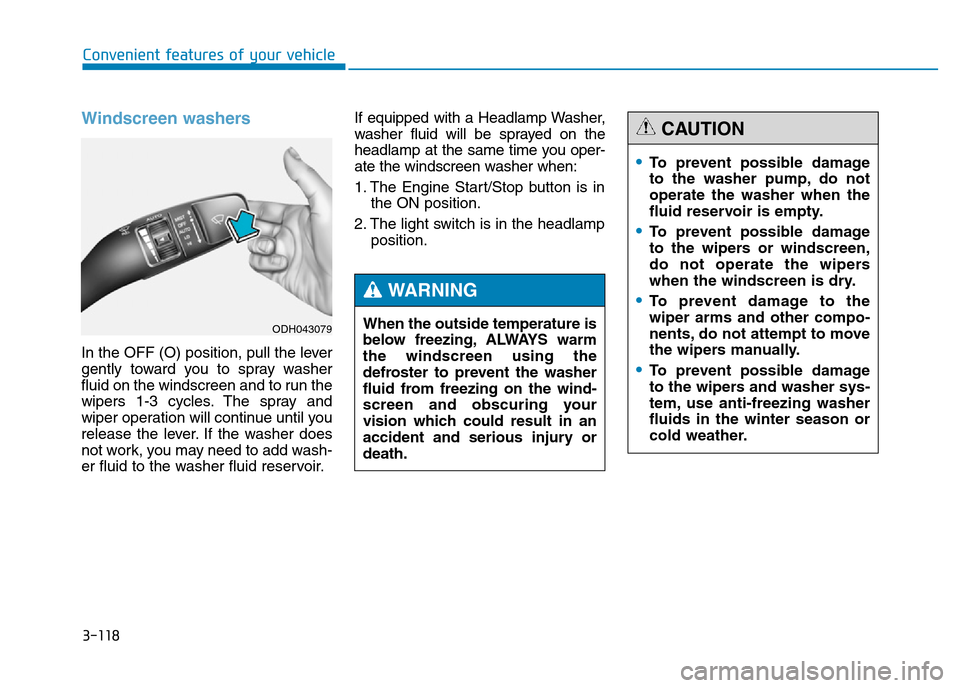

3-118
Convenient features of your vehicle
Windscreen washers
In the OFF (O) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever. If the washer does
not work, you may need to add wash-
er fluid to the washer fluid reservoir.If equipped with a Headlamp Washer,
washer fluid will be sprayed on the
headlamp at the same time you oper-
ate the windscreen washer when:
1. The Engine Start/Stop button is in
the ON position.
2. The light switch is in the headlamp
position.
ODH043079When the outside temperature is
below freezing, ALWAYS warm
the windscreen using the
defroster to prevent the washer
fluid from freezing on the wind-
screen and obscuring your
vision which could result in an
accident and serious injury or
death.
WARNING
•To prevent possible damage
to the washer pump, do not
operate the washer when the
fluid reservoir is empty.
•To prevent possible damage
to the wipers or windscreen,
do not operate the wipers
when the windscreen is dry.
•To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
•To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washer
fluids in the winter season or
cold weather.
CAUTION

3-119
Convenient features of your vehicle
3

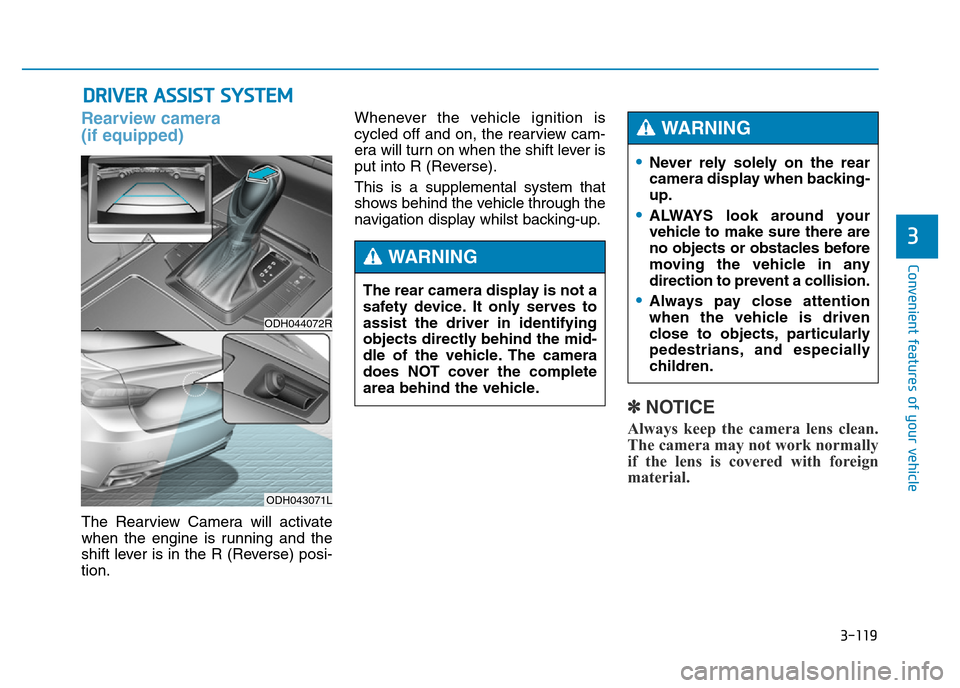

DRIVER ASSIST SYSTEM
Rearview camera
(if equipped)
The Rearview Camera will activate
when the engine is running and the
shift lever is in the R (Reverse) posi-
tion.Whenever the vehicle ignition is
cycled off and on, the rearview cam-
era will turn on when the shift lever is
put into R (Reverse).
This is a supplemental system that
shows behind the vehicle through the
navigation display whilst backing-up.
✽NOTICE
Always keep the camera lens clean.
The camera may not work normally
if the lens is covered with foreign
material.
ODH044072R
ODH043071L
The rear camera display is not a
safety device. It only serves to
assist the driver in identifying
objects directly behind the mid-
dle of the vehicle. The camera
does NOT cover the complete
area behind the vehicle.
WARNING
•Never rely solely on the rear
camera display when backing-
up.
•ALWAYS look around your
vehicle to make sure there are
no objects or obstacles before
moving the vehicle in any
direction to prevent a collision.
•Always pay close attention
when the vehicle is driven
close to objects, particularly
pedestrians, and especially
children.
WARNING
