Page 181 of 343

Hyundai Genesis Coupe 2011  Owners Manual 4113
Features of your vehicle
✽✽NOTICE FOR USING THE
iPod DEVICE
 Some iPod models might not support the communication protocol and the
files will not be played.
Supported iPod models:
- iPod

Page 182 of 343

Hyundai Genesis Coupe 2011  Owners Manual Features of your vehicle
114
4
1. FM/AM Button
2. SEEK/TRACK Button
3. AST Button
4. Display
5. PRESET Buttons
6. DISP Button
7. TUNE/FILE Button
8. SETUP Button
9. POWER Button & VOLUME Knob
RADIO,

Page 183 of 343

Hyundai Genesis Coupe 2011  Owners Manual 4115
Features of your vehicle
Using RADIO, SET UP, VOLUME
CONTROL
1. FM/AM Button
Turn to FM or AM mode, and toggles in the order of  FM1 ➟FM2  ➟AM  ➟FM1...
when the button is pressed each ti

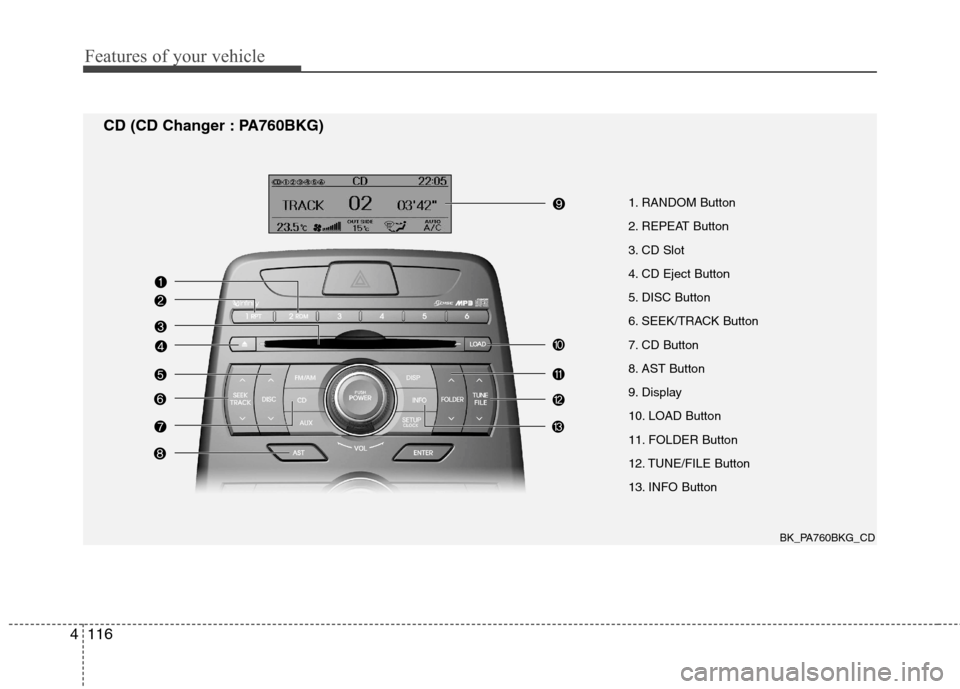

Page 184 of 343

Hyundai Genesis Coupe 2011  Owners Manual Features of your vehicle
116
4
1. RANDOM Button
2. REPEAT Button
3. CD Slot
4. CD Eject Button
5. DISC Button
6. SEEK/TRACK Button
7. CD Button
8. AST Button
9. Display
10. LOAD Button
11. FOLDER Bu

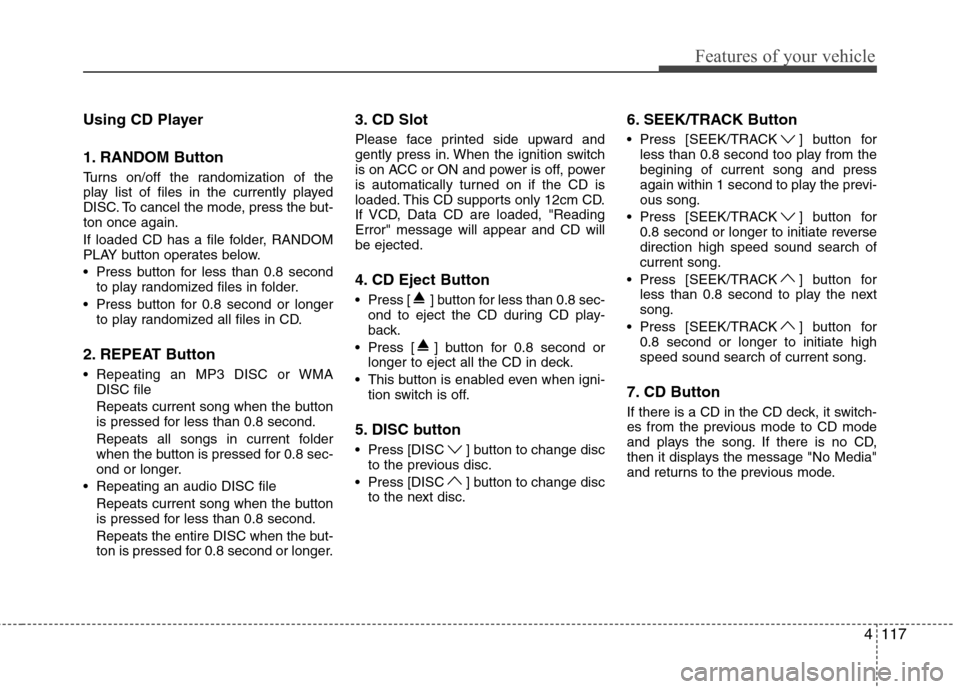

Page 185 of 343

Hyundai Genesis Coupe 2011  Owners Manual 4117
Features of your vehicle
Using CD Player
1. RANDOM Button
Turns on/off the randomization of the
play list of files in the currently played
DISC. To cancel the mode, press the but-ton once agai

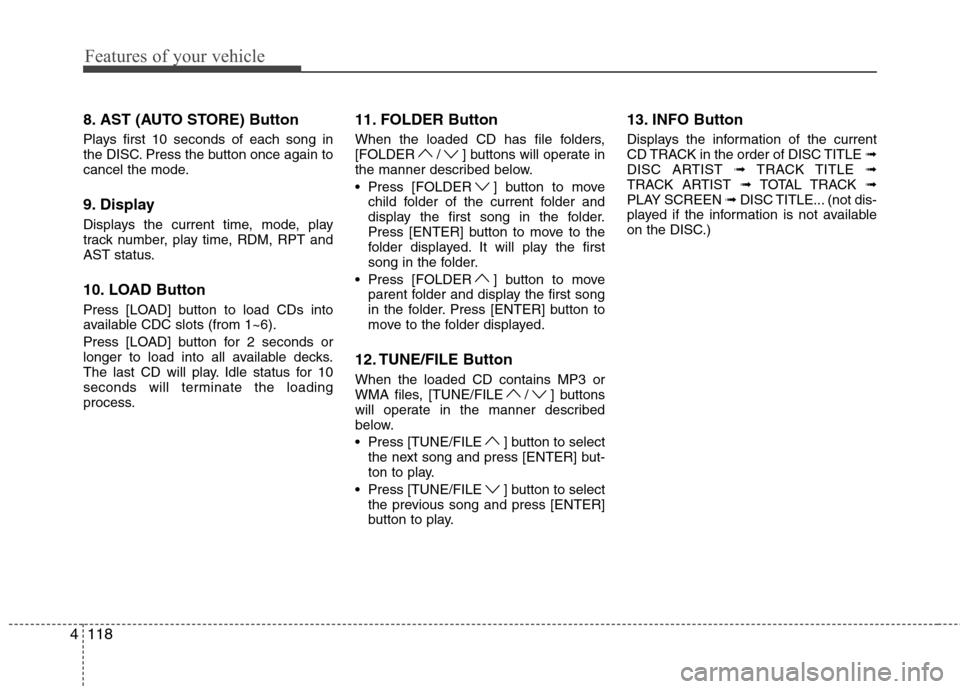

Page 186 of 343

Hyundai Genesis Coupe 2011  Owners Manual Features of your vehicle
118
4
8. AST (AUTO STORE) Button
Plays first 10 seconds of each song in
the DISC. Press the button once again to
cancel the mode.
9. Display
Displays the current time, mod

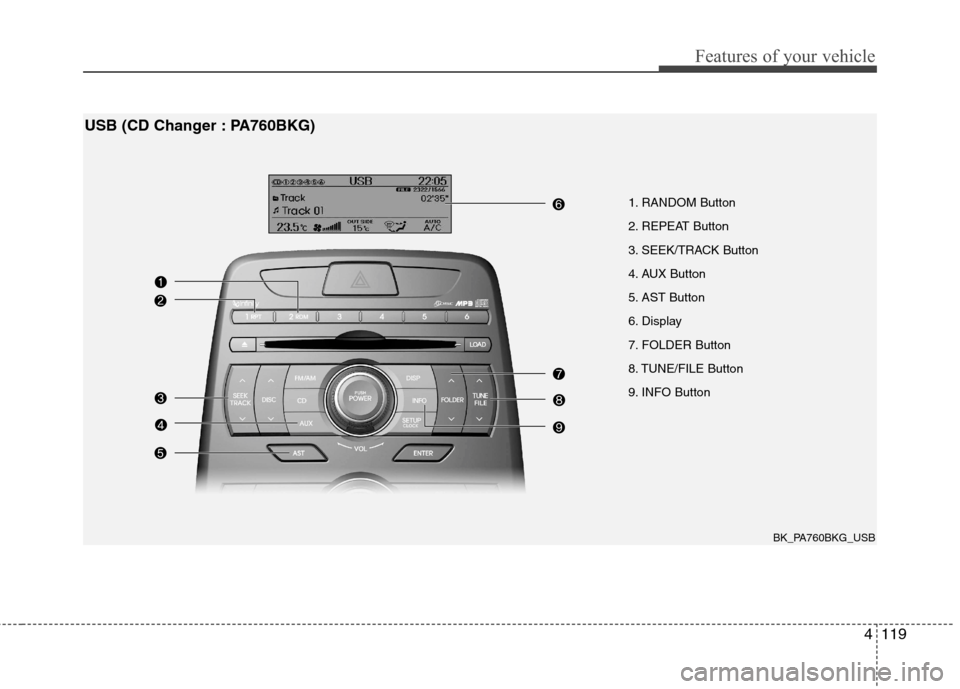

Page 187 of 343

Hyundai Genesis Coupe 2011  Owners Manual 4119
Features of your vehicle
1. RANDOM Button
2. REPEAT Button
3. SEEK/TRACK Button
4. AUX Button
5. AST Button
6. Display
7. FOLDER Button
8. TUNE/FILE Button
9. INFO Button
USB (CD Changer : PA76

Page 188 of 343

Hyundai Genesis Coupe 2011  Owners Manual Features of your vehicle
120
4
Using USB device
1. RANDOM Button
Press the button for less than 0.8 second
to start or stop the random playback of
the songs in the current folder.
Press the button

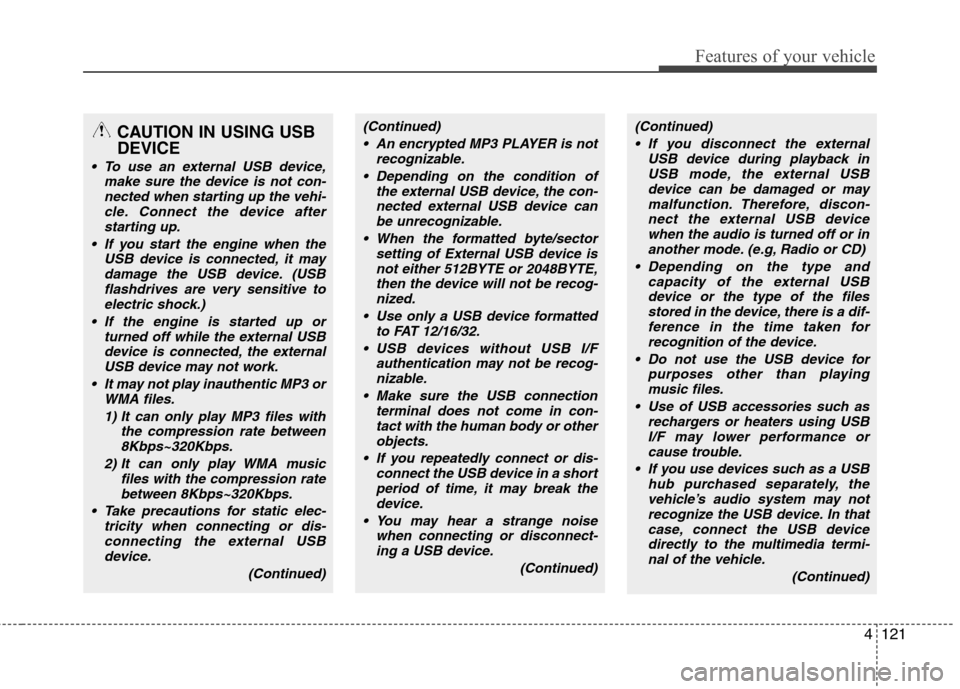

Page 189 of 343

Hyundai Genesis Coupe 2011  Owners Manual 4121
Features of your vehicle
CAUTION IN USING USB DEVICE
 To use an external USB device,make sure the device is not con-
nected when starting up the vehi-cle. Connect the device afterstarting up.
 If

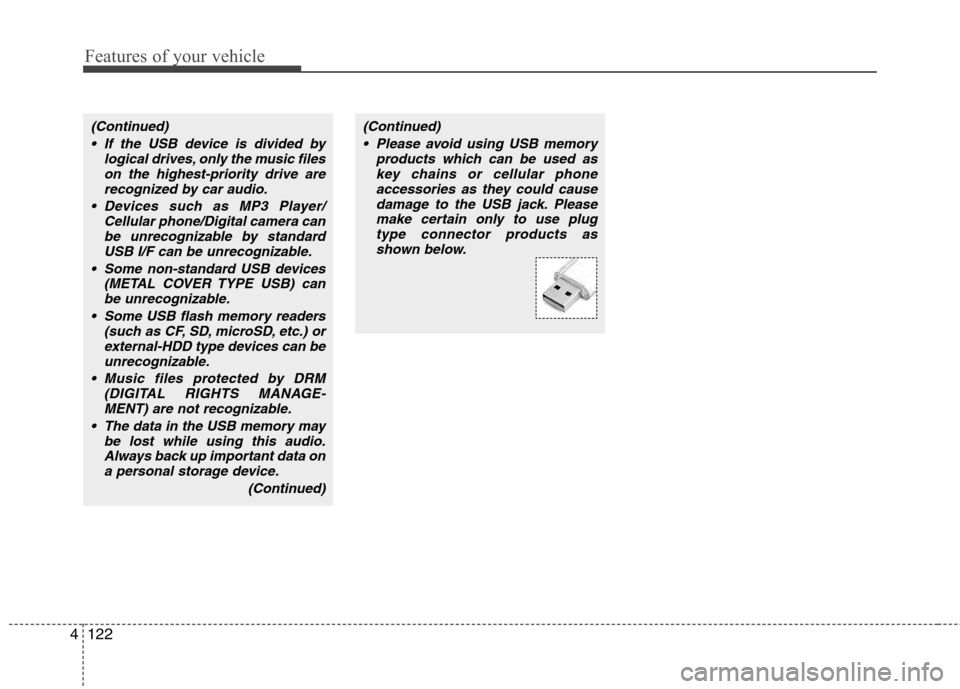

Page 190 of 343

Hyundai Genesis Coupe 2011  Owners Manual Features of your vehicle
122
4
(Continued)
 If the USB device is divided by logical drives, only the music fileson the highest-priority drive arerecognized by car audio.
 Devices such as MP3 Player/ C
