HYUNDAI GENESIS G70 2018 User Guide

1
2
3
4
5
6
7
8
I
Your Vehicle at a Glance
Safety System of Your Vehicle
Convenient Features of Your Vehicle
Infotainment System
Driving Your Vehicle
What to Do in an Emergency
Maintenance
Specifications, Consumer Information and
Reporting Safety Defects
Index

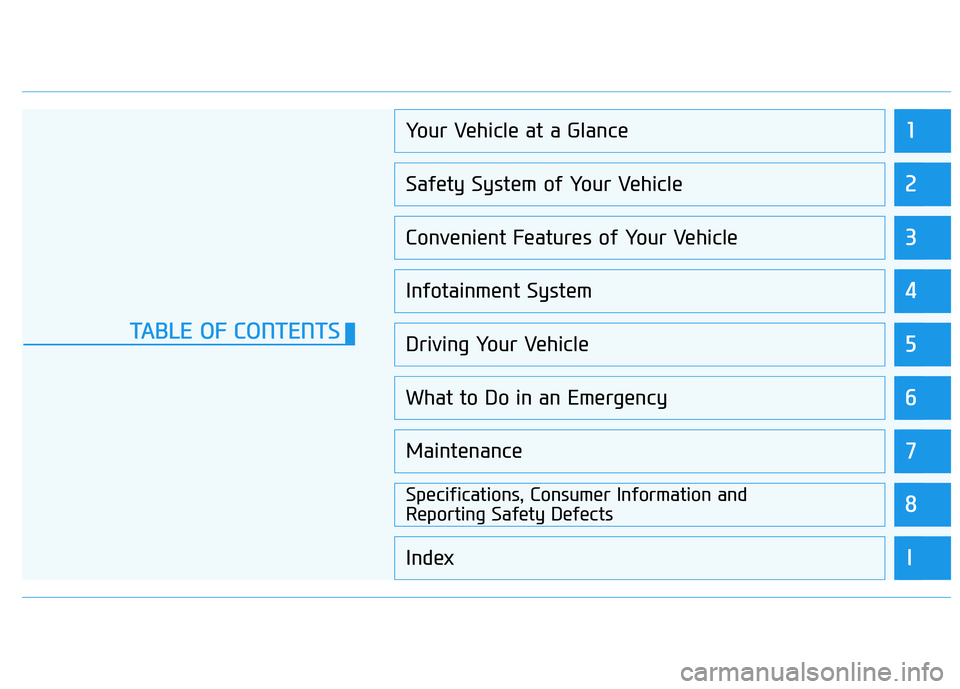

TABLE OF CONTENTS

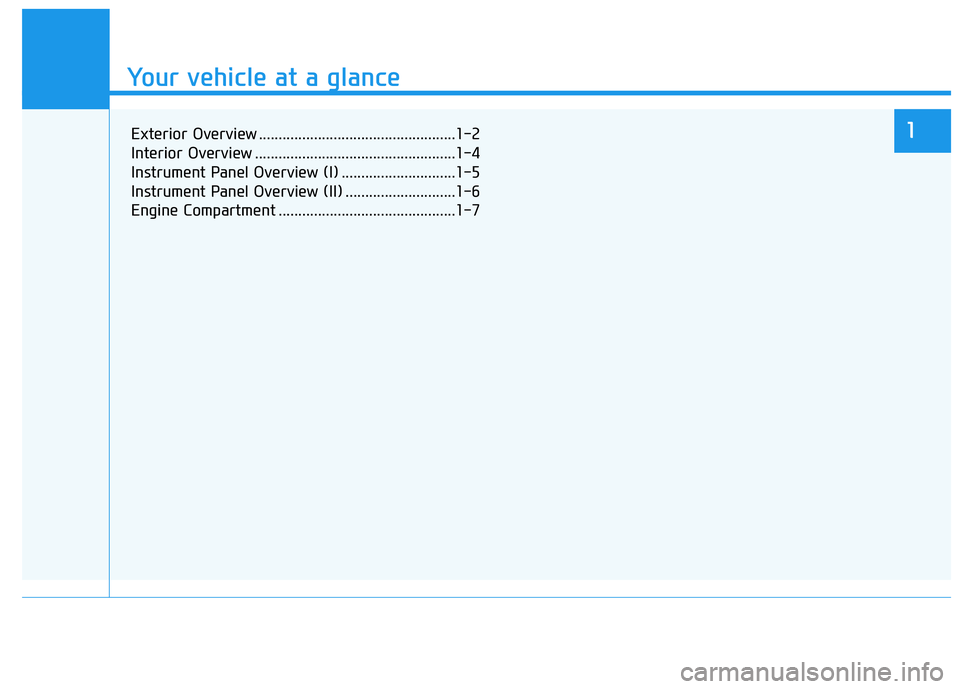

Your vehicle at a glance
1
Your vehicle at a glance
Exterior Overview ..................................................1-2
Interior Overview ...................................................1-4
Instrument Panel Overview (I) .............................1-5
Instrument Panel Overview (II) ............................1-6
Engine Compartment .............................................1-71

1-2

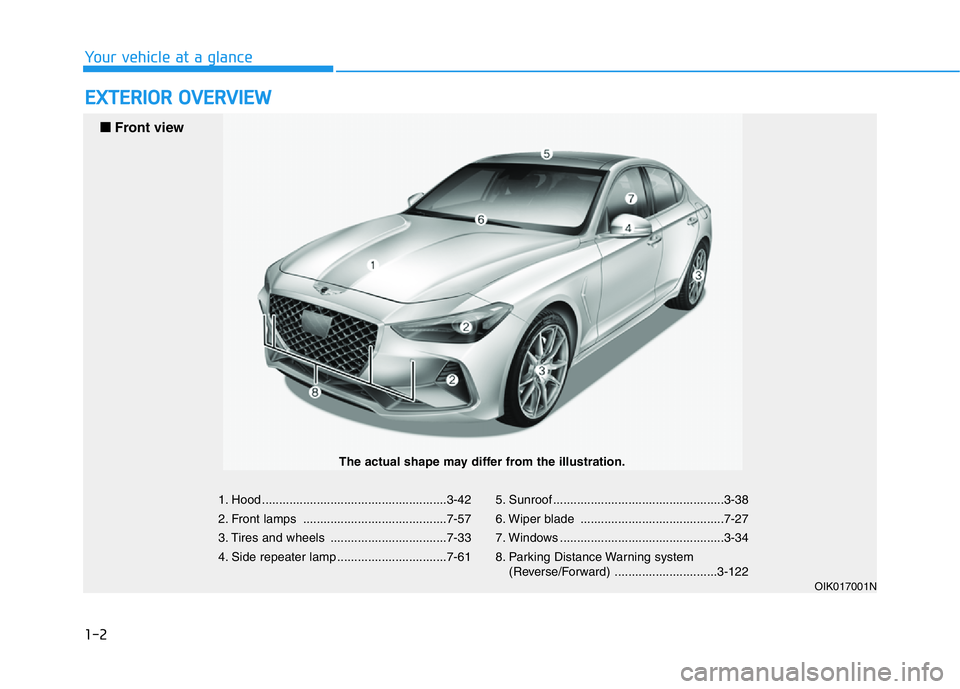

EXTERIOR OVERVIEW
Your vehicle at a glance
1. Hood ......................................................3-42
2. Front lamps ..........................................7-57
3. Tires and wheels ..................................7-33
4. Side repeater lamp ................................7-615. Sunroof ..................................................3-38
6. Wiper blade ..........................................7-27
7. Windows ................................................3-34
8. Parking Distance Warning system
(Reverse/Forward) ..............................3-122
OIK017001N
■ Front view
The actual shape may differ from the illustration.

1-3
Your vehicle at a glance
1
9. Door lock ..............................................3-10
10. Fuel filler door ....................................3-55
11. Rear combination lamp ......................7-61
12. Trunk ................................3-43, 3-46, 3-52
13. High mounted stop lamp ....................7-6314. Defroster............................................3-147
15. Parking Distance Warning system
(Reverse) ..........................................3-119
16. Antenna ................................................4-2
17. Rear view monitor ..................3-126, 3-127
OIK017002

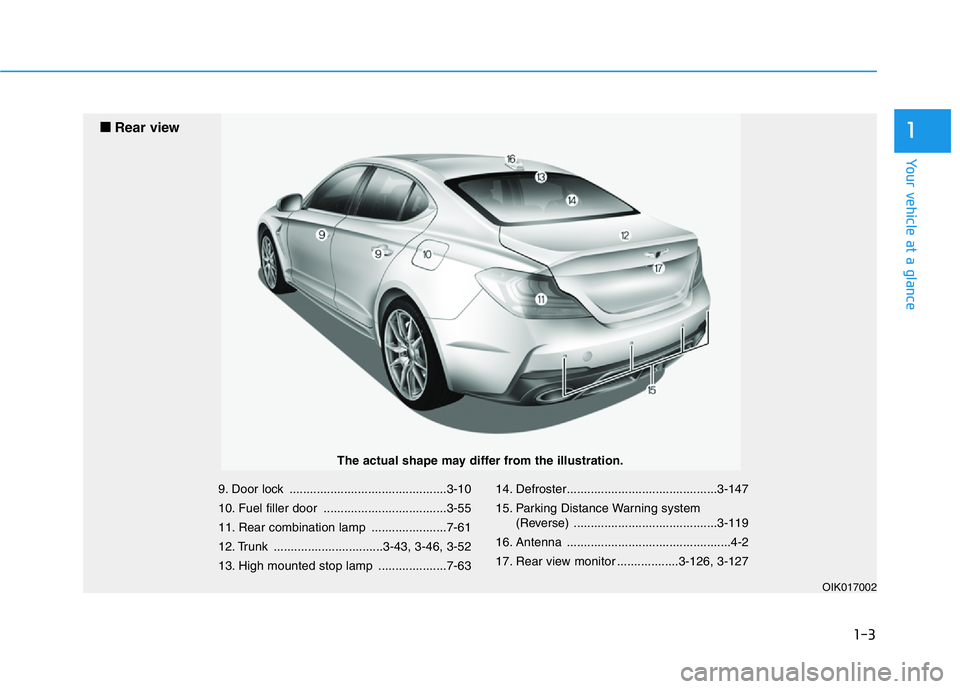

■ Rear view
The actual shape may differ from the illustration.

1-4
Your vehicle at a glance
INTERIOR OVERVIEW
1. Inside door handle ................................3-11
2. Driver position memory system ............3-16
3. Side view mirror folding switch ..............3-32
4. Side view mirror control switch ..............3-31
5. Central door lock/unlock switch ............3-12
6. Power window lock switch......................3-37
7. Power window switches ........................3-34
8. Instrument panel illumination control
switch ....................................................3-59
9. Lane Keeping Assist (LKA) system ......5-95
10. Blind-spot Collision Warning (BCW)
system..................................................5-73
11. Fuel filler door opener lever ................3-55
12. Trunk release lever ....................3-43, 3-46
13. Hood release lever ..............................3-42
14. Steering wheel tilt/telescope ................3-21
15. Steering wheel ....................................3-20
16. Seat........................................................2-4
17. Fuse panel ..........................................7-49
OIK017003N
The actual shape may differ from the illustration.

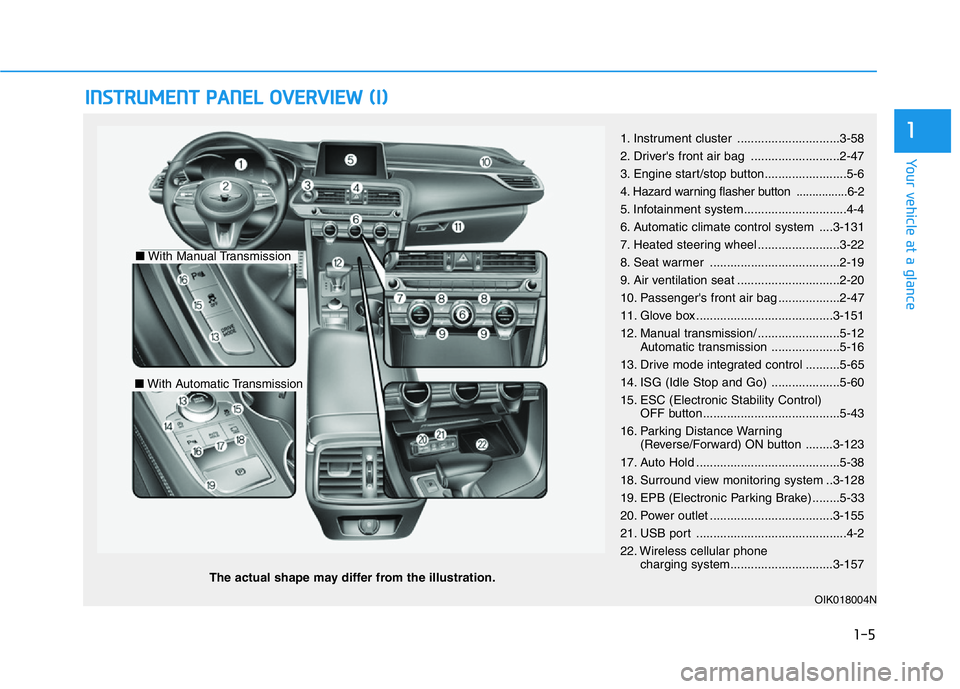

INSTRUMENT PANEL OVERVIEW (I)
The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
11. Instrument cluster ..............................3-58
2. Driver's front air bag ..........................2-47
3. Engine start/stop button........................5-6
4
. Hazard warning flasher button ................6-2
5. Infotainment system..............................4-4
6. Automatic climate control system ....3-131
7. Heated steering wheel ........................3-22
8. Seat warmer ......................................2-19
9. Air ventilation seat ..............................2-20
10. Passenger's front air bag ..................2-47
11. Glove box ........................................3-151
12. Manual transmission/ ........................5-12
Automatic transmission ....................5-16
13. Drive mode integrated control ..........5-65
14. ISG (Idle Stop and Go) ....................5-60
15. ESC (Electronic Stability Control)
OFF button........................................5-43
16. Parking Distance Warning
(Reverse/Forward) ON button ........3-123
17. Auto Hold ..........................................5-38
18. Surround view monitoring system ..3-128
19. EPB (Electronic Parking Brake) ........5-33
20. Power outlet ....................................3-155
21. USB port ............................................4-2
22. Wireless cellular phone
charging system..............................3-157
OIK018004N
■With Manual Transmission
■With Automatic Transmission

1-6

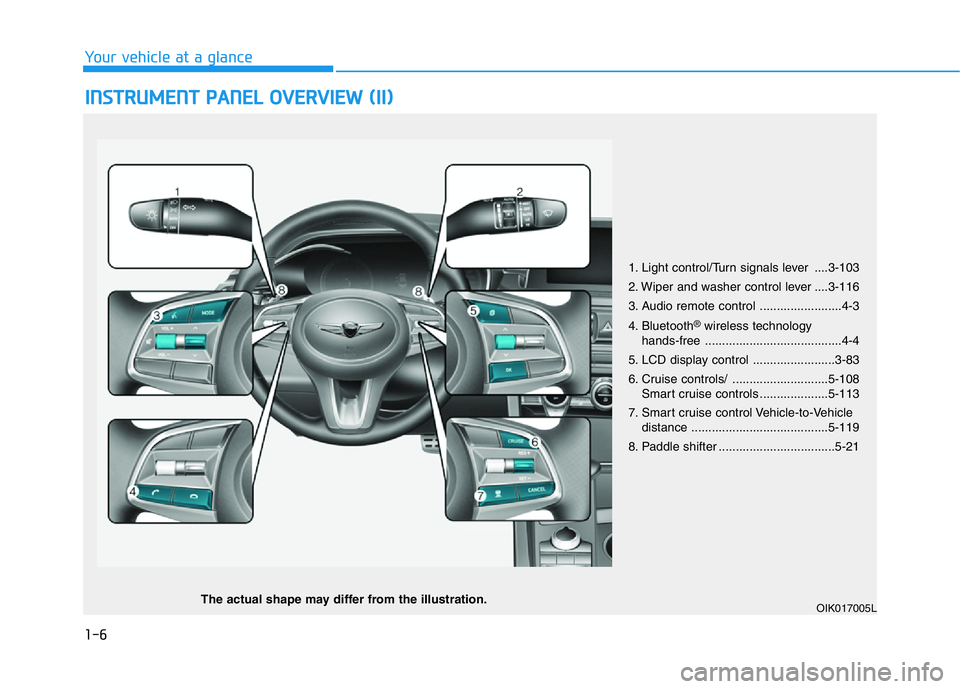

INSTRUMENT PANEL OVERVIEW (II)
Your vehicle at a glance
1. Light control/Turn signals lever ....3-103
2. Wiper and washer control lever ....3-116
3. Audio remote control ........................4-3
4. Bluetooth
®wireless technology
hands-free ........................................4-4
5. LCD display control ........................3-83
6. Cruise controls/ ............................5-108
Smart cruise controls ....................5-113
7. Smart cruise control Vehicle-to-Vehicle
distance ........................................5-119
8. Paddle shifter ..................................5-21
OIK017005LThe actual shape may differ from the illustration.

1-7
Your vehicle at a glance
1
ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-19
2. Radiator cap .....................................7-21
3. Brake/Clutch fluid reservoir...............7-22
4. Air cleaner.........................................7-25
5. Engine oil dipstick .............................7-17
6. Engine oil filler cap ...........................7-17
7. Windshield washer fluid reservoir .....7-23
8. Fuse box ...........................................7-50
❈The battery is in the trunk.
OIK077001/OIK017007
■Theta 2.0 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
■Lambda 3.3 T-GDI

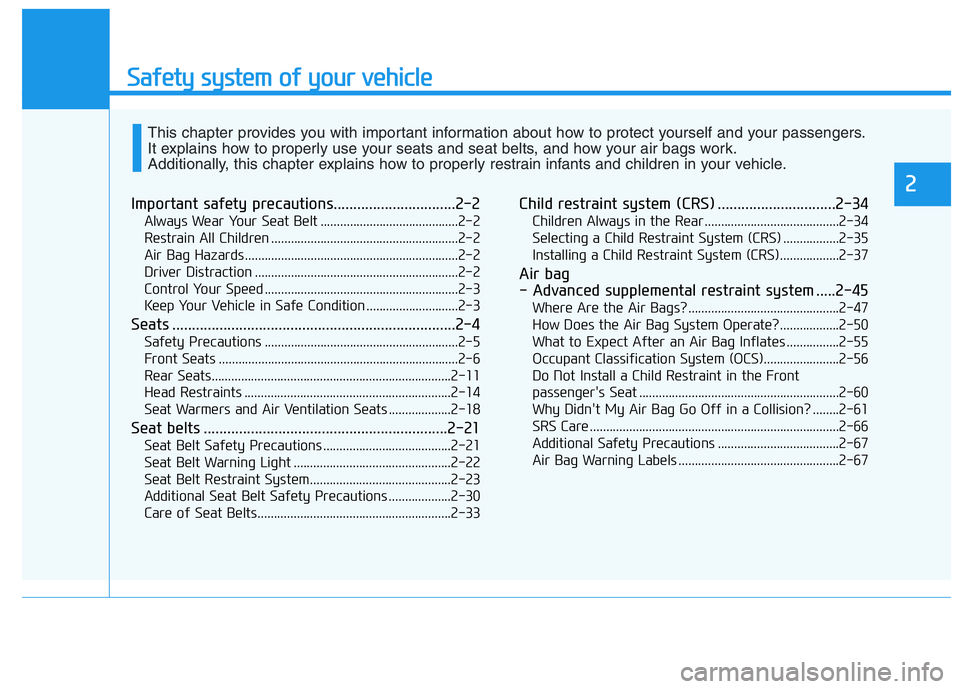

Safety system of your vehicle
Important safety precautions...............................2-2
Always Wear Your Seat Belt ..........................................2-2
Restrain All Children .........................................................2-2
Air Bag Hazards .................................................................2-2
Driver Distraction ..............................................................2-2
Control Your Speed ...........................................................2-3
Keep Your Vehicle in Safe Condition ............................2-3
Seats ........................................................................2-4
Safety Precautions ...........................................................2-5
Front Seats .........................................................................2-6
Rear Seats.........................................................................2-11
Head Restraints ...............................................................2-14
Seat Warmers and Air Ventilation Seats ...................2-18
Seat belts ..............................................................2-21
Seat Belt Safety Precautions .......................................2-21
Seat Belt Warning Light ................................................2-22
Seat Belt Restraint System...........................................2-23
Additional Seat Belt Safety Precautions ...................2-30
Care of Seat Belts...........................................................2-33
Child restraint system (CRS) ..............................2-34
Children Always in the Rear .........................................2-34
Selecting a Child Restraint System (CRS) .................2-35
Installing a Child Restraint System (CRS)..................2-37
Air bag
- Advanced supplemental restraint system .....2-45
Where Are the Air Bags? ..............................................2-47
How Does the Air Bag System Operate?..................2-50
What to Expect After an Air Bag Inflates ................2-55
Occupant Classification System (OCS).......................2-56
Do Not Install a Child Restraint in the Front
passenger's Seat .............................................................2-60
Why Didn't My Air Bag Go Off in a Collision? ........2-61
SRS Care ............................................................................2-66
Additional Safety Precautions .....................................2-67
Air Bag Warning Labels .................................................2-67
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2

2-2

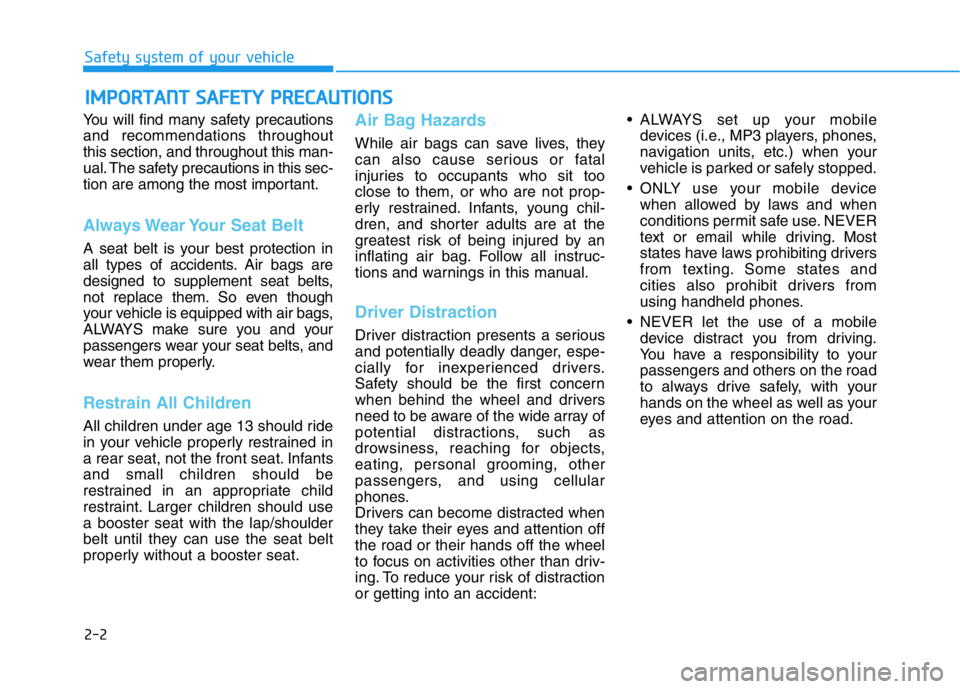

You will find many safety precautions
and recommendations throughout
this section, and throughout this man-
ual. The safety precautions in this sec-
tion are among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in
all types of accidents. Air bags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with air bags,
ALWAYS make sure you and your
passengers wear your seat belts, and
wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in
a rear seat, not the front seat. Infants
and small children should be
restrained in an appropriate child
restraint. Larger children should use
a booster seat with the lap/shoulder
belt until they can use the seat belt
properly without a booster seat.
Air Bag Hazards
While air bags can save lives, they
can also cause serious or fatal
injuries to occupants who sit too
close to them, or who are not prop-
erly restrained. Infants, young chil-
dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc-
tions and warnings in this manual.
Driver Distraction
Driver distraction presents a serious
and potentially deadly danger, espe-
cially for inexperienced drivers.
Safety should be the first concern
when behind the wheel and drivers
need to be aware of the wide array of
potential distractions, such as
drowsiness, reaching for objects,
eating, personal grooming, other
passengers, and using cellular
phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel
to focus on activities other than driv-
ing. To reduce your risk of distraction
or getting into an accident:• ALWAYS set up your mobile
devices (i.e., MP3 players, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.
• ONLY use your mobile device
when allowed by laws and when
conditions permit safe use. NEVER
text or email while driving. Most
states have laws prohibiting drivers
from texting. Some states and
cities also prohibit drivers from
using handheld phones.
• NEVER let the use of a mobile
device distract you from driving.
You have a responsibility to your
passengers and others on the road
to always drive safely, with your
hands on the wheel as well as your
eyes and attention on the road.
IMPORTANT SAFETY PRECAUTIONS
Safety system of your vehicle
