HYUNDAI GENESIS G70 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: GENESIS G70, Model: HYUNDAI GENESIS G70 2022Pages: 530, PDF Size: 14.67 MB
Page 131 of 530
5
Exterior Features ............................................................................................. 5-63Hood ............................................................................................................................5-63
Trunk ........................................................................................................................... 5-64
Smart Trunk ............................................................................................................... 5-66
Fuel Filler Door .......................................................................................................... 5-68
Head-Up Display (HUD)................................................................................... 5-71Head-Up Display Settings .......................................................................................... 5-71
Head-Up Display Information .................................................................................... 5-71
Precautions While Using the Head-Up Display ........................................................ 5-72
Lighting .............................................................................................................5-73Exterior Lights ............................................................................................................ 5-73
Puddle Lamp ............................................................................................................... 5-77
Welcome System ........................................................................................................ 5-78
High Beam Assist (HBA) ..................................................................................5-79High Beam Assist Settings ......................................................................................... 5-79
High Beam Assist Operation ..................................................................................... 5-80
High Beam Assist Malfunction and Limitations ...................................................... 5-80
Interior Lights .................................................................................................. 5-82Interior Lamp AUTO cut .............................................................................................5-82
Front Lamps ................................................................................................................5-82
Rear Lamps .................................................................................................................5-83
Vanity Mirror Lamp .....................................................................................................5-83
Glove Box Lamp ........................................................................................................ 5-84
Foot Lamp .................................................................................................................. 5-84
Trunk Lamp ................................................................................................................ 5-84
Wipers and Washers ....................................................................................... 5-85Front Windshield Wipers ...........................................................................................5-85
Windshield Washers ................................................................................................... 5-87
Automatic climate control system ................................................................ 5-88Automatic Heating and Air Conditioning ................................................................ 5-90
Manual Heating and Air Conditioning ...................................................................... 5-91
System Operation ........................................................................................... 5-98System Maintenance ................................................................................................ 5-99
Windshield Defrosting and Defogging ......................................................... 5-101To Defog Inside Windshield ...................................................................................... 5-101
To Defrost Inside Windshield ................................................................................... 5-102
Defogging Logic ....................................................................................................... 5-102
Rear Window Defroster............................................................................................ 5-103
Page 132 of 530
5
Climate Control Additional Features ............................................................5-104Auto Defogging System ........................................................................................... 5-104
Automatic Ventilation ............................................................................................. 5-105
Recirculating Air when Washer Fluid is Used ......................................................... 5-106
Sunroof Inside Air Recirculation .............................................................................. 5-106
Storage Compartment ................................................................................... 5-107Center Console Storage ............................................................................................5-107
Glove Box .................................................................................................................. 5-108
Sunglass Holder ....................................................................................................... 5-108
Interior Features .............................................................................................5-109Cup Holder ................................................................................................................ 5-109
Sunvisor ..................................................................................................................... 5-110
Power Outlet .............................................................................................................. 5-110
USB Charger ............................................................................................................... 5-111
Wireless Smart Phone Charging System ................................................................. 5-112
Clock .......................................................................................................................... 5-115
Coat Hook .................................................................................................................. 5-115
Floor Mat Anchor(s) ................................................................................................... 5-115
Luggage Net Holder .................................................................................................. 5-116
Infotainment System ...................................................................................... 5-117USB Port ..................................................................................................................... 5-117
Antenna ...................................................................................................................... 5-117
Steering Wheel Remote Controls ............................................................................. 5-118
Infotainment System ................................................................................................. 5-118
Voice Recognition ..................................................................................................... 5-118
Bluetooth® Wireless Technology .............................................................................. 5-119
Lexicon Premium Sound System ............................................................................. 5-119
5. Convenient Features
Page 133 of 530
Convenient Features
5-4
Smart Key
ORG3050005
Your Genesis Branded Vehicle uses a
Smart Key, which you can use to lock or
unlock the driver/passenger doors and
open the rear trunk.
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
5. Remote start
6. Lamp on
Locking your vehicle
OIK050096
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
trunk are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked by
pulling the door handle.
[ When the vehicle is locked by
using the touch sensor, the unlock
sensor of door outside handle is not
operated for around 3seconds.
Information
[ The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
[ The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.
[ Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE
Page 134 of 530
05
5-5
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occurs:
[ The Smart Key is in the vehicle.
[ The Engine Start/Stop button is in
ACC or ON position.
[ Any of the doors are open except for
the trunk.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/ Stop button and may
operate power windows, lock the doors
or other controls, or even make the
vehicle move, which could result in
serious injury or death.
Unlocking your vehicle
(When the Two Press Unlock feature
is off)
OIK030097
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Put your hand in the door handle or
press the Door Unlock button (2) on
the smart key. All doors will unlock
and the hazard warning lights will
blink two times and the chime will
sound.
3. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.
[ When the vehicle is unlocked by using
the touch sensor, the lock sensor of
door outside handle is not operated
for around 2seconds.
Page 135 of 530
Convenient Features
5-6
Unlocking your vehicle
(When the Two Press Unlock feature
is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Put your hand in the door handle or
press the Door Unlock button (2) on
the smart key.
3. The driver’s door will unlock.
4. If you touch the door unlock sensor
inside of the front door handle to
unlock the doors within 4 seconds, all
of the doors unlock. When the doors
unlock, the hazard warning lights will
blink two times and the chime will
sound.
5. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.
[ The factory default setting is in
off mode so you should set in the
Settings menu in the infotainment
system screen.
[ When the vehicle is unlocked by using
the touch sensor, the lock sensor of
door outside handle is not operated
for around 2 seconds.Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6 H W X S
Page 136 of 530
05
5-7
Information
[ The side view mirror will unfold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
[ The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7 ~1 m) from the outside
door handle
[ The doors may lock or unlock if the
touch sensor of the outer door handle is
recognized while washing your car or
due to heavy rain.
[ To prevent unintentional door lock or
unlock:
You may prevent the doors from
locking or unlocking unintentionally.
Press the lock button on the smart
key and immediately press the unlock
button along with the lock button
for more than 4 seconds. The hazard
warning lights will blink four times.
At this time, the doors will not lock or
unlock even though the touch sensor is
touched on the outside door handle.
To deactivate the function, press the
door lock or unlock button on the
smart key.
[ The doors may not lock or unlock in
the following situations.
-If the touch sensor is touched with
gloves on
-If the door is suddenly approached
Opening the trunk
OIK050001
To open the trunk:
1. Make sure you have the smart key in
your possession.
2. Press either the trunk open button
on the vehicle or press and hold the
Trunk Unlock button (3) on the smart
key for more than one second. The
hazard warning lights will blink two
times and the trunk will open.
Information
The trunk open button will only operate
when the smart key is within
28 in. (0.7 m) from the trunk.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Page 137 of 530
Convenient Features
5-8
Remotely starting vehicle
You can start the vehicle using the
Remote Start button (5) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the
smart key within 32 feet (10 m) from
the vehicle.
2. Press the Remote Start button (5) for
more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The hazard warning lights will blink
and the engine will start.
4. To turn off the remote start function,
press the Remote Start button (5)
once.
Information
[ The vehicle must be in P (Park) for the
remote start function to start.
[ The engine turns off if you enter the
vehicle without a registered smart key.
[ The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.
[ The Remote Start button (5) may not
operate if the smart key is not within
32 feet (10 m).
[ The vehicle will not remotely start if the
engine hood or trunk is opened.
[ Do not idle the engine for a long period.
[ Do not operate remote start in closed
areas where there is no adequate
ventilation for the engine exhaust.
Turning on the lamps
If the lamp on button (6) is pushed, the
headlamps and tail lamps are turned
on. However, it works only when the
following conditions are satisfied:
[ The vehicle is turned off.
[ The doors are locked.
[ The light control switch is in the AUTO
headlamp position (The headlamps
and tail lamps will turn on when it is
dark.) or in the Headlamp position.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
[ Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
[ Avoid dropping or throwing the
smart key.
[ Protect the smart key from extreme
temperatures.
Page 138 of 530
05
5-9

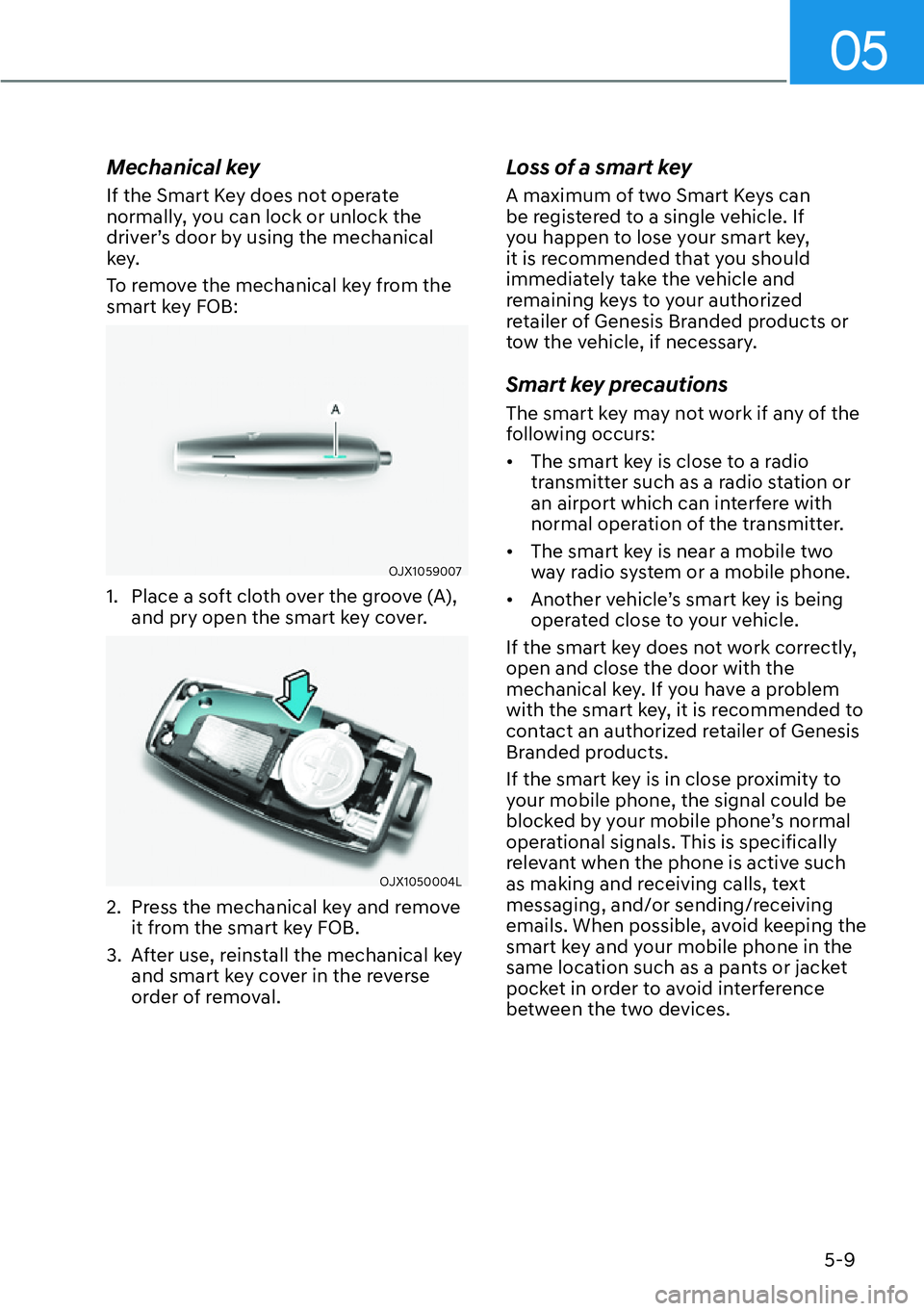

Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key FOB:
OJX1059007
1. Place a soft cloth over the groove (A),
and pry open the smart key cover.
OJX1050004L
2. Press the mechanical key and remove
it from the smart key FOB.
3. After use, reinstall the mechanical key
and smart key cover in the reverse
order of removal.
Loss of a smart key
A maximum of two Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
it is recommended that you should
immediately take the vehicle and
remaining keys to your authorized
retailer of Genesis Branded products or
tow the vehicle, if necessary.
Smart key precautions
The smart key may not work if any of the
following occurs:
[ The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
[ The smart key is near a mobile two
way radio system or a mobile phone.
[ Another vehicle’s smart key is being
operated close to your vehicle.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, it is recommended to
contact an authorized retailer of Genesis
Branded products.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the
same location such as a pants or jacket
pocket in order to avoid interference
between the two devices.
Page 139 of 530
Convenient Features
5-10

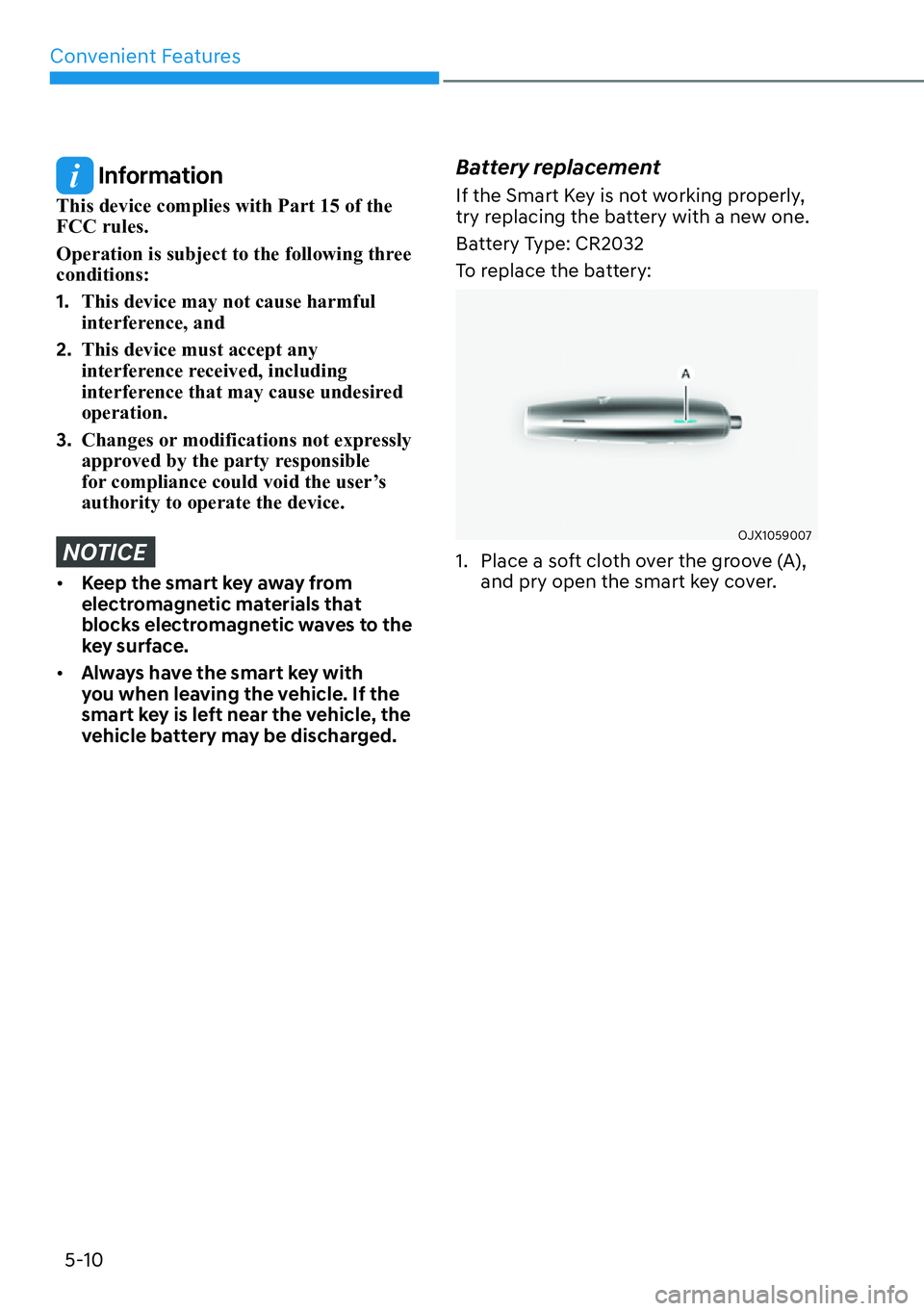

Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
NOTICE
[ Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves to the
key surface.
[ Always have the smart key with
you when leaving the vehicle. If the
smart key is left near the vehicle, the
vehicle battery may be discharged.
Battery replacement
If the Smart Key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
OJX1059007
1. Place a soft cloth over the groove (A),
and pry open the smart key cover.
Page 140 of 530
05
5-11
OJX1059008
2. Remove battery cover using a phillips
screwdriver.
3. Remove the old battery and insert the
new battery. Make sure the battery
position is correct.
4. Reinstall the battery cover and smart
key cover in the reverse order of
removal.
If you suspect your smart key might have
sustained some damage, or you feel
your smart key is not working correctly,
it is recommended that you contact an
authorized retailer of Genesis Branded
products.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Restrictions in handling keys
OIK050070L
When leaving keys with parking lot
and valet attendants, the following
procedures will ensure your vehicle’s
glove box compartment can only be
opened with the mechanical key.
To lock:
1. Remove the mechanical key from the
Smart Key.
2. Lock the glove box using the
mechanical key.
3. Leave the smart key with the
attendant and keep the mechanical
key with you.
The Smart Key can only be used to start
the engine and operate door locks.
To unlock:
Open the glove box with the mechanical
key.
