HYUNDAI GENESIS G70 2022 Owners Manual

Convenient Features
5-42
2) Programming a New HomeLink®
OIK040418N
1. Press and release the HomeLink
button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
+RPH/LQN%XWWRQV
VVHFWLRQDQGVWDUW
over).
OIK040441N
2. Position the garage door opener
remote 1 – 3 inches (2 – 8cm) away
from the HomeLink buttons.
3. While the HomeLink indicator light (7)
is flashing orange, press and hold the
hand-held remote button. Continue
pressing the handheld remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the handheld
remote button.4. Wait until your garage door comes
to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press and release the HomeLink
button you are programming and
observe the indicator light.

[If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.

[If the indicator light rapidly
flashes green, firmly press, hold
for two seconds and release the
HomeLink button up to three times
in a row slowly to complete the
programming process. Do not press
the HomeLink button rapidly. At
this point if your device operates,
programming is complete. If the
device does not operate, continue
with step 6.
6. At the garage door opener motor,
(security gate motor, etc.) locate the
"Learn", "Smart", "Set" or "Program"
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device's manual to identify this
button). The name and color of the
button may vary by manufacturer.

05
5-43
ODL3A040504
ÃA ladder and/or second person may
simplify the following steps.
7. Firmly press and release the "Learn",
"Smart", "Set" or "Program" button.
You now have up to 30 seconds in
which to complete the next step.
8. Return to the vehicle and firmly press,
hold for two seconds and release,
the HomeLink button up to three
times in a row slowly. Do not press
the HomeLink button rapidly. As soon
as you see the garage door start to
move, stop pressing any buttons
until a few seconds after the garage
door has come to a complete stop,
regardless of position. At this point,
programming is complete and your
device should operate when the
HomeLink button is pressed and
released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the
'myQ' logo on its side, your opener
likely has Two-Way Communication
capability. HomeLink has the capability
to establish Two-Way Communication
with your garage door opener. HomeLink
can receive and display "closing"
or "opening" status messages from
compatible garage door openers. At
any time, Home-Link can also recall
and display the last recorded status
communicated by the garage door
opener to indicate your garage door
being "closed" or "opened".
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/ Two-
way-Communication. If your garage
door opener has this functionality, AND
the Two-Way Communication indicators
(4), (6) in the mirror appear while the
garage door is opening/closing, then
no further steps are needed. Two-Way
Communication Programming is already
complete.
However, if your garage door opener
has this functionality, AND the Two-
Way Communication indicators (4), (6)
in the mirror DO NOT appear while the
garage door is opening/closing, use
the following instructions to enable this
functionality.

Convenient Features
5-44
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that
the garage door is moving. AFTER it
stops, you will have one minute to
complete the following steps:
ÃA ladder and/or second person may
simplify the following steps.
2. On your garage door opener in your
garage, locate the "Learn" button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device's owner's manual.
3. Press and release the "Learn" button.
4. A light on your garage door opener
may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly
press and release the programmed
HomeLink button to activate
your garage door. The Two-Way
Communication indicators (4), (6)
flash in orange when the door is
moving. Do not make any additional
button presses until AFTER the garage
door has come to a complete stop.
6. Your Two-Way Communication
programming is now complete.
Information
If your garage door opener has Two-
:D\&RPPXQLFDWLRQIXQFWLRQDOLW\
it is possible for HomeLink to stop
functioning the garage door shortly
after initial programming, IF the Two-
:D\&RPPXQLFDWLRQ3URJUDPPLQJ
wasn’t properly completed. This
usually happens after the first 10 times
a programmed HomeLink button is
pressed. If you experience this, completing
the "Programming a New HomeLink
%XWWRQDQG7ZR:D\&RPPXQLFDWLRQ
Programming" will restore door
operation.
4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to "time-
out" (or quit) after a couple seconds of
transmission, which may not be long
enough for HomeLink to pick up the signal
during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
programming procedures, replace
"Programming a New HomeLink Button"
step 3 with the following:
While the HomeLink indicator light (7) is
flashing orange, press and release ("cycle")
your device's handheld remote every two
seconds until the HomeLink indicator light
(7) changes from orange to green. You may
now release the hand-held remote button.
Then proceed with "Programming a New
HomeLink Button" step 4.
2. Operating HomeLinkŠ
1) Operating HomeLink®
OIK040418N
1. Press and release the desired
programmed HomeLink button (1, 2
or 3).

05
5-45
Information
The HomeLink indicator (7) should
light green, solid or flashing, and your
programmed device should operate.
If your device does not operate, the
HomeLink programming was not
successful, and you'll need to reprogram
the button.
2) Two-Way Communication Display
Behavior
OIK047421N
1. Press and release one of the
programmed HomeLink buttons (1, 2
or 3).
OIK040422N
2. The indicator (4) and (6) operates as
below, if your garage door opener
has Two-Way Communication
functionality.
[If the indicator (4) flashes in Orange,
it indicates that the garage door is
"Closing".

[The indicator (4) turns solid green
once the garage door has closed.

[If the indicator (6) flashes in Orange,
it indicates that the garage door is
"Opening".

[The indicator (6) turns solid green
once the garage door has fully
opened.

[If the indicator (4) or (6) does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons "1 and 2" OR "2 and 3"
simultaneously.

[If the indicator (4) appears solid
Green, it indicates that the last
activated device was "closed"
properly.

[If the indicator (6) appears solid
Green, it indicates that the last
activated device was "open" properly.

Convenient Features
5-46

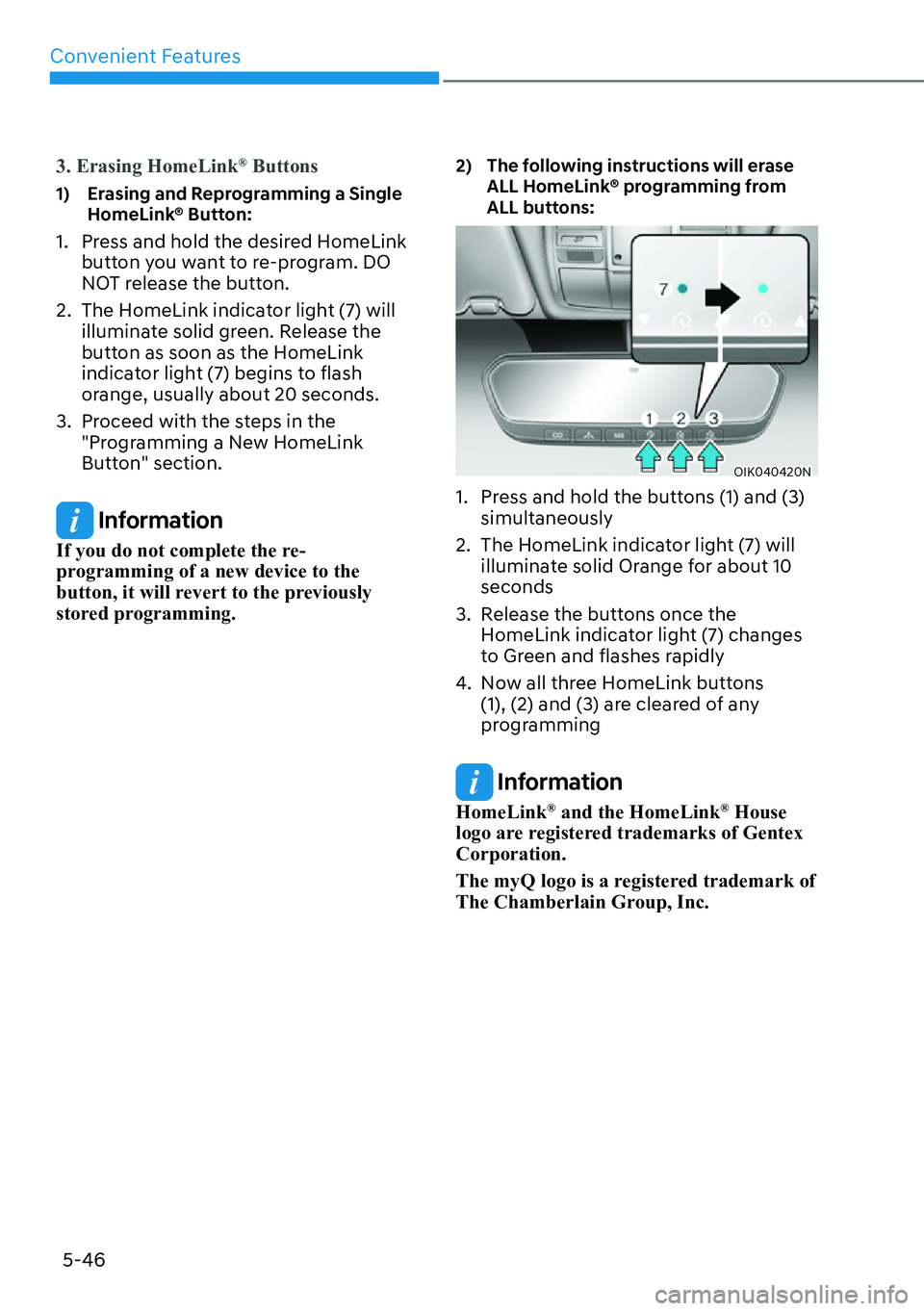

3. Erasing HomeLinkŠ Buttons
1) Erasing and Reprogramming a Single
HomeLink® Button:
1. Press and hold the desired HomeLink
button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light (7) will
illuminate solid green. Release the
button as soon as the HomeLink
indicator light (7) begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the
"Programming a New HomeLink
Button" section.
Information
If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.
2) The following instructions will erase
ALL HomeLink® programming from
ALL buttons:
2,.
ž
˜
ž
˜
–
ž1
1. Press and hold the buttons (1) and (3)
simultaneously
2. The HomeLink indicator light (7) will
illuminate solid Orange for about 10
seconds
3. Release the buttons once the
HomeLink indicator light (7) changes
to Green and flashes rapidly
4. Now all three HomeLink buttons
(1), (2) and (3) are cleared of any
programming
Information
HomeLinkŠ and the HomeLinkŠ House
logo are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.

05
5-47

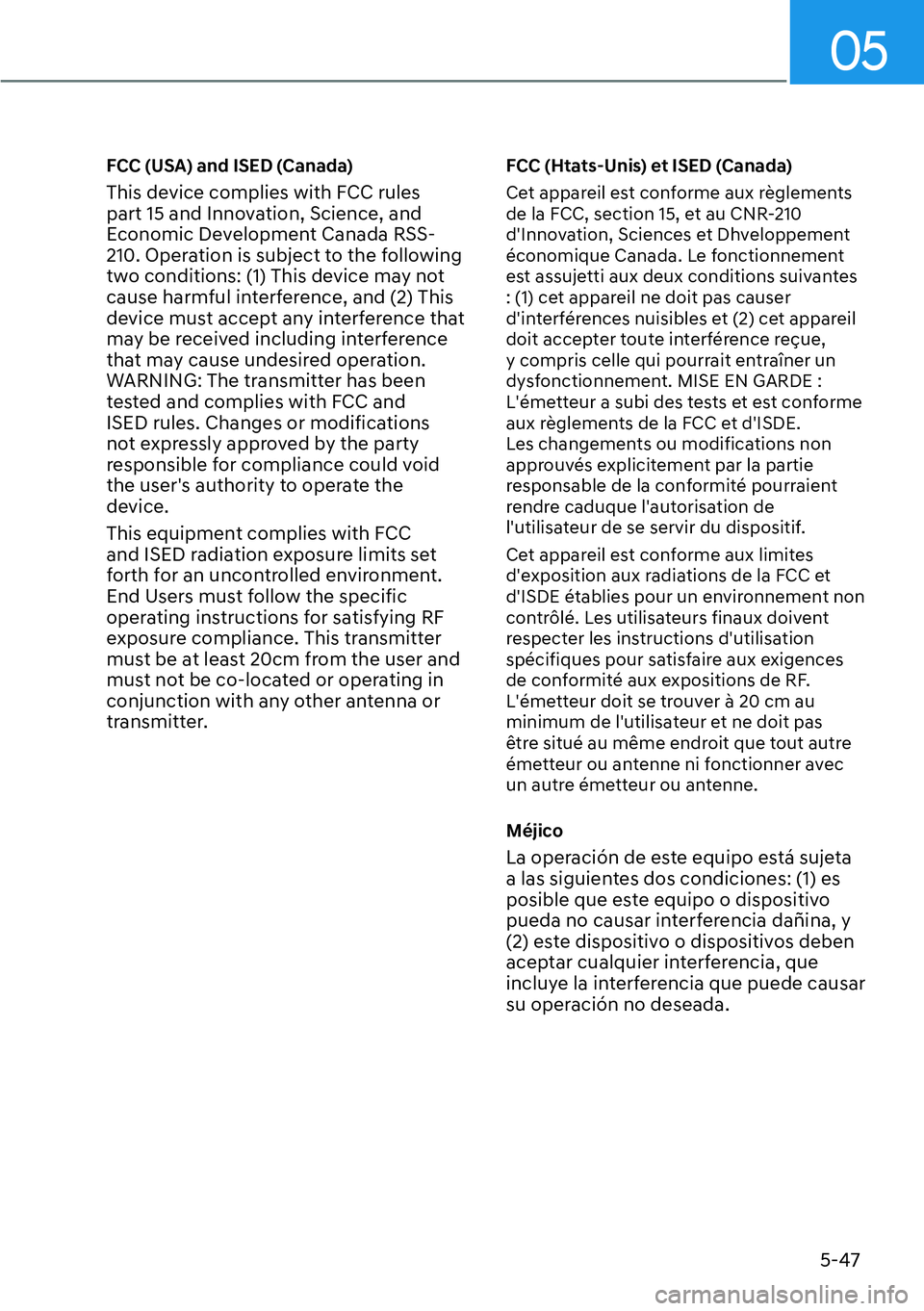

FCC (USA) and ISED (Canada)
This device complies with FCC rules
part 15 and Innovation, Science, and
Economic Development Canada RSS-
210. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference that
may be received including interference
that may cause undesired operation.
WARNING: The transmitter has been
tested and complies with FCC and
ISED rules. Changes or modifications
not expressly approved by the party
responsible for compliance could void
the user's authority to operate the
device.
This equipment complies with FCC
and ISED radiation exposure limits set
forth for an uncontrolled environment.
End Users must follow the specific
operating instructions for satisfying RF
exposure compliance. This transmitter
must be at least 20cm from the user and
must not be co-located or operating in
conjunction with any other antenna or
transmitter.
FCC (Htats-Unis) et ISED (Canada)
Cet appareil est conforme aux règlements
de la FCC, section 15, et au CNR-210
d'Innovation, Sciences et Dhveloppement
économique Canada. Le fonctionnement
est assujetti aux deux conditions suivantes
: (1) cet appareil ne doit pas causer
d'interférences nuisibles et (2) cet appareil
doit accepter toute interférence reçue,
y compris celle qui pourrait entraîner un
dysfonctionnement. MISE EN GARDE :
L'émetteur a subi des tests et est conforme
aux règlements de la FCC et d'ISDE.
Les changements ou modifications non
approuvés explicitement par la partie
responsable de la conformité pourraient
rendre caduque l'autorisation de
l'utilisateur de se servir du dispositif.
Cet appareil est conforme aux limites
d'exposition aux radiations de la FCC et
d'ISDE établies pour un environnement non
contrôlé. Les utilisateurs finaux doivent
respecter les instructions d'utilisation
spécifiques pour satisfaire aux exigences
de conformité aux expositions de RF.
L'émetteur doit se trouver à 20 cm au
minimum de l'utilisateur et ne doit pas
être situé au même endroit que tout autre
émetteur ou antenne ni fonctionner avec
un autre émetteur ou antenne.
Méjico
La operación de este equipo está sujeta
a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo
pueda no causar interferencia dañina, y
(2) este dispositivo o dispositivos deben
aceptar cualquier interferencia, que
incluye la interferencia que puede causar
su operación no deseada.

Convenient Features
5-48

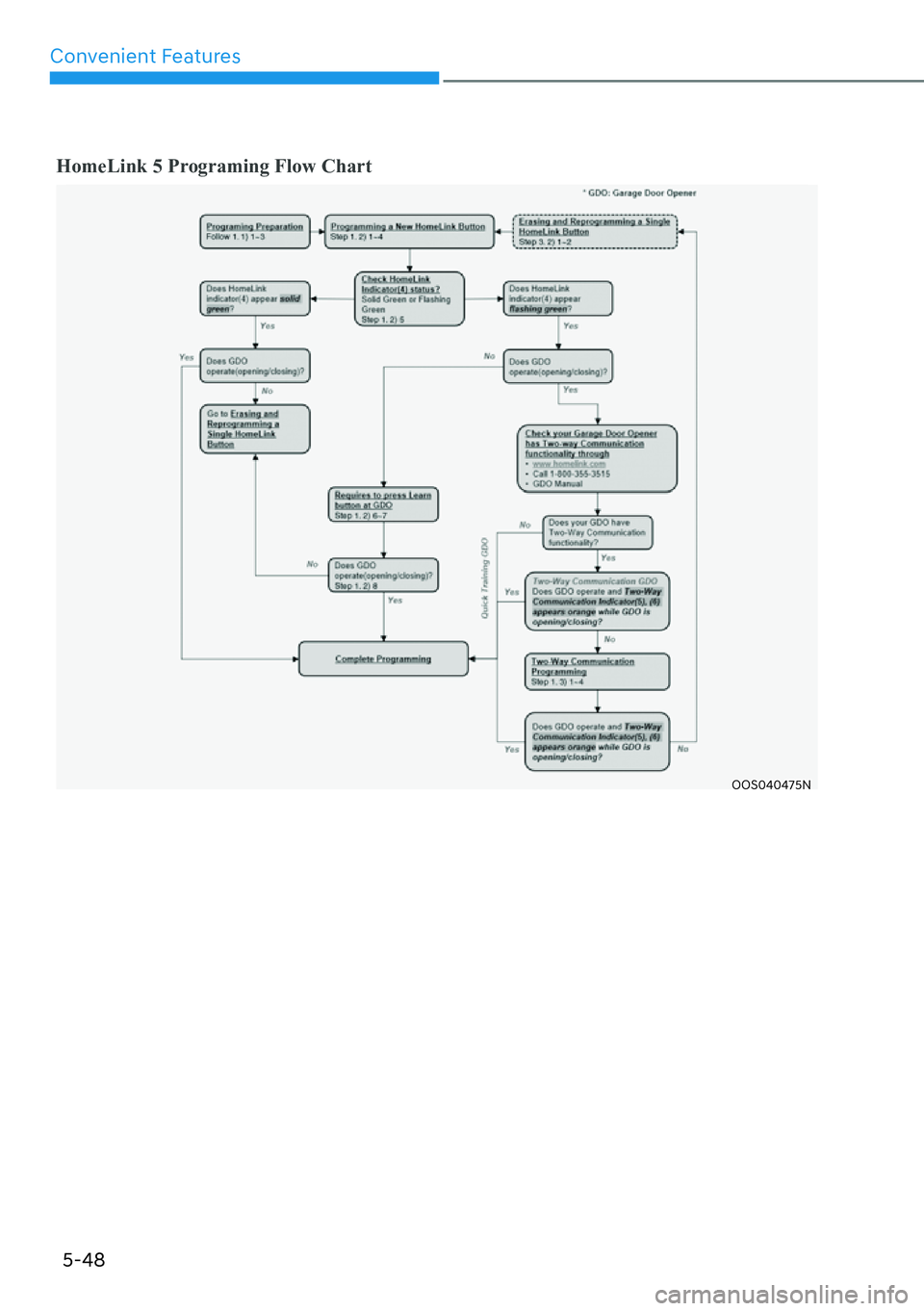

HomeLink 5 Programing Flow Chart
OOS040475N

05
5-49

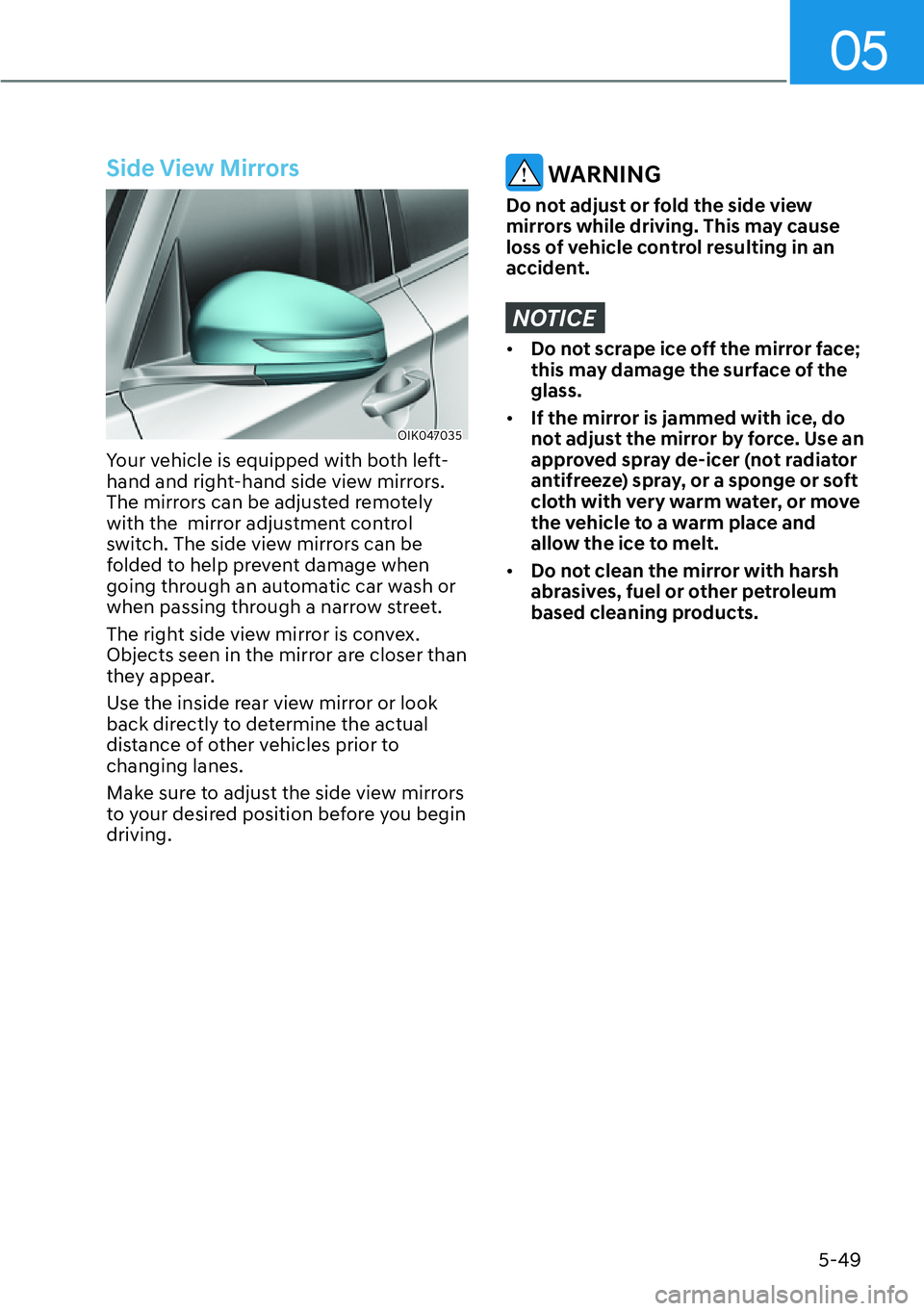

Side View Mirrors
OIK047035
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The side view mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Convenient Features
5-50

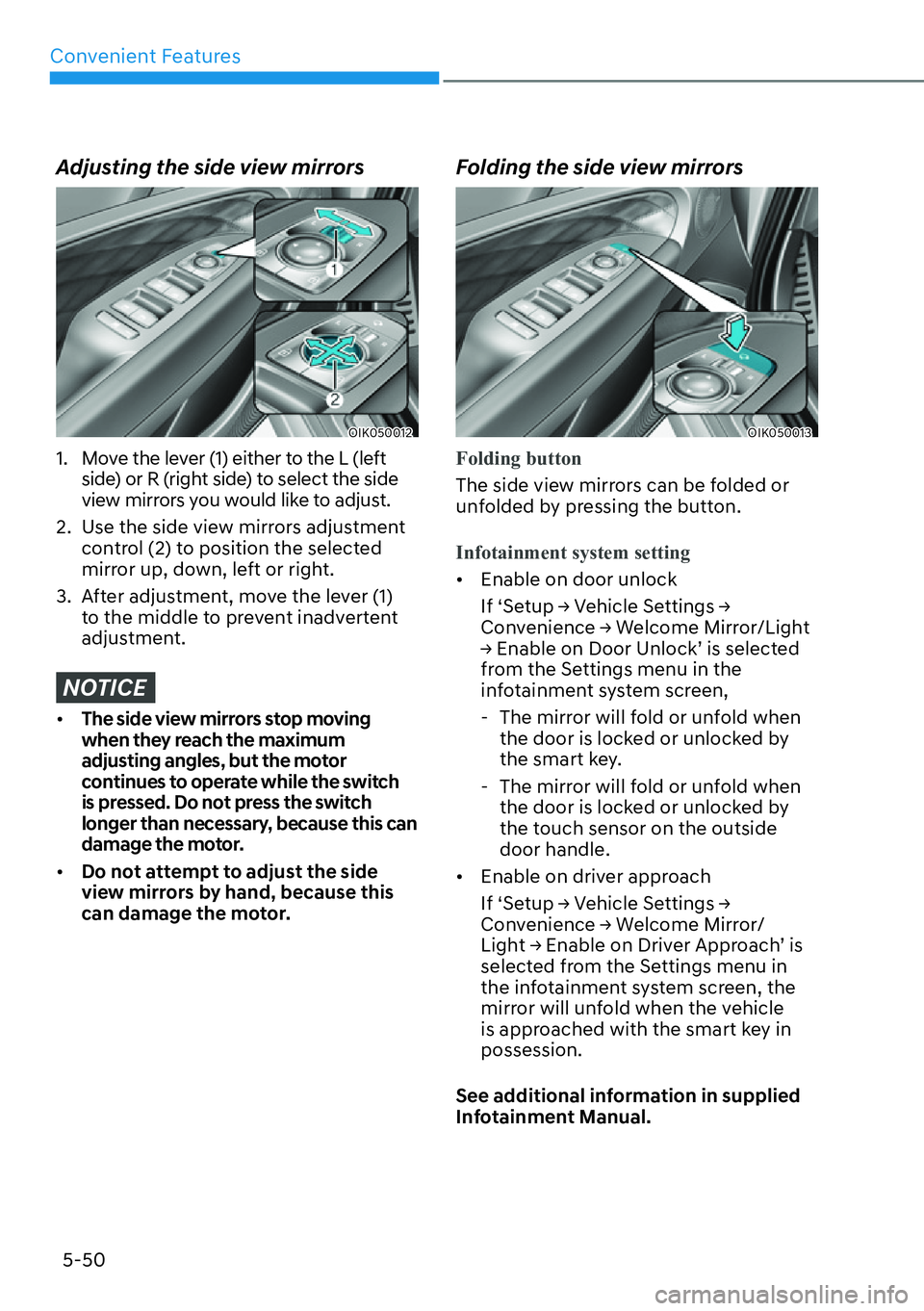

Adjusting the side view mirrors
OIK050012
1. Move the lever (1) either to the L (left
side) or R (right side) to select the side
view mirrors you would like to adjust.
2. Use the side view mirrors adjustment
control (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1)
to the middle to prevent inadvertent
adjustment.
NOTICE

[The side view mirrors stop moving
when they reach the maximum
adjusting angles, but the motor
continues to operate while the switch
is pressed. Do not press the switch
longer than necessary, because this can
damage the motor.

[Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OIK050013
Folding button
The side view mirrors can be folded or
unfolded by pressing the button.
Infotainment system setting

[Enable on door unlock
,I
S6HWXS

05
5-51
NOTICE
The electric type side view mirror
operates even though the Engine Start/
Stop button is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while the
engine is not running.
NOTICE
Do not fold the electric type side view
mirror by hand. It could cause motor
failure.
Reverse Parking Aid (if equipped)
OIK050014
OIK050075
When the gear is shifted to the R
(Reverse) position, the side view mirrors
will rotate downwards to aid with driving
in reverse.
The state of the side view mirrors switch
(1) determines whether or not the mirrors
will move:
How it works
Left/Right : When either the L (Left) or R
(Right) side is selected, both
side view mirrors will move.
Neutral : When neither side is selected,
the side view mirrors will not
move.
