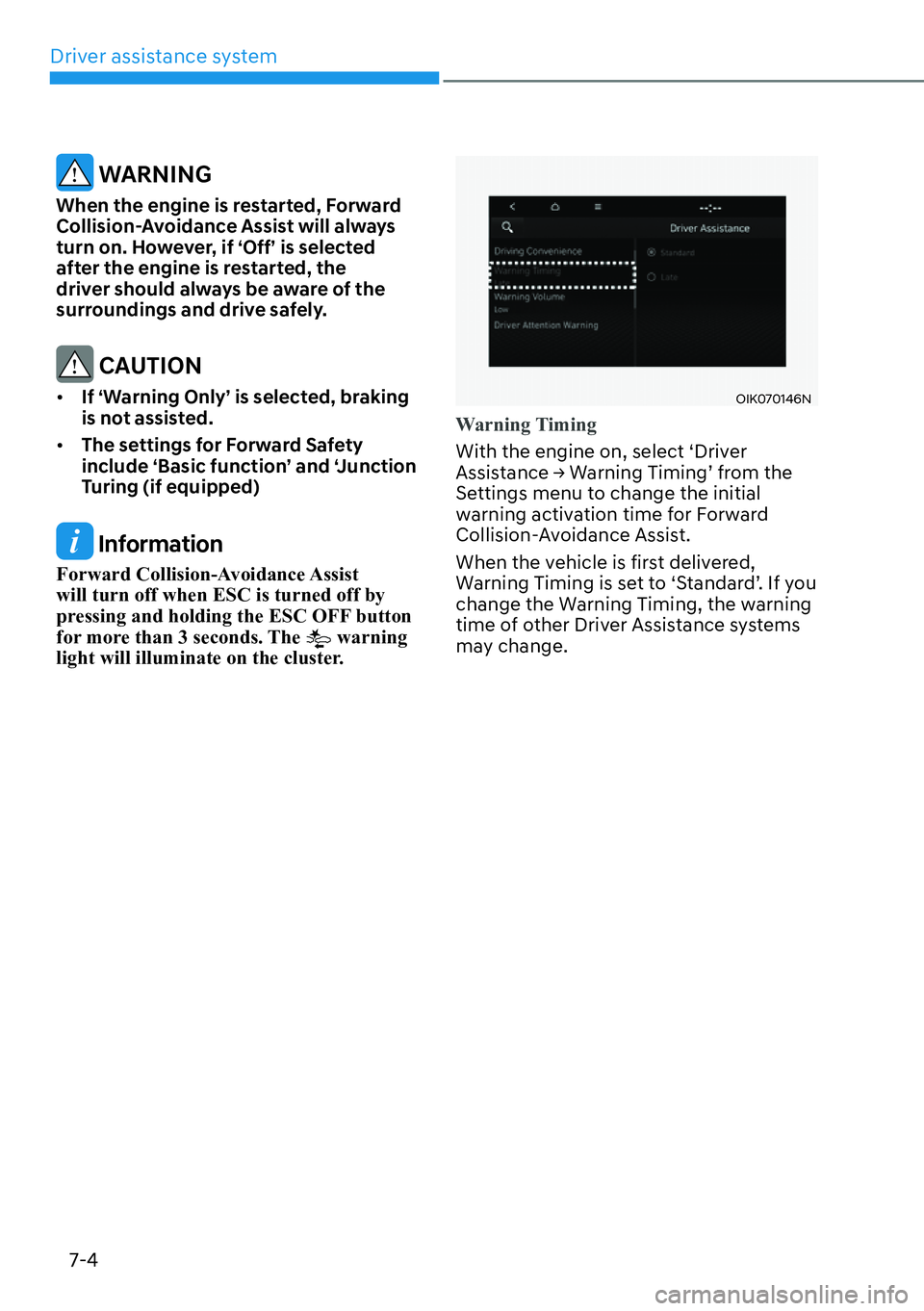

Page 313 of 530
Driver assistance system
7-4
WARNING
When the engine is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, if ‘Off’ is selected
after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.
CAUTION
[ If ‘Warning Only’ is selected, braking
is not assisted.
[ The settings for Forward Safety
include ‘Basic function’ and ‘Junction
Turing (if equipped)
Information
Forward Collision-Avoidance Assist
will turn off when ESC is turned off by
pressing and holding the ESC OFF button
for more than 3 seconds. The
warning
light will illuminate on the cluster.
OIK070146N
Warning Timing
With the engine on, select ‘Driver
$ V V L V W D Q F H

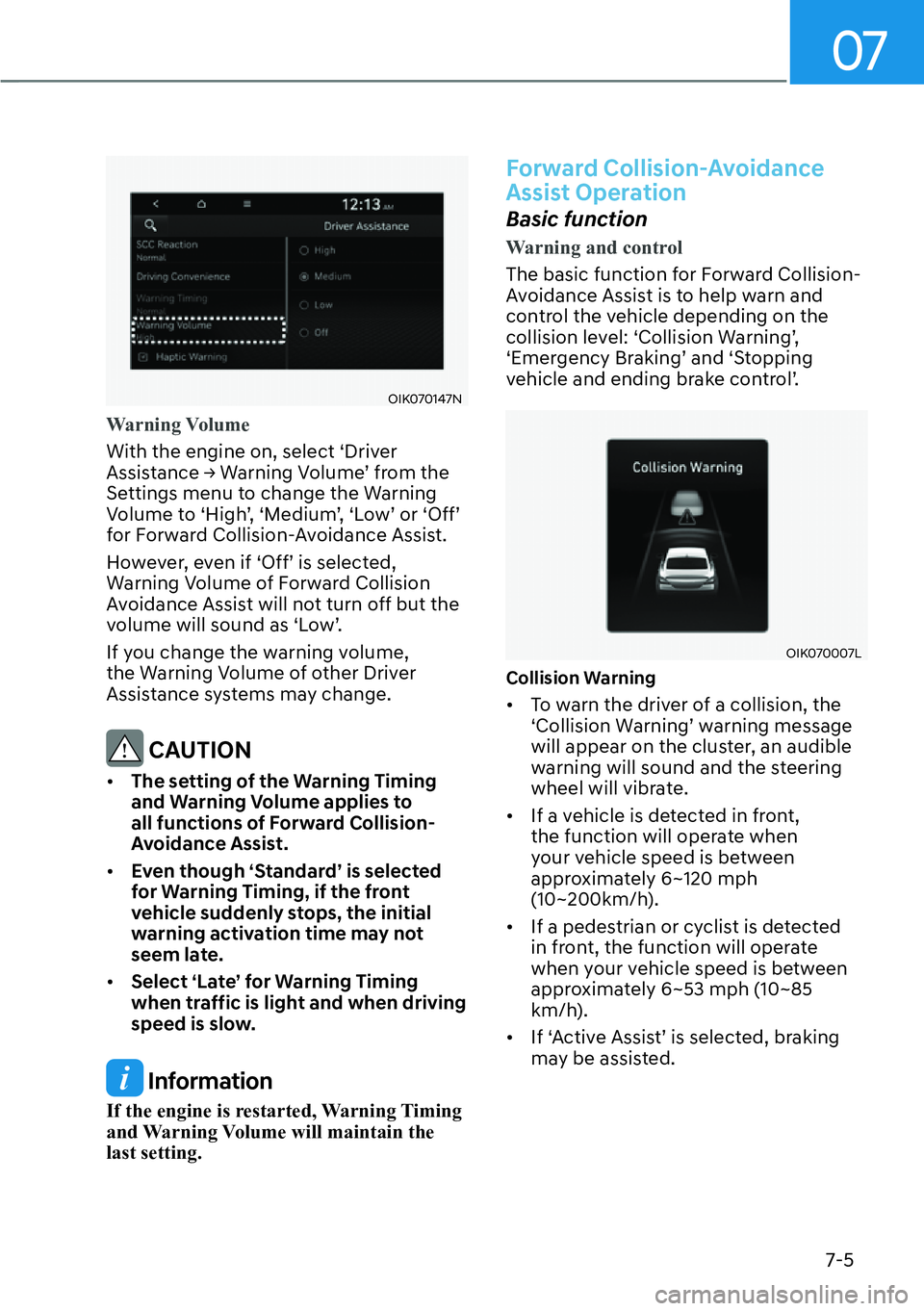

Page 314 of 530
07
7-5
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 319 of 530
Driver assistance system
7-10
Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
OTM070094N
When Forward Collision-Avoidance
Assist is not working properly, the ‘Check
) R U Z D U G 6 D I H W \ V \ V W H PT Z D U Q L Q J P H V V D J H
will appear, and the
and warning
lights will illuminate on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Forward Collision-Avoidance Assist
disabled
OTM070093NOTM070095N
When the front windshield where the
front view camera is located, front radar
cover or sensor is covered with foreign
material, such as snow or rain, it can
reduce the detecting performance and
temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
G L V D E O H G & D P H U D R E V F X U H GT R U W K H
‘Forward Safety system disabled. Radar
E O R F N H GT Z D U Q L Q J P H V V D J H D Q G W K H
and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate normally when such snow, rain
or foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate normally after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING
[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
[ Forward Collision-Avoidance Assist
may not properly operate in an
area (e.g. open terrain), where any
substance are not detected after
turning ON the engine.

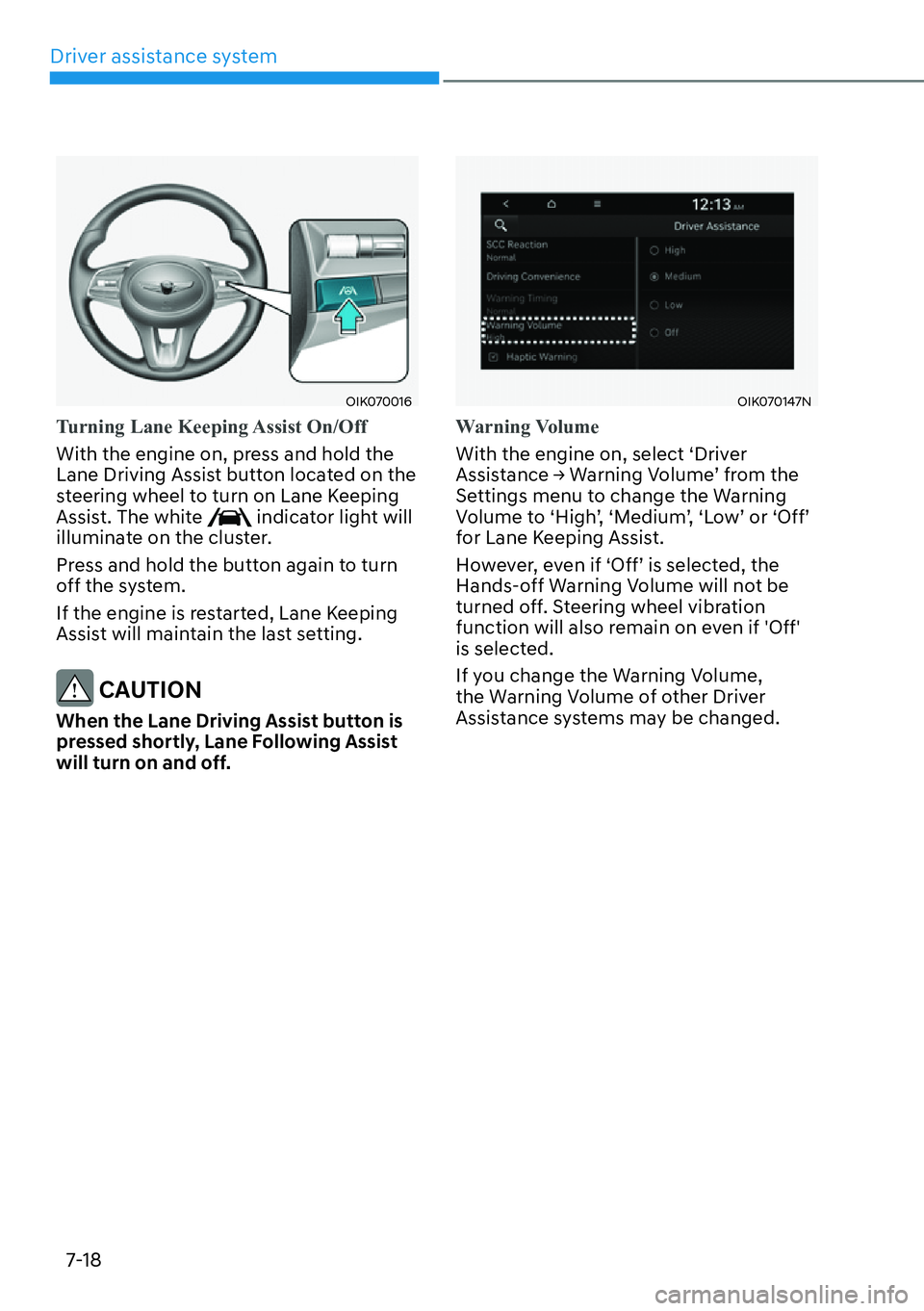

Page 327 of 530
Driver assistance system
7-18
OIK070016
Turning Lane Keeping Assist On/Off
With the engine on, press and hold the
Lane Driving Assist button located on the
steering wheel to turn on Lane Keeping
Assist. The white
indicator light will
illuminate on the cluster.
Press and hold the button again to turn
off the system.
If the engine is restarted, Lane Keeping
Assist will maintain the last setting.
CAUTION
When the Lane Driving Assist button is
pressed shortly, Lane Following Assist
will turn on and off.
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$ V V L V W D Q F H

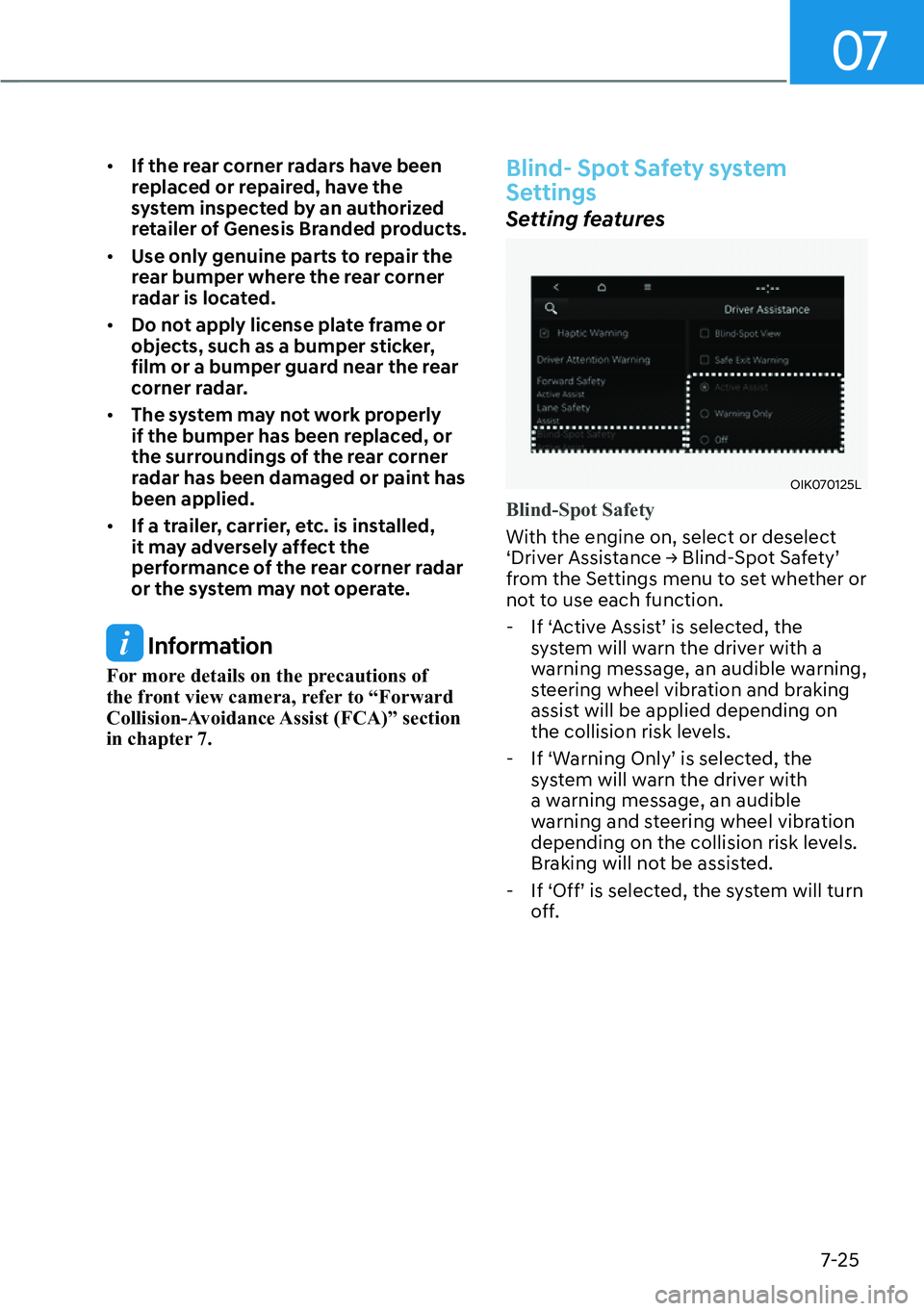

Page 334 of 530
07
7-25
[ If the rear corner radars have been
replaced or repaired, have the
system inspected by an authorized
retailer of Genesis Branded products.
[ Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.
[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.
[ The system may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar has been damaged or paint has
been applied.
[ If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
Blind- Spot Safety system
Settings
Setting features
OIK070125L
Blind-Spot Safety
With the engine on, select or deselect
S ' U L Y H U $ V V L V W D Q F H

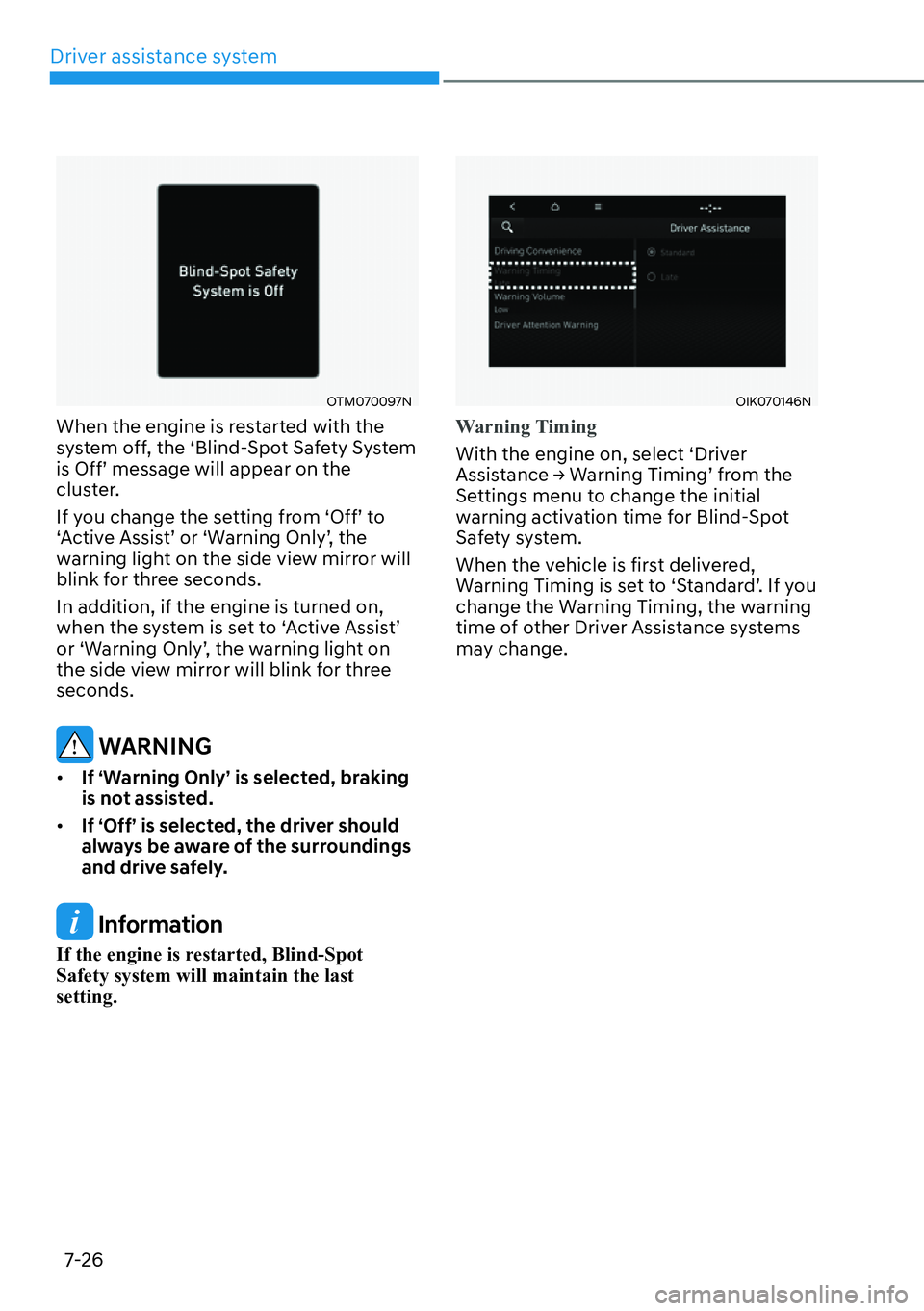

Page 335 of 530
Driver assistance system
7-26
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
L V 2 I IT P H V V D J H Z L O O D S S H D U R Q W K H
cluster.
, I \ R X F K D Q J H W K H V H W W L Q J I U R P S 2 I IT W R
S $ F W L Y H $ V V L V WT R U S : D U Q L Q J 2 Q O \T W K H
warning light on the side view mirror will
blink for three seconds.
In addition, if the engine is turned on,
Z K H Q W K H V \ V W H P L V V H W W R S $ F W L Y H $ V V L V WT
R U S : D U Q L Q J 2 Q O \T W K H Z D U Q L Q J O L J K W R Q
the side view mirror will blink for three
seconds.
WARNING
[ If ‘Warning Only’ is selected, braking
is not assisted.
[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OIK070146N
Warning Timing
With the engine on, select ‘Driver
$ V V L V W D Q F H

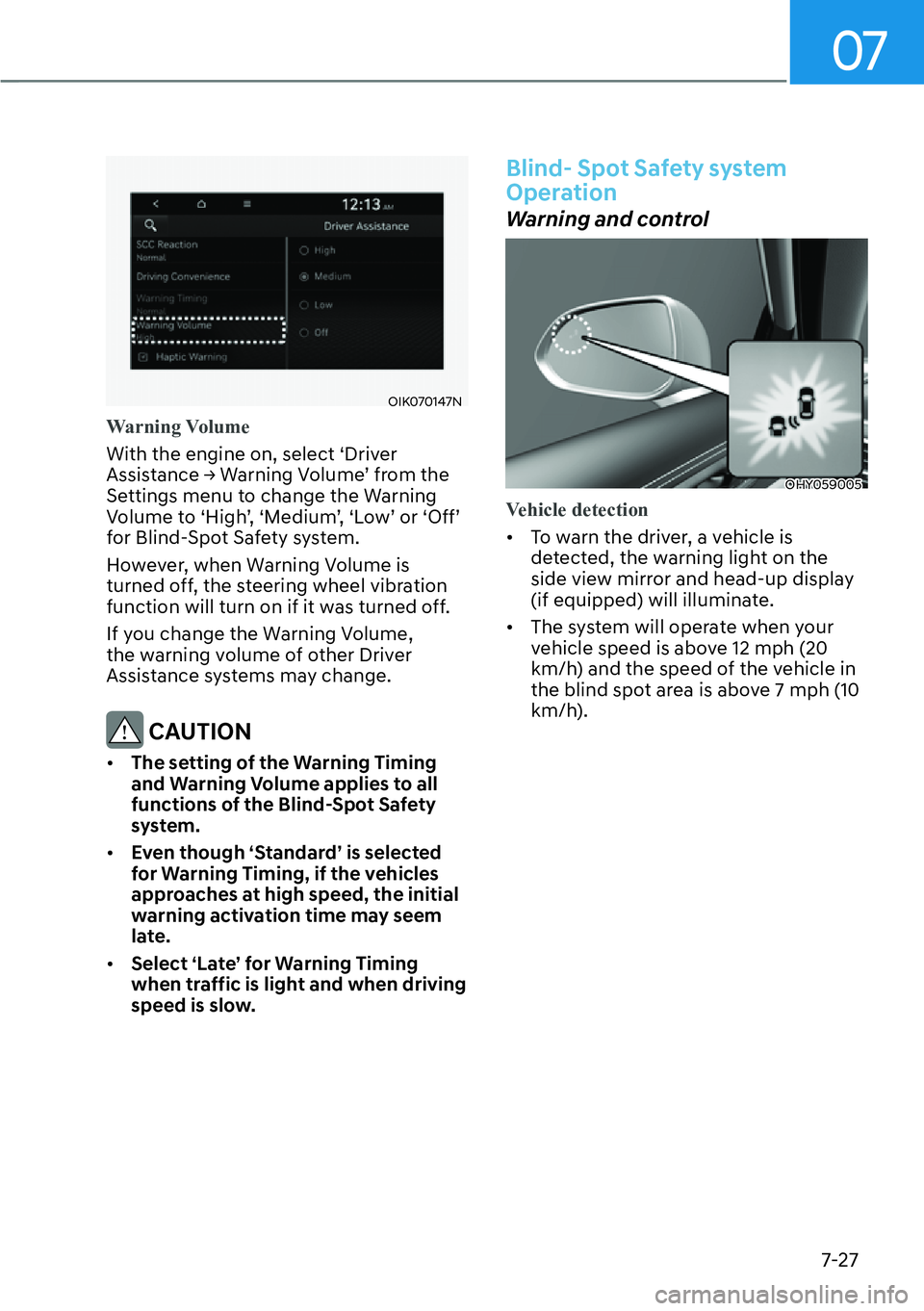

Page 336 of 530
07
7-27
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 341 of 530
Driver assistance system
7-32
Blind- Spot Safety system
Malfunction and Limitations
Blind- Spot Safety system
malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6 D I H W \ V \ V W H PT Z D U Q L Q J P H V V D J H Z L O O
appear on the cluster, and the system will
turn off automatically or the system will
be limited. Have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
V L G H Y L H Z P L U U R U Z D U Q L Q J O L J K WT Z D U Q L Q J
message will appear on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Blind- Spot Safety system disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V \ V W H P G L V D E O H G 5 D G D U E O R F N H GT Z D U Q L Q J
message will appear on the cluster.
The system will operate normally when
such foreign material or trailer, etc.
is removed, and then the engine is
restarted.
If the system does not operate normally
after it is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING
[ Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.
[ Blind-Spot Safety system may not
properly operate in an area (e.g. open
terrain) where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.

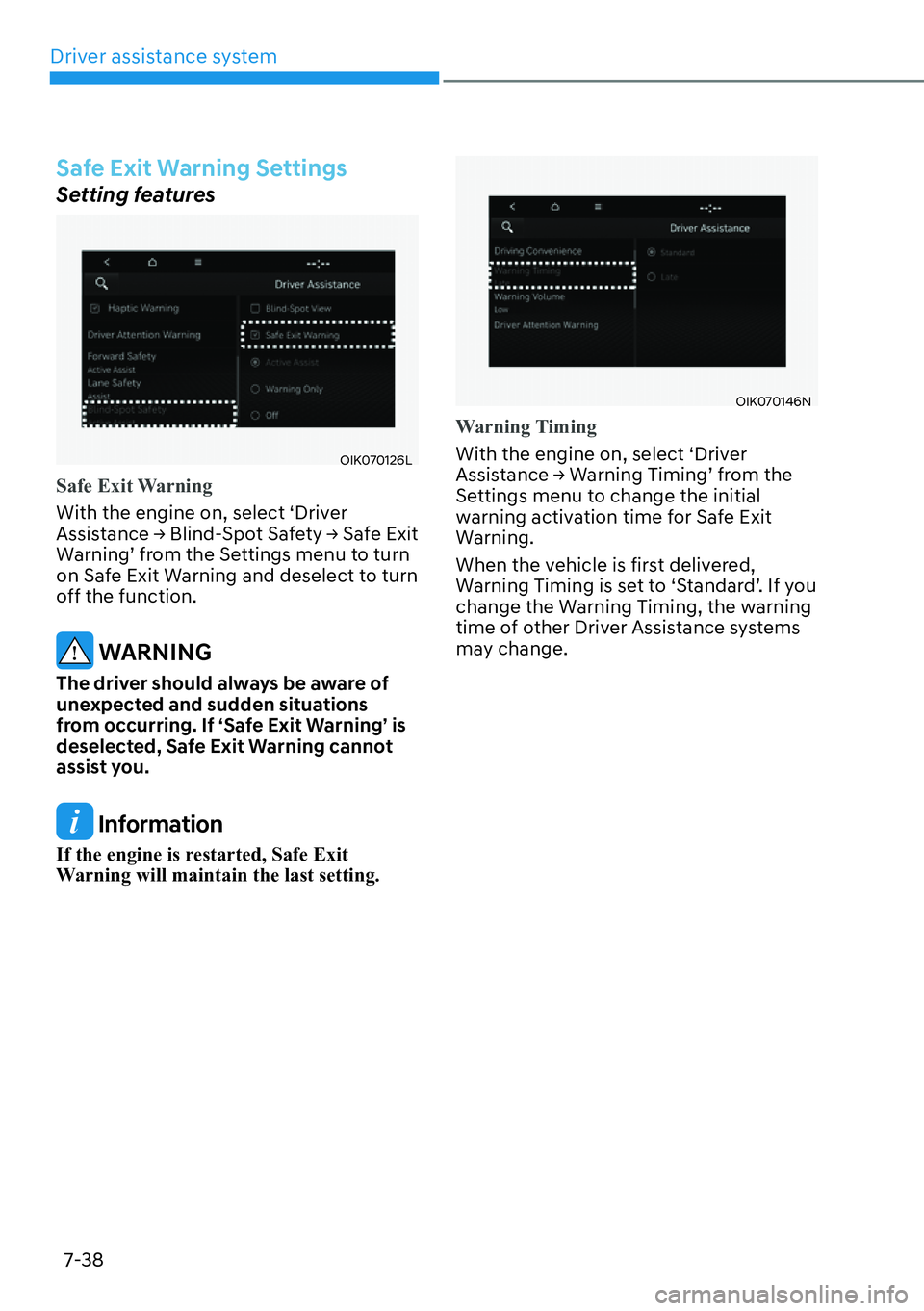

Page 347 of 530
Driver assistance system
7-38
Safe Exit Warning Settings
Setting features
OIK070126L
Safe Exit Warning
With the engine on, select ‘Driver
$ V V L V W D Q F H

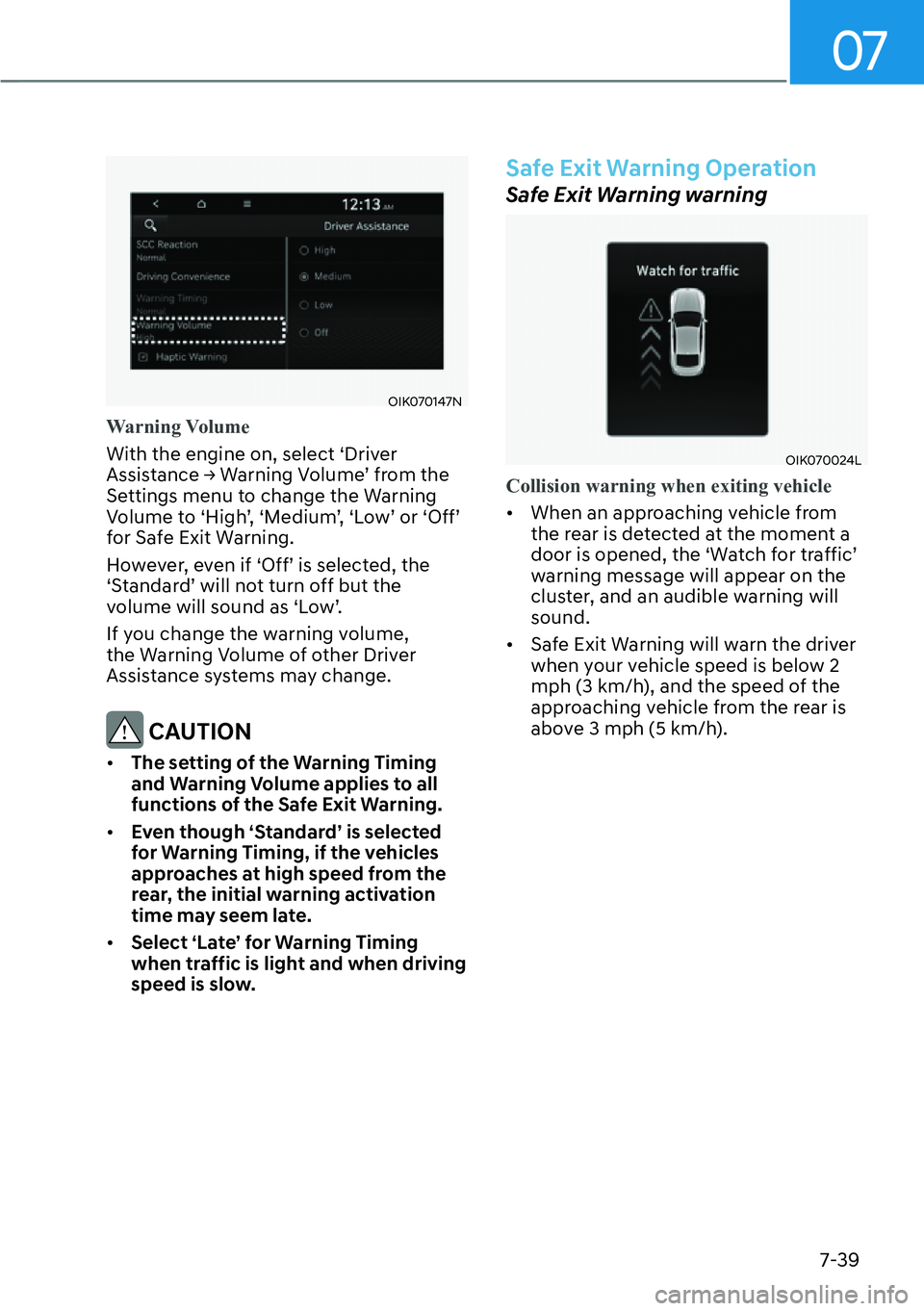

Page 348 of 530
07
7-39
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$ V V L V W D Q F H
