engine HYUNDAI GENESIS G70 2022 Owners Manual

9

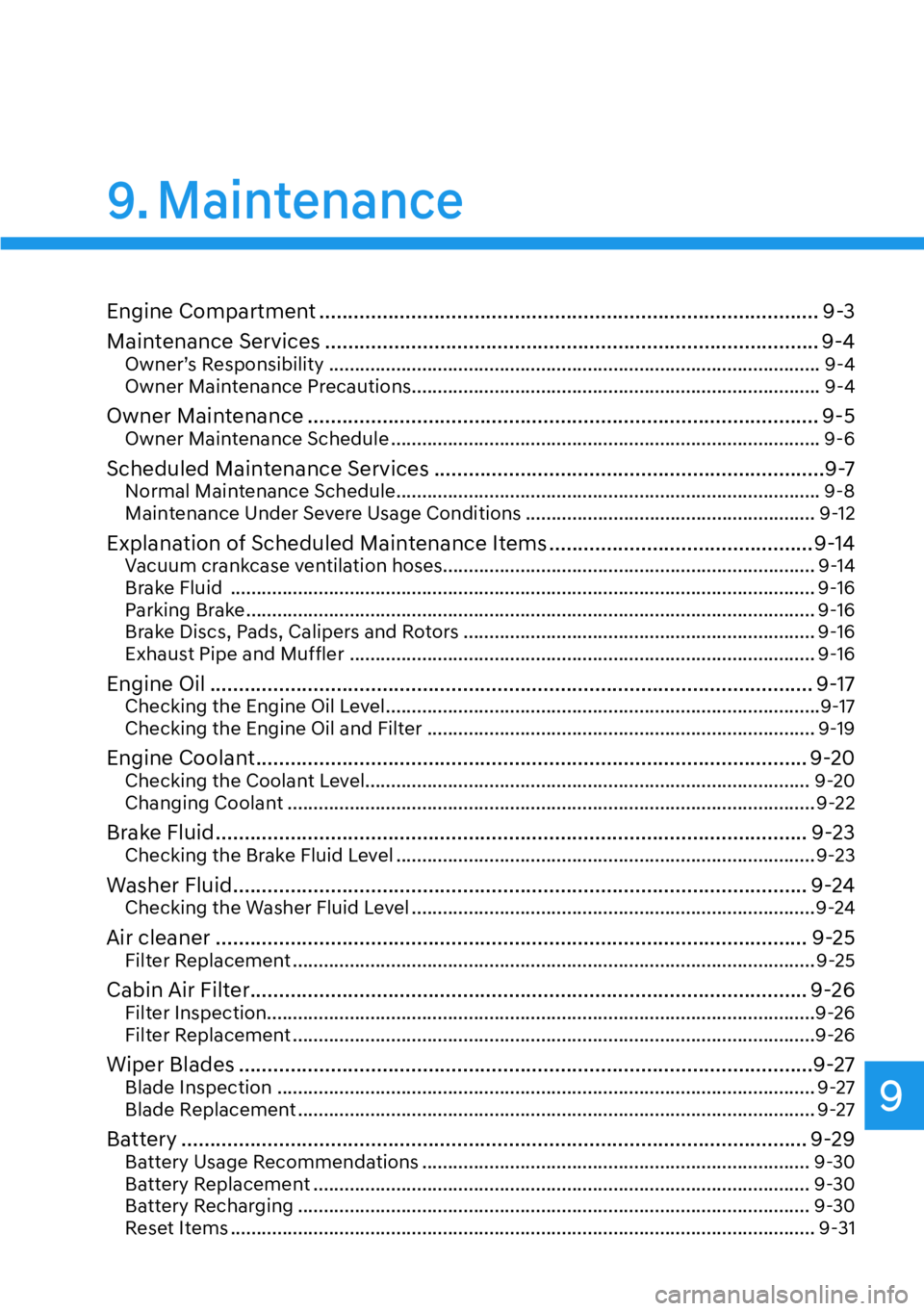

9. Maintenance
Engine Compartment ....................................................................................... 9-3
Maintenance Services ...................................................................................... 9-4
Owner’s Responsibility ............................................................................................... 9-4
Owner Maintenance Precautions ............................................................................... 9-4
Owner Maintenance ......................................................................................... 9-5Owner Maintenance Schedule ................................................................................... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule .................................................................................. 9-8
Maintenance Under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14Vacuum crankcase ventilation hoses........................................................................ 9-14
Brake Fluid ................................................................................................................. 9-16
Parking Brake .............................................................................................................. 9-16
Brake Discs, Pads, Calipers and Rotors .................................................................... 9-16
Exhaust Pipe and Muffler .......................................................................................... 9-16
Engine Oil ......................................................................................................... 9-17Checking the Engine Oil Level ....................................................................................9-17
Checking the Engine Oil and Filter ........................................................................... 9-19
Engine Coolant ................................................................................................ 9-20Checking the Coolant Level...................................................................................... 9-20
Changing Coolant ...................................................................................................... 9-22
Brake Fluid ....................................................................................................... 9-23Checking the Brake Fluid Level ................................................................................. 9-23
Washer Fluid .................................................................................................... 9-24Checking the Washer Fluid Level ..............................................................................9-24
Air cleaner ....................................................................................................... 9-25Filter Replacement ..................................................................................................... 9-25
Cabin Air Filter ................................................................................................. 9-26Filter Inspection..........................................................................................................9-26
Filter Replacement .....................................................................................................9-26
Wiper Blades ....................................................................................................9-27Blade Inspection ........................................................................................................ 9-27
Blade Replacement .................................................................................................... 9-27
Battery ............................................................................................................. 9-29Battery Usage Recommendations ........................................................................... 9-30
Battery Replacement ................................................................................................ 9-30
Battery Recharging ................................................................................................... 9-30
Reset Items ................................................................................................................. 9-31

9
Tires and Wheels ............................................................................................. 9-32Tire Care ......................................................................................................................9-32
Recommended Cold Tire Inflation Pressures ........................................................... 9-32
Check tire Inflation Pressure .....................................................................................9-33
Tire Rotation ...............................................................................................................9-34
Wheel Alignment and Tire Balance ...........................................................................9-35
Tire Replacement .......................................................................................................9-35
Wheel Replacement ...................................................................................................9-36
Tire Traction ................................................................................................................9-36
Tire Maintenance........................................................................................................9-36
Tire Sidewall Labeling ................................................................................................ 9-37
Tire Terminology and Definitions ............................................................................. 9-40
All Season Tires .......................................................................................................... 9-43
Summer Tires ............................................................................................................ 9-43
Snow Tires.................................................................................................................. 9-43
Radial-Ply Tires .......................................................................................................... 9-43
Low Aspect Ratio Tires .............................................................................................. 9-44
Fuses ................................................................................................................ 9-45Instrument Panel Fuse Replacement ....................................................................... 9-46
Engine Compartment Panel Fuse Replacement ......................................................9-47
Fuse/Relay Panel Description................................................................................... 9-48
Light Bulbs ........................................................................................................9-61
Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement .............................................................................................................. 9-62
Side Repeater Lamp Replacement .......................................................................... 9-62
Puddle Lamp Replacement ...................................................................................... 9-63
Rear Combination Lamp Replacement ................................................................... 9-63
High Mounted Stop Lamp Replacement ................................................................. 9-64
License Plate Lamp Replacement ............................................................................ 9-64
Interior Light Replacement ....................................................................................... 9-65
Appearance Care ............................................................................................9-66Exterior Care .............................................................................................................. 9-66
Interior Care ................................................................................................................ 9-7 2
Emission Control System .................................................................................9-75
California Perchlorate Notice ..........................................................................9-77

9-3
09
* The battery is in trunk.
„2.0L T-GDI
„3.3L T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/OIK017007
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
ENGINE COMPARTMENT

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
retailer of Genesis Branded products.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground,
shift the gear to the P(Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF
position.

[Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[If you must operate the engine
during maintenance, do so
outdoors or in an area with plenty of
ventilation.

[Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts
(including strut bars) while
the engine is operating or
hot. Doing so could result in
serious personal injury. Turn
the engine off and wait until
the metal parts cool down to
perform maintenance work on
the vehicle.
The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized retailer
of Genesis Branded products at the
frequencies indicated to help ensure
safe, dependable operation of your
vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE

Maintenance
9-6
Owner Maintenance Schedule
When you stop for fuel:

[Check the coolant level in the engine
coolant reservoir or the liquid-cooled
intercooler coolant reservoir.

[Check the windshield washer fluid
level.

[Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level when the engine is hot. This may
result in coolant being blown out of the
opening and cause serious burns and
other injuries.
While operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[Check the automatic transmission P
(Park) function.

[Check the parking brake.

[Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[Check for loose wheel lug nuts.
At least twice a year: (i.e., every
Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[Check headlamp alignment.

[Check muffler, exhaust pipes, shields
and clamps.

[Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[Lubricate door hinges and hood
hinges.

[Lubricate door and hood locks and
latches.

[Lubricate door rubber weather strips.

[Check the air conditioning system.

[Inspect and lubricate automatic
transmission linkage and controls.

[Clean the battery and terminals.

[Check the brake fluid level.

09
9-7

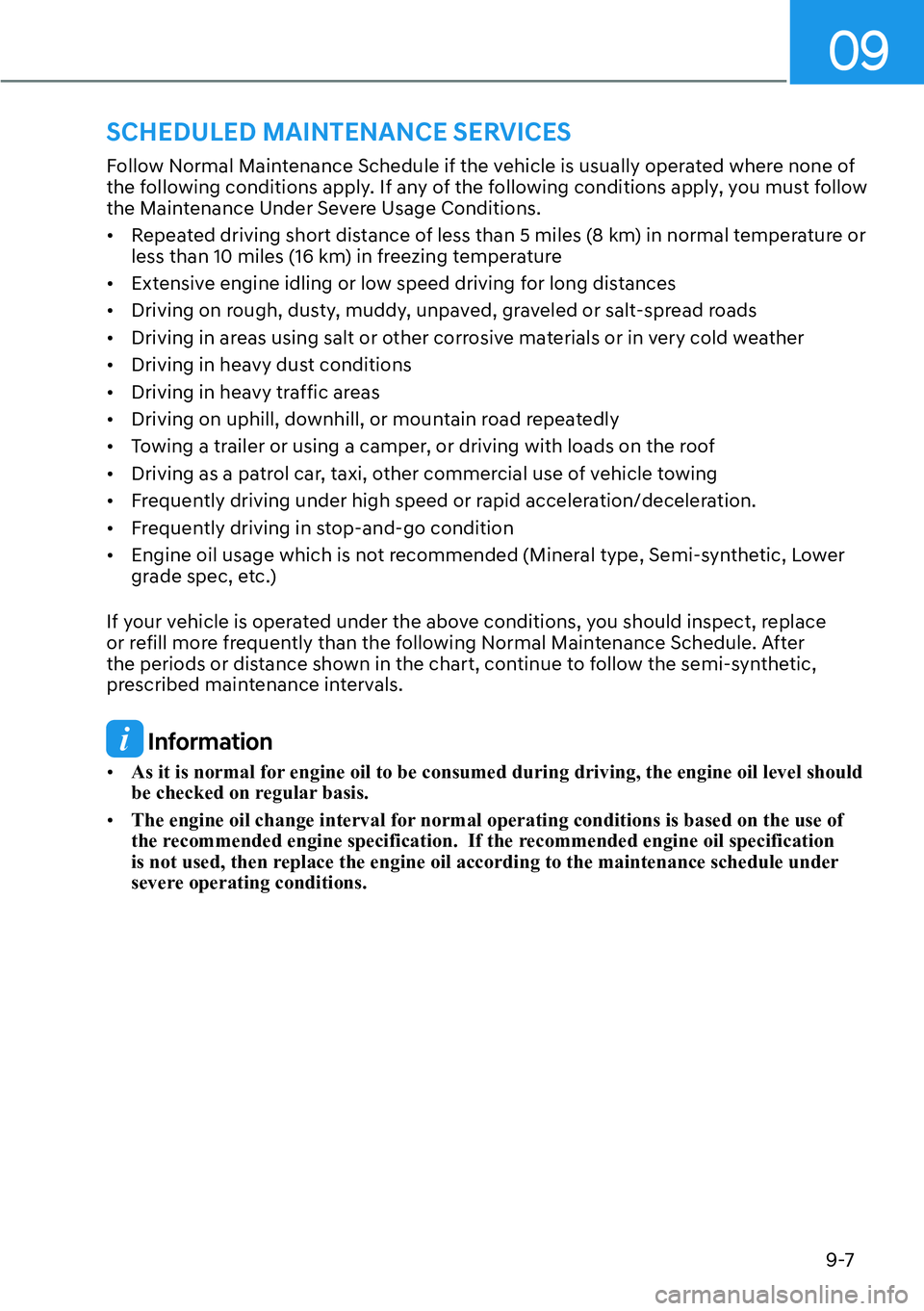

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeated driving short distance of less than 5 miles (8 km) in normal temperature or
less than 10 miles (16 km) in freezing temperature

[Extensive engine idling or low speed driving for long distances

[Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[Driving in areas using salt or other corrosive materials or in very cold weather

[Driving in heavy dust conditions

[Driving in heavy traffic areas

[Driving on uphill, downhill, or mountain road repeatedly

[Towing a trailer or using a camper, or driving with loads on the roof

[Driving as a patrol car, taxi, other commercial use of vehicle towing

[Frequently driving under high speed or rapid acceleration/deceleration.

[Frequently driving in stop-and-go condition

[Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After
the periods or distance shown in the chart, continue to follow the semi-synthetic,
prescribed maintenance intervals.
Information

[As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.
SCHEDULED MAINTENANCE SERVICES

Maintenance
9-8
Normal Maintenance Schedule
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Engine oil and engine oil filter R R R R R R R R R R R R R R R
Fuel additives
*1
Add every 7,500 miles (1,390 km)
Rotate tires Rotate every 6,000 miles (10,000 km)
Cabin air filter (for evaporator and blower unit) Replace every 16,000 miles (24,000 km)
Air cleaner filterIRIRIRI
Spark plugs Replace every 42,000 miles (70,000 km)
Drive belts
*2
At first, inspect at 60,000 miles (100,000 km) or 72 months,
after that, inspect every 12,000 miles (20,000 km) or 24 months
Valve clearance
*3
Inspect every 60,000 miles (100,000 km) or 72 months
Vacuum hose I I I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. *1 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
*2 :
The drive belt should be replaced when cracks occur or tension is reduced.
*3 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized retailer of Genesis
Branded products perform the operation.

09
9-9
Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Engine coolantAt first, replace at 120,000 miles (200,000 km) or 10 years
after that, replace every 24,000 miles (40,000 km) or 24 months
Intercooler, in/out hose, air intake hose I I I I I I I I I I I I I I I
Battery condition I I I I I I I I I I I I I I I
All electrical systems I I I I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I I I I
Front brake disc/pads, calipers I I I I I I I I I I I I I I I
Rear brake disc/pads I I I I I I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm
ball joint, upper arm ball jointIIIIIIIIIIIIIII
Driveshaft and boots I I I I I I I I I I I I I I I
Suspension mounting bolts I I I I I I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I I I I I I
Propeller shaft I I I I I I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

Maintenance
9-10
Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Automatic transmission fluid
*4
No check, No service required
Differential oil (rear) *
5 *6
Without LSD I I
With LSD R R
Differential oil (front) (AWD) *
5
II
Transfer case oil (AWD) No check, No service required
Vapor hose, fuel filler cap and fuel tankIIIIIII
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*4 :
Use only the specified automatic transmission fluid. (Refer to "Recommended lubricants and capacities" in chapter 2 or the
label in the engine compartment.)
*5 :
Front/rear differential oil should be changed anytime, front/rear differential have been submerged in water.
*6 :
When replacing differential oil with LSD (Limited Slip Differential), use only specified LSD oil.

Maintenance
9-12
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and filter REvery 3,000 miles
(5,000 km) or 6 monthsA, B, C, D,
E, F, G, H, I,
J, K, L
Air cleaner filter IInspect more frequently
depending on the
conditionC, E
Spark plugs RReplace more
frequently depending
on the condition A, B, F, G,
H, I, K
Automatic transmission fluid REvery 60,000 miles
(100,000 km)A,C,E,F,G,
H,I,K
Front brake disc/pads, calipers IInspect more frequently
depending on the
conditionC, D, E, G,
H , J, K
Rear brake disc/pads IInspect more frequently
depending on the
conditionC, D, E, G,
H , J, K
Parking brake IInspect more frequently
depending on the
conditionC, D, G, H
Steering gear box, linkage & boots/
Lower arm ball joint, upper arm ball
jointIInspect more frequently
depending on the
conditionC, D, E,
F, G
Drive shafts and boots IEvery 3,000 miles
(5,000 km) or 6 monthsC, D, E, F,
G, H, I, J
Differential oil (front) (AWD) IEvery 72,000 miles
(120,000 km)C, E, G, H,
I, J
Differential oil (rear)Without LSD REvery 72,000 miles
(120,000 km)C, E, G, H,
I, J
With LSD REvery 36,000 miles
(60,000 km)C, E, G, H,
I, J
Cabin air filter
(for evaporator and blower unit)RInspect more frequently
depending on the
conditionC, E, G
Propeller shaft IEvery 3,000 miles
(5,000 km) or 6 monthsC, E
