HYUNDAI GENESIS G70 2022 Owners Manual

Driver assistance system
7-32
Blind- Spot Safety system
Malfunction and Limitations
Blind- Spot Safety system
malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6DIHW\V\VWHP
TZDUQLQJPHVVDJHZLOO
appear on the cluster, and the system will
turn off automatically or the system will
be limited. Have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Blind- Spot Safety system disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
The system will operate normally when
such foreign material or trailer, etc.
is removed, and then the engine is
restarted.
If the system does not operate normally
after it is removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
WARNING

[Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.

[Blind-Spot Safety system may not
properly operate in an area (e.g. open
terrain) where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.

07
7-33

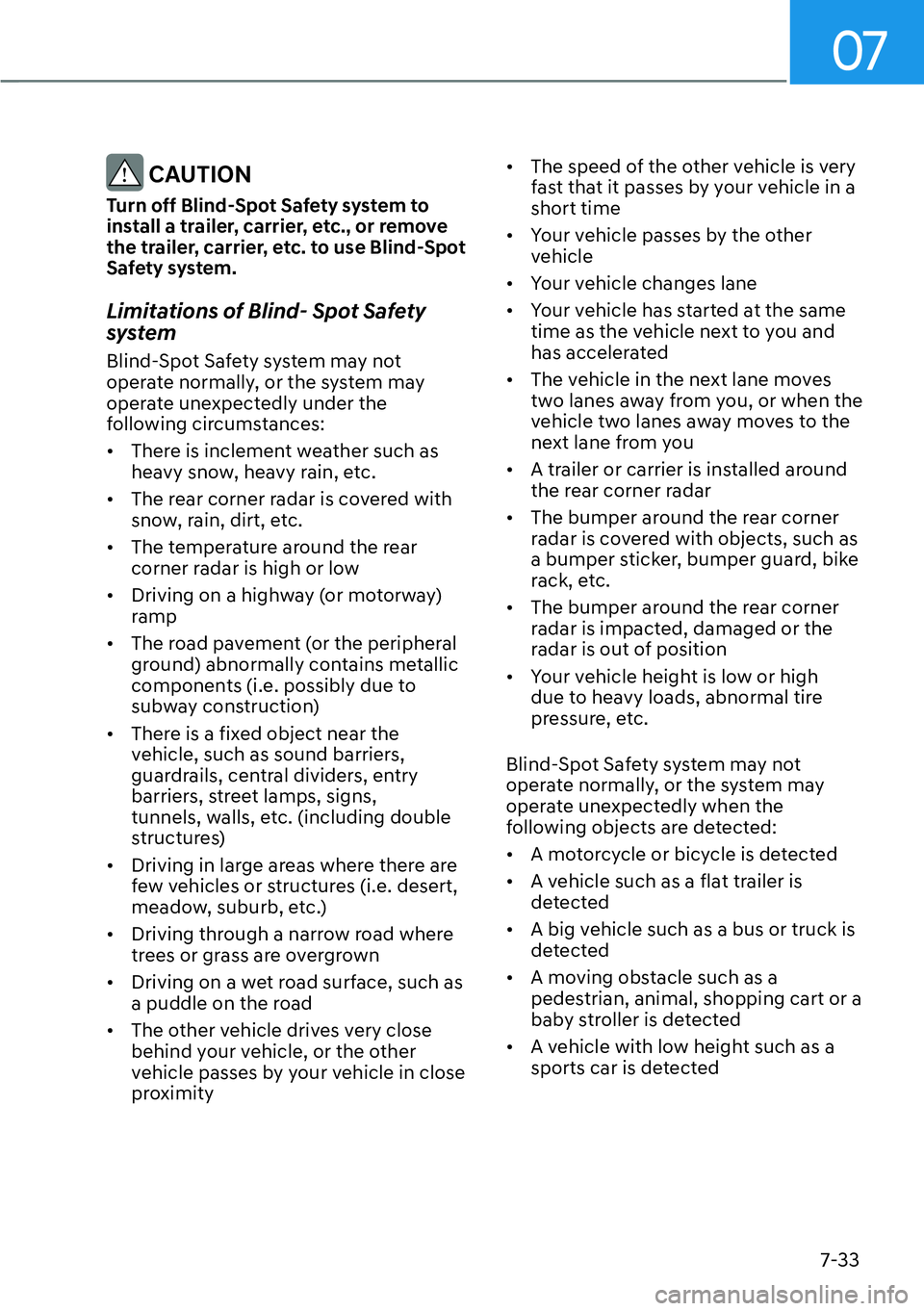

CAUTION
Turn off Blind-Spot Safety system to
install a trailer, carrier, etc., or remove
the trailer, carrier, etc. to use Blind-Spot
Safety system.
Limitations of Blind- Spot Safety
system
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly under the
following circumstances:

[There is inclement weather such as
heavy snow, heavy rain, etc.

[The rear corner radar is covered with
snow, rain, dirt, etc.

[The temperature around the rear
corner radar is high or low

[Driving on a highway (or motorway)
ramp

[The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to
subway construction)

[There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving through a narrow road where
trees or grass are overgrown

[Driving on a wet road surface, such as
a puddle on the road

[The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity
[The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[Your vehicle passes by the other
vehicle

[Your vehicle changes lane

[Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[A trailer or carrier is installed around
the rear corner radar

[The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly when the
following objects are detected:

[A motorcycle or bicycle is detected

[A vehicle such as a flat trailer is
detected

[A big vehicle such as a bus or truck is
detected

[A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[A vehicle with low height such as a
sports car is detected

Driver assistance system
7-34

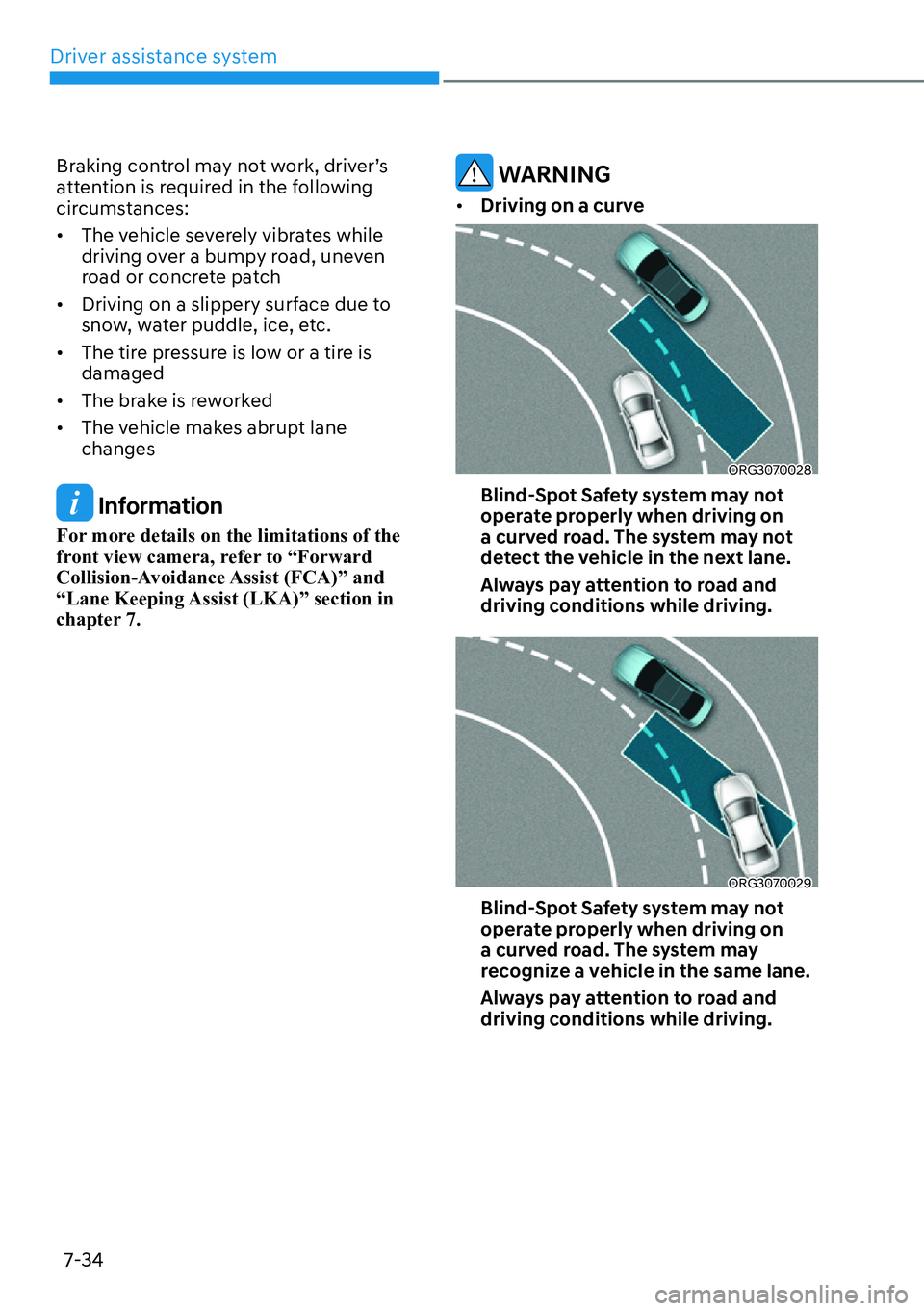

%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[The tire pressure is low or a tire is
damaged

[The brake is reworked

[The vehicle makes abrupt lane
changes
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” and
“Lane Keeping Assist (LKA)” section in
chapter 7.
WARNING

[Driving on a curve
ORG3070028
Blind-Spot Safety system may not
operate properly when driving on
a curved road. The system may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.
ORG3070029
Blind-Spot Safety system may not
operate properly when driving on
a curved road. The system may
recognize a vehicle in the same lane.
Always pay attention to road and
driving conditions while driving.

07
7-35

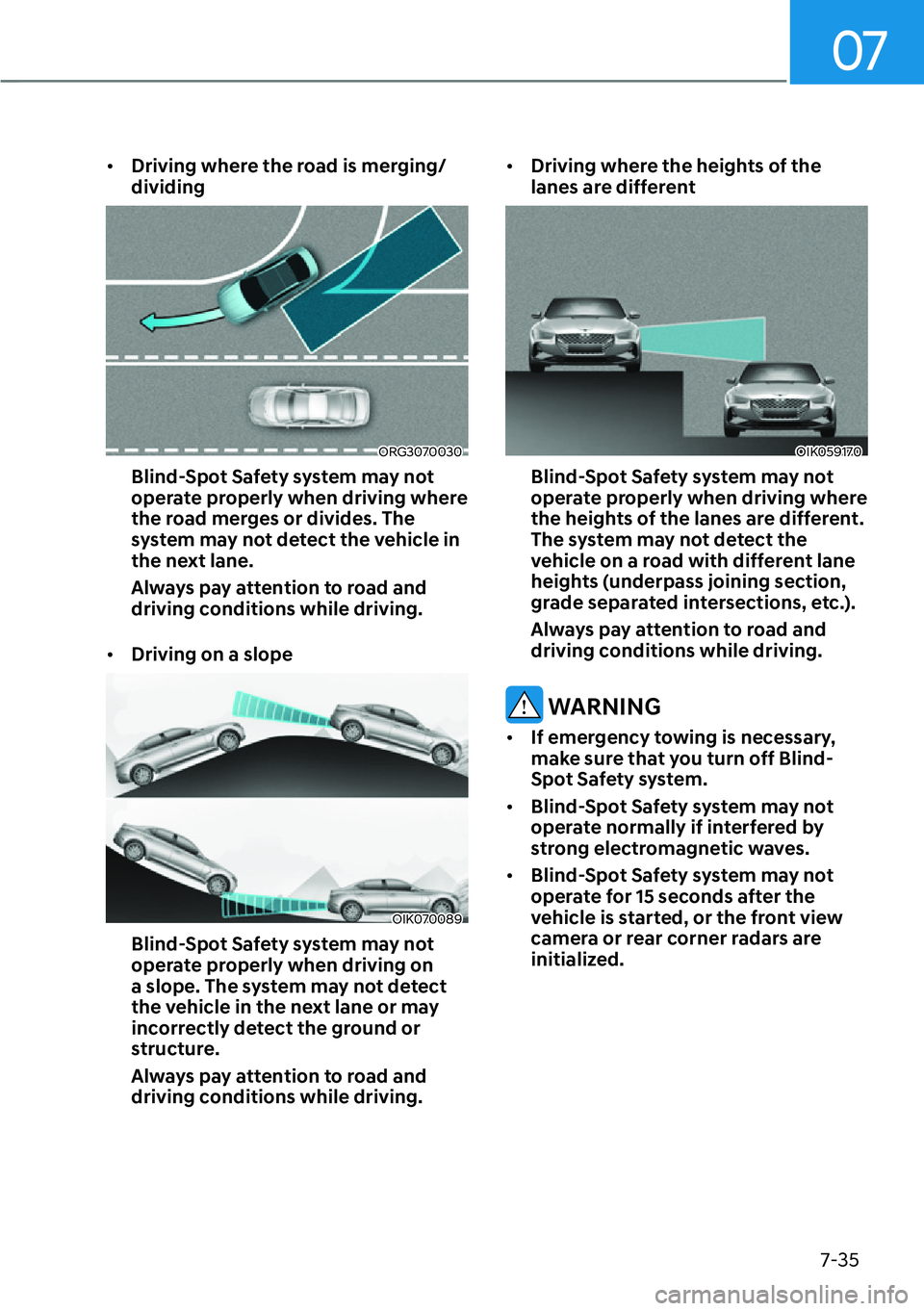

[Driving where the road is merging/
dividing
ORG3070030
Blind-Spot Safety system may not
operate properly when driving where
the road merges or divides. The
system may not detect the vehicle in
the next lane.
Always pay attention to road and
driving conditions while driving.

[Driving on a slope
OIK070089
Blind-Spot Safety system may not
operate properly when driving on
a slope. The system may not detect
the vehicle in the next lane or may
incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions while driving.
[Driving where the heights of the
lanes are different
OIK059170
Blind-Spot Safety system may not
operate properly when driving where
the heights of the lanes are different.
The system may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[If emergency towing is necessary,
make sure that you turn off Blind-
Spot Safety system.

[Blind-Spot Safety system may not
operate normally if interfered by
strong electromagnetic waves.

[Blind-Spot Safety system may not
operate for 15 seconds after the
vehicle is started, or the front view
camera or rear corner radars are
initialized.

Driver assistance system
7-36

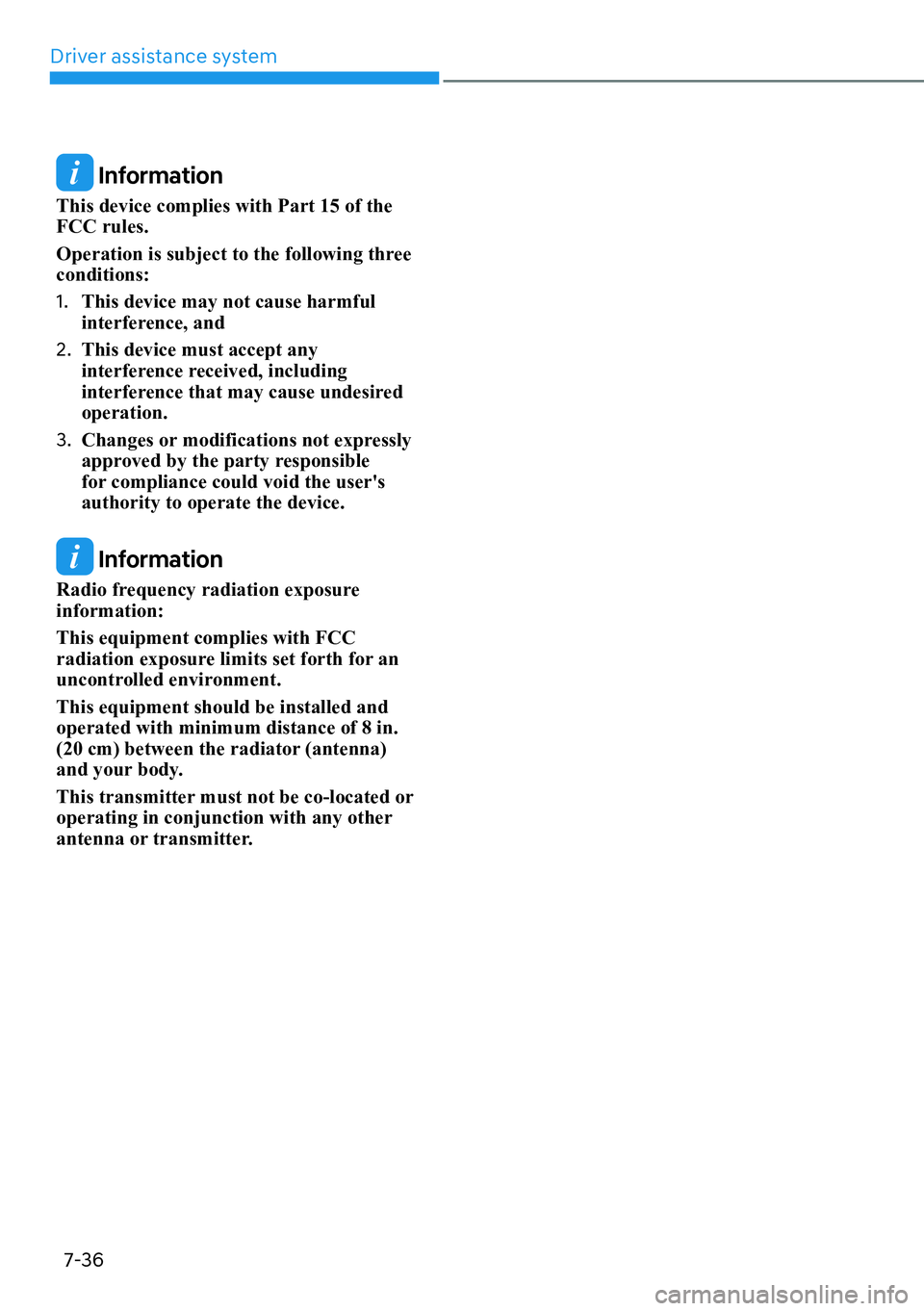

Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-37
6$)((;,7:$51,1*

Driver assistance system
7-38
Safe Exit Warning Settings
Setting features
OIK070126L
Safe Exit Warning
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-39
OIK070147N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-40
WARNING
Take the following precautions when
using Safe Exit Warning:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other system’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning warning message may not
be displayed and audible warning
may not be generated.

[You may not hear the warning
sound of Safe Exit Warning if the
surrounding is noisy.

[Safe Exit Warning does not operate
in all situations or cannot prevent all
collisions.

[Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[The driver and passengers are
responsible for accidents that occurs
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.
[Safe Exit Warning does not operate
if there is a problem with Blind-Spot
Safety system. The warning message
of Blind-Spot Safety system will
appear when:
-Blind-Spot Safety system sensor or
the sensor surrounding is polluted
or covered
-Blind-Spot Safety system fails to
warn passengers or falsely warn
passengers
Information
After the engine is turned off, Safe Exit
Warning operates approximately for 3
minutes, but turns off immediately if the
doors are locked.

07
7-41
Safe Exit Warning Malfunction
and Limitations
Safe Exit Warning malfunction
OTM070099N
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Safe Exit Warning disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
V\VWHPGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear on the cluster.
Safe Exit Warning will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Warning does not operate
normally after it is removed, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
