Driver assistance system
7-62

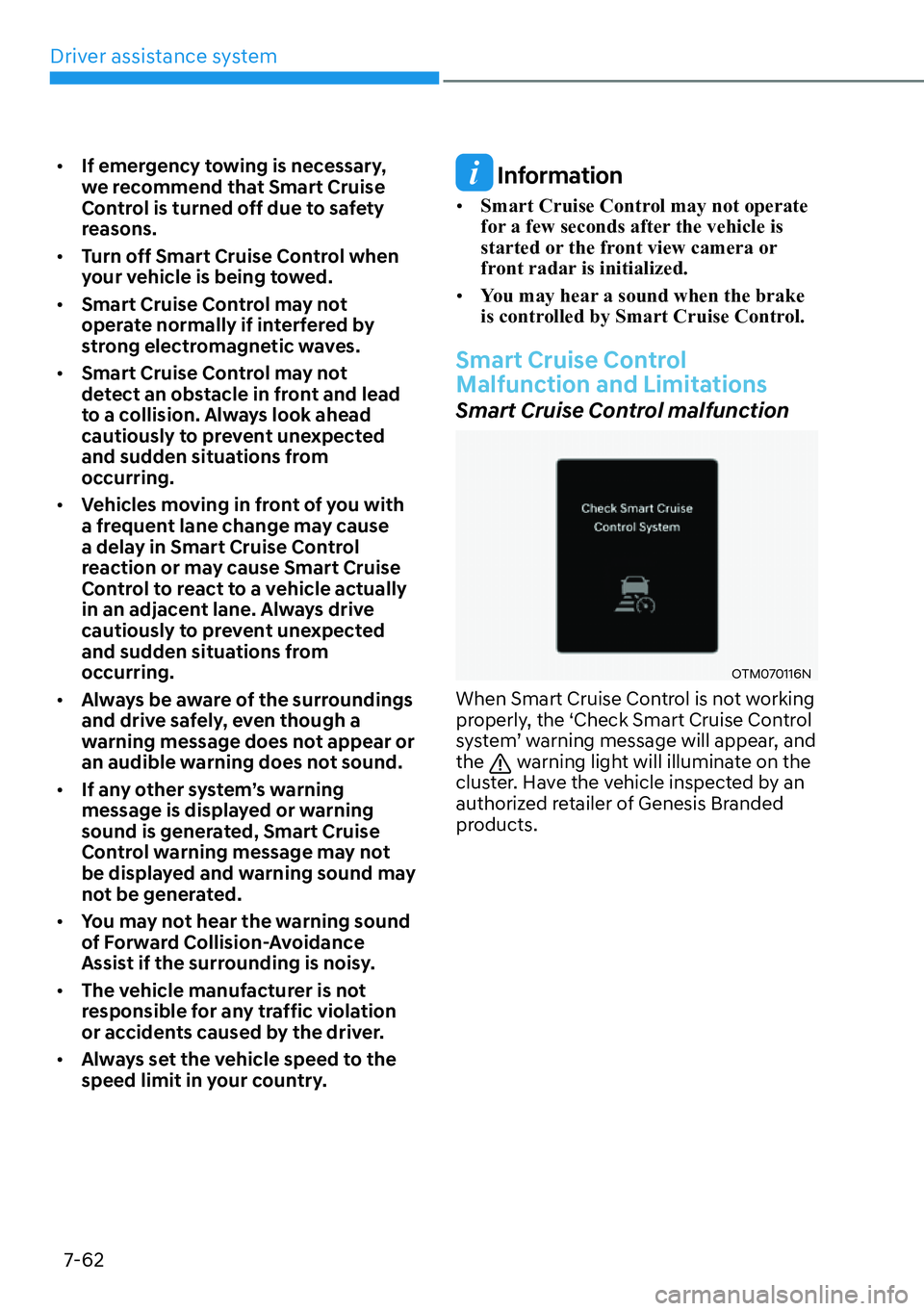

[If emergency towing is necessary,
we recommend that Smart Cruise
Control is turned off due to safety
reasons.

[Turn off Smart Cruise Control when
your vehicle is being towed.

[Smart Cruise Control may not
operate normally if interfered by
strong electromagnetic waves.

[Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from
occurring.

[Vehicles moving in front of you with
a frequent lane change may cause
a delay in Smart Cruise Control
reaction or may cause Smart Cruise
Control to react to a vehicle actually
in an adjacent lane. Always drive
cautiously to prevent unexpected
and sudden situations from
occurring.

[Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[Always set the vehicle speed to the
speed limit in your country. Information

[Smart Cruise Control may not operate
for a few seconds after the vehicle is
started or the front view camera or
front radar is initialized.

[You may hear a sound when the brake
is controlled by Smart Cruise Control.
Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
OTM070116N
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise Control
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDUDQG
the
warning light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

07
7-63
Smart Cruise Control disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
GLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate
normally when snow, rain or foreign
material is removed.
WARNING
Even though the warning message does
not appear on the cluster, Smart Cruise
Control may not properly operate.
CAUTION
Smart Cruise Control may not properly
operate in an area (e.g. open terrain),
where there is nothing to detect after
turning ON the engine.
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
normally, or it may operate unexpectedly
under the following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[Washer fluid is continuously sprayed,
or the wiper is on

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[The temperature around the front
view camera is high or low

[An object is placed on the dashboard

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving in heavy rain or snow, or thick
fog

[Driving through steam, smoke or
shadow

Driver assistance system
7-64

[Only part of the vehicle is detected

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or does not look normal (i.e. tilted,
overturned, etc.)

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[A vehicle suddenly cuts in front

[Your vehicle is being towed

[Driving through a tunnel or iron bridge

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[The vehicle in front is made of
material that does not reflect on the
front radar

[Driving near a highway (or motorway)
interchange or tollgate

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[Driving on a curved road

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by a obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed
[The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU
slow

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[Driving in a parking lot

[Driving through a construction area,
unpaved road, partially paved road,
uneven road, speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

07
7-65

[Driving on a curve
OADAS014SD
On curves, Smart Cruise Control may
not detect a vehicle in the same lane,
and may accelerate to the set speed.
Also, vehicle speed may rapidly
decrease when the vehicle ahead is
detected suddenly.
Select the appropriate set speed on
curves and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
OADAS015SD
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the Smart
Cruise Control.
[Driving on a slope
OADAS012SD
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.

Driver assistance system
7-66

[Changing lanes
OADAS030SD [A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Detecting vehicle
OHI058321L
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.

07
7-67
OIK070013
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted due
to heavy loads
- You are steering your vehicle
- Driving on narrow or sharply curved
roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OHI058322L

[When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
OHI058308L

[When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
OHI058323L

[Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.

Driver assistance system
7-68

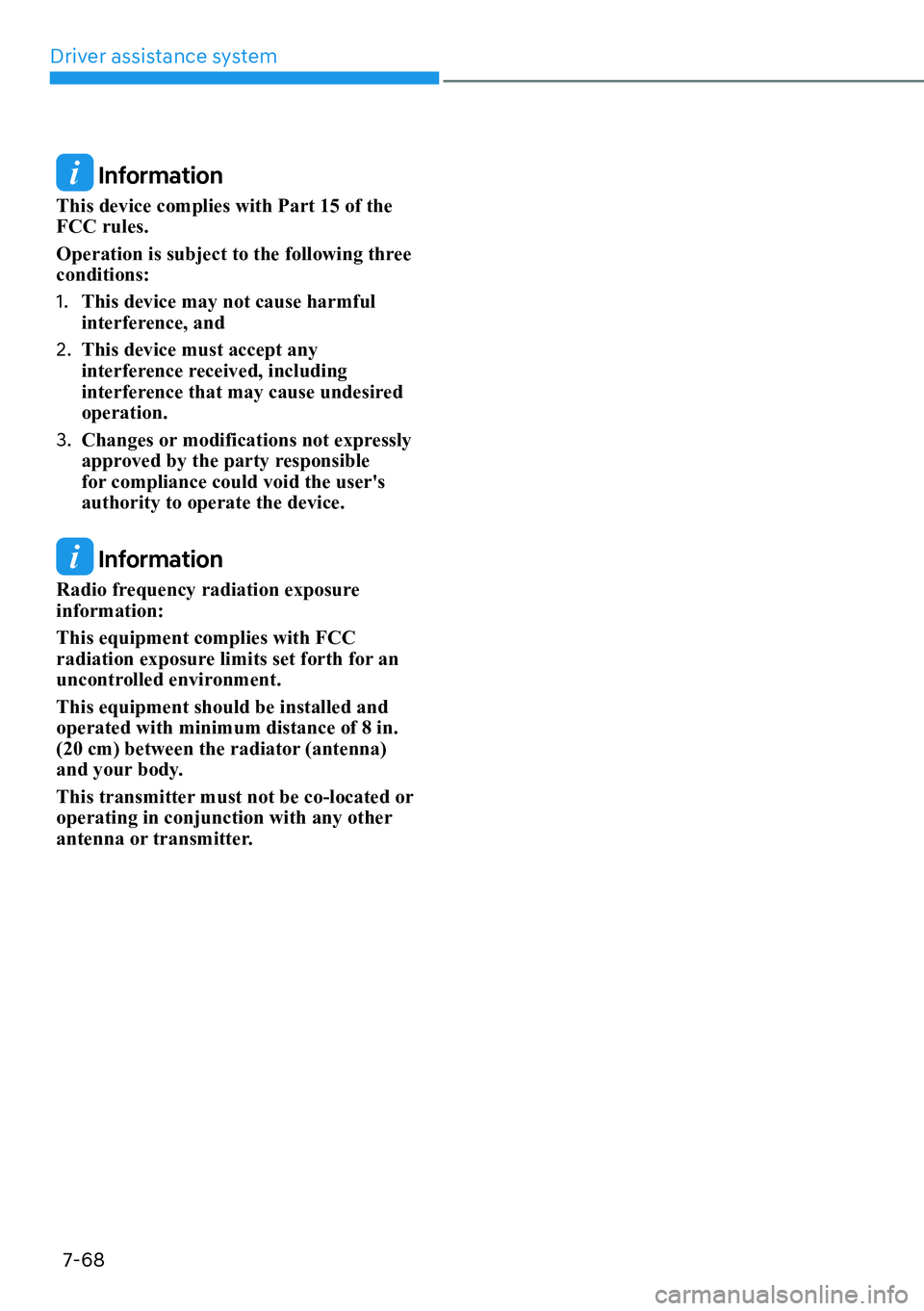

Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-69

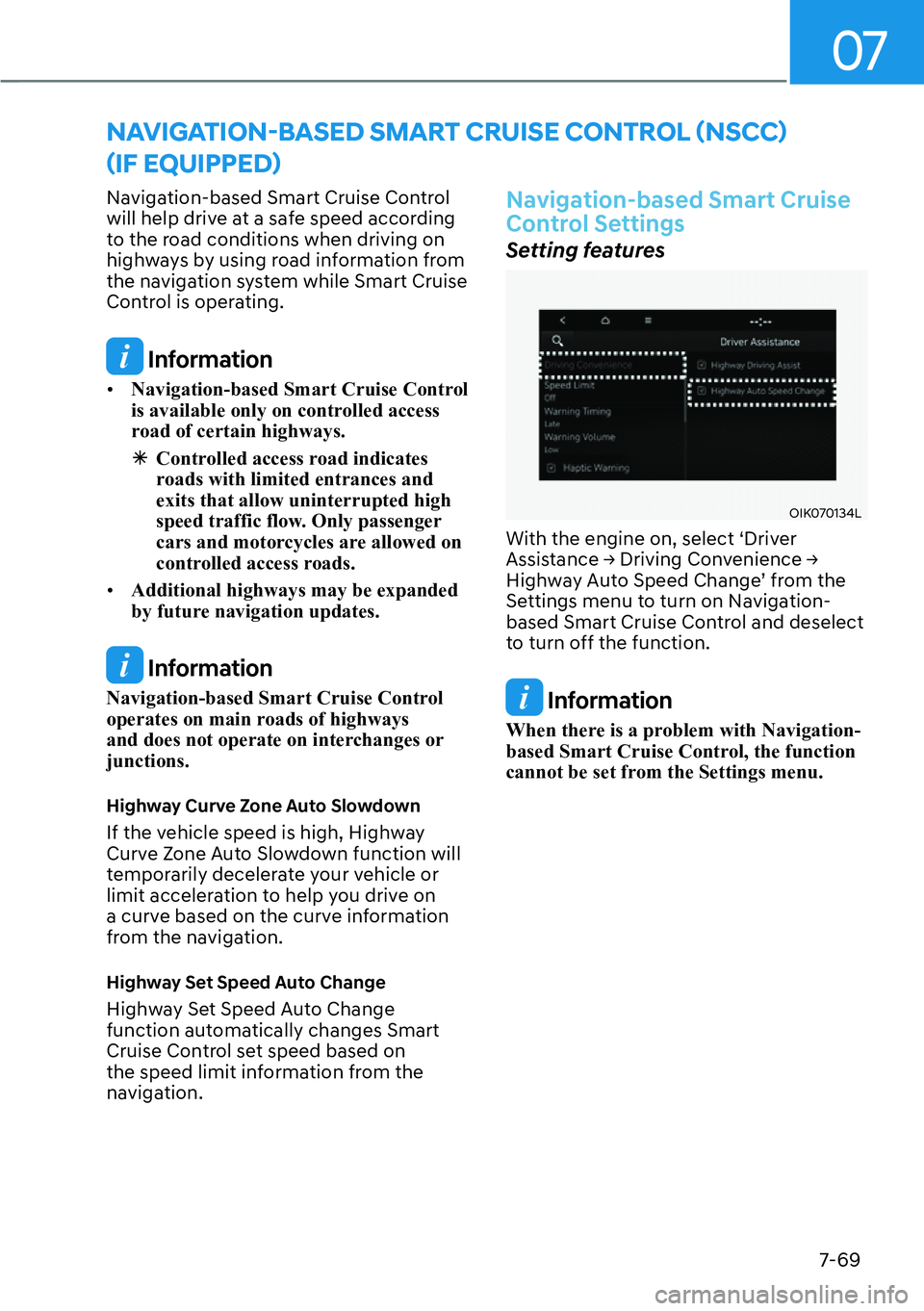

1$9,*$7,21

Driver assistance system
7-70
Navigation-based Smart Cruise
Control Operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:

[Smart Cruise Control is operating

[Driving on main roads of highways
Information
For more details on how to operate Smart
Cruise Control, refer to “Smart Cruise
Control (SCC)” section in chapter 7.
Navigation-based Smart Cruise
Control display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:

[Navigation-based Smart Cruise
Control standby
OIK070053N
If the operating conditions are satisfied,
the white indicator will illuminate.
[Navigation-based Smart Cruise
Control operating
OIK070094NOIK070054N
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol will illuminate on the
cluster.
If the Highway Set Speed Auto Change
function operates, the
symbol and
set speed will illuminate in green on
the cluster, and an audible warning will
sound.
WARNING
OIK070152N
‘The Drive carefully’ warning
message will appear in the following
circumstances:
-Navigation-based Smart Cruise
Control is not able to slow down your
vehicle to a safe speed

07
7-71
Information
Highway Curve Zone Auto Slowdown and
Highway Set Speed Auto Change function
uses the same
symbol.
Highway Curve Zone Auto Slowdown

[Depending on the curve ahead on the
highway, the vehicle will decelerate,
and after passing the curve, the
vehicle will accelerate to Smart Cruise
Control set speed.

[Vehicle deceleration time may differ
depending on the vehicle speed
and the degree of the curve on the
road. The higher the driving speed,
deceleration will start faster.
Highway Set Speed Auto Change

[Highway Set Speed Auto Change
function will operate when Smart
Cruise Control set speed and the
highway speed limit is matched.

[While Highway Set Speed Auto
Change function is operating, when
the highway speed limit changes,
Smart Cruise Control set speed
automatically changes to the changed
speed limit.

[If adjusted Smart Cruise Control set
speed is different from the speed
limit, Highway Set Speed Auto Change
function will be in the standby state.

[If Highway Set Speed Auto Change
function has changed to the standby
state by driving on a road other than
the highway main road, Highway Set
Speed Auto Change function will
operate again when you drive on the
main road again without setting the
set speed.
[If Highway Set Speed Auto Change
function has changed to the standby
state by depressing the brake pedal
or pressing the
switch on the
steering wheel, press the switch
to restart the function.

[Highway Set Speed Auto Change
function does not operate on highway
interchanges or junctions.
Information

[Highway Set Speed Auto Change
function only operates based on the
speed limits of the highway, it does not
work with speed cameras.

[When Highway Set Speed Auto Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway speed limit changes.

[The maximum set speed for Highway
Set Speed Auto Change function is 86
mph (140 km/h).

[If the speed limit of a new road is not
updated in the navigation, Highway Set
Speed Auto Change function may not
operate properly.

[If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.
