HYUNDAI GENESIS G70 2022 Owners Manual

Maintenance
9-58
Rear fuse box panel
Fuse Name Fuse Rating Circuit Protected
DCU2 15A Dosing Control Module
DCU3 15A Dosing Control Module
REAR WIPER 15A Wipre RR Relay, Rear Wiper Motor
ECS 15A ECS Unit
POWER TRUNK 30A Power Trunk Module, Power Tailgate Unit
DCU1 15A Dosing Control Module
FUEL PUMP 20A Fuel Pump Relay
HEAT MIRROR 10A A/C Switch, Driver/Passenger Power Outside Mirror
AMP2 25A AMP
REAR S/HEAT 20A Rear Seat Warmer Control Module
AMP1 30A[W/O ISG] Fuse - F9
[With ISG] Low DC-DC Converter (AMP)
IG1 15A PCB Block (IG1 Relay)
ACC 30A ICU Junction Block (Fuse - F32, F40, F54)
B+1 40AICU Junction Block
(IPS5, IPS6, IPS7, IPS8, IPS9, IPS10, Fuse - F20, 30F)
B+2 40A ICU Junction Block (IPS1, IPS2, Fuse - F15, F39)
REAR HEATED 30A Rear Heated Relay

09
9-59
Trunk fuse panel (Battery junction
block)
OIK090034
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.

Maintenance
9-60
Battery box fuse panel
Fuse Name Fuse Rating Circuit Protected
B+1 100ARear Sub Junction Block
(ACC Relay, Fuse - F7, F12, F13, F16, F17)
B+2 100ARear Sub Junction Block
(DCU Relay, Fuse - F3, F5, F4, F11, F15)
START 40AE/R Junction Block (Fuse - F3),
PCB Block (Fuse - F3, F9)
AMS 10A Battery Sensor

09
9-61
Consult an authorized retailer of
Genesis Branded products to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Information

[A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized retailer of Genesis Branded
products.

[The parking lamp may not turn on
when the parking lamp switch is turned
on, but the parking lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized retailer of Genesis Branded
products.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
retailer of Genesis Branded products.
LIGHT BULBS

Maintenance
9-62

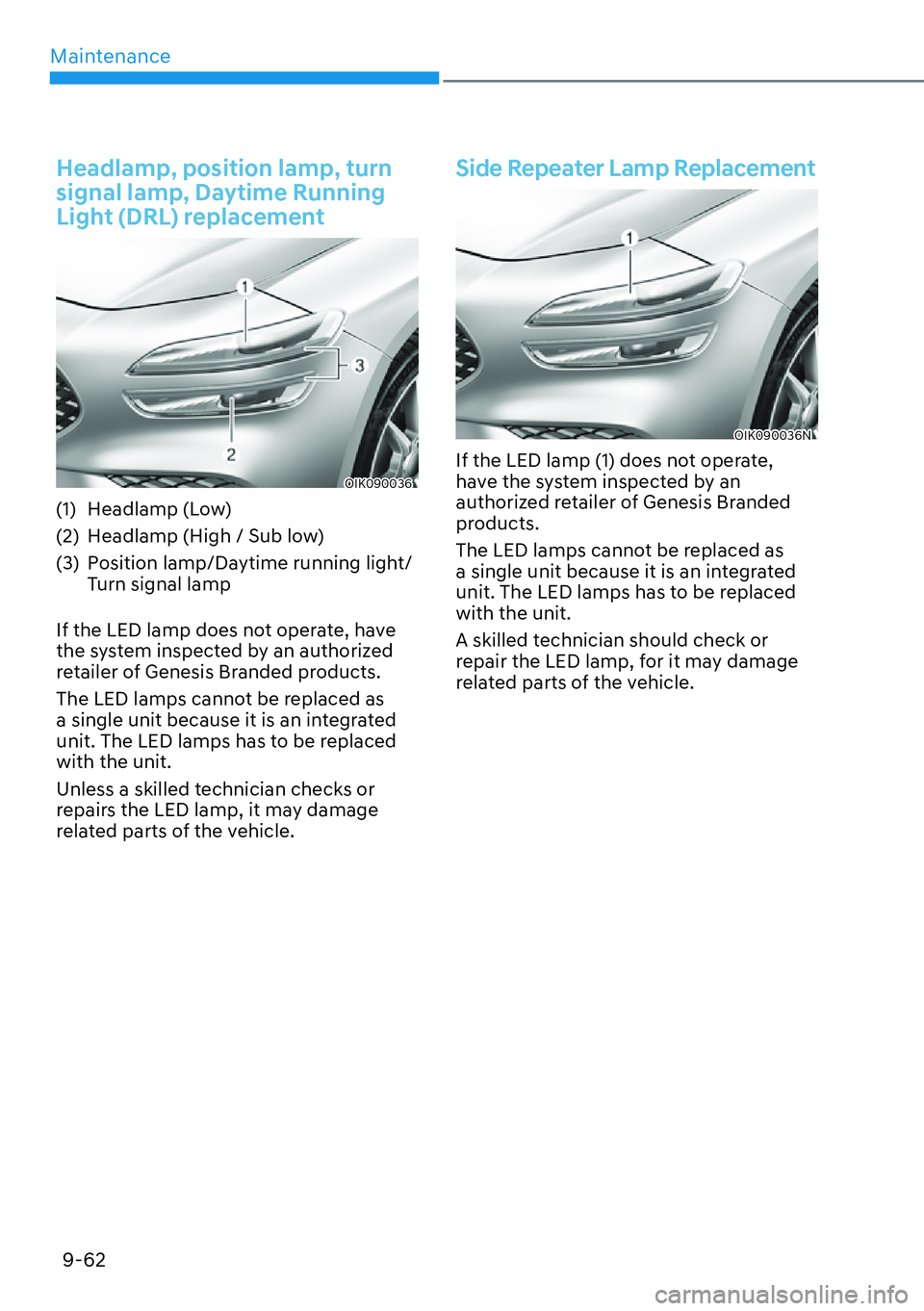

Headlamp, position lamp, turn
signal lamp, Daytime Running
Light (DRL) replacement
OIK090036
(1) Headlamp (Low)
(2) Headlamp (High / Sub low)
(3) Position lamp/Daytime running light/
Turn signal lamp
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.
Side Repeater Lamp Replacement
OIK090036N
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-63

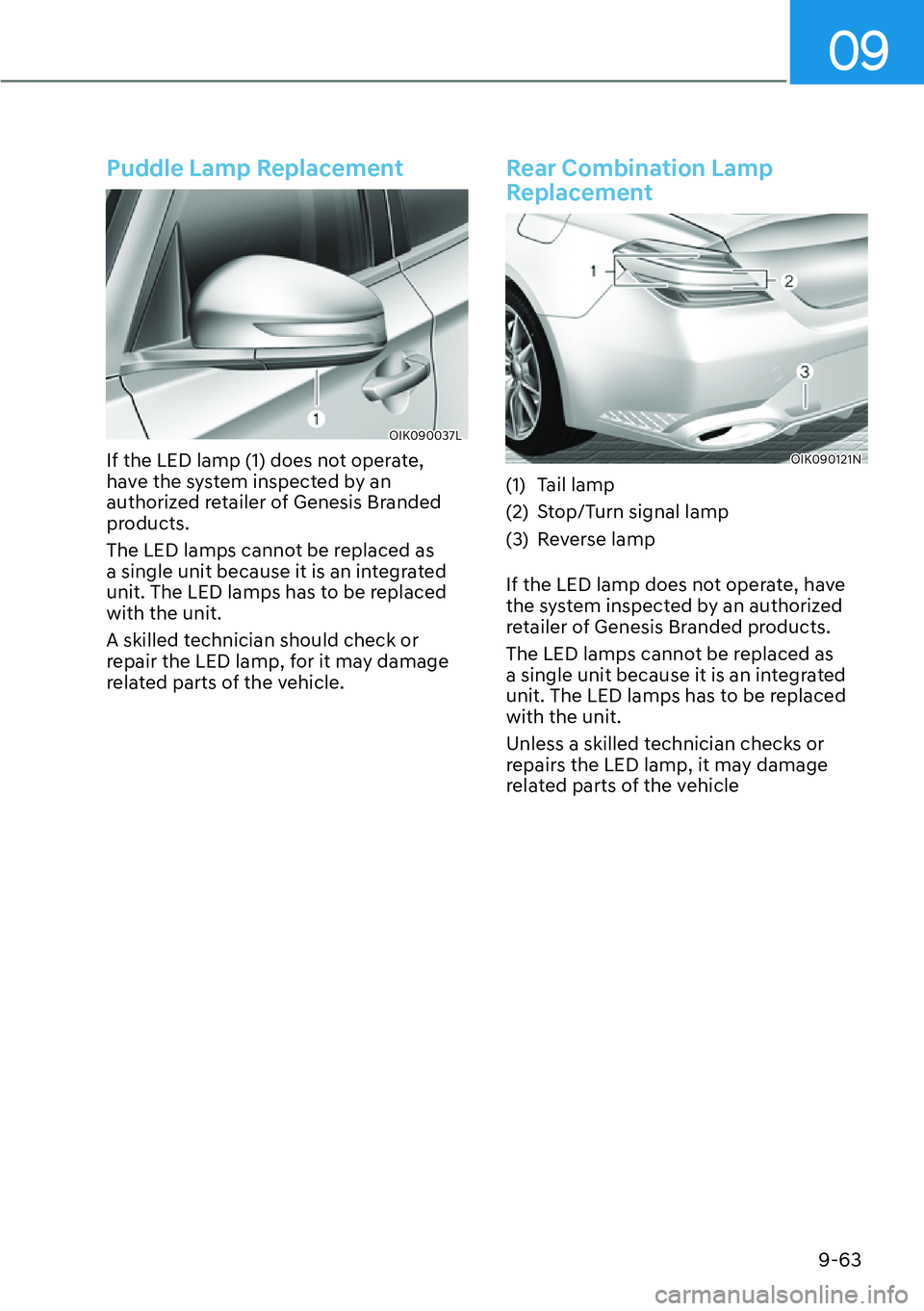

Puddle Lamp Replacement
OIK090037L
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
OIK090121N
(1) Tail lamp
(2) Stop/Turn signal lamp
(3) Reverse lamp
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle

Maintenance
9-64

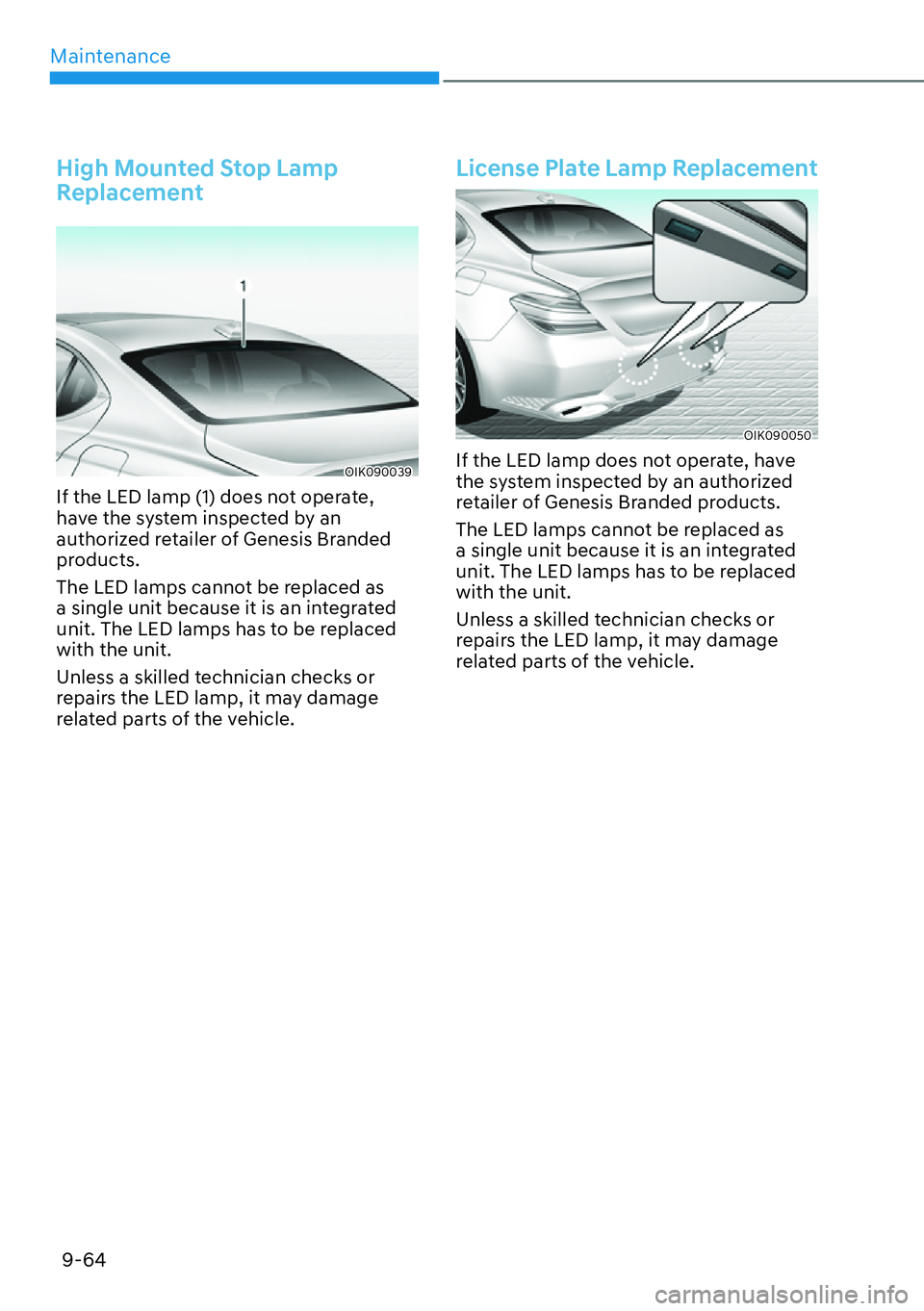

High Mounted Stop Lamp
Replacement
OIK090039
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.
License Plate Lamp Replacement
OIK090050
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.

09
9-65

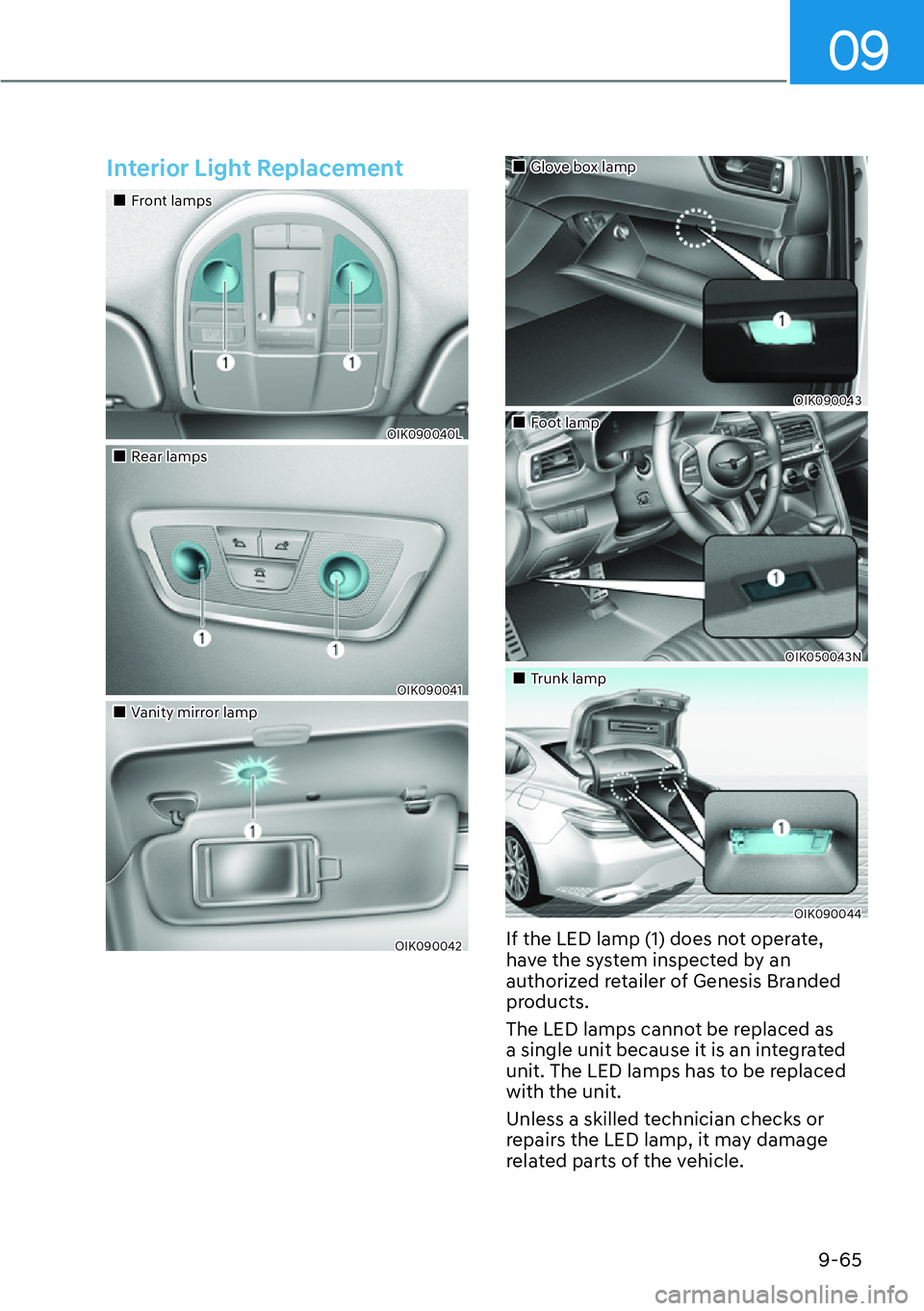

Interior Light Replacement
„Front lamps
OIK090040L
„Rear lamps
OIK090041
„Vanity mirror lamp
OIK090042
„Glove box lamp
OIK090043
„Foot lamp
OIK050043N
„Trunk lamp
OIK090044
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.

Maintenance
9-66
APPEARANCE CARE
Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp or
side view mirrors might be damaged
due to sunlight reflected from the
sign or building. To prevent damage of
the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Wa s h i n g
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing

[When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.

[Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.

[Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.

09
9-67
NOTICE

[Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.

[Be careful when washing the side
windows of your vehicle.

[Especially, with high-pressure water,
water may leak through the windows
and wet the interior.

[To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
NOTICE
OIK090045

[Water washing in the engine
compartment including high
pressure water washing may cause
the failure of electrical circuits
located in the engine compartment.

[Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.
NOTICE
Matte paint finish vehicle
Automatic car wash which uses rotating
brushes should not be used as this can
damage the surface of your vehicle. A
steam cleaner which washes the vehicle
surface at high temperature may cause
the oil to adhere and leave stains that is
difficult to remove.
Use a soft cloth (e.g. microfiber towel or
sponge) when washing your vehicle and
dry with a microfiber towel. When you
handwash your vehicle, you should not
use a cleaner that finishes with wax.
Waxing
A good coat of wax is a barrier between
your paint and contamination. Keeping
a good coat of wax on your vehicle will
help protect it.
Wax the vehicle until water will no longer
bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufacturer’s
instructions. Wax all metal trim to protect
it and to maintain its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.
