05
5-97
Air conditioning
„Type A or B
OIK050090
„Type C or D
OIK050221L
Push the A/C button to turn the air
conditioning system on (indicator light
will illuminate).
Push the button again to turn the air
conditioning system off.
OFF mode
OIK050091
Push the OFF button to turn the climate
control system off. However, you can still
operate the mode and air intake buttons
as long as the Engine Start/Stop button is
in the ON position.
Climate control information screen
selection button
OIK050092
Press the climate control information
screen selection button to display
climate control information on the
Infotainment system screen.

Convenient Features
5-102

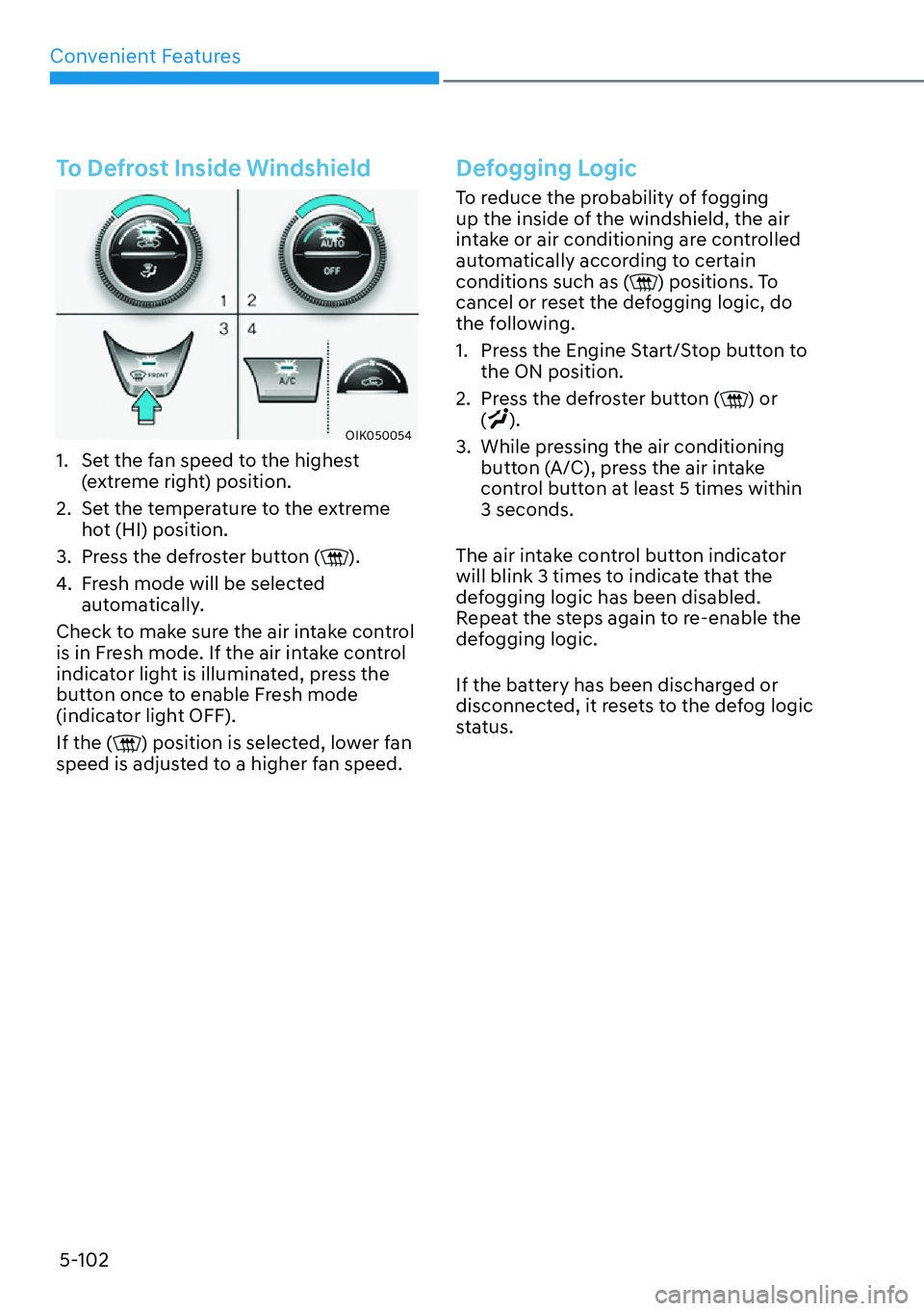

To Defrost Inside Windshield
OIK050054
1. Set the fan speed to the highest
(extreme right) position.
2. Set the temperature to the extreme
hot (HI) position.
3. Press the defroster button (
).
4. Fresh mode will be selected
automatically.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, press the
button once to enable Fresh mode
(indicator light OFF).
If the (
) position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging Logic
To reduce the probability of fogging
up the inside of the windshield, the air
intake or air conditioning are controlled
automatically according to certain
conditions such as (
) positions. To
cancel or reset the defogging logic, do
the following.
1. Press the Engine Start/Stop button to
the ON position.
2. Press the defroster button (
) or
().
3. While pressing the air conditioning
button (A/C), press the air intake
control button at least 5 times within
3 seconds.
The air intake control button indicator
will blink 3 times to indicate that the
defogging logic has been disabled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.

05
5-105
Turning the Auto Defogging System
ON or OFF
Climate control system
Press the front windshield defroster
button for 3 seconds when the Engine
Start/Stop button is in the ON position.
When the Auto Defogging System is
turned off, the ADS OFF symbol will blink
3 times and ADS OFF will be displayed on
the climate control information screen.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned
RQDQGRIIE\VHOHFWLQJ
S6HWXS

05
5-109

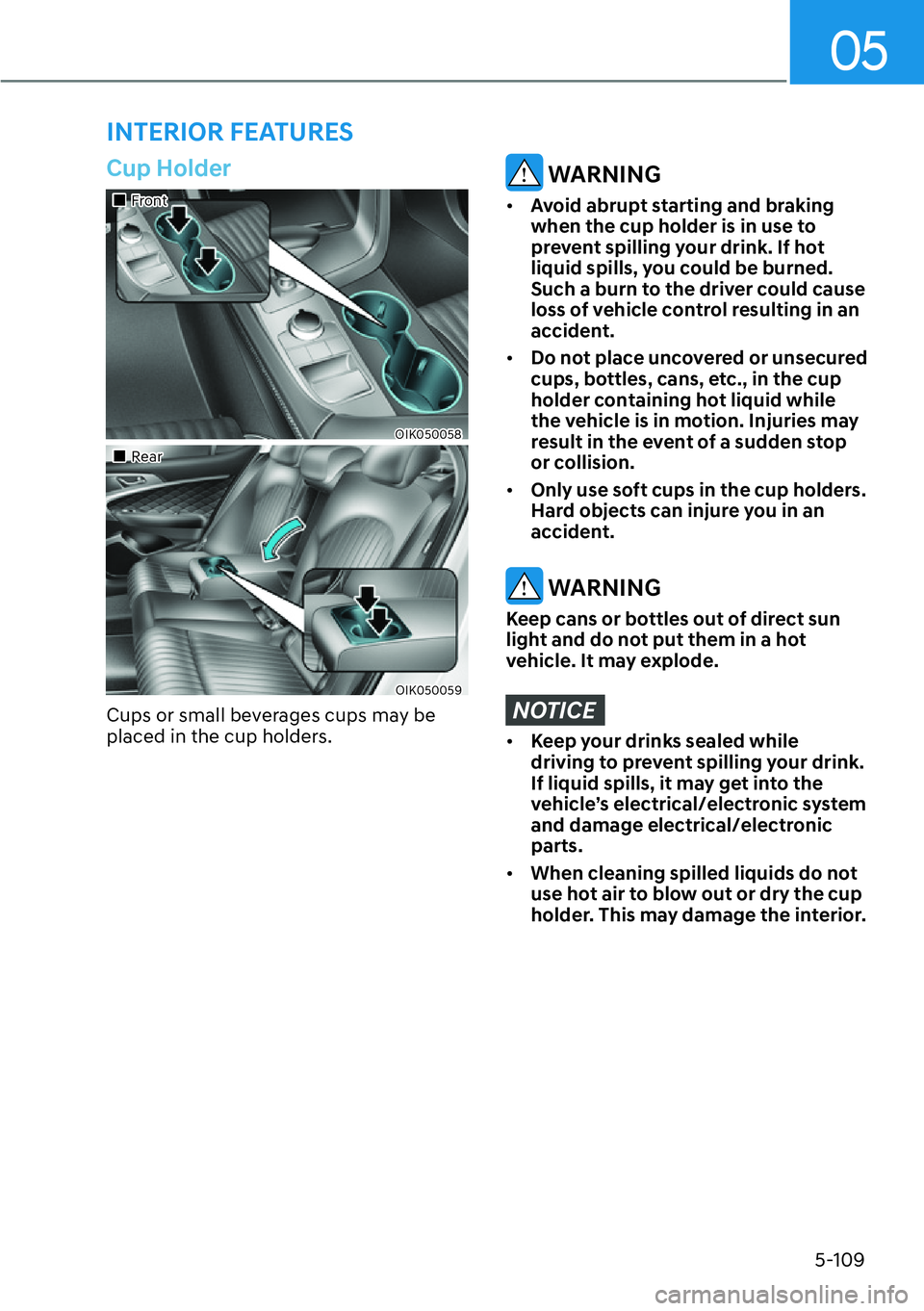

Cup Holder
„Front
OIK050058
„Rear
OIK050059
Cups or small beverages cups may be
placed in the cup holders.
WARNING

[Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.

[Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.

[Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE

[Keep your drinks sealed while
driving to prevent spilling your drink.
If liquid spills, it may get into the
vehicle’s electrical/electronic system
and damage electrical/electronic
parts.

[When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.
INTERIOR FEATURES

05
5-111

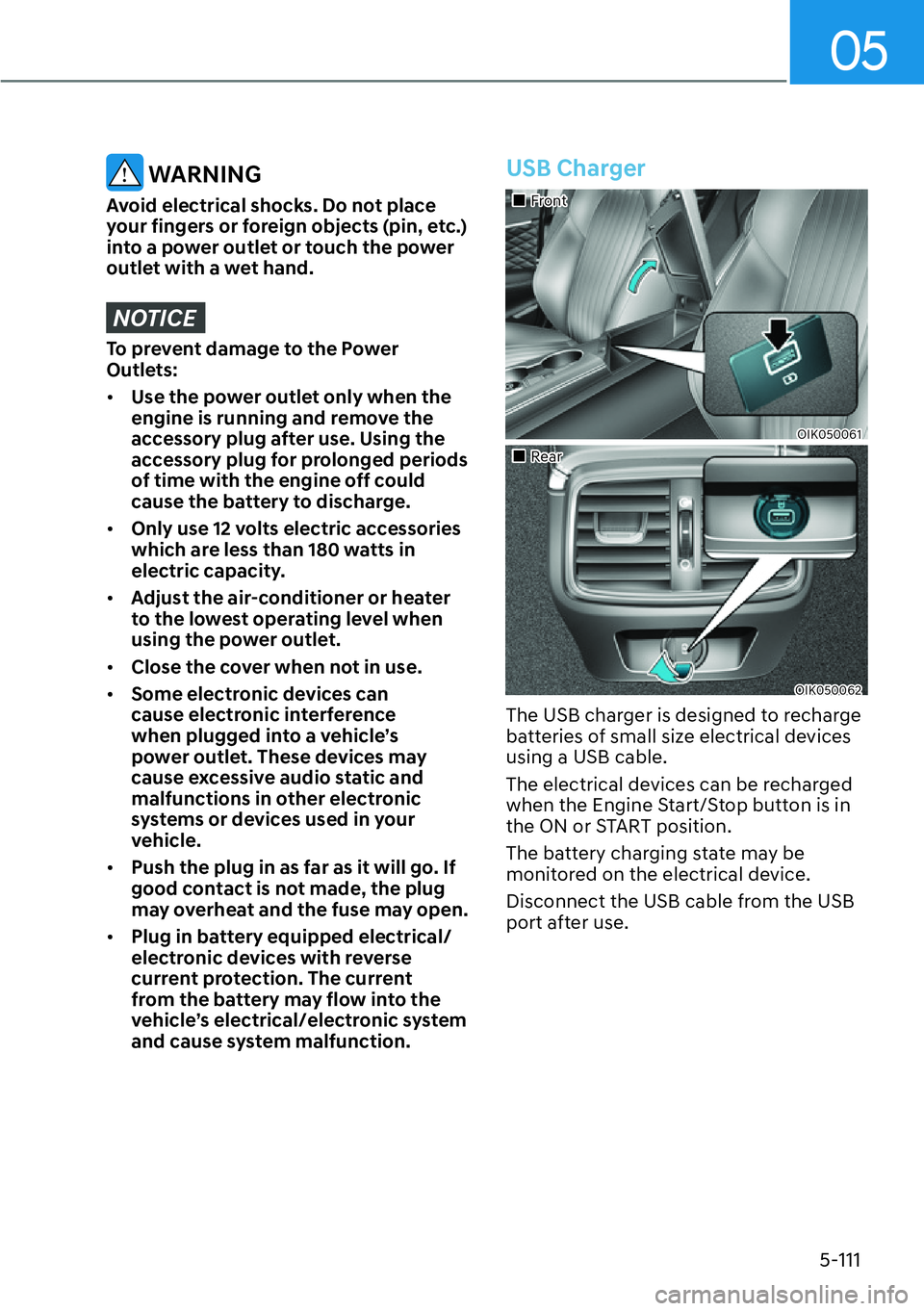

WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
NOTICE
To prevent damage to the Power
Outlets:

[Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[Close the cover when not in use.

[Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
„Front
OIK050061
„Rear
OIK050062
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Engine Start/Stop button is in
the ON or START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.

Convenient Features
5-112

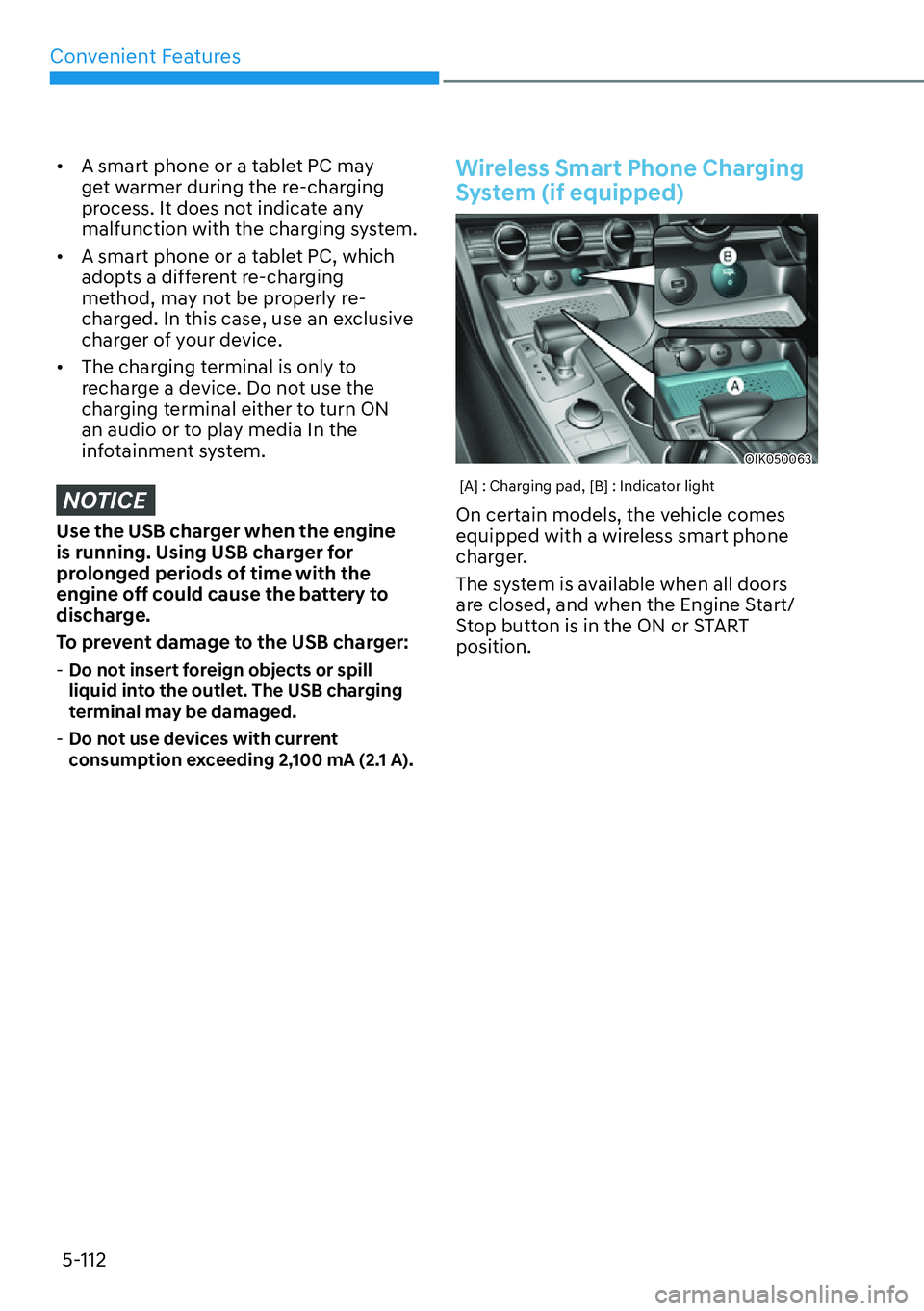

[A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
NOTICE
Use the USB charger when the engine
is running. Using USB charger for
prolonged periods of time with the
engine off could cause the battery to
discharge.
To prevent damage to the USB charger:
-Do not insert foreign objects or spill
liquid into the outlet. The USB charging
terminal may be damaged.
-Do not use devices with current
consumption exceeding 2,100 mA (2.1 A).
Wireless Smart Phone Charging
System (if equipped)
OIK050063
[A] : Charging pad, [B] : Indicator light
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the Engine Start/
Stop button is in the ON or START
position.

Convenient Features
5-114

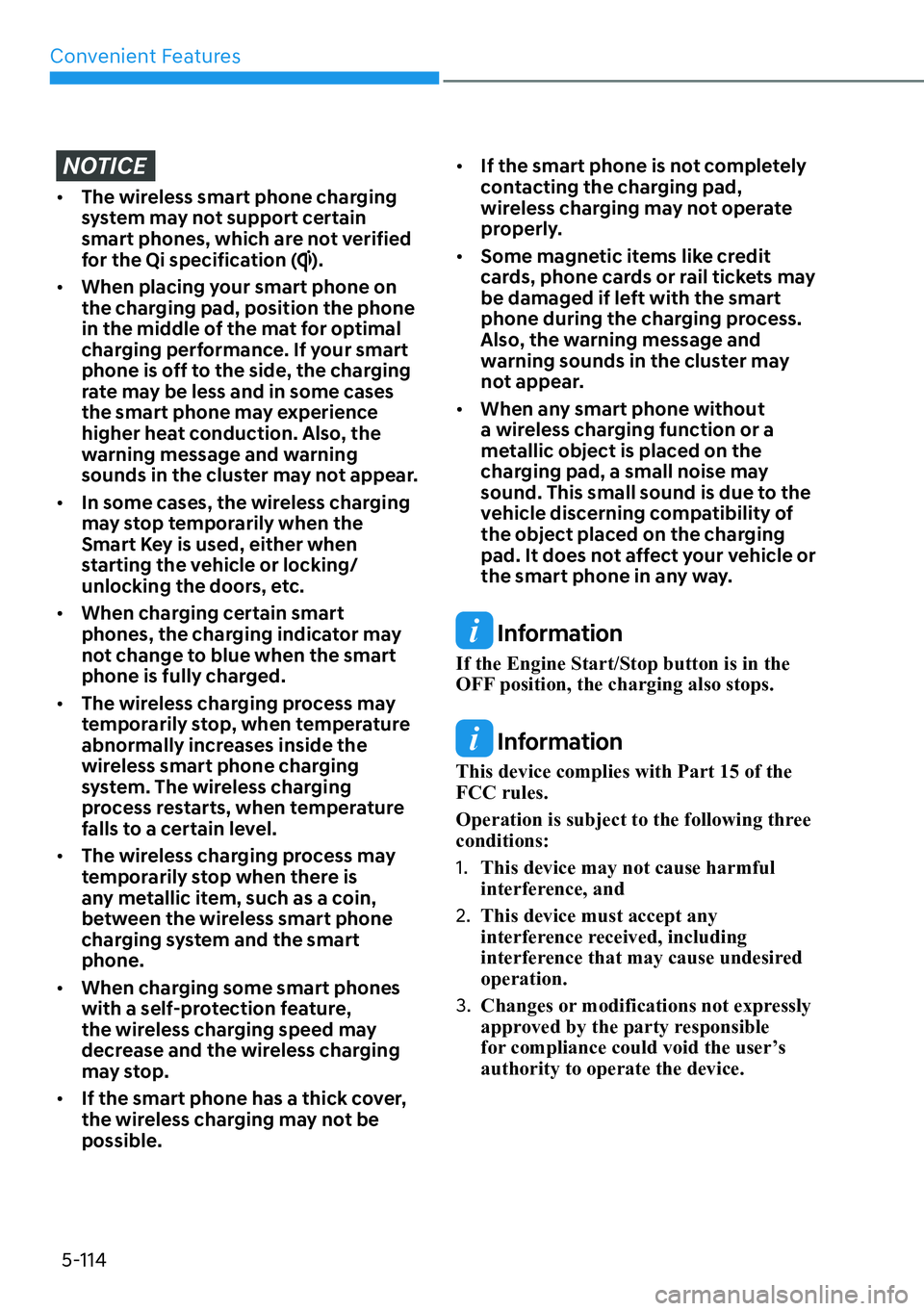

NOTICE

[The wireless smart phone charging
system may not support certain
smart phones, which are not verified
IRUWKH4LVSHFLILFDWLRQ(
).

[When placing your smart phone on
the charging pad, position the phone
in the middle of the mat for optimal
charging performance. If your smart
phone is off to the side, the charging
rate may be less and in some cases
the smart phone may experience
higher heat conduction. Also, the
warning message and warning
sounds in the cluster may not appear.

[In some cases, the wireless charging
may stop temporarily when the
Smart Key is used, either when
starting the vehicle or locking/
unlocking the doors, etc.

[When charging certain smart
phones, the charging indicator may
not change to blue when the smart
phone is fully charged.

[The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
wireless smart phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and the smart
phone.

[When charging some smart phones
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.

[If the smart phone has a thick cover,
the wireless charging may not be
possible.
[If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.

[Some magnetic items like credit
cards, phone cards or rail tickets may
be damaged if left with the smart
phone during the charging process.
Also, the warning message and
warning sounds in the cluster may
not appear.

[When any smart phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the smart phone in any way.
Information
,IWKH(QJLQH6WDUW6WRSEXWWRQLVLQWKH
OFF position, the charging also stops.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Start ................................................................................................................ 6-8
Automatic transmission ................................................................................... 6-9Automatic Transmission Operation ............................................................................ 6-9
Paddle Shifter (Manual shift mode) .......................................................................... 6-14
LCD Display Messages ............................................................................................... 6-15
Good Driving Practices .............................................................................................. 6-18
Braking System ............................................................................................... 6-20Power-Assist Brakes .................................................................................................. 6-20
High Performance Brake............................................................................................ 6-21
Disc Brakes Wear Indicator........................................................................................ 6-21
Electronic Parking Brake (EPB) .................................................................................. 6-22
Auto Hold ....................................................................................................................6-26
Anti-Lock Brake System (ABS) .................................................................................. 6-30
Electronic Stability Control (ESC) ............................................................................. 6-31
Vehicle Stability Management (VSM) .......................................................................6-34
Hill-Start Assist Control (HAC) ...................................................................................6-35
Good Braking Practices .............................................................................................6-35
All Wheel Drive (AWD) .................................................................................... 6-36For Safe AWD Operation ............................................................................................ 6-37
Emergency Precautions ............................................................................................ 6-38
Limited Slip Differential ..................................................................................6-40
Electronic Control Suspension .......................................................................6-40
System Malfunction .................................................................................................. 6-40
Launch Control .................................................................................................6-41Prerequisite for Activation ......................................................................................... 6-41
Launch Control Activation ......................................................................................... 6-41
Limited Use of Launch Control ................................................................................. 6-42
Coasting .......................................................................................................... 6-43Coasting Setting ........................................................................................................ 6-43
Coasting Operating Conditions ................................................................................ 6-43
Coasting Release Conditions ................................................................................... 6-44
6. Driving Your Vehicle

06
6-5
OIK060034
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
Rapidly press and release the Engine
Start/ Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Engine
Start/Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the vehicle turning off and
loss of power assist for the steering
and brake systems. This may lead
to loss of directional control and
braking function, which could cause
an accident.

[Before leaving the driver's seat,
always make sure the vehicle is in
P (Park), apply the parking brake,
press the Engine Start/ Stop button
to the OFF position, and take the
Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.
ENGINE START/STOP BUTTON

Driving Your Vehicle
6-6
Engine Stop/Start Button Positions
Button Position Action Notes
OFFTo turn off the engine, press the
Engine Start/Stop button with the
vehicle shifted to P (Park).
Note if the Engine Start/Stop
button is pressed with the vehicle
shifted to D (Drive) or R (Reverse),
the gear will automatically shift to
P (Park).
If the Engine Start/Stop button is
pressed with the gear shifted to
N (Neutral), the Engine Start/Stop
button will change to the ACC
position.
The steering wheel locks to
protect the vehicle from theft.If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACCPress the Engine Start/Stop button
when the button is in the OFF
position without depressing the
brake pedal.
Some of the electrical accessories
are usable.
The steering wheel unlocks.
[If you leave the Engine Start/Stop
button in the ACC position for
more than one hour, the battery
power will turn off automatically
to prevent the battery from
discharging.

[If the steering wheel doesn’t
unlock properly, the Engine Start/
Stop button will not work. Press
the Engine Start/Stop button
while turning the steering wheel
right and left to release.
ONPress the Engine Start/Stop button
while it is in the ACC position
without depressing the brake
pedal.
The warning lights can be checked
before the engine is started.Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent
the battery from discharging.
STARTTo start the engine, depress the
brake pedal and press the Engine
Start/ Stop button with the gear
shifted to the P (Park) or the N
(Neutral) position.
For your safety, start the engine
with the gear shifted to the P
(Park) position.If you press the Engine Start/Stop
button without depressing the
brake pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
2))
