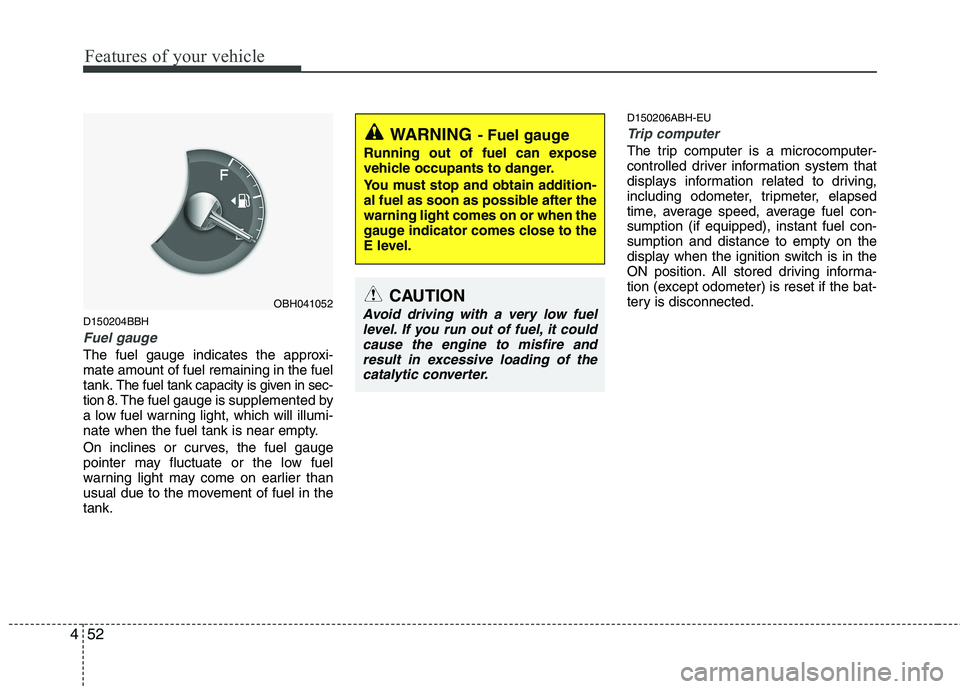

Page 131 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
52 4
D150204BBH
Fuel gauge
The fuel gauge indicates the approxi-
mate amount of fuel remaining in the fuel
tank.
The fuel tank capacity is given in sec-
tion 8.The fuel gauge

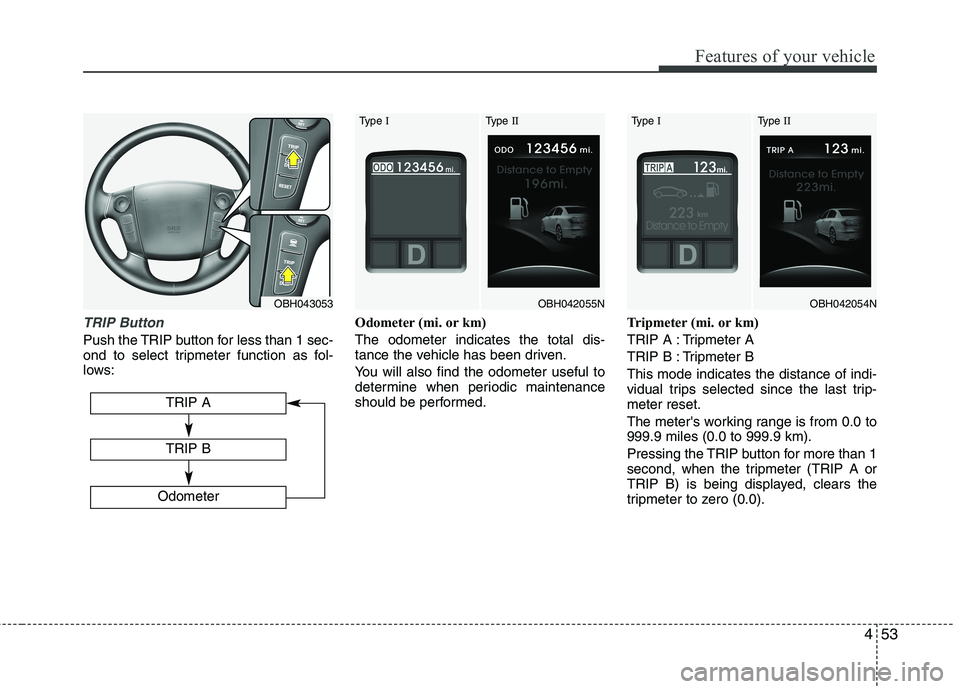

Page 132 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 453
Features of your vehicle
TRIP Button
Push the TRIP button for less than 1 sec-
ond to select tripmeter function as fol-
lows:Odometer (mi. or km)
The odometer indicates the total dis-
tance the ve

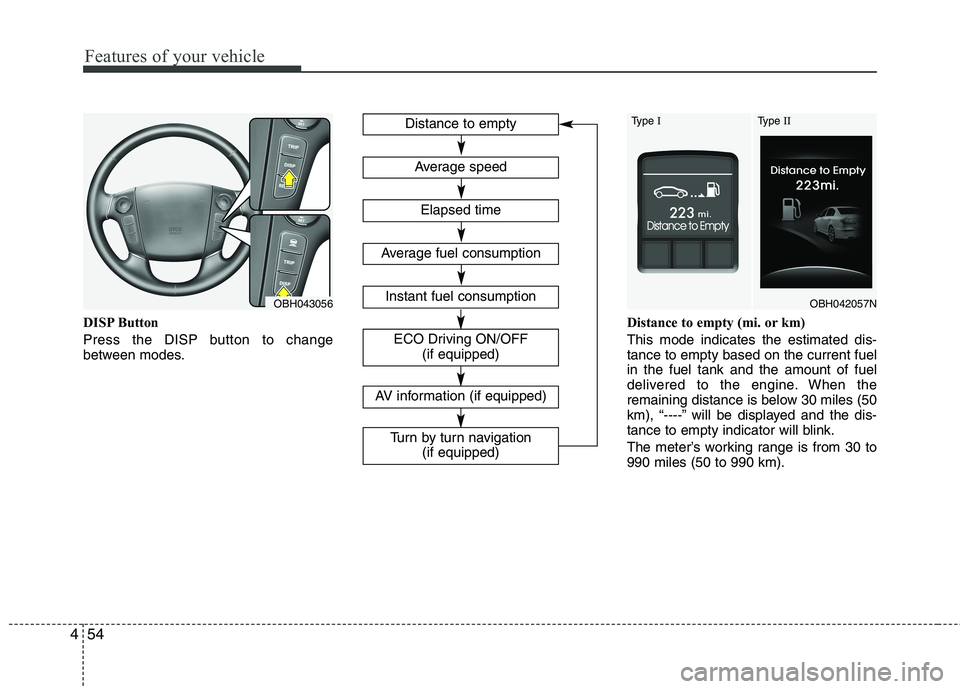

Page 133 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
54 4
DISP Button
Press the DISP button to change
between modes.Distance to empty (mi. or km)
This mode indicates the estimated dis-
tance to empty based on the current fuel
in

Page 134 of 432

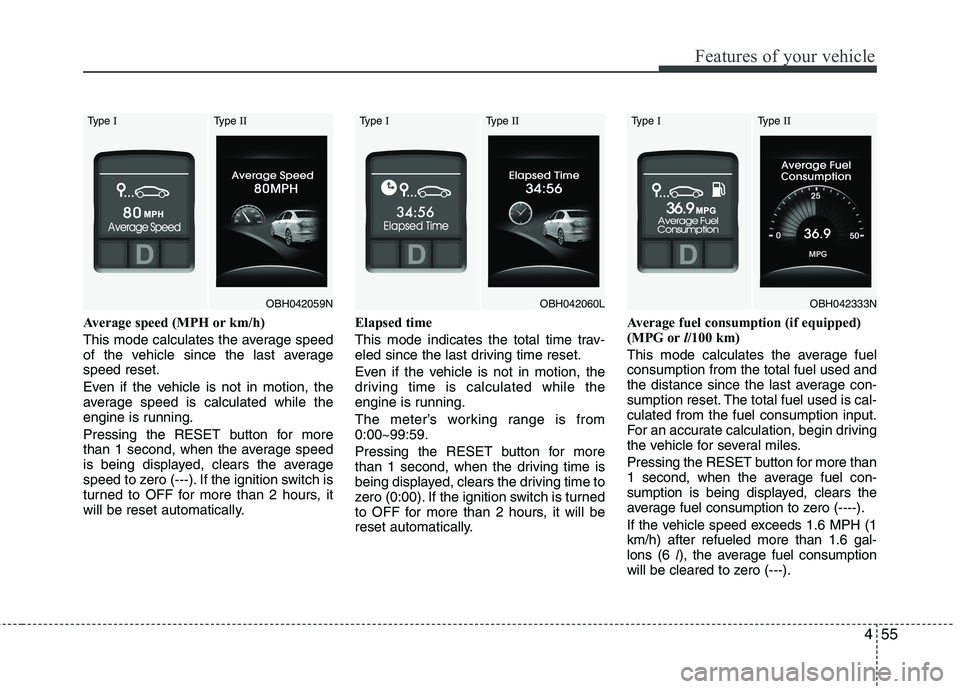

HYUNDAI GENESIS G80 2014  Owners Manual 455
Features of your vehicle
Average speed (MPH or km/h)
This mode calculates the average speed
of the vehicle since the last average
speed reset.
Even if the vehicle is not in motion, the
average spe

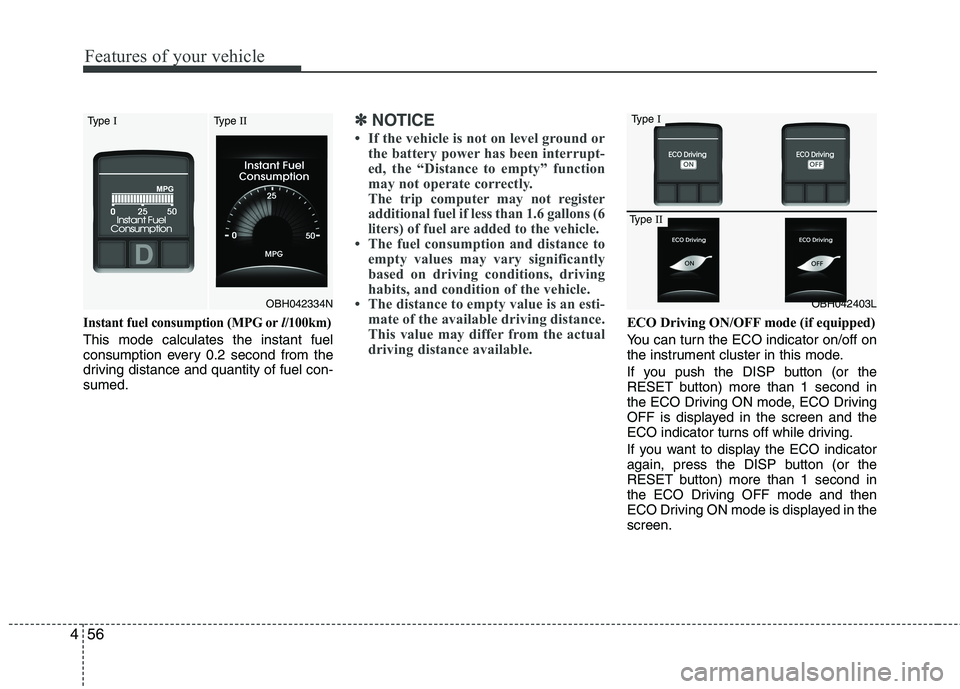

Page 135 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
56 4
Instant fuel consumption (MPG orl/100km)
This mode calculates the instant fuel
consumption every 0.2 second from the
driving distance and quantity of fuel con-
sumed.
✽

Page 136 of 432

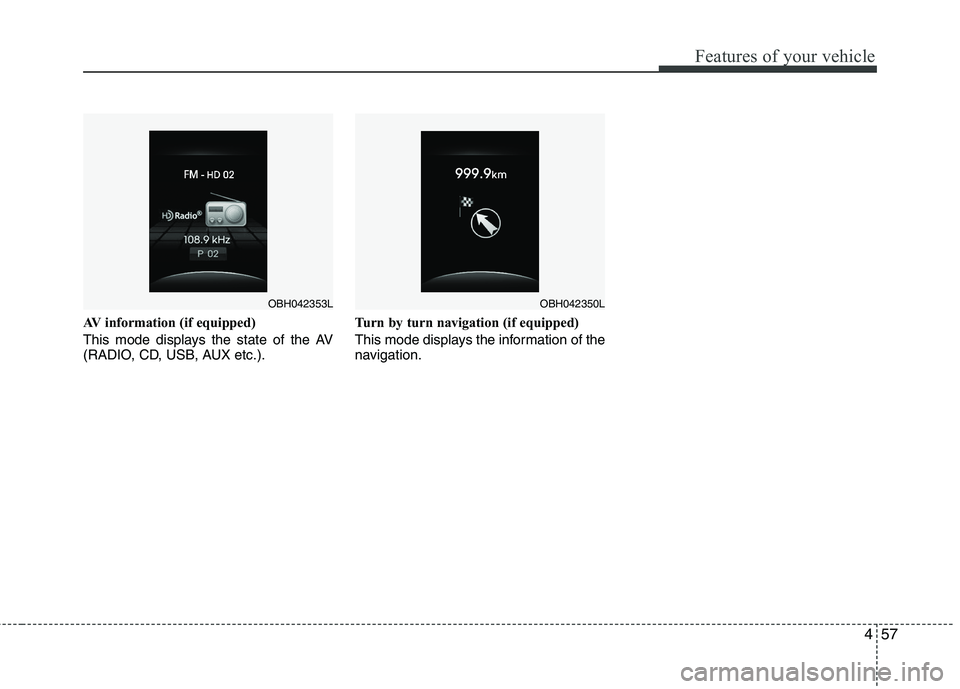

HYUNDAI GENESIS G80 2014  Owners Manual 457
Features of your vehicle
AV information (if equipped)
This mode displays the state of the AV
(RADIO, CD, USB, AUX etc.).Turn by turn navigation (if equipped)
This mode displays the information of

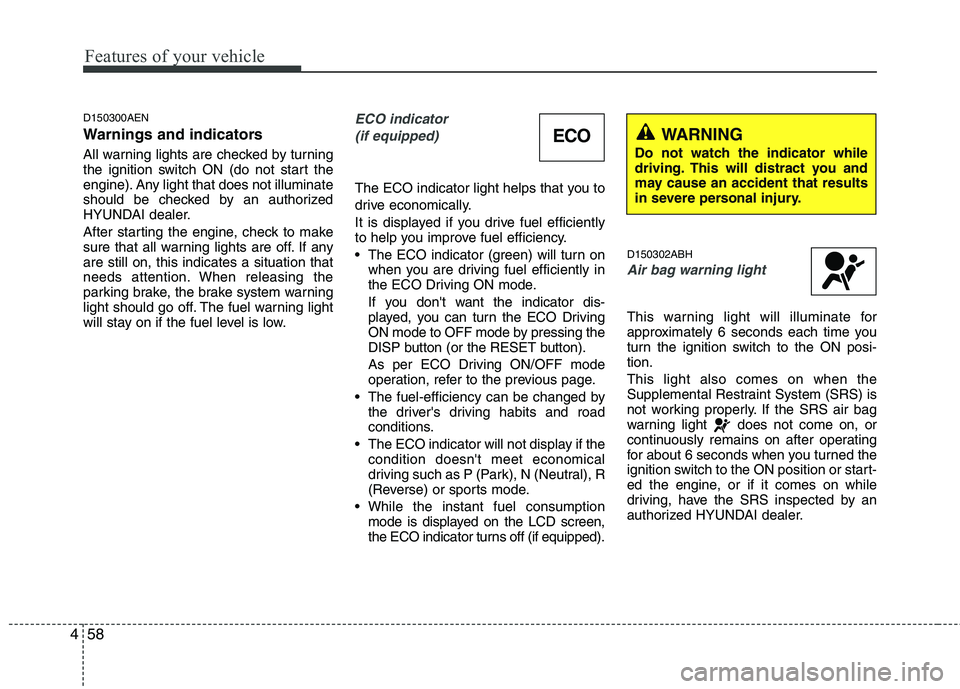

Page 137 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
58 4
D150300AEN
Warnings and indicators
All warning lights are checked by turning
the ignition switch ON (do not start the
engine). Any light that does not illuminate
should b

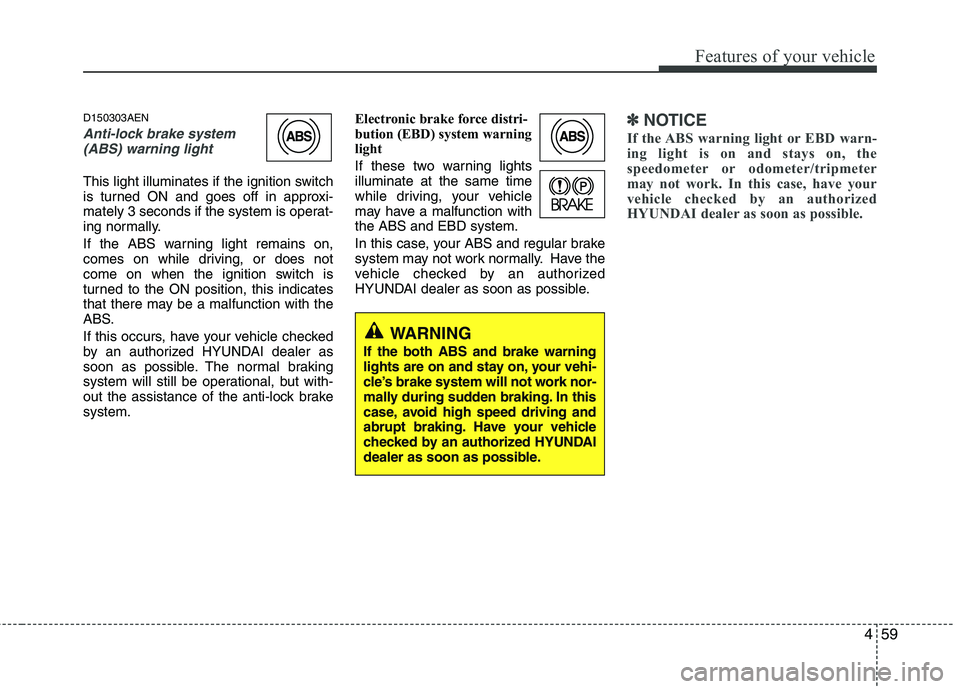

Page 138 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 459
Features of your vehicle
D150303AEN
Anti-lock brake system
(ABS) warning light
This light illuminates if the ignition switch
is turned ON and goes off in approxi-
mately 3 seconds if the system i

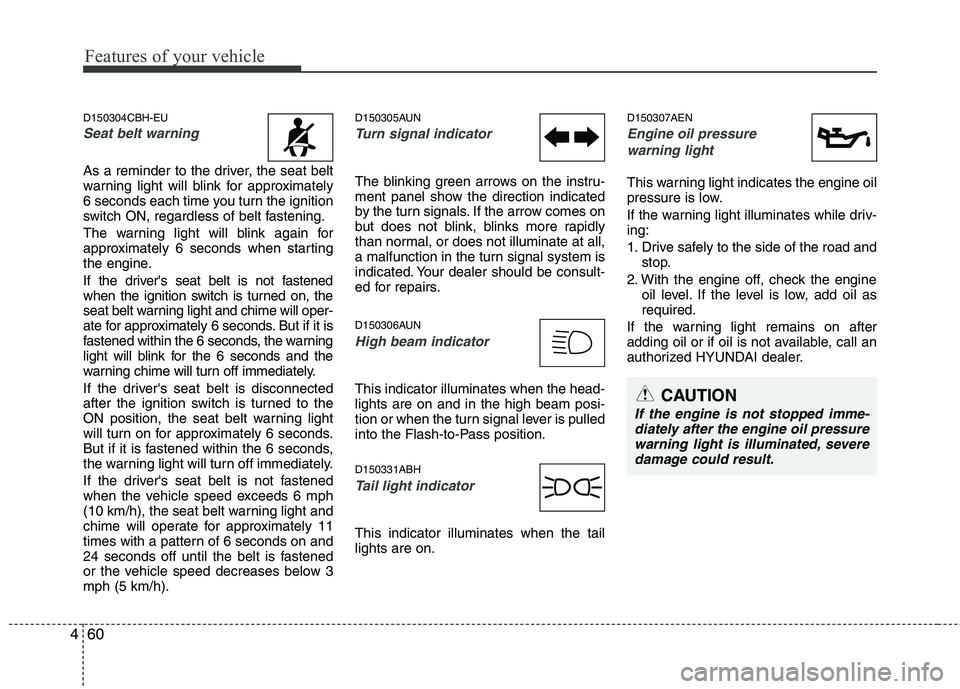

Page 139 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
60 4
D150304CBH-EU
Seat belt warning
As a reminder to the driver, the seat belt
warning light will blink for approximately
6 seconds each time you turn the ignition
switch ON

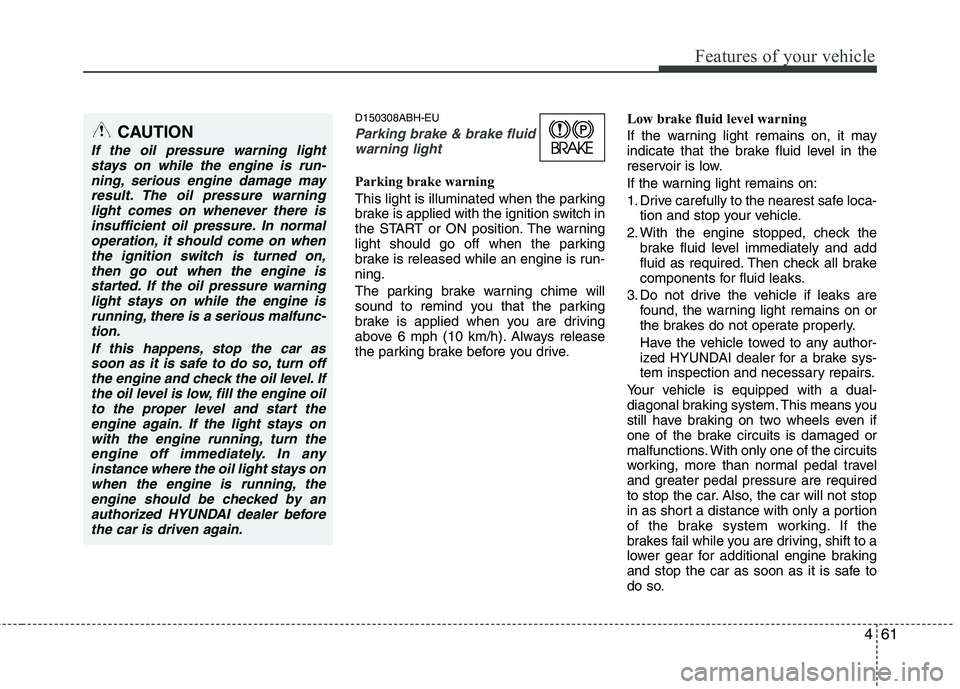

Page 140 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 461
Features of your vehicle
D150308ABH-EU
Parking brake & brake fluid
warning light
Parking brake warning
This light is illuminated when the parking
brake is applied with the ignition switch in
the
