Page 151 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
72 4
D170000ABH

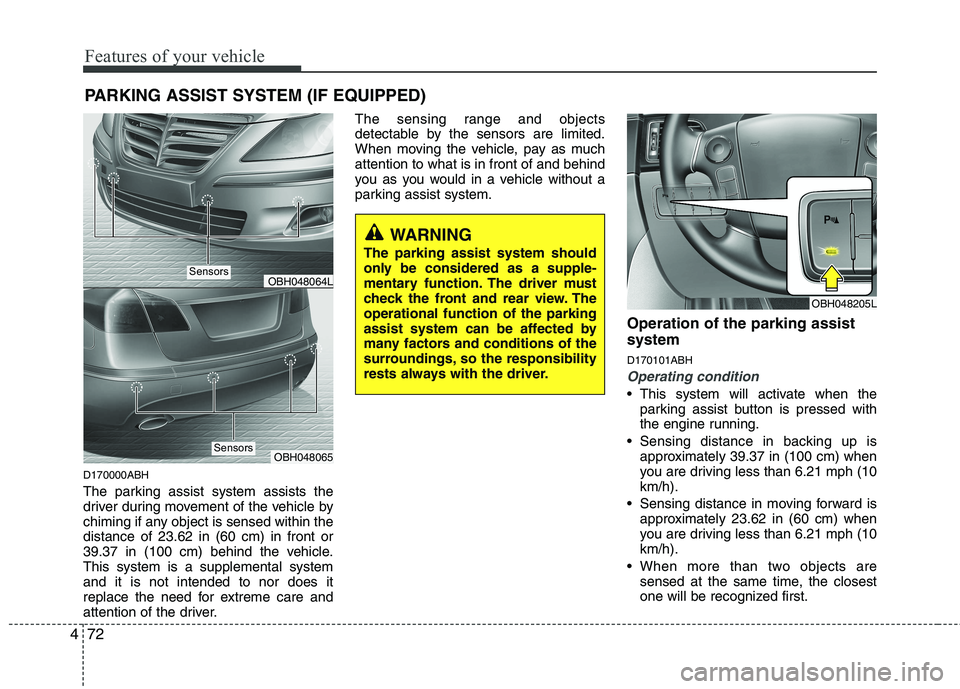

The parking assist system assists the
driver during movement of the vehicle by
chiming if any object is sensed within the
distance of 23.62 in (60 cm) in front

Page 152 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 473
Features of your vehicle
✽ ✽

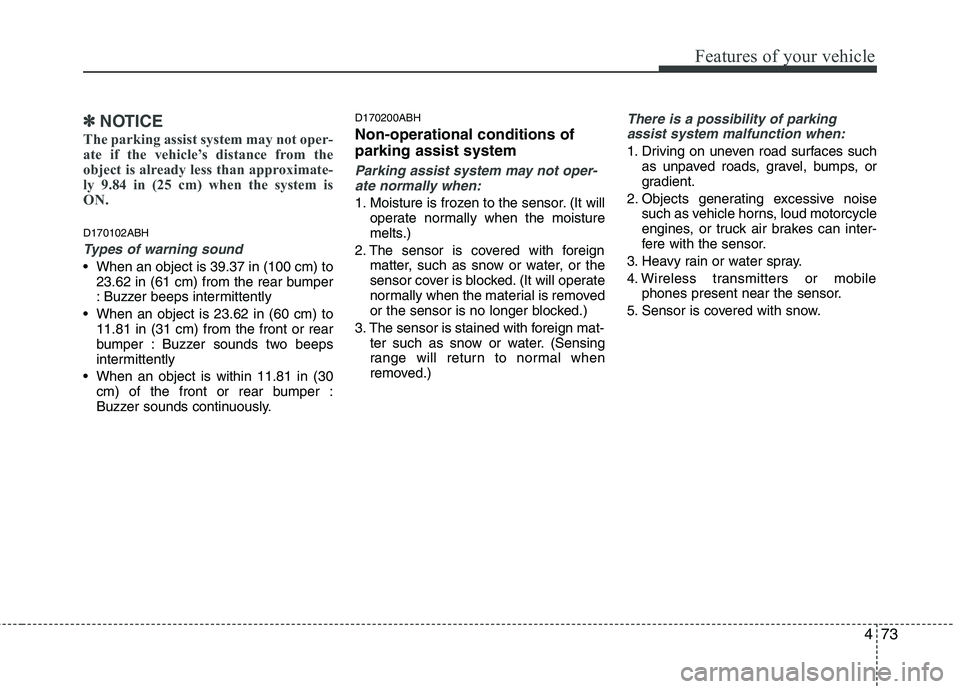

NOTICE
The parking assist system may not oper-
ate if the vehicle’s distance from the
object is already less than approximate-
ly 9.84 in (25 cm) when the system

Page 153 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
74 4

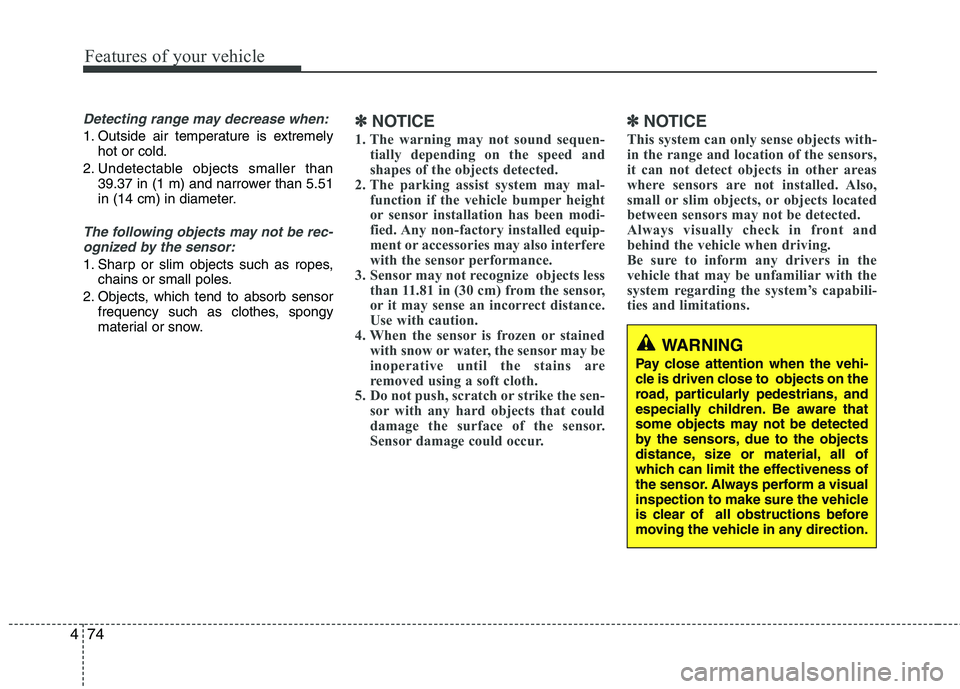

WARNING
Pay close attention when the vehi-
cle is driven close to  objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may

Page 154 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 475
Features of your vehicle
D170400ABH

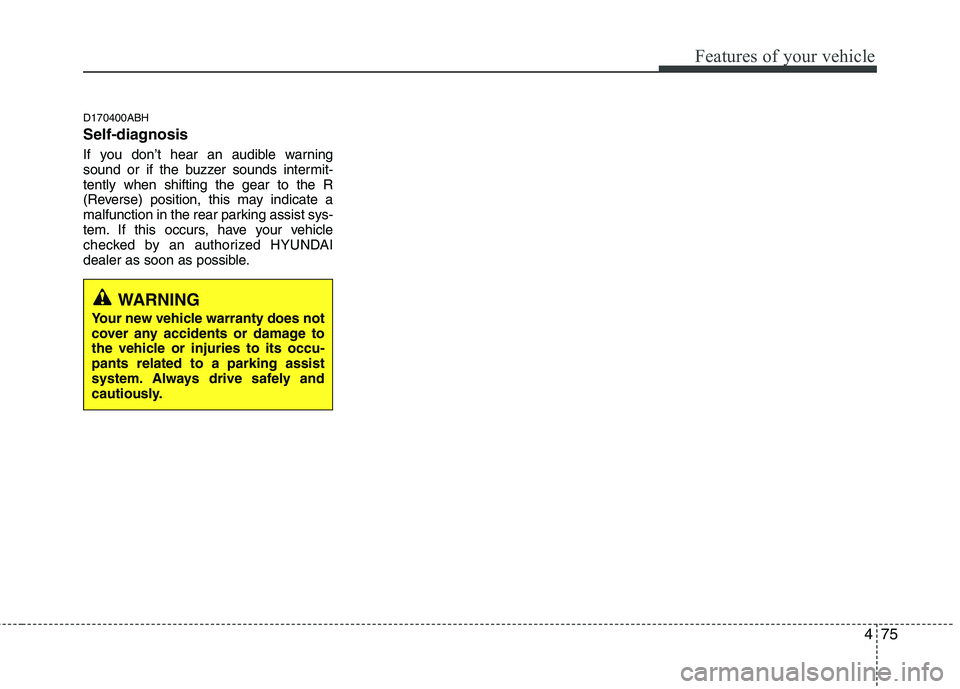

Self-diagnosis
If you don’t hear an audible warning
sound or if the buzzer sounds intermit-
tently when shifting the gear to the R
(Reverse) position, this ma

Page 155 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
76 4
REAR VIEW CAMERA (IF EQUIPPED)
D330000ABH
The rearview camera will activate when
the back-up light is ON with the ignition
switch ON and the shift lever in the R
position

Page 156 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 477
Features of your vehicle
D190100ABH

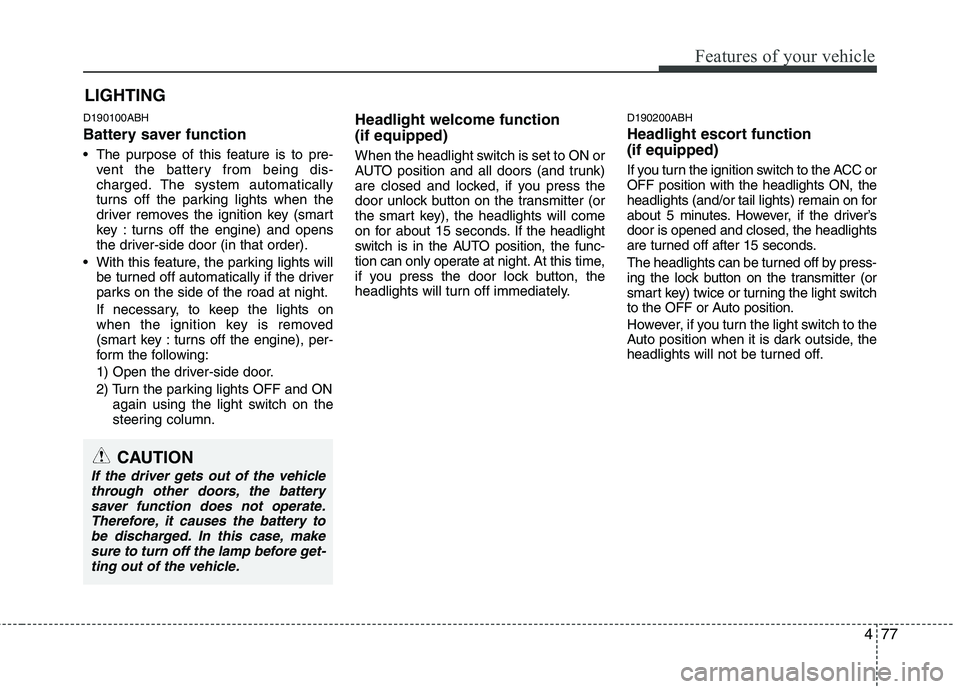

Battery saver function
 The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking light

Page 157 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
78 4
D190400AUN

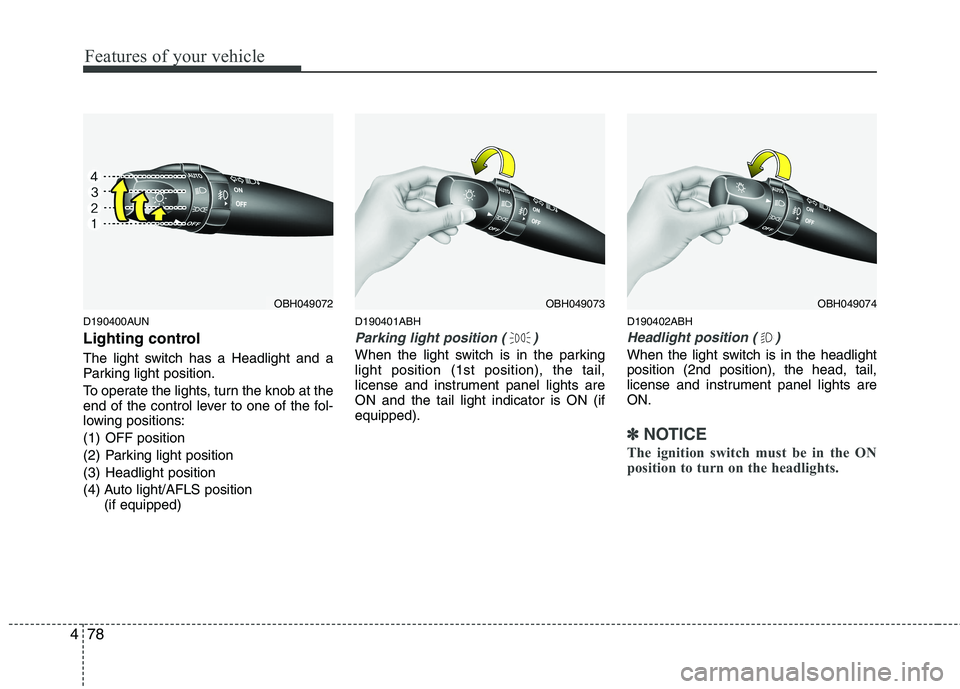

Lighting control
The light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at the
end of the control lever to one of

Page 158 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 479
Features of your vehicle
D190403AUN

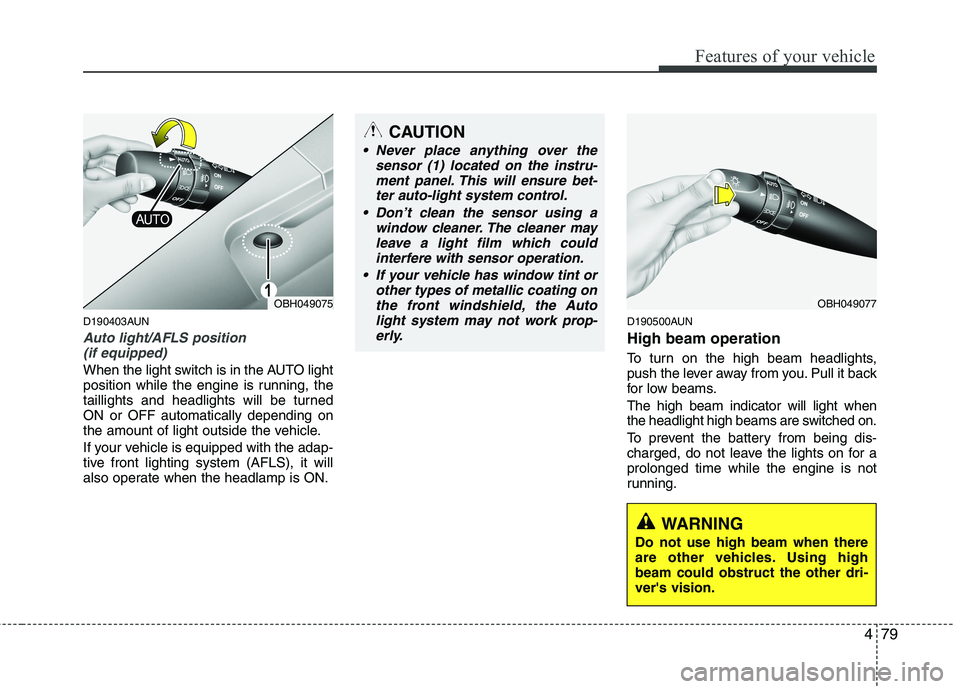

Auto light/AFLS position
(if equipped)
When the light switch is in the AUTO light
position while the engine is running, the
taillights and headlights will be t

Page 159 of 432

HYUNDAI GENESIS G80 2014  Owners Manual Features of your vehicle
80 4

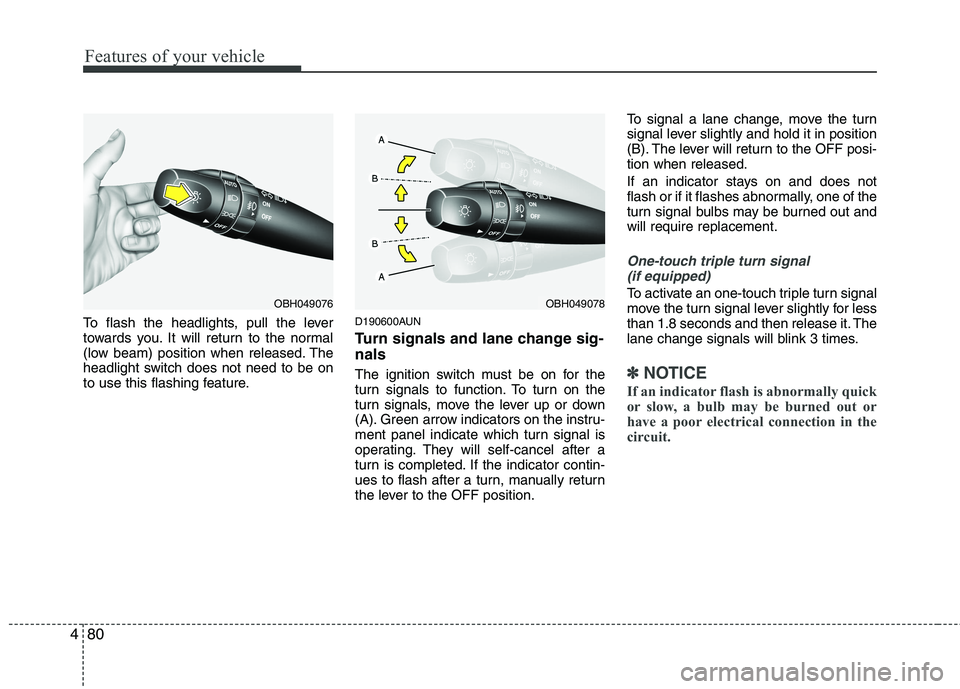

To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when released. The
headlight switch does not need to be on
to use th

Page 160 of 432

HYUNDAI GENESIS G80 2014  Owners Manual 481
Features of your vehicle
D190700AHD-EU
Front fog light (if equipped)
Fog lights are used to provide improved
visibility and avoid accidents when visibil-
ity is poor due to fog, rain or snow etc
