headlamp HYUNDAI GENESIS G80 2022 Owner's Manual

7-78
Maintenance
✽ ✽
NOTICE
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at an authorized retailer
of Genesis Branded products.
Headlamp
1. Turn off the engine.
2. Open the hood.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the connector (A) and
pull the BI-FUNCTION lamp.
5. Connect the BI-FUNCTION lamp
to the cable and install the con-
nector (A).
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.Push the socket into the assembly
and turn the socket clockwise.
If the headlamp (LED) does nut oper-
ate, have the vehicle checked by an
autorized retailer of Genesis
Branded products.
ODH073064L
A
A

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
8-3
88

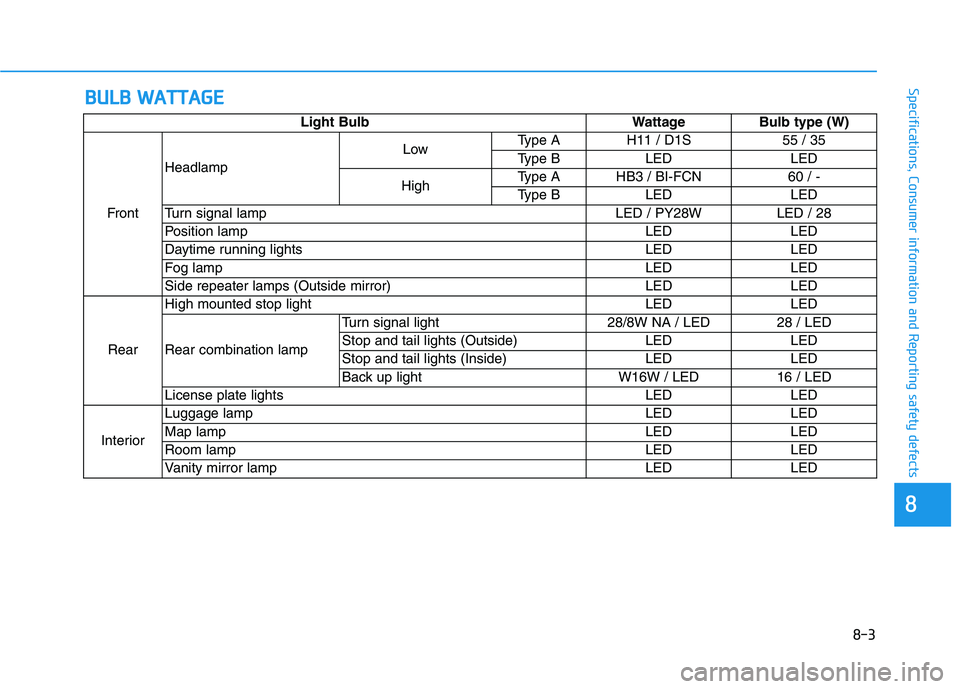

Specifications, Consumer information and Reporting safety defects
Light Bulb Wattage Bulb type (W)
FrontHeadlampLowType A H11 / D1S 55 / 35
Type B LED LED
HighType A HB3 / BI-FCN 60 / -
Type B LED LED
Turn signal lamp LED / PY28W LED / 28
Position lamp LED LED
Daytime running lights LED LED
Fog lamp LED LED
Side repeater lamps (Outside mirror) LED LED
RearHigh mounted stop light LED LED
Rear combination lampTurn signal light 28/8W NA / LED 28 / LED
Stop and tail lights (Outside) LED LED
Stop and tail lights (Inside) LED LED
Back up light W16W / LED 16 / LED
License plate lights LED LED
InteriorLuggage lamp LED LED
Map lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED

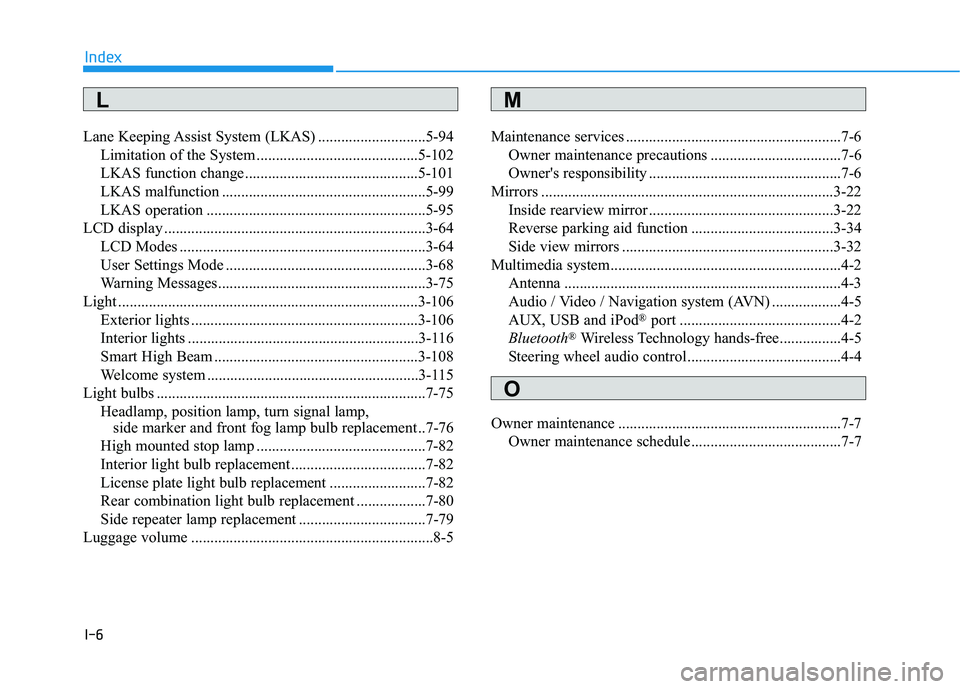

I-6
Lane Keeping Assist System (LKAS) ............................5-94
Limitation of the System ..........................................5-102
LKAS function change .............................................5-101
LKAS malfunction .....................................................5-99
LKAS operation .........................................................5-95
LCD display ....................................................................3-64
LCD Modes ................................................................3-64
User Settings Mode ....................................................3-68
Warning Messages......................................................3-75
Light ..............................................................................3-106
Exterior lights ...........................................................3-106
Interior lights ............................................................3-116
Smart High Beam .....................................................3-108
Welcome system .......................................................3-115
Light bulbs ......................................................................7-75
Headlamp, position lamp, turn signal lamp,
side marker and front fog lamp bulb replacement ..7-76
High mounted stop lamp ............................................7-82
Interior light bulb replacement ...................................7-82
License plate light bulb replacement .........................7-82
Rear combination light bulb replacement ..................7-80
Side repeater lamp replacement .................................7-79
Luggage volume ...............................................................8-5Maintenance services ........................................................7-6
Owner maintenance precautions ..................................7-6
Owner's responsibility ..................................................7-6
Mirrors ............................................................................3-22
Inside rearview mirror ................................................3-22
Reverse parking aid function .....................................3-34
Side view mirrors .......................................................3-32
Multimedia system............................................................4-2
Antenna ........................................................................4-3
Audio / Video / Navigation system (AVN) ..................4-5
AUX, USB and iPod
®port ..........................................4-2
Bluetooth®Wireless Technology hands-free................4-5
Steering wheel audio control........................................4-4
Owner maintenance ..........................................................7-7
Owner maintenance schedule .......................................7-7
Index
ML
O
