HYUNDAI GENESIS GV70 2021 Owners Manual

3-63
03
OJK031037N/OJK030038L/OJK031081N/OJK030040/OJK030041/OJK030042OJK031037N/OJK030038L/OJK031081N/OJK030040/OJK030041/OJK030042
1. SRS control module / Rollover sensor
2. Front impact sensor
3. Side impact sensor (Pressure)4. Side impact sensor (Acceleration)
5. Side impact sensor (Acceleration)

Seats & Safety System
3-64
Air bag inflation conditions
OJK030047OJK030047
Front air bags
Front air bags are designed to inflate
in a frontal collision depending on the
severity of impact of the front collision.
OJK030043OJK030043
OJK030034OJK030034
Side and curtain air bags and front center
air bag
Side and curtain air bags and front center
air bag are designed to inflate when
an impact is detected by side collision
sensors depending on the severity of
impact resulting from a side impact
collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain air bags and
front center air bag are designed to
inflate in side impact collisions, but
they may inflate in other collisions if the
side impact sensors detect a sufficient
impact.

03
3-65

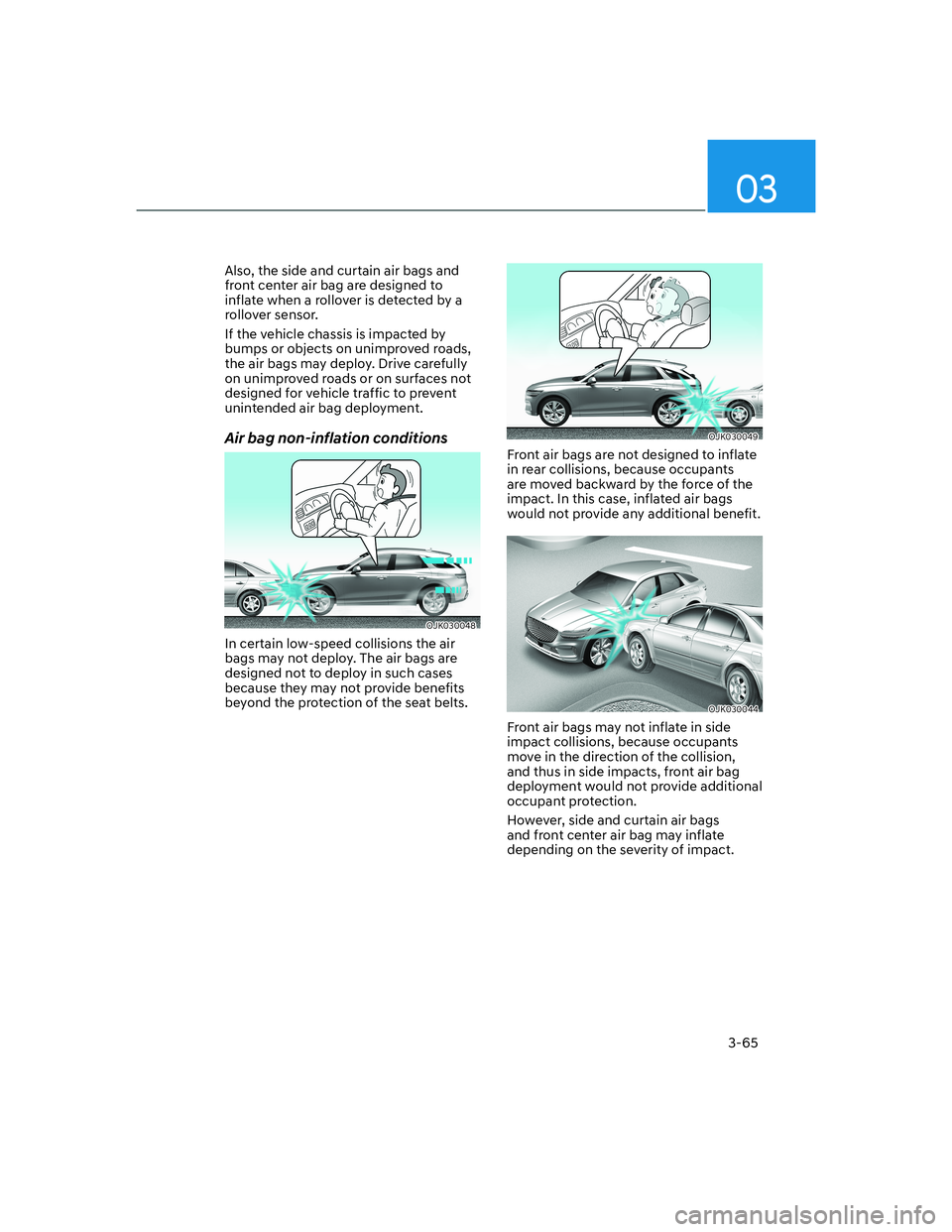

Also, the side and curtain air bags and
front center air bag are designed to
inflate when a rollover is detected by a
rollover sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
OJK030048OJK030048
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
OJK030049OJK030049
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
OJK030044OJK030044
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags
and front center air bag may inflate
depending on the severity of impact.

Seats & Safety System
3-66
OJK030045OJK030045
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
OJK030050OJK030050
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OJK030051OJK030051
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
However, the side and curtain air bags
and front center air bag may inflate in a
rollover situation, when it is detected by
the rollover sensor.
OJK031046NOJK031046N
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

03
3-67

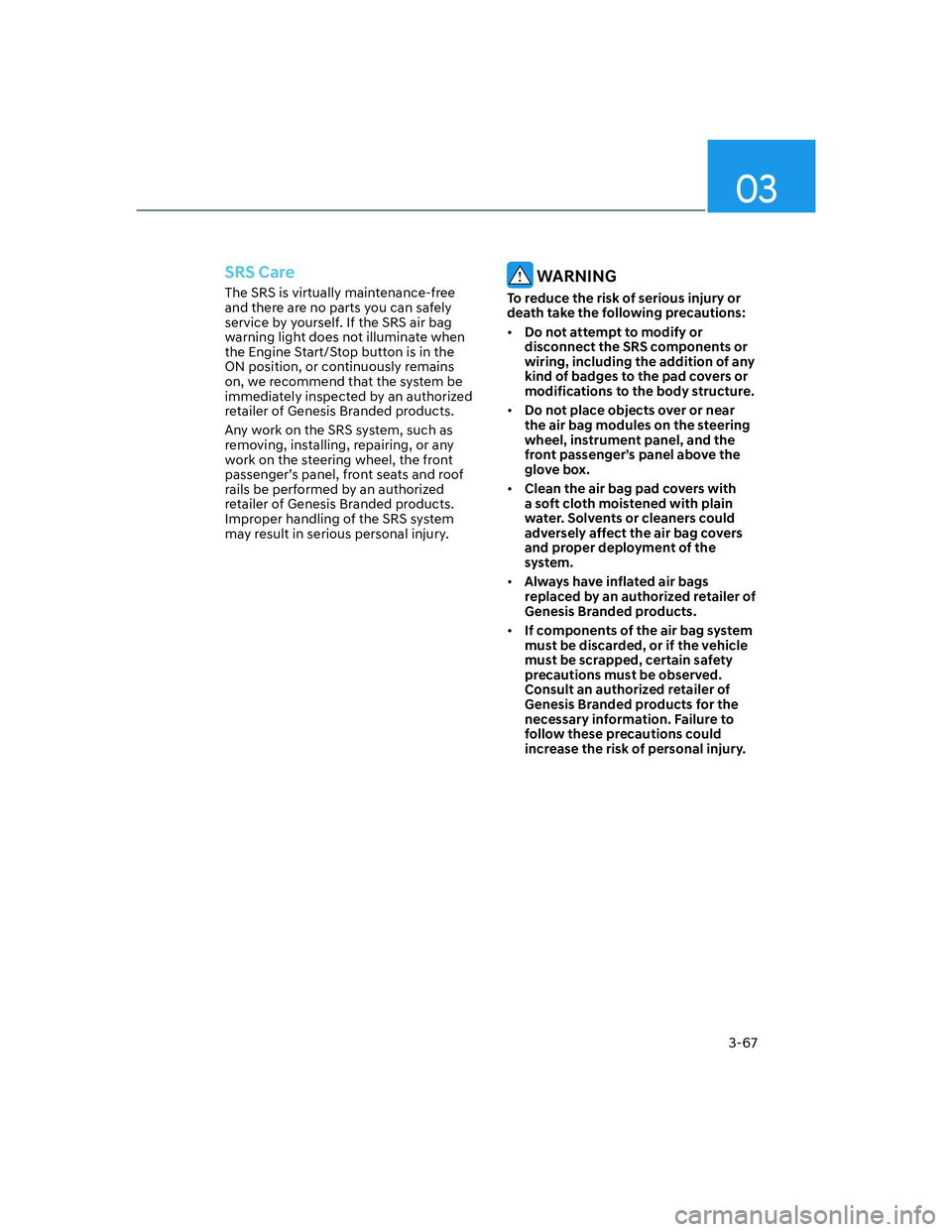

SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains
on, we recommend that the system be
immediately inspected by an authorized
retailer of Genesis Branded products.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
retailer of Genesis Branded products.
Improper handling of the SRS system
may result in serious personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:
• Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.
• Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.
• Always have inflated air bags
replaced by an authorized retailer of
Genesis Branded products.
• If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized retailer of
Genesis Branded products for the
necessary information. Failure to
follow these precautions could
increase the risk of personal injury.

Seats & Safety System
3-68

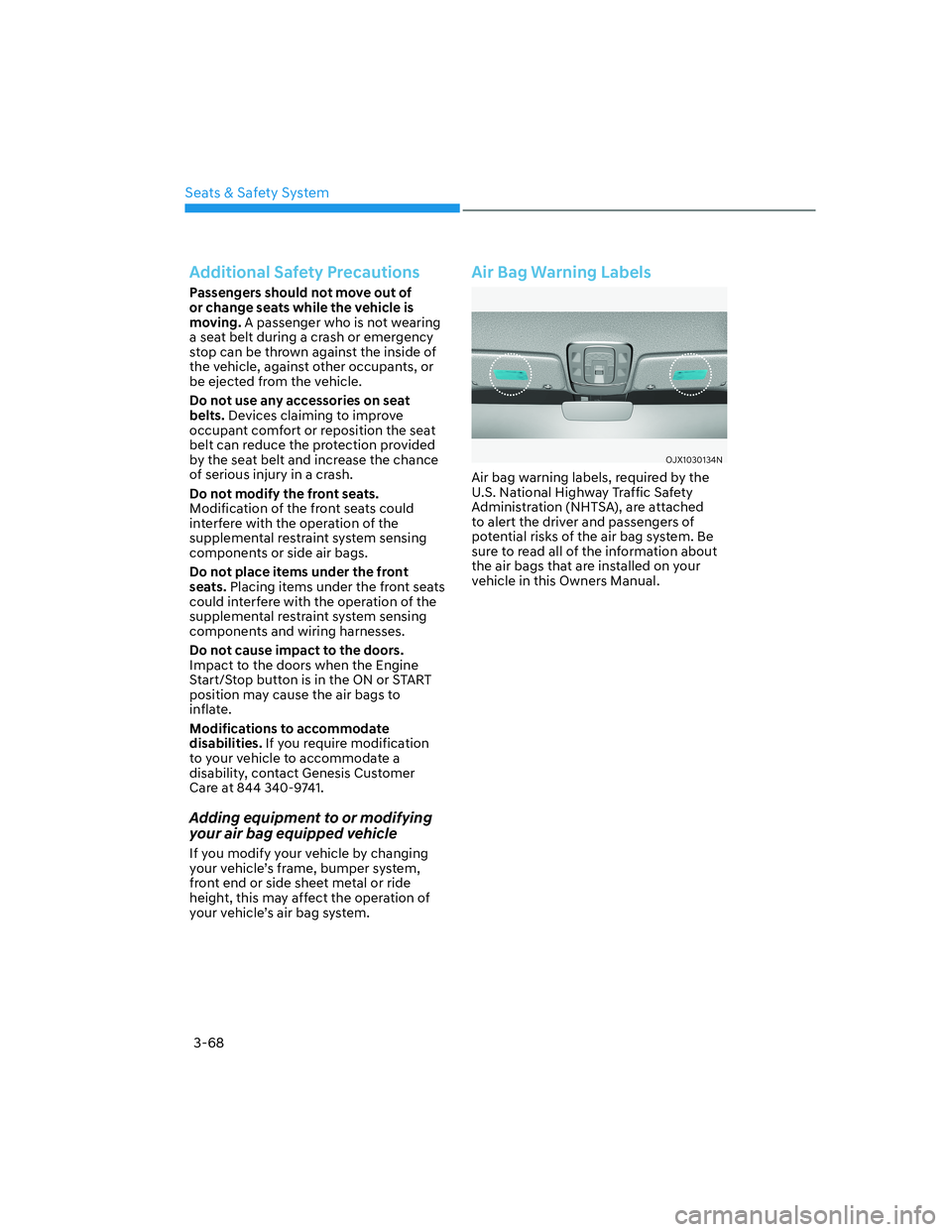

Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate a
disability, contact Genesis Customer
Care at 844 340-9741.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OJX1030134NOJX1030134N
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.

4
Instrument cluster ............................................................................................ 4-4Instrument Cluster Control ..........................................................................................4-5
Instrument panel illumination ...................................................................................4-5
Gauges and Meters ......................................................................................................4-5
Speedometer .............................................................................................................4-5
Tachometer ............................................................................................................... 4-6
Engine coolant temperature gauge (for 12.3-inch 3D cluster)............................... 4-6
Fuel gauge .................................................................................................................. 4-7
Outside temperature gauge ..................................................................................... 4-8
Odometer .................................................................................................................. 4-9
Distance to empty .................................................................................................... 4-9
Fuel economy (for 12.3-inch 3D cluster) ................................................................ 4-10
Transmission Shift Indicator ...................................................................................... 4-10
Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights ..................................................................................... 4-11
Seat belt warning light ............................................................................................. 4-11
Air bag warning light ................................................................................................ 4-11
Parking brake & Brake fluid warning light ............................................................... 4-11
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-13
Charging system warning light ............................................................................... 4-13
Engine oil pressure warning light ........................................................................... 4-14
Engine coolant temperature warning light (for 8-inch cluster) ............................ 4-15
Low fuel level warning light .................................................................................... 4-15
Malfunction Indicator Lamp (MIL) .......................................................................... 4-15
Master warning light ................................................................................................ 4-16
Electronic Parking Brake (EPB) warning light ........................................................ 4-16
Low tire pressure warning light ...............................................................................4-17
Forward Safety warning light ...................................................................................4-17
Lane Safety indicator light ...................................................................................... 4-18
All Wheel Drive (AWD) warning light ...................................................................... 4-18
LED headlight warning light .................................................................................... 4-18
Icy road warning light .............................................................................................. 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light ......................................................................................4-20
4. Instrument Cluster

4
Downhill Brake Control (DBC) indicator light ........................................................4-20
AUTO STOP indicator light .......................................................................................4-21
Turn signal indicator light .........................................................................................4-21
High beam indicator light ........................................................................................4-21
Low beam indicator light .........................................................................................4-21
Light ON indicator light ............................................................................................4-21
High Beam Assist indicator light ............................................................................. 4-22
AUTO HOLD indicator light ..................................................................................... 4-22
LCD Display Messages ............................................................................................... 4-22
Vehicle is on ............................................................................................................. 4-22
Shift to P ................................................................................................................... 4-22
Vehicle is in N. Press START button and shift to P ................................................. 4-22
Low key battery ....................................................................................................... 4-22
Press brake pedal to start engine .......................................................................... 4-23
Key not in vehicle .................................................................................................... 4-23
Key not detected ...................................................................................................... 4-23
Press START button again ...................................................................................... 4-23
Press START button with key .................................................................................. 4-23
Check BRAKE SWITCH fuse ................................................................................... 4-23
Shift to P or N to start engine .................................................................................. 4-23
Battery discharging due to external electrical devices ......................................... 4-24
Authenticated. The vehicle can now be started .................................................... 4-24
Fingerprint authentication is locked out. Try again in XX min. ............................. 4-24
Place digital key on the wireless charger to keep the vehicle running ................ 4-24
Scan an authorized fingerprint to keep the vehicle running ................................ 4-24
Place digital key on the wireless charger or scan an authorized fingerprint ....... 4-25
Vehicle is On (started by digital key)....................................................................... 4-25
Vehicle is On (started by fingerprint) ...................................................................... 4-25
Place saved digital key on wireless charger, then press the START button ......... 4-25
Scan an authorized fingerprint, then press the START button ............................. 4-25
Verify digital key or a fingerprint, then press the START button .......................... 4-25
Digital key(s) active ..................................................................................................4-26
Biometric authentication active .............................................................................4-26
Digital key/ Biometric authentication active .........................................................4-26

4
4. Instrument Cluster
Check user authentication system .........................................................................4-26
Door, Hood, Liftgate open indicator .......................................................................4-26
Sunroof open indicator ............................................................................................4-26
Low tire pressure ..................................................................................................... 4-27
Lights ........................................................................................................................4-27
Wiper ........................................................................................................................ 4-27
Low washer fluid ......................................................................................................4-28
Low fuel ....................................................................................................................4-28
Low engine oil ..........................................................................................................4-28
Engine overheated ...................................................................................................4-28
Check haptic steering wheel system .....................................................................4-28
Check headlight .......................................................................................................4-28
Check turn signal .....................................................................................................4-28
Check headlamp LED ..............................................................................................4-28
LCD display ...................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Turn By Turn (TBT) view .......................................................................................... 4-30
Utility view ............................................................................................................... 4-30
Additional information display ................................................................................4-33
Option Menu ...............................................................................................................4-34
Service messages ....................................................................................................4-34
3D cluster (for 12.3-inch 3D cluster) .......................................................................4-34
Head-up display ....................................................................................................... 4-35
Driver Assistance settings ....................................................................................... 4-35
Speed unit ............................................................................................................... 4-35
3D Instrument Cluster (for 12.3- Inch 3D Cluster) .................................................... 4-35
3D cluster setting ..................................................................................................... 4-35
Recommendations to optimize the 3D effect .......................................................4-36
Vehicle Settings (infotainment system) ........................................................ 4-38Setting Your Vehicle ...................................................................................................4-38

4-4
Instrument Cluster
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge4. Fuel gauge
5. Warning and indicator lights
6. LCD display

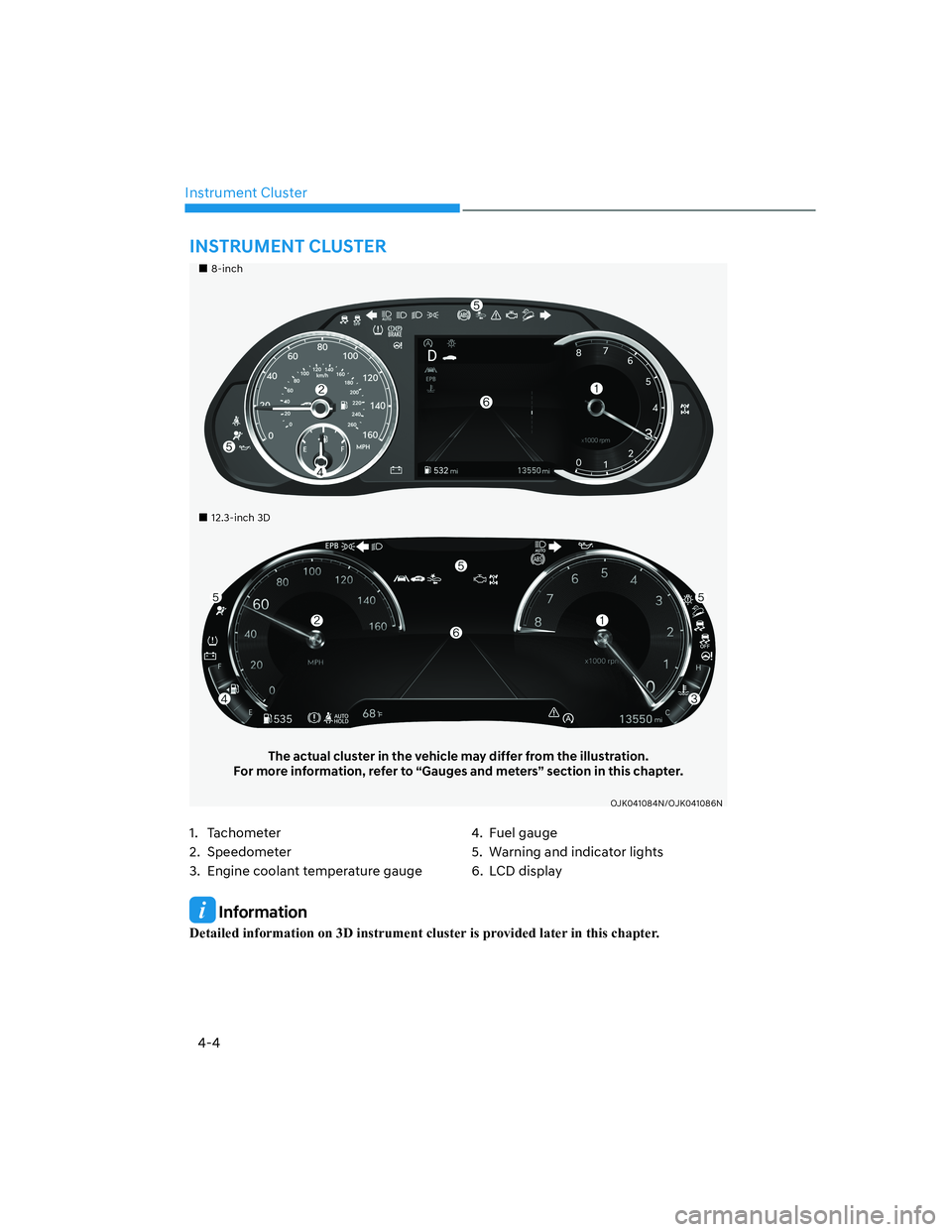

INSTRUMENT CLUSTER
„„8-inch8-inch
„„12.3-inch 3D12.3-inch 3D
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OJK041084N/OJK041086NOJK041084N/OJK041086N
Information
Detailed information on 3D instrument cluster is provided later in this chapter.
