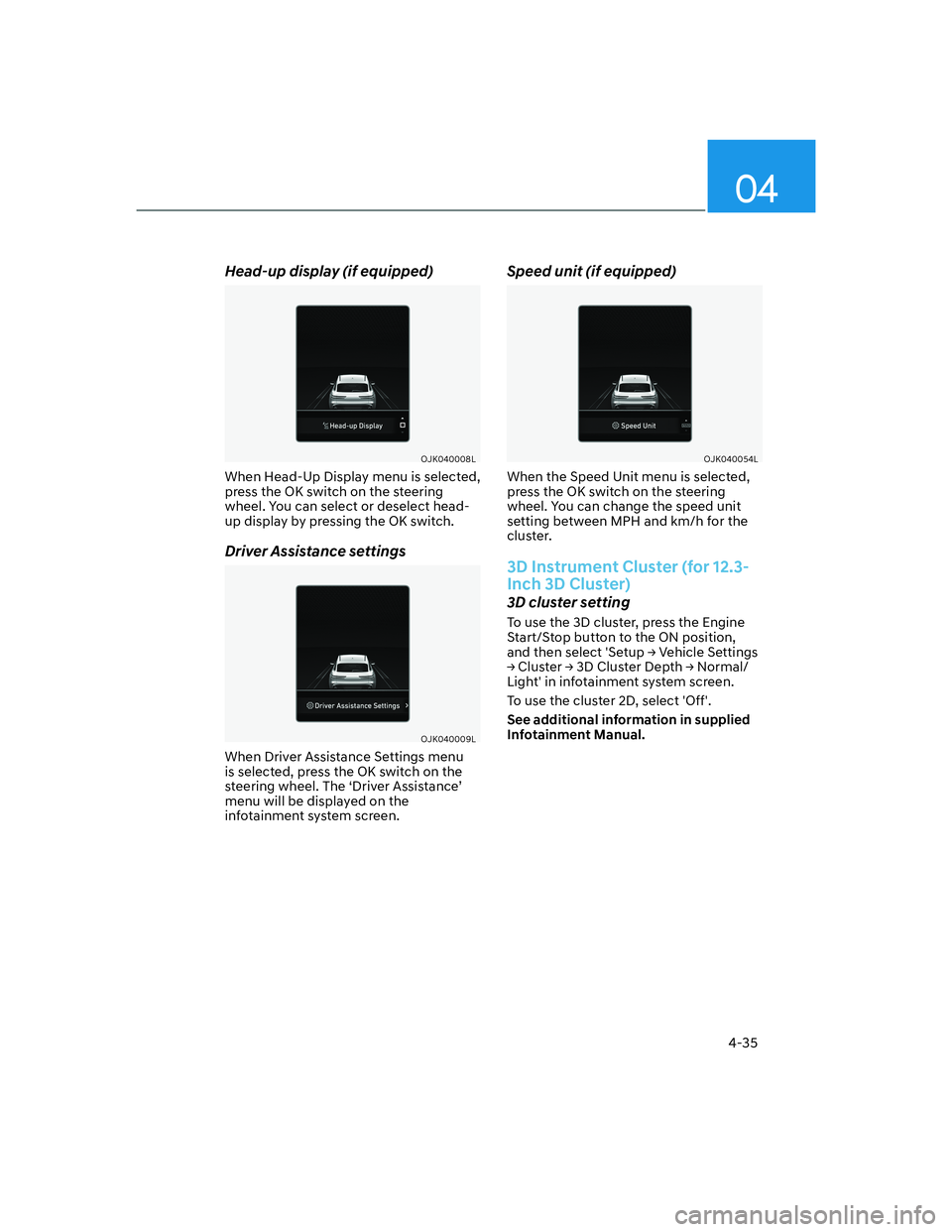

Page 131 of 647
04
4-35
Head-up display (if equipped)
OJK040008LOJK040008L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You can select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
OJK040009LOJK040009L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.
Speed unit (if equipped)
OJK040054LOJK040054L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between MPH and km/h for the
cluster.
3D Instrument Cluster (for 12.3-
Inch 3D Cluster)
3D cluster setting
To use the 3D cluster, press the Engine
Start/Stop button to the ON position,
D Q G W K H Q V H O H F W
6 H W X S

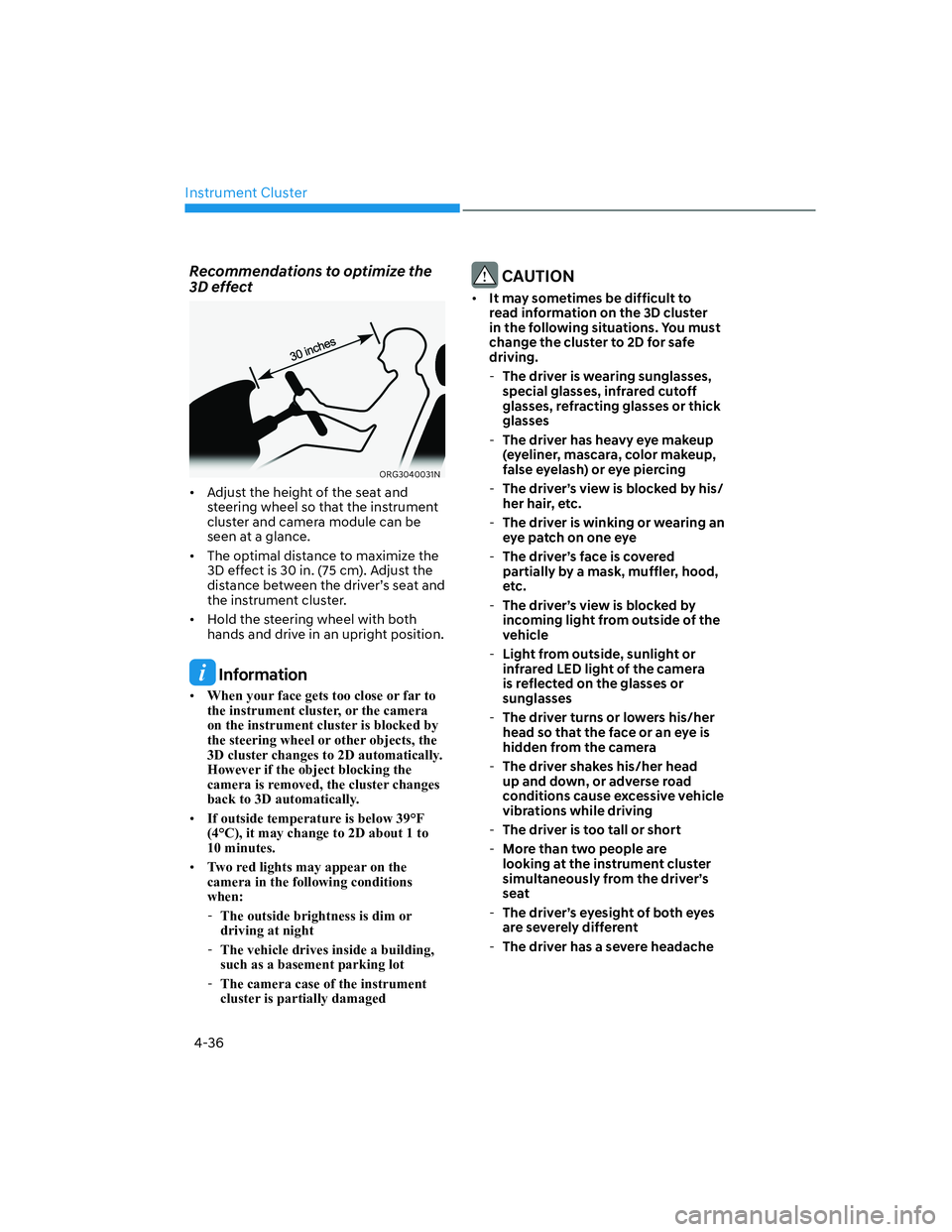

Page 132 of 647
Instrument Cluster
4-36
Recommendations to optimize the
3D effect
ORG3040031NORG3040031N
• Adjust the height of the seat and
steering wheel so that the instrument
cluster and camera module can be
seen at a glance.
• The optimal distance to maximize the
3D effect is 30 in. (75 cm). Adjust the
distance between the driver’s seat and
the instrument cluster.
• Hold the steering wheel with both
hands and drive in an upright position.
Information
• When your face gets too close or far to
the instrument cluster, or the camera
on the instrument cluster is blocked by
the steering wheel or other objects, the
3D cluster changes to 2D automatically.
However if the object blocking the
camera is removed, the cluster changes
back to 3D automatically.
• If outside temperature is below 39°F
(4°C), it may change to 2D about 1 to
10 minutes.
• Two red lights may appear on the
camera in the following conditions
when:
-The outside brightness is dim or
driving at night
-The vehicle drives inside a building,
such as a basement parking lot
-The camera case of the instrument
cluster is partially damaged
CAUTION
• It may sometimes be difficult to
read information on the 3D cluster
in the following situations. You must
change the cluster to 2D for safe
driving.
-The driver is wearing sunglasses,
special glasses, infrared cutoff
glasses, refracting glasses or thick
glasses
-The driver has heavy eye makeup
(eyeliner, mascara, color makeup,
false eyelash) or eye piercing
-The driver’s view is blocked by his/
her hair, etc.
-The driver is winking or wearing an
eye patch on one eye
-The driver’s face is covered
partially by a mask, muffler, hood,
etc.
-The driver’s view is blocked by
incoming light from outside of the
vehicle
-Light from outside, sunlight or
infrared LED light of the camera
is reflected on the glasses or
sunglasses
-The driver turns or lowers his/her
head so that the face or an eye is
hidden from the camera
-The driver shakes his/her head
up and down, or adverse road
conditions cause excessive vehicle
vibrations while driving
-The driver is too tall or short
-More than two people are
looking at the instrument cluster
simultaneously from the driver’s
seat
-The driver’s eyesight of both eyes
are severely different
-The driver has a severe headache

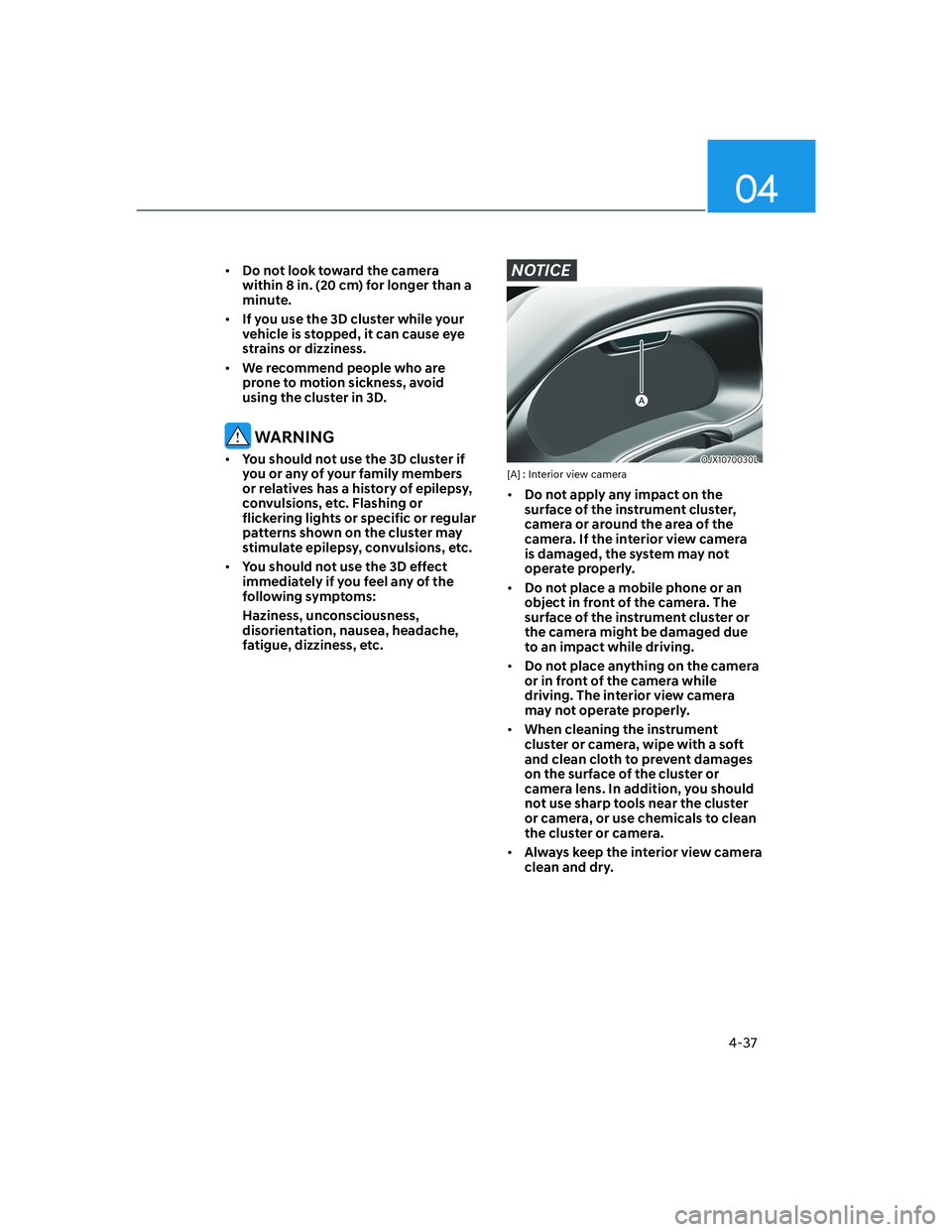

Page 133 of 647
04
4-37
• Do not look toward the camera
within 8 in. (20 cm) for longer than a
minute.
• If you use the 3D cluster while your
vehicle is stopped, it can cause eye
strains or dizziness.
• We recommend people who are
prone to motion sickness, avoid
using the cluster in 3D.
WARNING
• You should not use the 3D cluster if
you or any of your family members
or relatives has a history of epilepsy,
convulsions, etc. Flashing or
flickering lights or specific or regular
patterns shown on the cluster may
stimulate epilepsy, convulsions, etc.
• You should not use the 3D effect
immediately if you feel any of the
following symptoms:
Haziness, unconsciousness,
disorientation, nausea, headache,
fatigue, dizziness, etc.
NOTICE
OJX1070030LOJX1070030L[A] : Interior view camera
• Do not apply any impact on the
surface of the instrument cluster,
camera or around the area of the
camera. If the interior view camera
is damaged, the system may not
operate properly.
• Do not place a mobile phone or an
object in front of the camera. The
surface of the instrument cluster or
the camera might be damaged due
to an impact while driving.
• Do not place anything on the camera
or in front of the camera while
driving. The interior view camera
may not operate properly.
• When cleaning the instrument
cluster or camera, wipe with a soft
and clean cloth to prevent damages
on the surface of the cluster or
camera lens. In addition, you should
not use sharp tools near the cluster
or camera, or use chemicals to clean
the cluster or camera.
• Always keep the interior view camera
clean and dry.

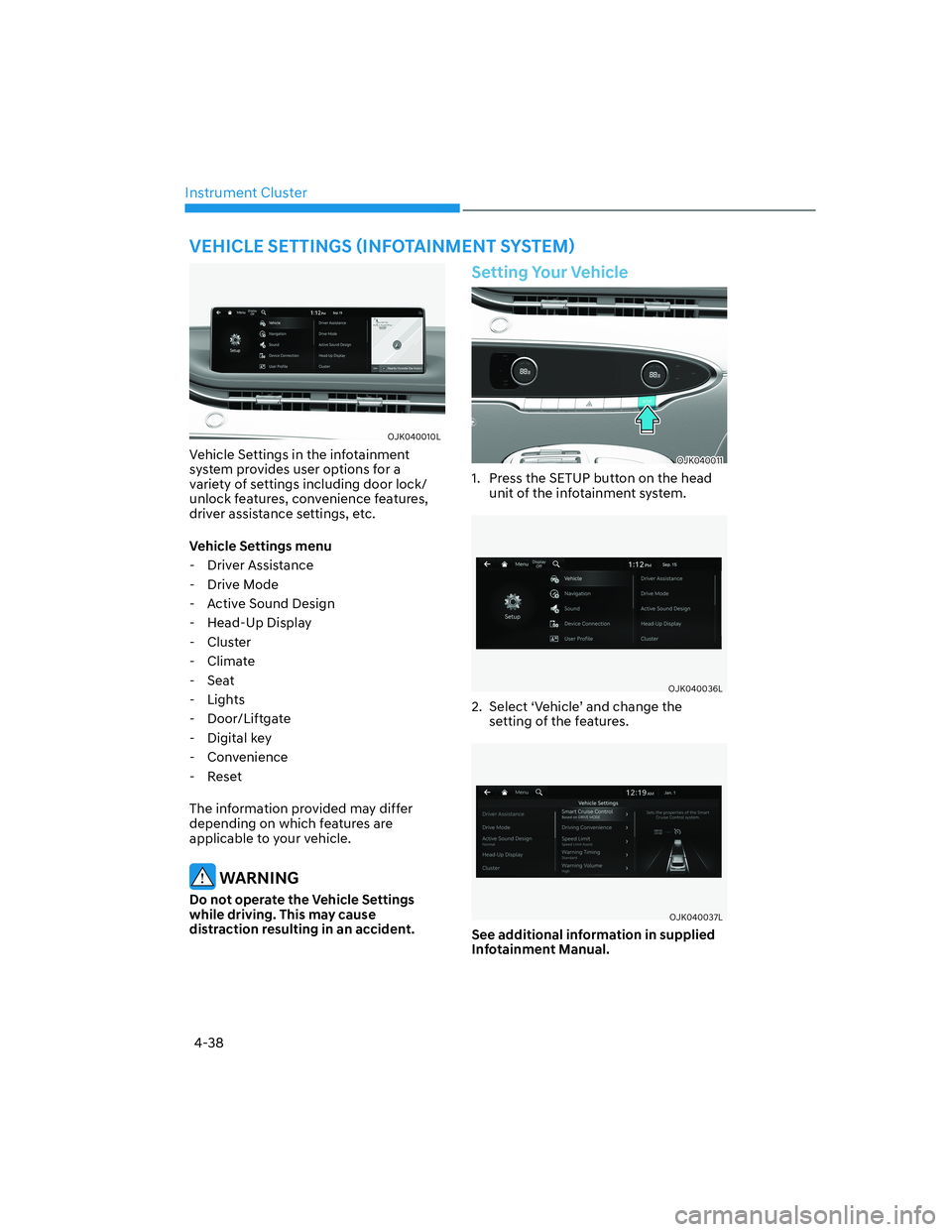

Page 134 of 647
Instrument Cluster
4-38
9 ( + , & / ( 6 ( 7 7 , 1 * 6
Page 135 of 647

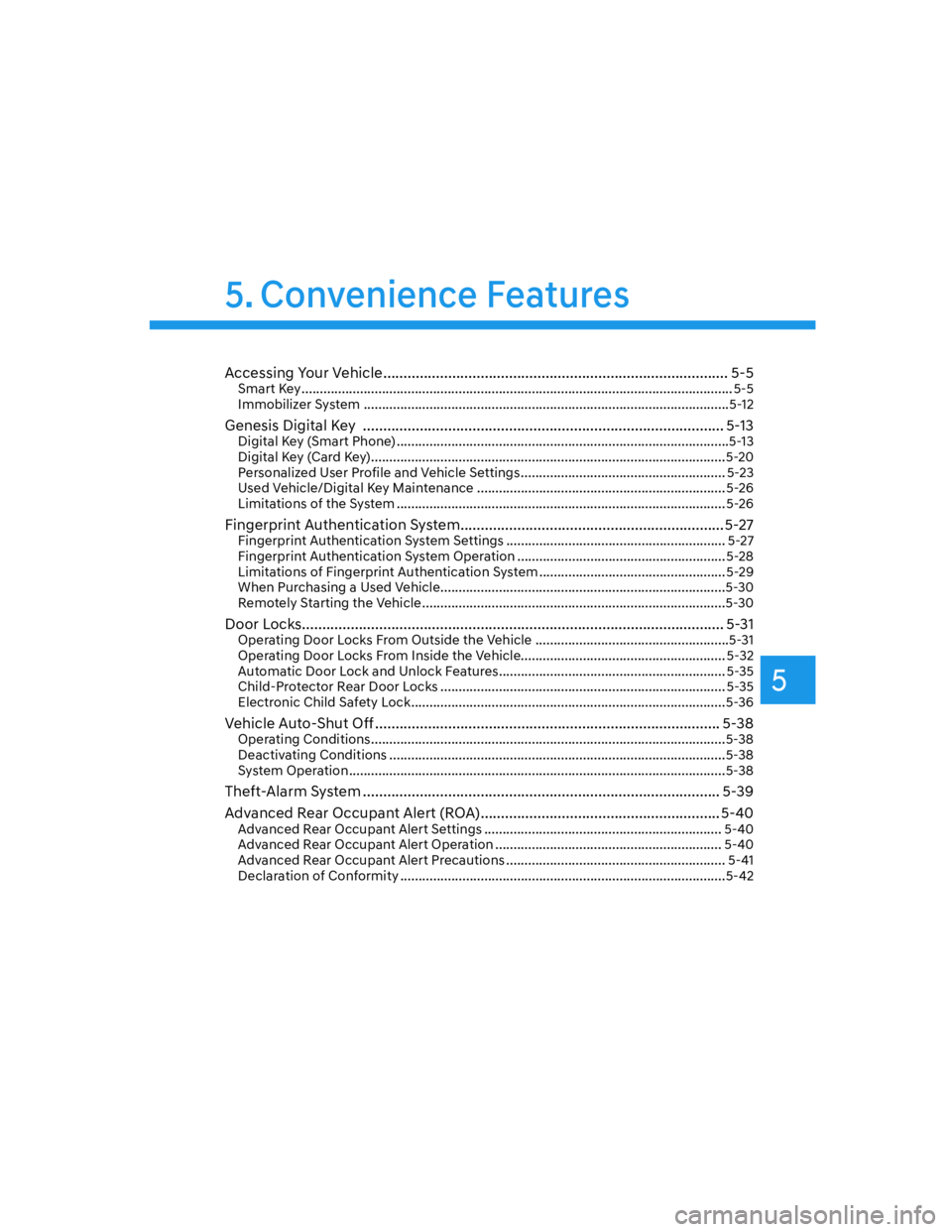

5
Accessing Your Vehicle ..................................................................................... 5-5Smart Key ...................................................................................................................... 5-5
Immobilizer System ....................................................................................................5-12
Genesis Digital Key ......................................................................................... 5-13
Digital Key (Smart Phone) ...........................................................................................5-13
Digital Key (Card Key) .................................................................................................5-20
Personalized User Profile and Vehicle Settings ........................................................ 5-23
Used Vehicle/Digital Key Maintenance .................................................................... 5-26
Limitations of the System .......................................................................................... 5-26
Fingerprint Authentication System .................................................................5-27Fingerprint Authentication System Settings ............................................................ 5-27
Fingerprint Authentication System Operation ......................................................... 5-28
Limitations of Fingerprint Authentication System ................................................... 5-29
When Purchasing a Used Vehicle ..............................................................................5-30
Remotely Starting the Vehicle ...................................................................................5-30
Door Locks ........................................................................................................ 5-31Operating Door Locks From Outside the Vehicle .....................................................5-31
Operating Door Locks From Inside the Vehicle........................................................ 5-32
Automatic Door Lock and Unlock Features .............................................................. 5-35
Child-Protector Rear Door Locks .............................................................................. 5-35
Electronic Child Safety Lock ......................................................................................5-36
Vehicle Auto-Shut Off ..................................................................................... 5-38Operating Conditions .................................................................................................5-38
Deactivating Conditions ............................................................................................5-38
System Operation .......................................................................................................5-38
Theft-Alarm System ........................................................................................ 5-39
Advanced Rear Occupant Alert (ROA) ........................................................... 5-40
Advanced Rear Occupant Alert Settings ................................................................. 5-40
Advanced Rear Occupant Alert Operation .............................................................. 5-40
Advanced Rear Occupant Alert Precautions ............................................................ 5-41
Declaration of Conformity .........................................................................................5-42
5. Convenience Features

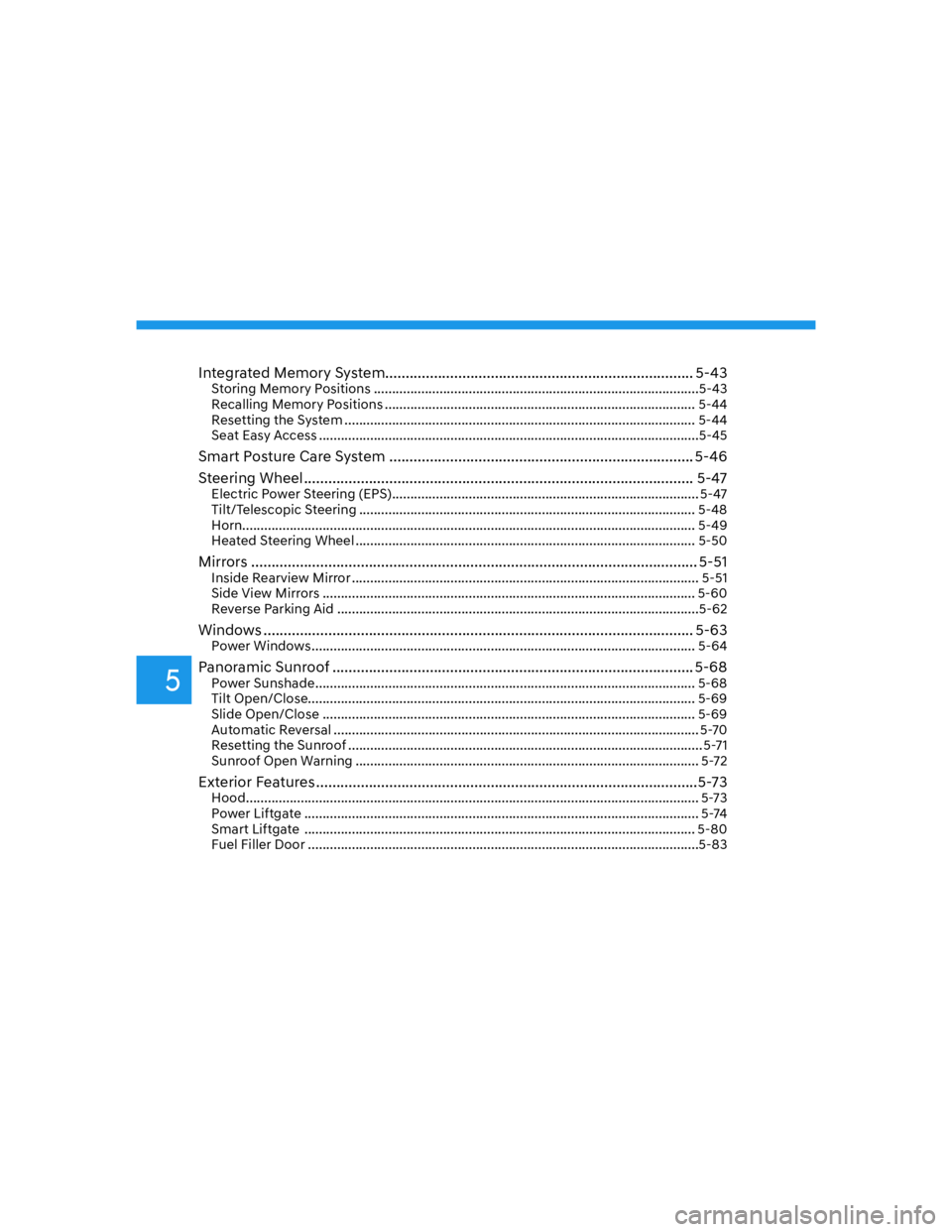

Page 136 of 647
5
Integrated Memory System............................................................................ 5-43Storing Memory Positions .........................................................................................5-43
Recalling Memory Positions ..................................................................................... 5-44
Resetting the System ................................................................................................ 5-44
Seat Easy Access ........................................................................................................5-45
Smart Posture Care System ........................................................................... 5-46
Steering Wheel ................................................................................................ 5-47
Electric Power Steering (EPS) .................................................................................... 5-47
Tilt/Telescopic Steering ............................................................................................ 5-48
Horn............................................................................................................................ 5-49
Heated Steering Wheel ............................................................................................. 5-50
Mirrors .............................................................................................................. 5-51Inside Rearview Mirror ............................................................................................... 5-51
Side View Mirrors ...................................................................................................... 5-60
Reverse Parking Aid ...................................................................................................5-62
Windows .......................................................................................................... 5-63Power Windows ......................................................................................................... 5-64
Panoramic Sunroof ......................................................................................... 5-68Power Sunshade ........................................................................................................ 5-68
Tilt Open/Close.......................................................................................................... 5-69
Slide Open/Close ...................................................................................................... 5-69
Automatic Reversal .................................................................................................... 5-70
Resetting the Sunroof ................................................................................................. 5-71
Sunroof Open Warning .............................................................................................. 5-72
Exterior Features ..............................................................................................5-73Hood ............................................................................................................................ 5-73
Power Liftgate ............................................................................................................ 5-74
Smart Liftgate ........................................................................................................... 5-80
Fuel Filler Door ...........................................................................................................5-83

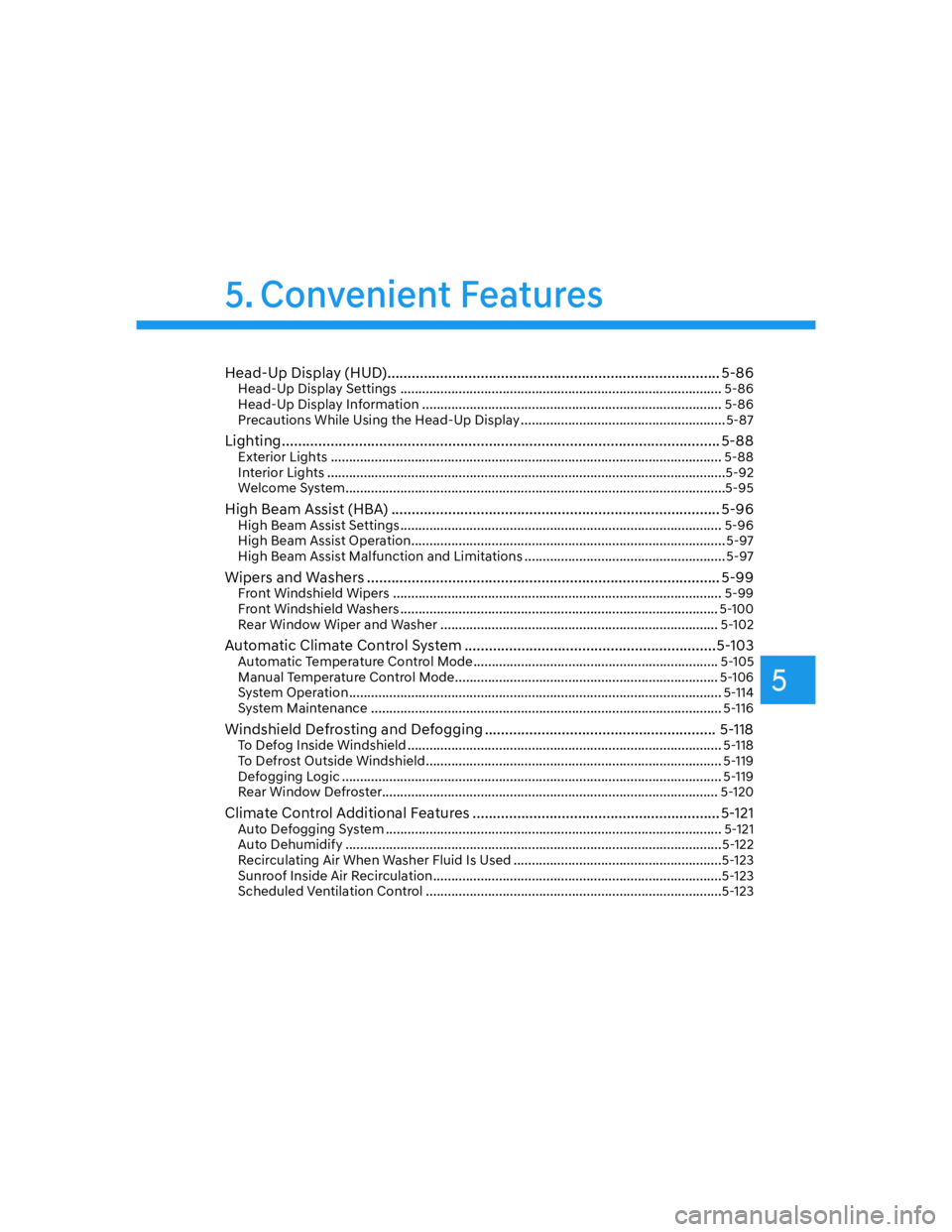

Page 137 of 647
5
Head-Up Display (HUD).................................................................................. 5-86Head-Up Display Settings ........................................................................................ 5-86
Head-Up Display Information .................................................................................. 5-86
Precautions While Using the Head-Up Display ........................................................ 5-87
Lighting ............................................................................................................ 5-88Exterior Lights ........................................................................................................... 5-88
Interior Lights .............................................................................................................5-92
Welcome System ........................................................................................................5-95
High Beam Assist (HBA) ................................................................................. 5-96
High Beam Assist Settings ........................................................................................ 5-96
High Beam Assist Operation ...................................................................................... 5-97
High Beam Assist Malfunction and Limitations ....................................................... 5-97
Wipers and Washers ....................................................................................... 5-99
Front Windshield Wipers .......................................................................................... 5-99
Front Windshield Washers ....................................................................................... 5-100
Rear Window Wiper and Washer ............................................................................ 5-102
Automatic Climate Control System ..............................................................5-103Automatic Temperature Control Mode ................................................................... 5-105
Manual Temperature Control Mode ........................................................................ 5-106
System Operation ...................................................................................................... 5-114
System Maintenance ................................................................................................ 5-116
Windshield Defrosting and Defogging ......................................................... 5-118To Defog Inside Windshield ...................................................................................... 5-118
To Defrost Outside Windshield ................................................................................. 5-119
Defogging Logic ........................................................................................................ 5-119
Rear Window Defroster............................................................................................ 5-120
Climate Control Additional Features ............................................................. 5-121
Auto Defogging System ............................................................................................ 5-121
Auto Dehumidify .......................................................................................................5-122
Recirculating Air When Washer Fluid Is Used .........................................................5-123
Sunroof Inside Air Recirculation ...............................................................................5-123
Scheduled Ventilation Control .................................................................................5-123
5. Convenient Features

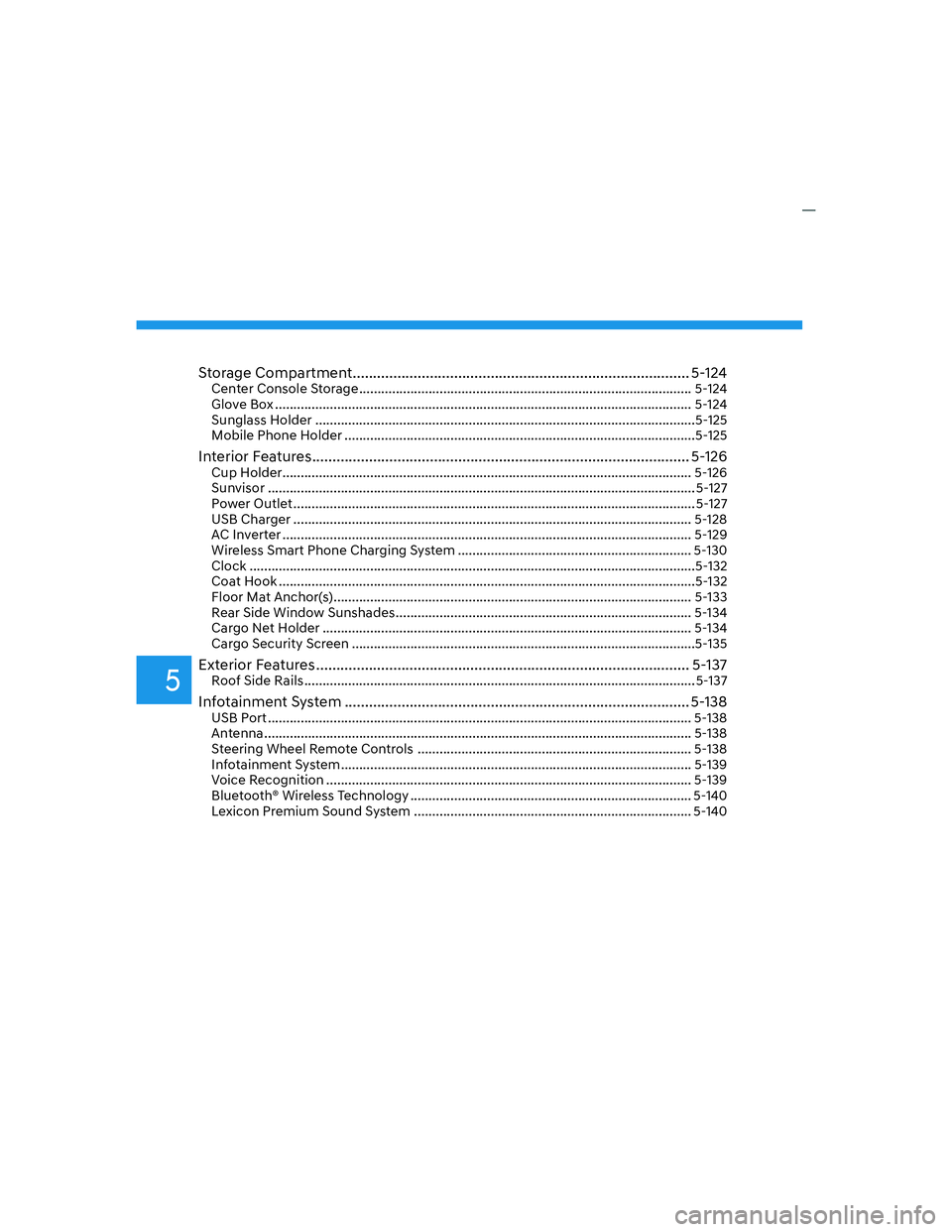

Page 138 of 647
5
Storage Compartment ................................................................................... 5-124Center Console Storage ........................................................................................... 5-124
Glove Box .................................................................................................................. 5-124
Sunglass Holder ........................................................................................................5-125
Mobile Phone Holder ................................................................................................5-125
Interior Features ............................................................................................. 5-126Cup Holder ................................................................................................................ 5-126
Sunvisor ..................................................................................................................... 5-127
Power Outlet .............................................................................................................. 5-127
USB Charger ............................................................................................................. 5-128
AC Inverter ................................................................................................................ 5-129
Wireless Smart Phone Charging System ................................................................ 5-130
Clock ..........................................................................................................................5-132
Coat Hook ..................................................................................................................5-132
Floor Mat Anchor(s) .................................................................................................. 5-133
Rear Side Window Sunshades ................................................................................. 5-134
Cargo Net Holder ..................................................................................................... 5-134
Cargo Security Screen ..............................................................................................5-135
Exterior Features ............................................................................................ 5-137
Roof Side Rails ...........................................................................................................5-137
Infotainment System ..................................................................................... 5-138USB Port .................................................................................................................... 5-138
Antenna ..................................................................................................................... 5-138
Steering Wheel Remote Controls ........................................................................... 5-138
Infotainment System ................................................................................................ 5-139
Voice Recognition .................................................................................................... 5-139
Bluetooth® Wireless Technology ............................................................................. 5-140
Lexicon Premium Sound System ............................................................................ 5-140
Page 139 of 647
05
5-5
Smart Key
„ „Type AType A
OJX1059006OJX1059006
„ „Type BType B
OJX1059005OJX1059005
Your Genesis Branded Vehicle uses a
Smart Key, which you can use to lock or
unlock the driver and passenger doors or
the rear liftgate.
1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
5. Remote start
6. Lamp on
7. Forward/Backward (Remote Entry/
Exit Parking function)
Locking your vehicle
OJX1059001OJX1059001
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. While having the smart key in your
possession, press the Door Lock
button (1) on the smart key or touch
the outer part of the door handle for
about 1 second until you hear the door
locks actuate. The hazard warning
lights will blink.
3. Make sure the doors are locked by
pulling the door handle.
Information
• The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
• The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.
• Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE
Page 140 of 647
Convenience Features
5-6
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is from
ACC or ON position.
• Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/Stop button and may lock
the doors, operate power windows or
other controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (When the
Two Press Unlock feature is off)
OJX1059002OJX1059002
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.2. Press the Door Unlock button (2) on
the Smart Key or simply grab the door
handle inside portion to activate the
unlock door touch sensor. All doors
will unlock and the hazard warning
lights will blink two times.
3. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Unlocking your vehicle (When the
Two Press Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Press the Door Unlock button (2) on
the Smart Key or simply grab the door
handle inside portion to activate the
unlock door touch sensor.
3. The driver’s door will unlock.
4. If you touch the door unlock sensor
inside of the front door handle to
unlock the doors within 4 seconds,
all of the doors will unlock. When the
doors unlock, the hazard warning
lights will blink two times and the
chime will sound.
5. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
