Driver Assistance System
7-154
„ „Rear view cameraRear view camera „ „Rear ultrasonic sensorRear ultrasonic sensor
OJK070198LOJK070198LOJK070199LOJK070199LThe ‘Camera error or blockage’ or
‘Ultrasonic sensor error or blockage’
warning message will appear on the
cluster if the following situations occur:
- The rear view camera or rear
ultrasonic sensor(s) is covered with
foreign material, such as snow or rain,
etc.
- There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.
Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:
• Any non-factory equipment or
accessory is installed
• Your vehicle is unstable due to an
accident or other causes
• Bumper height or rear ultrasonic
sensor installation has been modified
• Rear view camera or rear ultrasonic
sensor(s) is damaged
• Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.
• Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.
• The surrounding is very bright or very
dark
• Outside temperature is very high or
very low
• The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper
• Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle
• An ultrasonic sensor with similar
frequency is near your vehicle
• There is ground height difference
between the vehicle and the
pedestrian
• The image of the pedestrian in the
rear view camera is indistinguishable
from the background
Page 506 of 647
07
7-157
& $ 8 7 , 2 1
Take the following precautions to
maintain optimal performance of the
detecting sensors:
• $ O Z D \ V N H H S W K H U H D U Y L H Z F D P H U D
D Q G U H D U X O W U D V R Q L F V H Q V R U V F O H D Q
• ' R Q R W X V H D Q \ F O H D Q V H U F R Q W D L Q L Q J
acid or alkaline detergents when
F O H D Q L Q J W K H U H D U Y L H Z F D P H U D O H Q V
8 V H R Q O \ D P L O G V R D S R U Q H X W U D O
G H W H U J H Q W D Q G U L Q V H W K R U R X J K O \ Z L W K
Z D W H U
• ' R Q R W V S U D \ W K H U H D U Y L H Z F D P H U D R U
the rear ultrasonic sensors or their
V X U U R X Q G L Q J D U H D G L U H F W O \ Z L W K D
K L J K S U H V V X U H Z D V K H U , W P D \ F D X V H
W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V W R P D O I X Q F W L R Q
• ' R Q R W D S S O \ R E M H F W V V X F K D V D
E X P S H U V W L F N H U R U D E X P S H U J X D U G
Q H D U W K H U H D U Y L H Z F D P H U D R U U H D U
X O W U D V R Q L F V H Q V R U V R U D S S O \ S D L Q W W R
W K H E X P S H U ' R L Q J V R P D \ D G Y H U V H O \
D I I H F W W K H S H U I R U P D Q F H R I 5 H Y H U V H
3 D U N L Q J & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
• 1 H Y H U G L V D V V H P E O H R U D S S O \ L P S D F W
R Q W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V F R P S R Q H Q W V
• ' R Q R W D S S O \ X Q Q H F H V V D U \ I R U F H R Q
W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V 5 H Y H U V H 3 D U N L Q J
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W P D \
Q R W R S H U D W H S U R S H U O \ L I W K H U H D U
Y L H Z F D P H U D R U W K H U H D U X O W U D V R Q L F
V H Q V R U V L V I R U F L E O \ P R Y H G R X W R I
S U R S H U D O L J Q P H Q W + D Y H W K H Y H K L F O H
L Q V S H F W H G E \ D Q D X W K R U L ] H G U H W D L O H U R I
* H Q H V L V % U D Q G H G S U R G X F W V
Information
Reverse Parking Collision-Avoidance
Assist can detect a pedestrian or an object
when:
• A pedestrian is standing behind the
vehicle
• A large obstacle, such as a vehicle,
is parked in the rear center of your
vehicle
Page 507 of 647
Driver Assistance System
7-158
Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed and
gearshifts.
Function Description
Remote
OperationRemotely moving forward
or backward
OJX1079037OJX1079037
Smart
Parking or
Remote
Smart
ParkingPerpendicular reverse
parking
OJX1079034OJX1079034
Parallel reverse parking
OJX1079035OJX1079035
Smart ExitParallel forward exit
OJX1079036OJX1079036
• Remote Smart Parking and Remote
Operation function may be operated
from outside the vehicle using the
smart key.
• Smart Parking and Remote Smart
Parking function may be operated
from inside the vehicle.
• Smart Parking and Remote Smart
Parking function helps the driver with
perpendicular reverse parking and
parallel reverse parking.
• Smart Exit function helps the driver
with parallel forward exit.
• When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
“Parking Distance Warning (PDW)”
and “Surround View Monitor (SVM)”
sections in this chapter.
5 ( 0 2 7 ( 6 0 $ 5 7 3 $ 5 . , 1 * $ 6 6 , 6 7
Page 524 of 647
07
7-175
& K H F N L Q J V S D F H
OJK070151L OJK070151L
(1) When the vehicle is stopped by
depressing the brake pedal, the
vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
(2) When checking for space is
complete, a message will appear
on the infotainment system screen
with an audible sound to notify the
search is complete.
: $ 5 1 , 1 *
• : K L O H F K H F N L Q J I R U V S D F H L I W K H U H L V
D U L V N R I F R O O L V L R Q Z L W K S H G H V W U L D Q
D Q L P D O R U R E M H F W L Q W K H G L U H F W L R Q R I
Y H K L F O H H [ L W I R U \ R X U V D I H W \ 6 P D U W
( [ L W I X Q F W L R Q F D Q E H W X U Q H G R I I
• ( Y H Q L I F K H F N L Q J I R U V S D F H L V
F R P S O H W H G R E M H F W V L Q W K H E O L Q G V S R W
D U H D F D Q Q R W E H G H W H F W H G E \ W K H
V H Q V R U V 7 K H G U L Y H U P X V W G L U H F W O \
F K H F N W K H E O L Q G V S R W D U H D D Q G
F R Q W L Q X H X V L Q J W K H I X Q F W L R Q
Information
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space even
if there is a parking space, or may search
for a space that is not suitable for parking.
6 H O H F W H [ L W G L U H F W L R Q
OJK070152LOJK070152L
(1) With the vehicle stopped by
depressing the brake pedal, the
infotainment system screen
displays the possible directions for
parallel exit.
(2) Touch the infotainment system
screen or use the central controller
to select the desired exit direction.
& $ 8 7 , 2 1
• % H I R U H V H O H F W L Q J W K H ( [ L W ' L U H F W L R Q
W K H G U L Y H U V K R X O G F K H F N Z K H W K H U W K H
V S D F H I R U H [ L W L V V X L W D E O H
• , I W K H V H D U F K H G H [ L W V S D F H E \ 5 H P R W H
6 P D U W 3 D U N L Q J $ V V L V W L V Q D U U R Z R U
X Q V X L W D E O H V X U U R X Q G L Q J Y H K L F O H V D U H
S D U N H G Y H U W L F D O O \ H W F G R Q R W X V H
W K H 6 P D U W ( [ L W I X Q F W L R Q
Page 528 of 647
07
7-179
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.
• An object is attached to the steering
wheel
• The vehicle is installed with a snow
chain, spare tire or different size
wheel
• Tire pressure is lower or higher than
the standard tire pressure
• Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle
• There is a problem with the wheel
alignment
• Your vehicle is leaned severely to one
side
• Your vehicle is equipped with a trailer
hitch
• The license plate is installed
differently from the original location
• There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
• The parking space is curved or
diagonal
• There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar etc.) near the parking space • There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space
• The road surface is bumpy (curbstone,
speed bump, etc.)
• The road is slippery
• The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.
• The parking space is Inclined
• There is heavy wind
• Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.
• The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
• The ultrasonic sensor is covered with
snow or water
• An object that generates ultrasonic
waves is nearby
• A wireless device with a transmission
function operates near the ultrasonic
sensors
• Your vehicle is affected by another
vehicle’s Parking Distance Warning
• The sensor is mounted or positioned
incorrectly by an impact to the
bumper
• When the ultrasonic sensor cannot
detect the following objects:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of
a square pillar
- Person, animal or object near the
ultrasonic sensor
Page 622 of 647
09
9-65
Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected from
the sign or building. To prevent damage
of the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.

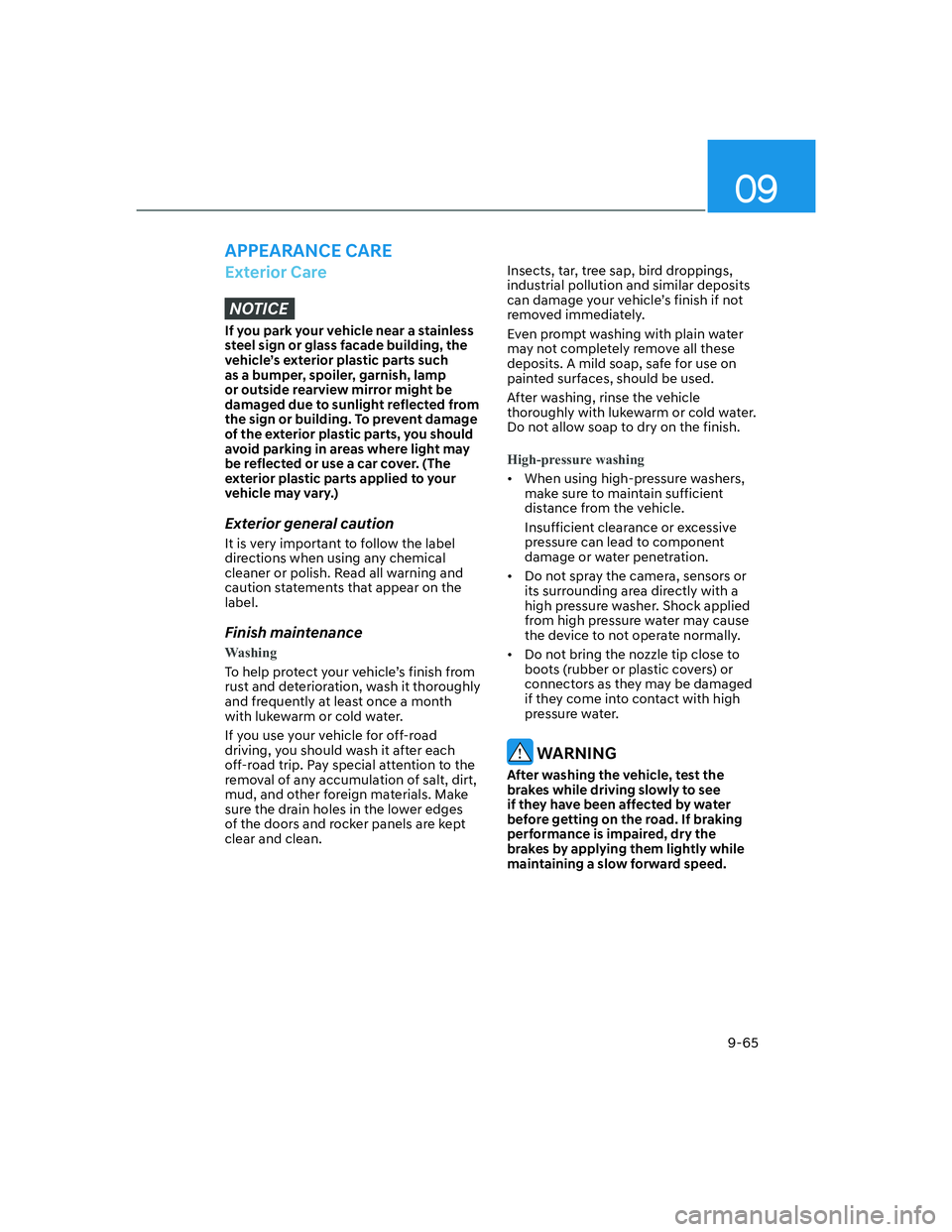

Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
APPEARANCE CARE
