Driver Assistance System
7-72

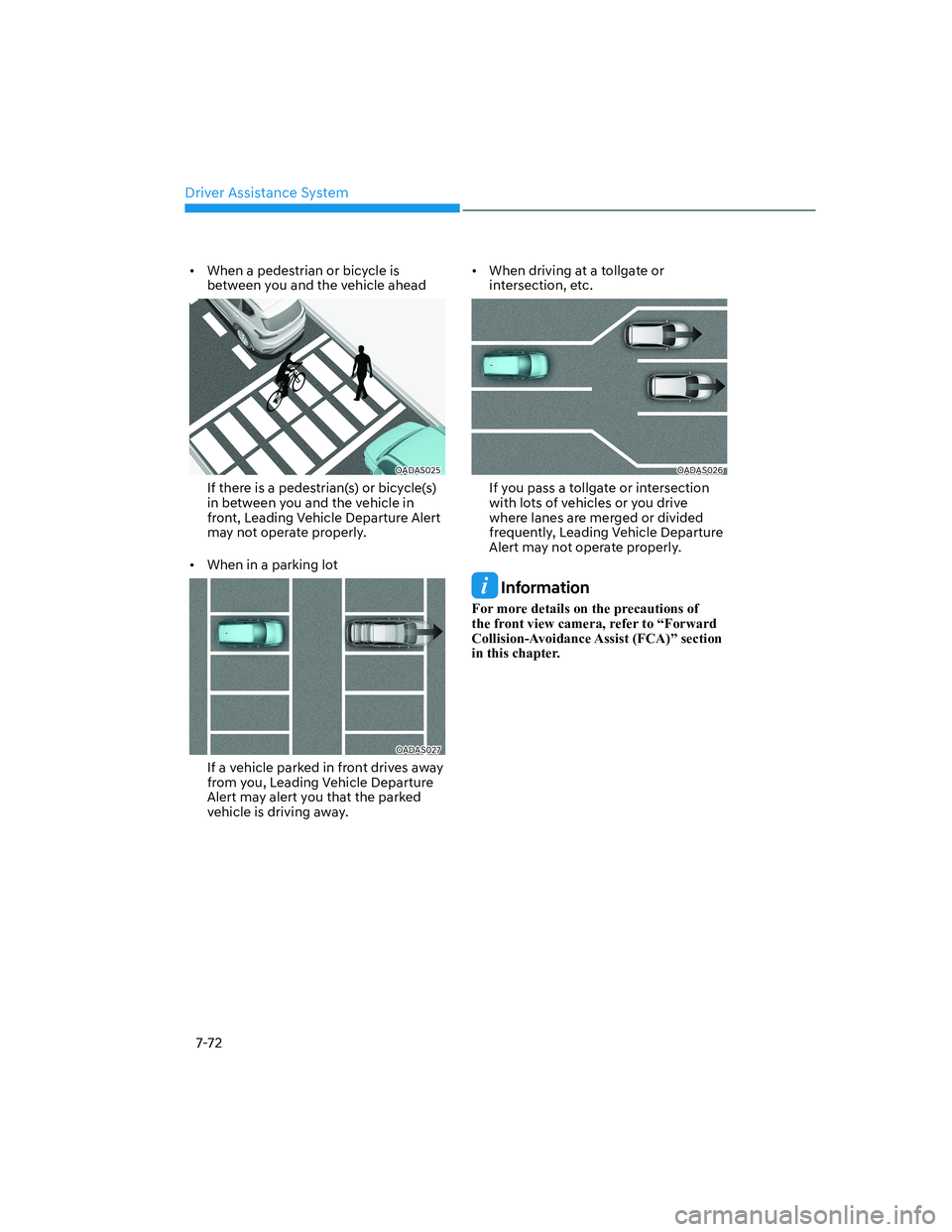

• When a pedestrian or bicycle is
between you and the vehicle ahead
OADAS025OADAS025
If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.
• When in a parking lot
OADAS027OADAS027
If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away.• When driving at a tollgate or
intersection, etc.
OADAS026OADAS026
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.
Page 422 of 647
07
7-73
) 2 5 : $ 5 ' $ 7 7 ( 1 7 , 2 1 : $ 5 1 , 1 *
Page 423 of 647

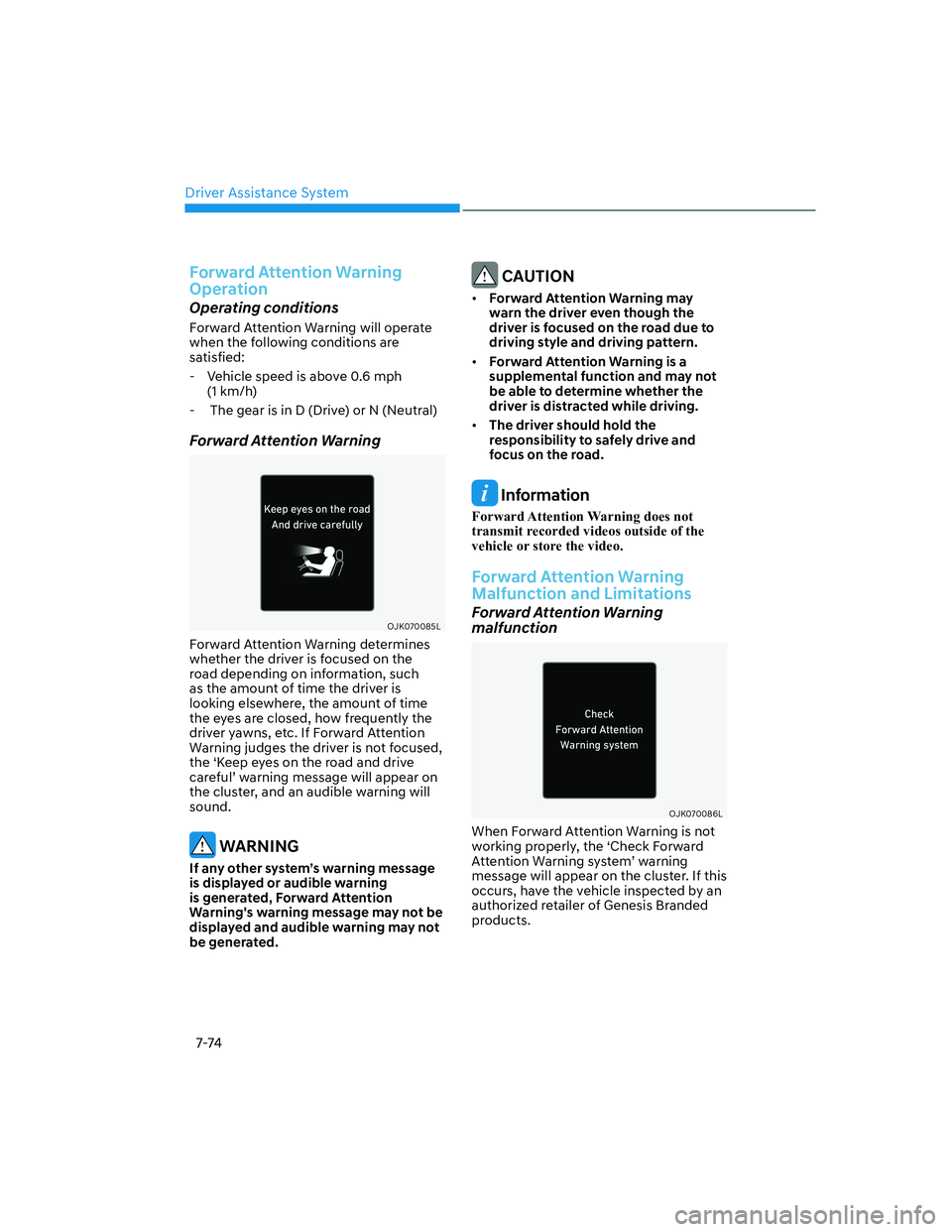

Driver Assistance System
7-74
Forward Attention Warning
Operation
Operating conditions
Forward Attention Warning will operate
when the following conditions are
satisfied:
- Vehicle speed is above 0.6 mph
(1 km/h)
- The gear is in D (Drive) or N (Neutral)
Forward Attention Warning
OJK070085LOJK070085L
Forward Attention Warning determines
whether the driver is focused on the
road depending on information, such
as the amount of time the driver is
looking elsewhere, the amount of time
the eyes are closed, how frequently the
driver yawns, etc. If Forward Attention
Warning judges the driver is not focused,
the ‘Keep eyes on the road and drive
careful’ warning message will appear on
the cluster, and an audible warning will
sound.
: $ 5 1 , 1 *
, I D Q \ R W K H U V \ V W H PT V Z D U Q L Q J P H V V D J H
L V G L V S O D \ H G R U D X G L E O H Z D U Q L Q J
L V J H Q H U D W H G ) R U Z D U G $ W W H Q W L R Q
: D U Q L Q J
V Z D U Q L Q J P H V V D J H P D \ Q R W E H
G L V S O D \ H G D Q G D X G L E O H Z D U Q L Q J P D \ Q R W
E H J H Q H U D W H G
& $ 8 7 , 2 1
• ) R U Z D U G $ W W H Q W L R Q : D U Q L Q J P D \
Z D U Q W K H G U L Y H U H Y H Q W K R X J K W K H
G U L Y H U L V I R F X V H G R Q W K H U R D G G X H W R
G U L Y L Q J V W \ O H D Q G G U L Y L Q J S D W W H U Q
• Forward Attention Warning is a
V X S S O H P H Q W D O I X Q F W L R Q D Q G P D \ Q R W
E H D E O H W R G H W H U P L Q H Z K H W K H U W K H
G U L Y H U L V G L V W U D F W H G Z K L O H G U L Y L Q J
• 7 K H G U L Y H U V K R X O G K R O G W K H
U H V S R Q V L E L O L W \ W R V D I H O \ G U L Y H D Q G
I R F X V R Q W K H U R D G
Information
Forward Attention Warning does not
transmit recorded videos outside of the
vehicle or store the video.
Forward Attention Warning
Malfunction and Limitations
Forward Attention Warning
malfunction
OJK070086LOJK070086L
When Forward Attention Warning is not
working properly, the ‘Check Forward
Attention Warning system’ warning
message will appear on the cluster. If this
occurs, have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Page 424 of 647
07
7-75

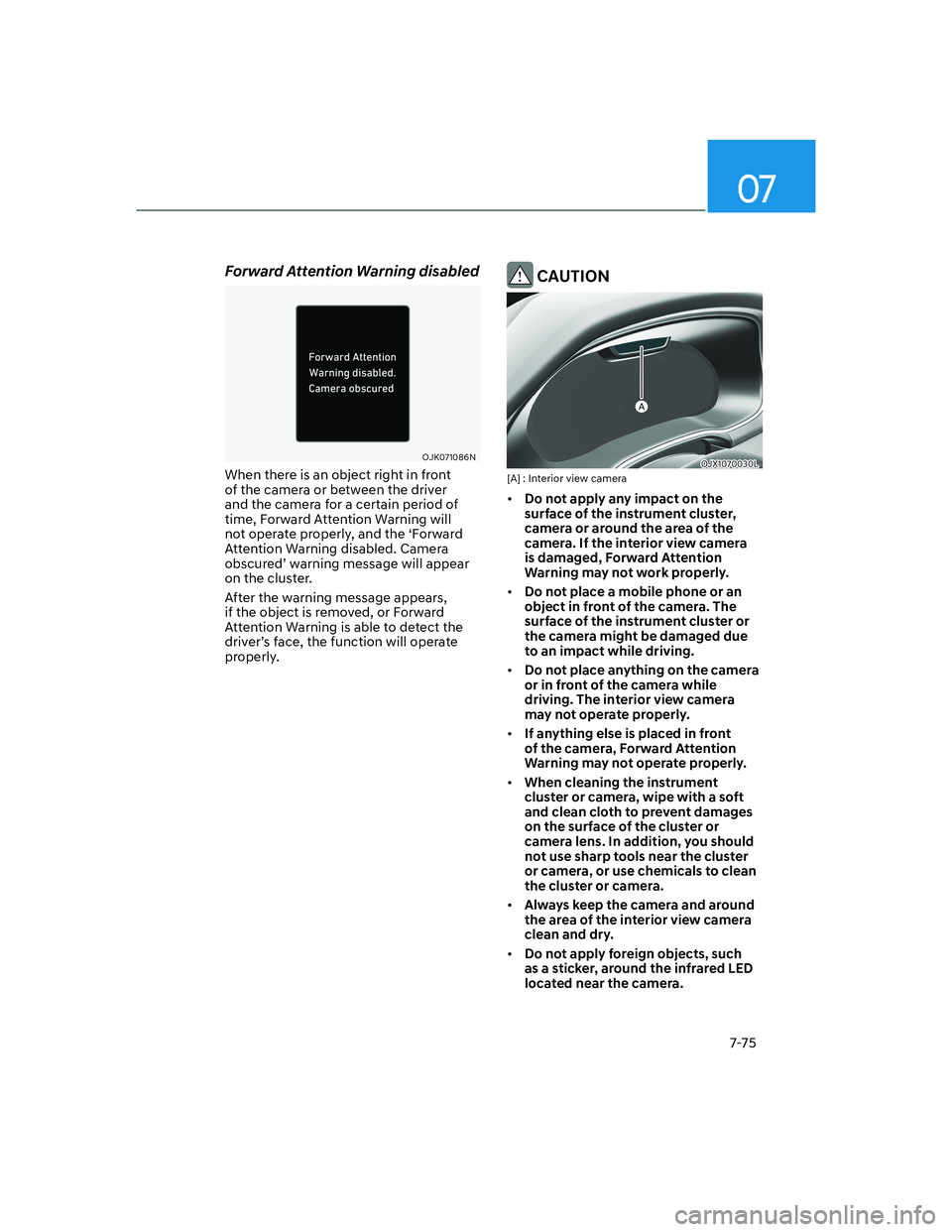

Forward Attention Warning disabled
OJK071086NOJK071086N
When there is an object right in front
of the camera or between the driver
and the camera for a certain period of
time, Forward Attention Warning will
not operate properly, and the ‘Forward
Attention Warning disabled. Camera
obscured’ warning message will appear
on the cluster.
After the warning message appears,
if the object is removed, or Forward
Attention Warning is able to detect the
driver’s face, the function will operate
properly.
& $ 8 7 , 2 1
OJX1070030LOJX1070030L[A] : Interior view camera
• ' R Q R W D S S O \ D Q \ L P S D F W R Q W K H
V X U I D F H R I W K H L Q V W U X P H Q W F O X V W H U
camera or around the area of the
F D P H U D , I W K H L Q W H U L R U Y L H Z F D P H U D
L V G D P D J H G ) R U Z D U G $ W W H Q W L R Q
: D U Q L Q J P D \ Q R W Z R U N S U R S H U O \
• ' R Q R W S O D F H D P R E L O H S K R Q H R U D Q
R E M H F W L Q I U R Q W R I W K H F D P H U D 7 K H
surface of the instrument cluster or
W K H F D P H U D P L J K W E H G D P D J H G G X H
W R D Q L P S D F W Z K L O H G U L Y L Q J
• ' R Q R W S O D F H D Q \ W K L Q J R Q W K H F D P H U D
or in front of the camera while
G U L Y L Q J 7 K H L Q W H U L R U Y L H Z F D P H U D
P D \ Q R W R S H U D W H S U R S H U O \
• , I D Q \ W K L Q J H O V H L V S O D F H G L Q I U R Q W
R I W K H F D P H U D ) R U Z D U G $ W W H Q W L R Q
: D U Q L Q J P D \ Q R W R S H U D W H S U R S H U O \
• When cleaning the instrument
F O X V W H U R U F D P H U D Z L S H Z L W K D V R I W
D Q G F O H D Q F O R W K W R S U H Y H Q W G D P D J H V
on the surface of the cluster or
F D P H U D O H Q V , Q D G G L W L R Q \ R X V K R X O G
not use sharp tools near the cluster
R U F D P H U D R U X V H F K H P L F D O V W R F O H D Q
W K H F O X V W H U R U F D P H U D
• $ O Z D \ V N H H S W K H F D P H U D D Q G D U R X Q G
W K H D U H D R I W K H L Q W H U L R U Y L H Z F D P H U D
F O H D Q D Q G G U \
• ' R Q R W D S S O \ I R U H L J Q R E M H F W V V X F K
D V D V W L F N H U D U R X Q G W K H L Q I U D U H G / ( '
O R F D W H G Q H D U W K H F D P H U D
Page 425 of 647
Driver Assistance System
7-76

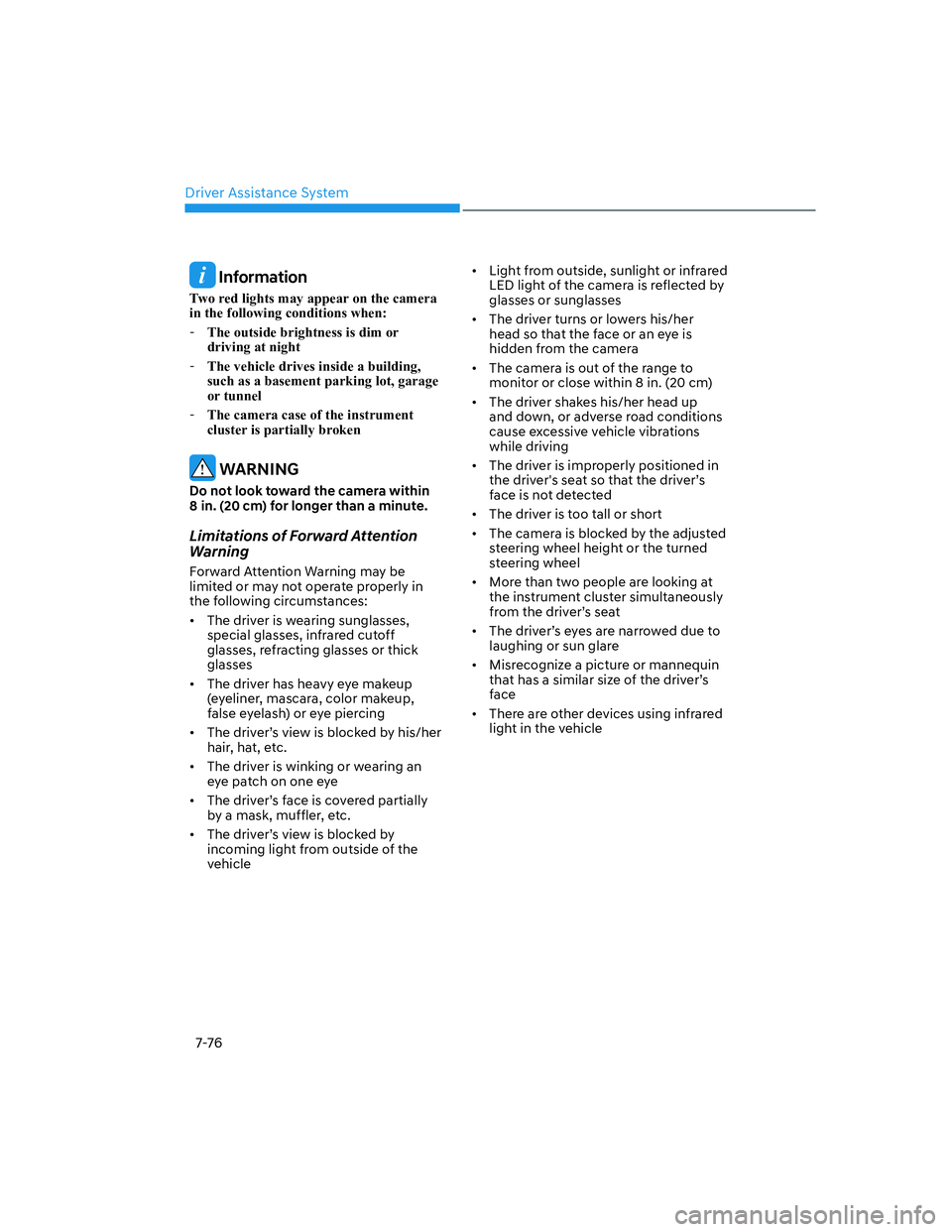

Information
Two red lights may appear on the camera
in the following conditions when:
-The outside brightness is dim or
driving at night
-The vehicle drives inside a building,
such as a basement parking lot, garage
or tunnel
-The camera case of the instrument
cluster is partially broken
: $ 5 1 , 1 *
Do not look toward the camera within
8 L Q F P I R U O R Q J H U W K D Q D P L Q X W H
Limitations of Forward Attention
Warning
Forward Attention Warning may be
limited or may not operate properly in
the following circumstances:
• The driver is wearing sunglasses,
special glasses, infrared cutoff
glasses, refracting glasses or thick
glasses
• The driver has heavy eye makeup
(eyeliner, mascara, color makeup,
false eyelash) or eye piercing
• The driver’s view is blocked by his/her
hair, hat, etc.
• The driver is winking or wearing an
eye patch on one eye
• The driver’s face is covered partially
by a mask, muffler, etc.
• The driver’s view is blocked by
incoming light from outside of the
vehicle • Light from outside, sunlight or infrared
LED light of the camera is reflected by
glasses or sunglasses
• The driver turns or lowers his/her
head so that the face or an eye is
hidden from the camera
• The camera is out of the range to
monitor or close within 8 in. (20 cm)
• The driver shakes his/her head up
and down, or adverse road conditions
cause excessive vehicle vibrations
while driving
• The driver is improperly positioned in
the driver's seat so that the driver’s
face is not detected
• The driver is too tall or short
• The camera is blocked by the adjusted
steering wheel height or the turned
steering wheel
• More than two people are looking at
the instrument cluster simultaneously
from the driver’s seat
• The driver’s eyes are narrowed due to
laughing or sun glare
• Misrecognize a picture or mannequin
that has a similar size of the driver’s
face
• There are other devices using infrared
light in the vehicle
Page 426 of 647
07
7-77

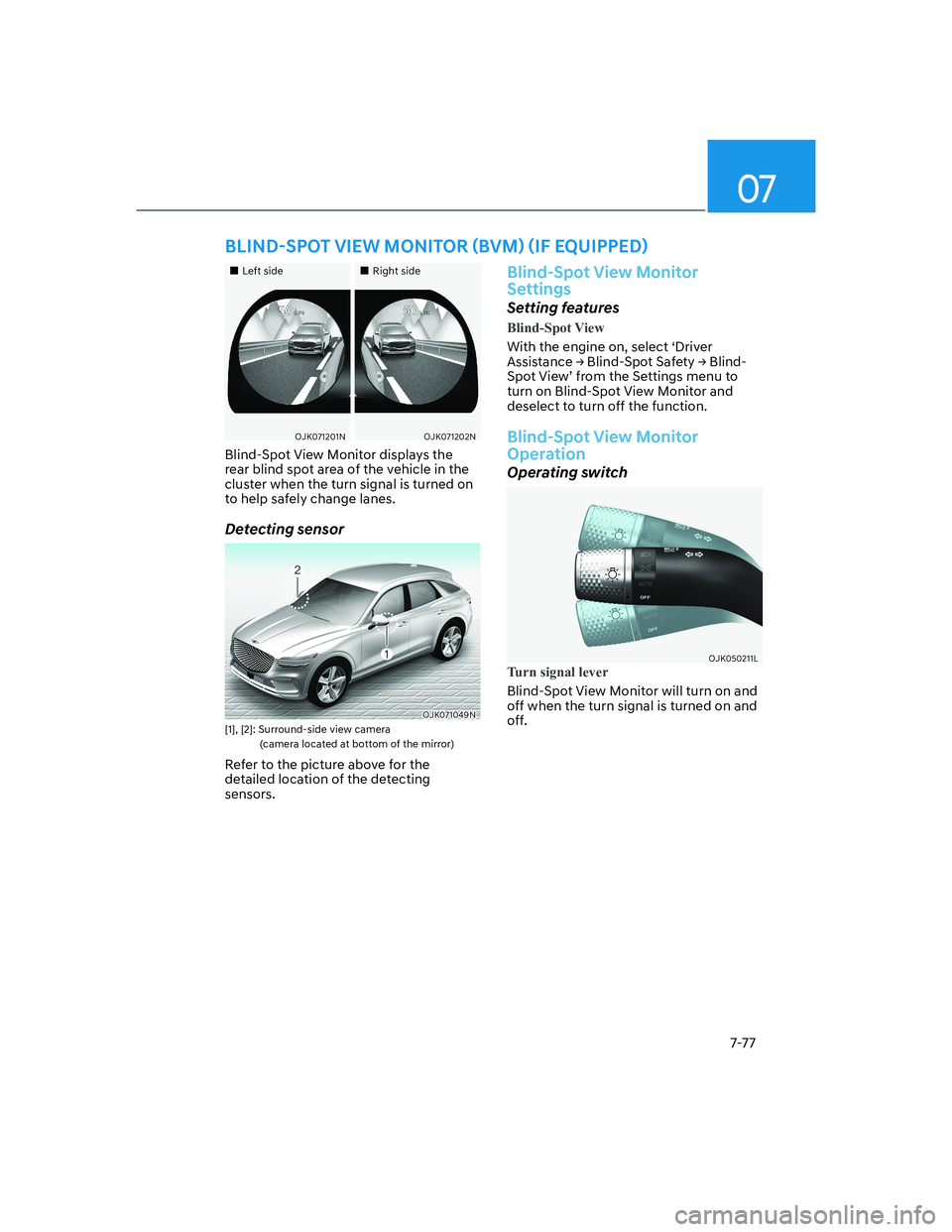

„ „Left sideLeft side „ „Right sideRight side
OJK071201NOJK071201NOJK071202NOJK071202N
Blind-Spot View Monitor displays the
rear blind spot area of the vehicle in the
cluster when the turn signal is turned on
to help safely change lanes.
Detecting sensor
OJK071049NOJK071049N[1], [2]: Surround-side view camera
(camera located at bottom of the mirror)
Refer to the picture above for the
detailed location of the detecting
sensors.
% O L Q G 6 S R W 9 L H Z 0 R Q L W R U
Settings
Setting features
Blind-Spot View
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 427 of 647
Driver Assistance System
7-78

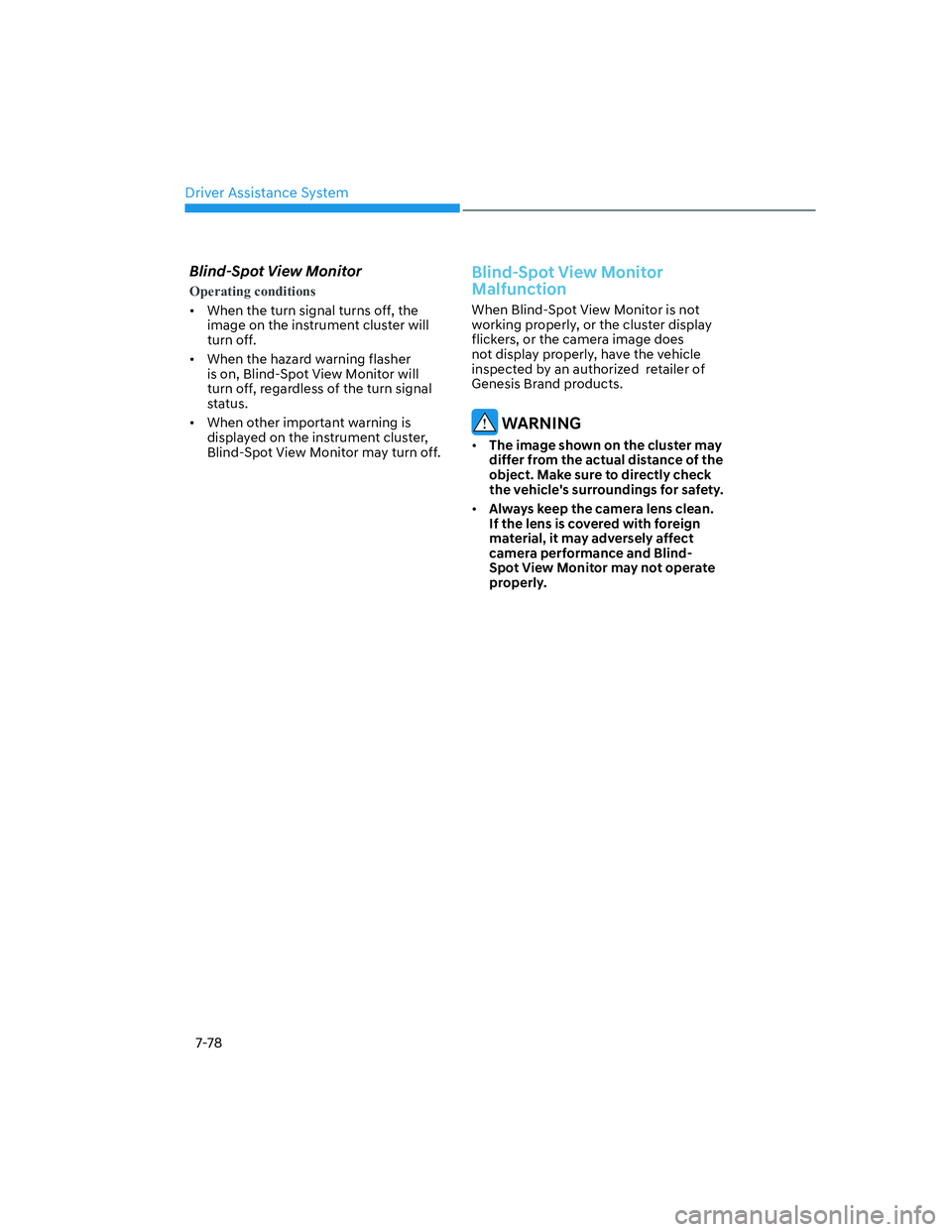

Blind-Spot View Monitor
Operating conditions
• When the turn signal turns off, the
image on the instrument cluster will
turn off.
• When the hazard warning flasher
is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.
• When other important warning is
displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.
% O L Q G 6 S R W 9 L H Z 0 R Q L W R U
Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does
not display properly, have the vehicle
inspected by an authorized retailer of
Genesis Brand products.
: $ 5 1 , 1 *
• 7 K H L P D J H V K R Z Q R Q W K H F O X V W H U P D \
differ from the actual distance of the
R E M H F W 0 D N H V X U H W R G L U H F W O \ F K H F N
W K H Y H K L F O H
V V X U U R X Q G L Q J V I R U V D I H W \
• $ O Z D \ V N H H S W K H F D P H U D O H Q V F O H D Q
, I W K H O H Q V L V F R Y H U H G Z L W K I R U H L J Q
P D W H U L D O L W P D \ D G Y H U V H O \ D I I H F W
F D P H U D S H U I R U P D Q F H D Q G % O L Q G
6 S R W 9 L H Z 0 R Q L W R U P D \ Q R W R S H U D W H
S U R S H U O \
Page 428 of 647
07
7-79

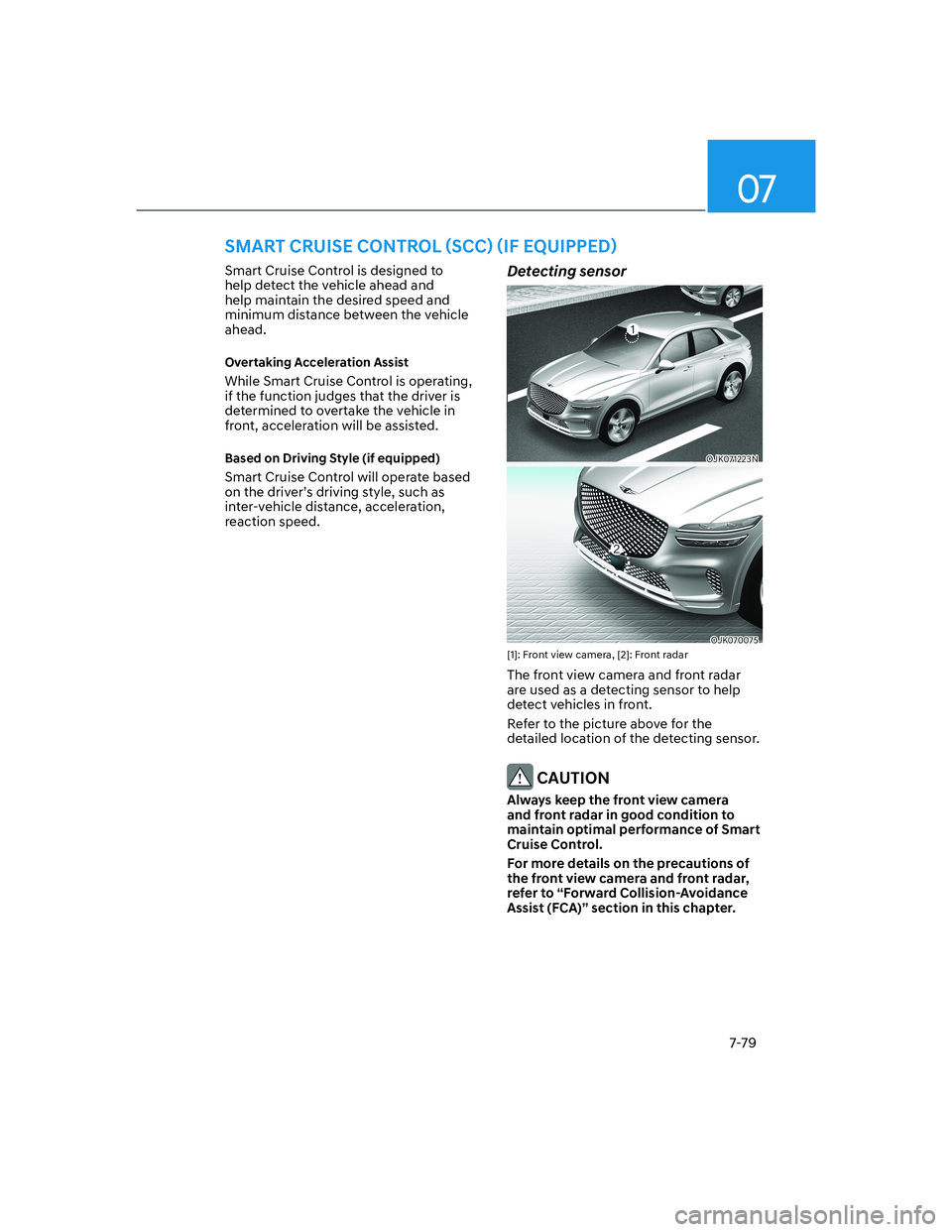

Smart Cruise Control is designed to
help detect the vehicle ahead and
help maintain the desired speed and
minimum distance between the vehicle
ahead.
2 Y H U W D N L Q J $ F F H O H U D W L R Q $ V V L V W
While Smart Cruise Control is operating,
if the function judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
% D V H G R Q ' U L Y L Q J 6 W \ O H L I H T X L S S H G
Smart Cruise Control will operate based
on the driver’s driving style, such as
inter-vehicle distance, acceleration,
reaction speed.
Detecting sensor
OJK071223NOJK071223N
OJK070075 OJK070075 [1]: Front view camera, [2]: Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
& $ 8 7 , 2 1
$ O Z D \ V N H H S W K H I U R Q W Y L H Z F D P H U D
and front radar in good condition to
maintain optimal performance of Smart
& U X L V H & R Q W U R O
For more details on the precautions of
W K H I U R Q W Y L H Z F D P H U D D Q G I U R Q W U D G D U
U H I H U W R U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W ) & $ V V H F W L R Q L Q W K L V F K D S W H U
6 0 $ 5 7 & 5 8 , 6 ( & 2 1 7 5 2 /
Page 429 of 647
Driver Assistance System
7-80

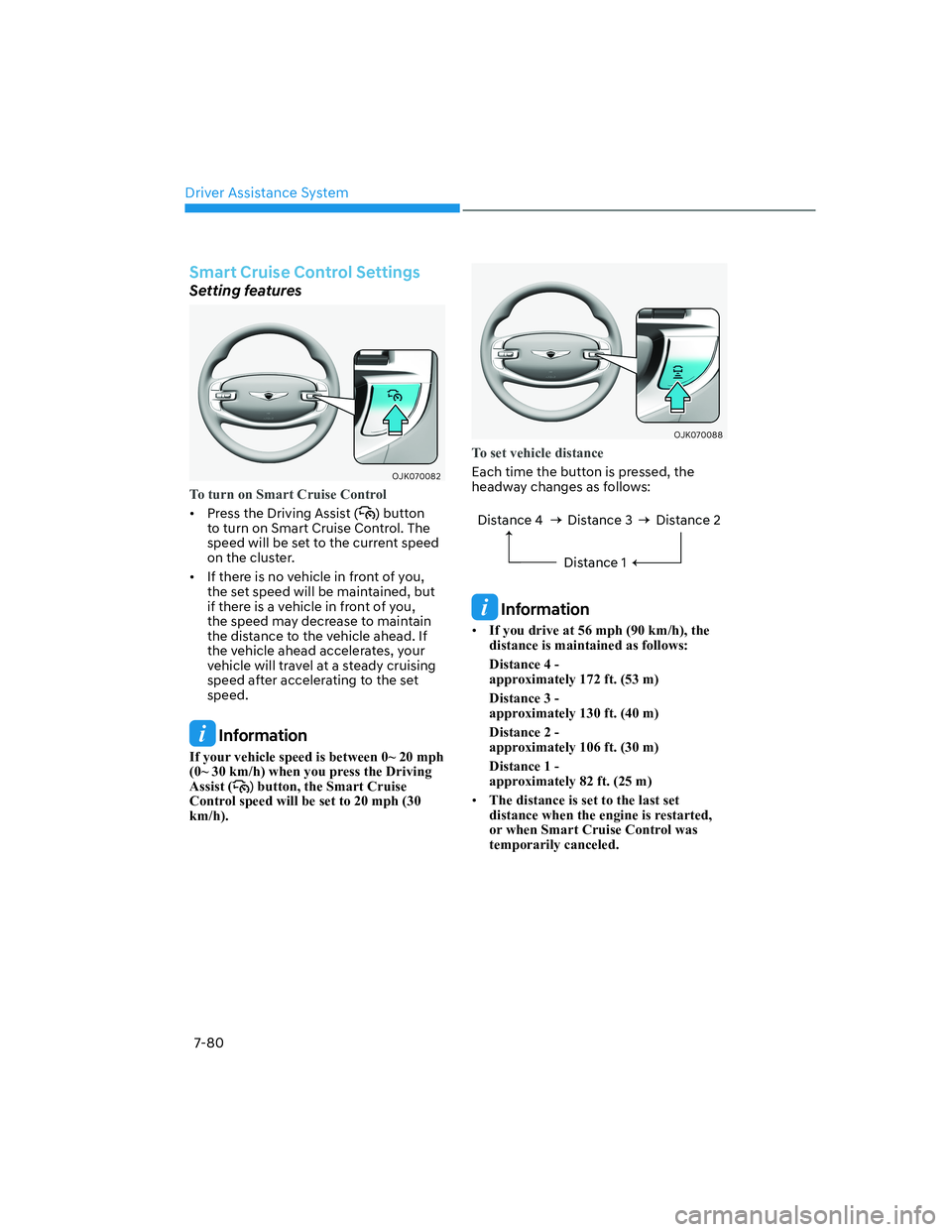

Smart Cruise Control Settings
Setting features
OJK070082OJK070082
To turn on Smart Cruise Control
• Press the Driving Assist () button
to turn on Smart Cruise Control. The
speed will be set to the current speed
on the cluster.
• If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information
If your vehicle speed is between 0~ 20 mph
(0~ 30 km/h) when you press the Driving
Assist (
) button, the Smart Cruise
Control speed will be set to 20 mph (30
km/h).
OJK070088OJK070088
To set vehicle distance
Each time the button is pressed, the
headway changes as follows:
Distance 4 Distance 3
Distance 1Distance 2
Information
• If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (53 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (30 m)
Distance 1 -
approximately 82 ft. (25 m)
• The distance is set to the last set
distance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.
Page 430 of 647
07
7-81

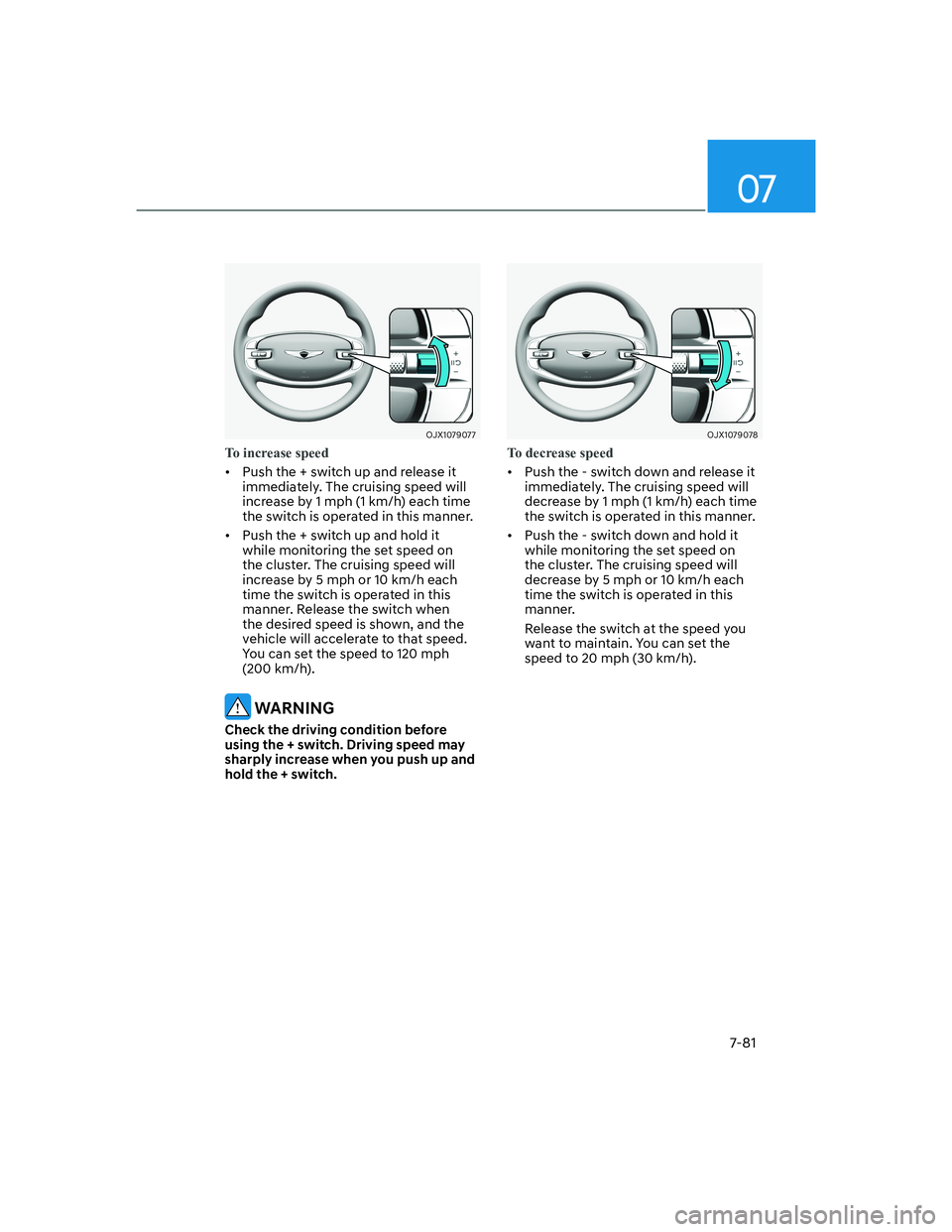

OJX1079077OJX1079077
To increase speed
• Push the + switch up and release it
immediately. The cruising speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase by 5 mph or 10 km/h each
time the switch is operated in this
manner. Release the switch when
the desired speed is shown, and the
vehicle will accelerate to that speed.
You can set the speed to 120 mph
(200 km/h).
: $ 5 1 , 1 *
& K H F N W K H G U L Y L Q J F R Q G L W L R Q E H I R U H
X V L Q J W K H V Z L W F K ' U L Y L Q J V S H H G P D \
V K D U S O \ L Q F U H D V H Z K H Q \ R X S X V K X S D Q G
K R O G W K H V Z L W F K
OJX1079078OJX1079078
To decrease speed
• Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease by 5 mph or 10 km/h each
time the switch is operated in this
manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).
