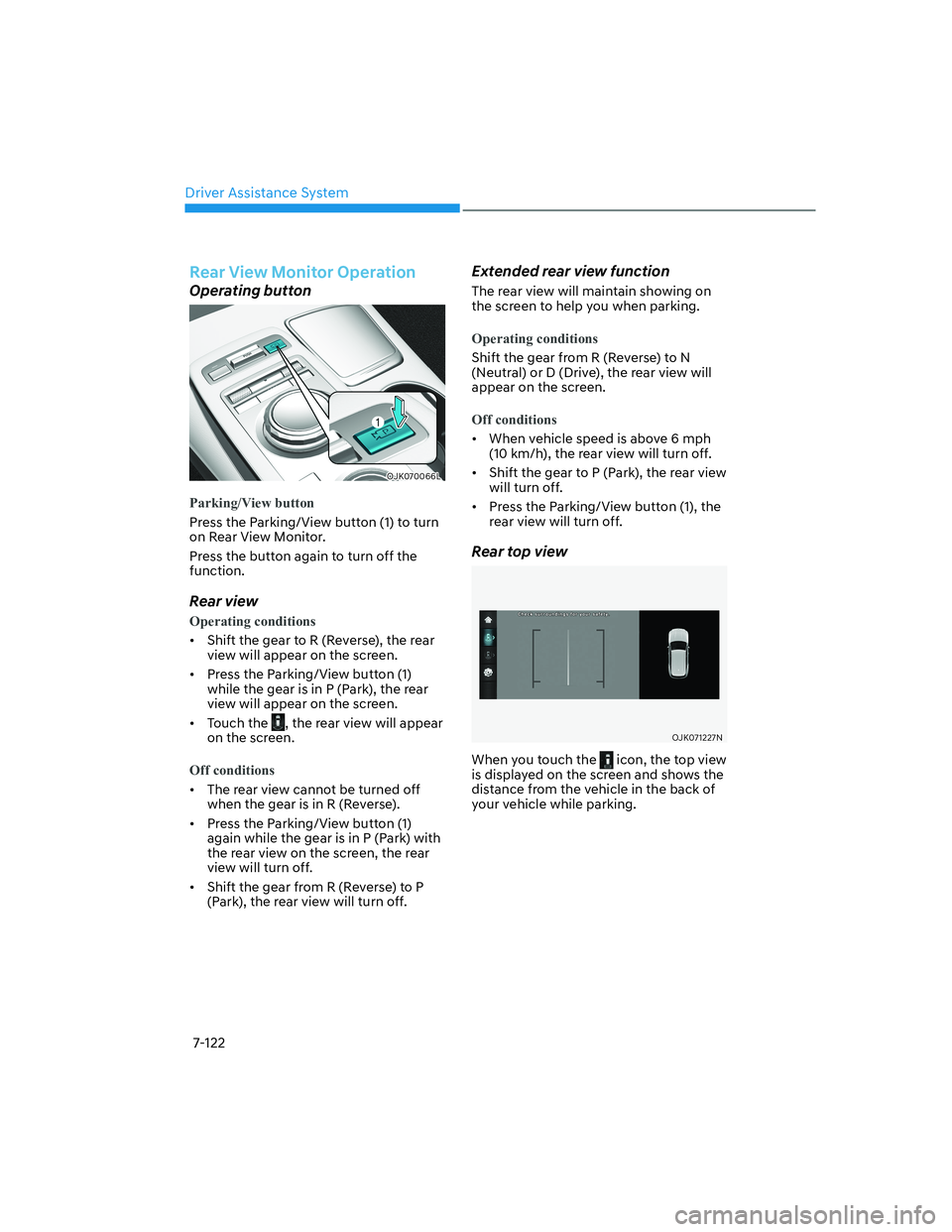

Driver Assistance System
7-122
5 H D U 9 L H Z 0 R Q L W R U 2 S H U D W L R Q
Operating button
OJK070066LOJK070066L
Parking/View button
Press the Parking/View button (1) to turn
on Rear View Monitor.
Press the button again to turn off the
function.
Rear view
Operating conditions
• Shift the gear to R (Reverse), the rear
view will appear on the screen.
• Press the Parking/View button (1)
while the gear is in P (Park), the rear
view will appear on the screen.
• Touch the
, the rear view will appear
on the screen.
Off conditions
• The rear view cannot be turned off
when the gear is in R (Reverse).
• Press the Parking/View button (1)
again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.
• Shift the gear from R (Reverse) to P
(Park), the rear view will turn off.
Extended rear view function
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions
• When vehicle speed is above 6 mph
(10 km/h), the rear view will turn off.
• Shift the gear to P (Park), the rear view
will turn off.
• Press the Parking/View button (1), the
rear view will turn off.
Rear top view
OJK071227NOJK071227N
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Page 472 of 647
07
7-123
5 H D U 9 L H Z 0 R Q L W R U 0 D O I X Q F W L R Q
and Limitations

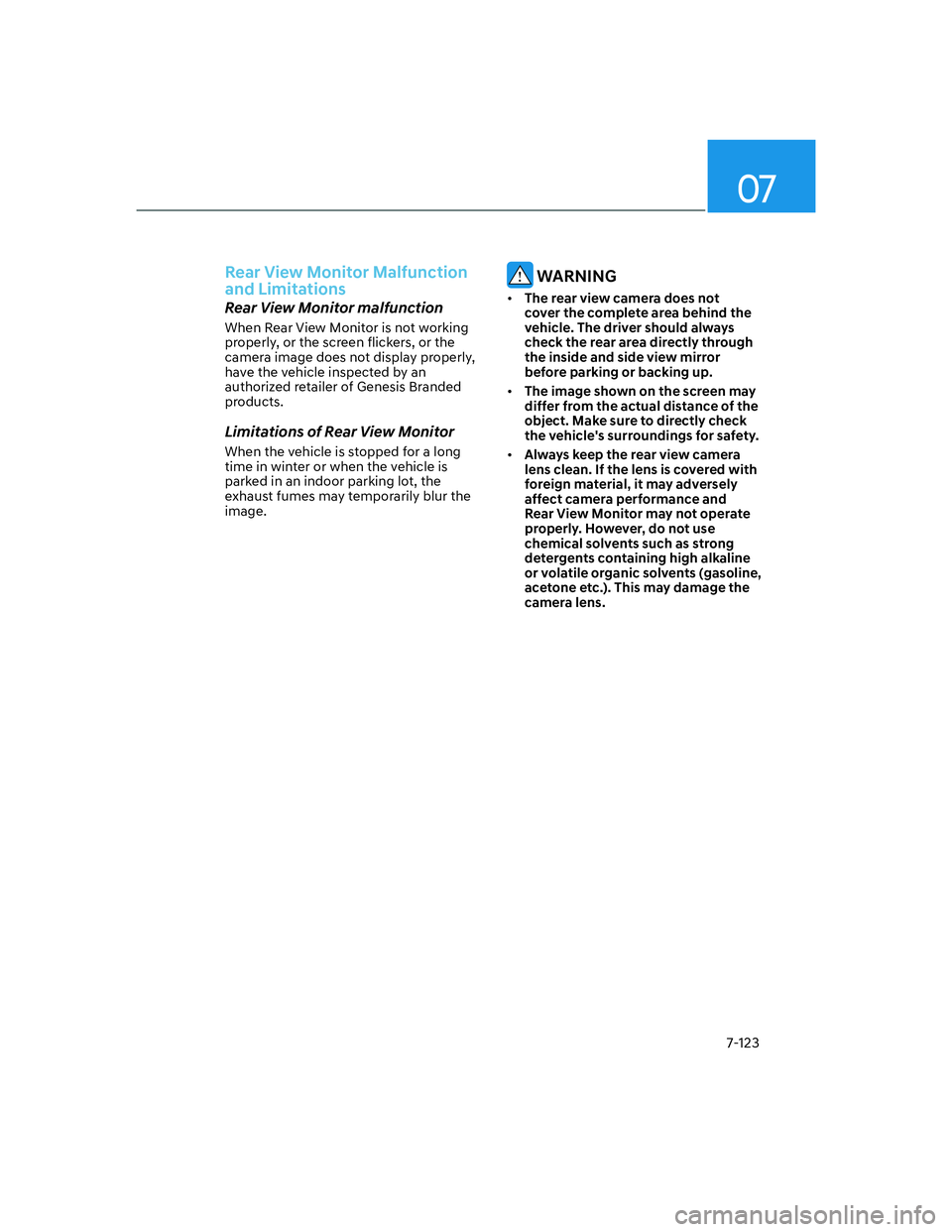

Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
: $ 5 1 , 1 *
• 7 K H U H D U Y L H Z F D P H U D G R H V Q R W
F R Y H U W K H F R P S O H W H D U H D E H K L Q G W K H
Y H K L F O H 7 K H G U L Y H U V K R X O G D O Z D \ V
F K H F N W K H U H D U D U H D G L U H F W O \ W K U R X J K
W K H L Q V L G H D Q G V L G H Y L H Z P L U U R U
E H I R U H S D U N L Q J R U E D F N L Q J X S
• 7 K H L P D J H V K R Z Q R Q W K H V F U H H Q P D \
differ from the actual distance of the
R E M H F W 0 D N H V X U H W R G L U H F W O \ F K H F N
W K H Y H K L F O H
V V X U U R X Q G L Q J V I R U V D I H W \
• $ O Z D \ V N H H S W K H U H D U Y L H Z F D P H U D
O H Q V F O H D Q , I W K H O H Q V L V F R Y H U H G Z L W K
I R U H L J Q P D W H U L D O L W P D \ D G Y H U V H O \
affect camera performance and
5 H D U 9 L H Z 0 R Q L W R U P D \ Q R W R S H U D W H
S U R S H U O \ + R Z H Y H U G R Q R W X V H
F K H P L F D O V R O Y H Q W V V X F K D V V W U R Q J
detergents containing high alkaline
R U Y R O D W L O H R U J D Q L F V R O Y H Q W V J D V R O L Q H
D F H W R Q H H W F 7 K L V P D \ G D P D J H W K H
F D P H U D O H Q V
Page 473 of 647
Driver Assistance System
7-124
OJK070163LOJK070163L
OJK071236NOJK071236N
Surround View Monitor can assist in
parking by allowing the driver to see
around the vehicle.
Detecting sensor
OJK071056NOJK071056N
OJK070057OJK070057
[1] : Surround-front view camera,
[2],[3] : Surround-side view camera
(under the side view mirror),
[4] : Surround-rear view camera
Refer to the picture above for the
detailed location of the detecting
sensors.
6 8 5 5 2 8 1 ' 9 , ( : 0 2 1 , 7 2 5
Page 474 of 647
07
7-125

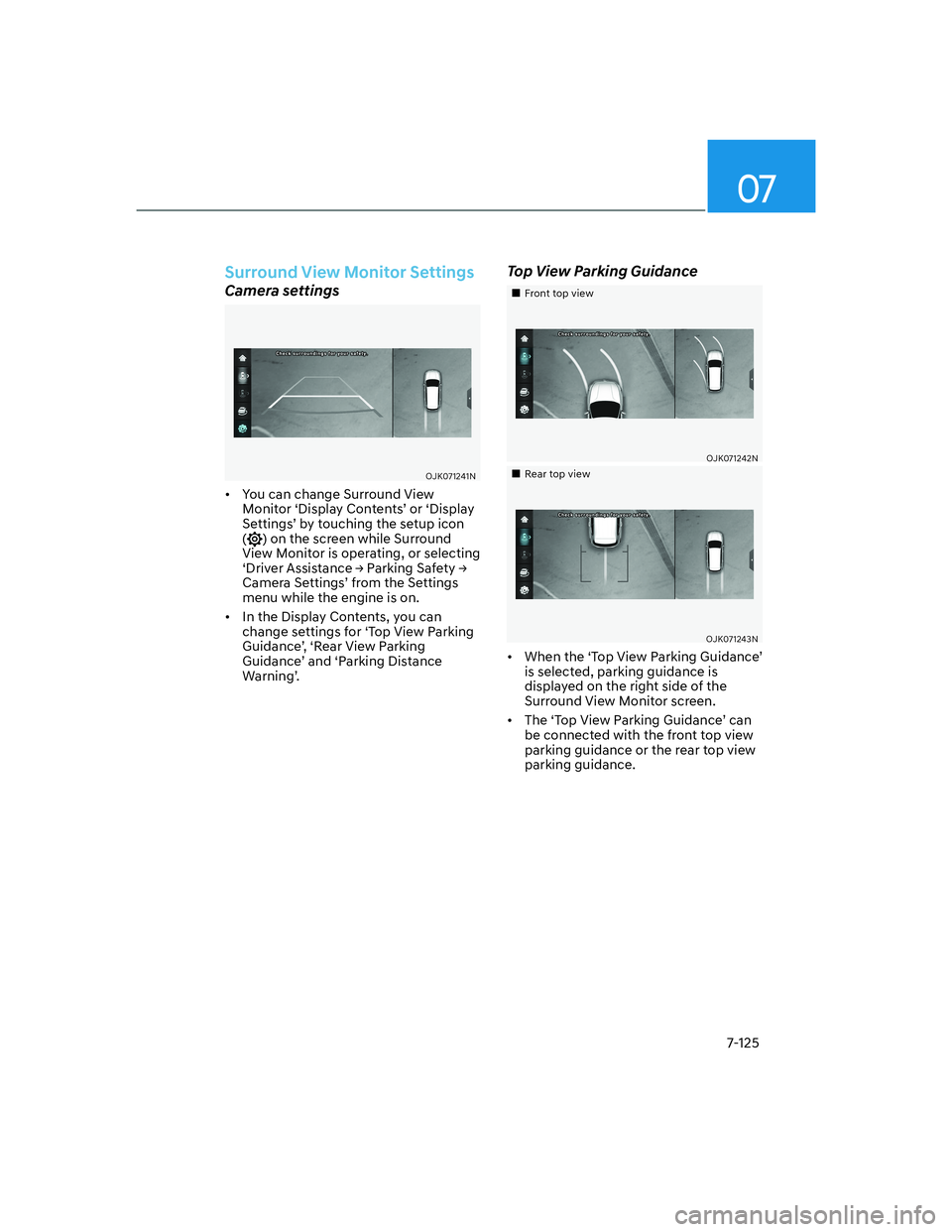

6 X U U R X Q G 9 L H Z 0 R Q L W R U 6 H W W L Q J V
Camera settings
OJK071241NOJK071241N
• You can change Surround View
Monitor ‘Display Contents’ or ‘Display
Settings’ by touching the setup icon
(
) on the screen while Surround
View Monitor is operating, or selecting
S ' U L Y H U $ V V L V W D Q F H
Page 475 of 647
Driver Assistance System
7-126

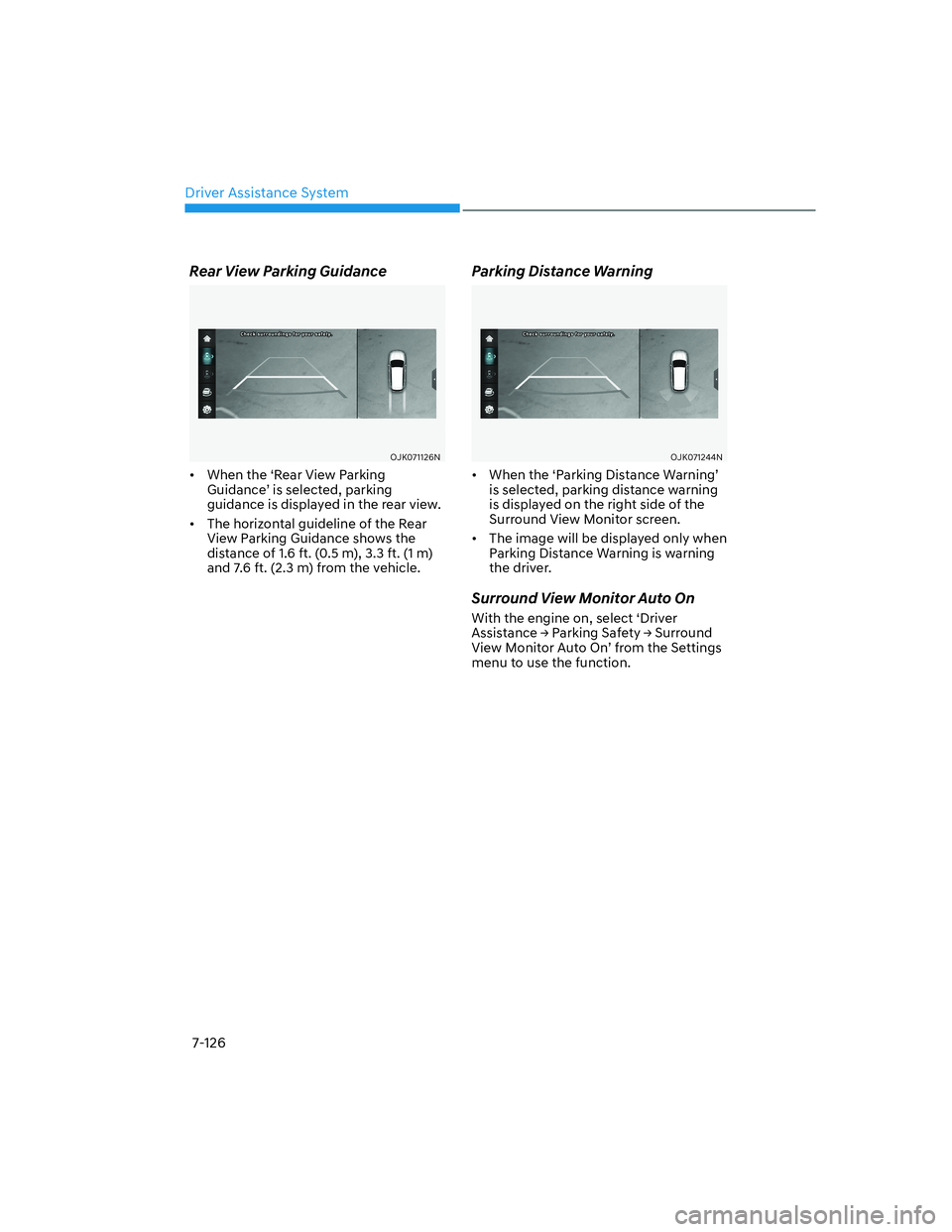

Rear View Parking Guidance
OJK071126NOJK071126N
• When the ‘Rear View Parking
Guidance’ is selected, parking
guidance is displayed in the rear view.
• The horizontal guideline of the Rear
View Parking Guidance shows the
distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m)
and 7.6 ft. (2.3 m) from the vehicle.
Parking Distance Warning
OJK071244NOJK071244N
• When the ‘Parking Distance Warning’
is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.
• The image will be displayed only when
Parking Distance Warning is warning
the driver.
Surround View Monitor Auto On
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 476 of 647
07
7-127
6 X U U R X Q G 9 L H Z 0 R Q L W R U

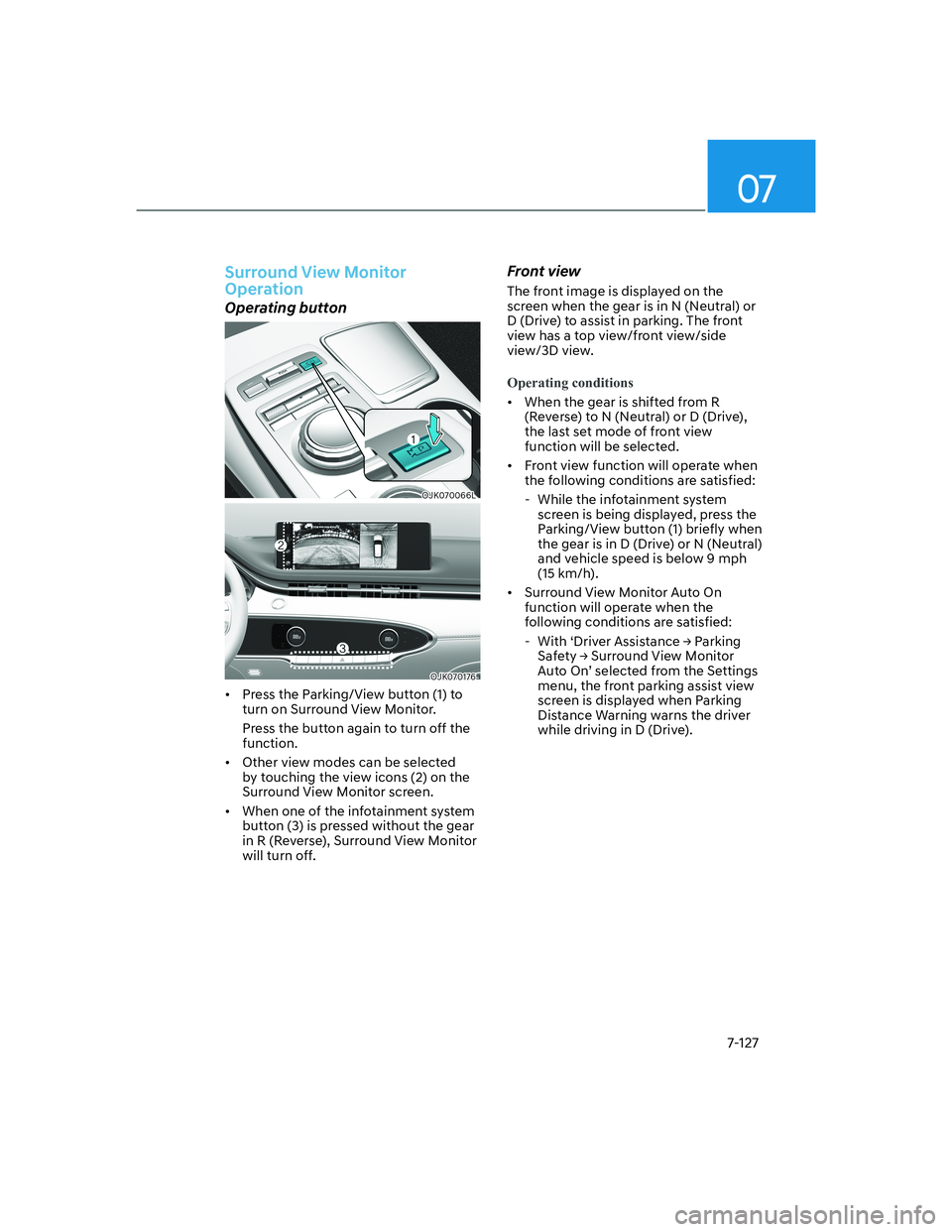

Operation
Operating button
OJK070066LOJK070066L
OJK070176OJK070176
• Press the Parking/View button (1) to
turn on Surround View Monitor.
Press the button again to turn off the
function.
• Other view modes can be selected
by touching the view icons (2) on the
Surround View Monitor screen.
• When one of the infotainment system
button (3) is pressed without the gear
in R (Reverse), Surround View Monitor
will turn off.
Front view
The front image is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. The front
view has a top view/front view/side
view/3D view.
Operating conditions
• When the gear is shifted from R
(Reverse) to N (Neutral) or D (Drive),
the last set mode of front view
function will be selected.
• Front view function will operate when
the following conditions are satisfied:
- While the infotainment system
screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and vehicle speed is below 9 mph
(15 km/h).
• Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
- : L W K S ' U L Y H U $ V V L V W D Q F H
Page 477 of 647
Driver Assistance System
7-128

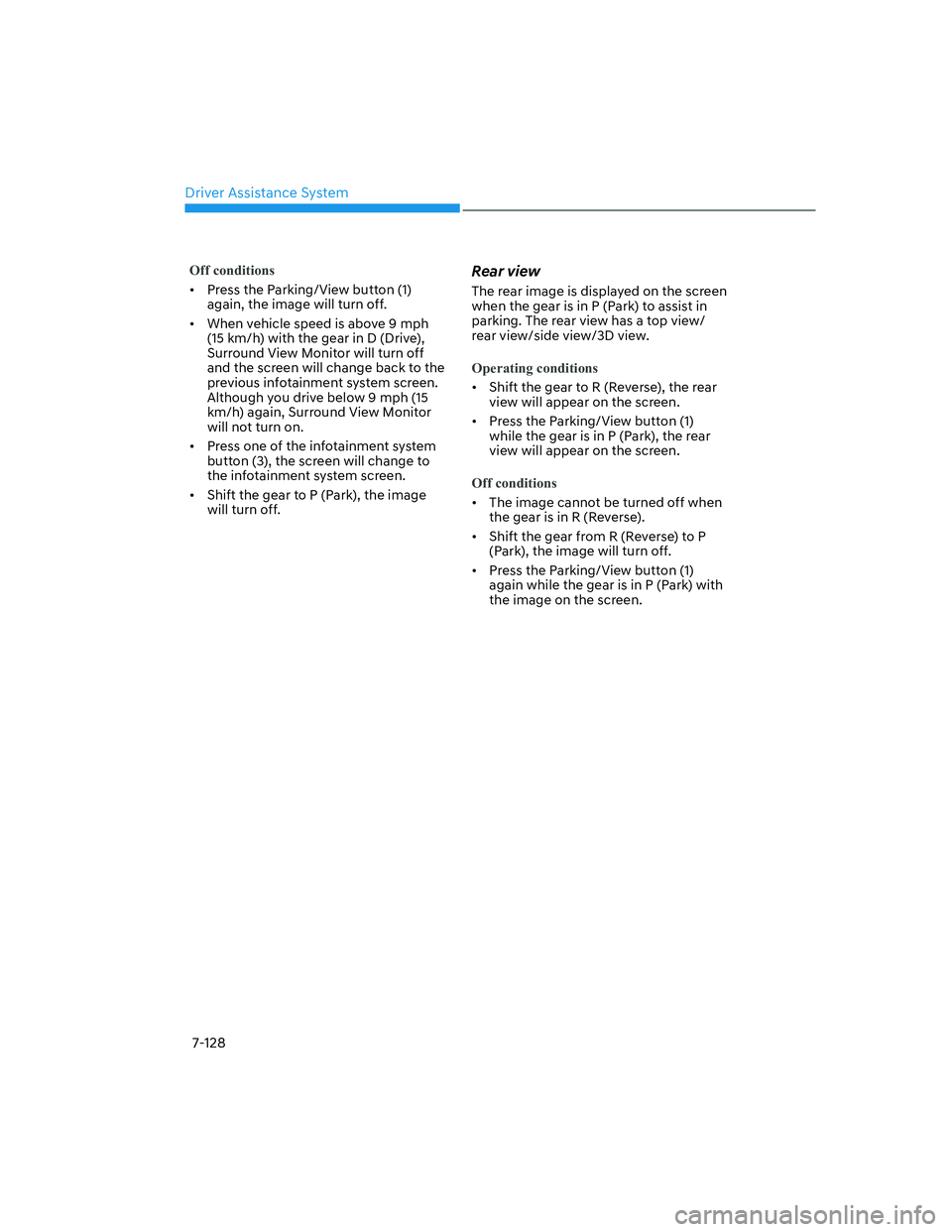

Off conditions
• Press the Parking/View button (1)
again, the image will turn off.
• When vehicle speed is above 9 mph
(15 km/h) with the gear in D (Drive),
Surround View Monitor will turn off
and the screen will change back to the
previous infotainment system screen.
Although you drive below 9 mph (15
km/h) again, Surround View Monitor
will not turn on.
• Press one of the infotainment system
button (3), the screen will change to
the infotainment system screen.
• Shift the gear to P (Park), the image
will turn off.
Rear view
The rear image is displayed on the screen
when the gear is in P (Park) to assist in
parking. The rear view has a top view/
rear view/side view/3D view.
Operating conditions
• Shift the gear to R (Reverse), the rear
view will appear on the screen.
• Press the Parking/View button (1)
while the gear is in P (Park), the rear
view will appear on the screen.
Off conditions
• The image cannot be turned off when
the gear is in R (Reverse).
• Shift the gear from R (Reverse) to P
(Park), the image will turn off.
• Press the Parking/View button (1)
again while the gear is in P (Park) with
the image on the screen.
Page 478 of 647
07
7-129
6 X U U R X Q G 9 L H Z 0 R Q L W R U

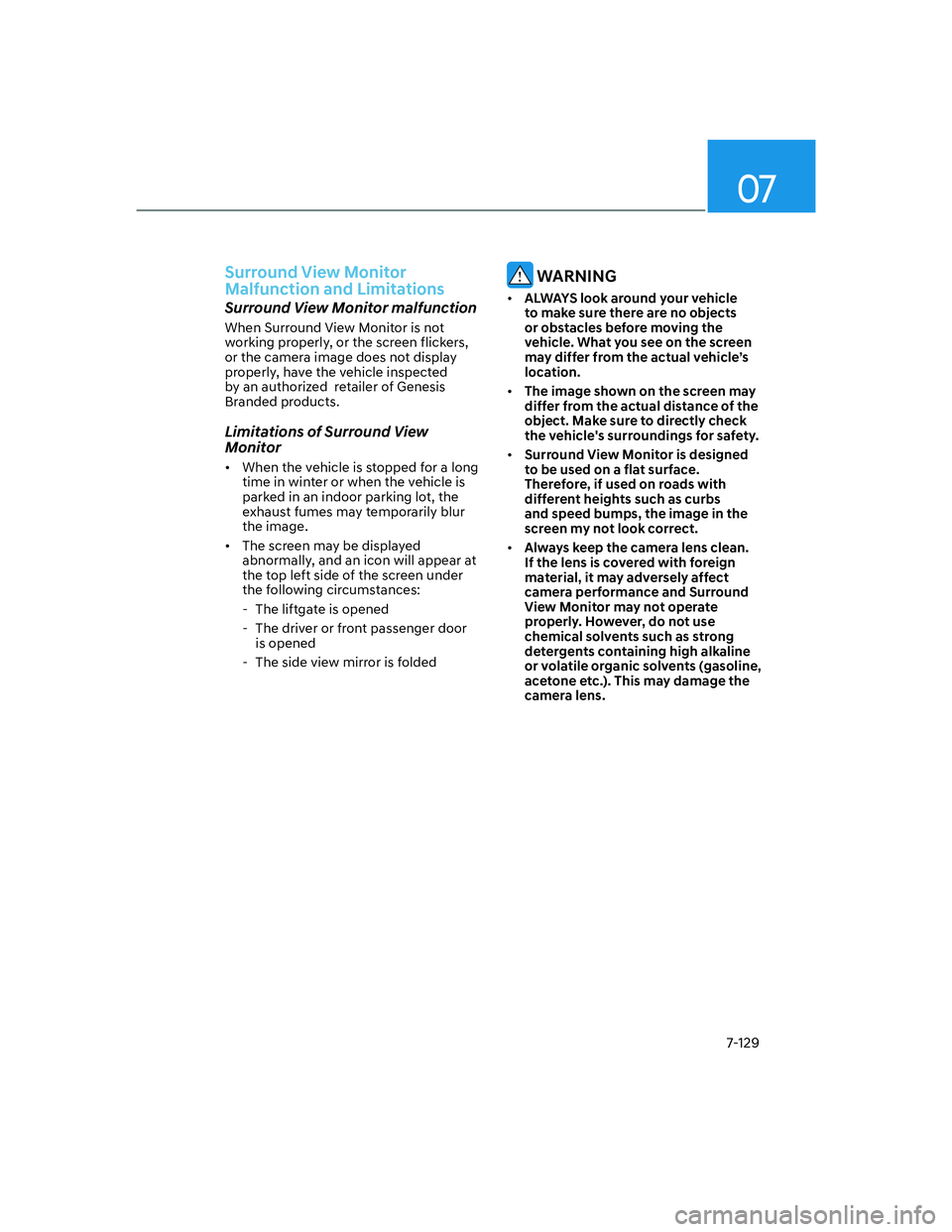

Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
properly, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Limitations of Surround View
Monitor
• When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.
• The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened
- The driver or front passenger door
is opened
- The side view mirror is folded
: $ 5 1 , 1 *
• $ / : $ < 6 O R R N D U R X Q G \ R X U Y H K L F O H
W R P D N H V X U H W K H U H D U H Q R R E M H F W V
R U R E V W D F O H V E H I R U H P R Y L Q J W K H
Y H K L F O H : K D W \ R X V H H R Q W K H V F U H H Q
P D \ G L I I H U I U R P W K H D F W X D O Y H K L F O HT V
O R F D W L R Q
• 7 K H L P D J H V K R Z Q R Q W K H V F U H H Q P D \
differ from the actual distance of the
R E M H F W 0 D N H V X U H W R G L U H F W O \ F K H F N
W K H Y H K L F O H
V V X U U R X Q G L Q J V I R U V D I H W \
• 6 X U U R X Q G 9 L H Z 0 R Q L W R U L V G H V L J Q H G
W R E H X V H G R Q D I O D W V X U I D F H
7 K H U H I R U H L I X V H G R Q U R D G V Z L W K
G L I I H U H Q W K H L J K W V V X F K D V F X U E V
D Q G V S H H G E X P S V W K H L P D J H L Q W K H
V F U H H Q P \ Q R W O R R N F R U U H F W
• $ O Z D \ V N H H S W K H F D P H U D O H Q V F O H D Q
, I W K H O H Q V L V F R Y H U H G Z L W K I R U H L J Q
P D W H U L D O L W P D \ D G Y H U V H O \ D I I H F W
camera performance and Surround
9 L H Z 0 R Q L W R U P D \ Q R W R S H U D W H
S U R S H U O \ + R Z H Y H U G R Q R W X V H
F K H P L F D O V R O Y H Q W V V X F K D V V W U R Q J
detergents containing high alkaline
R U Y R O D W L O H R U J D Q L F V R O Y H Q W V J D V R O L Q H
D F H W R Q H H W F 7 K L V P D \ G D P D J H W K H
F D P H U D O H Q V
Page 479 of 647
Driver Assistance System
7-130

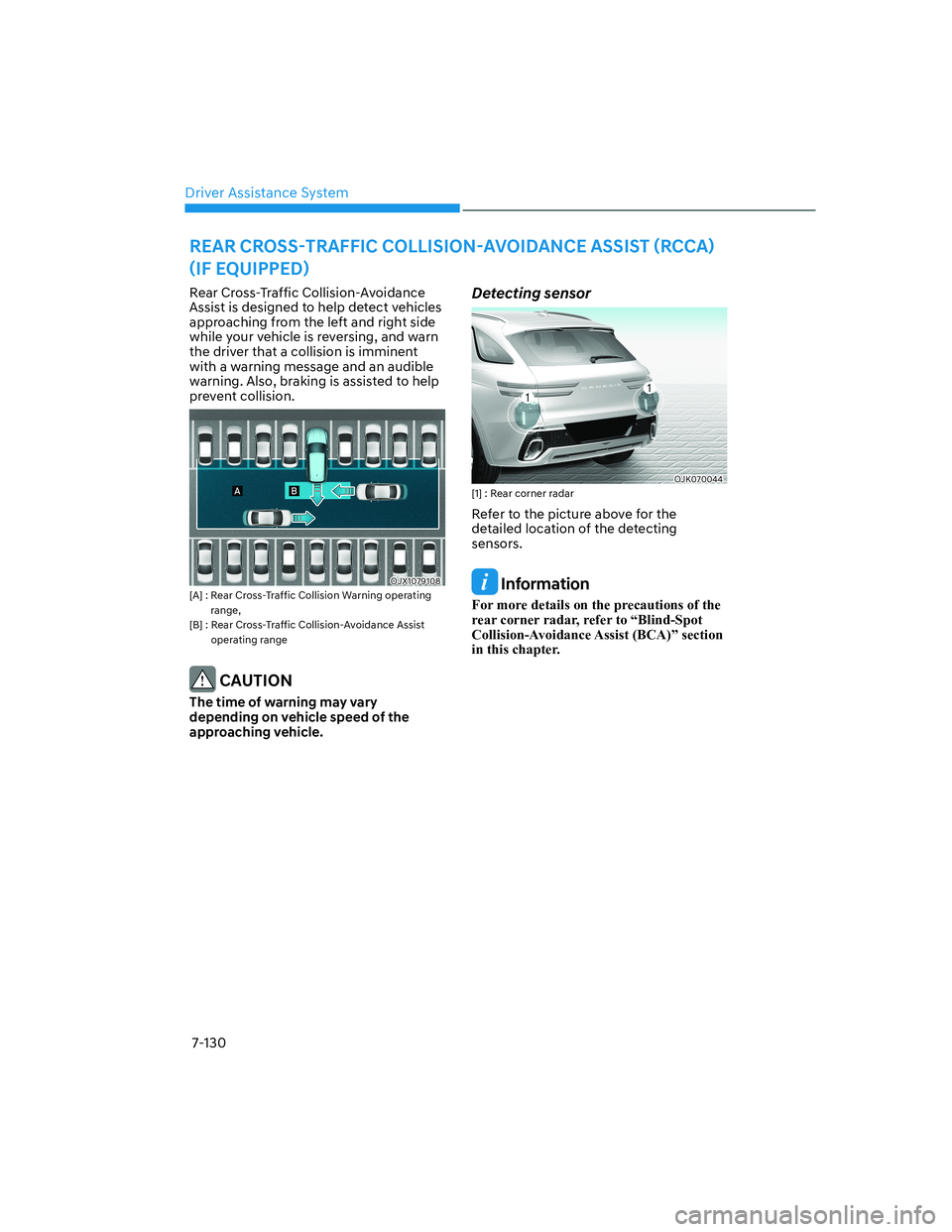

Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning. Also, braking is assisted to help
prevent collision.
OJX1079108OJX1079108[A] : Rear Cross-Traffic Collision Warning operating
range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist
operating range
& $ 8 7 , 2 1
7 K H W L P H R I Z D U Q L Q J P D \ Y D U \
G H S H Q G L Q J R Q Y H K L F O H V S H H G R I W K H
D S S U R D F K L Q J Y H K L F O H
Detecting sensor
OJK070044OJK070044[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.
5 ( $ 5 & 5 2 6 6
Page 480 of 647
07
7-131

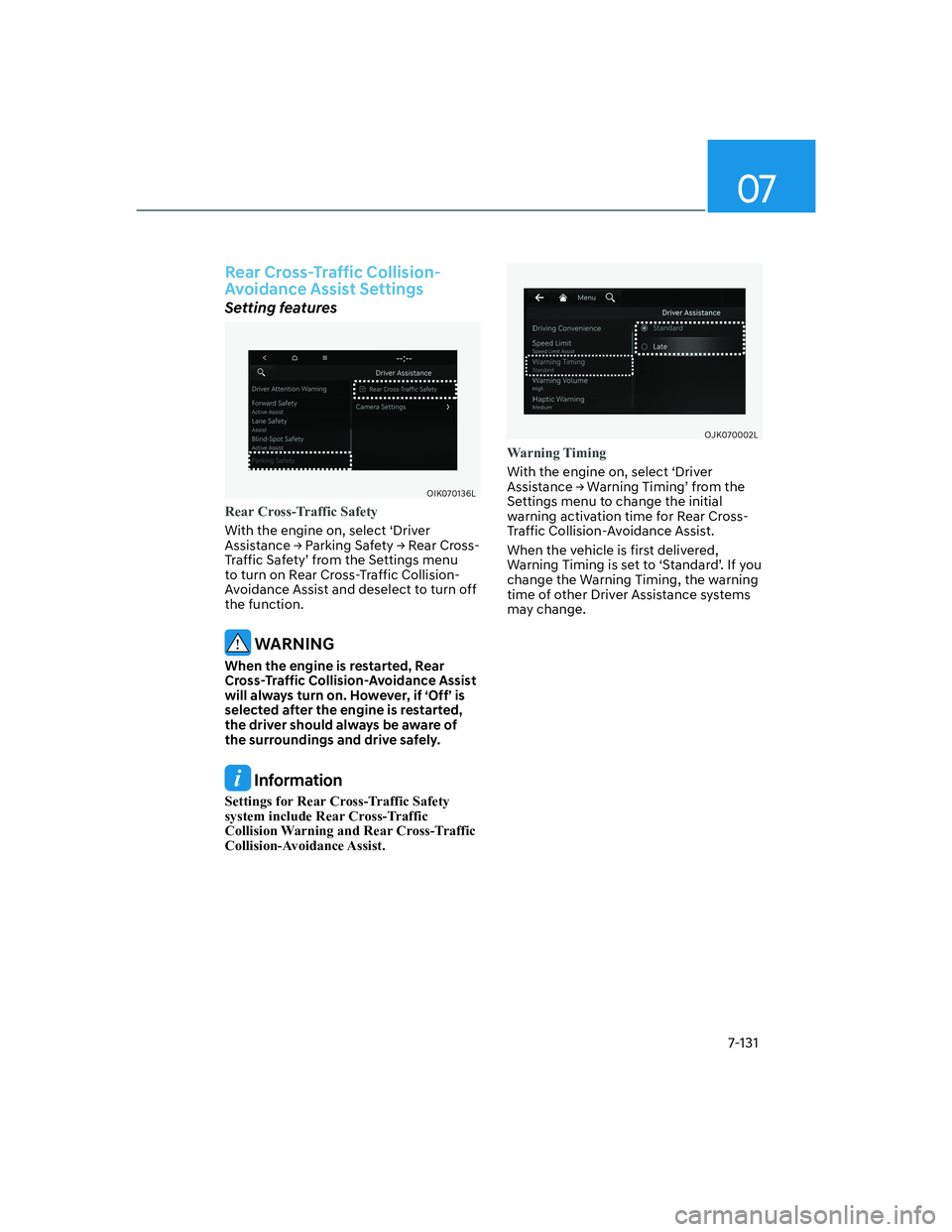

Rear Cross-Traffic Collision-
$ Y R L G D Q F H $ V V L V W 6 H W W L Q J V
Setting features
OIK070136LOIK070136L
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$ V V L V W D Q F H
