Driver Assistance System

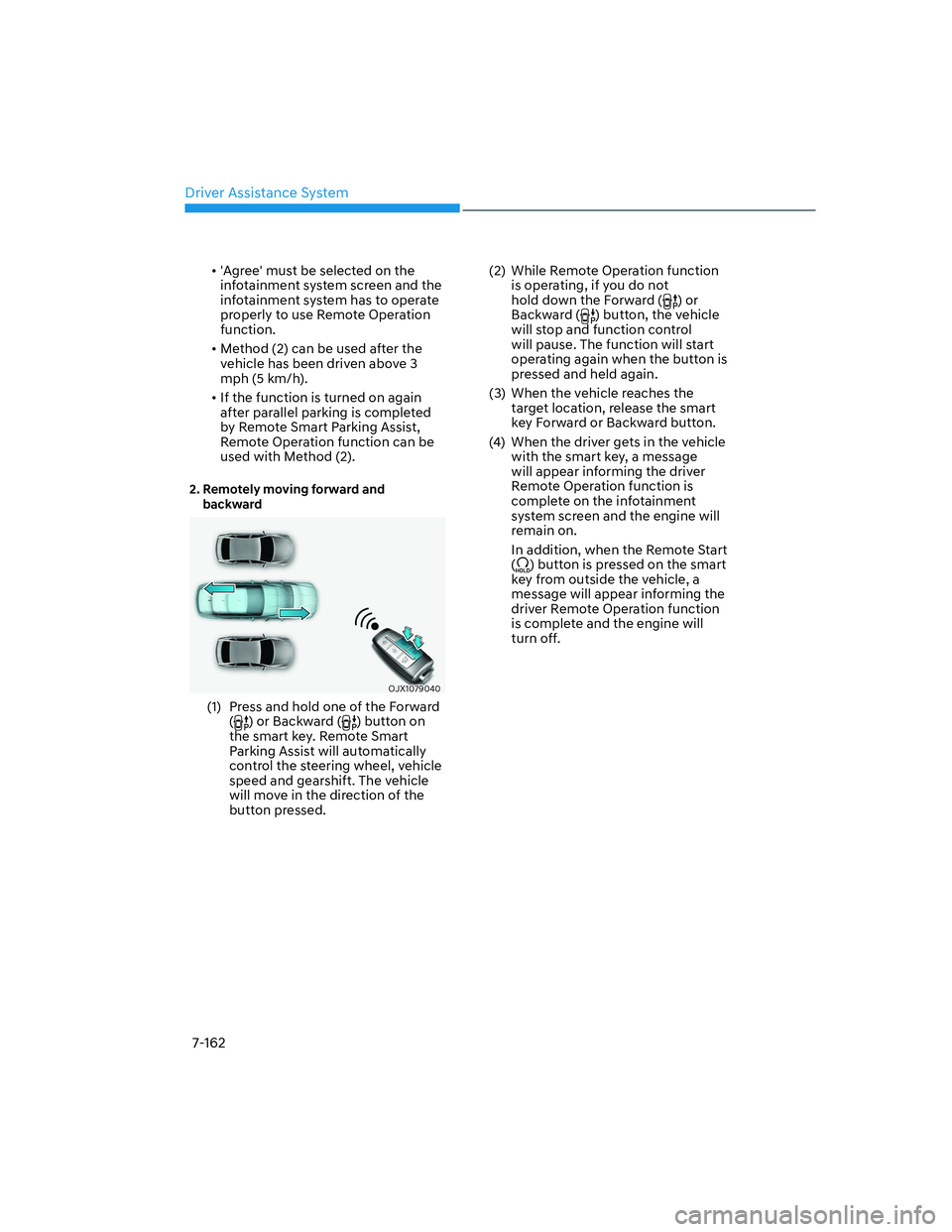

7-162
• 'Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Remote Operation
function.
• Method (2) can be used after the
vehicle has been driven above 3
mph (5 km/h).
• If the function is turned on again
after parallel parking is completed
by Remote Smart Parking Assist,
Remote Operation function can be
used with Method (2).
5 H P R W H O \ P R Y L Q J I R U Z D U G D Q G
E D F N Z D U G
OJX1079040 OJX1079040
(1) Press and hold one of the Forward
() or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift. The vehicle
will move in the direction of the
button pressed. (2) While Remote Operation function
is operating, if you do not
hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(3) When the vehicle reaches the
target location, release the smart
key Forward or Backward button.
(4) When the driver gets in the vehicle
with the smart key, a message
will appear informing the driver
Remote Operation function is
complete on the infotainment
system screen and the engine will
remain on.
In addition, when the Remote Start
(
) button is pressed on the smart
key from outside the vehicle, a
message will appear informing the
driver Remote Operation function
is complete and the engine will
turn off.
Page 512 of 647
07

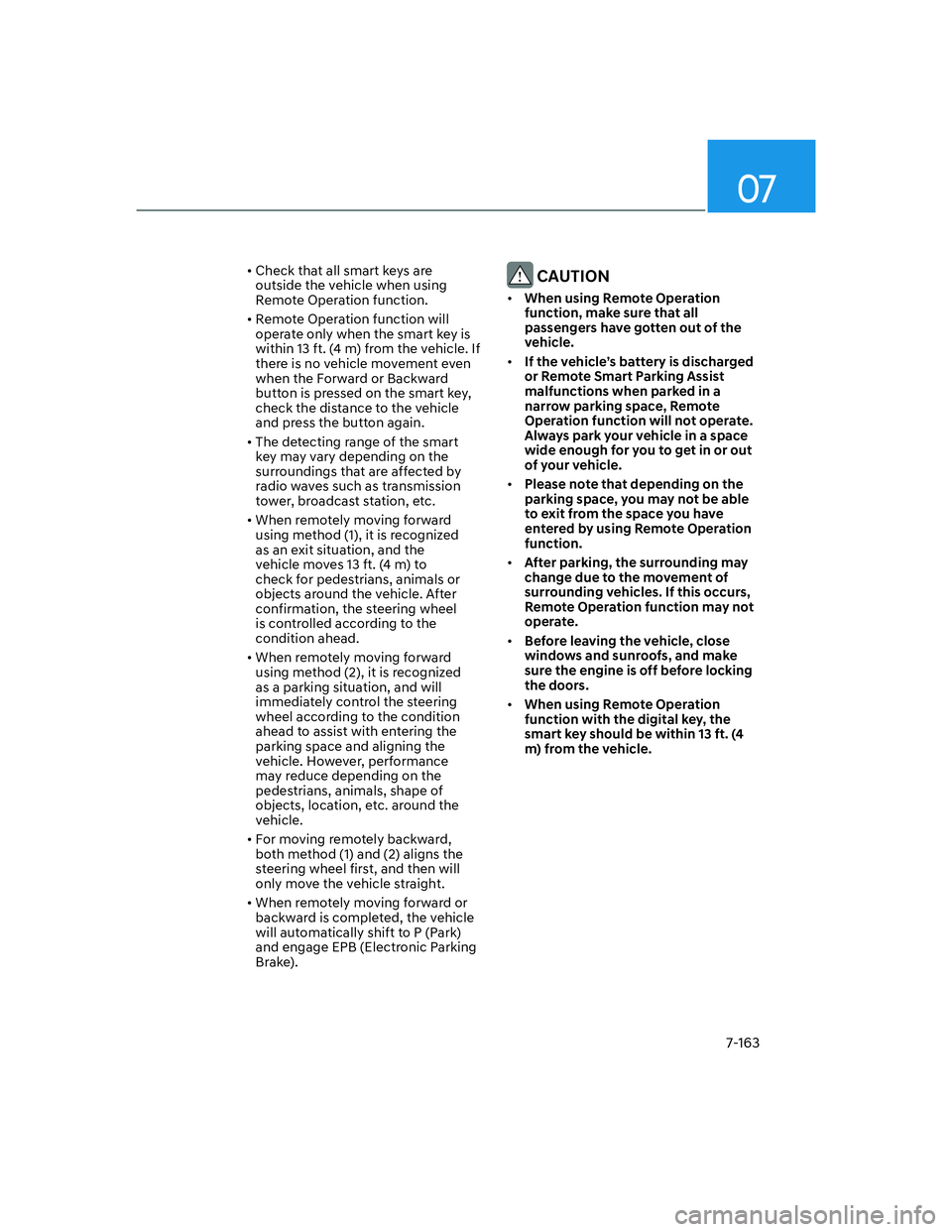

7-163
• Check that all smart keys are
outside the vehicle when using
Remote Operation function.
• Remote Operation function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle. If
there is no vehicle movement even
when the Forward or Backward
button is pressed on the smart key,
check the distance to the vehicle
and press the button again.
• The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.
• When remotely moving forward
using method (1), it is recognized
as an exit situation, and the
vehicle moves 13 ft. (4 m) to
check for pedestrians, animals or
objects around the vehicle. After
confirmation, the steering wheel
is controlled according to the
condition ahead.
• When remotely moving forward
using method (2), it is recognized
as a parking situation, and will
immediately control the steering
wheel according to the condition
ahead to assist with entering the
parking space and aligning the
vehicle. However, performance
may reduce depending on the
pedestrians, animals, shape of
objects, location, etc. around the
vehicle.
• For moving remotely backward,
both method (1) and (2) aligns the
steering wheel first, and then will
only move the vehicle straight.
• When remotely moving forward or
backward is completed, the vehicle
will automatically shift to P (Park)
and engage EPB (Electronic Parking
Brake). & $ 8 7 , 2 1
• When using Remote Operation
I X Q F W L R Q P D N H V X U H W K D W D O O
S D V V H Q J H U V K D Y H J R W W H Q R X W R I W K H
Y H K L F O H
• , I W K H Y H K L F O HT V E D W W H U \ L V G L V F K D U J H G
R U 5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W
malfunctions when parked in a
Q D U U R Z S D U N L Q J V S D F H 5 H P R W H
2 S H U D W L R Q I X Q F W L R Q Z L O O Q R W R S H U D W H
$ O Z D \ V S D U N \ R X U Y H K L F O H L Q D V S D F H
Z L G H H Q R X J K I R U \ R X W R J H W L Q R U R X W
R I \ R X U Y H K L F O H
• 3 O H D V H Q R W H W K D W G H S H Q G L Q J R Q W K H
S D U N L Q J V S D F H \ R X P D \ Q R W E H D E O H
W R H [ L W I U R P W K H V S D F H \ R X K D Y H
H Q W H U H G E \ X V L Q J 5 H P R W H 2 S H U D W L R Q
I X Q F W L R Q
• $ I W H U S D U N L Q J W K H V X U U R X Q G L Q J P D \
F K D Q J H G X H W R W K H P R Y H P H Q W R I
V X U U R X Q G L Q J Y H K L F O H V , I W K L V R F F X U V
5 H P R W H 2 S H U D W L R Q I X Q F W L R Q P D \ Q R W
R S H U D W H
• % H I R U H O H D Y L Q J W K H Y H K L F O H F O R V H
Z L Q G R Z V D Q G V X Q U R R I V D Q G P D N H
V X U H W K H H Q J L Q H L V R I I E H I R U H O R F N L Q J
W K H G R R U V
• When using Remote Operation
I X Q F W L R Q Z L W K W K H G L J L W D O N H \ W K H
V P D U W N H \ V K R X O G E H Z L W K L Q I W
P I U R P W K H Y H K L F O H
Page 513 of 647
![HYUNDAI GENESIS GV70 2021 Owners Manual Driver Assistance System
7-164

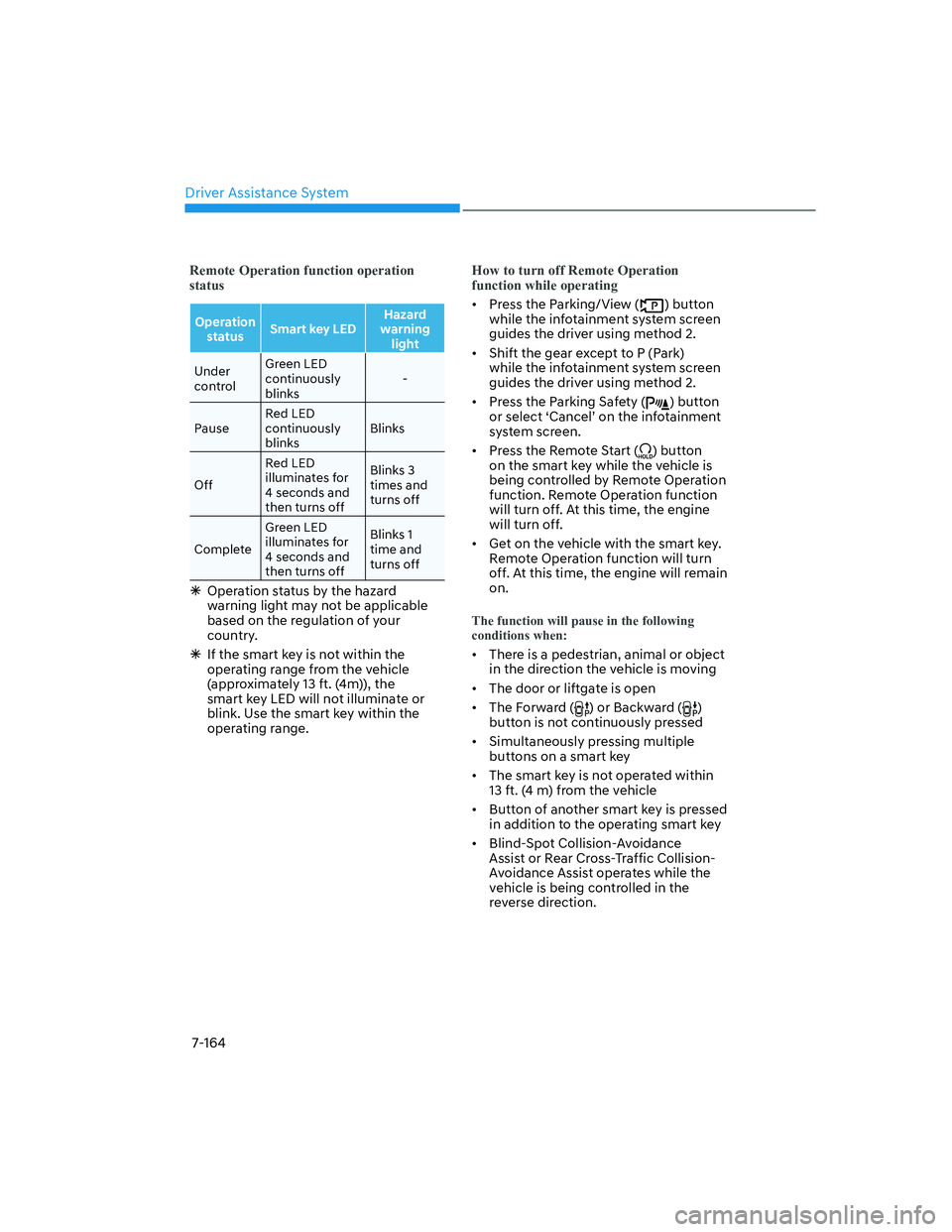

Remote Operation function operation
status
Operation
status 6 P D U W N H \ / ( + D ] D U G
warning
light
Under
controlGreen LED
continuously
blinks-
Pause](/img/35/56126/w960_56126-512.png "HYUNDAI GENESIS GV70 2021 Owners Manual Driver Assistance System
7-164
Remote Operation function operation
status
Operation
status 6 P D U W N H \ / ( + D ] D U G
warning
light
Under
controlGreen LED
continuously
blinks-
Pause")
Driver Assistance System
7-164
Remote Operation function operation
status
Operation
status 6 P D U W N H \ / ( ' + D ] D U G
warning
light
Under
controlGreen LED
continuously
blinks-
PauseRed LED
continuously
blinksBlinks
OffRed LED
illuminates for
4 seconds and
then turns offBlinks 3
times and
turns off
CompleteGreen LED
illuminates for
4 seconds and
then turns offBlinks 1
time and
turns off
ÃOperation status by the hazard
warning light may not be applicable
based on the regulation of your
country.
ÃIf the smart key is not within the
operating range from the vehicle
(approximately 13 ft. (4m)), the
smart key LED will not illuminate or
blink. Use the smart key within the
operating range.
How to turn off Remote Operation
function while operating
• Press the Parking/View () button
while the infotainment system screen
guides the driver using method 2.
• Shift the gear except to P (Park)
while the infotainment system screen
guides the driver using method 2.
• Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen.
• Press the Remote Start (
) button
on the smart key while the vehicle is
being controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the engine
will turn off.
• Get on the vehicle with the smart key.
Remote Operation function will turn
off. At this time, the engine will remain
on.
The function will pause in the following
conditions when:
• There is a pedestrian, animal or object
in the direction the vehicle is moving
• The door or liftgate is open
• The Forward (
) or Backward ()
button is not continuously pressed
• Simultaneously pressing multiple
buttons on a smart key
• The smart key is not operated within
13 ft. (4 m) from the vehicle
• Button of another smart key is pressed
in addition to the operating smart key
• Blind-Spot Collision-Avoidance
Assist or Rear Cross-Traffic Collision-
Avoidance Assist operates while the
vehicle is being controlled in the
reverse direction.
Page 514 of 647
07
7-165

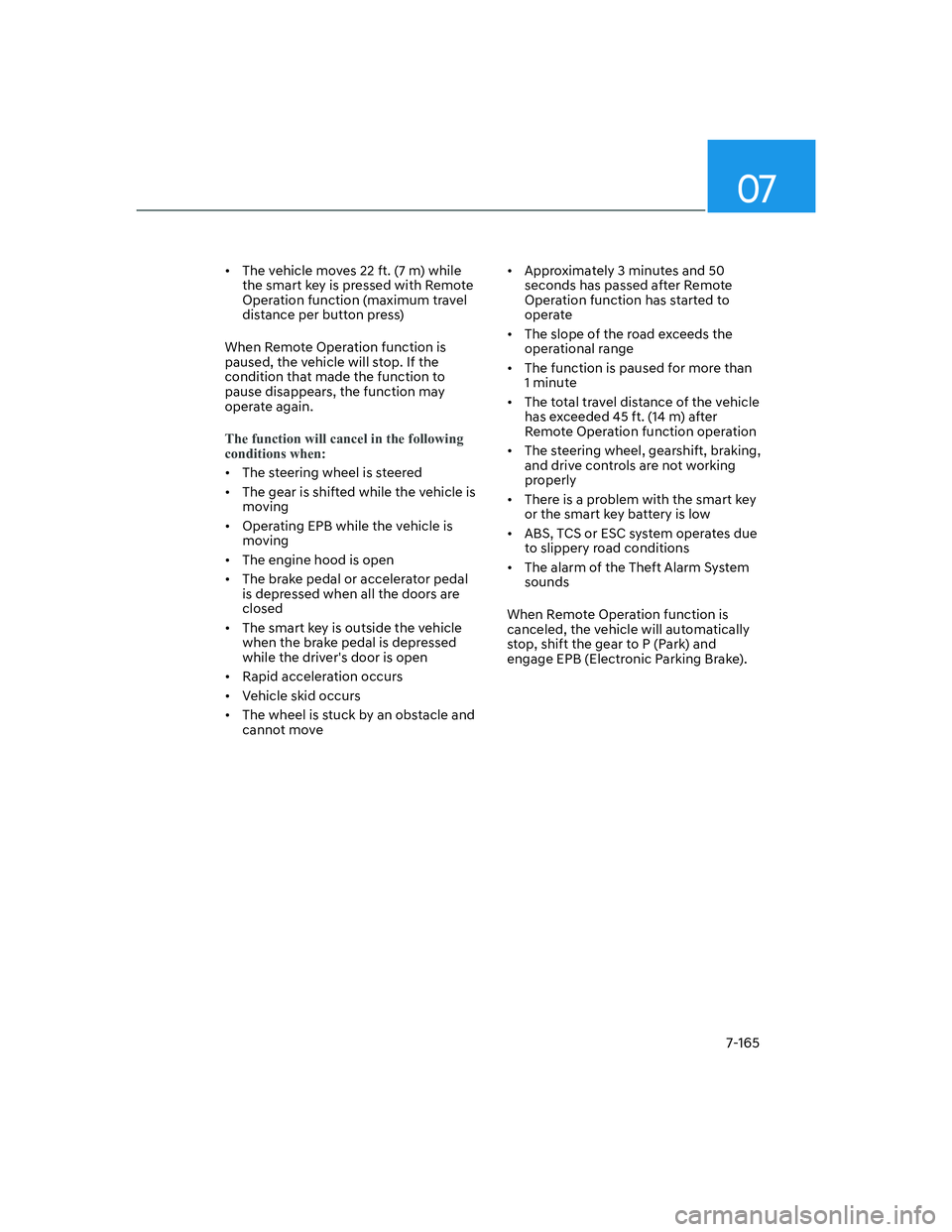

• The vehicle moves 22 ft. (7 m) while
the smart key is pressed with Remote
Operation function (maximum travel
distance per button press)
When Remote Operation function is
paused, the vehicle will stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the following
conditions when:
• The steering wheel is steered
• The gear is shifted while the vehicle is
moving
• Operating EPB while the vehicle is
moving
• The engine hood is open
• The brake pedal or accelerator pedal
is depressed when all the doors are
closed
• The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open
• Rapid acceleration occurs
• Vehicle skid occurs
• The wheel is stuck by an obstacle and
cannot move• Approximately 3 minutes and 50
seconds has passed after Remote
Operation function has started to
operate
• The slope of the road exceeds the
operational range
• The function is paused for more than
1 minute
• The total travel distance of the vehicle
has exceeded 45 ft. (14 m) after
Remote Operation function operation
• The steering wheel, gearshift, braking,
and drive controls are not working
properly
• There is a problem with the smart key
or the smart key battery is low
• ABS, TCS or ESC system operates due
to slippery road conditions
• The alarm of the Theft Alarm System
sounds
When Remote Operation function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).
Page 515 of 647
Driver Assistance System
7-166

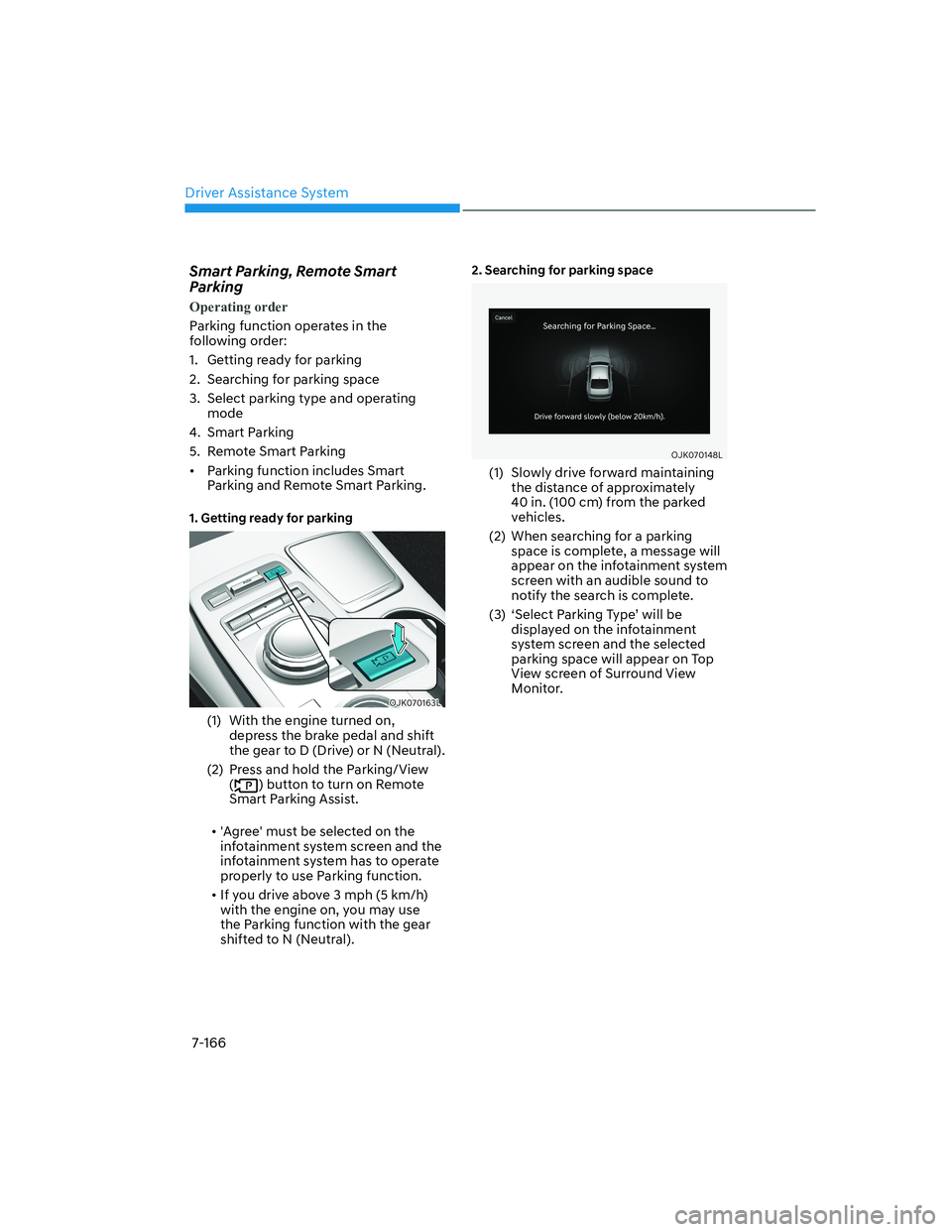

Smart Parking, Remote Smart
Parking
Operating order
Parking function operates in the
following order:
1. Getting ready for parking
2. Searching for parking space
3. Select parking type and operating
mode
4. Smart Parking
5. Remote Smart Parking
• Parking function includes Smart
Parking and Remote Smart Parking.
* H W W L Q J U H D G \ I R U S D U N L Q J
OJK070163LOJK070163L
(1) With the engine turned on,
depress the brake pedal and shift
the gear to D (Drive) or N (Neutral).
(2) Press and hold the Parking/View
(
) button to turn on Remote
Smart Parking Assist.
• 'Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Parking function.
• If you drive above 3 mph (5 km/h)
with the engine on, you may use
the Parking function with the gear
shifted to N (Neutral).
6 H D U F K L Q J I R U S D U N L Q J V S D F H
OJK070148LOJK070148L
(1) Slowly drive forward maintaining
the distance of approximately
40 in. (100 cm) from the parked
vehicles.
(2) When searching for a parking
space is complete, a message will
appear on the infotainment system
screen with an audible sound to
notify the search is complete.
(3) ‘Select Parking Type’ will be
displayed on the infotainment
system screen and the selected
parking space will appear on Top
View screen of Surround View
Monitor.
Page 516 of 647
07
7-167

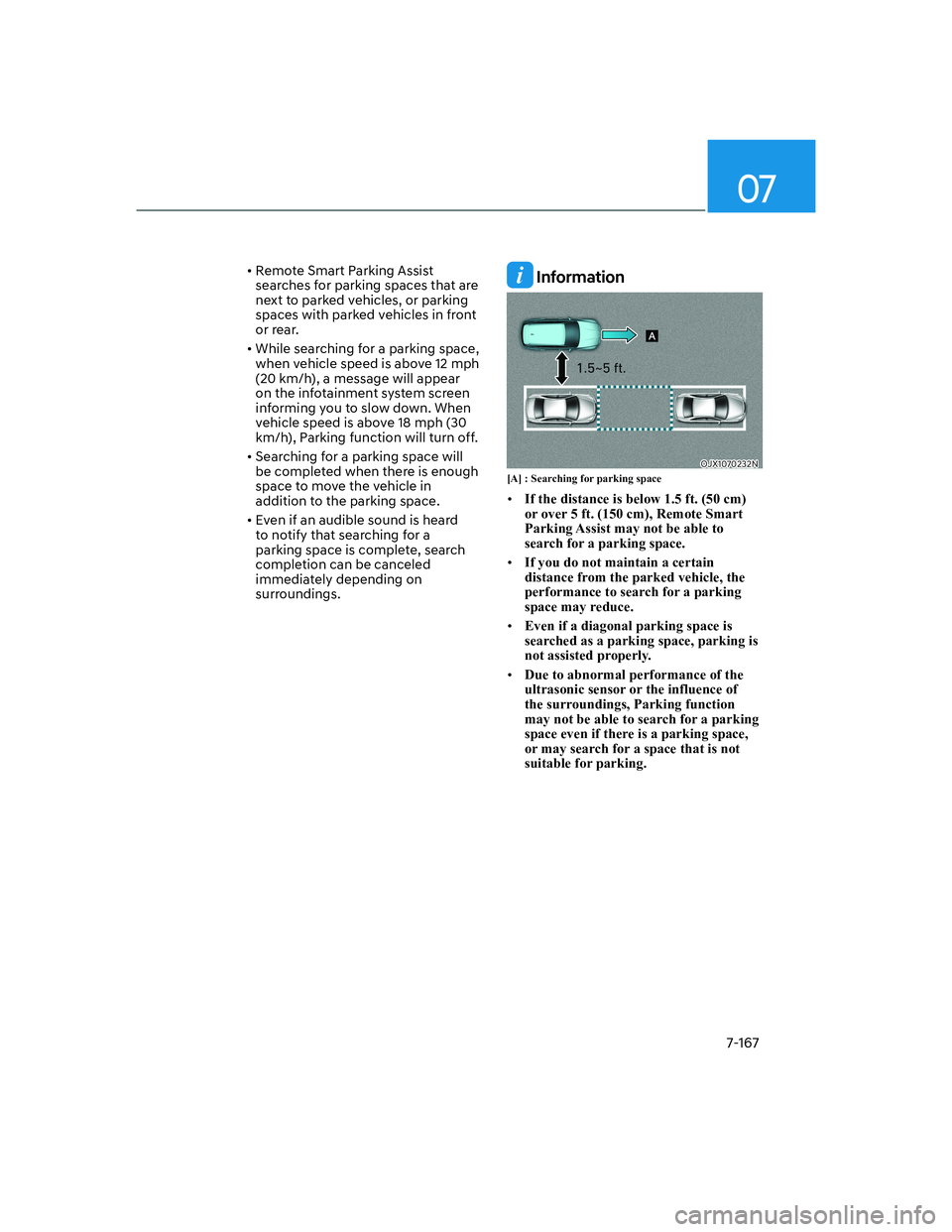

• Remote Smart Parking Assist
searches for parking spaces that are
next to parked vehicles, or parking
spaces with parked vehicles in front
or rear.
• While searching for a parking space,
when vehicle speed is above 12 mph
(20 km/h), a message will appear
on the infotainment system screen
informing you to slow down. When
vehicle speed is above 18 mph (30
km/h), Parking function will turn off.
• Searching for a parking space will
be completed when there is enough
space to move the vehicle in
addition to the parking space.
• Even if an audible sound is heard
to notify that searching for a
parking space is complete, search
completion can be canceled
immediately depending on
surroundings. Information
OJX1070232NOJX1070232N[A] : Searching for parking space
• If the distance is below 1.5 ft. (50 cm)
or over 5 ft. (150 cm), Remote Smart
Parking Assist may not be able to
search for a parking space.
• If you do not maintain a certain
distance from the parked vehicle, the
performance to search for a parking
space may reduce.
• Even if a diagonal parking space is
searched as a parking space, parking is
not assisted properly.
• Due to abnormal performance of the
ultrasonic sensor or the influence of
the surroundings, Parking function
may not be able to search for a parking
space even if there is a parking space,
or may search for a space that is not
suitable for parking.
Page 517 of 647
Driver Assistance System
7-168

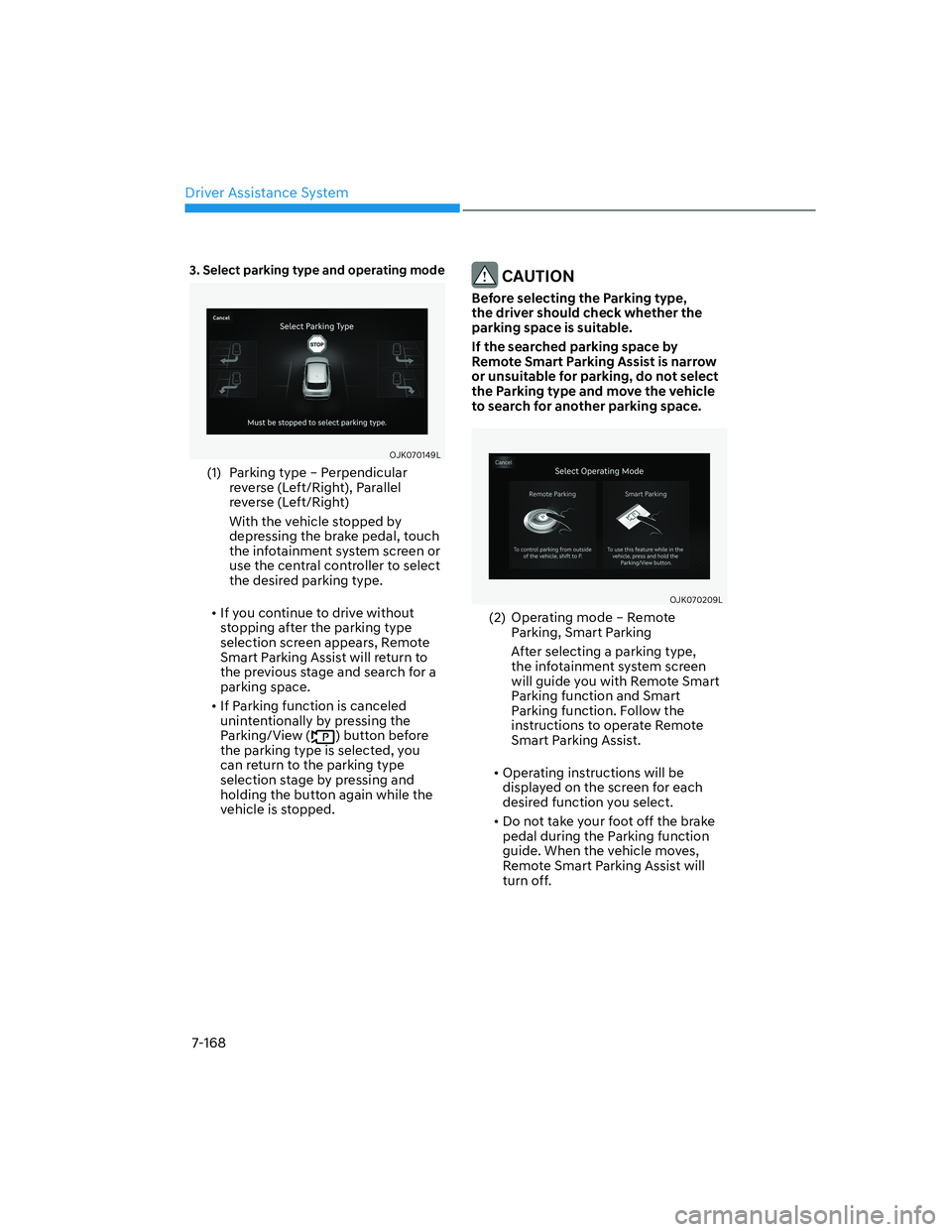

6 H O H F W S D U N L Q J W \ S H D Q G R S H U D W L Q J P R G H
OJK070149L OJK070149L
(1) Parking type – Perpendicular
reverse (Left/Right), Parallel
reverse (Left/Right)
With the vehicle stopped by
depressing the brake pedal, touch
the infotainment system screen or
use the central controller to select
the desired parking type.
• If you continue to drive without
stopping after the parking type
selection screen appears, Remote
Smart Parking Assist will return to
the previous stage and search for a
parking space.
• If Parking function is canceled
unintentionally by pressing the
Parking/View (
) button before
the parking type is selected, you
can return to the parking type
selection stage by pressing and
holding the button again while the
vehicle is stopped.
& $ 8 7 , 2 1
% H I R U H V H O H F W L Q J W K H 3 D U N L Q J W \ S H
W K H G U L Y H U V K R X O G F K H F N Z K H W K H U W K H
S D U N L Q J V S D F H L V V X L W D E O H
, I W K H V H D U F K H G S D U N L Q J V S D F H E \
5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W L V Q D U U R Z
R U X Q V X L W D E O H I R U S D U N L Q J G R Q R W V H O H F W
W K H 3 D U N L Q J W \ S H D Q G P R Y H W K H Y H K L F O H
W R V H D U F K I R U D Q R W K H U S D U N L Q J V S D F H
OJK070209L OJK070209L
(2) Operating mode – Remote
Parking, Smart Parking
After selecting a parking type,
the infotainment system screen
will guide you with Remote Smart
Parking function and Smart
Parking function. Follow the
instructions to operate Remote
Smart Parking Assist.
• Operating instructions will be
displayed on the screen for each
desired function you select.
• Do not take your foot off the brake
pedal during the Parking function
guide. When the vehicle moves,
Remote Smart Parking Assist will
turn off.
Page 518 of 647
07
7-169

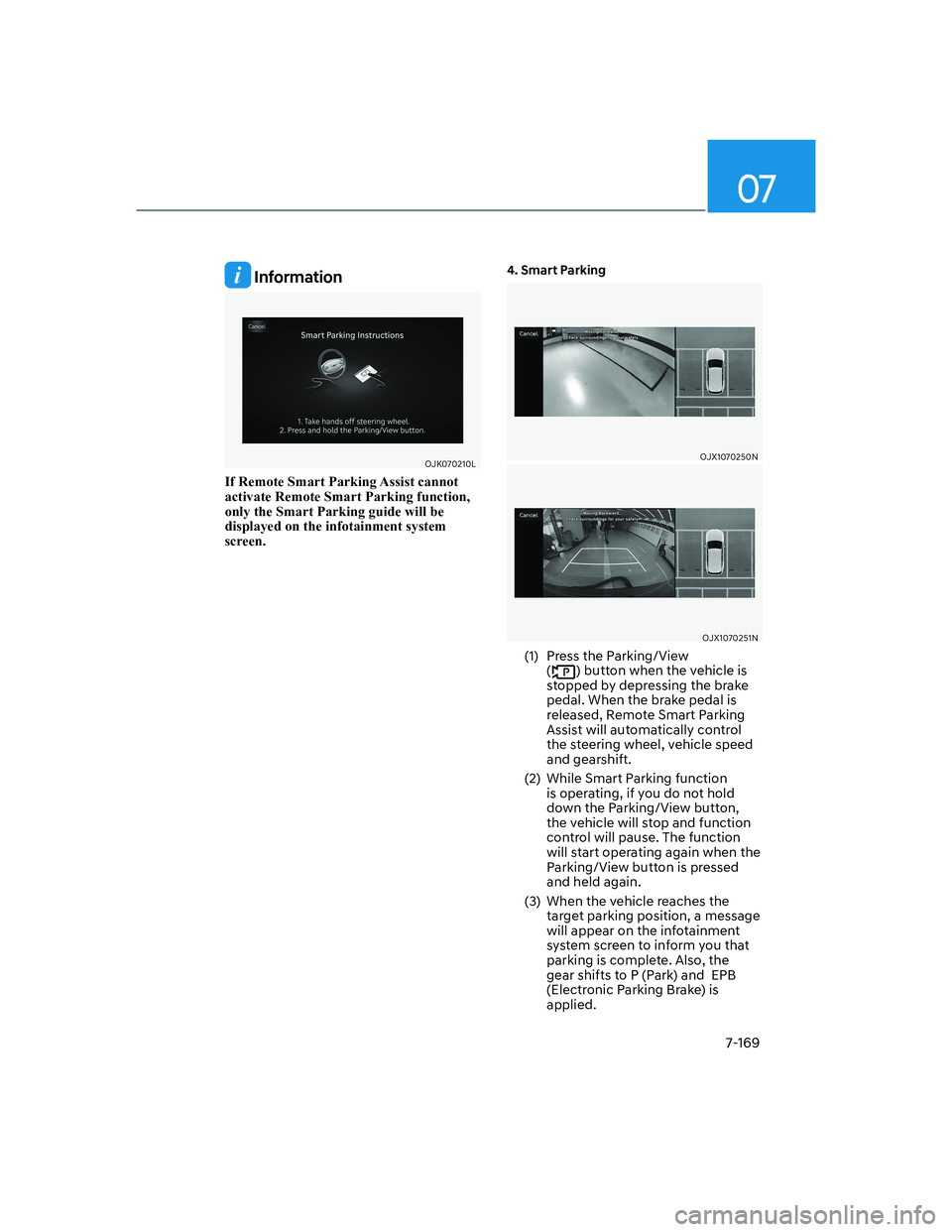

Information
OJK070210L OJK070210L
If Remote Smart Parking Assist cannot
activate Remote Smart Parking function,
only the Smart Parking guide will be
displayed on the infotainment system
screen.
6 P D U W 3 D U N L Q J
OJX1070250NOJX1070250N
OJX1070251NOJX1070251N
(1) Press the Parking/View
() button when the vehicle is
stopped by depressing the brake
pedal. When the brake pedal is
released, Remote Smart Parking
Assist will automatically control
the steering wheel, vehicle speed
and gearshift.
(2) While Smart Parking function
is operating, if you do not hold
down the Parking/View button,
the vehicle will stop and function
control will pause. The function
will start operating again when the
Parking/View button is pressed
and held again.
(3) When the vehicle reaches the
target parking position, a message
will appear on the infotainment
system screen to inform you that
parking is complete. Also, the
gear shifts to P (Park) and EPB
(Electronic Parking Brake) is
applied.
Page 519 of 647
Driver Assistance System
7-170

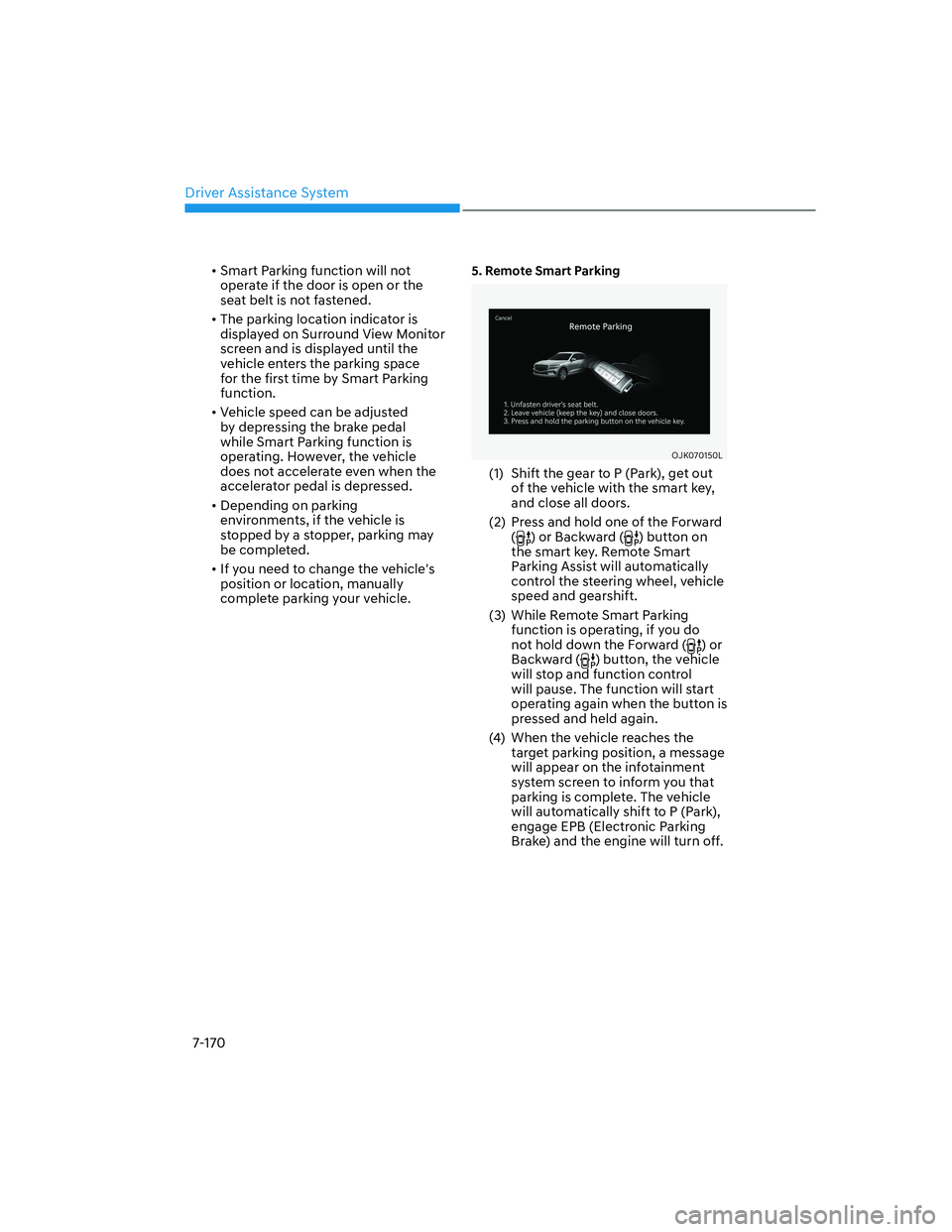

• Smart Parking function will not
operate if the door is open or the
seat belt is not fastened.
• The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Smart Parking
function.
• Vehicle speed can be adjusted
by depressing the brake pedal
while Smart Parking function is
operating. However, the vehicle
does not accelerate even when the
accelerator pedal is depressed.
• Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.
• If you need to change the vehicle's
position or location, manually
complete parking your vehicle. 5 H P R W H 6 P D U W 3 D U N L Q J
OJK070150LOJK070150L
(1) Shift the gear to P (Park), get out
of the vehicle with the smart key,
and close all doors.
(2) Press and hold one of the Forward
(
) or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift.
(3) While Remote Smart Parking
function is operating, if you do
not hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(4) When the vehicle reaches the
target parking position, a message
will appear on the infotainment
system screen to inform you that
parking is complete. The vehicle
will automatically shift to P (Park),
engage EPB (Electronic Parking
Brake) and the engine will turn off.
Page 520 of 647
07
7-171

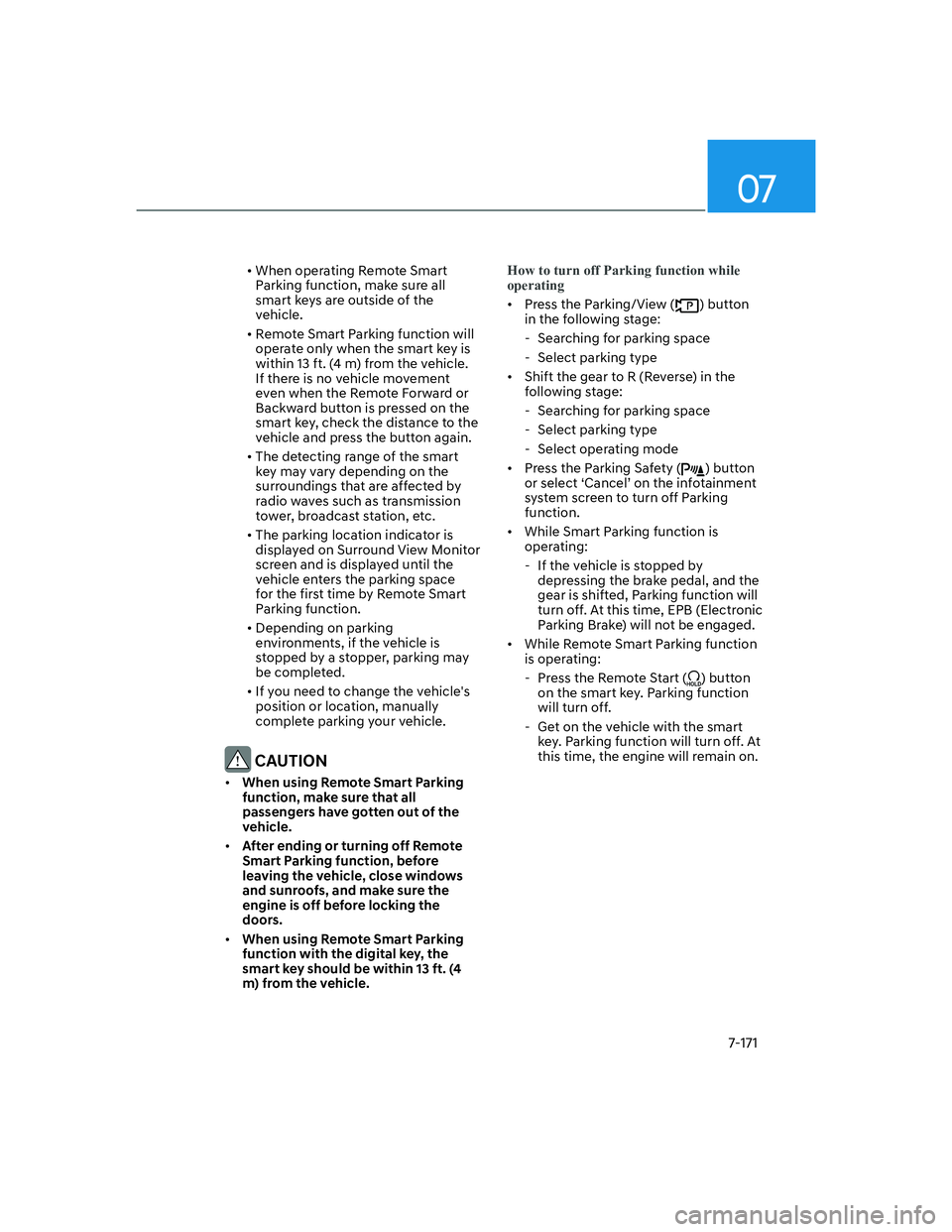

• When operating Remote Smart
Parking function, make sure all
smart keys are outside of the
vehicle.
• Remote Smart Parking function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle.
If there is no vehicle movement
even when the Remote Forward or
Backward button is pressed on the
smart key, check the distance to the
vehicle and press the button again.
• The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.
• The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Remote Smart
Parking function.
• Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.
• If you need to change the vehicle's
position or location, manually
complete parking your vehicle.
& $ 8 7 , 2 1
• : K H Q X V L Q J 5 H P R W H 6 P D U W 3 D U N L Q J
I X Q F W L R Q P D N H V X U H W K D W D O O
S D V V H Q J H U V K D Y H J R W W H Q R X W R I W K H
Y H K L F O H
• After ending or turning off Remote
6 P D U W 3 D U N L Q J I X Q F W L R Q E H I R U H
O H D Y L Q J W K H Y H K L F O H F O R V H Z L Q G R Z V
D Q G V X Q U R R I V D Q G P D N H V X U H W K H
H Q J L Q H L V R I I E H I R U H O R F N L Q J W K H
G R R U V
• : K H Q X V L Q J 5 H P R W H 6 P D U W 3 D U N L Q J
I X Q F W L R Q Z L W K W K H G L J L W D O N H \ W K H
V P D U W N H \ V K R X O G E H Z L W K L Q I W
P I U R P W K H Y H K L F O H
How to turn off Parking function while
operating
• Press the Parking/View () button
in the following stage:
- Searching for parking space
- Select parking type
• Shift the gear to R (Reverse) in the
following stage:
- Searching for parking space
- Select parking type
- Select operating mode
• Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen to turn off Parking
function.
• While Smart Parking function is
operating:
- If the vehicle is stopped by
depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.
• While Remote Smart Parking function
is operating:
- Press the Remote Start (
) button
on the smart key. Parking function
will turn off.
- Get on the vehicle with the smart
key. Parking function will turn off. At
this time, the engine will remain on.
