HYUNDAI GENESIS GV70 2021 Owners Manual

Maintenance
9-44

v
Blade type

v
Cartridge type

v
Multi type

v
Midi typeNormal Blown
Normal Blown
Normal Blown
Normal Blown
OCK077071OCK077071
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved and
immediately consult an authorized
retailer of Genesis Branded products.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse could cause
damage and possibly cause a fire.
• Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

09
9-45
Instrument Panel Fuse
Replacement
„„Driver’s sideDriver’s side
OJK090012OJK090012
„„Luggage compartmentLuggage compartment
OJK090013OJK090013
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OJK091059NOJK091059N
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in
the engine compartment fuses panel
cover.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized retailer of Genesis Branded
products.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.

Maintenance
9-46
Engine Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„„Blade type fuseBlade type fuse
OJX1099014OJX1099014
„„Cartridge type fuseCartridge type fuse
OJX1099015OJX1099015
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized retailer of Genesis Branded
products.
NOTICE
After checking the fuse panel in the
engine compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse / Midi fuse
„„Multi typeMulti type
OJX1099016OJX1099016
„„Midi typeMidi type
OJX1099017LOJX1099017L
If the multi fuse or midi fuse is blown,
consult an authorized retailer of Genesis
Branded products.

09
9-47
Fuse/Relay Panel Description
Instrument panel fuse panel
OJK090014OJK090014
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OJK091054N

Maintenance
9-48
Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
MODULE9MODULE910AOverhead Console Lamp, AMP, Driver Power Seat
Module, Low DC-DC Converter, Electro Chromic
Mirror, Data Link Connector, Passenger Power Seat
Module, Front A/C Controller, Smart Phone Wireless
Charger, Rear A/C Controller, A/V & Navigation Head
Unit, A/C Control Module, Fingerprint Recognition
Device, Rear Seat Warmer Control Module, Rear Air
Ventilation Seat Control Module
TRAILER
TRAILER30A Electronic Brake Controller
MODULE11
MODULE1110AHead Lamp LH/RH, Multifunction Switch, AC Inverter,
ADAS Unit (Parking),AC Inverter Outlet, Rear Junction
Block (Rear Wiper Relay)
MODULE12
MODULE1210A IBU, IAU
A/C3
A/C310AE/R SUB Junction Block(PTC Heater 2/3 Relay), A/C
Control Module, Incar Temperature Sensor, Rear A/C
Controller, Front A/C Controller
A/BAG IND
A/BAG
IND10A Instrument Cluster, Overhead Console Lamp
E-SHIFTER2
E-SHIFTER210A Electronic ATM Shift Lever Dial
MODULE10
MODULE1010A ICU Junction Block (ESU)
MODULE7
MODULE710ADriver Door Module, IBU, IAU, Multifunction Switch,
Stop Lamp Switch
MULTI
MEDIA
MULTI
MEDIA25A Low DC-DC Converter
MODULE13
MODULE1310AICU Junction Block (ESU), Head-Up Display, Security
Indicator, A/C Control Module, Front/Rear A/C
Controller, Crash Pad Switch, Driver Power Seat
Switch, A/V & Navigation Keyboard, Front Console
Switch, Fingerprint Recognition Device, Carnish Mood
Lamp RH, Mood Lamp Unit, Console Mood Lamp
CLUSTER
CLUSTER10A Instrument Cluster, Head-Up Display
IBU2
IBU210A IBU

09
9-49

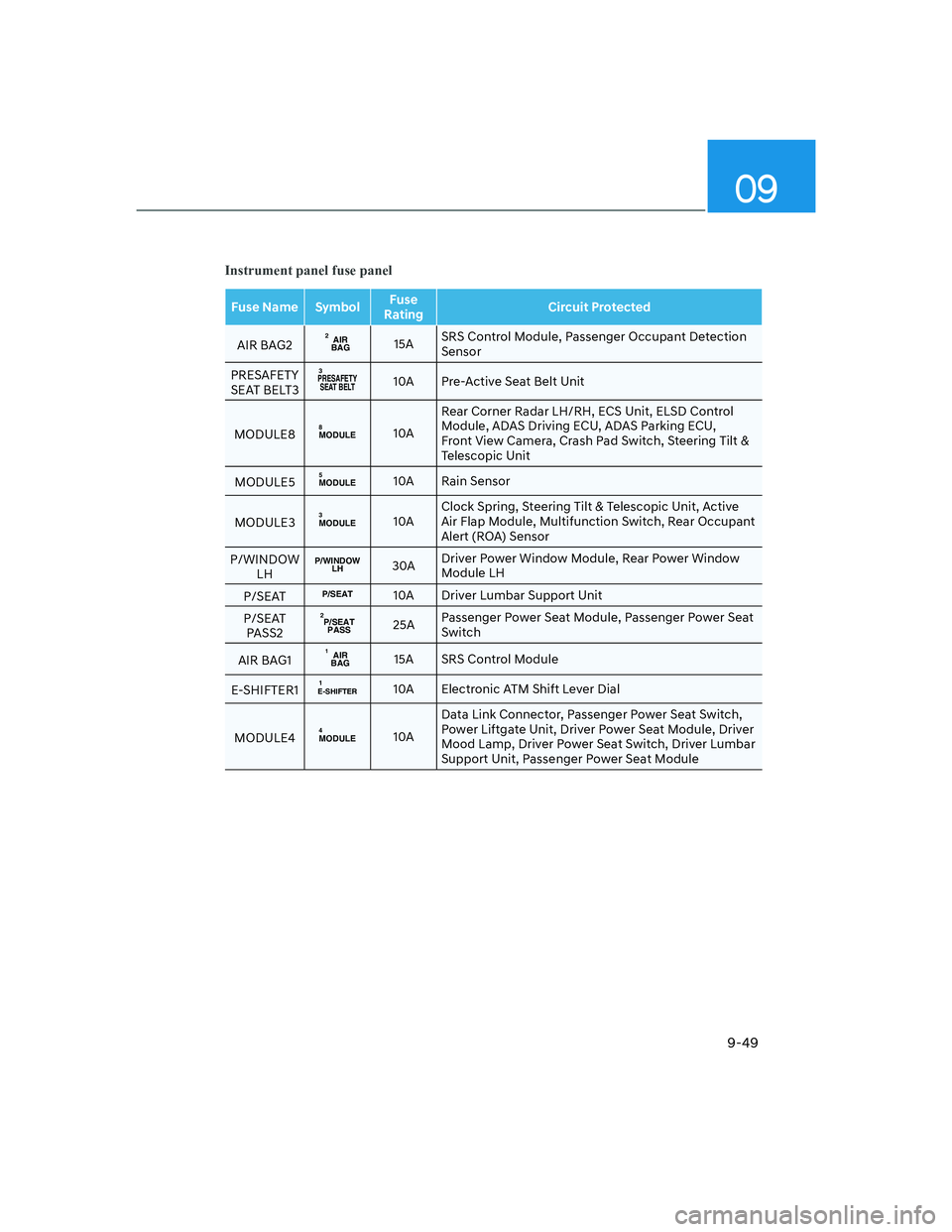

Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
AIR BAG2AIR
BAG215ASRS Control Module, Passenger Occupant Detection
Sensor
PRESAFETY
SEAT BELT3
3PRESAFETY
SEAT BELT10A Pre-Active Seat Belt Unit
MODULE8
MODULE810ARear Corner Radar LH/RH, ECS Unit, ELSD Control
Module, ADAS Driving ECU, ADAS Parking ECU,
Front View Camera, Crash Pad Switch, Steering Tilt &
Telescopic Unit
MODULE5
MODULE510A Rain Sensor
MODULE3
MODULE310AClock Spring, Steering Tilt & Telescopic Unit, Active
Air Flap Module, Multifunction Switch, Rear Occupant
Alert (ROA) Sensor
P/WINDOW
LH
P/WINDOW
LH30ADriver Power Window Module, Rear Power Window
Module LH
P/SEAT
P/SEAT10A Driver Lumbar Support Unit
P/SEAT
PASS2
P/SEAT
PASS225APassenger Power Seat Module, Passenger Power Seat
Switch
AIR BAG1
AIR
BAG115A SRS Control Module
E-SHIFTER1
E-SHIFTER110A Electronic ATM Shift Lever Dial
MODULE4
MODULE410AData Link Connector, Passenger Power Seat Switch,
Power Liftgate Unit, Driver Power Seat Module, Driver
Mood Lamp, Driver Power Seat Switch, Driver Lumbar
Support Unit, Passenger Power Seat Module

Maintenance
9-50
Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
SUNROOFSUNROOF25A Sunroof Control Unit (Master)
P/SEAT
DRV1
P/SEAT
DRV125A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
ECS
ECS15A ECS Unit
POWER
HANDLE
POWER
HANDLE15A Steering Tilt & Telescopic Unit
IBU1
IBU110AIBU, IAU, BLE Unit, Driver/Passenger Door Outside
Handle
MODULE14
MODULE1410AFront Corner Radar LH/RH, Rear Corner Radar LH/
RH, Head-Up Display, Smart Phone Wireless Charger,
Instrument Cluster, Front A/C Controller, Front
Console Keyboard, Rear A/C Controller
P/SEAT
DRV2
P/SEAT
DRV225A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
P/SEAT
PASS1
P/SEAT
PASS1125A[With Walk In] Passenger Power Seat Module
[W/O Walk In] Passenger Power Seat Switch
S/HEATER
DRV
S/HEATER
DRV15A Driver Power Seat Module
S/HEATER
PASS1
S/HEATER
PASS115A Passenger Power Seat Module
DOOR
LOCK
DOOR
LOCK20ACenter Door Lock Relay, Center Door Unlock Relay, T/
Turn Unlock Relay
MODULE6
MODULE610AArmrest Lamp, IBU, IAU, Low DC-DC Converter, Rear
USB Charger, Electronic ATM Shift Lever Dial, E/R Sub
Junction Block (Power Outlet Relay)
BRAKE
SWITCH
BRAKE
SWITCH10A Stop Lamp Switch, IBU

09
9-51
Engine compartment fuse panel
(Engine room junction block)
OJX1099021OJX1099021
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091055N

Maintenance
9-52
Engine compartment fuse panel (Engine room junction block)
Type Fuse Name SymbolFuse
RatingCircuit Protected
MINEMDPS1
1MDPS100A MDPS Unit
ALT
ALT225A Alternator
MULTIE-CVVT1
E-CVVT140A [G4KR] E-CVVT Relay
OIL PUMP
OIL
PUMP50A Electronic Oil Pump
COOLING
FAN
COOLING
FAN100A Cooling Fan Motor
SBHEAD
LAMP LH
HEAD
LAMP
LH30A Head Lamp LH
START
START30A Start Relay
HEAD
LAMP RH
HEAD
LAMP
RH30A Head Lamp RH
MICROFUEL PUMP
FUEL
PUMP20A Fuel Pump Relay
4WD
4WD20A AWD ECU
ECU1
1ECU15A ECM
TCU1
1TCU20A TCM
HORN
HORN15A PCB Block (Horn Relay)
A/C1
A/C115A A/C Relay
E-CVVT2
E-CVVT220A [G4KR] ECM
E-CVVT3
E-CVVT320A [G4KR] ECM

09
9-53
Engine compartment fuse panel (Engine room junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
IG1IG130A IG1 Relay
ECU3
ECU330A Engine Control Realy
IG2
IG230A IG2 Relay
ACC
ACC30A ACC Relay
ECU2
ECU210A ECM
EWP
EWP20A Electronic Water Pump
MODULE
MODULE10ASmart Cruise Control Radar, Front Corner Radar LH/
RH, AWD ECU
MDPS2
MDPS210A MDPS Unit
IEB4
IEB410A IEB Unit
TCU2
TCU215A P/N Relay, TCM, Electronic Oil Pump
SENSOR3
SENSOR310A[G4KR] Oxygen Sensor (Up/Down), E/R Sub Junction
Block (PTC Heater1 Relay)
SENSOR2
SENSOR210A[G4KR] E/R Junction Block (A/C Relay), Oil Control
Valve (Exhaust), Oil Pump Solenoid Valve, Purge
Control Solenoid Valve, RCV Control Solenoid Valve,
Canister Close Valve
[G6DS] E/R Junction Block (A/C Relay), RCV Control
Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Pump Solenoid Valve, Oxygen Sensor #1~#4, Oil
Control Valve #1~#4, Canister Close Valve
SENSOR1
1SENSOR10A[G4KR] Injector #1~#4, E/R Junction Block (Fuel Pump
Relay)
[G6DS] Injector #1~#6 (MPI), E/R Junction Block (Fuel
Pump Relay)
IGN COIL
IGN COIL15A[G4KR] Ignition Coil #1~#4
[G6DS] Ignition Coil #1~#6
SENSOR4
SENSOR415A Cooling Fan Motor
ECU4
ECU420A ECM
WASHER
WASHER15A Washer Relay, E/R Junction Block (Washer RR Relay)
