HYUNDAI GENESIS GV70 2021 Owners Manual

Maintenance
9-54
Engine compartment fuse panel
(Engine room sub junction block)
OJK090036OJK090036
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091056NOJK091056N

09
9-55
Engine compartment fuse panel (Engine room sub junction block)
Type Fuse Name SymbolFuse
RatingCircuit Protected
SBPTC
HEATER1
PTC
HEATER130A [G4KR] PTC Heater 1 Relay
PTC
HEATER2
PTC
HEATER230A [G4KR] PTC Heater 2 Relay
PTC
HEATER3
PTC
HEATER330A [G4KR] PTC Heater 3 Relay
INVERTER
INVERTER30A AC Inverter
WIPER FRT
WIPER
FRT30A Wiper Motor
IEB 3
IEB340A IEB Unit
POWER
OUTLET 1
POWER
OUTLET140A Power Outlet1 Relay
REAR
HEATED
REAR
HEATED40A Rear Heated Relay
IEB 1
IEB160A IEB Unit
IEB 2
IEB260A IEB Unit
BLOWER
BLOWER40A Blower Relay
MICROPOWER
OUTLET 2
POWER
OUTLET220A Luggage Power Outlet
A/C 2
A/C210A A/C Control Module
HEATED
MIRROR
HEATED
MIRROR10AFront A/C Controller, Driver/Passenger
Power Outside Mirror
POWER
OUTLET 3
POWER
OUTLET320A Front Power Outlet

Maintenance
9-56
Luggage compartment (Rear sub
junction block)
OJK090028OJK090028
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091057N

09
9-57
Luggage compartment (Rear sub junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
B+2B+230AICU Junction Block (IPS2, IPS5, Fuse - AIR BAG1,
E-SHIFTER1, IBU1, MODULE5)
CHILD
LOCK
CHILD
LOCK15A Child Lock/Unlock Relay
P/WINDOW
RH
P/WINDOW
RH30APassenger Power Window Module, Rear Power
Window Module RH
AMP
AMP25A Low DC-DC Converter (AMP)
PRESAFETY
SEAT BELT1
1PRESAFETY
SEAT BELT30A Pre-Active Seat Belt Unit
WIPER RR
WIPER
RR15A Rear Wiper Relay, Rear Wiper Motor
S/HEATER
PASS2
S/HEATER
PASS115A Not Used
PRESAFETY
SEAT BELT2
2PRESAFETY
SEAT BELT30A Pre-Active Seat Belt Unit
E-LSD
20A ELSD Control Module
S/HEATER
RR1
S/HEATER
RR120ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module
POWER
LIFTGATE
POWER
LIFTGATE30A Power Liftgate Unit
S/HEATER
RR2
2S/HEATER
RR20ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module

Maintenance
9-58
Luggage compartment (Battery
junction block)
OJK091029NOJK091029N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091019NOJK091019N

09
9-59
Luggage compartment (Battery junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
TRAILERTRAILER50A Trailer Connector
B+4
B+450AICU Junction Block (Fuse - MODULE4, P/SEAT PASS2,
TRAILER, DOOR LOCK)
B+1
1B+50AICU Junction Block (Long Term Load Latch Relay,
Short Term Load Latch Relay, IPS1, IPS3, IPS4, IPS7)
B+3
B+350AICU Junction Block (Fuse - P/SEAT DRV1, P/SEAT
DRV2, S/HEATER DRV, S/HEATER PASS1, P/SEAT
PASS1, ECS, P/SEAT, SUNROOF, POWER HANDLE, P/
WINDOW LH)
B+5
B+5125A E/R SUB Junction Block (B+)
B+6
B+6100ARear Junction Block (Fuse - S/HEATER PASS2, S/
HEATER RR1, S/HEATER RR1, P/WNDOW RH, B+2,
PRESAFETY SEAT BELT1, PRESAFETY SEAT BELT2)
AMS
AMS10A Battery Sensor

Maintenance
9-60
Consult an authorized retailer of
Genesis Branded products to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING
• Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Engine
Start/Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlamp due to moisture
continues for a long time, consult an
authorized retailer of Genesis Branded
products.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
LIGHT BULBS

09
9-61
Information
• A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized retailer of Genesis Branded
products.
• The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized retailer of Genesis Branded
products.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled.
Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
OJK091020NOJK091020N
(1) Headlamp (Low)
(2) Headlamp (High/Low beam assist)
(3) Position lamp/Daytime running light/
Turn signal lamp
(4) Side marker
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

Maintenance
9-62

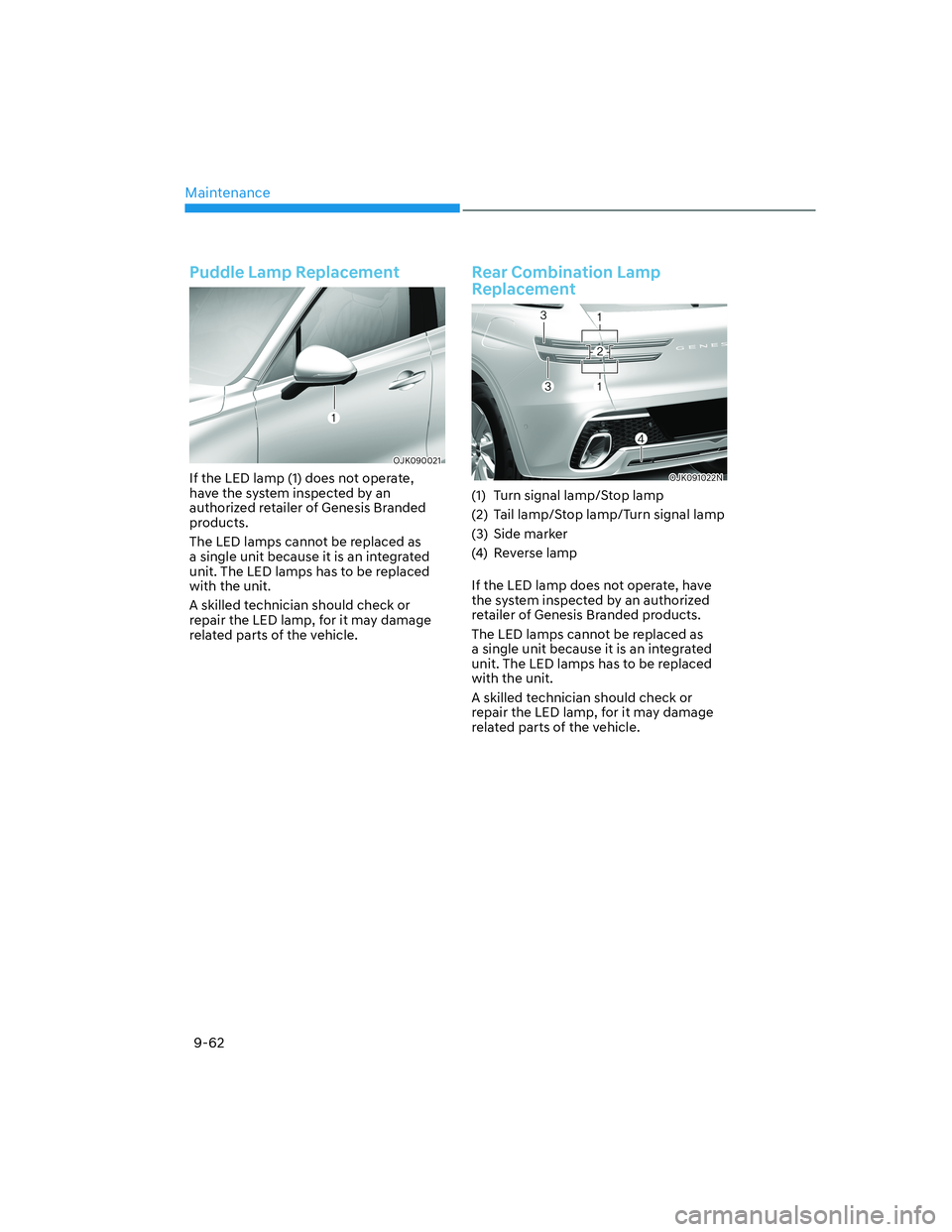

Puddle Lamp Replacement
OJK090021OJK090021
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
OJK091022NOJK091022N
(1) Turn signal lamp/Stop lamp
(2) Tail lamp/Stop lamp/Turn signal lamp
(3) Side marker
(4) Reverse lamp
If the LED lamp does not operate, have
the system inspected by an authorized
retailer of Genesis Branded products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-63

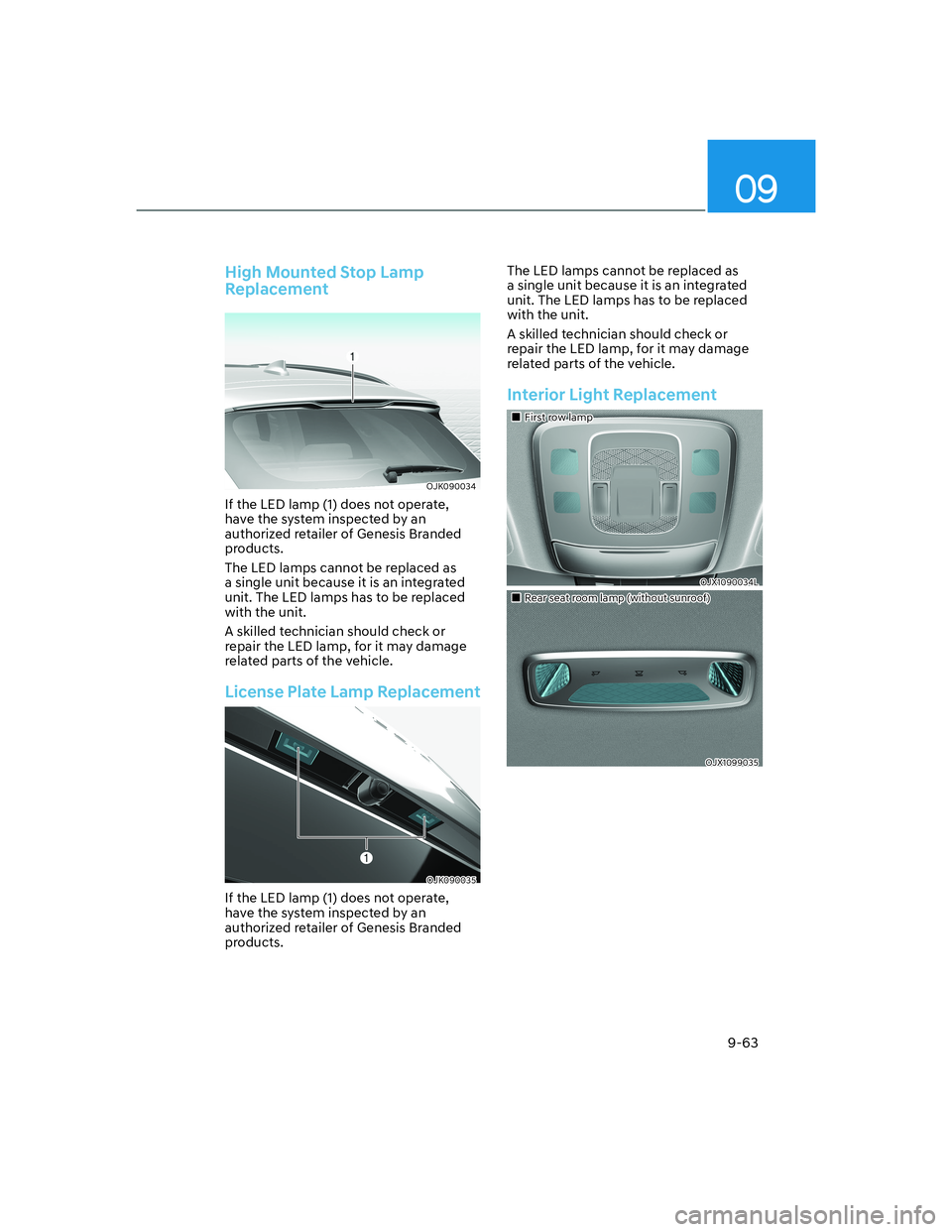

High Mounted Stop Lamp
Replacement
OJK090034OJK090034
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Lamp Replacement
OJK090035OJK090035
If the LED lamp (1) does not operate,
have the system inspected by an
authorized retailer of Genesis Branded
products.The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Interior Light Replacement
„„First row lampFirst row lamp
OJX1090034LOJX1090034L
„„Rear seat room lamp (without sunroof)Rear seat room lamp (without sunroof)
OJX1099035OJX1099035
