HYUNDAI GENESIS GV70 2022 Owner's Manual

02
2-9
Light bulbBulb typeWattage
Front
HeadlampLowLEDLED
High, Low beam assistLEDLED
Turn signal lampLEDLED
Position lampLEDLED
Daytime Running Lamp (DRL)LEDLED
Puddle lampLEDLED
Rear
Stop lampLEDLED
Tail lampLEDLED
Turn signal lampLEDLED
Reverse lampLEDLED
License plate lampLEDLED
High mounted stop lampLEDLED
Interior
Front seat map and room lampLEDLED
Rear seat room lamp (without sunroof)LEDLED
Rear seat personal lamp (with sunroof)LEDLED
Vanity mirror lampLEDLED
Glove box lampLEDLED
Handle lamp / Mood lamp / Door courtesy lampLEDLED
Luggage compartment lampLEDLED
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
ItemsTire sizeWheel size
Inflation pressure psi (kPa)Wheel bolt torque lbf·ft (kgf·m, N·m)Normal loadMaximum load
FrontRearFrontRear
Full size tire
235/60R188.0J X 1833 (230)36 (250)35 (240)38 (260)
101~116 (14~16, 137~157)
235/55R198.0J X 1933 (230)36 (250)35 (240)38 (260)
255/40R219.0J X 2135 (240)39 (270)35 (240)41 (280)
Compact spare tire
T155/90R184.0T X 1860 (420)60 (420)60 (420)60 (420)
T155/80R194.0T X 1960 (420)60 (420)60 (420)60 (420)
NOTICE
• Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C) change). If colder temperatures are anticipated, it is permissible to increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme temperature changes are expected, be sure to check and adjust tire pressure accordingly.
• Tire inflation pressure decreases with higher elevation, and increases with lower elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change). Be sure to check and adjust tire pressure accordingly when driving through changing elevations.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and tread pattern supplied with the vehicle. If not, it can damage the related parts or make it work irregularly.
TIRES AND WHEELS

02
2-11
ItemWeight of volumeClassification
Refrigerant22.05±0.88 oz. (625±25 g)R-1234yf
Compressor lubricant3.52±0.35 oz. (100±10 g)PAG
Contact an authorized retailer of Genesis Branded products for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Item2.5 T-GDI3.5 T-GDI
2WDAWDAWD
Gross vehicle weight5357 lbs. (2430 kg)5501 lbs. (2495 kg)5710 lbs. (2590 kg)
Luggage volume (SAE)
Min.Max.
28.9 cu ft. (819 ℓ)56.9 cu ft. (1610 ℓ)
Min : Behind rear seat to upper edge of the seat back.Max : Behind front seat to roof.
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12

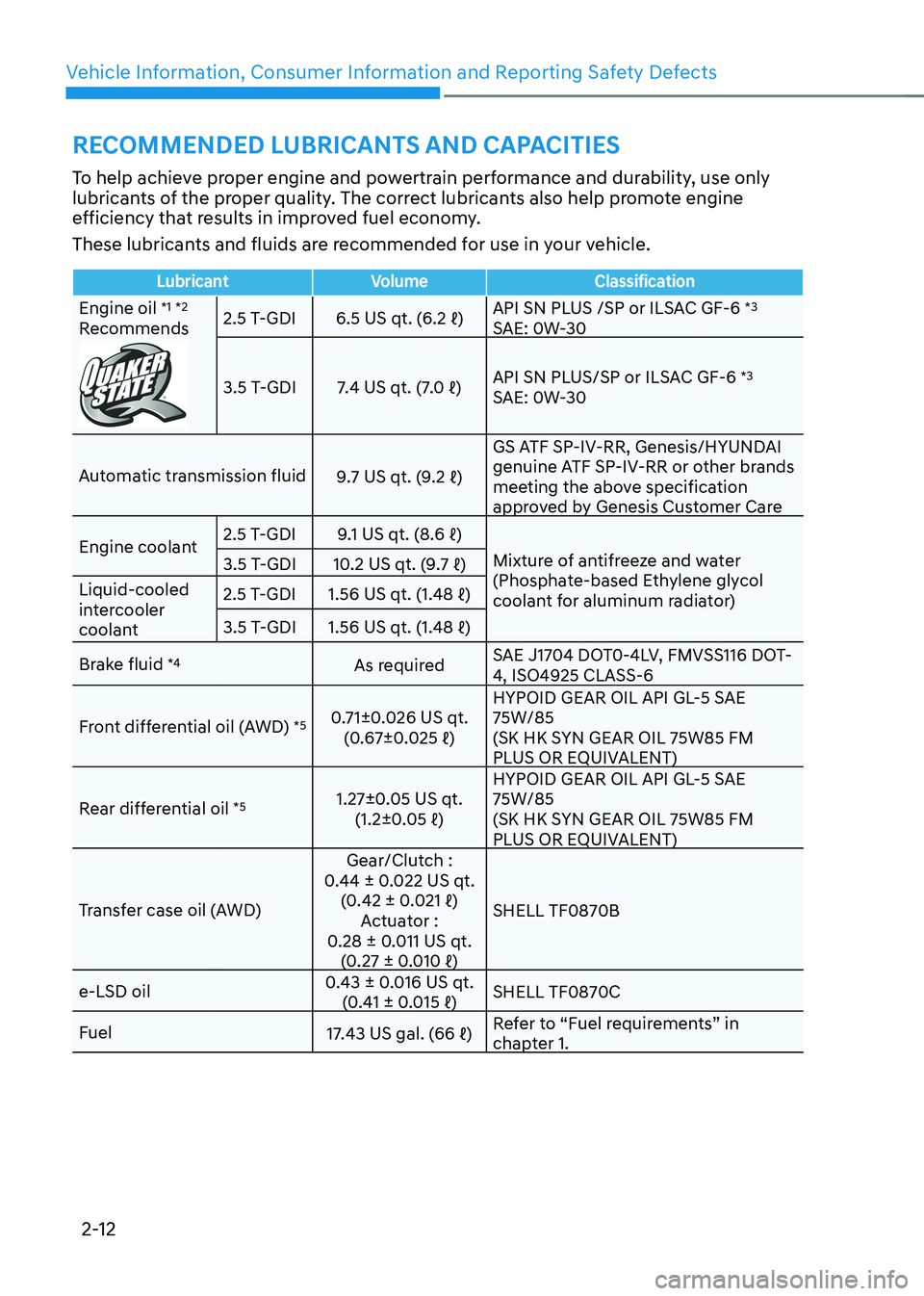

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 Recommends2.5 T-GDI6.5 US qt. (6.2 ℓ) API SN PLUS /SP or ILSAC GF-6 *3
SAE: 0W-30
3.5 T-GDI7.4 US qt. (7.0 ℓ)API SN PLUS/SP or ILSAC GF-6 *3
SAE: 0W-30
Automatic transmission fluid9.7 US qt. (9.2 ℓ)
GS ATF SP-IV-RR, Genesis/HYUNDAI genuine ATF SP-IV-RR or other brands meeting the above specification approved by Genesis Customer Care
Engine coolant2.5 T-GDI9.1 US qt. (8.6 ℓ)
Mixture of antifreeze and water (Phosphate-based Ethylene glycol coolant for aluminum radiator)
3.5 T-GDI10.2 US qt. (9.7 ℓ)
Liquid-cooled intercooler coolant
2.5 T-GDI1.56 US qt. (1.48 ℓ)
3.5 T-GDI1.56 US qt. (1.48 ℓ)
Brake fluid *4As requiredSAE J1704 DOT0-4LV, FMVSS116 DOT-4, ISO4925 CLASS-6
Front differential oil (AWD) *50.71±0.026 US qt. (0.67±0.025 ℓ)
HYPOID GEAR OIL API GL-5 SAE 75W/85 (SK HK SYN GEAR OIL 75W85 FM PLUS OR EQUIVALENT)
Rear differential oil *51.27±0.05 US qt. (1.2±0.05 ℓ)
HYPOID GEAR OIL API GL-5 SAE 75W/85 (SK HK SYN GEAR OIL 75W85 FM PLUS OR EQUIVALENT)
Transfer case oil (AWD)
Gear/Clutch : 0.44 ± 0.022 US qt. (0.42 ± 0.021 ℓ)Actuator : 0.28 ± 0.011 US qt. (0.27 ± 0.010 ℓ)
SHELL TF0870B
e-LSD oil0.43 ± 0.016 US qt. (0.41 ± 0.015 ℓ)SHELL TF0870C
Fuel17.43 US gal. (66 ℓ)Refer to “Fuel requirements” in chapter 1.
RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Requires < API SN PLUS (or above) full synthetic> grade engine oil. If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine oil filter must be replaced as indicated for severe maintenance conditions.
*4 : To maintain the best braking performance and ABS/ESC performance, we recommend that you use genuine brake fluid that conform to specifications.
*5 : If the front/rear differential is submerged, we recommend that you visit an authorized retailer of Genesis Branded products to replace the differential oil.
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, higher viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C-30-20-1001020304050
(°F)-10020406080100120
Gasoline Engine Oil0W-30
0W-30
An engine oil displaying this American Petroleum Institute (API) Certification Mark conforms to the International Lubricant Specification Advisory Committee (ILSAC). It is recommended to only use engine oils that uphold this API Certification Mark.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14

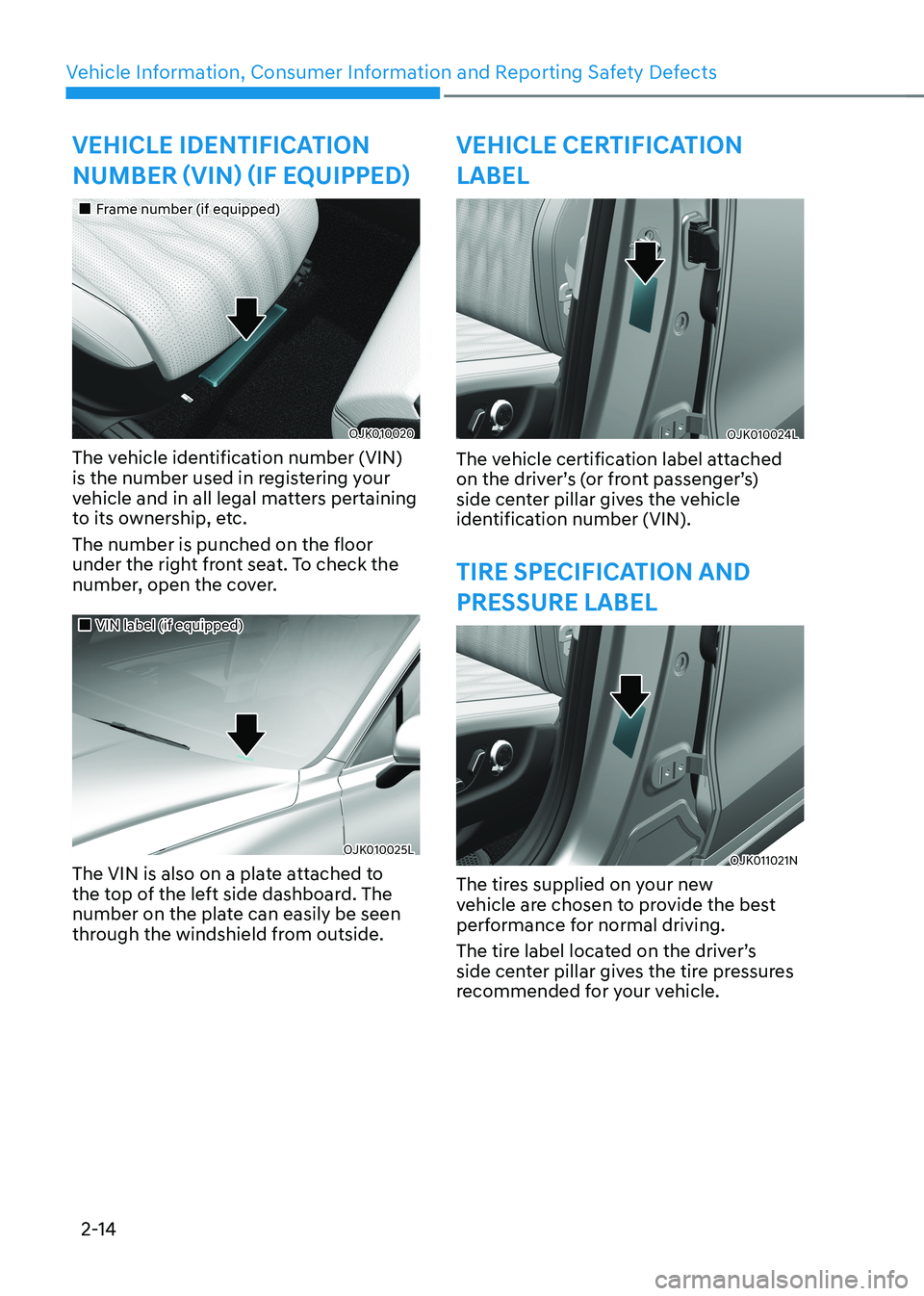

VEHICLE IDENTIFICATION
NUMBER (VIN) (IF EQUIPPED)

02
2-15

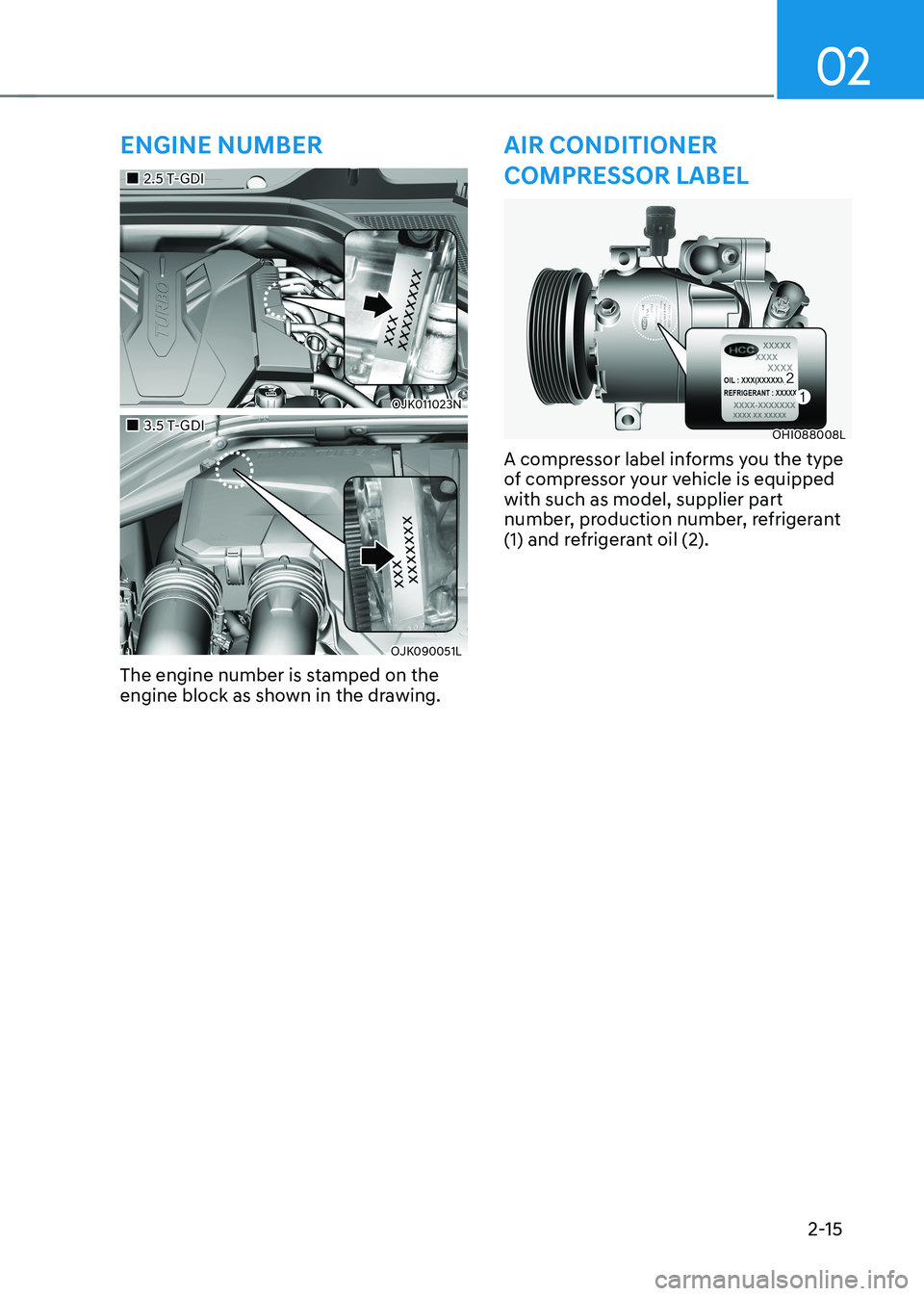

ENGINE NUMBER

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

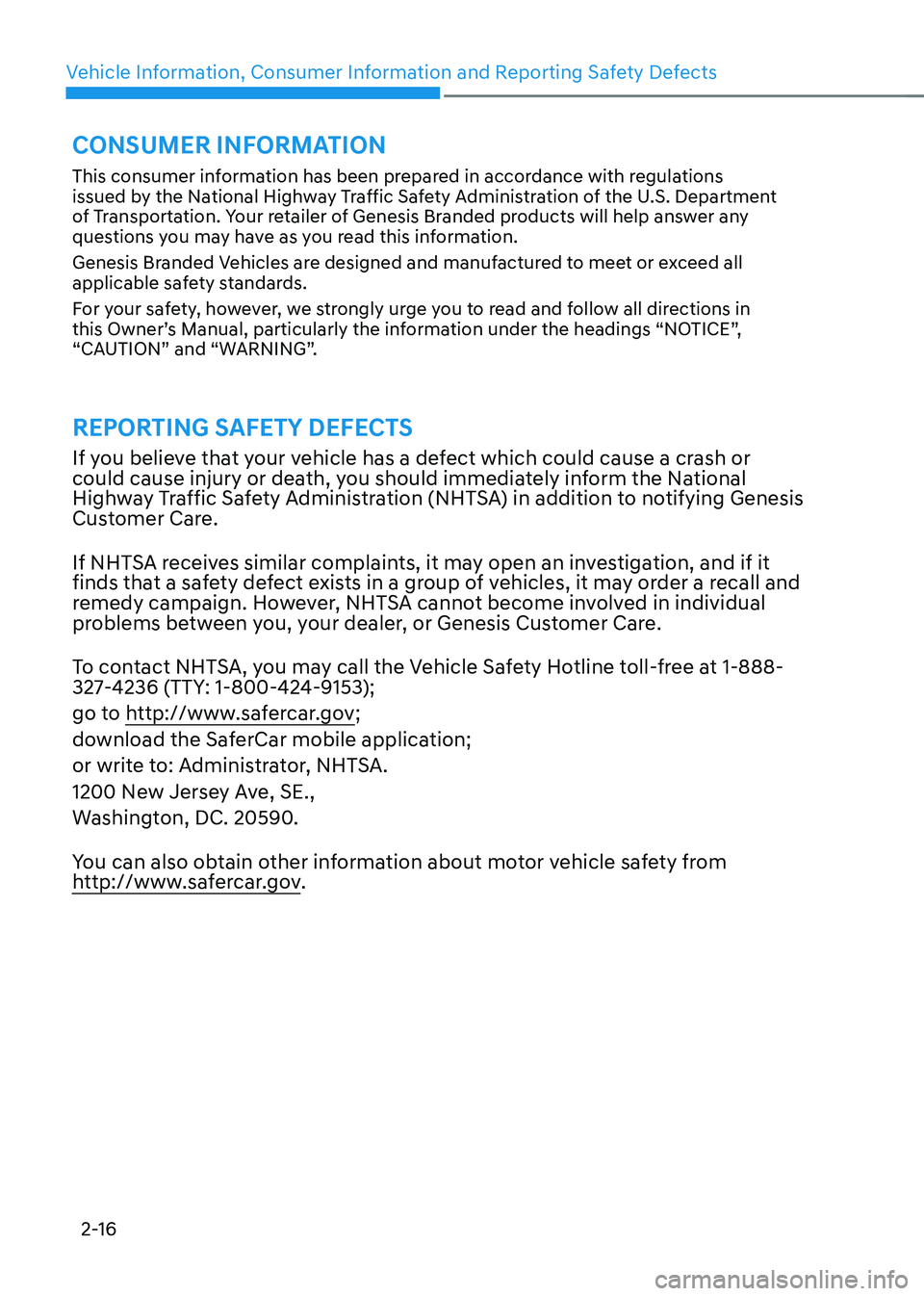

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation. Your retailer of Genesis Branded products will help answer any questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this Owner’s Manual, particularly the information under the headings “NOTICE”, “CAUTION” and “WARNING”.
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Genesis Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

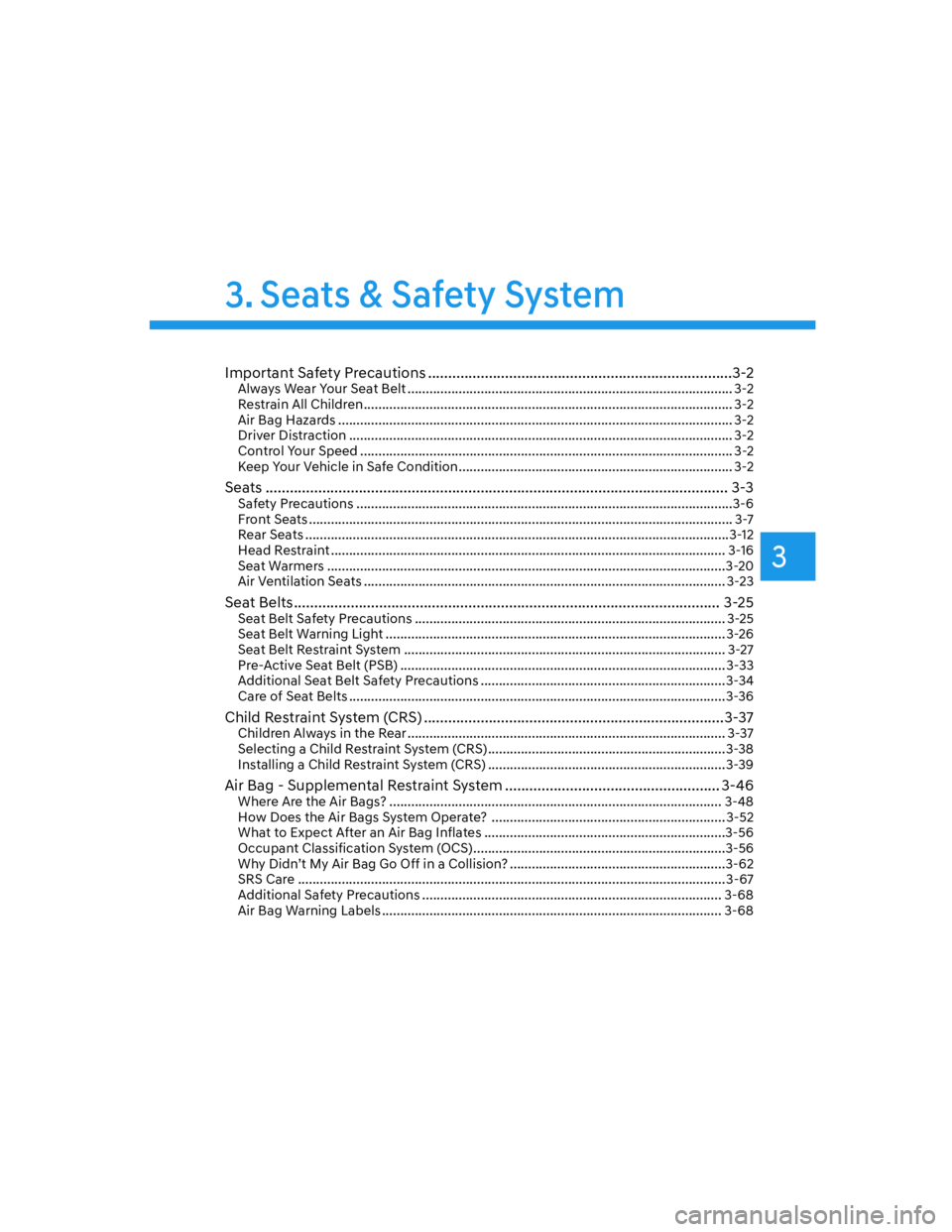

3
3. Seats & Safety System
Important Safety Precautions ...........................................................................3-2Always Wear Your Seat Belt ......................................................................................... 3-2
Restrain All Children ..................................................................................................... 3-2
Air Bag Hazards ............................................................................................................ 3-2
Driver Distraction ......................................................................................................... 3-2
Control Your Speed ...................................................................................................... 3-2
Keep Your Vehicle in Safe Condition ........................................................................... 3-2
Seats .................................................................................................................. 3-3Safety Precautions .......................................................................................................3-6
Front Seats ....................................................................................................................3-7
Rear Seats ....................................................................................................................3-12
Head Restraint ............................................................................................................ 3-16
Seat Warmers .............................................................................................................3-20
Air Ventilation Seats ................................................................................................... 3-23
Seat Belts ......................................................................................................... 3-25Seat Belt Safety Precautions ..................................................................................... 3-25
Seat Belt Warning Light ............................................................................................. 3-26
Seat Belt Restraint System ........................................................................................ 3-27
Pre-Active Seat Belt (PSB) ......................................................................................... 3-33
Additional Seat Belt Safety Precautions ...................................................................3-34
Care of Seat Belts .......................................................................................................3-36
Child Restraint System (CRS) ..........................................................................3-37
Children Always in the Rear ....................................................................................... 3-37
Selecting a Child Restraint System (CRS) .................................................................3-38
Installing a Child Restraint System (CRS) .................................................................3-39
Air Bag - Supplemental Restraint System ..................................................... 3-46Where Are the Air Bags? ........................................................................................... 3-48
How Does the Air Bags System Operate? ................................................................ 3-52
What to Expect After an Air Bag Inflates ..................................................................3-56
Occupant Classification System (OCS) .....................................................................3-56
Why Didn’t My Air Bag Go Off in a Collision? ...........................................................3-62
SRS Care ..................................................................................................................... 3-67
Additional Safety Precautions .................................................................................. 3-68
Air Bag Warning Labels ............................................................................................. 3-68

Seats & Safety System
3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:
• Set up your mobile devices (i.e., MP3
players, phones, navigation units, etc.)
ONLY when your vehicle is parked or
safely stopped.
• ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS
