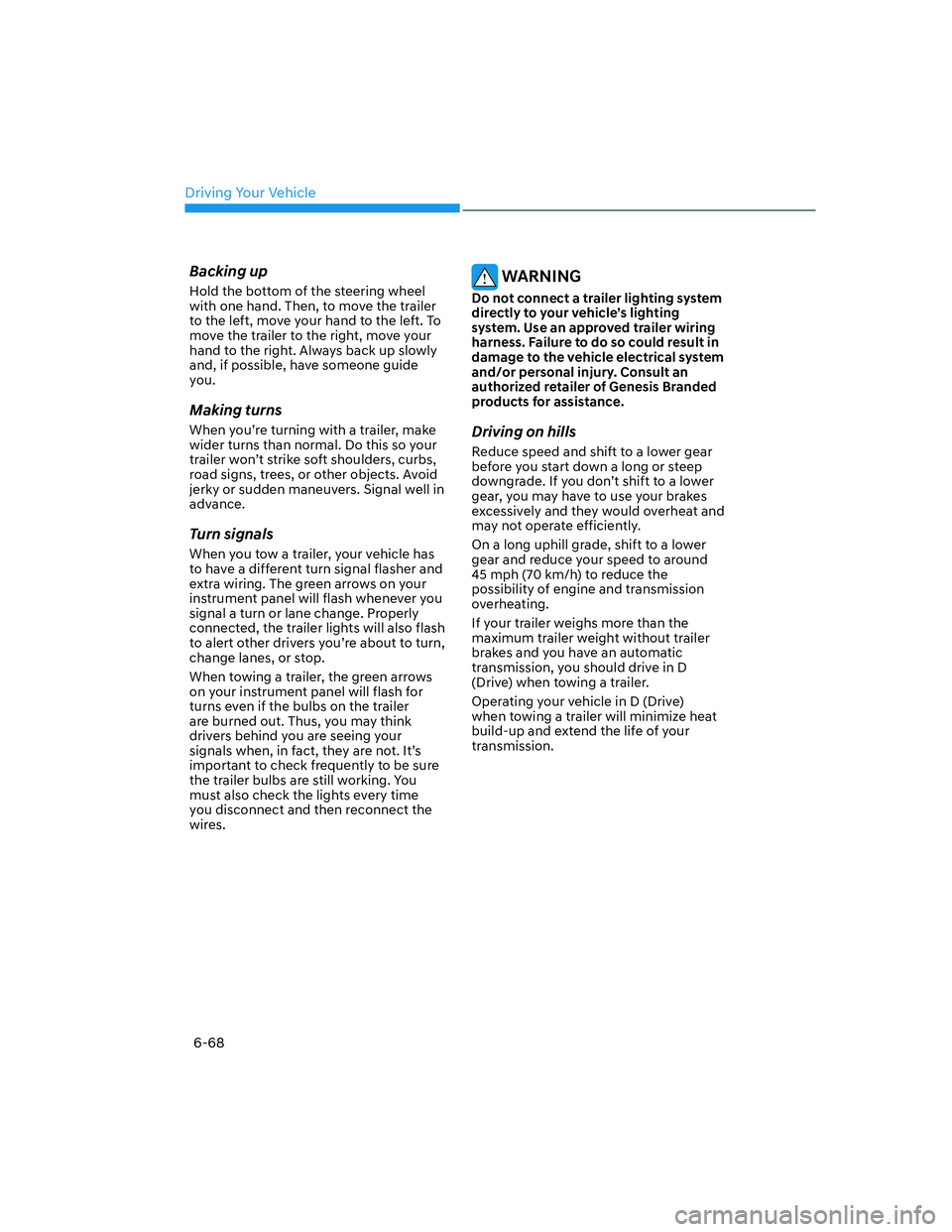

Page 342 of 647
Driving Your Vehicle
6-68
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left. To
move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well in
advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check frequently to be sure
the trailer bulbs are still working. You
must also check the lights every time
you disconnect and then reconnect the
wires.
WARNING
Do not connect a trailer lighting system
directly to your vehicle’s lighting
system. Use an approved trailer wiring
harness. Failure to do so could result in
damage to the vehicle electrical system
and/or personal injury. Consult an
authorized retailer of Genesis Branded
products for assistance.
Driving on hills
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift to a lower
gear, you may have to use your brakes
excessively and they would overheat and
may not operate efficiently.
On a long uphill grade, shift to a lower
gear and reduce your speed to around
45 mph (70 km/h) to reduce the
possibility of engine and transmission
overheating.
If your trailer weighs more than the
maximum trailer weight without trailer
brakes and you have an automatic
transmission, you should drive in D
(Drive) when towing a trailer.
Operating your vehicle in D (Drive)
when towing a trailer will minimize heat
build-up and extend the life of your
transmission.
Page 398 of 647
07
7-49
: $ 5 1 , 1 *
Take the following precautions when
X V L Q J 6 D I H ( [ L W : D U Q L Q J
• ) R U \ R X U V D I H W \ F K D Q J H W K H 6 H W W L Q J V
D I W H U S D U N L Q J W K H Y H K L F O H D W D V D I H
O R F D W L R Q
• , I D Q \ R W K H U V \ V W H PT V Z D U Q L Q J
P H V V D J H L V G L V S O D \ H G R U D X G L E O H
Z D U Q L Q J L V J H Q H U D W H G 6 D I H ( [ L W
: D U Q L Q J
V Z D U Q L Q J P H V V D J H P D \ Q R W
E H G L V S O D \ H G D Q G D X G L E O H Z D U Q L Q J
P D \ Q R W E H J H Q H U D W H G
• < R X P D \ Q R W K H D U W K H Z D U Q L Q J
V R X Q G R I 6 D I H ( [ L W : D U Q L Q J L I W K H
V X U U R X Q G L Q J L V Q R L V \
• 6 D I H ( [ L W : D U Q L Q J G R H V Q R W R S H U D W H
L Q D O O V L W X D W L R Q V R U F D Q Q R W S U H Y H Q W D O O
F R O O L V L R Q V
• 6 D I H ( [ L W : D U Q L Q J P D \ Z D U Q W K H
G U L Y H U O D W H R U P D \ Q R W Z D U Q W K H G U L Y H U
G H S H Q G L Q J R Q W K H U R D G D Q G G U L Y L Q J
F R Q G L W L R Q V $ O Z D \ V F K H F N Y H K L F O H
V X U U R X Q G L Q J V
• 7 K H G U L Y H U D Q G S D V V H Q J H U V D U H
U H V S R Q V L E O H I R U D F F L G H Q W V W K D W R F F X U V
Z K L O H H [ L W L Q J W K H Y H K L F O H $ O Z D \ V
F K H F N W K H V X U U R X Q G L Q J V E H I R U H \ R X
H [ L W W K H Y H K L F O H
• 1 H Y H U G H O L E H U D W H O \ R S H U D W H 6 D I H
( [ L W : D U Q L Q J ' R L Q J V R P D \ O H D G W R
V H U L R X V L Q M X U \ R U G H D W K
• 6 D I H ( [ L W : D U Q L Q J G R H V Q R W R S H U D W H
L I W K H U H L V D S U R E O H P Z L W K % O L Q G
6 S R W & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
7 K H Z D U Q L Q J P H V V D J H R I % O L Q G 6 S R W
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W Z L O O
appear when:
- % O L Q G 6 S R W & R O O L V L R Q $ Y R L G D Q F H
Assist sensor or the sensor
V X U U R X Q G L Q J L V S R O O X W H G R U F R Y H U H G
- % O L Q G 6 S R W & R O O L V L R Q $ Y R L G D Q F H
Assist fails to warn passengers or
I D O V H O \ Z D U Q S D V V H Q J H U V
Information
After the engine is turned off, Safe Exit
Warning operates approximately for 3
minutes, but turns off immediately if the
doors are locked.
6 D I H ( [ L W : D U Q L Q J 0 D O I X Q F W L R Q
and Limitations
Safe Exit Warning malfunction
OTM070099NOTM070099N
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Page 399 of 647
Driver Assistance System
7-50
OTM070100NOTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Safe Exit Warning disabled
OTM070098NOTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message will appear on the cluster.
Safe Exit Warning will operate properly
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Page 405 of 647
Driver Assistance System
7-56
• 6 D I H ( [ L W $ V V L V W P D \ Z D U Q W K H G U L Y H U
O D W H R U P D \ Q R W Z D U Q W K H G U L Y H U
G H S H Q G L Q J R Q W K H U R D G D Q G G U L Y L Q J
F R Q G L W L R Q V $ O Z D \ V F K H F N Y H K L F O H
V X U U R X Q G L Q J V
• 7 K H G U L Y H U D Q G S D V V H Q J H U V D U H
U H V S R Q V L E O H I R U D F F L G H Q W V W K D W R F F X U V
Z K L O H H [ L W L Q J W K H Y H K L F O H $ O Z D \ V
F K H F N W K H V X U U R X Q G L Q J V E H I R U H \ R X
H [ L W W K H Y H K L F O H
• 1 H Y H U G H O L E H U D W H O \ R S H U D W H 6 D I H ( [ L W
$ V V L V W ' R L Q J V R P D \ O H D G W R V H U L R X V
L Q M X U \ R U G H D W K
• 6 D I H ( [ L W $ V V L V W G R H V Q R W R S H U D W H L I
W K H U H L V D S U R E O H P Z L W K % O L Q G 6 S R W
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W 7 K H
Z D U Q L Q J P H V V D J H R I % O L Q G 6 S R W
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W Z L O O
appear when:
- % O L Q G 6 S R W & R O O L V L R Q $ Y R L G D Q F H
Assist sensor or the sensor
V X U U R X Q G L Q J L V S R O O X W H G R U F R Y H U H G
- % O L Q G 6 S R W & R O O L V L R Q $ Y R L G D Q F H
Assist fails to warn passengers or
I D O V H O \ Z D U Q S D V V H Q J H U V Information
After the engine is turned off, Safe Exit
Assist operates approximately for 3
minutes, but turns off immediately if the
doors are locked.
6 D I H ( [ L W $ V V L V W 0 D O I X Q F W L R Q D Q G
Limitations
Safe Exit Assist malfunction
OTM070099NOTM070099N
When Safe Exit Assist is not working
properly, the ‘Check Blind-Spot Safety
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Page 406 of 647
07
7-57
OTM070100NOTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on
the cluster. If the master warning light
illuminates, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Safe Exit Assist disabled
OTM070098NOTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Assist.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message will appear on the cluster.
Safe Exit Assist will operate properly
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Assist does not operate
properly after it is removed, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Page 503 of 647
Driver Assistance System
7-154
„ „Rear view cameraRear view camera „ „Rear ultrasonic sensorRear ultrasonic sensor
OJK070198LOJK070198LOJK070199LOJK070199LThe ‘Camera error or blockage’ or
‘Ultrasonic sensor error or blockage’
warning message will appear on the
cluster if the following situations occur:
- The rear view camera or rear
ultrasonic sensor(s) is covered with
foreign material, such as snow or rain,
etc.
- There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.
Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:
• Any non-factory equipment or
accessory is installed
• Your vehicle is unstable due to an
accident or other causes
• Bumper height or rear ultrasonic
sensor installation has been modified
• Rear view camera or rear ultrasonic
sensor(s) is damaged
• Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.
• Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.
• The surrounding is very bright or very
dark
• Outside temperature is very high or
very low
• The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper
• Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle
• An ultrasonic sensor with similar
frequency is near your vehicle
• There is ground height difference
between the vehicle and the
pedestrian
• The image of the pedestrian in the
rear view camera is indistinguishable
from the background
Page 534 of 647
![HYUNDAI GENESIS GV70 2022 Owners Guide Emergency Situations
Hazard Warning Flasher ........................................................................\
...........8-2
In Case of an Emergency While Driving .............................](/img/35/56125/w960_56125-533.png "HYUNDAI GENESIS GV70 2022 Owners Guide Emergency Situations
Hazard Warning Flasher ........................................................................\
...........8-2
In Case of an Emergency While Driving .............................")

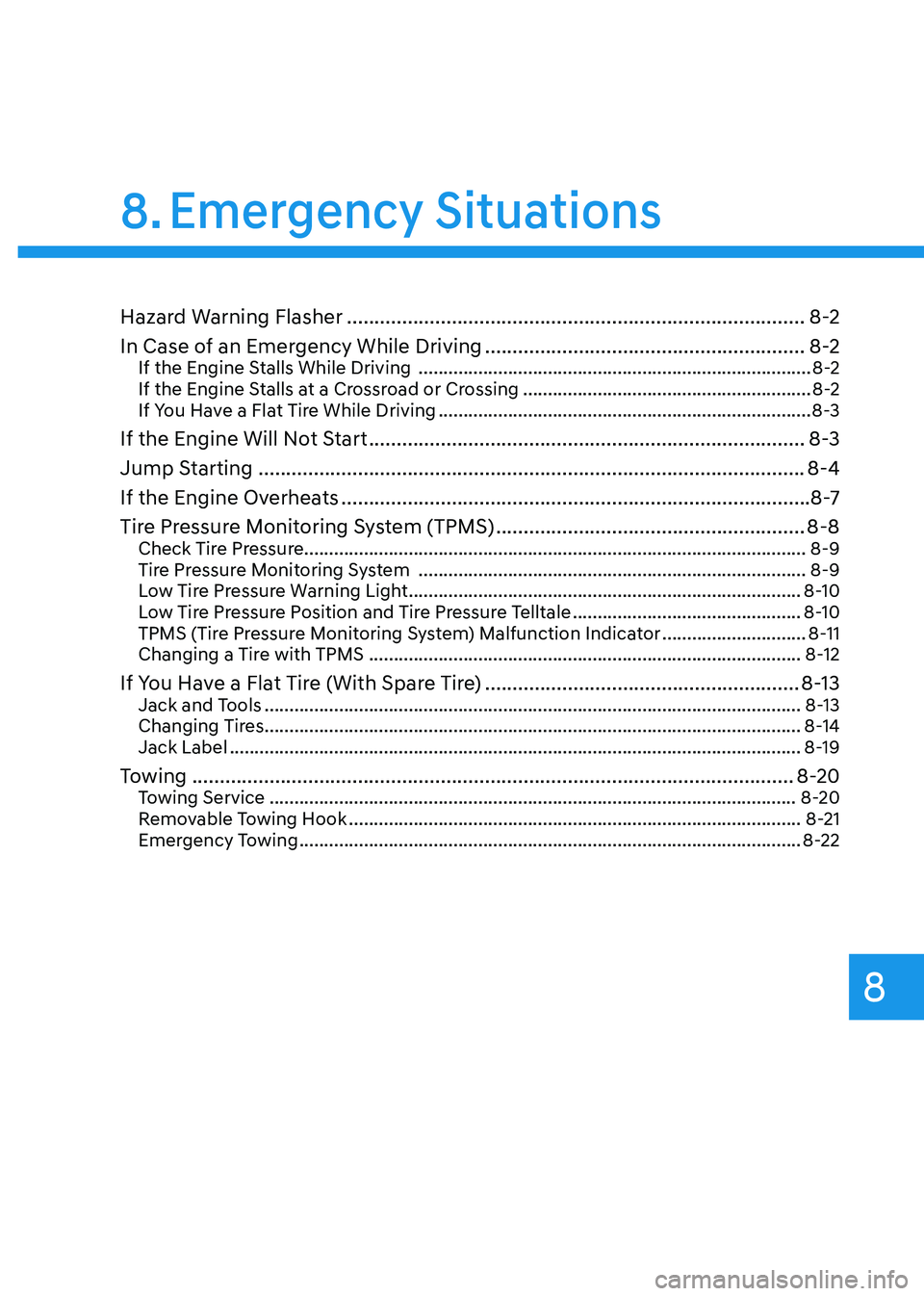

Emergency Situations
Hazard Warning Flasher ........................................................................\
...........8-2
In Case of an Emergency While Driving ..........................................................8-2If the Engine Stalls While Driving ........................................................................\
.......8-2If the Engine Stalls at a Crossroad or Crossing ..........................................................8-2If You Have a Flat Tire While Driving ........................................................................\
...8-3
If the Engine Will Not Start ........................................................................\
.......8-3
Jump Starting ........................................................................\
...........................8-4
If the Engine Overheats ........................................................................\
.............8 -7
Tire Pressure Monitoring System (TPMS) ........................................................8-8Check Tire Pressure ........................................................................\
.............................8-9Tire Pressure Monitoring System ........................................................................\
......8-9Low Tire Pressure Warning Light ........................................................................\
.......8-10Low Tire Pressure Position and Tire Pressure Telltale ..............................................8-10TPMS (Tire Pressure Monitoring System) Malfunction Indicator .............................8-11Changing a Tire with TPMS ........................................................................\
...............8-12
If You Have a Flat Tire (With Spare Tire) .........................................................8-13Jack and Tools ........................................................................\
....................................8-13Changing Tires ........................................................................\
....................................8-14Jack Label ........................................................................\
...........................................8-19
Towing ........................................................................\
.....................................8-20Towing Service ........................................................................\
..................................8-20Removable Towing Hook ........................................................................\
...................8-21Emergency Towing ........................................................................\
.............................8-22
8. Emergency Situations
8
Page 536 of 647
08
8-3

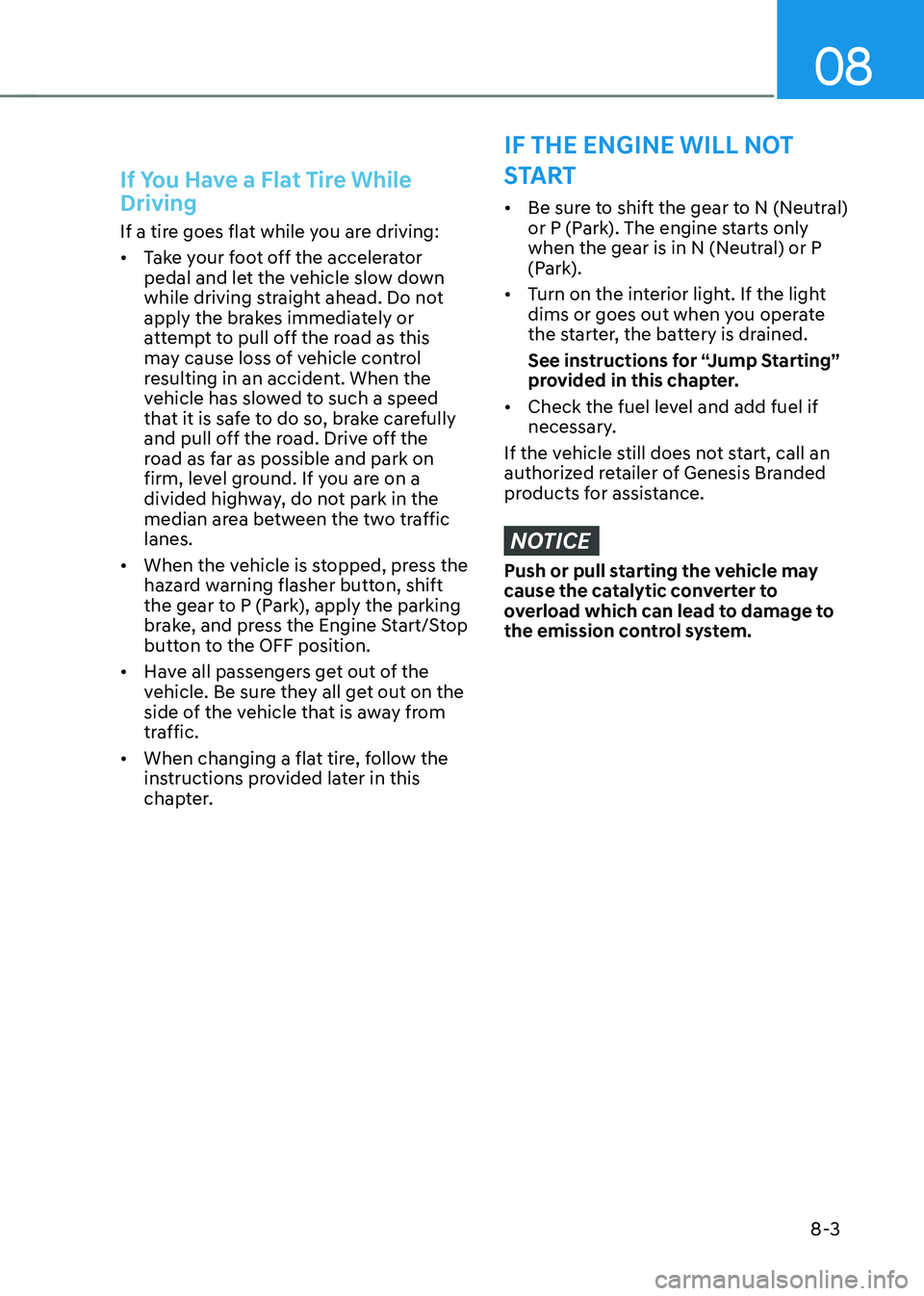

If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:
• Take your foot off the accelerator pedal and let the vehicle slow down while driving straight ahead. Do not apply the brakes immediately or attempt to pull off the road as this may cause loss of vehicle control resulting in an accident. When the vehicle has slowed to such a speed that it is safe to do so, brake carefully and pull off the road. Drive off the road as far as possible and park on firm, level ground. If you are on a divided highway, do not park in the median area between the two traffic lanes.
• When the vehicle is stopped, press the hazard warning flasher button, shift the gear to P (Park), apply the parking brake, and press the Engine Start/Stop button to the OFF position.
• Have all passengers get out of the vehicle. Be sure they all get out on the side of the vehicle that is away from traffic.
• When changing a flat tire, follow the instructions provided later in this chapter.
IF THE ENGINE WILL NOT
START
• Be sure to shift the gear to N (Neutral) or P (Park). The engine starts only when the gear is in N (Neutral) or P (Park).
• Turn on the interior light. If the light dims or goes out when you operate the starter, the battery is drained.
See instructions for “Jump Starting” provided in this chapter.
• Check the fuel level and add fuel if necessary.
If the vehicle still does not start, call an authorized retailer of Genesis Branded products for assistance.
NOTICE
Push or pull starting the vehicle may cause the catalytic converter to overload which can lead to damage to the emission control system.
Page 543 of 647
Emergency Situations
8-10

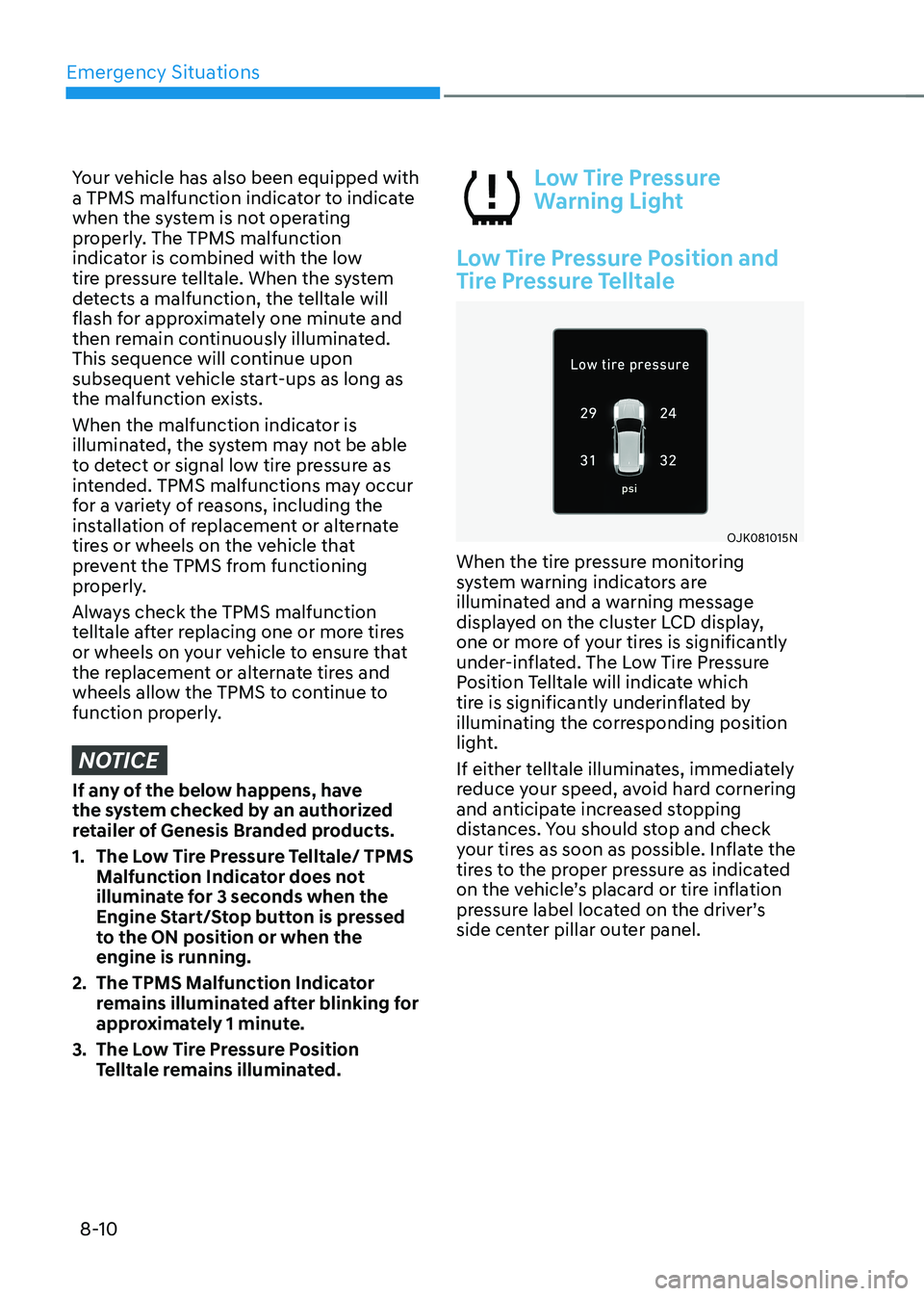

Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.
NOTICE
If any of the below happens, have the system checked by an authorized retailer of Genesis Branded products.
1. The Low Tire Pressure Telltale/ TPMS Malfunction Indicator does not illuminate for 3 seconds when the Engine Start/Stop button is pressed to the ON position or when the engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blinking for approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low Tire Pressure
Warning Light
Low Tire Pressure Position and
Tire Pressure Telltale
OJK081015NOJK081015N
When the tire pressure monitoring system warning indicators are illuminated and a warning message displayed on the cluster LCD display, one or more of your tires is significantly under-inflated. The Low Tire Pressure Position Telltale will indicate which tire is significantly underinflated by illuminating the corresponding position light.
If either telltale illuminates, immediately reduce your speed, avoid hard cornering and anticipate increased stopping distances. You should stop and check your tires as soon as possible. Inflate the tires to the proper pressure as indicated on the vehicle’s placard or tire inflation pressure label located on the driver’s side center pillar outer panel.
Page 559 of 647

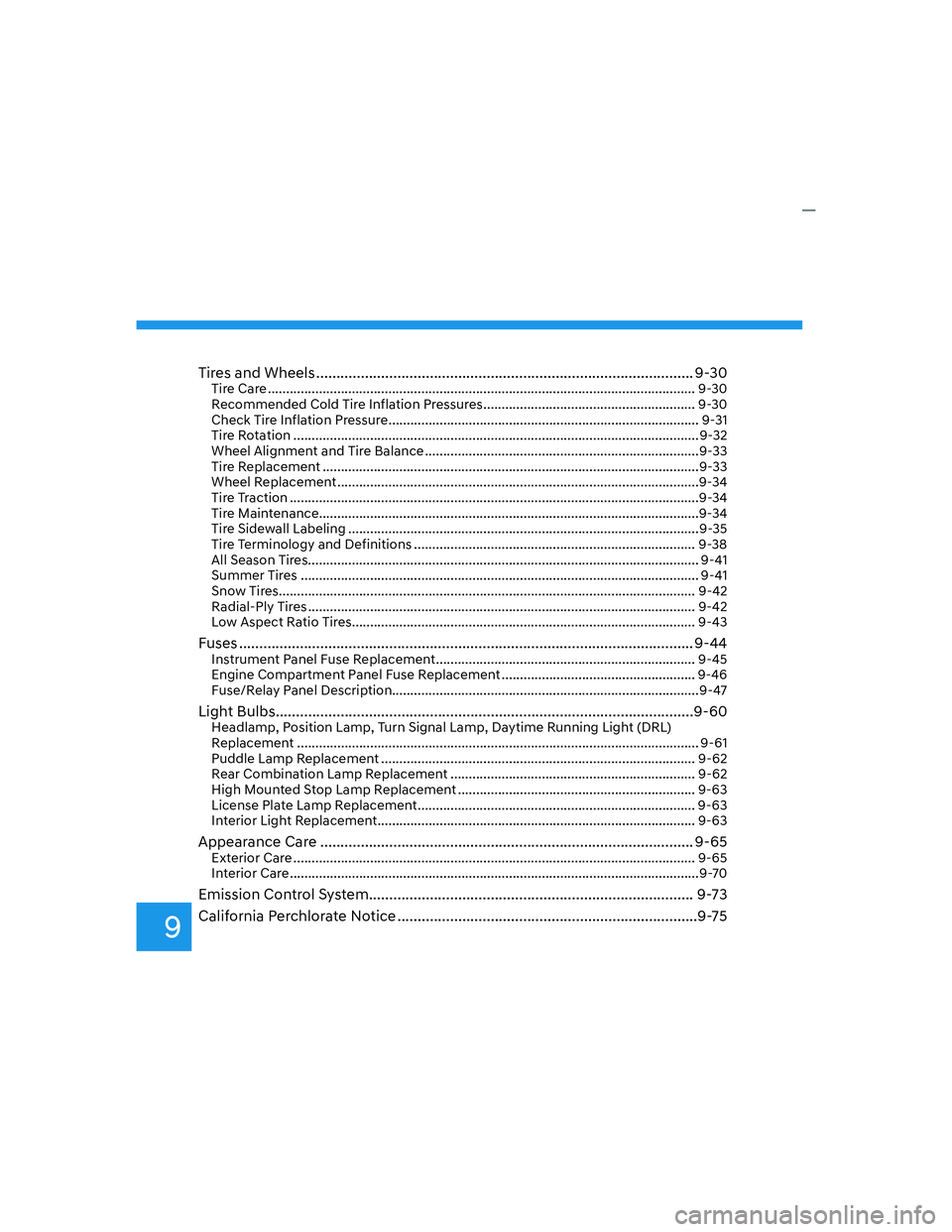

9
Tires and Wheels ............................................................................................. 9-30Tire Care .....................................................................................................................9-30
Recommended Cold Tire Inflation Pressures .......................................................... 9-30
Check Tire Inflation Pressure ..................................................................................... 9-31
Tire Rotation ............................................................................................................... 9-32
Wheel Alignment and Tire Balance ...........................................................................9-33
Tire Replacement .......................................................................................................9-33
Wheel Replacement ...................................................................................................9-34
Tire Traction ................................................................................................................9-34
Tire Maintenance........................................................................................................9-34
Tire Sidewall Labeling ................................................................................................9-35
Tire Terminology and Definitions ............................................................................. 9-38
All Season Tires ........................................................................................................... 9-41
Summer Tires ............................................................................................................. 9-41
Snow Tires.................................................................................................................. 9-42
Radial-Ply Tires .......................................................................................................... 9-42
Low Aspect Ratio Tires .............................................................................................. 9-43
Fuses ................................................................................................................ 9-44
Instrument Panel Fuse Replacement ....................................................................... 9-45
Engine Compartment Panel Fuse Replacement ..................................................... 9-46
Fuse/Relay Panel Description....................................................................................9-47
Light Bulbs .......................................................................................................9-60Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................................................................. 9-61
Puddle Lamp Replacement ...................................................................................... 9-62
Rear Combination Lamp Replacement ................................................................... 9-62
High Mounted Stop Lamp Replacement ................................................................. 9-63
License Plate Lamp Replacement ............................................................................ 9-63
Interior Light Replacement ....................................................................................... 9-63
Appearance Care ............................................................................................ 9-65
Exterior Care .............................................................................................................. 9-65
Interior Care ................................................................................................................9-7 0
Emission Control System ................................................................................ 9-73
California Perchlorate Notice ..........................................................................9-75
