Driver Assistance System
7-142
5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
Warning Operation
Operating button
OJK070062LOJK070062L
Parking Safety button
• Press the Parking Safety () button
to turn on Reverse Parking Distance
Warning. Press the button again to
turn off the function.
• When Reverse Parking Distance
Warning is off (button indicator
light off), if you shift the gear to R
(Reverse), Reverse Parking Distance
Warning will automatically turn on.
Reverse Parking Distance Warning
• Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
• Reverse Parking Distance Warning
helps detect a person, animal or
object in the rear when the vehicle’s
rearward speed is below 6 mph (10
km/h).
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
E D F N Z D U GWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
• The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
• When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
• The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 492 of 647
07
7-143
5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
Warning Malfunction and
3 U H F D X W L R Q V
Reverse Parking Distance Warning
malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Reverse Parking
Distance Warning is operating properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
• The audible warning does not sound.
• The buzzer sounds intermittently.
• The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
OJK070194LOJK070194L
: $ 5 1 , 1 *
• 5 H Y H U V H 3 D U N L Q J ' L V W D Q F H : D U Q L Q J
L V D V X S S O H P H Q W D O I X Q F W L R Q 7 K H
R S H U D W L R Q R I 5 H Y H U V H 3 D U N L Q J
' L V W D Q F H : D U Q L Q J F D Q E H D I I H F W H G
E \ V H Y H U D O I D F W R U V L Q F O X G L Q J
H Q Y L U R Q P H Q W D O F R Q G L W L R Q V , W L V W K H
U H V S R Q V L E L O L W \ R I W K H G U L Y H U W R D O Z D \ V
F K H F N W K H U H D U Y L H Z E H I R U H D Q G Z K L O H
S D U N L Q J
• < R X U Q H Z Y H K L F O H Z D U U D Q W \ G R H V Q R W
F R Y H U D Q \ D F F L G H Q W V R U G D P D J H W R
W K H Y H K L F O H G X H W R W K H P D O I X Q F W L R Q R I
5 H Y H U V H 3 D U N L Q J ' L V W D Q F H : D U Q L Q J
• 3 D \ F O R V H D W W H Q W L R Q Z K H Q G U L Y L Q J
Q H D U R E M H F W V S H G H V W U L D Q V D Q G
H V S H F L D O O \ F K L O G U H Q 6 R P H R E M H F W V
P D \ Q R W E H G H W H F W H G E \ W K H
X O W U D V R Q L F V H Q V R U V G X H W R W K H R E M H F W V
G L V W D Q F H V L ] H R U P D W H U L D O D O O R I
Z K L F K F D Q O L P L W W K H H I I H F W L Y H Q H V V R I
W K H V H Q V R U
Page 493 of 647
Driver Assistance System
7-144
Limitations of Reverse Parking
Distance Warning
• Reverse Parking Distance Warning
may not operate properly when:
- Moisture is frozen to the sensor
- Sensor is covered with substance,
such as snow or water (Reverse
Parking Distance Warning will
operate properly when such
substance is removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or an hit with a hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding
area is directly sprayed with high
pressure washer
• Reverse Parking Distance Warning
may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- Affected by another vehicle’s
sensors
- The sensor is covered with snow or
ice
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- License plate is installed in a
different spot from the original
location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipment or accessories
next to the ultrasonic sensors• The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
• Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
• Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
• If Reverse Parking Distance Warning
needs repair, have the vehicle
inspected by an authorized retailer of
Genesis Brand products.
Page 494 of 647
07
7-145
Forward/Reverse Parking Distance
Warning can help warn the driver if an
obstacle is detected within a certain
distance when the vehicle is moving
forward or in reverse at low speeds.
Detecting sensor
OJK070060OJK070060
OJK070061OJK070061[1] : Front ultrasonic sensors,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning Settings
Warning Volume
OJK071003NOJK071003N
6 H O H F W S ' U L Y H U $ V V L V W D Q F H
Page 495 of 647
Driver Assistance System
7-146

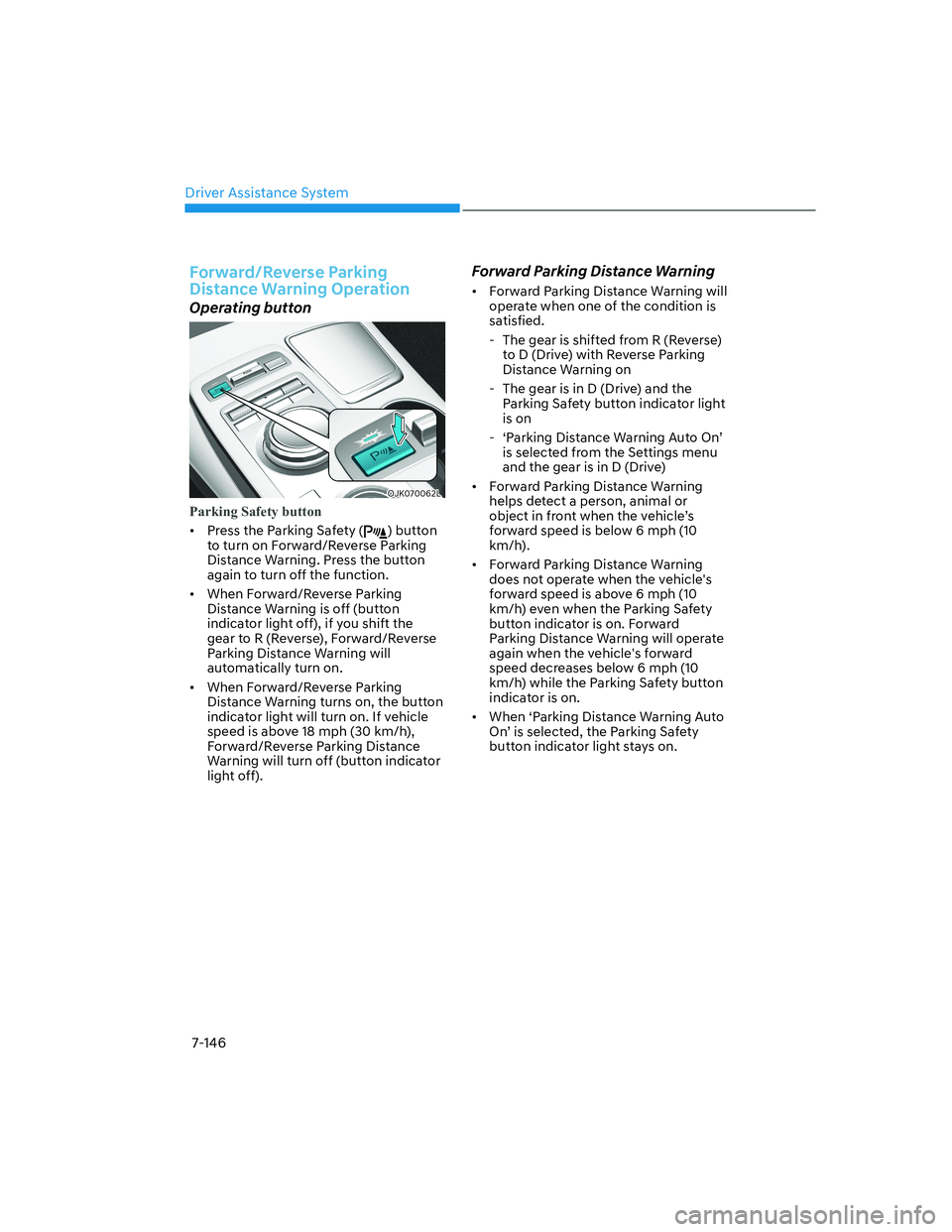

) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning Operation
Operating button
OJK070062LOJK070062L
Parking Safety button
• Press the Parking Safety () button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.
• When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.
• When Forward/Reverse Parking
Distance Warning turns on, the button
indicator light will turn on. If vehicle
speed is above 18 mph (30 km/h),
Forward/Reverse Parking Distance
Warning will turn off (button indicator
light off).
Forward Parking Distance Warning
• Forward Parking Distance Warning will
operate when one of the condition is
satisfied.
- The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on
- The gear is in D (Drive) and the
Parking Safety button indicator light
is on
- ‘Parking Distance Warning Auto On’
is selected from the Settings menu
and the gear is in D (Drive)
• Forward Parking Distance Warning
helps detect a person, animal or
object in front when the vehicle’s
forward speed is below 6 mph (10
km/h).
• Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the Parking Safety
button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward
speed decreases below 6 mph (10
km/h) while the Parking Safety button
indicator is on.
• When ‘Parking Distance Warning Auto
On’ is selected, the Parking Safety
button indicator light stays on.
Page 496 of 647
07
7-147
• When ‘Parking Distance Warning Auto
On’ is deselected, and the vehicle’s
forward speed is above 18 mph (30
km/h), the Parking Safety button
indicator will turn off. Although you
drive below 6 mph (10 km/h), Forward
Parking Distance Warning will not turn
on.
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
forwardWarning
sound
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
• The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
• When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
• The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning
• Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
• Reverse Parking Distance Warning
helps detect a person, animal or
object in the rear when the vehicle’s
rearward speed is below 6 mph (10
km/h).
• When the vehicle’s rearward speed is
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will help
detect objects. However, the front
ultrasonic sensors can help detect a
person, animal or object when it is
within 24 in. (60 cm) from the sensors.
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
E D F N Z D U GWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
• The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
• When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
• The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 497 of 647
Driver Assistance System
7-148
) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning Malfunction
D Q G 3 U H F D X W L R Q V
Forward/Reverse Parking Distance
Warning malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized retailer of Genesis Branded
products.
• The audible warning does not sound.
• The buzzer sounds intermittently.
• The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
OJK070195LOJK070195L
: $ 5 1 , 1 *
• ) R U Z D U G 5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
: D U Q L Q J L V D V X S S O H P H Q W D O I X Q F W L R Q
7 K H R S H U D W L R Q R I ) R U Z D U G 5 H Y H U V H
3 D U N L Q J ' L V W D Q F H : D U Q L Q J F D Q E H
D I I H F W H G E \ V H Y H U D O I D F W R U V L Q F O X G L Q J
H Q Y L U R Q P H Q W D O F R Q G L W L R Q V , W L V W K H
U H V S R Q V L E L O L W \ R I W K H G U L Y H U W R D O Z D \ V
F K H F N W K H I U R Q W D Q G U H D U Y L H Z V E H I R U H
D Q G Z K L O H S D U N L Q J
• < R X U Q H Z Y H K L F O H Z D U U D Q W \ G R H V Q R W
F R Y H U D Q \ D F F L G H Q W V R U G D P D J H W R
W K H Y H K L F O H G X H W R W K H P D O I X Q F W L R Q R I
) R U Z D U G 5 H Y H U V H 3 D U N L Q J ' L V W D Q F H
: D U Q L Q J
• 3 D \ F O R V H D W W H Q W L R Q Z K H Q G U L Y L Q J
Q H D U R E M H F W V S H G H V W U L D Q V D Q G
H V S H F L D O O \ F K L O G U H Q 6 R P H R E M H F W V
P D \ Q R W E H G H W H F W H G E \ W K H
X O W U D V R Q L F V H Q V R U V G X H W R W K H R E M H F W V
G L V W D Q F H V L ] H R U P D W H U L D O D O O R I
Z K L F K F D Q O L P L W W K H H I I H F W L Y H Q H V V R I
W K H V H Q V R U
Page 498 of 647
07
7-149
Limitations of Forward/Reverse
Parking Distance Warning
• Forward/Reverse Parking Distance
Warning may not operate properly
when:
- Moisture is frozen to the sensor
- Sensor is covered with substance,
such as snow or water (Forward/
Reverse Parking Distance Warning
will operate properly when such
substance is removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or hit by a hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding
area is directly sprayed with high
pressure washer
• Forward/Reverse Parking Distance
Warning may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- Affected by another vehicle’s
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- License plate is installed in a
different spot from the original
location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipments or
accessories next to the ultrasonic
sensors• The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
• Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
• Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
• If Forward/Reverse Parking Distance
Warning needs repair, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Page 499 of 647
Driver Assistance System
7-150
Reverse Parking Collision-Avoidance
Assist can warn the driver or assist with
braking to help reduce the possibility of
collision with a pedestrian or an object
when backing up.
Detecting sensor
OJK070054 OJK070054
OJK070061OJK070061[1] : Rear view camera,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
5 H Y H U V H 3 D U N L Q J & R O O L V L R Q
$ Y R L G D Q F H $ V V L V W 6 H W W L Q J V
Setting features
Parking Safety
With the engine on, select or deselect
S ' U L Y H U $ V V L V W D Q F H
Page 500 of 647

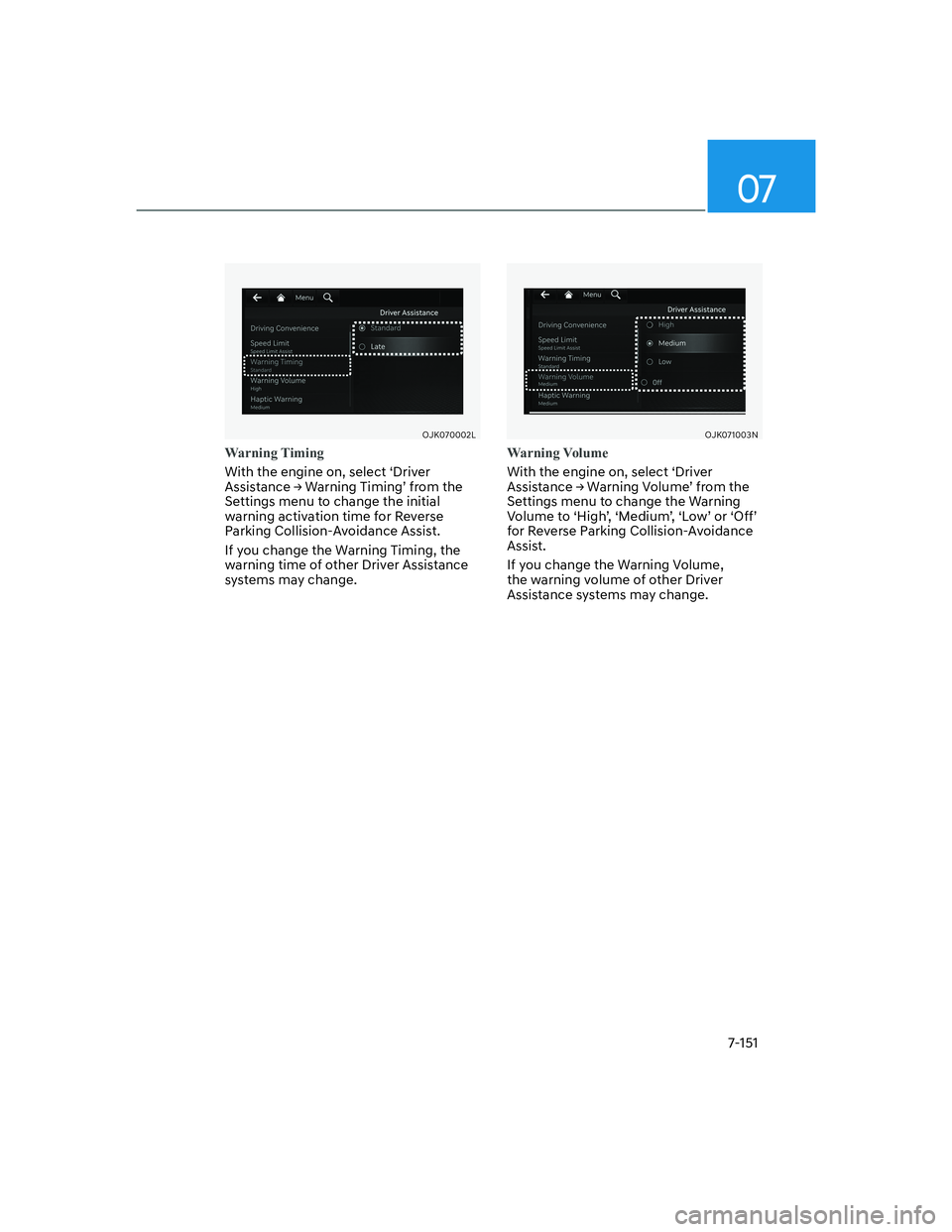

07
7-151
OJK070002LOJK070002L
Warning Timing
With the engine on, select ‘Driver
$ V V L V W D Q F H
