Vehicle Information, Consumer Information and Reporting Safety Defects
2-10

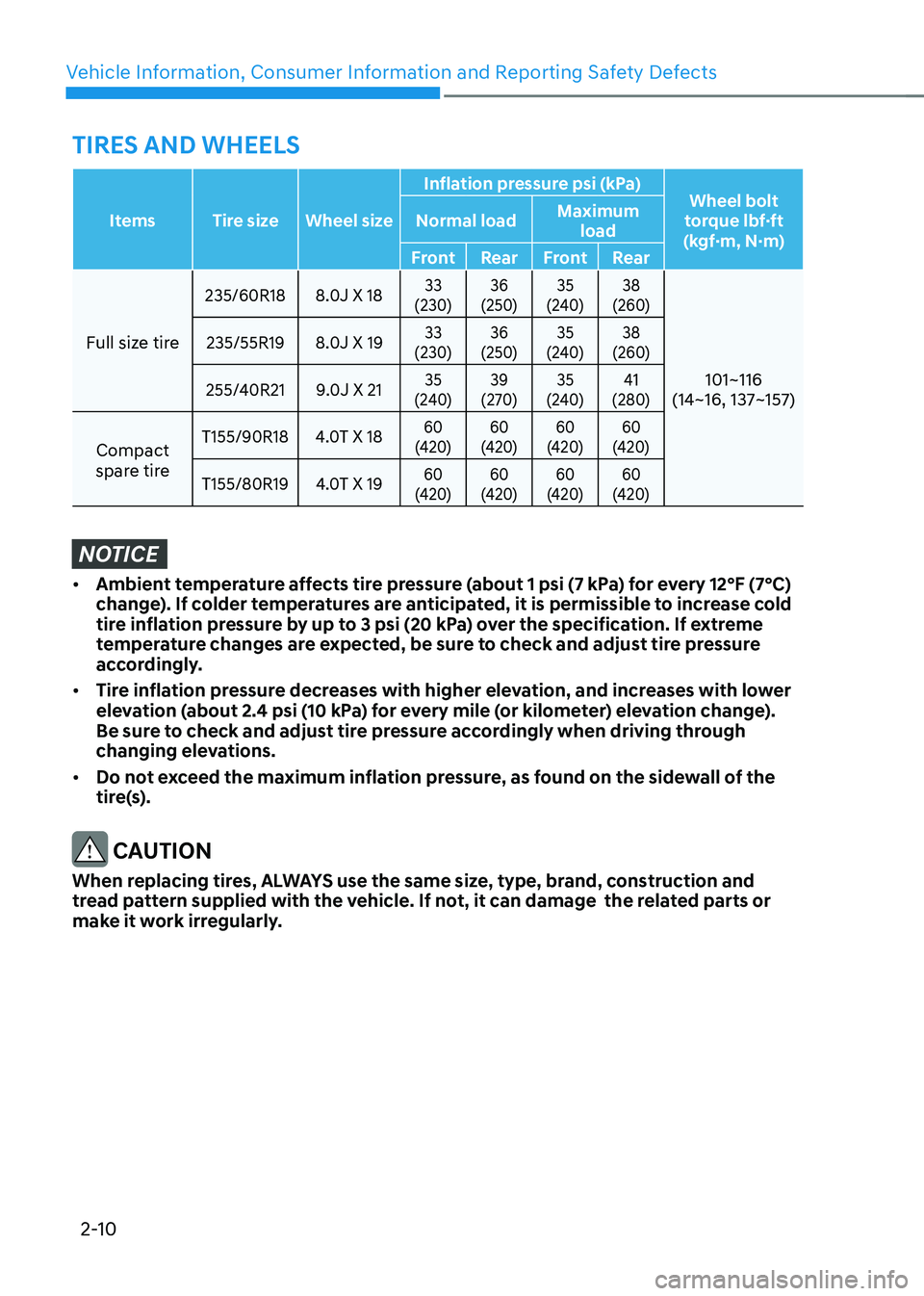

ItemsTire sizeWheel size
Inflation pressure psi (kPa)Wheel bolt torque lbf·ft (kgf·m, N·m)Normal loadMaximum load
FrontRearFrontRear
Full size tire
235/60R188.0J X 1833 (230)36 (250)35 (240)38 (260)
101~116 (14~16, 137~157)
235/55R198.0J X 1933 (230)36 (250)35 (240)38 (260)
255/40R219.0J X 2135 (240)39 (270)35 (240)41 (280)
Compact spare tire
T155/90R184.0T X 1860 (420)60 (420)60 (420)60 (420)
T155/80R194.0T X 1960 (420)60 (420)60 (420)60 (420)
NOTICE
• Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C) change). If colder temperatures are anticipated, it is permissible to increase cold tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme temperature changes are expected, be sure to check and adjust tire pressure accordingly.
• Tire inflation pressure decreases with higher elevation, and increases with lower elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change). Be sure to check and adjust tire pressure accordingly when driving through changing elevations.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and tread pattern supplied with the vehicle. If not, it can damage the related parts or make it work irregularly.
TIRES AND WHEELS
