Hyundai Getz 2002 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 37
SB210C1-F
SRS (Airbag) SERVICE REMINDER INDICATOR
The SRS service reminder indicator (SRI) comes on and flashes for about 6seconds after the ignition key is turnedto the "ON" position or after the engineis started, after which it will go out. This light also comes on when the SRS is not working properly.If the SRI does not come on, or continu-ously remains on after flashing for about6 seconds when you turned the ignition key to the "ON" position or started the engine, or if it comes on while driving,have the SRS inspected by an autho-rized Hyundai Dealer. B260P02Y-EAT
ABS SERVICE REMINDER INDICATOR
(SRI) (Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake SystemSRI will come on and then go off in a fewseconds. If the ABS SRI remains on,comes on while driving, or does notcome on when the key is turned to the "ON" position, this indicates that there may be a problem with the ABS.If this occurs, have your vehiclechecked by your Hyundai dealer assoon as possible. The normal brakingsystem will still be operational, but without the assistance of the anti-lock brake system. SB210E1-E
OVERDRIVE OFF INDI CATORLIGHT (Not all models)
When the overdrive (4th gear) switch is turned off and the operation of overdrive(4th gear) is cancelled, the overdrivewarning light (O/D OFF) will be illumi-nated. When the switch is at the onposition, the gearbox will operate in the normal fully automatic mode and the warning light will be extinguished. SB210G1-E TURN SIGNAL INDICATOR LIGHT
Operation of a turn signal is indicated by the warning light located in the in-strument cluster. If the light fails to illuminate or does not flash, a malfunc- tion within the turn signal system isindicated.
! CAUTION:
If the both ABS SRI and Parking Brake/Brake fluid level warning lights remain "ON" or come on while driv-ing, there may be a problem withE.B.D (Electronic brake force distri-bution).If this occurs, avoid sudden stops and have your vehicle checked by your Hyundai dealer as soon as pos-sible.

1- 38 FEATURES OF YOUR HYUNDAI
SB210J1-E
HIGH BEAM INDICATOR LIGHT
The high beam indicator light will illumi- nate whenever the headlights areswitched to high beam of flash position.
B260H03A-EATPARKING BRAKE/ BRAKE FLUID LEVELWARNING LIGHT
SB210K1-EOIL PRESSURE WARNING LIGHT
!CAUTION:
If the oil pressure light illuminates when the engine is running, an in-sufficient oil pressure level for con-tinued safe operation of the engine exists. Continued operation of the engine in this condition may resultin serious engine damage. Under normal circumstances, the light will illuminate when the igni- tion is turned "on" and will be extin- guished when the engine is started.If the oil pressure warning light illu-minates whilst the engine is run-ning, stop the engine immediatelyand check the engine oil level. If the level is insufficient, add the required amount of oil as indicated by theengine oil dipstick. If the light fails to extinguish when the engine is re-started, do not continue to operatethe vehicle.If the oil pressure light illuminatesduring normal operation and the cause is not an insufficient oil level, or the light fails to illuminate whenthe ignition is turned "on", contactthe nearest Hyundai dealer beforefurther operating the vehicle.
Warning light operation The parking brake/brake fluid level warn- ing light will be illuminated wheneverthe ignition switch is turned to the "ON"position irrespective of whether or notthe parking brake is applied and must be extinguished when the engine starts and the parking brake released.If the warning light fails to extinguish orilluminates at any other time, the ve-hicle must be brought to rest in a safelocation and the level of brake fluid in the reservoir checked. If the fluid level is incorrect, fluid conforming to DOT 3or DOT 4 specifications should be added.If, after correcting the brake fluid level,the warning light continues to be illumi-nated, the advice of the nearest Hyundai dealer must be sought before the ve- hicle is driven again.
Your Hyundai is equipped with a diago-nally split dual braking system whichwill ensure that in the event of one of thebrake circuits becoming defective, ap- proximately fifty per cent of the normal braking performance will be available.If failure of one of the circuits occurs,the required amount of pedal effort,pedal travel and stopping distance willbe increased. Use of the gearbox is
WARNING:
In the event of problems being sus-pected with the braking system, theadvice of the nearest Hyundai dealermust be sought before the vehicle isdriven. Driving the vehicle with ei-ther an electrical or hydraulic brak- ing system defect may be danger- ous, resulting in accident or per-sonal injury.
!

FEATURES OF YOUR HYUNDAI 1- 39
SB210M1-E
CHARGING SYSTEM WARNING LIGHT
The charging system warning light should illuminate when the ignition switch is turned to the "ON" position and should be extinguished when theengine is started. If the light fails toilluminate when the ignition is turned"ON" or fails to extinguish after startingthe engine, the nearest Hyundai dealer should be contacted. If the light illumi- nates whilst the vehicle is being driven,stop the vehicle as soon as it is safe todo so and check the condition of thegenerator drive belt. If the belt is in SB2100I-E
DOOR AJAR WARNING LIGHT
The door ajar warning light indicates that a door is not correctly closed.Ensure that the light is extinguishedprior to driving the vehicle.
B260B01FC-EAT
TAIL GATE OPEN WARNING LIGHT
The tail gate warning light indicates when the tail gate is open or is not fully closed. Ensure that the light has extin-guished prior to driving the vehicle. SB210P1-E
LOW FUEL LEVEL WARNING LIGHT
The low fuel warning light serves to warn the driver that the remaining fuelquantity is approximately 9 litres andthat the vehicle should be refuelled. Ifthe vehicle is driven for an extendedperiod with the low fuel warning light illuminated there exists a possibility that misfiring due to fuel shortage mayoccur. This situation must be avoidedto prevent damage to the catalyst oc-curring.
recommended to assist in bringing thevehicle to rest. The vehicle must not bedriven once brake failure has occurreduntil the system has been repaired andis functioning normally. The braking system employs a vacuum servo in order that the pedal efforts arereduced. Power for the servo is derivedfrom the engine and therefore, in theevent of the engine stopping or thevehicle being towed, pedal efforts will be substantially increased.
place and the tension is satisfactory, the advice of a Hyundai dealer shouldbe sought.
CAUTION:
If the drive belt (generator belt) isloosen, broken, or missing while thevehicle is driving, there may be aserious malfunction, engine couldoverheat because this belt also drivesthe water pump.
!
B260N02FC-EAT MALFUNCTION INDICA- TOR LIGHT
This light illuminates when there is a malfunction of an exhaust gas relatedcomponent, and the system is not func- tioning properly so that the exhaust gas regulation values are not satisfied. Thislight will illuminate when the ignition keyis tuned to the "ON" position, and will goout after the engine start. If it illumi-nates while driving, or does not illumi- nate when the ignition key is turned to the "ON" position, take your car to your

1- 40 FEATURES OF YOUR HYUNDAI
B260S01B-GAT
DIESEL PRE-HEAT INDICATOR LIGHT-AMBER(Diesel Engine)
The indicator light illuminates amber when the ignition switch is placed atthe "ON" position. The engine can bestarted after the pre-heat indicator lightgoes off. The illuminating time varieswith the water temperature, air tem- perature and battery condition. NOTE: If the engine were not started 10 seconds after the preheating is com-pleted, turn the ignition key oncemore to the "LOCK" position, andthen to the "ON" position, in order to preheat again.
B260T01TB-GAT
ELECTRIC POWER STEERING SYSTEM(EPS) WARNING LIGHT(Not all models)
This indicator light comes on about 4 seconds after the ignition key is turnedto the "ON" position or after the engineis started, it will go out. This light also comes on when the EPS has some troubles. If it comes on whiledriving, have your vehicle inspected byan authorized Hyundai Dealer.
B260E01HP-GAT
SEAT BELT WARNING LIGHT
The seat belt warning light blinks for about 6 seconds when the ignition keyis turned from the "OFF" position to"ON" or "START".
CAUTION:
When you move the electric power steering back-end and forth-endcontinuously in stop position, steer- ing wheel plays heavily to operate anti-overload system. It is normalcondition. It returns to be nomalgetting time.!
B260U01TB-EAT IMMOBILIZER
INDICATOR LIGHT(Not all models)
This indicator light comes on for some seconds after the ignition key is turnedto the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case thislight goes out before you start the en-gine, you must turn to the "LOCK"position and restart the engine. In casethis light blinks for five seconds when the ignition key is turned to "ON" posi- tion, this indicates that the immobilizersystem is out of order. At this time,consult to the Hyundai dealer.
nearest authorized Hyundai dealer andhave the system checked.

FEATURES OF YOUR HYUNDAI 1- 41

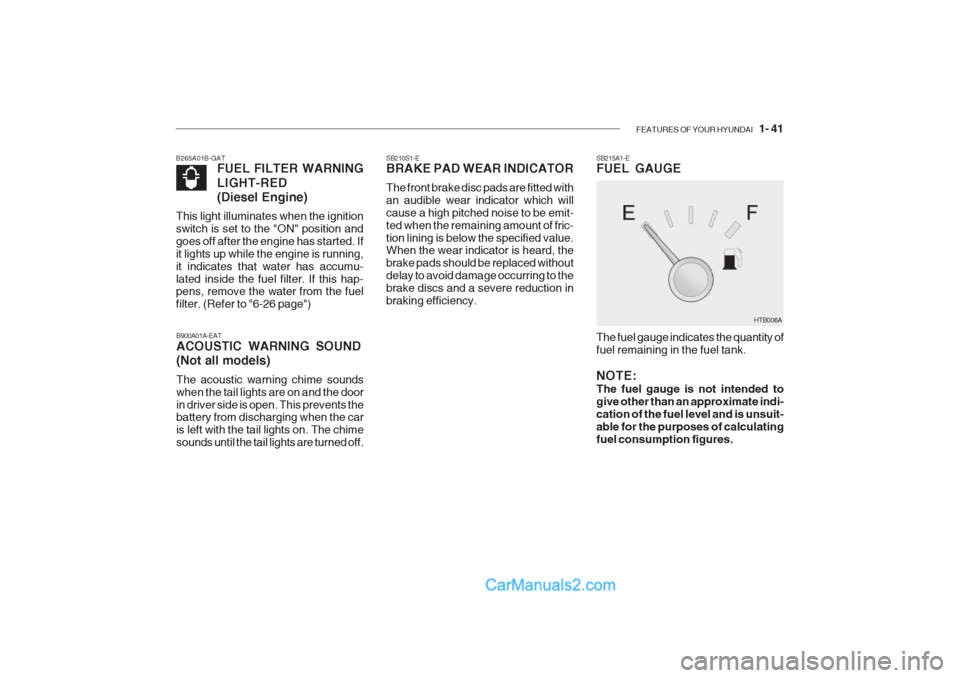

SB210S1-E BRAKE PAD WEAR INDICATOR The front brake disc pads are fitted with an audible wear indicator which willcause a high pitched noise to be emit-ted when the remaining amount of fric-tion lining is below the specified value. When the wear indicator is heard, the brake pads should be replaced withoutdelay to avoid damage occurring to thebrake discs and a severe reduction inbraking efficiency.
B900A01A-EAT ACOUSTIC WARNING SOUND (Not all models) The acoustic warning chime sounds when the tail lights are on and the doorin driver side is open. This prevents the battery from discharging when the car is left with the tail lights on. The chimesounds until the tail lights are turned off. HTB006A
The fuel gauge indicates the quantity offuel remaining in the fuel tank. NOTE: The fuel gauge is not intended to give other than an approximate indi-cation of the fuel level and is unsuit-able for the purposes of calculatingfuel consumption figures.
SB215A1-E FUEL GAUGE
B265A01B-GAT
FUEL FILTER WARNING LIGHT-RED (Diesel Engine)
This light illuminates when the ignition switch is set to the "ON" position andgoes off after the engine has started. Ifit lights up while the engine is running,it indicates that water has accumu-lated inside the fuel filter. If this hap- pens, remove the water from the fuel filter. (Refer to "6-26 page")

1- 42 FEATURES OF YOUR HYUNDAI
SB215B1-E ENGINE COOLANT TEMPERA- TURE GAUGE The engine coolant temperature gauge indicates the engine coolant tempera-ture and will, under normal circum- stances, give an indication in the "Nor- mal" or centre portion of the scale.Should the indication move into theupper or "Hot" portion of the scale,engine overheating is indicated. Underthese circumstances, the vehicle should be brought to rest as soon as is safe to do so and the engine turned off. Oncethe engine has cooled somewhat, thecoolant level and the condition of thegenerator/water pump drive belt shouldbe checked. If the cause of the over- SB215C1-E SPEEDOMETER
HTB007A
heating cannot be readily established, the assistance of a Hyundai dealershould be sought.
!
HTB004A
The speedometer indicates the vehicle speed in both miles and kilometres perhour.
WARNING:
The engine cooling system is pres-surized and removal of the radiator cap when the engine is hot may cause hot water and steam to beejected from the radiator resulting inburns and scalding. The radiator capmust only be removed when the en-gine has cooled. Do not add cold water to a hot engine to avoid the possibility of engine damage. Theuse of plain water in the coolingsystem is not recommended sincethe aluminium components of thecooling system require the use of a corrosion inhibitor found in the rec- ommended Ethylene Glycol type antifreeze solutions.
A Type B Type

FEATURES OF YOUR HYUNDAI 1- 43
B310B01TB-EAT ODOMETER/TRIP ODOMETER A TYPE (WITH TRIP COMPUTER)1. Odometer The odometer records the total driving distance in miles and is useful for keep-ing a record for maintenance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. HTB008B
A Type
B Type 2. Trip odometer
o This mode indicates the drive dis-
tance travelled since the last drive time reset.
o Pressing the reset switch built in left
side of speedmeter for more than 1 second, when the drive distance is being displayed, clears the drivedistance to zero.
o Refer to the explanation of the trip computer (see page 1-45, Drive Dis-tance).
B TYPE (WITHOUT TRIP COMPUTER) Function of digital odometer/trip odometer
Pushing in the reset switch when the ignition switch is turned "ON" will dis- play the following sequence:
The tachometer registers the speed ofthe engine in revolutions per minute(R.P.M.).
SB215F1-E TACHOMETER
A Type
!
CAUTION:
The maximum safe engine operating speed is indicated by the red zone ofthe tachometer scale. The engineshould not be operated beyond thebeginning of this zone or seriousengine damage may result. HTB005A
B Type

1- 44 FEATURES OF YOUR HYUNDAI
1. Odometer
HTB010
1 2 3
The odometer records the total driving distance in miles and is useful for keep-ing a record for maintenance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. 2,3 Trip odometer Records the distance of 2 trips in kilo- meters or miles.
HTB009B The trip computer is the microcom- puter-controlled driver information gaugethat displays information related to driv-ing, such as outside temperature dis-tance to empty, drive distance and average consumption on the LCD. Reset switch
o The reset switch is used to zero the
multi-functional display mode.
o Pushing in the reset switch built in
left side of speedmeter changes the display as follows;
B400B01TB-EATTRIP COMPUTER (Not all models)
OUTSIDE TEMPERATUREDISTANCE TO EMPTYDRIVE DISTANCE
AVERAGE CONSUMPTION
TRIP A: First distance you have trav-
eled from your origination point to a first destination.TRIP B: Second distance from the first
destination to the final destination. To shift from TRIP A to TRIP B, press the reset switch. When pressed for 1second, it will reset to 0.

FEATURES OF YOUR HYUNDAI 1- 45
3. Drive Distance
HTB013B
o This mode indicates the estimated
distance to empty from the current fuel in the fuel tank and distance toempty symbol.
o When refueling with more than 6 liters, the trip computer will recog-nize refueling.
o When the battery has been rein-
stalled after being discharged ordisconnected, drive more than 28mile (32km) for an accurate distance to empty.
NOTE:
o If the distance to empty is indi- cated "---", have the trip com- puter system checked by yourauthorized Hyundai dealer.
o The distance to empty can differ from the actual tripmeter accord-ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehiclespeed. o This mode indicates the drive dis-
tance travelled since the last drivetime reset.
o Pressing the reset switch built in left side of speedmeter for more than 1 second, when the drive distance is being displayed, clears the drivedistance to zero.
HTB012B
1. Outside temperature This mode indicates the outside tem- perature between -40°F (-40°C) and167°F (75°C) .
2. Distance to empty
HTB011B

1- 46 FEATURES OF YOUR HYUNDAI
HTB014B
MPG = Total Cruise Distance(Miles) Total Fuel Consumption (G)
4. Average Consumption
o This mode indicates the average
consumption since the data reset.
o It displays per 10 seconds after you drive over 0.03 miles (50m) and 10 seconds.
o Calculation Method SB220A1-E MULTI FUNCTION SWITCH Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down. To signal an intention to turn left, theswitch lever should be pushed upwards.In both instances, the turn signal lightson one side of the car will flash and thewarning light located in the instrument cluster will flash in sympathy. Upon completion of the manoeuvre, the leverwill, under normal circumstances, re-turn to the "Off" position. However, ifthe manoeuvre involved only a small movement of the steering wheel, the signal may need to be cancelled manu-ally. If either turn signal indicator flashesmore rapidly than normal or refuses toflash at all, a malfunction of the turnsignal system may exist. SB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly towards thedirection of the relevant turn signal will cause the turn signal lights to flash. When the lever is released, it will returnto the "off" position.
HTB018-D
