Hyundai Getz 2002 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 47
HTB017-DHTB015-D
B340C01FC-EAT LIGHTING SWITCH
The vehicle sidelights and headlights are operated by rotating the end of theturn signal switch barrel. To operate the parking lights, rotating the switch to the first detent with ignition switch at the"OFF" position will cause the lights toilluminate. To operate the headlights,the turn signal switch barrel should berotated to the second detent. The head- lights will only operate when the ignition switch is at the "On" position. If theignition switch is turned to the "Off"position, only the parking lights willfunction. Parking light auto cut (Not all models) If you do not turn the parking lights "OFF" after driving, the parking light willautomatically shut "OFF" when thedriver's door is opened.To turn them "ON" again you must simply turn the ignition key to the "ON" position. SB220D1-E HIGH AND LOW BEAM To turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back (toward you). The appropriate headlightbeam indicator light will come on at thesame time.
SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pull- ing the turn signal switch lever towardsthe steering wheel. The headlights will be extinguished when the switch is released.

1- 48 FEATURES OF YOUR HYUNDAI
HTB019-D

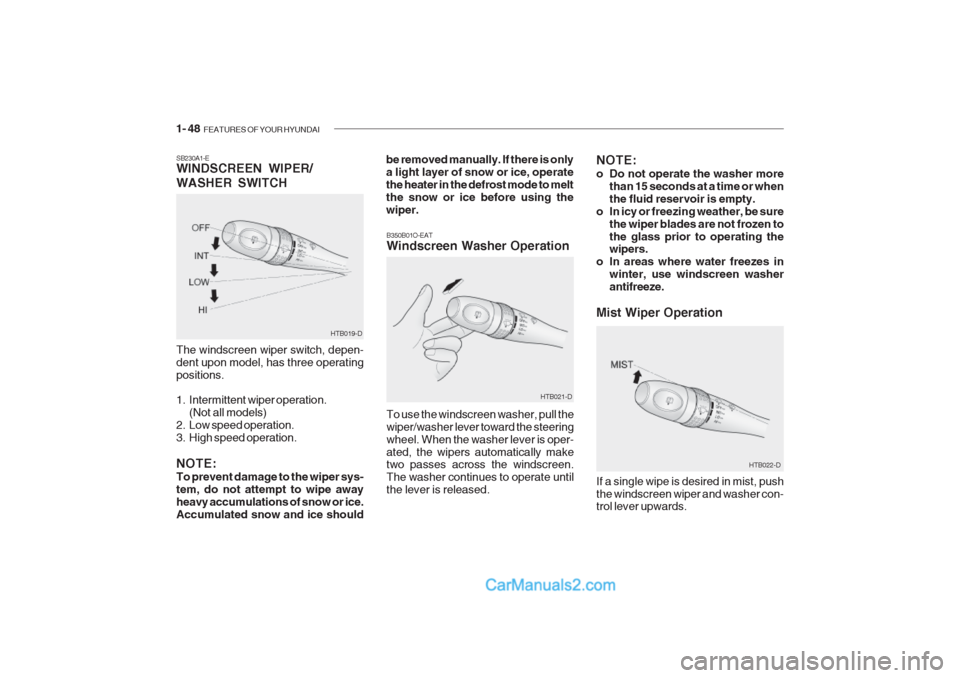

SB230A1-E WINDSCREEN WIPER/ WASHER SWITCH The windscreen wiper switch, depen- dent upon model, has three operatingpositions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation. NOTE: To prevent damage to the wiper sys- tem, do not attempt to wipe awayheavy accumulations of snow or ice.Accumulated snow and ice should be removed manually. If there is onlya light layer of snow or ice, operatethe heater in the defrost mode to meltthe snow or ice before using thewiper.
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating the wipers.
o In areas where water freezes in winter, use windscreen washer antifreeze.
Mist Wiper Operation
HTB022-D
To use the windscreen washer, pull the wiper/washer lever toward the steeringwheel. When the washer lever is oper-ated, the wipers automatically make two passes across the windscreen. The washer continues to operate untilthe lever is released.
B350B01O-EAT Windscreen Washer Operation
HTB021-DIf a single wipe is desired in mist, push the windscreen wiper and washer con- trol lever upwards.

FEATURES OF YOUR HYUNDAI 1- 49

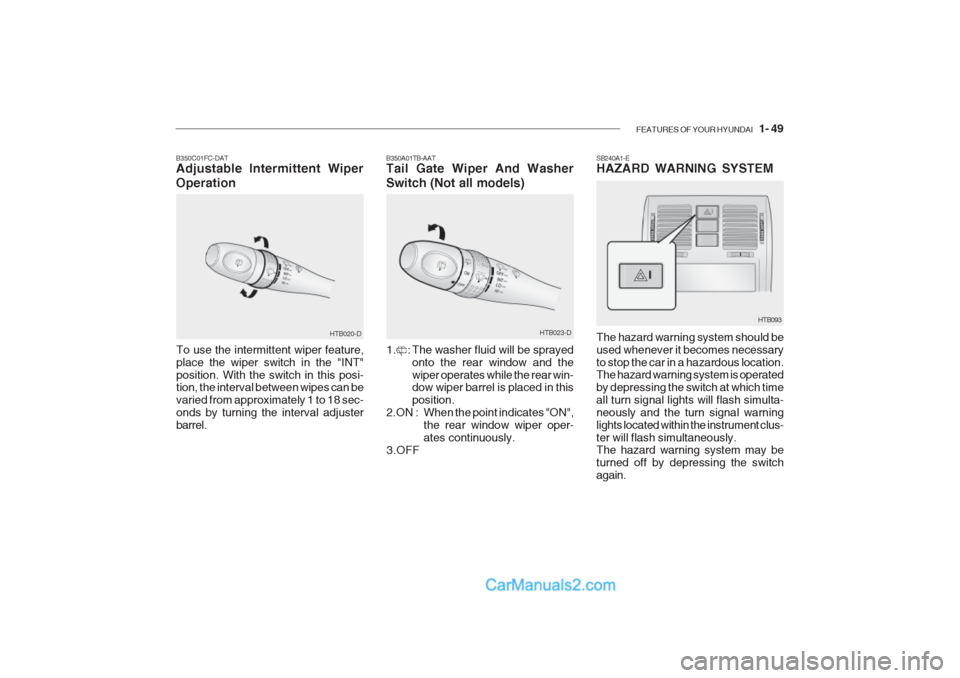

SB240A1-E HAZARD WARNING SYSTEM The hazard warning system should be used whenever it becomes necessaryto stop the car in a hazardous location. The hazard warning system is operated by depressing the switch at which timeall turn signal lights will flash simulta-neously and the turn signal warninglights located within the instrument clus-ter will flash simultaneously. The hazard warning system may be turned off by depressing the switchagain. HTB093B350A01TB-AAT Tail Gate Wiper And Washer Switch (Not all models)
HTB023-D
1. : The washer fluid will be sprayed onto the rear window and the wiper operates while the rear win- dow wiper barrel is placed in this position.
2.ON : When the point indicates "ON",
the rear window wiper oper-ates continuously.
3.OFFB350C01FC-DAT Adjustable Intermittent Wiper Operation
To use the intermittent wiper feature, place the wiper switch in the "INT"position. With the switch in this posi- tion, the interval between wipes can be varied from approximately 1 to 18 sec-onds by turning the interval adjusterbarrel. HTB020-D

1- 50 FEATURES OF YOUR HYUNDAI

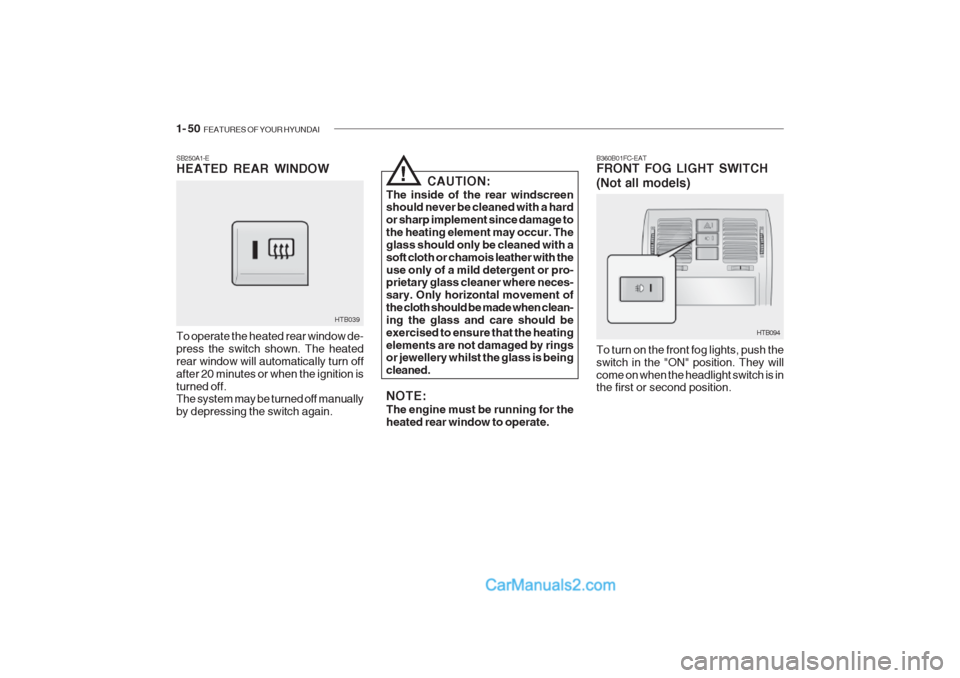

SB250A1-E HEATED REAR WINDOW To operate the heated rear window de- press the switch shown. The heatedrear window will automatically turn offafter 20 minutes or when the ignition isturned off. The system may be turned off manually by depressing the switch again. HTB039CAUTION:
The inside of the rear windscreen should never be cleaned with a hard or sharp implement since damage tothe heating element may occur. Theglass should only be cleaned with asoft cloth or chamois leather with theuse only of a mild detergent or pro- prietary glass cleaner where neces- sary. Only horizontal movement ofthe cloth should be made when clean-ing the glass and care should beexercised to ensure that the heatingelements are not damaged by rings or jewellery whilst the glass is being cleaned. NOTE: The engine must be running for the heated rear window to operate.
! B360B01FC-EAT FRONT FOG LIGHT SWITCH (Not all models)
HTB094
To turn on the front fog lights, push the switch in the "ON" position. They willcome on when the headlight switch is in the first or second position.

FEATURES OF YOUR HYUNDAI 1- 51
SB290A02-F CIGAR LIGHTER For the cigar lighter to work, the key must be in the "ACC" or the "ON" position. To use the cigar lighter, push the lighterall the way into its socket. When theelement is heated, the lighter will popout into the "ready" position.Do not hold the cigar lighter at the depressed position which may result in damage to the vehicle wiring or anelectrical fire.
HTB097
B400A01TB-AAT DIGITAL CLOCK
HTB095
There is a digital clock control button built-in right side of the speedometer.Its functions are: o Reset : Push the button for more than
1 second.
o Min/Hour Adjustment: Turn to "H"
for 0.5 second to advance the hour indicated. Turn to "M" for 0.5 sec- ond to advance the minute indi- cated.
o Auto mode: Turn to the right or left
side for more than 1 second to ad-vance fastly. CAUTION:
Don't turn the switch excessively toprevent switch damage.
!
B360A01Y-GAT REAR FOG LIGHT SWITCH
To turn on the rear fog lights, push the switch. They will come on when theheadlight switch is in the second posi-tion and the key is in the "ON" position. HTB096

1- 52 FEATURES OF YOUR HYUNDAI

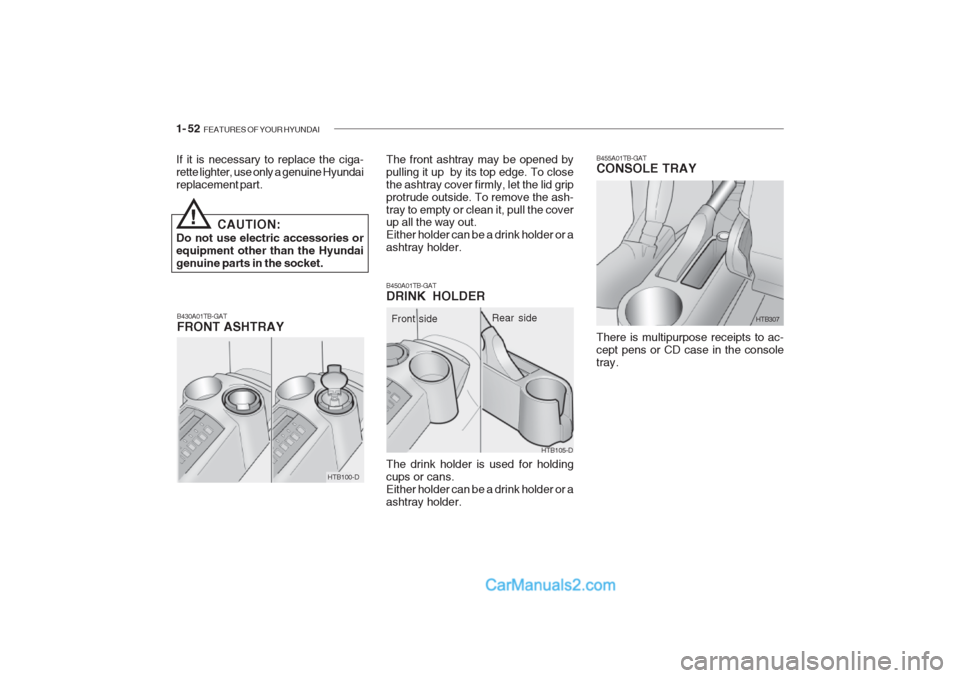

B430A01TB-GAT FRONT ASHTRAY
!
If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundaireplacement part.
CAUTION:
Do not use electric accessories orequipment other than the Hyundaigenuine parts in the socket.
HTB100-D The front ashtray may be opened by pulling it up by its top edge. To closethe ashtray cover firmly, let the lid gripprotrude outside. To remove the ash-tray to empty or clean it, pull the cover up all the way out. Either holder can be a drink holder or aashtray holder.
Front side
B450A01TB-GAT DRINK HOLDER The drink holder is used for holding cups or cans.Either holder can be a drink holder or aashtray holder. HTB105-D
Rear side B455A01TB-GAT CONSOLE TRAY There is multipurpose receipts to ac- cept pens or CD case in the consoletray.
HTB307

FEATURES OF YOUR HYUNDAI 1- 53
B460A01Y-AAT SUNROOF (Not all models) Sun Shade Your HYUNDAI is equipped with a sliding sunshade which you can manu-ally adjust to let in light with the sunroof closed, or to block sunlight.
Loading condition Switch
position
Driver only Driver + front passenger Full passengers(including driver)Full passengers(including driver) + full trunkloading (or light trailer loading) Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while driving.!

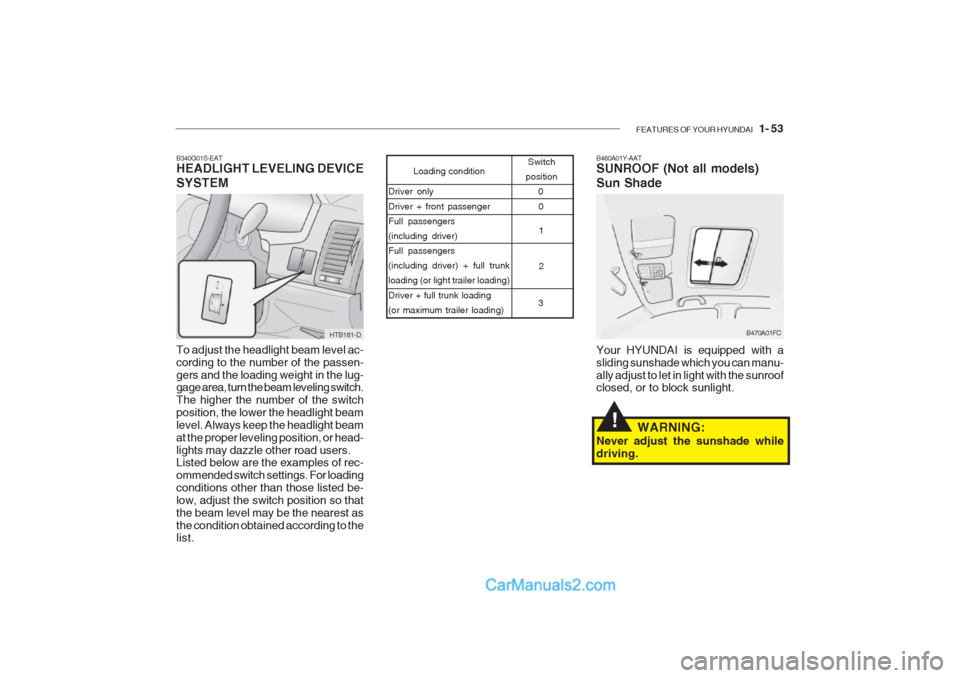

B340G01S-EAT HEADLIGHT LEVELING DEVICE SYSTEM To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beamlevel. Always keep the headlight beamat the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of rec- ommended switch settings. For loadingconditions other than those listed be-low, adjust the switch position so thatthe beam level may be the nearest asthe condition obtained according to the list. HTB181-D

1- 54 FEATURES OF YOUR HYUNDAI

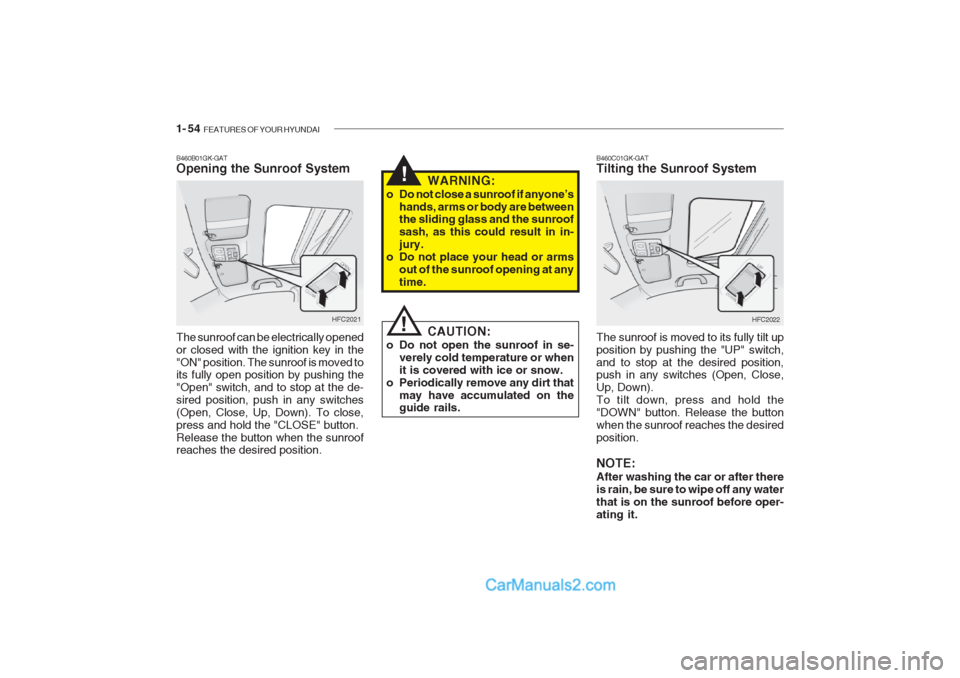

B460B01GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the"ON" position. The sunroof is moved to its fully open position by pushing the "Open" switch, and to stop at the de-sired position, push in any switches(Open, Close, Up, Down). To close,press and hold the "CLOSE" button.Release the button when the sunroof reaches the desired position. HFC2021
HFC2022
B460C01GK-GAT Tilting the Sunroof System The sunroof is moved to its fully tilt up position by pushing the "UP" switch,and to stop at the desired position, push in any switches (Open, Close, Up, Down).To tilt down, press and hold the"DOWN" button. Release the buttonwhen the sunroof reaches the desiredposition. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper-ating it.
WARNING:
o Do not close a sunroof if anyone’s hands, arms or body are between the sliding glass and the sunroof sash, as this could result in in-jury.
o Do not place your head or arms
out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or whenit is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on the guide rails.
!
!

FEATURES OF YOUR HYUNDAI 1- 55
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found inthe vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close the sunroof. HGK033B460E01TB-GAT Resetting the Sunroof System If the battery has been recharged, disconnected, if the sunroof is oper-ated with the hexagonal head wrenchmanually, or if the sunroof operation isstopped by that ignition key is turned tothe "OFF" position while it is moving, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/down automatically once for all.
! CAUTION:
If the sunroof is not reset, it may not be operated properly.
B460D01TB-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screwdriver.

1- 56 FEATURES OF YOUR HYUNDAI
With Sunroof

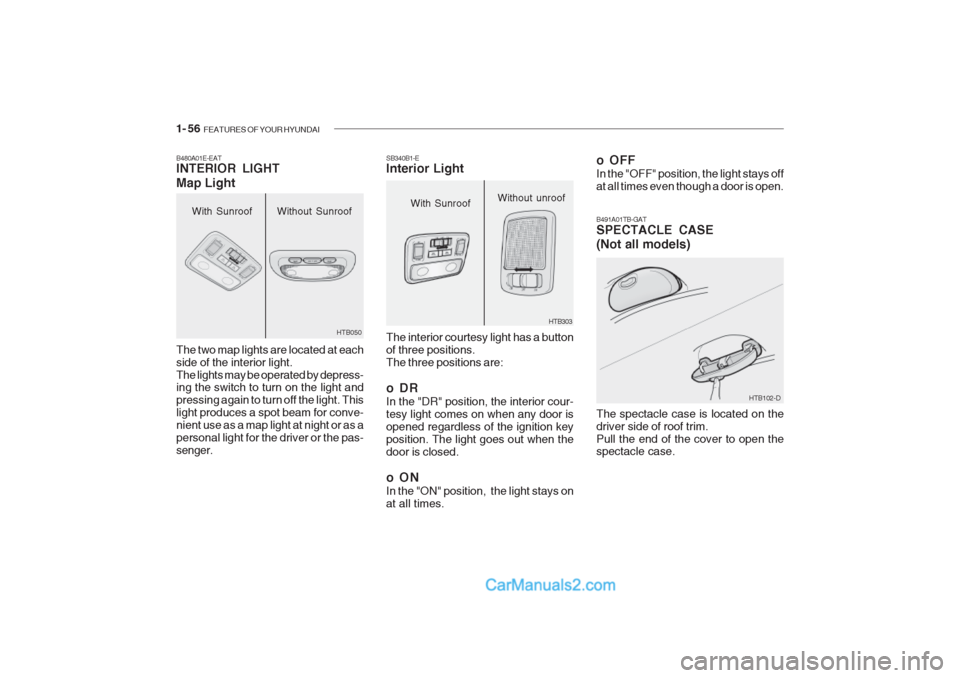

B480A01E-EAT INTERIOR LIGHT Map Light The two map lights are located at each side of the interior light.The lights may be operated by depress- ing the switch to turn on the light and pressing again to turn off the light. Thislight produces a spot beam for conve-nient use as a map light at night or as apersonal light for the driver or the pas-senger.Without Sunroof
HTB050
HTB102-D
B491A01TB-GAT SPECTACLE CASE (Not all models) The spectacle case is located on the driver side of roof trim.Pull the end of the cover to open the spectacle case.
HTB303
With Sunroof
Without unroof
SB340B1-E Interior Light The interior courtesy light has a button of three positions.The three positions are:
oDR In the "DR" position, the interior cour- tesy light comes on when any door isopened regardless of the ignition keyposition. The light goes out when thedoor is closed.
oON In the "ON" position, the light stays on at all times. o OFF In the "OFF" position, the light stays off at all times even though a door is open.
