Hyundai Getz 2003 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 61
!
SB440A2-E REMOTE FUEL FILLER LID RELEASE (Not all models) The fuel filler lid may be opened from inside the vehicle by pulling up on the fuel filler lid release.
HTB115-D
Before closing the bonnet, return the support rod to its clip to prevent it from rattling. Lower the bonnet until it isabout 30 cm (1 ft.) above the closed position and let it drop. Make sure that it locks into place.
HTB288
3. Pull the support rod from the bonnet.
HTB308
CAUTION:
Make sure that the support rod has been released prior to closing the bonnet.
4. Hold the bonnet open with the sup- port rod. WARNING:
o Always double check to be sure that the bonnet is firmly latchedbefore driving away. If it is not latched, the bonnet could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an accident.
o The support rod must be inserted completely into the hole providedin the bonnet whenever you in-spect the engine compartment. This will prevent the bonnet from falling and possibly injuring you. o Do not move the vehicle with the
bonnet in the raised position, as vision is obstructed and the bon- net could fall or be damaged.
!

1- 62 FEATURES OF YOUR HYUNDAI
!!
NOTE: If the fuel filler lid will not open because ice has formed around it, tap lightly or push on the lid to breakthe ice and release the lid. Do not lever the flap. If necessary, spray around the lid with an approved de-icer fluid (do not use radiator anti- freeze) or move the vehicle to a warm place and allow the ice to melt.
B540A01FC-GAT TAIL GATE
HTB067WARNING:
The tail gate should always be kept completely closed while the vehicleis in motion. If it is left open or ajar, poisonous exhaust gases may en- ter the car resulting in serious ill-ness or death to the occupants. See additional warnings concerning ex- haust gases on page 2-2.
HTB068 WARNING:
Fuel vapours are dangerous. Beforerefuelling, turn off the engine andnever allow sparks, lit cigarettes or open flames near the filler area. When releasing the filler cap, a smallamount of residual pressure may generate a slight hissing sound which
is not indicative of an abnormality. In the event of the fuel filler cap requir- ing replacement, only a Genuine Hyundai replacement part should beused to prevent fuel leakage. o The tail gate can be locked or un-
locked with a key.
o The tail gate is opened by pulling the
outside handle up, raising the tailgate manually.
o To close, lower the tail gate, then
press down on it until it is closed. Tobe sure the tail gate is fully closed, always try to pull it up again without using the outside handle.

FEATURES OF YOUR HYUNDAI 1- 63
B540B01TB-GAT

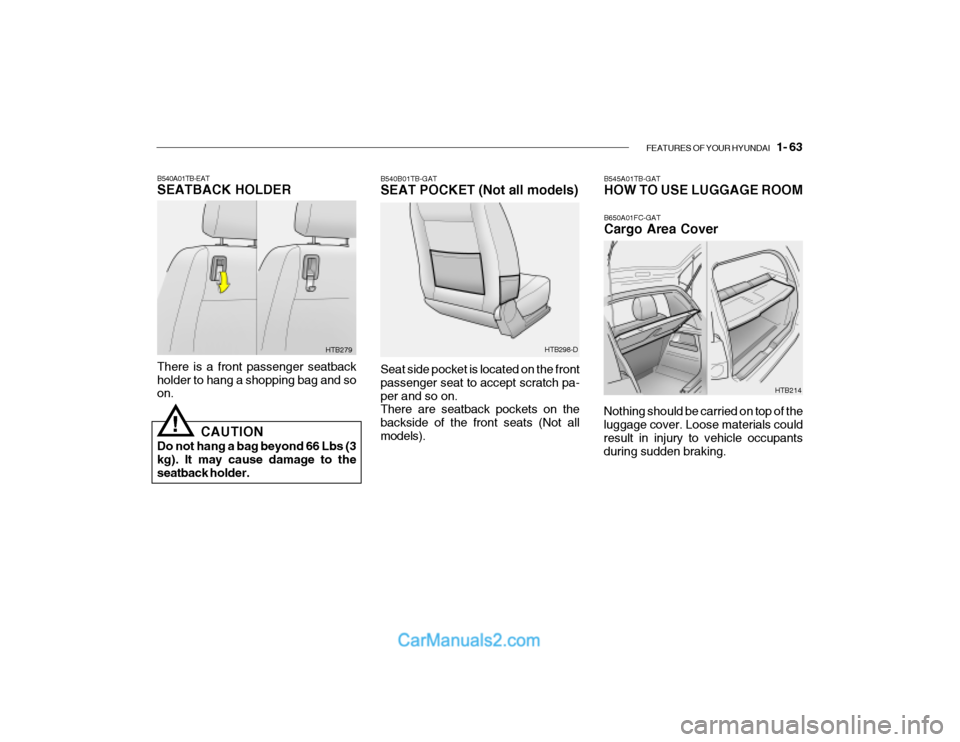

SEAT POCKET (Not all models)
HTB214
Seat side pocket is located on the front passenger seat to accept scratch pa-per and so on. There are seatback pockets on the backside of the front seats (Not allmodels). HTB298-DB545A01TB-GAT HOW TO USE LUGGAGE ROOM B650A01FC-GAT Cargo Area Cover
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupantsduring sudden braking.
There is a front passenger seatback holder to hang a shopping bag and so on. HTB279
B540A01TB-EAT SEATBACK HOLDER
!
CAUTION
Do not hang a bag beyond 66 Lbs (3 kg). It may cause damage to the seatback holder.

1- 64 FEATURES OF YOUR HYUNDAI

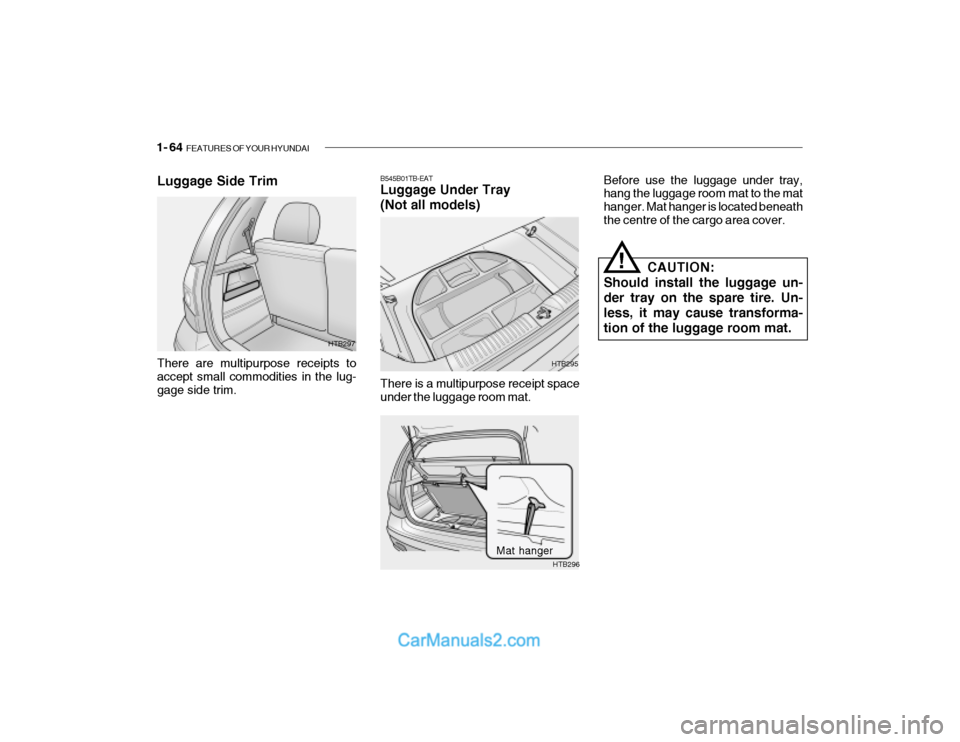

B545B01TB-EAT Luggage Under Tray (Not all models) There is a multipurpose receipt space under the luggage room mat. HTB295Before use the luggage under tray, hang the luggage room mat to the mat hanger. Mat hanger is located beneaththe centre of the cargo area cover.
HTB296
Mat hanger CAUTION:
Should install the luggage un- der tray on the spare tire. Un- less, it may cause transforma- tion of the luggage room mat.
!
Luggage Side Trim
HTB297
There are multipurpose receipts to accept small commodities in the lug- gage side trim.

FEATURES OF YOUR HYUNDAI 1- 65
!

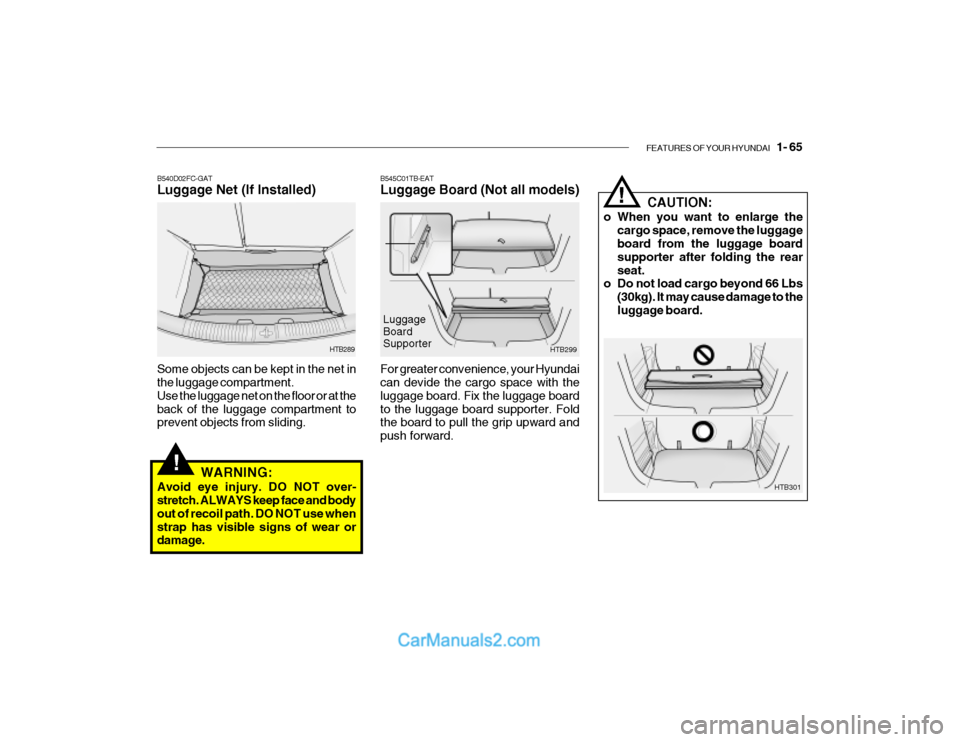

B545C01TB-EAT Luggage Board (Not all models)
HTB299
For greater convenience, your Hyundai can devide the cargo space with the luggage board. Fix the luggage boardto the luggage board supporter. Fold the board to pull the grip upward and push forward. CAUTION:
o When you want to enlarge the cargo space, remove the luggage board from the luggage board supporter after folding the rearseat.
o Do not load cargo beyond 66 Lbs
(30kg). It may cause damage to theluggage board.
HTB301
!
Luggage Board Supporter
B540D02FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or at theback of the luggage compartment to prevent objects from sliding.
HTB289
WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face and body out of recoil path. DO NOT use whenstrap has visible signs of wear or damage.

1- 66 FEATURES OF YOUR HYUNDAI
!
B560B01O-EAT AUTO FUEL CUT SWITCH (Petrol Engine) The auto fuel cut switch is located on the driver's side of the engine compartment. In the event of a collision or suddenimpact, the auto fuel cut device cuts off the fuel supply. If this device is acti- vated, it must be reset by pressing inon the top of the switch before the engine can be restarted. HTB304
WARNING:
Before resetting the auto fuel cut switch, the fuel line should bechecked for fuel leaks.
HTB098-D
B580A01TB-GAT SUN VISOR
HTB148-D
A Type
B Type
o To use the luggage board with
unfolding, fix it in the luggage board supporter. There will be an audible "Click" when the luggage board fixes in the supporter.
o The luggage board can be thrown out in the event of a sudden stopor an accident. Unfold the lug-gage board stablely to prevent cargo damage.
HTB302

FEATURES OF YOUR HYUNDAI 1- 67
!
!
B610B01A-DAT HORN
Press the centre hub of the steering wheel to sound the horn. HTB110SB520A1-F STEERING WHEEL TILT LEVER To adjust the steering wheel:
HTB085
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward
WARNING:
Do not attempt to adjust the steering wheel while driving as this may re- sult in loss of control of the vehicle and result in death or serious injury.
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or side ward shade.The sun visors are fitted on both sides on all models. To reduce glare or to shut out direct rays of the sun, turn thesun visor down to block the annoy- ance. A ticket holder is provided on the back of the sun visor for the driver.Vanity mirrors are provided on the back of the sunvisor for the driver and the front passenger (If installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on the front of each sun visor.
WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other ob-jects.

1- 68 FEATURES OF YOUR HYUNDAI
B710A01TB-EAT

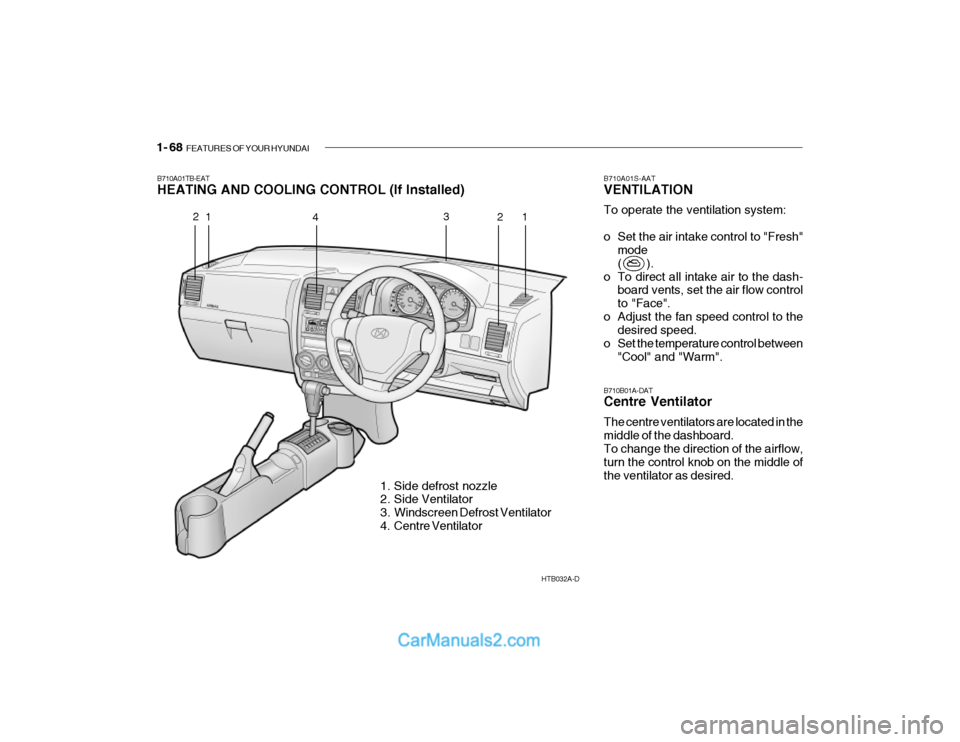

HEATING AND COOLING CONTROL (If Installed)
1. Side defrost nozzle
2. Side Ventilator
3. Windscreen Defrost Ventilator
4. Centre Ventilator B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh"
mode
( ).
o To direct all intake air to the dash- board vents, set the air flow controlto "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HTB032A-D
1
2
3
4 1
2
B710B01A-DAT Centre Ventilator The centre ventilators are located in the middle of the dashboard. To change the direction of the airflow, turn the control knob on the middle ofthe ventilator as desired.

FEATURES OF YOUR HYUNDAI 1- 69
HTB033A-D
1
23
4 HTB034

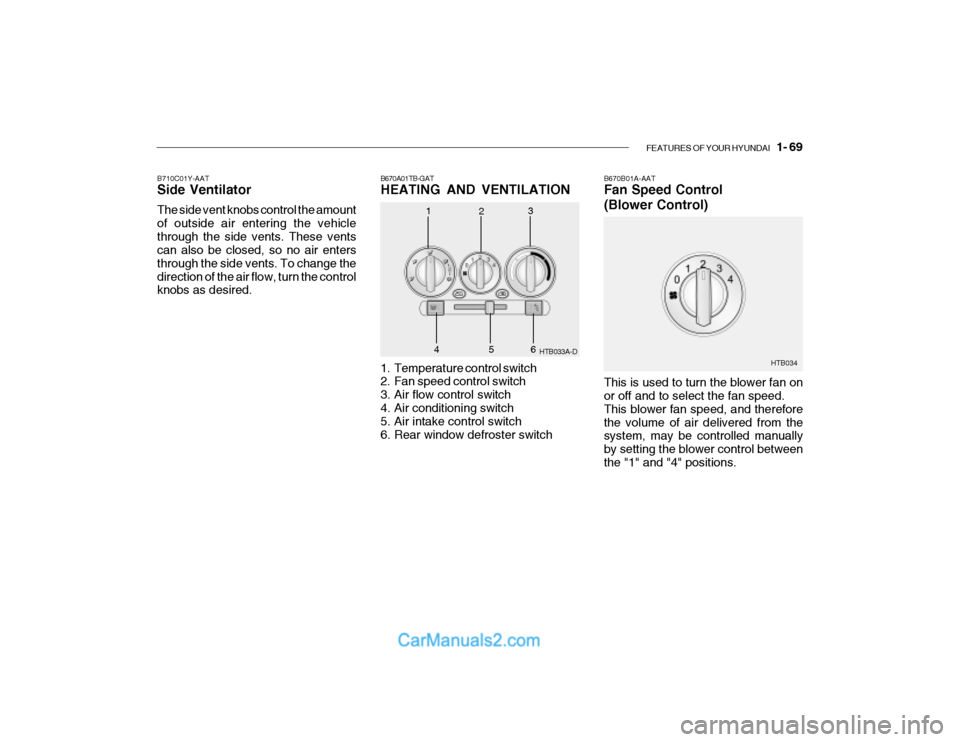

B670A01TB-GAT HEATING AND VENTILATION
1. Temperature control switch
2. Fan speed control switch
3. Air flow control switch
4. Air conditioning switch
5. Air intake control switch
6. Rear window defroster switch B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe "1" and "4" positions.
B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehiclethrough the side vents. These vents can also be closed, so no air enters through the side vents. To change thedirection of the air flow, turn the control knobs as desired.
56

1- 70 FEATURES OF YOUR HYUNDAI

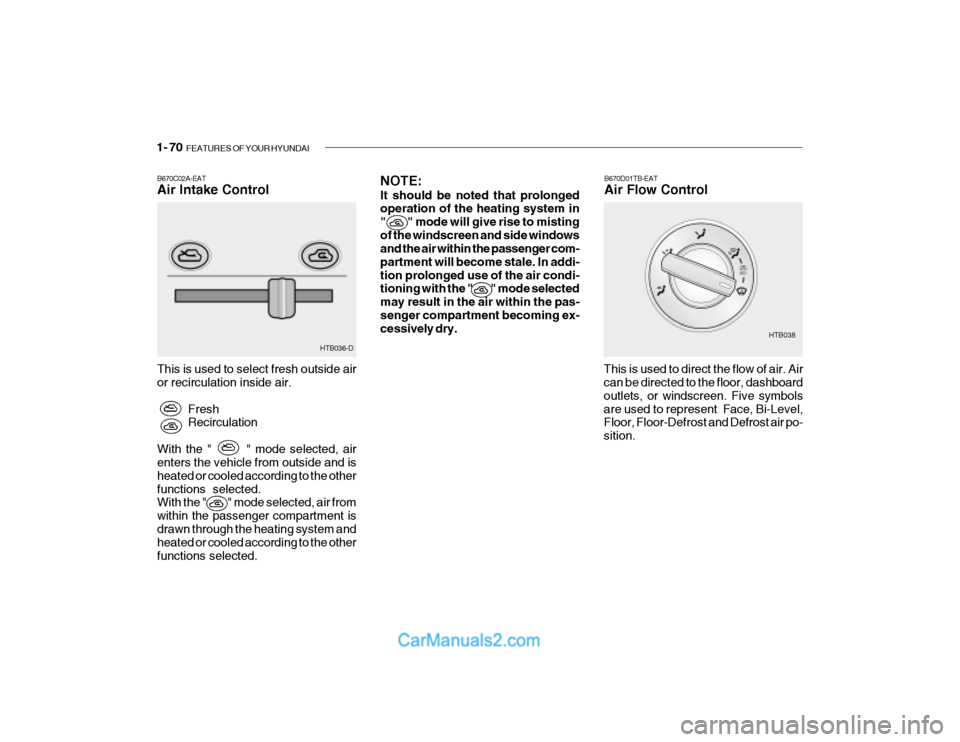

B670C02A-EAT Air Intake Control This is used to select fresh outside air or recirculation inside air.
FreshRecirculation
With the " " mode selected, airenters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the " " mode selected, air from within the passenger compartment isdrawn through the heating system and heated or cooled according to the other functions selected. HTB036-D
NOTE: It should be noted that prolonged operation of the heating system in " " mode will give rise to mistingof the windscreen and side windows and the air within the passenger com- partment will become stale. In addi-tion prolonged use of the air condi- tioning with the " " mode selected may result in the air within the pas-senger compartment becoming ex- cessively dry.B670D01TB-EAT Air Flow Control
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air po- sition. HTB038
