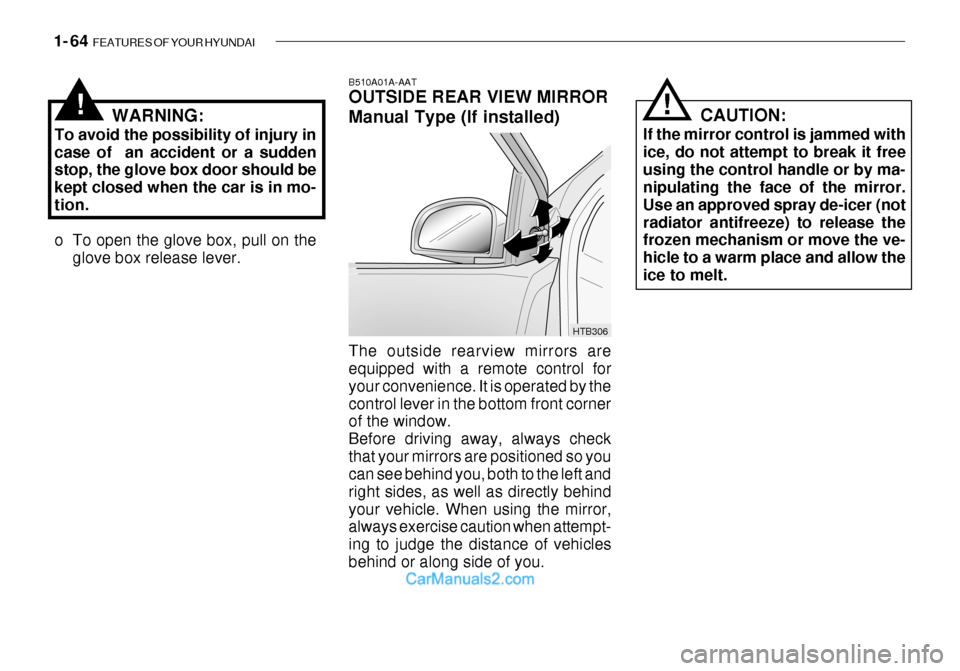

1- 64 FEATURES OF YOUR HYUNDAI
WARNING:
To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in mo-tion.
o To open the glove box, pull on the glove box release lever.!
B510A01A-AAT OUTSIDE REAR VIEW MIRROR Manual Type (If installed) The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by thecontrol lever in the bottom front corner of the window. Before driving away, always checkthat your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behindyour vehicle. When using the mirror, always exercise caution when attempt- ing to judge the distance of vehiclesbehind or along side of you. HTB306
CAUTION:
If the mirror control is jammed withice, do not attempt to break it freeusing the control handle or by ma- nipulating the face of the mirror. Use an approved spray de-icer (notradiator antifreeze) to release the frozen mechanism or move the ve- hicle to a warm place and allow theice to melt.
!

FEATURES OF YOUR HYUNDAI 1- 65
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Now, adjust mirror angle by de-
pressing the appropriate perimeterswitch as illustrated.
HTB213CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge,soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rear view mirror. It is a convex mirror with a curvedsurface. Any objects seen in this mirror are closer than they appear.
!
!
B510B01FC-GAT Electric Type (If installed) The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both right and left outside mirrors. HTB104

1- 66 FEATURES OF YOUR HYUNDAI
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tabat the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is re-duced. HTB103B510D01HP-AAT OUTSIDE REARVIEW MIRROR
HEATER (If Installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outsiderearview mirror glass, push in the switch for the rear window defroster. The rearview mirror glass will be heated fordefrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switchagain to turn the heater off. The out- side rearview mirror heater automati- cally turns itself off after 20 minutes. B510C01A-AAT FOLDING THE OUTSIDE REAR- VIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can befolded rearward for parking in narrow areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outsiderearview mirrors while the vehicle is moving. This could result in lossof control, and an accident which could cause death, serious injury or property damage.
!

10- 4 INDEX
H
Hazard Warning System ........................................... 1-56
Headlight Aiming Adjustment .................................... 6-31
Headlight Leveling Device System ........................... 1-59
Heating and cooling control ...................................... 1-75
Heating and Ventilation ............................................. 1-76
Air flow control ....................................................... 1-77
Air intake control .................................................... 1-77
Bi-level heating ....................................................... 1-80
Fan speed control .................................................. 1-76
Temperature control ............................................... 1-79
High-Mounted Rear Stop Light ................................. 1-67
Hood Release ........................................................... 1-67
How to use luggage room ........................................ 1-70
Horn .......................................................................... 1-74 I
Ignition Switch ............................................................. 2-3
Immobilizer System ..................................................... 1-5
Instrument Cluster and Indicator .............................. 1-41 I Interior Light
Interior light ............................................................ 1-63
Map light ................................................................ 1-62
Intermittent Wiper ..................................................... 1-55 J
Jump Starting .............................................................. 3-3 K
Key .............................................................................. 1-4
If you lose your keys ............................................. 3-14
Positions ................................................................... 2-4
L
Lubrication Chart ......................................................... 9-4
Luggage Net ............................................................. 1-72
Luggage Board .......................................................... 1-72
Luggage Under Tray ................................................. 1-71 M Maintenance Intervals Explanation of scheduled maintenance items
................................................................................. 5-8
Maintenance under severe usage conditions .......... 5-7
Scheduled maintenance ........................................... 5-4
Service requirements ............................................... 5-2
Mirrors Day-night inside rearview ....................................... 1-66
Outside rearview mirror heater .............................. 1-66
O
Odometer .................................................................. 1-50
Outside rear view ...................................................... 1-64

FEATURES OF YOUR HYUNDAI 1- 57
!!WARNING:
To avoid the possibility of injury, the glove box lid must be kept closedwhilst the vehicle is in motion.
o To open the glove box, pull the glove box release lever.
YB270A2-A OUTSIDE REAR VIEW MIRROR Manual Type (Not all models) The outside rear view mirrors are equipped with a remote control for your convenience. It is operated by the con-trol lever in the bottom front corner of the window. Before driving away, always check thatyour mirrors are positioned so you can see directly behind you. When using the mirror, always exercise caution whenattempting to judge the distance of vehicles behind you.
HTB306
B500A01A-EAT GLOVE BOX
HTB101-D
WARNING:
Do not keep objects such as sharp or unsuitable things inside the spec-tacle case. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injur-ing the passengers in the vehicle.
CAUTION:
If the mirror control is jammed withice, do not attempt to break it free using the control handle or by ma- nipulating the face of the mirror. Usean approved spray de-icer (not radia- tor antifreeze) to release the frozen mechanism or move the vehicle to awarm place and allow the ice to melt.
!

1- 58 FEATURES OF YOUR HYUNDAI
To adjust the position of either mirror:
1. Move the selecting switch to the "L"
(or "R") position to activate the ad- justable mechanism for the adjust-ing door mirror.
2. Now, adjust mirror angle by depress-
ing the appropriate perimeter switchas illustrated.
HTB213CAUTION:
o Do not leave the switch on for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To remove any ice, use a sponge, soft cloth or approved deicer.
o Be careful when judging the size or distance of any object seen inthe passenger side rear view mir-ror. It is a convex mirror with a curved surface, any objects seen in this mirror are closer than theyappear.
!
B510B01FC-EAT OUTSIDE REAR VIEW MIRROR Electric Type (Not all models)
The outside rear view mirror can be adjusted in any direction to give the maximum rear view vision. The remote control outside rear viewmirror switch controls the adjustments for passenger side door mirror. HTB104-D

FEATURES OF YOUR HYUNDAI 1- 59
!
SB370A1-E INTERIOR REAR VIEW MIRROR The interior mirror is of the day/night type to enable the glare of headlights from following vehicles to be eliminatedduring night time driving. The tab located at the bottom of the mirror should be set to the positionnearest the windscreen for normal day time driving, and flipped towards the rear of the vehicle to eliminate glareduring night time driving. To adjust the field of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle inmotion. HTB103B510D01HP-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outsiderearview mirror glass, push in the switch for the rear window defroster. The rear- view mirror glass will be heated fordefrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switchagain to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes. SB360C1-F FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can befolded rearward for parking in restricted areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outside rear view mirrors while the vehicle ismoving. This could result in loss of control, and an accident causing death, serious injury or propertydamage.

INDEX 10- 3
ENGINE OIL REPLENISHMENT ................................ 6-8
ENGINE OI L ............................................................... 6-6
F FRONT ASHTRAY .................................................... 1-52
FRONT SEAT ........................................................... 1-11
FRONT FOG LIGHT SWITCH .................................. 1-50
FUEL ECONOMY ....................................................... 2-7
FUEL GAUGE ........................................................... 1-41
FUEL RECOMMENDATIONS ..................................... 1-1
FUSE PANEL DESCRIPTION ..................................6-34
FUSIBLE LINKS ........................................................ 6-24
GGLOVE BOX ............................................................. 1-57
HHAZARD WARNI NG SYSTEM................................. 1-49
HEADLIGHT AIMING ADJUSTEM ENT ....................6-27
HEADLIGHT BULB ................................................... 6-28
HEADLIGHT LEVELING DEVICE SYSTEM .............1-53
HEAD RESTRAINT ADJ USTMENT .......................... 1-12
HEATED REAR WINDOW .............. .......................... 1-50
HEATING AND COOLING CONTROL .....................1-68
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT ................................................ 1-18
HORN ........................................................................ 1-67
HOW TO USE LUGGAGE ROOM ............................1-63I
IF THE ENGINE CANNOT BE CRANKED
................. 3-2
IF THE ENGINE OVERHEATS ................................... 3-4
IF THE ENGINE WILL NOT START ........................... 3-2
IF THE EVENT OF A PUNCTURE ............................. 3-6
IMMOBILISER SYSTEM ............................................. 1-4
INDIVIDUAL CIRCUIT FUSES .................................6-24
INSTRUMENT CLUSTER AND INDICATORS.........1-35
INTERIOR LIGHT ..................................................... 1-56
INTERIOR REAR VIEW MIRROR ............................ 1-59
JJUMP STARTING ....................................................... 3-3
KKEY POSITI ONS ........................................................ 2-3
LLIGHTING SW ITCH .................................................. 1-47
LUGGAGE BOARD ................................................... 1-65
LUGGAGE NET ........................................................ 1-65
LUGGAGE ROOM .................................................... 1-63
LUGGAGE UNDER TRAY .... .................................... 1-64
LUMBAR SUPPORT ADJUSTMENT ........................1-12

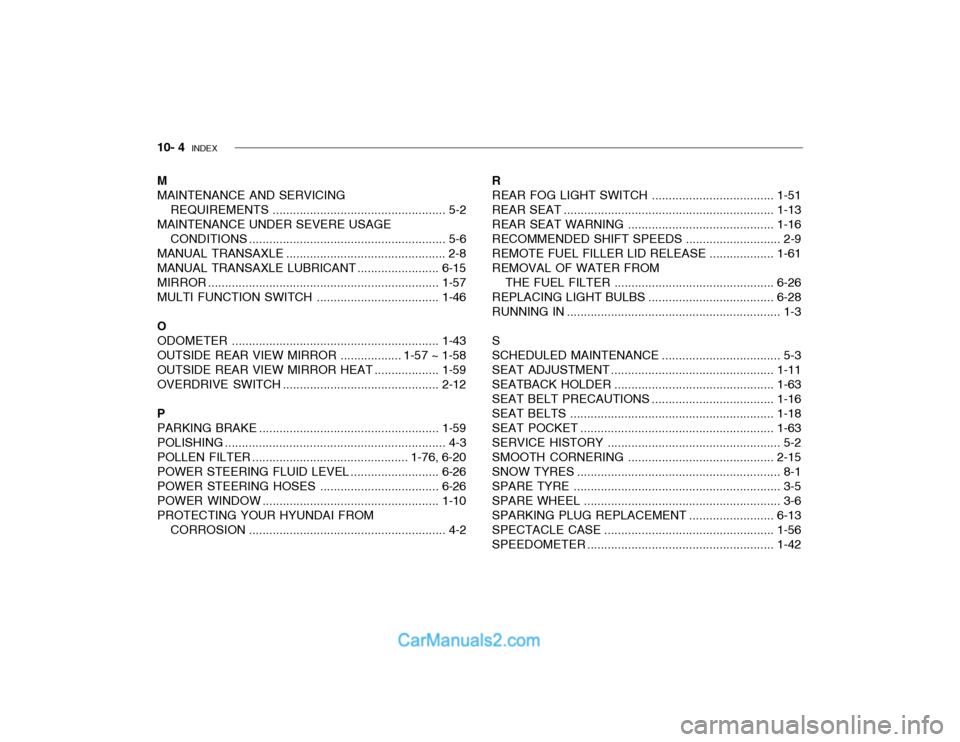

10- 4 INDEX
M MAINTENANCE AND SERVICING
REQUIREMENTS ................................................... 5-2
MAINTENANCE UNDER SEVERE USAGE CONDITIONS .......................................................... 5-6
MANUAL TRANSAXLE ............................................... 2-8
MANUAL TRANSAXLE LUBRICANT ........................6-15
MIRROR .................................................................... 1-57
MULTI FUNCTION SWITCH ....................................1-46
OODOMETER ............................................................. 1-43
OUTSIDE REAR VIEW MIRROR .................. 1-57 ~ 1-58
OUTSIDE REAR VIEW MIRROR HEAT ...................1-59
OVERDRIVE SWI TCH .............................................. 2-12
PPARKING BRAKE ..................................................... 1-59
POLISHING ................................................................. 4-3POLLEN FILTER .............................................. 1-76, 6-20
POWER STEERING FLUID LEVEL ..........................6-26
POWER STEERING HOSES ...................................6-26
POWER W INDOW .................................................... 1-10
PROTECTING YOUR HYUNDAI FROM CORROSION .......................................................... 4-2 RREAR FOG LIGHT
SWITCH .................................... 1-51
REAR SEAT .............................................................. 1-13
REAR SEAT WARNING ........................................... 1-16
RECOMMENDED SHIFT SPEEDS ............................ 2-9
REMOTE FUEL FILLER LID RELEASE ...................1-61
REMOVAL OF WATER FROM THE FUEL FI LTER ............................................... 6-26
REPLACING LIGHT BULBS .....................................6-28
RUNNING IN ............................................................... 1-3
SSCHEDULED MAIN TENANCE................................... 5-3
SEAT ADJUSTMENT ................................................ 1-11
SEATBACK HOLDER ............................................... 1-63
SEAT BELT PRECA UTIONS.................................... 1-16
SEAT BELTS ............................................................ 1-18
SEAT POCKET ......................................................... 1-63
SERVICE HISTORY ................................................... 5-2
SMOOTH CORNERING ........................................... 2-15
SNOW TYRES ............................................................ 8-1
SPARE TYRE ............................................................. 3-5
SPARE WHEEL .......................................................... 3-6
SPARKING PLUG REPLACEMENT .........................6-13
SPECTACLE CASE .................................................. 1-56
SPEEDOMETER ....................................................... 1-42
