FEATURES OF YOUR HYUNDAI 1- 47
!
B260P02Y-EAT
ABS SERVICE REMINDER INDICATOR(SRI) (Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in aapproimately seconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key isturned to the "ON" position, this indi- cates that there may be a problem with the ABS.If this occurs, have your vehicle checked by your Hyundai authorised repairer as soon as possible. The nor-mal braking system will still be opera- tional, but without the assistance of the anti-lock brake system. SB210E1-E
OVERDRIVE OFF INDI CATORLIGHT(Not all models)
When the overdrive (4th gear) switch is turned off and the operation of overdrive (4th gear) is cancelled, the overdrivewarning light (O/D OFF) will be illumi- nated. When the switch is at the on position, the gearbox will operate in thenormal fully automatic mode and the warning light will be extinguished. B260D01A-AAT
Turn Signal Indicator Lights
The blinking green arrows on the instru- ment panel show the direction indicated by the turn signals. If the arrow comeson but does not blink, blinks more rapidly than normal, or does not illumi- nate at all, a malfunction in the turnsignal system is indicated. Your Hyundai authorised repairerer should be consulted for repairers.

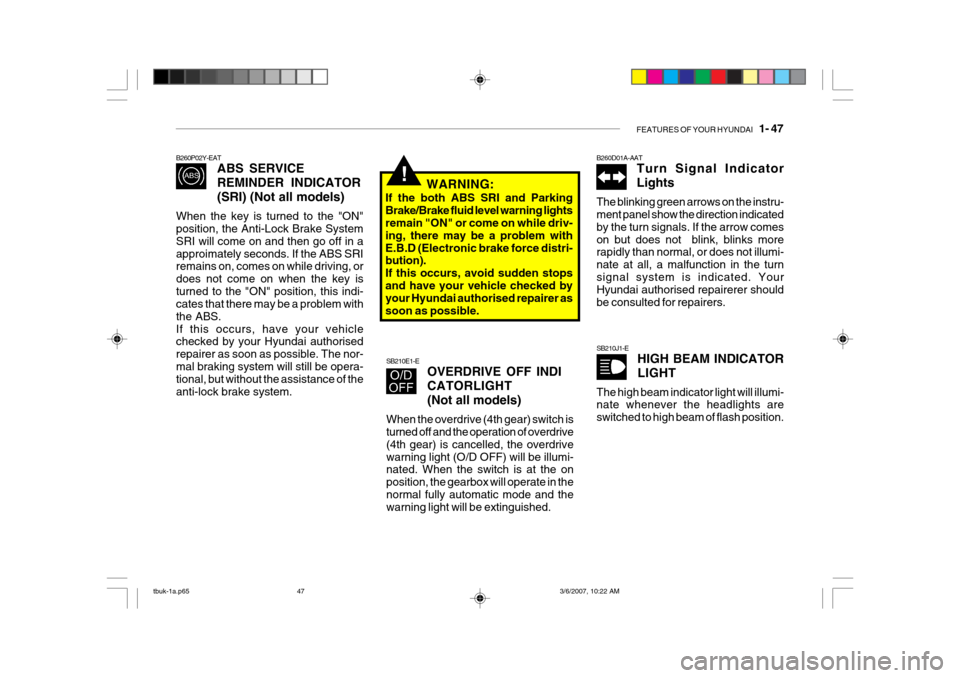

WARNING:
If the both ABS SRI and ParkingBrake/Brake fluid level warning lights remain "ON" or come on while driv- ing, there may be a problem withE.B.D (Electronic brake force distri- bution). If this occurs, avoid sudden stopsand have your vehicle checked by your Hyundai authorised repairer as soon as possible.
SB210J1-E HIGH BEAM INDICATOR LIGHT
The high beam indicator light will illumi- nate whenever the headlights are switched to high beam of flash position.
tbuk-1a.p65 3/6/2007, 10:22 AM
47
