6. Do-It-Yourself Maintenance
Engine compartment ........................................................................ 6-2
Daily operating checks ..................................................................... 6-5
Engine oil .......................................................................................... 6-6
Engine oil replenishment .................................................................. 6-8
Engine coolant Checking ................................................................. 6-9Changing the air cleaner filter ......................................................... 6-11
Windscreen Wiper Blades .............................................................. 6-12
Windscreen Washer Reservoir Replenishment ............................. 6-13
Manual Transaxle Lubricant........................................................... 6-14
Automatic Transaxle fluid ............................................................... 6-15
Brake System Checking ................................................................ 6-17
Air conditioning System .................................................................. 6-18
Drive belts ...................................................................................... 6-20
Individual Circuit Fuses .................................................................. 6-21
Power steering fluid level ............................................................... 6-23
Replacing Light Bulbs .................................................................... 6-25
Fuse panel description ................................................................... 6-31
6
tbuk-6.p65 3/6/2007, 10:26 AM
1

DO-IT-YOURSELF MAINTENANCE 6- 5
!
G020D01TG-EAT MAINTENANCE PRECAUTIONS Improper or incomplete service may result in problems. This section givesinstructions only for the maintenance items that are easy to perform. Several procedures should be done byan authorised Hyundai dealer. NOTE: Improper owner maintenance dur- ing the warranty period may affectwarranty coverage. WARNING:
o Performing maintenance work on a vehicle can be dangerous. You can be seriously injured while performing some maintenanceprocedures. If you lack sufficient knowledge and experience or the proper tools and equipment to dothe work, have it done by an authorised Hyundai dealer.
o Working under the hood with the engine running is dangerous. Itbecomes even more dangerous when you wear jewelry or looseclothing. These can become en- tangled in moving parts and result in injury. Therefore, if you mustrun the engine while working un- der the hood, make certain that you remove all jewelry (especiallyrings, bracelets, watches, and necklaces) and all neckties, scarves, and similar loose cloth-ing before getting near the engine or cooling fans.
SG020B1-E DAILY OPERATING CHECKS The following items should be checked on a daily basis or whenever the vehicleis refuelled, whichever occurs sooner.
o Engine oil level.
o Engine coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light-
ing equipment.
o Windscreen wiper and washer opera- tion.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and operation.
o Fluid leakage. The vehicle must not be driven if the daily operating checks indicate that any item of equipment related to thesafety or roadworthiness of the vehicle is not functioning correctly.
tbuk-6.p65 3/6/2007, 10:26 AM
5

6- 6 DO-IT-YOURSELF MAINTENANCE
NOTE: SAE 5W-20 (5W-30), ILSAC GF-3 en- gine oil is preferred regardless of regional option and engine varia-tion. If SAE 5W-20, ILSAC GF-3 en- gine oil is not available, secondary recommended engine oil for corre-sponding temperature range can be used.

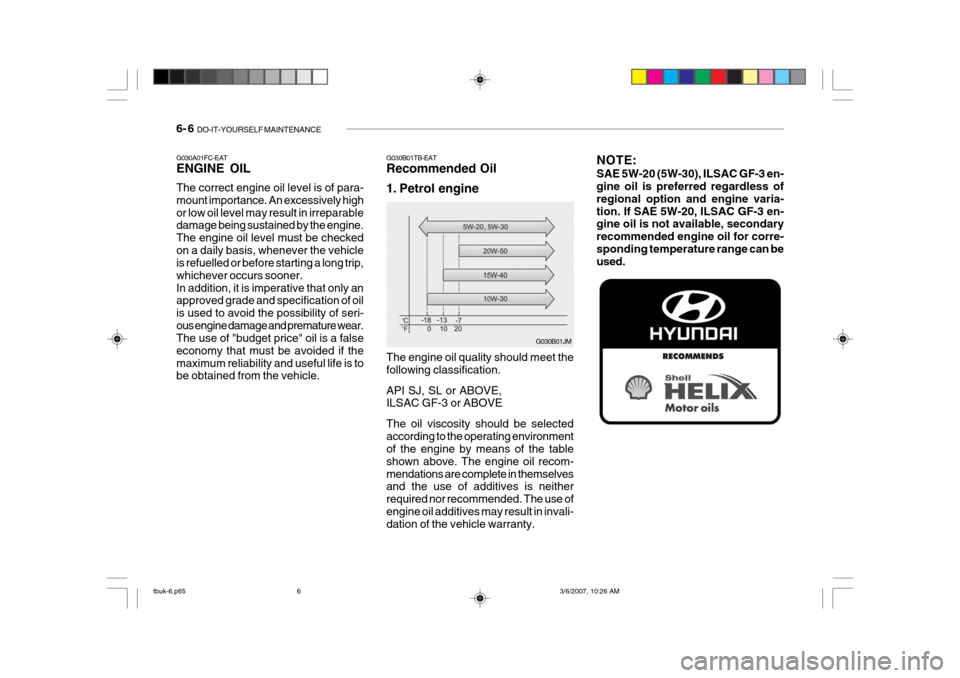

G030B01TB-EAT Recommended Oil
1. Petrol engine The engine oil quality should meet the following classification. API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE The oil viscosity should be selected according to the operating environment of the engine by means of the table shown above. The engine oil recom-mendations are complete in themselves and the use of additives is neither required nor recommended. The use ofengine oil additives may result in invali- dation of the vehicle warranty.
G030A01FC-EAT ENGINE OIL The correct engine oil level is of para- mount importance. An excessively highor low oil level may result in irreparable damage being sustained by the engine. The engine oil level must be checkedon a daily basis, whenever the vehicle is refuelled or before starting a long trip, whichever occurs sooner.In addition, it is imperative that only an approved grade and specification of oil is used to avoid the possibility of seri-ous engine damage and premature wear. The use of "budget price" oil is a false economy that must be avoided if themaximum reliability and useful life is to be obtained from the vehicle.
G030B01JM
tbuk-6.p65
3/6/2007, 10:26 AM
6

DO-IT-YOURSELF MAINTENANCE 6- 7
G030B01TB

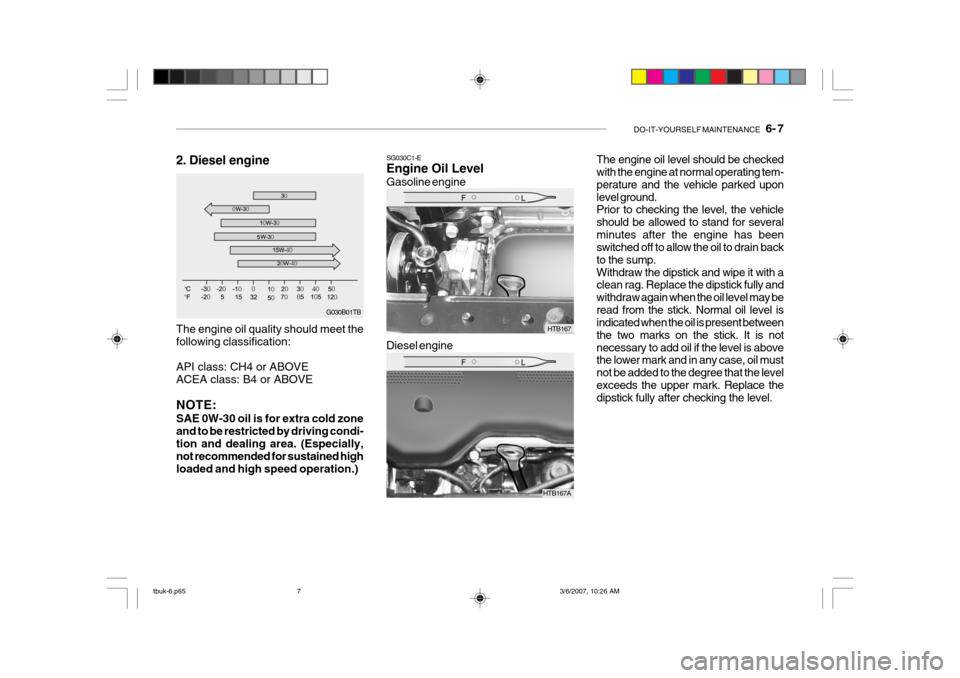

The engine oil quality should meet the following classification: API class: CH4 or ABOVE ACEA class: B4 or ABOVE NOTE: SAE 0W-30 oil is for extra cold zone and to be restricted by driving condi- tion and dealing area. (Especially, not recommended for sustained highloaded and high speed operation.) SG030C1-E Engine Oil Level Gasoline engine
Diesel engine
The engine oil level should be checked with the engine at normal operating tem- perature and the vehicle parked uponlevel ground. Prior to checking the level, the vehicle should be allowed to stand for severalminutes after the engine has been switched off to allow the oil to drain back to the sump.Withdraw the dipstick and wipe it with a clean rag. Replace the dipstick fully and withdraw again when the oil level may beread from the stick. Normal oil level is indicated when the oil is present between the two marks on the stick. It is notnecessary to add oil if the level is above the lower mark and in any case, oil must not be added to the degree that the levelexceeds the upper mark. Replace the dipstick fully after checking the level.
2. Diesel engine
HTB167
HTB167A
tbuk-6.p65
3/6/2007, 10:26 AM
7

6- 8 DO-IT-YOURSELF MAINTENANCE
Petrol engine
HTB169
Diesel engine

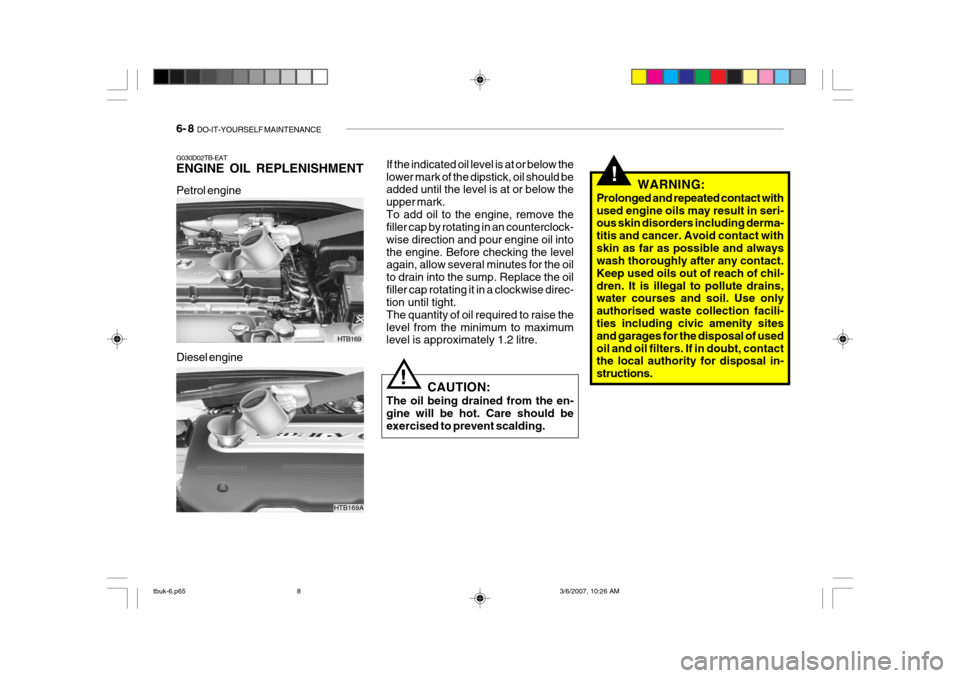

G030D02TB-EAT ENGINE OIL REPLENISHMENT
If the indicated oil level is at or below the lower mark of the dipstick, oil should be added until the level is at or below the upper mark.To add oil to the engine, remove the filler cap by rotating in an counterclock- wise direction and pour engine oil intothe engine. Before checking the level again, allow several minutes for the oil to drain into the sump. Replace the oilfiller cap rotating it in a clockwise direc- tion until tight. The quantity of oil required to raise thelevel from the minimum to maximum level is approximately 1.2 litre.
HTB169A
!
!
CAUTION:
The oil being drained from the en- gine will be hot. Care should beexercised to prevent scalding. WARNING:
Prolonged and repeated contact withused engine oils may result in seri- ous skin disorders including derma- titis and cancer. Avoid contact withskin as far as possible and always wash thoroughly after any contact. Keep used oils out of reach of chil-dren. It is illegal to pollute drains, water courses and soil. Use only authorised waste collection facili-ties including civic amenity sites and garages for the disposal of used oil and oil filters. If in doubt, contact the local authority for disposal in- structions.
tbuk-6.p65 3/6/2007, 10:26 AM
8

DO-IT-YOURSELF MAINTENANCE 6- 9
o The engine oil consumption is strongly
effected by the viscosity and quality of oil, engine rpm and driving condi-tion etc. More engine oil may be consumed under severe driving conditions suchas high speeds, frequent accelera- tion and deceleration, compared to normal driving.
ZG030E1-E ENGINE OIL CONSUMPTION Function of engine oil Engine oil has the primary function of lubricating and cooling the inside of the engine. Engine oil consumption It is normal that an engine should con- sume some engine oil while normal driving. The cause of oil consumption in a normal engine are as follows;
o Engine oil is used to lubricate pis-
tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves down- wards in the cylinder. High negativepressure generated during engine operation sucks some of the oil into the combustion chamber.This oil with some oil of the cylinder wall is burned by the high tempera- ture combustion gases during thecombustion process.
!
SG050A2-E ENGINE COOLANT CHECKING
WARNING:
Do not remove the radiator cap when the engine is hot, since the system is pressurized and coolant may beejected from the radiator resulting in scalding. NOTE: It is recommended that the engine coolant should be changed by an authorised Hyundai dealer.
tbuk-6.p65 3/6/2007, 10:26 AM
9

6- 10 DO-IT-YOURSELF MAINTENANCE

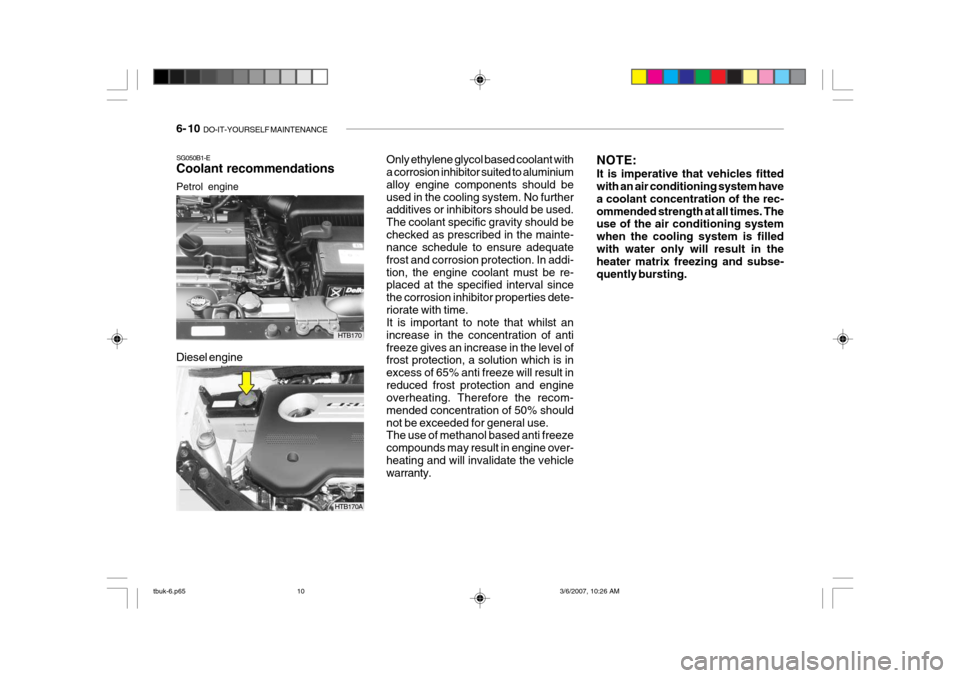

Diesel engine Only ethylene glycol based coolant with a corrosion inhibitor suited to aluminium alloy engine components should beused in the cooling system. No further additives or inhibitors should be used. The coolant specific gravity should bechecked as prescribed in the mainte- nance schedule to ensure adequate frost and corrosion protection. In addi-tion, the engine coolant must be re- placed at the specified interval since the corrosion inhibitor properties dete-riorate with time. It is important to note that whilst an increase in the concentration of antifreeze gives an increase in the level of frost protection, a solution which is in excess of 65% anti freeze will result inreduced frost protection and engine overheating. Therefore the recom- mended concentration of 50% shouldnot be exceeded for general use. The use of methanol based anti freeze compounds may result in engine over-heating and will invalidate the vehicle warranty.
Petrol engine
SG050B1-E Coolant recommendations
HTB170
HTB170A NOTE: It is imperative that vehicles fitted with an air conditioning system have a coolant concentration of the rec-ommended strength at all times. The use of the air conditioning system when the cooling system is filledwith water only will result in the heater matrix freezing and subse- quently bursting.
tbuk-6.p65
3/6/2007, 10:26 AM
10

6- 14 DO-IT-YOURSELF MAINTENANCE
!
SG100A3-E MANUAL TRANSAXLE LUBRICANT
CAUTION:
Engine coolant anti freeze must not be used in the windscreen washersystem since damage to the paintwork may result. Undiluted windscreen washer addi-tive must not be allowed to come into contact with the paintwork. If spillage occurs, flush the affectedarea immediately with water. Do not operate the windscreen washer for more than 15 seconds continuouslyor when the reservoir is empty since damage to the washer pump will result.
!
HXGS506
Drain plug
Filler plug
The manual transaxle lubricant must be checked and or changed at the inter- vals specified in the maintenance sched- ule. Only those lubricants specifiedshould be used in order to prevent gear shifting difficulties or transaxle dam- age. WARNING:
The transaxle lubricant level should only be checked when the engine is cold to preclude the possibility ofpersonal injury by contact with hot components. NOTE: It is recommended that the manual transaxle lubricant should be checked by Hyundai authorised re- pairer. Recommended Oil Use only the approved transaxle lubri- cant. The recommended lubricants arecomplete in themselves and the use of additives is neither required nor recom- mended. The use of additives mayinvalidate the vehicle warranty.
The level of windscreen washer fluid available should be checked on a daily basis. The level of fluid will be visiblethrough the side of the reservoir. When the fluid is to be replenished, only a proprietary screen wash additive shouldbe used and in the concentration rec- ommended by the manufacturer. The windscreen washer reservoir has a totalcapacity of 3 litres.
tbuk-6.p65
3/6/2007, 10:27 AM
14

DO-IT-YOURSELF MAINTENANCE 6- 15
G100B02A-EAT TRANSAXLE FLUID LEVEL CHECKING The vehicle must be parked on level ground with the parking brake firmly applied and the engine at normal oper-ating temperature. (Normal operating temperature will only be achieved when the vehicle has been driven for 6 milesor more).
SG110A1-E AUTOMATIC TRANSAXLE FLUID The automatic transaxle fluid level should be checked and changed at those intervals prescribed in the main-tenance schedule. It is of paramount importance that only the specified fluid is used when replenishing or changingthe fluid. The use of other fluids may irreparably damage the transaxle and invalidate the manufacturers warranty.In addition the ingress of dirt or lint may prevent correct functioning of the transaxle and care must be exercisedto prevent the ingress of such matter.
CAUTION:
The transaxle fluid level must bechecked with the engine running and at normal operating temperature and therefore care must be exercised toprevent injury occurring through contact with rotating or hot parts of the engine.
! G110B04A-AAT Recommended Fluid Your Hyundai automatic transaxle is specially designed to operate withHyundai Genuine ATF SP-III, DIA- MOND ATF SP-III, SK ATF SP-III or other brands approved by Hyundai MotorCo., Damage caused by a nonspecified fluid is not covered by your new vehicle limited warranty.
With the engine idling and the footbrake applied, the transaxle selector should be moved from the "P" or "N" positionthrough to the "L" position and back to the "N" or "P" position. Open the bonnet and remove thetransaxle dipstick, remembering that care must be exercised to prevent in- jury occurring through contact with hotor rotating parts of the engine.
HTB164
tbuk-6.p65 3/6/2007, 10:27 AM
15

6- 16 DO-IT-YOURSELF MAINTENANCE
if it touch the body. People using pacemakers should not move than 30cm closer to the ECU or wiringharness within the engine room while engine is running, since the high currents in the Common Rail systemproduce considerable magnetic fields.
!
CAUTION:
The automatic transaxle unit is a precision engineered assembly and correct operation is dependant uponthe exclusion of dirt and lint from the unit. Therefore, it is imperative that only lint free cloth (eg nylon) is usedfor wiping the dipstick and that the area around the dipstick is thor- oughly clean prior to level checkingor adding fluid. Fluid Capacity The total fluid capacity of the transaxle unit is 6.1 litres.
!
!
C090A03FC

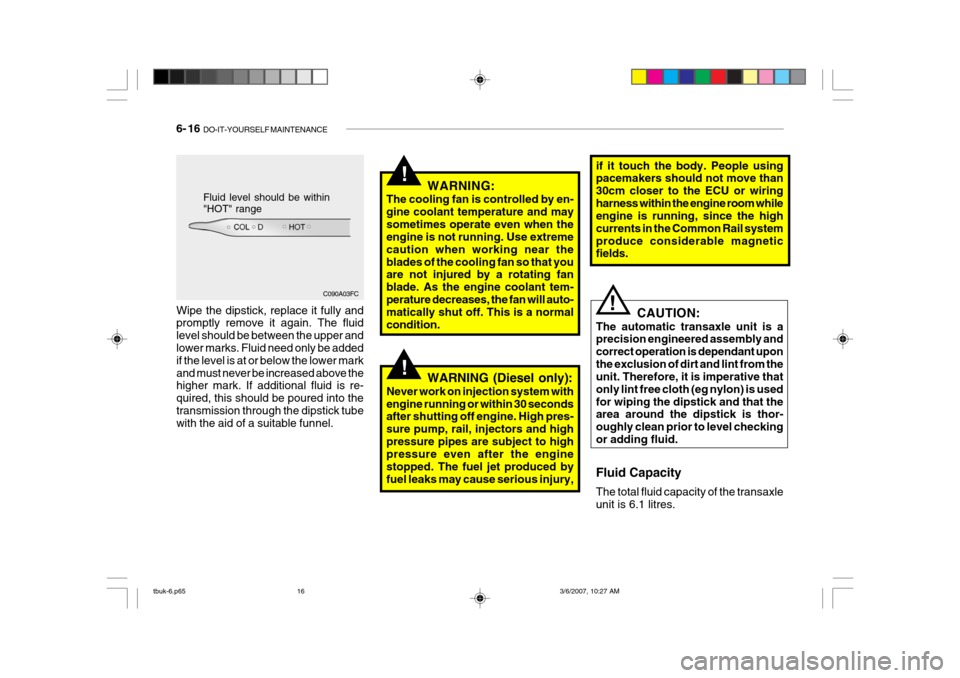

Fluid level should be within "HOT" range
Wipe the dipstick, replace it fully and promptly remove it again. The fluid level should be between the upper and lower marks. Fluid need only be added if the level is at or below the lower markand must never be increased above the higher mark. If additional fluid is re- quired, this should be poured into thetransmission through the dipstick tube with the aid of a suitable funnel. WARNING:
The cooling fan is controlled by en- gine coolant temperature and maysometimes operate even when the engine is not running. Use extreme caution when working near theblades of the cooling fan so that you are not injured by a rotating fan blade. As the engine coolant tem-perature decreases, the fan will auto- matically shut off. This is a normal condition.
WARNING (Diesel only):
Never work on injection system withengine running or within 30 seconds after shutting off engine. High pres- sure pump, rail, injectors and highpressure pipes are subject to high pressure even after the engine stopped. The fuel jet produced byfuel leaks may cause serious injury,
