Hyundai Getz 2010 User Guide

YOUR VEHICLE AT A GLANCE
F11
1. Glove Box
2. Passenger's Airbag (If installed)
3. Audio System (If installed)
4. Hazard Warning Light
5. Digital Clock
6. Windshield Wiper/Washer Switch
7. Horn and Driver's Airbag (If installed)
8. Instrument Cluster
9. Multi-Function Light Switch
10. Headlight Leveling Switch (If installed)
11. Rear Drink Holder
CAUTION:
When installing a container of liquid air freshener inside a vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 12. Parking Brake Lever
13. Shift Lever (If installed)
14. Front Drink Holder
15. Ashtray
16. Power Outlet (If installed)
17. Heating/Air Conditioning Control Panel
(If installed)
18. Audio Remote Control Switch (If installed)
19. Fuse Box
20. Hood Release Lever
!

YOUR VEHICLE AT A GLANCE
F12
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-50
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Brake Fluid Level Warning Light Charging System Warning LightTail Gate Open Warning Light Door Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Warning Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Warning Light
Passenger's Front Airbag OFFIndicator Light (If Installed)
Electronic Stability Program Indicator Lights (If Installed)
Engine Coolant Temperature Indicator

1. FEATURES OF YOUR HYUNDAI
Fuel Recommendations ................................................................... 1-2
Breaking in Your New Hyundai ........................................................ 1-4
key (Immobilizer system) ................................................................. 1-6Theft-alarm system ........................................................................ 1-11
Power windows .............................................................................. 1-15
Seat ................................................................................................ 1-16
Seat Belt ......................................................................................... 1-23
Child restraint system .................................................................... 1-30
Supplemental restraint (AIRBAG) system .....................................1-38
Instrument cluster and indicator lights ............................................1-46
Warning Light and Indicator ............................................................ 1-50
Trip computer ................................................................................. 1-59
Multi-Function Light Switch............................................................ 1-61
Windshield wiper/Washer Switch ...................................................1-63
Sunroof ........................................................................................... 1-71
Mirror ......... ..................................................................................... 1-74
Hood R elease ................................................................................ 1-78
How to use luggage Room ............................................................. 1-82
Heating and cooling control ............................................................ 1-88
Stereo sound system ..................................................................... 1-97
Audio system ................................................................................. 1-99
Antenna ........................................................................................ 1-130
1

1- 2 FEATURES OF YOUR HYUNDAI
B010A02TB-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline Except Europe
– Unleaded gasoline
with a Pump Octane Rating of 87 (Re- search Octane Number 91) or highermust be used in Hyundai vehicle. If leaded gasoline is used, it will cause the catalytic converter to become inef-fective and the emission control sys- tem to malfunction. This can also result in increased maintenance expense.To avoid accidental use of leaded fuel, the large nozzle used with leaded gaso- line at service stations can not beinserted into fuel tank opening of Hyundai vehicle. NOTE:
o For some countries, Hyundai ve- hicles are designed to use leaded gasoline. When you are going touse leaded gasoline, ask to Hyundai dealer whether leaded gasoline in your vehicle is avail-able or not.
o Octane Rating of leaded gaso-
line is same with unleaded one.
For Europe
– For the optimal vehicle
performance, we recommend you touse unleaded gasoline with an octanerating of RON (Research Octane Num- ber) 95 /AKI (Anti Knock Index) 91 or higher.You may use unleaded gasoline with an octane rating of RON 91~94/AKI 87~90 but it may result in slight performancereduction of the vehicle. B010A01TB Diesel fuel Diesel engine must be operated only on commercially available diesel fuel that complies with EN 590 or comparable standard. (EN stands for "EuropeanNorm"). Do not use marine diesel fuel, heating oils, or non-approved fuel addi- tives, as this will increase wear andcause damage to the engine and fuel system. The use of non-approved fuels and / orfuel additives will result in a limitation of your warranty rights. Diesel fuel of above cetane 52 is usedin Hyundai vehicle. If two types of diesel fuel are available, use summer or winter fuel properly according to thefollowing temperature conditions.
o Above -5°C (23°F) ... Summer type
diesel fuel.
o Below -5°C (23°F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very carefully : If the engine stops throughfuel failure, the circuits must be com- pletely purged to permit restarting.

FEATURES OF YOUR HYUNDAI 1- 3
CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary to drain it out and tobleed the lines to avoid jamming the injection pump and damaging the engine.
o In winter, in order to cut down incidents due to freezing, paraffinoil may be added to the fuel if thetemperature drops to below -10°C. Never use more than 20% paraffin oil.!
CAUTION: Diesel Fuel
It is recommended to use the regu- lated automotive diesel fuel for die- sel vehicle equipped with the DPFsystem. If you use diesel fuel including high sulfur (more than 50 ppm sulfur) andunspecified additives, it can cause the DPF system to be damaged and white smoke can be emitted.
! B010B01A-AAT What About Gasohol? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grainalcohol) may be used in your Hyundai. However, if your engine develops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol,should not be used.
Biodiesel Commercially supplied Diesel blends of no more than 7% biodiesel, com- monly known as "B7 Diesel" may be used in your vehicle if Biodiesel meetsEN 14214 or equivalent specifications. (EN stands for "European Norm"). The use of biofuels exceeding 7% madefrom rapeseed methyl ester (RME), fatty acid methyl ester (FAME), veg- etable oil methyl ester (VME) etc. ormixing diesel exceeding 7% with biodiesel will cause increased wear or damage to the engine and fuel system.Repair or replacement of worn or dam- aged components due to the use of non approved fuels will not be covered bythe manufactures warranty.
CAUTION:
o Never use any fuel, whether diesel or B7 biodiesel or otherwise thatfails to meet the latest petroleumindustry specification.
o Never use any fuel additives or
treatments that are not recom-mended or approved by the ve- hicle manufacturer.
! B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood al- cohol) should not be used in your Hyundai. This type of fuel can reducevehicle performance and damage com- ponents of the fuel system.
CAUTION:
Your Hyundai's New Vehicle Lim- ited Warranty may not cover dam- age to the fuel system and perfor- mance problems that are caused bythe use of methanol or fuels con- taining methanol.
!

1- 4 FEATURES OF YOUR HYUNDAI
B020A01S-GAT BREAKING IN YOUR NEW HYUNDAIDuring the First 2,000 Km (1,200Miles) (Gasoline Engine) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco- nomical operation and durability of yourHyundai by observing the following recommendations during the first 2,000 km (1,200 miles).
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and4,000 rpm.
o Use moderate acceleration. Don't
start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try
to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh agear that the engine "bucks": shift toa lower gear).
o Whether going fast or slow, vary your
speed from time to time. o Don't let the engine idle longer than 3
minutes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai recommends that you usegasolines treated with detergent addi- tives, which help prevent deposit for- mation in the engine. These gasolineswill help the engine run cleaner and the Emission Control System performance. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.

FEATURES OF YOUR HYUNDAI 1- 5
B020B01FC-GAT BREAKING IN YOUR NEW HYUNDAIDuring the First 1,000 Km (600Miles) (Diesel Engine) No formal "break-in" procedure is re- quired with your new Hyundai. However, you can contribute to the economical operation and durability of your Hyundaiby observing the following recommenda- tions during the first 1,000 km (600 miles).
o While driving, keep your engine speed
(rpm, or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quar- ters of maximum speed.
o Use moderate acceleration. Don't start, depress the accelerator pedal fully.
o For the first 300 km (200 miles), try to
avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too-high a gearthat the engine "bucks": shift to a lowergear).
o Whether going fast or slow, vary your
speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.

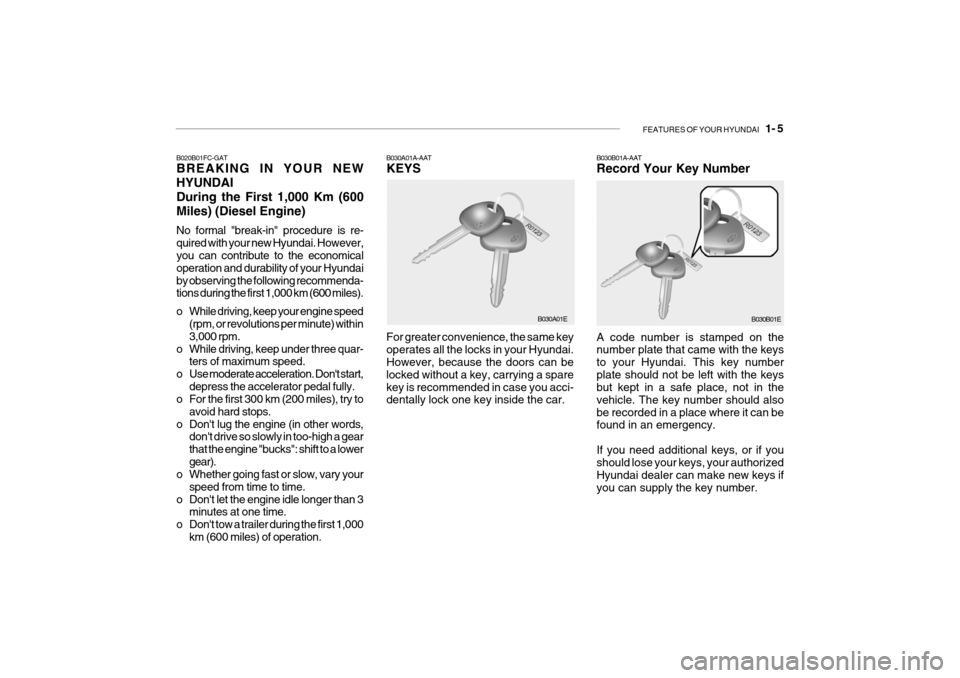

o Don't tow a trailer during the first 1,000 km (600 miles) of operation. B030A01A-AAT KEYS For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a sparekey is recommended in case you acci- dentally lock one key inside the car.
B030A01EB030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key numberplate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should alsobe recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys ifyou can supply the key number. B030B01E

1- 6 FEATURES OF YOUR HYUNDAI

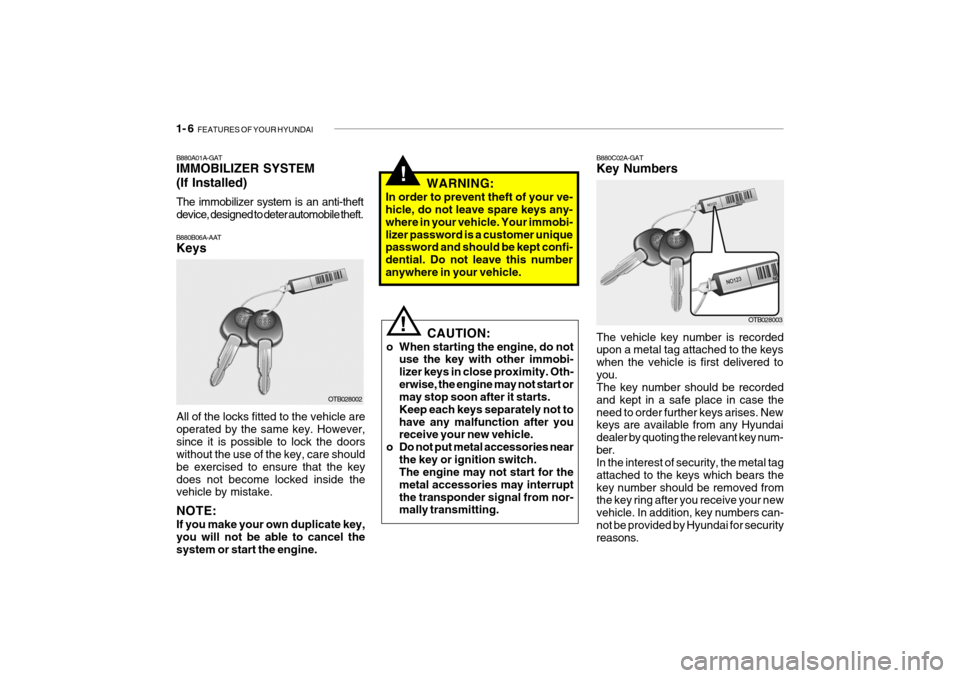

B880C02A-GAT Key Numbers
OTB028003
The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou. The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant key num-ber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for security reasons.
B880A01A-GAT IMMOBILIZER SYSTEM (If Installed) The immobilizer system is an anti-theft device, designed to deter automobile theft.
B880B06A-AAT Keys! CAUTION:
o When starting the engine, do not use the key with other immobi- lizer keys in close proximity. Oth-erwise, the engine may not start or may stop soon after it starts. Keep each keys separately not tohave any malfunction after you receive your new vehicle.
o Do not put metal accessories near
the key or ignition switch.The engine may not start for the metal accessories may interruptthe transponder signal from nor- mally transmitting.
OTB028002
All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake. NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.
!WARNING:
In order to prevent theft of your ve- hicle, do not leave spare keys any- where in your vehicle. Your immobi-lizer password is a customer unique password and should be kept confi- dential. Do not leave this numberanywhere in your vehicle.

FEATURES OF YOUR HYUNDAI 1- 7
HNF2011
B880D02A-GAT Limp home procedures In case the immobilizer warning indica- tor blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome. (0, 1, 2, 3 as a sample pass- word).
If you need additional keys or if you should lose your keys, your authorizedHyundai dealer can make new keys.
NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobilizerindicator illuminates. From this time, you have to start your engine within 30 seconds. If you start your engineafter 30 seconds, your engine will not start.

1- 8 FEATURES OF YOUR HYUNDAI
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
! CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait forabout one hour to do the limp home procedure again.
o If you cannot start your engine in
spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer.
UNLOCK

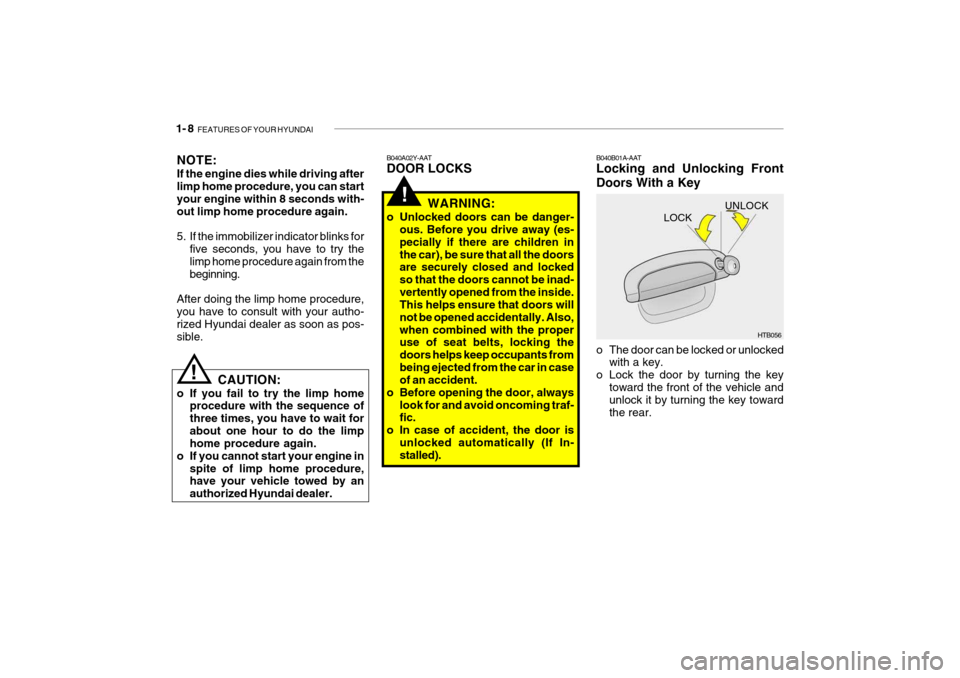

B040A02Y-AAT DOOR LOCKS
B040B01A-AATLocking and Unlocking Front Doors With a Key
HTB056
LOCK!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children inthe car), be sure that all the doors are securely closed and locked so that the doors cannot be inad-vertently opened from the inside. This helps ensure that doors will not be opened accidentally. Also,when combined with the proper use of seat belts, locking the doors helps keep occupants frombeing ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o In case of accident, the door is unlocked automatically (If In-stalled). o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the front of the vehicle andunlock it by turning the key toward the rear.
