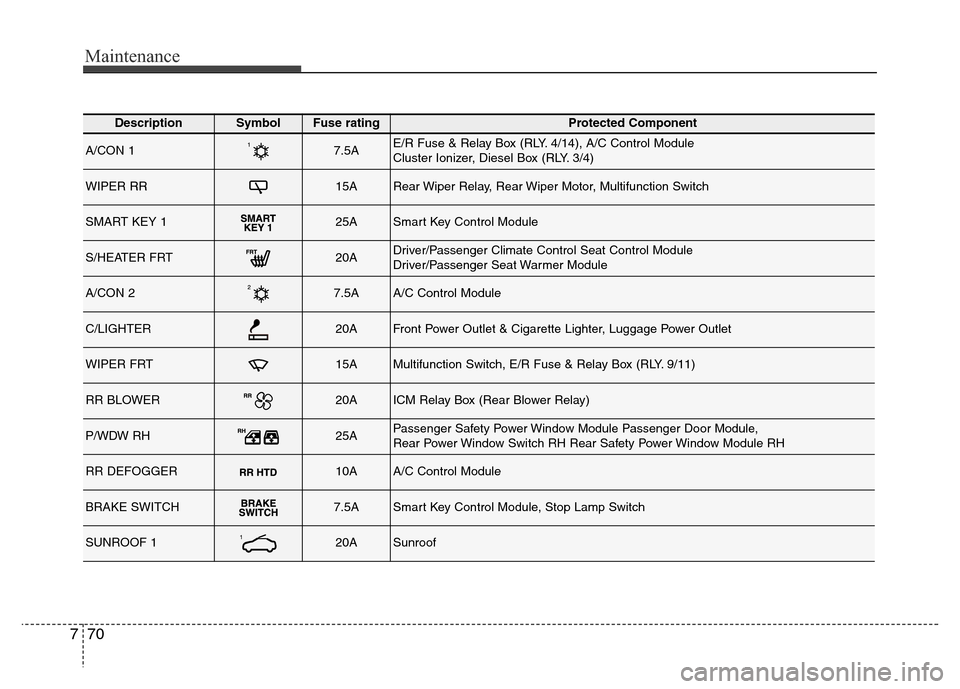

Page 651 of 717
Maintenance
70 7
DescriptionSymbol Fuse ratingProtected Component
A/CON 17.5AE/R Fuse & Relay Box (RLY. 4/14), A/C Control Module
Cluster Ionizer, Diesel Box (RLY. 3/4)
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
SMART KEY 125ASmart Key Control Module
S/HEATER FRT20ADriver/Passenger Climate Control Seat Control Module
Driver/Passenger Seat Warmer Module
A/CON 27.5AA/C Control Module
C/LIGHTER20AFront Power Outlet & Cigarette Lighter, Luggage Power Outlet
WIPER FRT15AMultifunction Switch, E/R Fuse & Relay Box (RLY. 9/11)
RR BLOWER20AICM Relay Box (Rear Blower Relay)
P/WDW RH25APassenger Safety Power Window Module Passenger Door Module,
Rear Power Window Switch RH Rear Safety Power Window Module RH
RR DEFOGGER10AA/C Control Module
BRAKE SWITCH7.5ASmart Key Control Module, Stop Lamp Switch
SUNROOF 120ASunroof

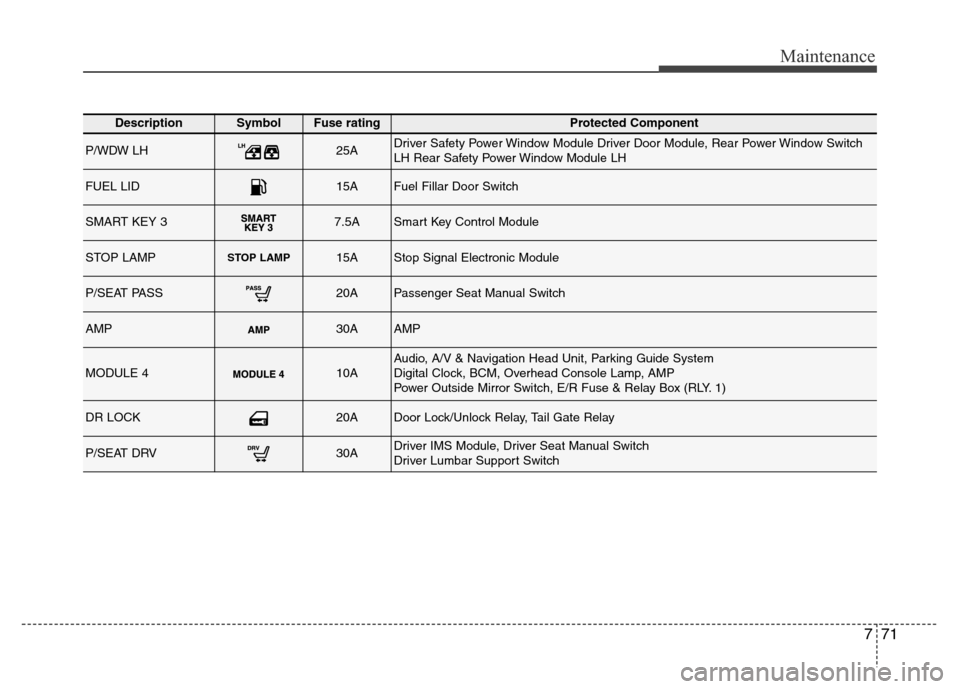

Page 652 of 717
771
Maintenance
DescriptionSymbol Fuse ratingProtected Component
P/WDW LH25ADriver Safety Power Window Module Driver Door Module, Rear Power Window Switch
LH Rear Safety Power Window Module LH
FUEL LID15AFuel Fillar Door Switch
SMART KEY 37.5ASmart Key Control Module
STOP LAMPSTOP LAMP15AStop Signal Electronic Module
P/SEAT PASS20APassenger Seat Manual Switch
AMP30AAMP
MODULE 410AAudio, A/V & Navigation Head Unit, Parking Guide System
Digital Clock, BCM, Overhead Console Lamp, AMP
Power Outside Mirror Switch, E/R Fuse & Relay Box (RLY. 1)
DR LOCK20ADoor Lock/Unlock Relay, Tail Gate Relay
P/SEAT DRV30ADriver IMS Module, Driver Seat Manual Switch
Driver Lumbar Support Switch
Page 653 of 717
Maintenance
72 7

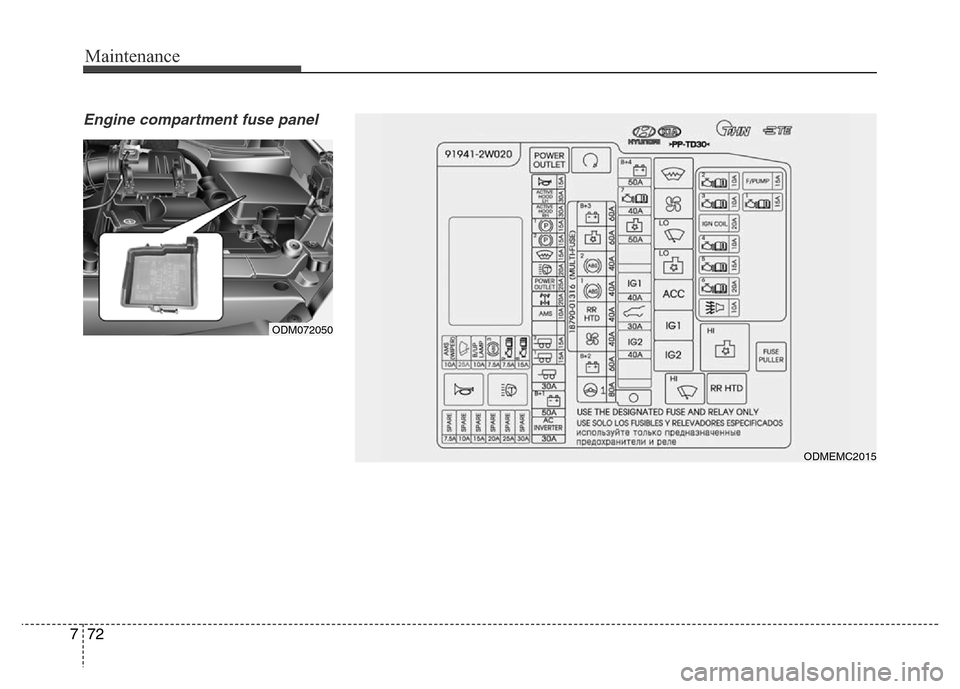

Engine compartment fuse panel
ODM072050
ODMEMC2015

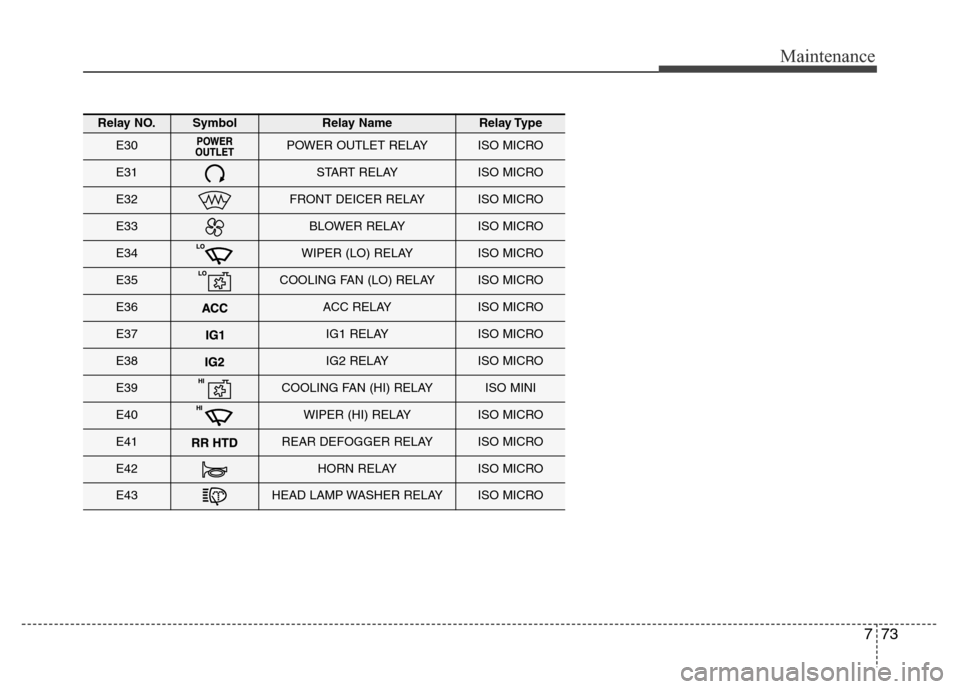

Page 654 of 717
773
Maintenance
Relay NO.SymbolRelay NameRelay Type
E30POWER OUTLET RELAYISO MICRO
E31START RELAYISO MICRO
E32FRONT DEICER RELAYISO MICRO
E33BLOWER RELAYISO MICRO
E34WIPER (LO) RELAYISO MICRO
E35COOLING FAN (LO) RELAYISO MICRO
E36ACC RELAYISO MICRO
E37IG1 RELAYISO MICRO
E38IG2 RELAYISO MICRO
E39COOLING FAN (HI) RELAYISO MINI
E40WIPER (HI) RELAYISO MICRO
E41REAR DEFOGGER RELAYISO MICRO
E42HORN RELAYISO MICRO
E43HEAD LAMP WASHER RELAYISO MICRO

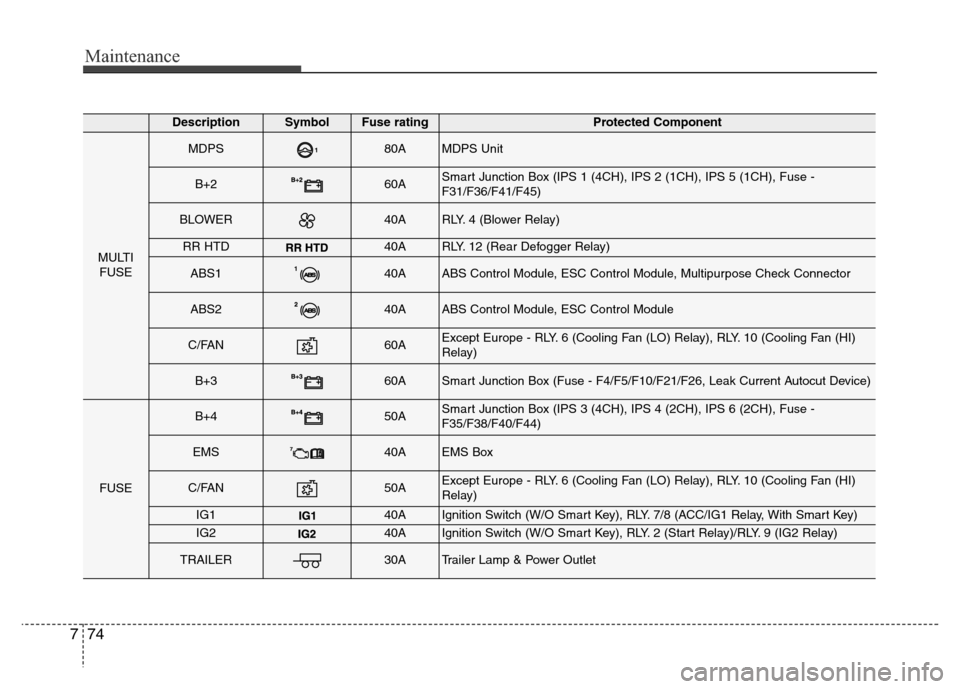

Page 655 of 717
Maintenance
74 7
DescriptionSymbol Fuse ratingProtected Component
MULTI
FUSE
MDPS80AMDPS Unit
B+260ASmart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse -
F31/F36/F41/F45)
BLOWER40ARLY. 4 (Blower Relay)
RR HTD40ARLY. 12 (Rear Defogger Relay)
ABS140AABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS240AABS Control Module, ESC Control Module
C/FAN60AExcept Europe - RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI)
Relay)
B+360ASmart Junction Box (Fuse - F4/F5/F10/F21/F26, Leak Current Autocut Device)
FUSE
B+450ASmart Junction Box (IPS 3 (4CH), IPS 4 (2CH), IPS 6 (2CH), Fuse -
F35/F38/F40/F44)
EMS40AEMS Box
C/FAN50AExcept Europe - RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI)
Relay)
IG140AIgnition Switch (W/O Smart Key), RLY. 7/8 (ACC/IG1 Relay, With Smart Key)
IG240AIgnition Switch (W/O Smart Key), RLY. 2 (Start Relay)/RLY. 9 (IG2 Relay)
TRAILER30ATrailer Lamp & Power Outlet

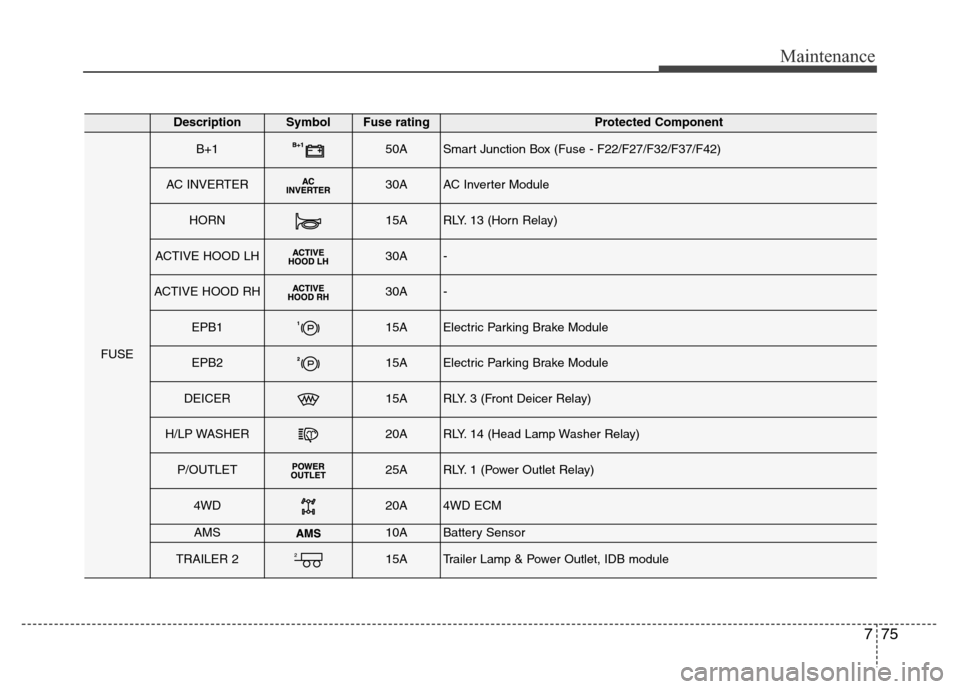

Page 656 of 717
775
Maintenance
DescriptionSymbol Fuse ratingProtected Component
FUSE
B+150ASmart Junction Box (Fuse - F22/F27/F32/F37/F42)
AC INVERTER30AAC Inverter Module
HORN15ARLY. 13 (Horn Relay)
ACTIVE HOOD LH30A-
ACTIVE HOOD RH30A-
EPB115AElectric Parking Brake Module
EPB215AElectric Parking Brake Module
DEICER15ARLY. 3 (Front Deicer Relay)
H/LP WASHER20ARLY. 14 (Head Lamp Washer Relay)
P/OUTLET25ARLY. 1 (Power Outlet Relay)
4WD20A4WD ECM
AMS10ABattery Sensor
TRAILER 215ATrailer Lamp & Power Outlet, IDB module

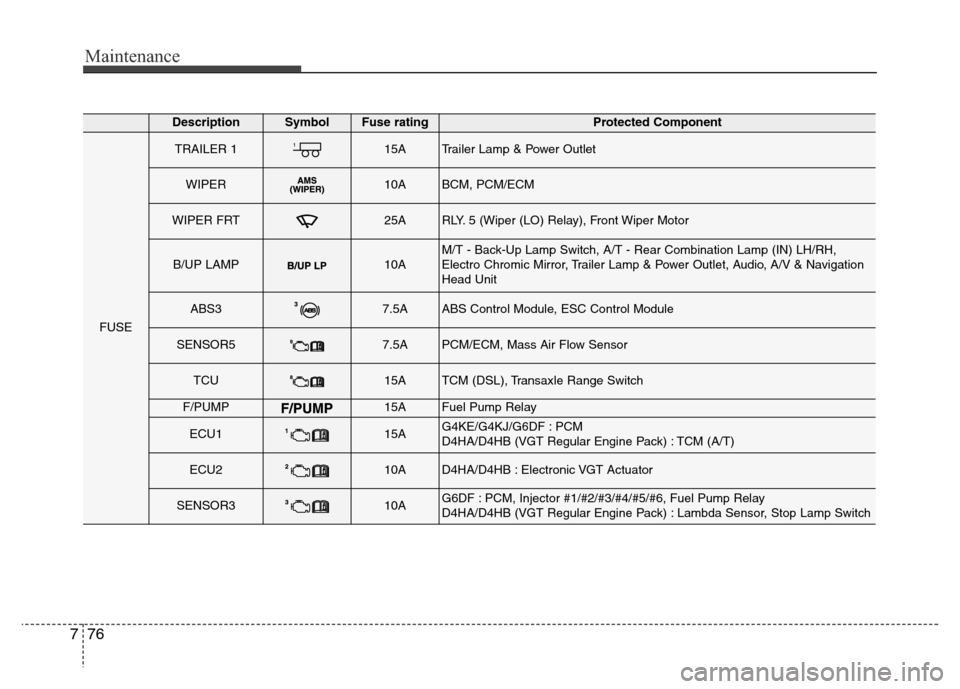

Page 657 of 717
Maintenance
76 7
DescriptionSymbol Fuse ratingProtected Component
FUSE
TRAILER 115ATrailer Lamp & Power Outlet
WIPER10ABCM, PCM/ECM
WIPER FRT25ARLY. 5 (Wiper (LO) Relay), Front Wiper Motor
B/UP LAMP10AM/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
Electro Chromic Mirror, Trailer Lamp & Power Outlet, Audio, A/V & Navigation
Head Unit
ABS37.5AABS Control Module, ESC Control Module
SENSOR57.5APCM/ECM, Mass Air Flow Sensor
TCU15ATCM (DSL), Transaxle Range Switch
F/PUMP15AFuel Pump Relay
ECU115AG4KE/G4KJ/G6DF : PCM
D4HA/D4HB (VGT Regular Engine Pack) : TCM (A/T)
ECU210AD4HA/D4HB : Electronic VGT Actuator
SENSOR310AG6DF : PCM, Injector #1/#2/#3/#4/#5/#6, Fuel Pump Relay
D4HA/D4HB (VGT Regular Engine Pack) : Lambda Sensor, Stop Lamp Switch

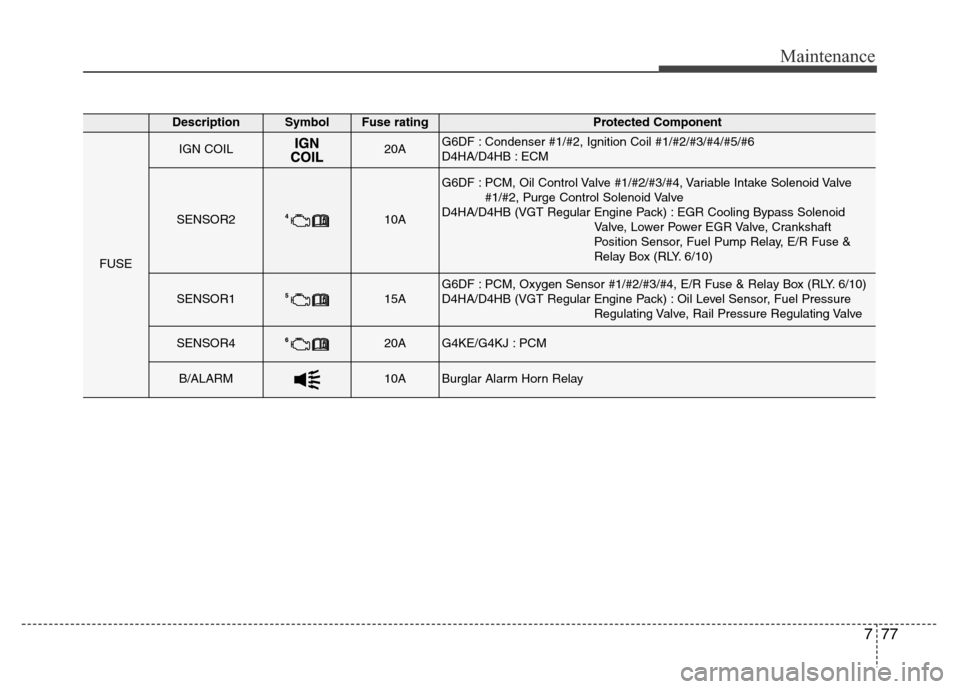

Page 658 of 717
777
Maintenance
DescriptionSymbol Fuse ratingProtected Component
FUSE
IGN COIL20AG6DF : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6
D4HA/D4HB : ECM
SENSOR210A
G6DF : PCM, Oil Control Valve #1/#2/#3/#4, Variable Intake Solenoid Valve
#1/#2, Purge Control Solenoid Valve
D4HA/D4HB (VGT Regular Engine Pack) : EGR Cooling Bypass Solenoid
Valve, Lower Power EGR Valve, Crankshaft
Position Sensor, Fuel Pump Relay, E/R Fuse &
Relay Box (RLY. 6/10)
SENSOR115AG6DF : PCM, Oxygen Sensor #1/#2/#3/#4, E/R Fuse & Relay Box (RLY. 6/10)
D4HA/D4HB (VGT Regular Engine Pack) : Oil Level Sensor, Fuel Pressure
Regulating Valve, Rail Pressure Regulating Valve
SENSOR420AG4KE/G4KJ : PCM
B/ALARM10ABurglar Alarm Horn Relay
Page 659 of 717
Maintenance
78 7

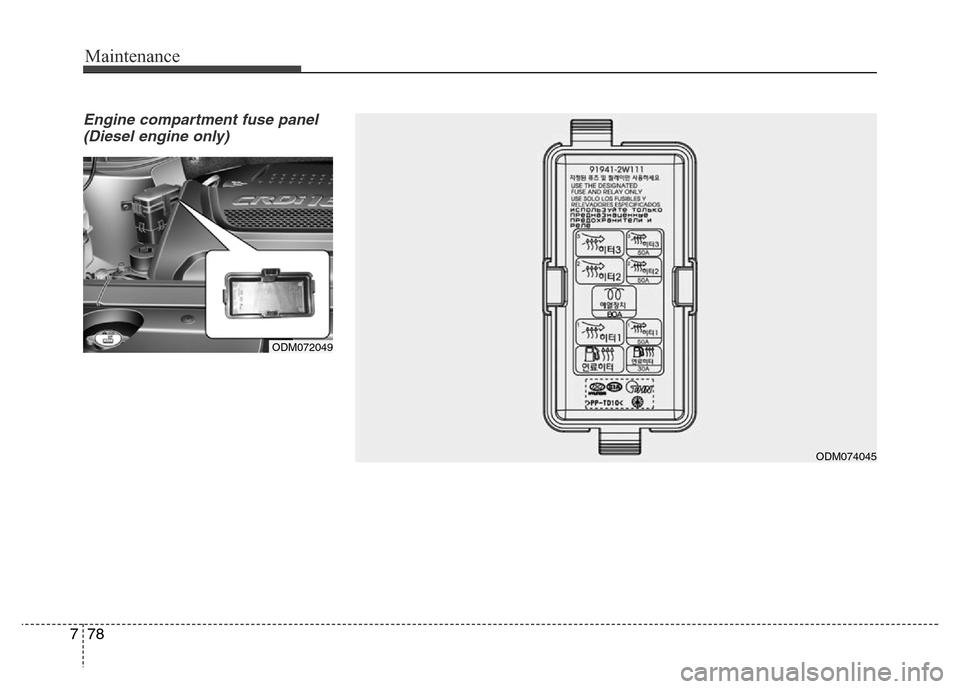

Engine compartment fuse panel
(Diesel engine only)
ODM072049
ODM074045

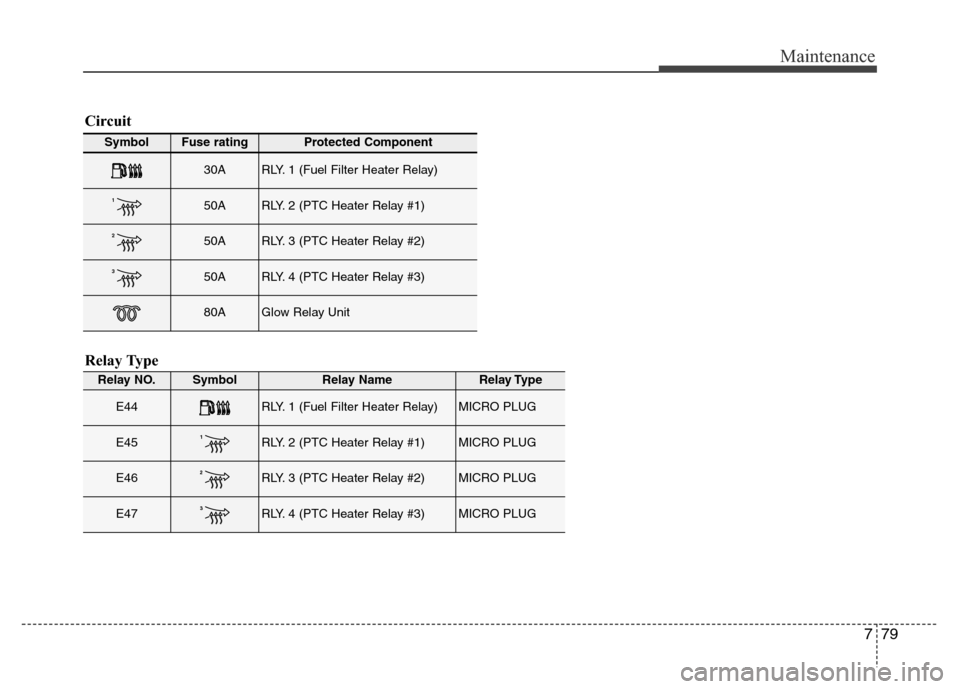

Page 660 of 717
779
Maintenance
Symbol Fuse ratingProtected Component
30ARLY. 1 (Fuel Filter Heater Relay)
150ARLY. 2 (PTC Heater Relay #1)
250ARLY. 3 (PTC Heater Relay #2)
350ARLY. 4 (PTC Heater Relay #3)
80AGlow Relay Unit
Circuit
Relay Type
Relay NO.SymbolRelay NameRelay Type
E44RLY. 1 (Fuel Filter Heater Relay)MICRO PLUG
E451RLY. 2 (PTC Heater Relay #1)MICRO PLUG
E462RLY. 3 (PTC Heater Relay #2)MICRO PLUG
E473RLY. 4 (PTC Heater Relay #3)MICRO PLUG
