Hyundai Grandeur 2002 Owner's Manual

6- 24 DO-IT-YOURSELF MAINTENANCE
G240A01A-AAT
POWER STEERING HOSES
It is suggested that you check the
power steering hose connections for fluid leakage at regular intervals.
The power steering hoses should be
replaced if there is severe surface cracking, scuffing or worn spots. De- terioration of the hose could causepremature failure.
G230A03A-GAT
POWER STEERING FLUID LEVEL
HXG2006
The power steering fluid level should
be checked regularly.
To check the power steering fluid
level, be sure the ignition is "OFF", then check to make certain that the power steering fluid level is betweenthe "MAX" and "MIN" level markings on the fluid reservoir.
NOTE: Grinding noise from the power
steering pump may be heard im- mediately after the engine is started in extremely cold conditions (be- low - 20°C). In this case, if the noise stops during warm up, there is no abnormal function in the sys- tem. This is due to a power steer-ing fluid characteristic in extremely cold conditions. Recommended Fluid Use PSF-3 type fluid. NOTE: Do not start the engine when the power steering oil reservoir is empty.
G220A01A-AAT
CHECKING ELECTRIC COOL- ING FANS
WARNING:
The cooling fan is controlled by
engine coolant temperature and may sometimes operate even whenthe engine is not running. Use extreme caution when working near the blades of the cooling fan,so that you are not injured by a rotating fan blade. As the coolant temperature decreases the fan willautomatically shut off. This is a normal condition.
G220B01A-AAT
Checking Engine Cooling Fan
The engine cooling fan should come
on automatically if the engine coolanttemperature is high.
G220C01A-AAT
Checking Condenser Cooling Fan
The condenser cooling fan should
come on automatically whenever the air conditioning is in operation.
!

DO-IT-YOURSELF MAINTENANCE 6- 25
G290A02L-GAT
HEADLIGHT AIMING ADJUST- MENT
HID Type (If installed)
WARNING:
If you need headlight aiming ad- justment, have your vehicle in- spected by your Hyundai Dealer. Don't attempt to replace or inspect the HID headlight bulb to prevent danger of an electric shock.
Vertical Aiming HorizontalAiming
Before performing aiming adjustment, make sure of the following.
1. Keep all tires inflated to the correct pressure.
2. Place the vehicle on level ground
and press the front bumper & rear bumper down several times. Place the vehicle at a distance of 3 m (118 in.) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant,engine oil and fuel, and spare tire,jack, and tools). Have the driver or equivalent weight placed in driver's seat.
4. Clean the head light lenses and
turn on the headlights (low beam).
5. Open the hood.
6. Draw the vertical line (through the center of each headlight) and the horizontal line (through the center of each headlight) on the aimingscreen. And then, draw the parallel line at 30 mm (1.18 in.) place under the horizontal line.
!
G290B02L-GAT
Adjustment After Headlight As- sembly Replacement
G290B01L
LW
H
H Cut-off line
Ground line
If the vehicle has had front body repair and the headlight assembly has been replaced, the headlight aim-ing should be checked using an aim- ing screen as shown in the illustra- tion. Turn on the headlight switch.(Low Beam Position)
"P"
Horizontal line15mm (0.59in.)
30mm (1.18 in.) Vertical line
7. Adjust each cut-off line of the low
beam to the parallel line with a phillips screwdriver - VERTICALAIMING.
8. Adjust each cut-off line of the low
beam to each vertical line with a phillips screwdriver - HORIZON- TAL AIMING.
G290A02L
General Type

6- 26 DO-IT-YOURSELF MAINTENANCE
Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
G260A01L-GAT
REPLACEMENT OF LIGHT BULBS
Before attempting to replace a light
bulb, be sure the switch is turned to the "OFF" position. The next paragraph shows how to
reach the light bulbs so they may be changed. Be sure to replace the burned-out bulb with one of the samenumber and wattage rating. See page 6-33 for the wattage de-
scriptions.
G270A03L
G270A01L-GAT
HEADLIGHT AND FRONT TURN SIGNAL LIGHT
High beam Low beam
Turn signal light
! CAUTION:
o Keep the lights out of contact with petroleum products, such as oil, gasoline, etc.
o Be sure to replace the LED type equipped bulbs with assembly.
1. Adjust headlights so that main axis
of light is parallel to center line ofthe body and is aligned with point"P" shown in the illustration.
2. Dotted lines in the illustration show
the center of headlights.
SPECIFICATIONS: "H"Horizontal center line of headlightsfrom groundGeneral type: 634 mm (24.96 in.) HID type: 628 mm (24.72 in.) "W" Distance between each headlightcenter: 1,240 mm (48.8 in.) "L" Distance between the headlightsand the wall that the lights aretested against : 3,000 mm (118.11 in.)

DO-IT-YOURSELF MAINTENANCE 6- 27
G270A07L
5. Push the bulb spring to remove the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Retighten the bulb spring and re- connect the power cord.
7. Use the protective cap and carton to promptly dispose of the old bulb.
8. Check for proper headlight aim.G270A08LG270A04L
General type
High beam (H1)
Low beam (H7)
Turn signal light
3. Turn the plastic cover counterclock- wise and remove it.
G270A06L
4. Disconnect the power cord from the bulb base in the back of the headlight. 9. To replace the front turn signal
light bulb, take out it from the bulb holder and install the new bulb.
1FJB5036

6- 28 DO-IT-YOURSELF MAINTENANCE
G270I01L-GAT

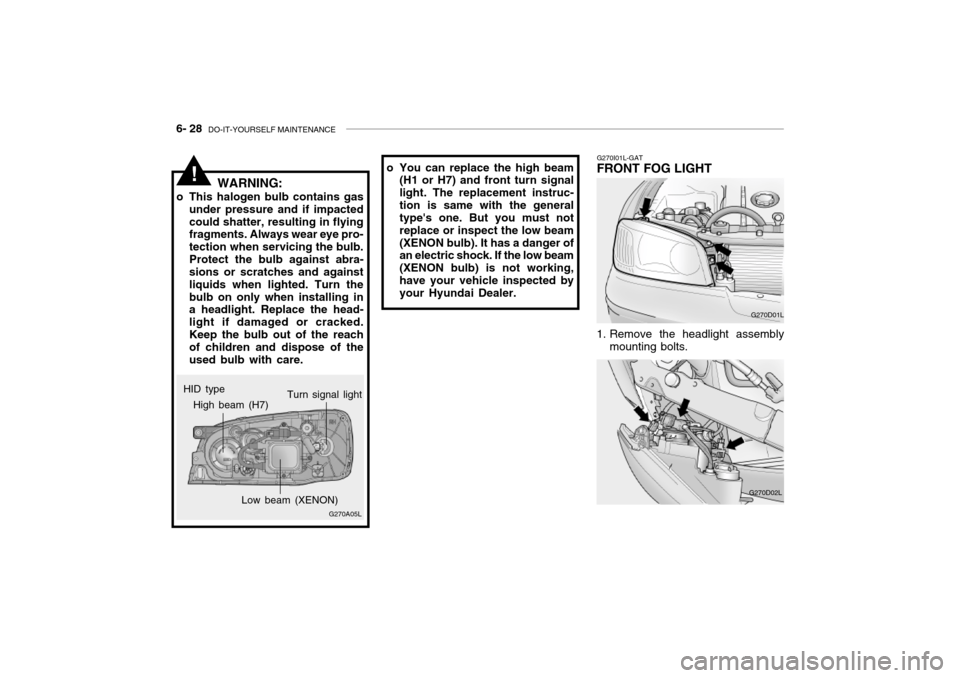

FRONT FOG LIGHT
G270D01L
1. Remove the headlight assembly mounting bolts.
G270D02L
o You can replace the high beam(H1 or H7) and front turn signal light. The replacement instruc-tion is same with the general type's one. But you must not replace or inspect the low beam(XENON bulb). It has a danger of an electric shock. If the low beam (XENON bulb) is not working,have your vehicle inspected by your Hyundai Dealer.
WARNING:
o This halogen bulb contains gas under pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro- tection when servicing the bulb.Protect the bulb against abra- sions or scratches and against liquids when lighted. Turn thebulb on only when installing in a headlight. Replace the head- light if damaged or cracked.Keep the bulb out of the reach of children and dispose of the used bulb with care.
HID type!
G270A05L
High beam (H7)
Low beam (XENON)Turn signal light

DO-IT-YOURSELF MAINTENANCE 6- 29
G270D03L

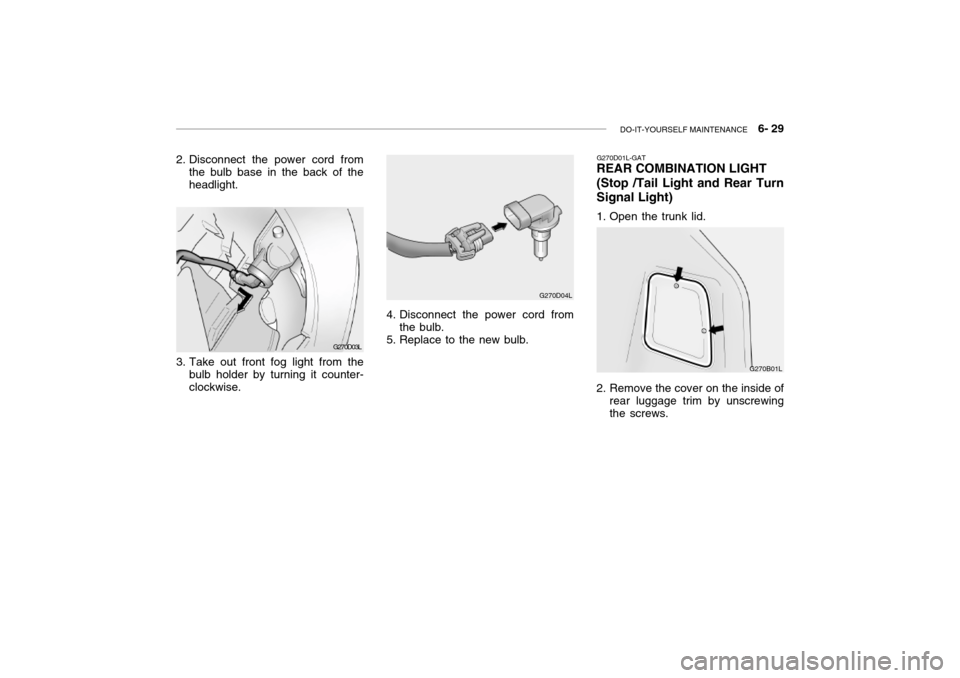

2. Disconnect the power cord from
the bulb base in the back of the headlight.
3. Take out front fog light from the bulb holder by turning it counter-clockwise.
G270B01L
G270D01L-GAT

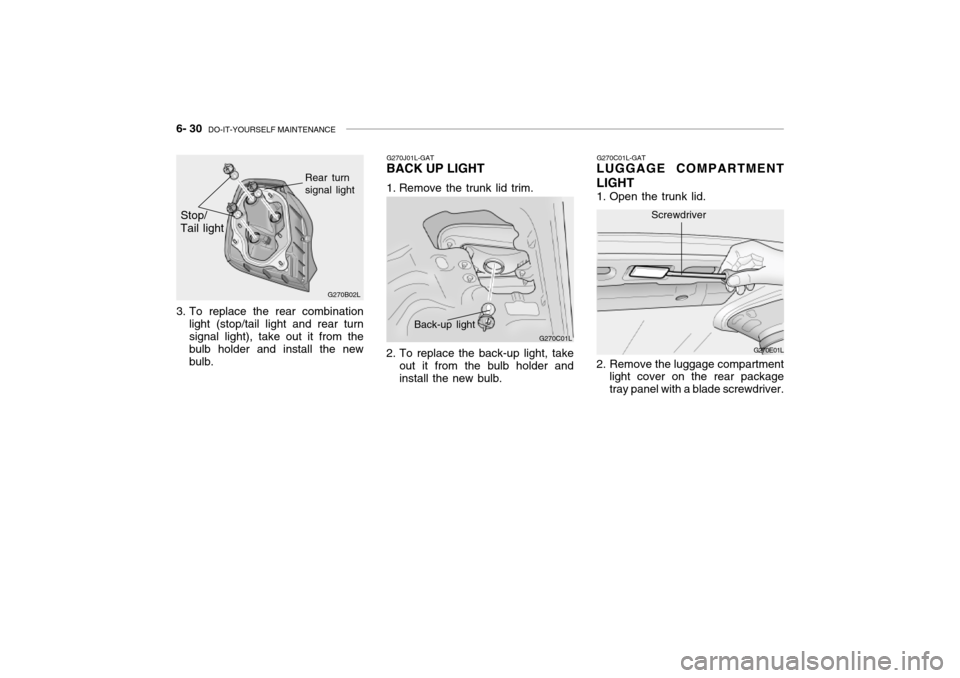

REAR COMBINATION LIGHT
(Stop /Tail Light and Rear Turn
Signal Light)
1. Open the trunk lid.
2. Remove the cover on the inside of
rear luggage trim by unscrewing the screws.
4. Disconnect the power cord fromthe bulb.
5. Replace to the new bulb. G270D04L

6- 30 DO-IT-YOURSELF MAINTENANCE
G270C01L-GAT
LUGGAGE COMPARTMENT LIGHT
1. Open the trunk lid.
2. Remove the luggage compartment
light cover on the rear package tray panel with a blade screwdriver. G270E01L
Screwdriver
2. To replace the back-up light, take
out it from the bulb holder and install the new bulb. G270C01L
G270J01L-GAT
BACK UP LIGHT
1. Remove the trunk lid trim.
Back-up light
3. To replace the rear combinationlight (stop/tail light and rear turn signal light), take out it from the bulb holder and install the newbulb.
Stop/ Tail light
G270B02L
Rear turn signal light

DO-IT-YOURSELF MAINTENANCE 6- 31
2. Disconnect the power code. G270F01L
3. Replace to the new bulb.
HTB278
G270E02L
3. Disconnect the power cord.
4. Replace to the new bulb.

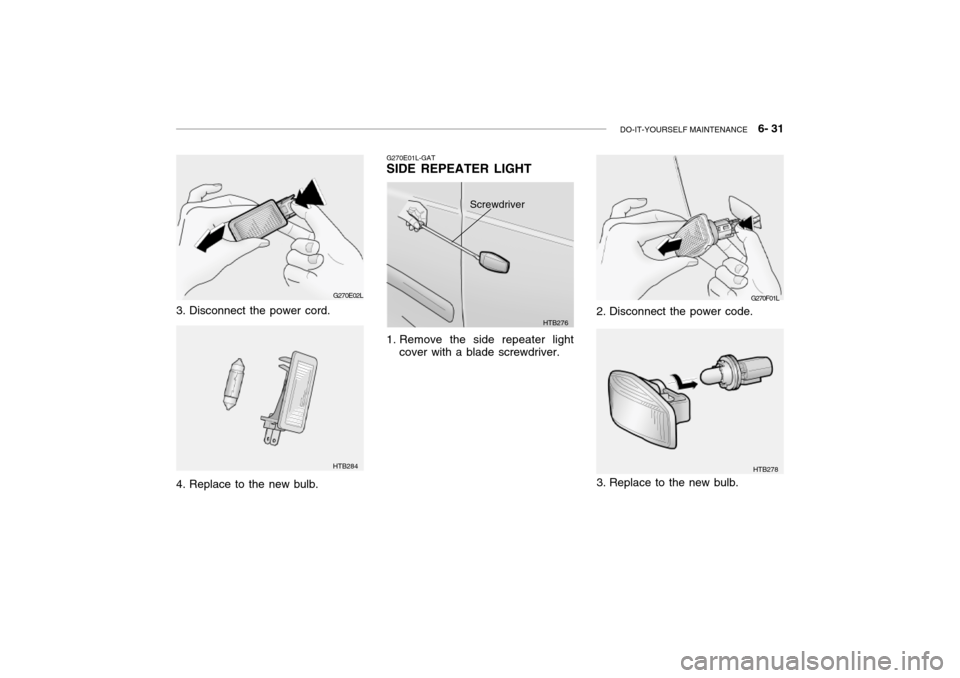

HTB284 G270E01L-GAT SIDE REPEATER LIGHT
1. Remove the side repeater light
cover with a blade screwdriver.
HTB276
Screwdriver

6- 32 DO-IT-YOURSELF MAINTENANCE
G270E02L
HTB284
3. Disconnect the power cord.
4. Replace to the new bulb.
G270K01L-GAT

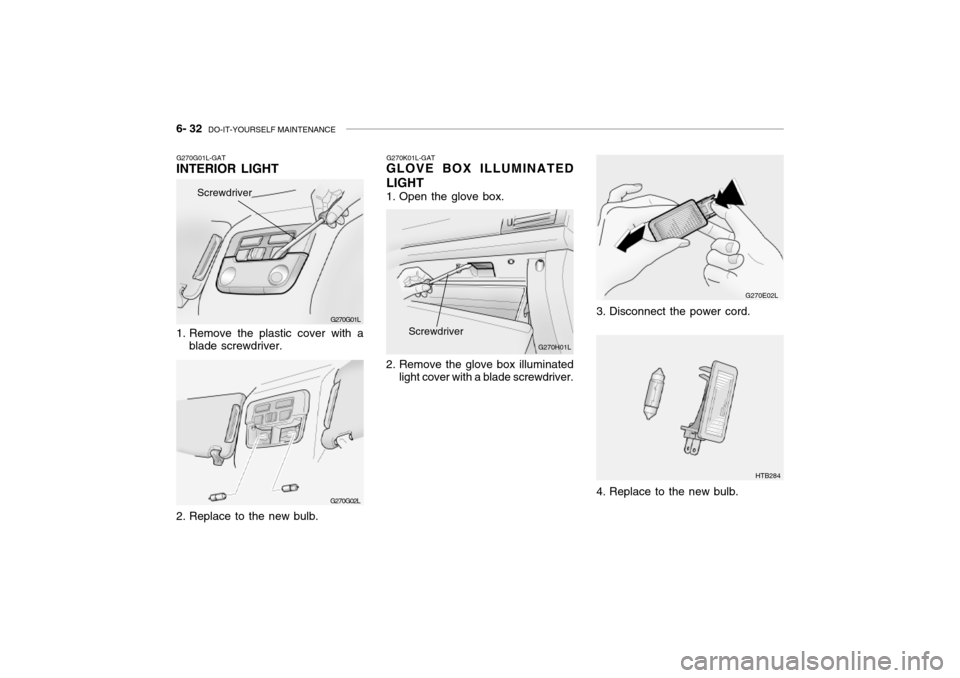

GLOVE BOX ILLUMINATED LIGHT
1. Open the glove box.
2. Remove the glove box illuminated
light cover with a blade screwdriver. G270H01L
Screwdriver
G270G01L-GAT INTERIOR LIGHT
G270G01L
1. Remove the plastic cover with a blade screwdriver.
2. Replace to the new bulb. G270G02L
Screwdriver

DO-IT-YOURSELF MAINTENANCE 6- 33

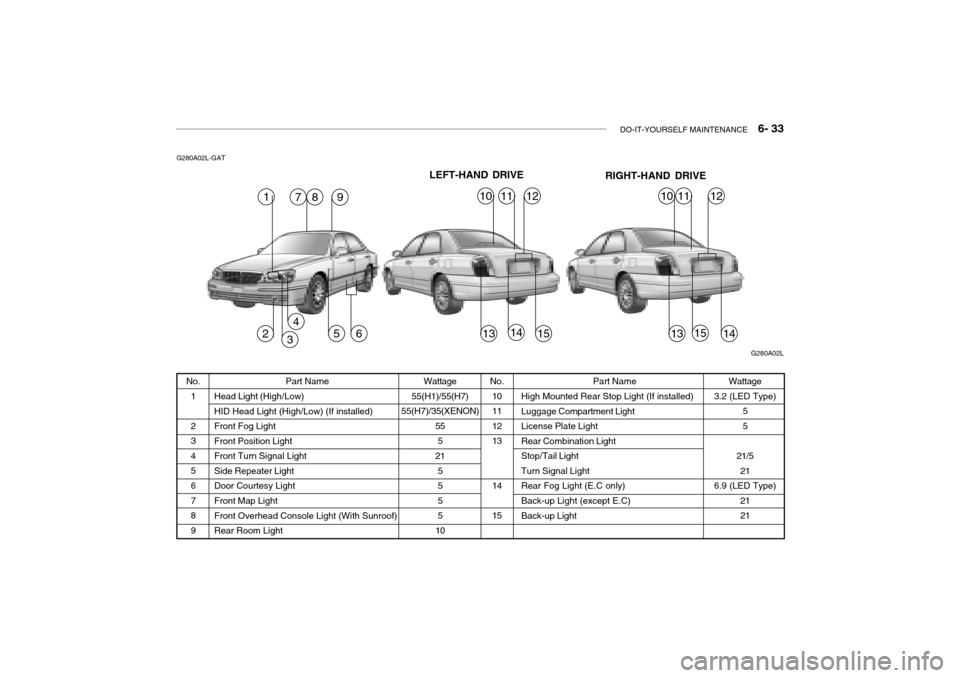

1456
4
Part Name
Head Light (High/Low) HID Head Light (High/Low) (If installed) Front Fog LightFront Position LightFront Turn Signal LightSide Repeater LightDoor Courtesy Light Front Map Light Front Overhead Console Light (With Sunroof)Rear Room Light Wattage
55(H1)/55(H7)
55(H7)/35(XENON) 555
21 5555
10
G280A02L-GAT
Wattage
3.2 (LED Type) 5 5
21/5 21
6.9 (LED Type) 2121
No.
1 2 345 6 789 No.
10111213 14 15 Part Name
High Mounted Rear Stop Light (If installed) Luggage Compartment Light License Plate LightRear Combination LightStop/Tail LightTurn Signal LightRear Fog Light (E.C only) Back-up Light (except E.C) Back-up Light
G280A02L
1978
231315
101112
LEFT-HAND DRIVE RIGHT-HAND DRIVE
151413
101112
