FEATURES OF YOUR HYUNDAI 1- 67
B550A02Y-AAT HIGH-MOUNTED REAR STOP
LIGHT (If Installed) In addition to the lower-mounted rear stoplights on either side of the car, thehigh mounted rear stoplight in the cen- ter of the rear window also lights when the brakes are applied. B550A03L
To open the trunk lid, insert the key and turn it clockwise to unlock. The trunk compartment light illuminates when the trunk lid is opened.
WARNING:
o If a person is locked in the trunk, pull the emergency trunk releaselever on the driver's side of theinside panel of the trunk to open the trunk lid.
o Hyundai recommends that cars be kept locked and keys be keptout of the reach of children, and that parents teach their childrenabout the dangers of playing in trunks.
o Parents should teach children about the emergency trunk re-lease lever in their vehicle and how to open the trunk lid if theyare accidentally locked in the trunk. B540C01Y-AAT To unlock using the key
B540C03L
!

1- 68 FEATURES OF YOUR HYUNDAI
HXGS255
WARNING:
Gasoline vapors are dangerous. Before refueling, always stop the engine and never allow sparks or open flames near the filler area. Ifyou need to replace the filler cap, use a genuine Hyundai replacement part.If you open the fuel filler cap during high ambient temperatures, a slight "pressure sound" may be heard.This is normal and not a cause for concern. Whenever you open the fuel fillercap, turn it slowly.
HXGS207
B560A02Y-GAT REMOTE FUEL-FILLER LID RE- LEASE
The fuel-filler lid may be opened from inside the vehicle by pushing on the fuel-filler lid opener located on the driver's door. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allowthe ice to melt.
!HXG115
B560B01L-GAT Manual Fuel Filler Lid Release If the fuel filler lid cannot be opened using the remote opener, a manual opener handle is located inside thetrunk on the left side. Open the fuel filler lid by pulling on this handle as shown illustration.

FEATURES OF YOUR HYUNDAI 1- 69
The accessory box may be opened by pushing at its top edge. It is used for storing small items.B500A01L-GAT ACCESSORY BOX
HXG111
HXG047
B570A02A-GAT HOOD RELEASE
1. Pull the release knob to unlatch the hood.
HXGS208WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is not latched, the hood could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an acci-dent.
o Do not move the vehicle with the
hood in the raised position, asvision is obstructed and the hood could fall or be damaged.
!
2. Press the secondary latch lever upand lift the hood.
3. Raise the hood by hand. When closing the hood, slowly close the hood and make sure it locks intoplace.

1- 70 FEATURES OF YOUR HYUNDAI
B540D01L
B540D02L-GAT LUGGAGE NET
When loading the objects in the trunk room, hook the four rings located in the trunk to attach the luggage net as shown illustration. This will prevent theobjects from sliding.
HXG058-1
B500D07O-GAT POWER OUTLET (If Installed)
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON" or "ACC" position. CAUTION:
Do not use the power outlet to con-nect electric accessories or equip- ment other than those designed to operate on 12 volts.
!
1 2
3 4!
B500D02L
B450B01E-GAT
CD AUTO CHANGER (If Installed) B450B01L
CAUTION:
To prevent damage to the goods or the vehicle, care should be takenwhen carrying fragile or bulky ob- jects in the trunk.
!WARNING:
Avoid eye injury. DO NOT over- stretch. ALWAYS keep face andbody out of recoil path. DO NOT use when strap has visible signs of wear or damage.

FEATURES OF YOUR HYUNDAI 1- 71
B580A01L-GAT SUN VISOR
B580A01LYour Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade.To reduce glare or to shut out direct rays of the sun, turn the sun visor down.A vanity mirror is provided on the back of the sun visor for the driver and the front passenger. NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on the back of each sun visor.
B620A01L
B620A01L-AAT DOOR COURTESY LIGHT
The CD Auto Changer is located in the left side of the trunk. This system can store up to 8 CDs.You may select music without chang- ing disks. First, open the CD Auto Changer door, remove the CD "maga-zine", and insert up to 8 CDs. Then, push the magazine into the CD Auto Changer. The CD may be operatedwith the passenger compartment au- dio system controls.
CAUTION:
Do not place the sun visor in sucha manner that it obscures visibility of the roadway, traffic or other ob-jects.
A red light comes on when the door is opened. The purpose of this light is to assist when you get in or out and alsoto warn passing vehicles.
!B580B02Y-AAT Illuminated Vanity Mirror (If Installed) Opening the lid of the vanity mirror will automatically turn on the mirror light when the ignition key is turned to the"ON" position.

1- 72 FEATURES OF YOUR HYUNDAI
B600A02HP-GAT STEERING WHEEL TILT LEVER
HXG609J
To adjust the steering wheel:
1. Pull the lever toward you and hold it to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, release the lever.
B611A02L-AAT REAR SEAT ARM REST The rear seat arm rest is located in the center of the rear seat back. A storage box is included for convenience.
B611A01L
WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this may result in loss of control of the ve- hicle and serious injury or death.
!
B610A02Y-GAT HORN Press the center hub on the steering wheel to sound the horn. HXGS218
Working zone

FEATURES OF YOUR HYUNDAI 1- 73

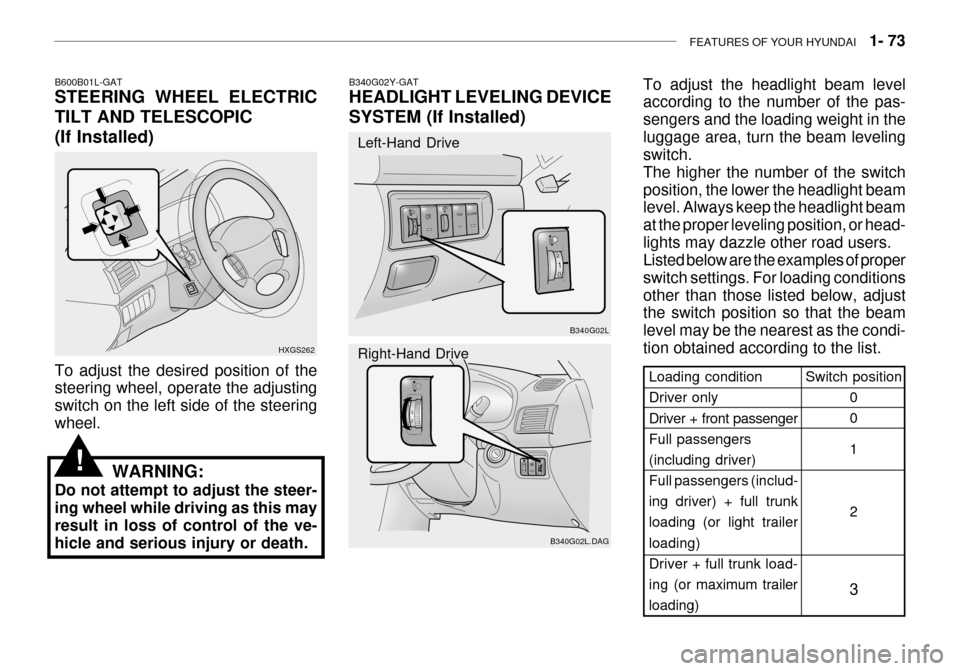

B600B01L-GAT STEERING WHEEL ELECTRIC TILT AND TELESCOPIC
(If Installed)
HXGS262
To adjust the desired position of the steering wheel, operate the adjusting switch on the left side of the steeringwheel.
WARNING:
Do not attempt to adjust the steer-ing wheel while driving as this mayresult in loss of control of the ve- hicle and serious injury or death.
!
Switch position
0 0 1 2
3Loading condition Driver only Driver + front passenger Full passengers(including driver) Full passengers (includ- ing driver) + full trunkloading (or light trailer loading)
Driver + full trunk load-ing (or maximum trailer
loading)
B340G02L
B340G02L.DAG
B340G02Y-GAT HEADLIGHT LEVELING DEVICE
SYSTEM (If Installed)
Left-Hand Drive Right-Hand Drive
To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in theluggage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditionsother than those listed below, adjust the switch position so that the beam level may be the nearest as the condi-tion obtained according to the list.

1- 74 FEATURES OF YOUR HYUNDAI

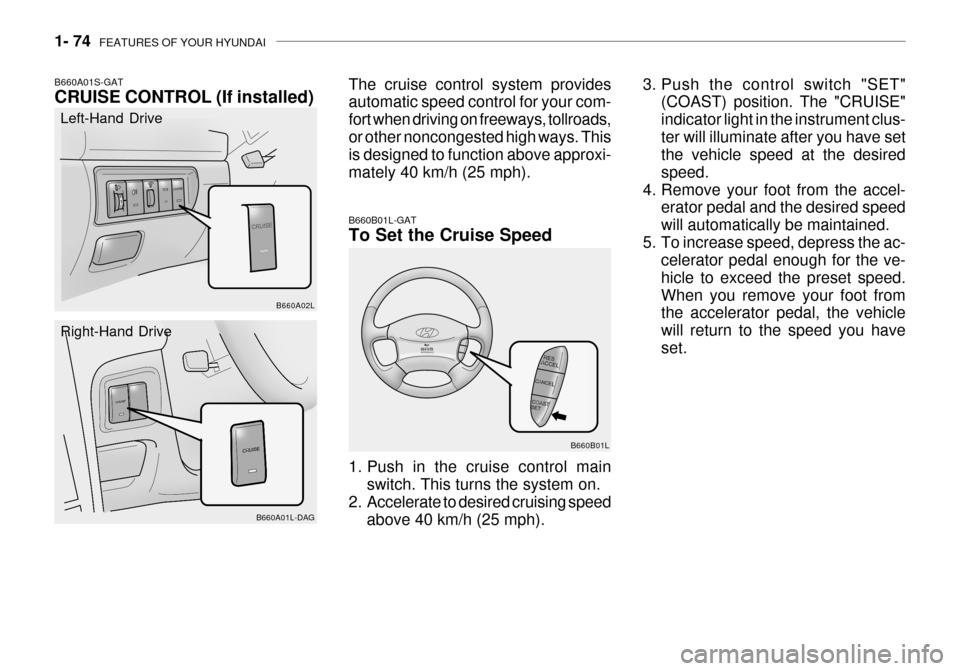

B660A01S-GAT CRUISE CONTROL (If installed)
B660A02LThe cruise control system provides automatic speed control for your com- fort when driving on freeways, tollroads,or other noncongested high ways. This is designed to function above approxi- mately 40 km/h (25 mph).
B660A01L-DAG
Left-Hand Drive Right-Hand Drive
B660B01L
B660B01L-GAT To Set the Cruise Speed
1. Push in the cruise control main
switch. This turns the system on.
2. Accelerate to desired cruising speed above 40 km/h (25 mph). 3. Push the control switch "SET"
(COAST) position. The "CRUISE" indicator light in the instrument clus-ter will illuminate after you have set the vehicle speed at the desired speed.
4. Remove your foot from the accel- erator pedal and the desired speedwill automatically be maintained.
5. To increase speed, depress the ac- celerator pedal enough for the ve-hicle to exceed the preset speed.When you remove your foot from the accelerator pedal, the vehicle will return to the speed you haveset.

FEATURES OF YOUR HYUNDAI 1- 75

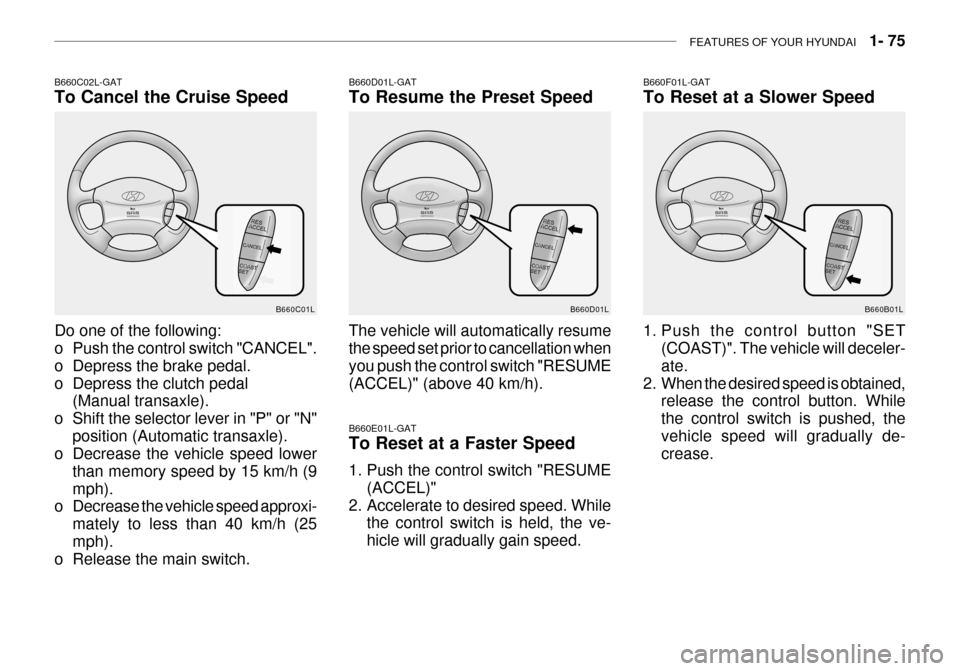

B660C02L-GAT To Cancel the Cruise Speed
Do one of the following:
o Push the control switch "CANCEL".
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever in "P" or "N" position (Automatic transaxle).
o Decrease the vehicle speed lower
than memory speed by 15 km/h (9mph).
o Decrease the vehicle speed approxi-
mately to less than 40 km/h (25mph).
o Release the main switch. B660C01LB660D01L-GAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation when you push the control switch "RESUME(ACCEL)" (above 40 km/h).
B660D01L
B660E01L-GAT To Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)"
2. Accelerate to desired speed. While the control switch is held, the ve- hicle will gradually gain speed.B660F01L-GAT To Reset at a Slower Speed
1. Push the control button "SET(COAST)". The vehicle will deceler- ate.
2. When the desired speed is obtained, release the control button. Whilethe control switch is pushed, thevehicle speed will gradually de- crease. B660B01L

1- 76 FEATURES OF YOUR HYUNDAI
WARNING:
o Keep the main switch off when not using the cruise control.
o Do not use the cruise control
when it may not be safe to keep the car at a constant speed, for instance, driving in heavy or vary-ing traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
o Pay particular attention to the
driving conditions whenever us- ing the cruise control system.
o During cruise-speed driving with manual transaxle vehicle, do notshift into neutral without depress- ing the clutch pedal, since theengine will be overrevved. If this happens, depress the clutch pedal or release the main switch.
o During normal cruise control op- eration, when the set button isactivated or reactivated after ap-plying the brakes, the cruise con- trol will energize after approxi- mately 3 seconds. This delay isnormal. SEEK ( / ) Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK ( ) is pressed, the unit will automatically tune to the next higher frequency and when the SEEK ( ) switch is pressed, it will automati-cally tune to the next lower frequency.
2. TAPE mode
o Pressing the SEEK ( ) will play the
beginning of the next music seg- ment.
o Pressing the SEEK ( ) will start replay at the beginning of the musicjust listened to.
3. CD (compact disc)/CDC (compact disc changer) mode
o Press the SEEK ( ) once to skip forward to the beginning of the next track.
o Press the SEEK ( ) once to skip back to the beginning of the track.

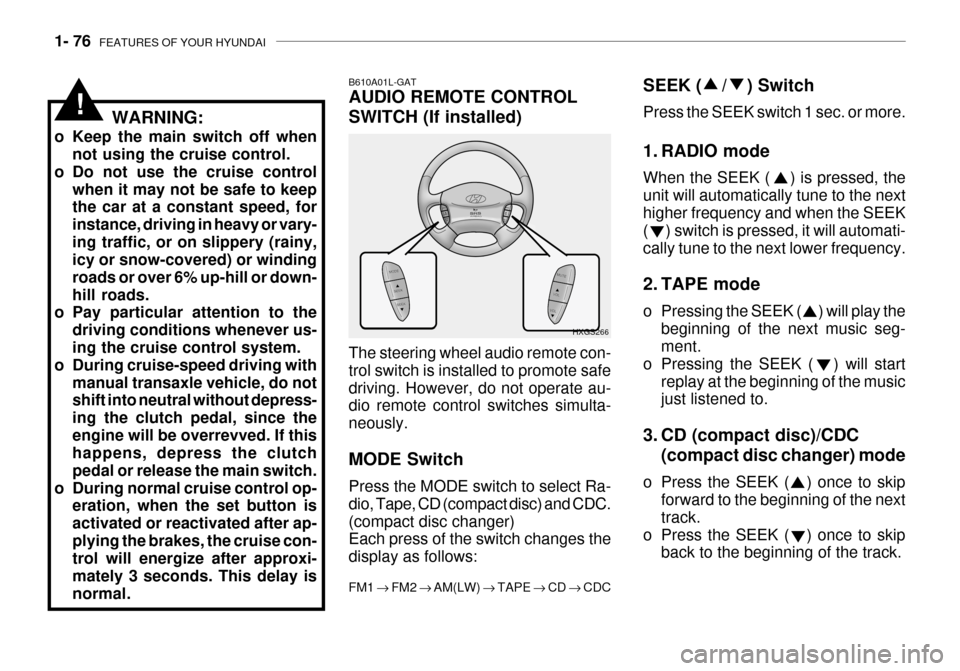

B610A01L-GAT AUDIO REMOTE CONTROL SWITCH (If installed) The steering wheel audio remote con- trol switch is installed to promote safedriving. However, do not operate au- dio remote control switches simulta- neously. MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (compact disc) and CDC.(compact disc changer) Each press of the switch changes the display as follows: FM1
FM2
AM(LW)
TAPE
CD
CDC
HXGS266
!
