FEATURES OF YOUR HYUNDAI 1- 47
B310B02L
Super vision type
1. Odometer The odometer records the total driving distance in kilometers or miles, and is useful for keeping a record for mainte-nance intervals.
B330A01L-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute (rpm). HXGS241
Conventional type
Super vision type

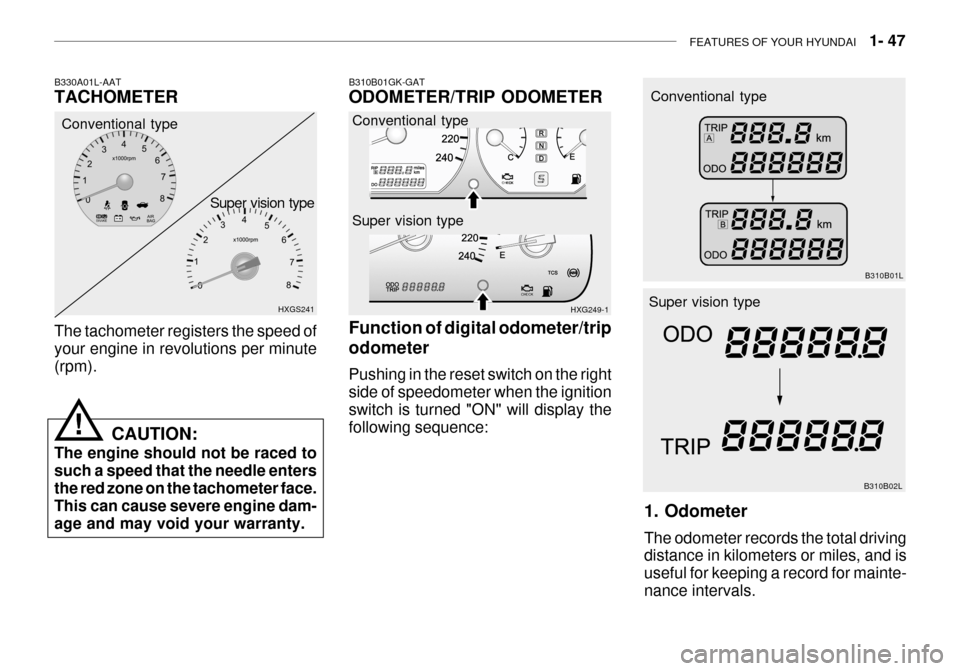

B310B01GK-GAT ODOMETER/TRIP ODOMETER Function of digital odometer/trip odometer
Pushing in the reset switch on the right side of speedometer when the ignitionswitch is turned "ON" will display the following sequence:
!
CAUTION:
The engine should not be raced to such a speed that the needle entersthe red zone on the tachometer face. This can cause severe engine dam- age and may void your warranty.
B310B01L
Conventional type
HXG249-1
Conventional type Super vision type

1- 48 FEATURES OF YOUR HYUNDAI

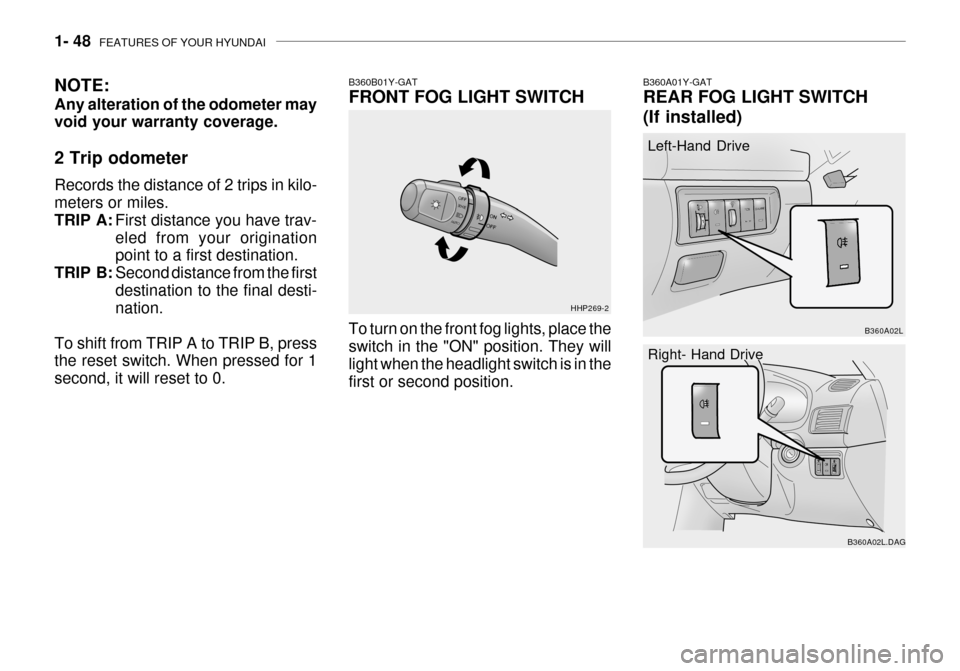

B360B01Y-GAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in the first or second position. HHP269-2B360A01Y-GAT REAR FOG LIGHT SWITCH (If installed)
Left-Hand Drive Right- Hand Drive
B360A02L.DAGB360A02L
NOTE: Any alteration of the odometer may void your warranty coverage. 2 Trip odometer Records the distance of 2 trips in kilo- meters or miles. TRIP A:
First distance you have trav-eled from your origination point to a first destination.
TRIP B: Second distance from the first destination to the final desti- nation.
To shift from TRIP A to TRIP B, pressthe reset switch. When pressed for 1 second, it will reset to 0.

FEATURES OF YOUR HYUNDAI 1- 49
To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position.

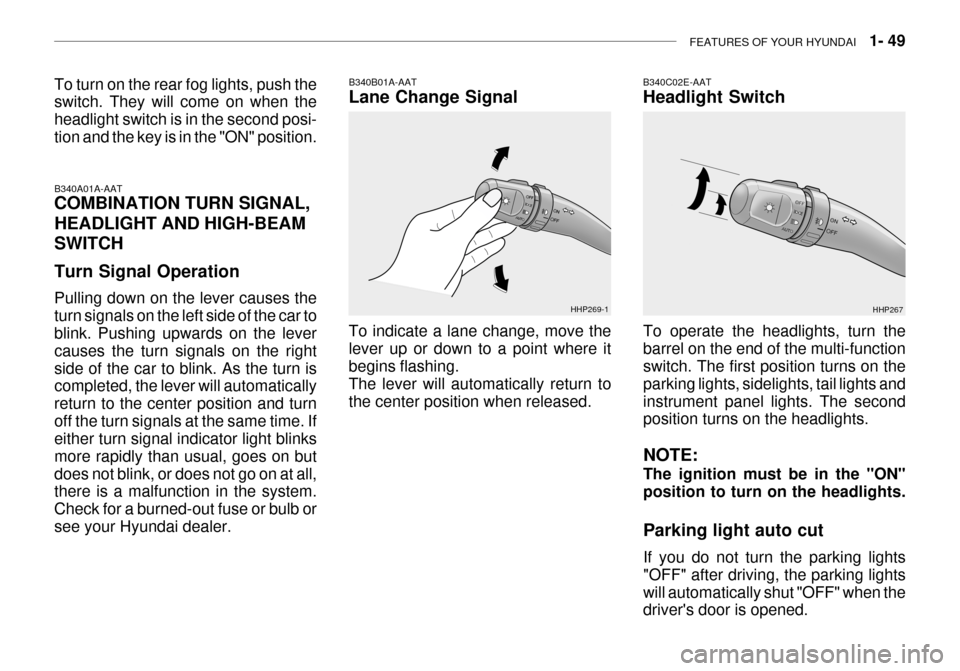

B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAM SWITCH Turn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the lever causes the turn signals on the rightside of the car to blink. As the turn is completed, the lever will automatically return to the center position and turnoff the turn signals at the same time. If either turn signal indicator light blinks more rapidly than usual, goes on butdoes not blink, or does not go on at all, there is a malfunction in the system. Check for a burned-out fuse or bulb orsee your Hyundai dealer. B340B01A-AAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where it begins flashing. The lever will automatically return tothe center position when released.
HHP269-1
B340C02E-AAT Headlight Switch
To operate the headlights, turn the barrel on the end of the multi-function switch. The first position turns on the parking lights, sidelights, tail lights andinstrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights. Parking light auto cut If you do not turn the parking lights "OFF" after driving, the parking lightswill automatically shut "OFF" when the driver's door is opened. HHP267

1- 50 FEATURES OF YOUR HYUNDAI
B340F01L-GAT Auto Light
3A9CA44

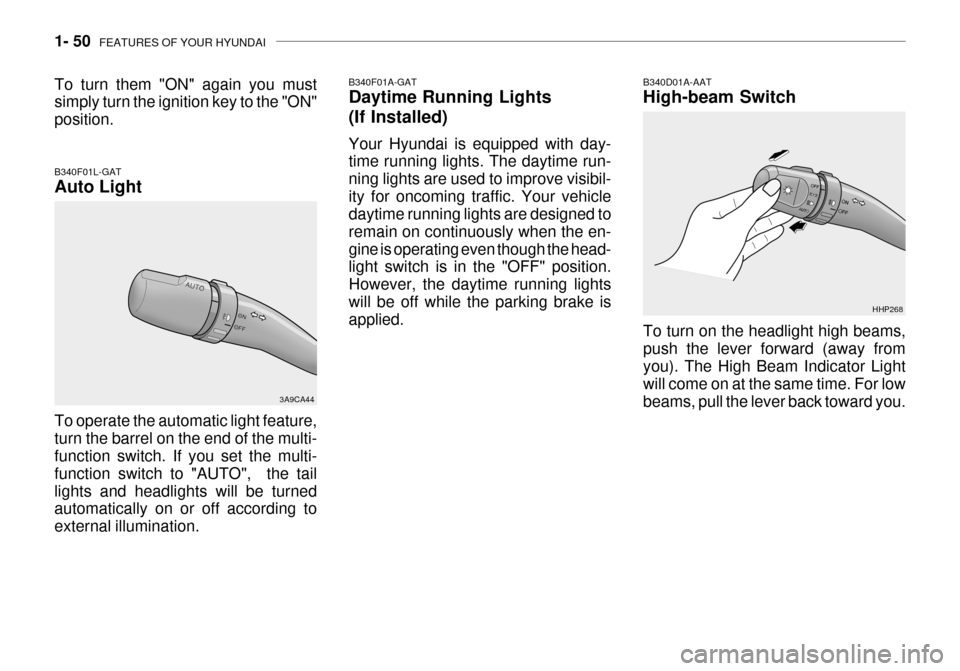

To operate the automatic light feature, turn the barrel on the end of the multi- function switch. If you set the multi- function switch to "AUTO", the taillights and headlights will be turned automatically on or off according to external illumination. B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away from you). The High Beam Indicator Light will come on at the same time. For lowbeams, pull the lever back toward you.
HHP268
B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run- ning lights are used to improve visibil-ity for oncoming traffic. Your vehicle daytime running lights are designed to remain on continuously when the en-gine is operating even though the head- light switch is in the "OFF" position. However, the daytime running lightswill be off while the parking brake is applied.
To turn them "ON" again you mustsimply turn the ignition key to the "ON" position.

FEATURES OF YOUR HYUNDAI 1- 51
HHP269
B340E01A-AAT Headlight Flasher To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even though the headlight switch is in the "OFF"position.

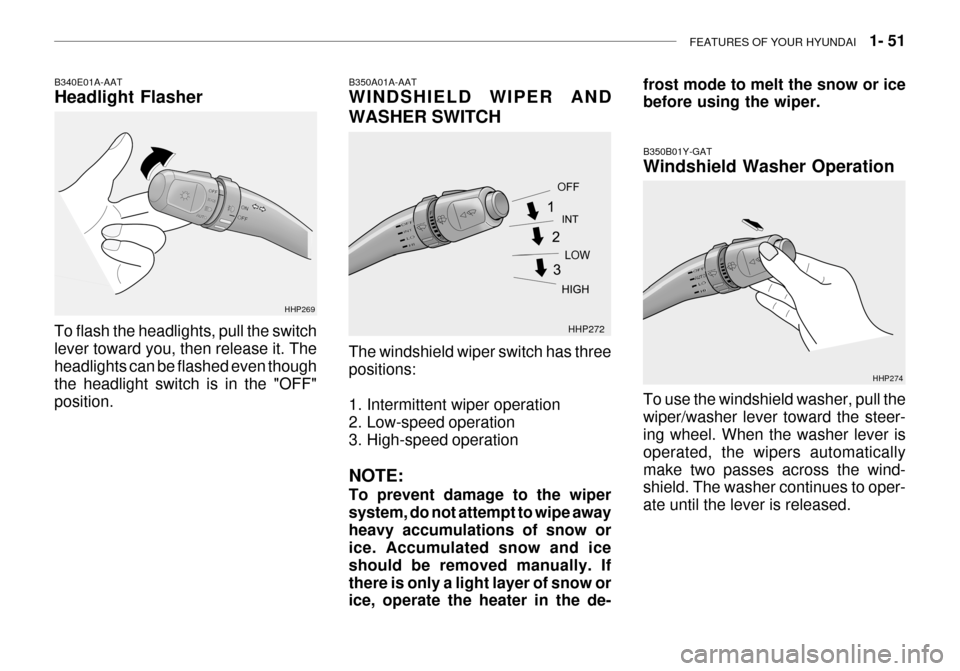

B350A01A-AAT WINDSHIELD WIPER AND WASHER SWITCH The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe awayheavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. Ifthere is only a light layer of snow or ice, operate the heater in the de- HHP272
B350B01Y-GAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer- ing wheel. When the washer lever is operated, the wipers automaticallymake two passes across the wind- shield. The washer continues to oper- ate until the lever is released.
HHP274
frost mode to melt the snow or ice before using the wiper.

1- 52 FEATURES OF YOUR HYUNDAI

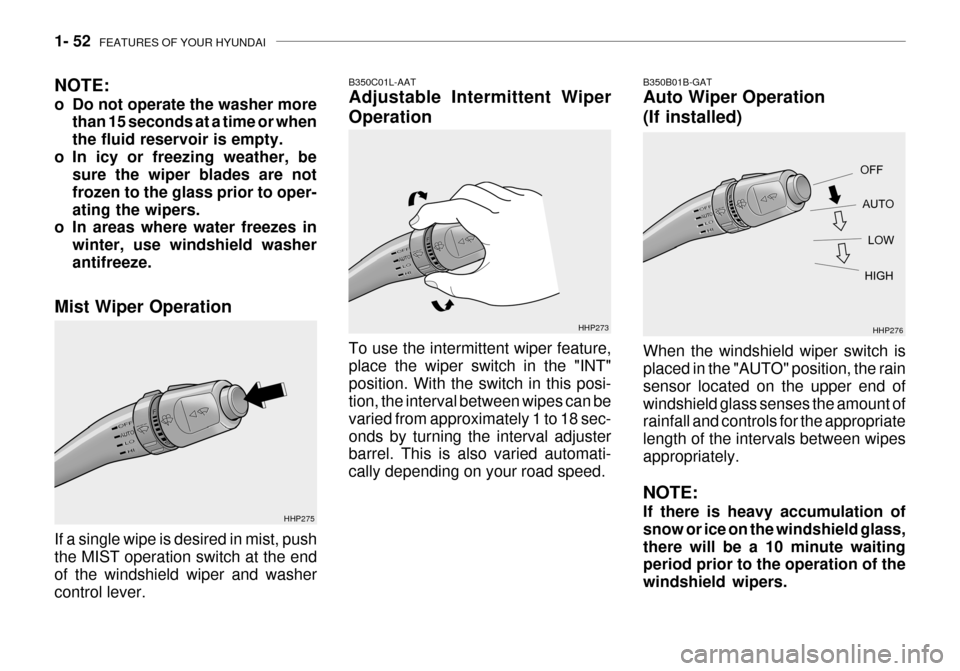

B350C01L-AAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT"position. With the switch in this posi- tion, the interval between wipes can be varied from approximately 1 to 18 sec-onds by turning the interval adjuster barrel. This is also varied automati- cally depending on your road speed. HHP273B350B01B-GAT Auto Wiper Operation (If installed)
HHP276
When the windshield wiper switch is placed in the "AUTO" position, the rain sensor located on the upper end ofwindshield glass senses the amount of rainfall and controls for the appropriate length of the intervals between wipesappropriately. NOTE: If there is heavy accumulation of snow or ice on the windshield glass,there will be a 10 minute waiting period prior to the operation of the windshield wipers.
Mist Wiper Operation If a single wipe is desired in mist, push the MIST operation switch at the end of the windshield wiper and washer control lever. HHP275
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are notfrozen to the glass prior to oper-ating the wipers.
o In areas where water freezes in
winter, use windshield washerantifreeze.

FEATURES OF YOUR HYUNDAI 1- 53
WARNING:
When the ignition switch is on and the windshield wiper switch is placed in the "AUTO" mode, please use caution in the following casesto avoid any hand injury: As the wiper system may automati- cally activate, the fingers or handmight be caught in the wiper.
o Do not touch the upper end of the windshield glass facing the rain sensor.
o Do not wipe the upper end of the
windshield glass with a cloth.
o Do not put pressure on the wind-
shield glass. HXGS251

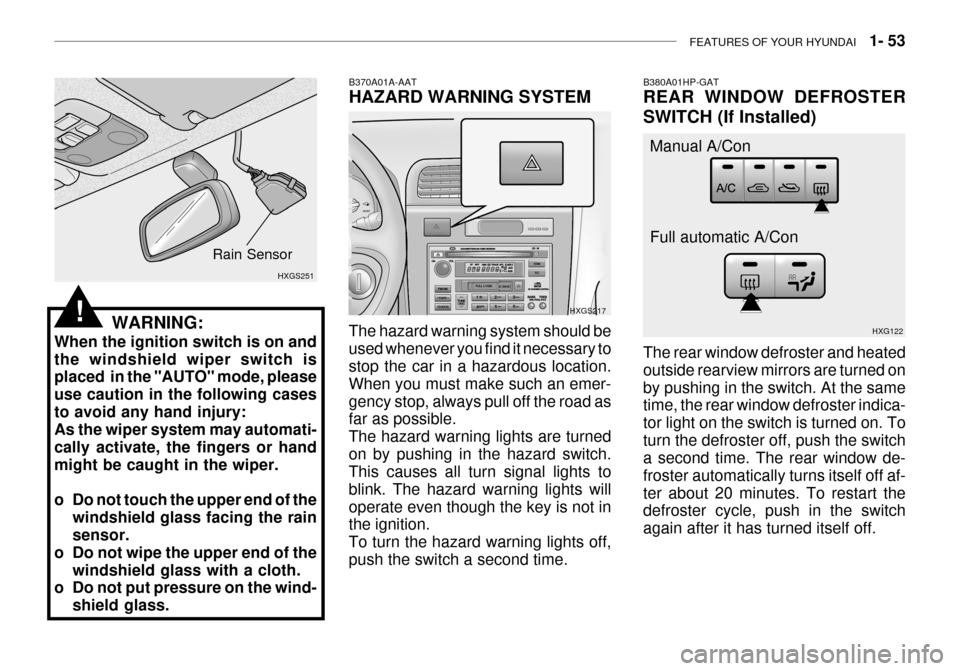

Rain Sensor
The rear window defroster and heated outside rearview mirrors are turned onby pushing in the switch. At the same time, the rear window defroster indica- tor light on the switch is turned on. Toturn the defroster off, push the switch a second time. The rear window de- froster automatically turns itself off af-ter about 20 minutes. To restart the defroster cycle, push in the switch again after it has turned itself off.
B380A01HP-GAT REAR WINDOW DEFROSTER SWITCH (If Installed)
B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer-gency stop, always pull off the road as far as possible. The hazard warning lights are turnedon by pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights willoperate even though the key is not in the ignition. To turn the hazard warning lights off,push the switch a second time. HXGS217
HXG122
Manual A/Con Full automatic A/Con
!

1- 54 FEATURES OF YOUR HYUNDAI

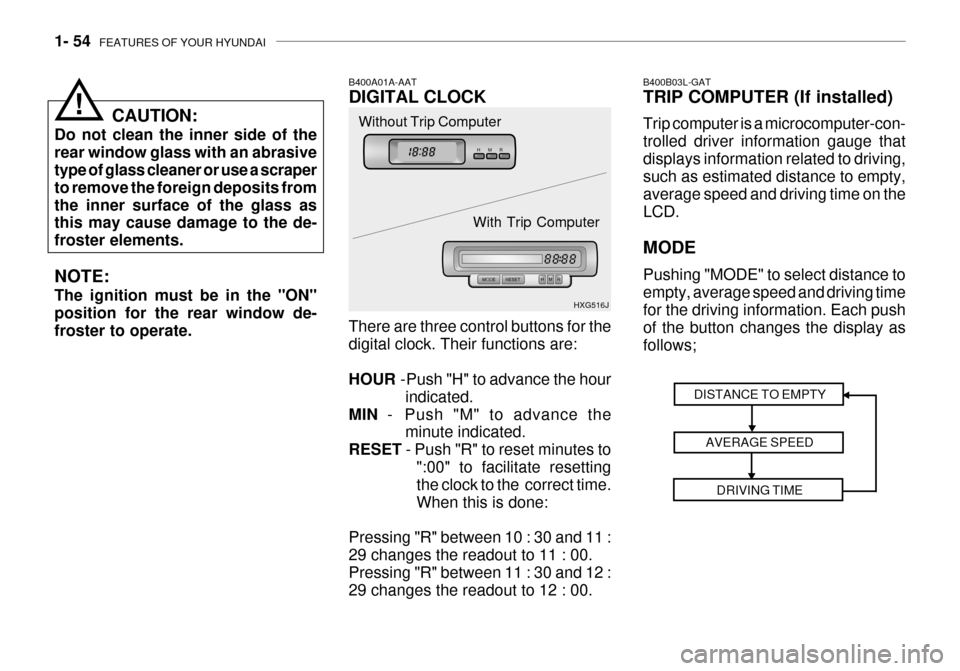

B400A01A-AAT DIGITAL CLOCK There are three control buttons for the digital clock. Their functions are: HOUR -Push "H" to advance the hour
indicated.
MIN - Push "M" to advance the
minute indicated.
RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 10 : 30 and 11 :29 changes the readout to 11 : 00.Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00. HXG516J
CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraper to remove the foreign deposits fromthe inner surface of the glass as this may cause damage to the de- froster elements. NOTE: The ignition must be in the "ON" position for the rear window de-froster to operate. Without Trip Computer
With Trip Computer
!
DISTANCE TO EMPTYAVERAGE SPEEDDRIVING TIME

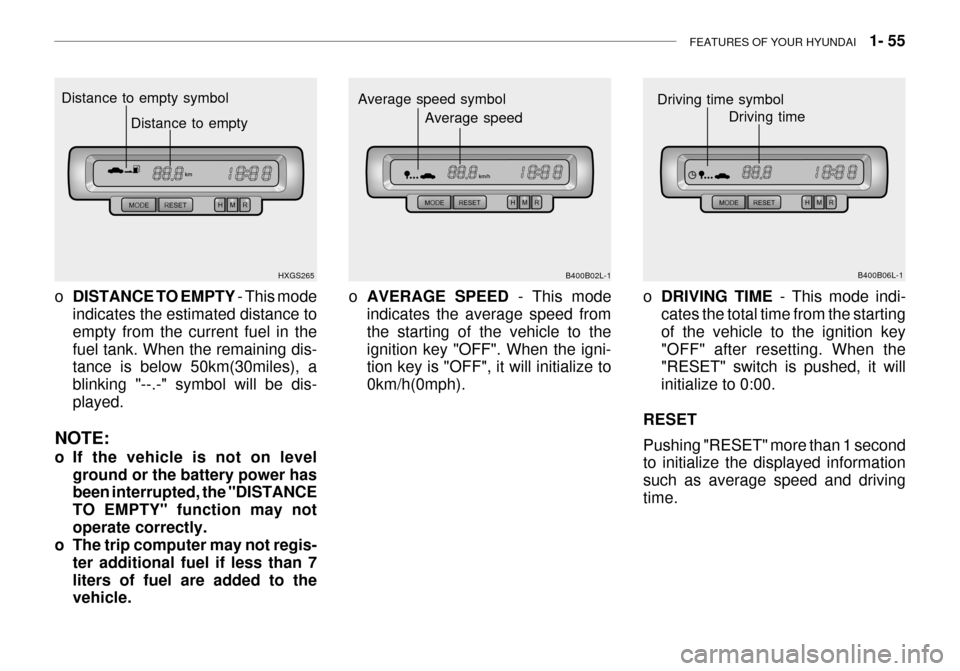

B400B03L-GAT TRIP COMPUTER (If installed) Trip computer is a microcomputer-con- trolled driver information gauge thatdisplays information related to driving, such as estimated distance to empty, average speed and driving time on theLCD. MODE Pushing "MODE" to select distance to empty, average speed and driving time for the driving information. Each push of the button changes the display asfollows;

FEATURES OF YOUR HYUNDAI 1- 55
B400B06L-1
Driving time symbol
Driving time
B400B02L-1
Average speed symbol
Average speed
oDRIVING TIME - This mode indi-
cates the total time from the starting of the vehicle to the ignition key"OFF" after resetting. When the "RESET" switch is pushed, it will initialize to 0:00.
RESET Pushing "RESET" more than 1 second to initialize the displayed information such as average speed and drivingtime.
HXGS265 oAVERAGE SPEED - This mode
indicates the average speed from the starting of the vehicle to theignition key "OFF". When the igni- tion key is "OFF", it will initialize to 0km/h(0mph).
Distance to empty symbol
Distance to empty
o DISTANCE TO EMPTY - This mode
indicates the estimated distance to empty from the current fuel in thefuel tank. When the remaining dis- tance is below 50km(30miles), a blinking "--.-" symbol will be dis-played.
NOTE:
o If the vehicle is not on level ground or the battery power has been interrupted, the "DISTANCE TO EMPTY" function may notoperate correctly.
o The trip computer may not regis-
ter additional fuel if less than 7liters of fuel are added to the vehicle.

1- 56 FEATURES OF YOUR HYUNDAI

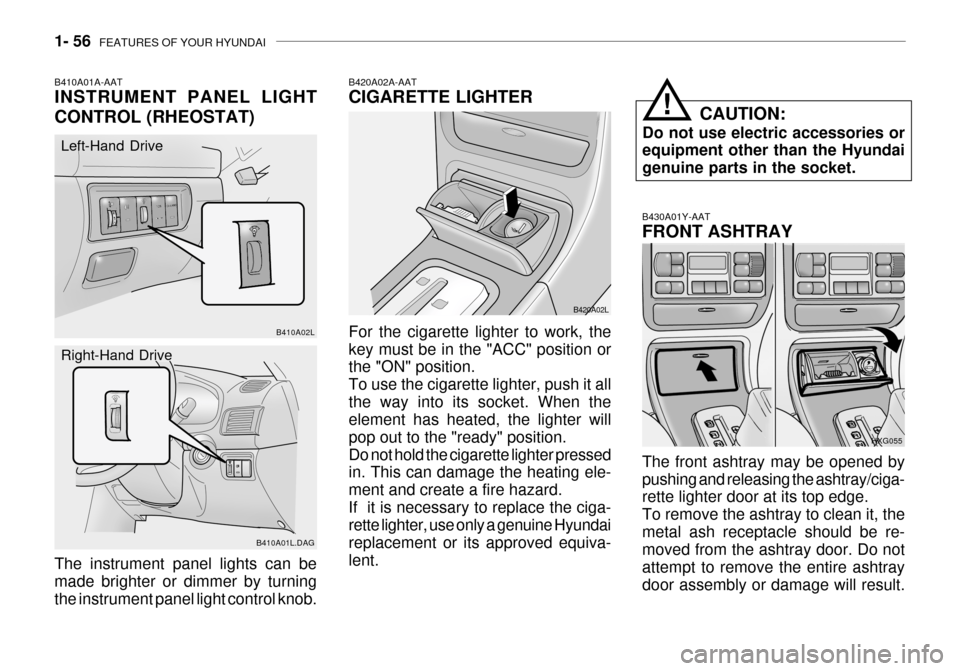

B430A01Y-AAT FRONT ASHTRAY The front ashtray may be opened by pushing and releasing the ashtray/ciga- rette lighter door at its top edge. To remove the ashtray to clean it, themetal ash receptacle should be re- moved from the ashtray door. Do not attempt to remove the entire ashtraydoor assembly or damage will result. HXG055
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.!
The instrument panel lights can be made brighter or dimmer by turningthe instrument panel light control knob. Right-Hand Drive
B410A01L.DAG
B410A01A-AAT INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)Left-Hand Drive
B410A02L B420A02L
For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it allthe way into its socket. When the element has heated, the lighter will pop out to the "ready" position.Do not hold the cigarette lighter pressed in. This can damage the heating ele- ment and create a fire hazard.If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundai replacement or its approved equiva-lent.
B420A02A-AAT CIGARETTE LIGHTER
