HYUNDAI GX350 L 2005 Owners Manual

1
FEATURES OF YOUR HYUNDAI
79
1
HXG121 B680A02L-GAT

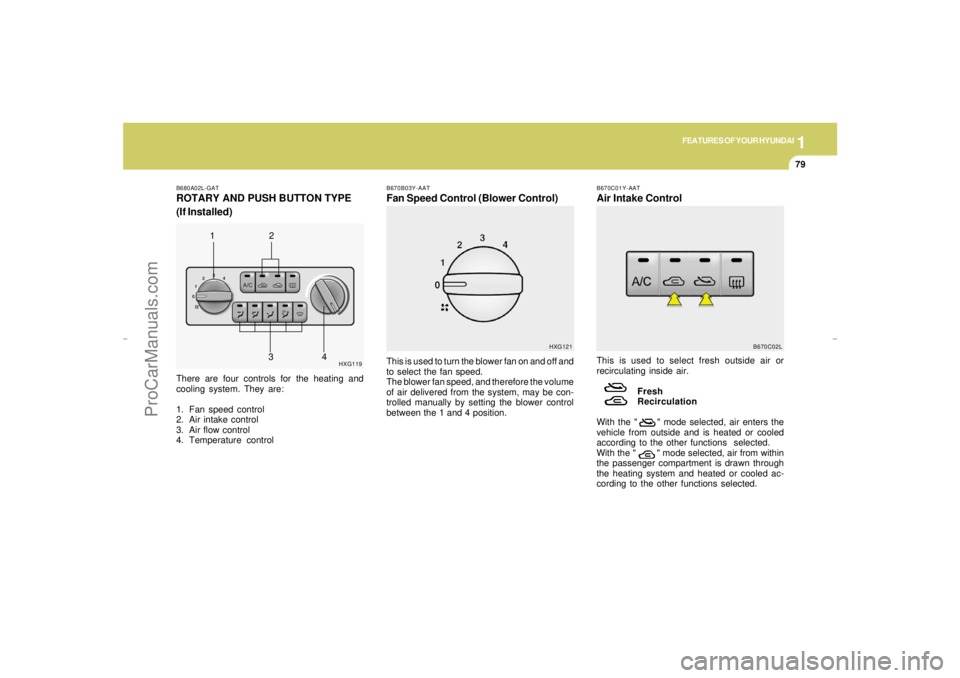

ROTARY AND PUSH BUTTON TYPE
(If Installed)There are four controls for the heating and
cooling system. They are:
1. Fan speed control
2. Air intake control
3. Air flow control
4. Temperature control
HXG119
2
3
4
B670C01Y-AATAir Intake ControlThis is used to select fresh outside air or
recirculating inside air.
Fresh
Recirculation
With the " " mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the " " mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac-
cording to the other functions selected.
B670C02L
B670B03Y-AATFan Speed Control (Blower Control)This is used to turn the blower fan on and off and
to select the fan speed.
The blower fan speed, and therefore the volume
of air delivered from the system, may be con-
trolled manually by setting the blower control
between the 1 and 4 position.
xgflhma-1.p656/16/04, 3:04 PM 79
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI80
NOTE:o It should be noted that prolonged opera-
tion of the heating system in " " mode
will give rise to misting of the windshield
and side windows and the air within the
passenger compartment will become
stale. In addition prolonged use of the air
conditioning with the " " mode selected
may result in the air within the passenger
compartment becoming excessively dry.
o When the ignition switch is turned "ON",
the air intake control will change to " "
mode (regardless of switch position).
This is normal operation.
HEF030 B670D01L-AAT

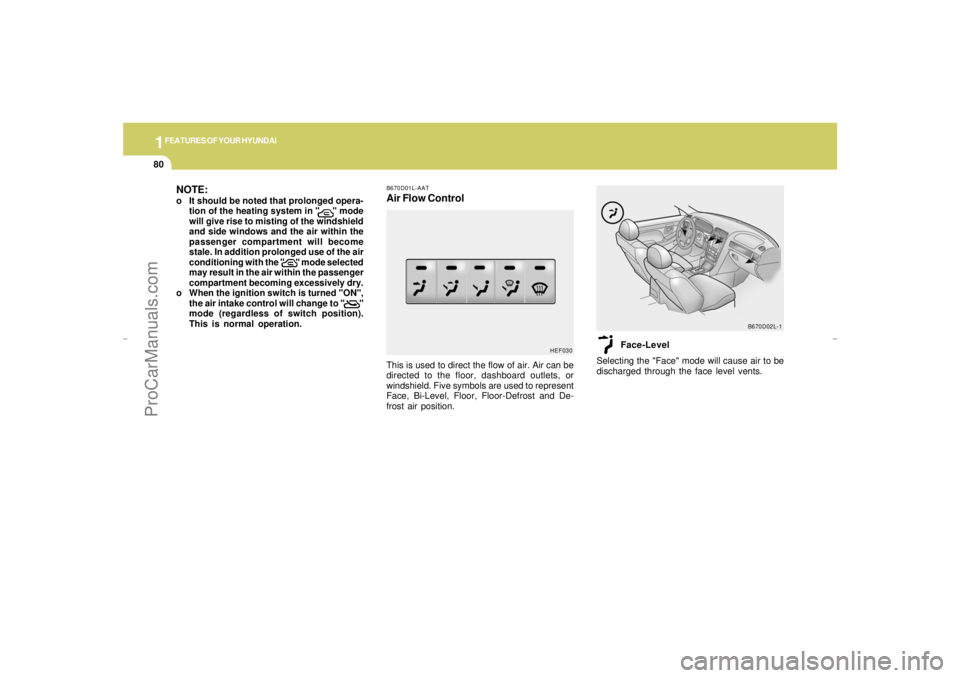

Air Flow ControlThis is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.Face-Level
Selecting the "Face" mode will cause air to be
discharged through the face level vents.
B670D02L-1
xgflhma-1.p656/16/04, 3:04 PM 80
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
81
B670D04L-1

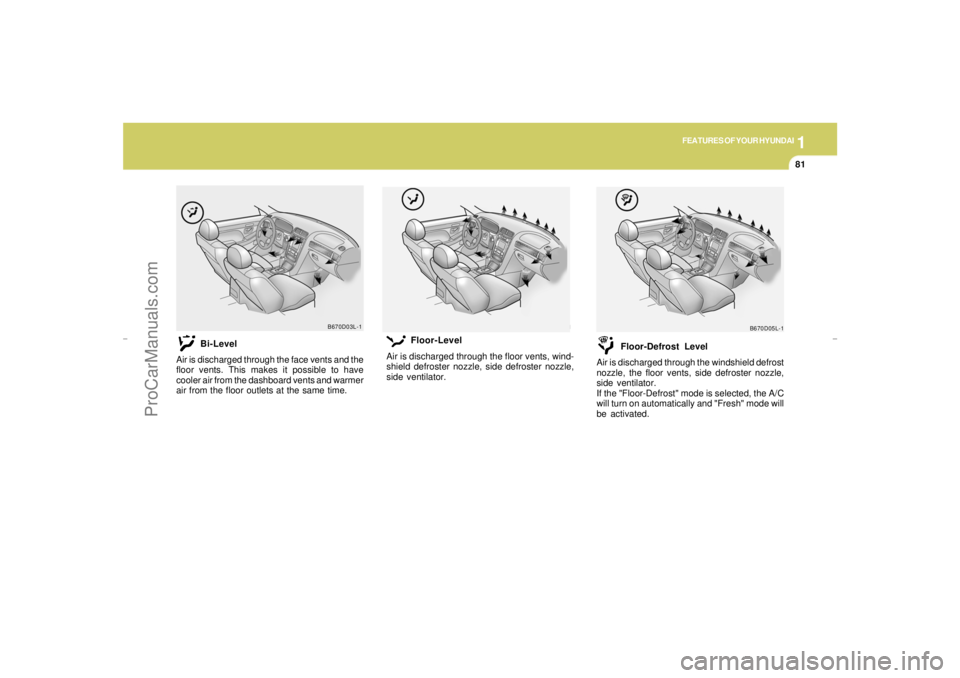

Bi-Level
Air is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.Floor-Level
Air is discharged through the floor vents, wind-
shield defroster nozzle, side defroster nozzle,
side ventilator.Floor-Defrost Level
Air is discharged through the windshield defrost
nozzle, the floor vents, side defroster nozzle,
side ventilator.
If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode will
be activated.
B670D03L-1
B670D05L-1
xgflhma-1.p656/16/04, 3:04 PM 81
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI82

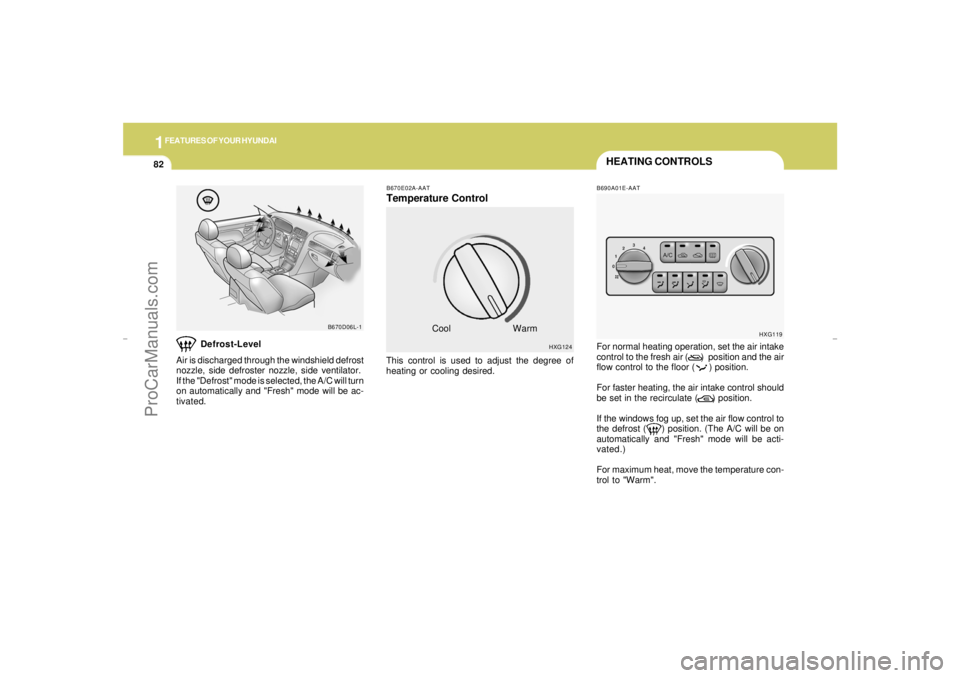

HEATING CONTROLS
B670E02A-AATTemperature ControlThis control is used to adjust the degree of
heating or cooling desired.
HXG124
Cool
Warm
B690A01E-AATFor normal heating operation, set the air intake
control to the fresh air ( ) position and the air
flow control to the floor ( ) position.
For faster heating, the air intake control should
be set in the recirculate ( ) position.
If the windows fog up, set the air flow control to
the defrost ( ) position. (The A/C will be on
automatically and "Fresh" mode will be acti-
vated.)
For maximum heat, move the temperature con-
trol to "Warm".
HXG119
B670D06L-1
Defrost-Level
Air is discharged through the windshield defrost
nozzle, side defroster nozzle, side ventilator.
If the "Defrost" mode is selected, the A/C will turn
on automatically and "Fresh" mode will be ac-
tivated.
xgflhma-1.p656/16/04, 3:04 PM 82
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
83

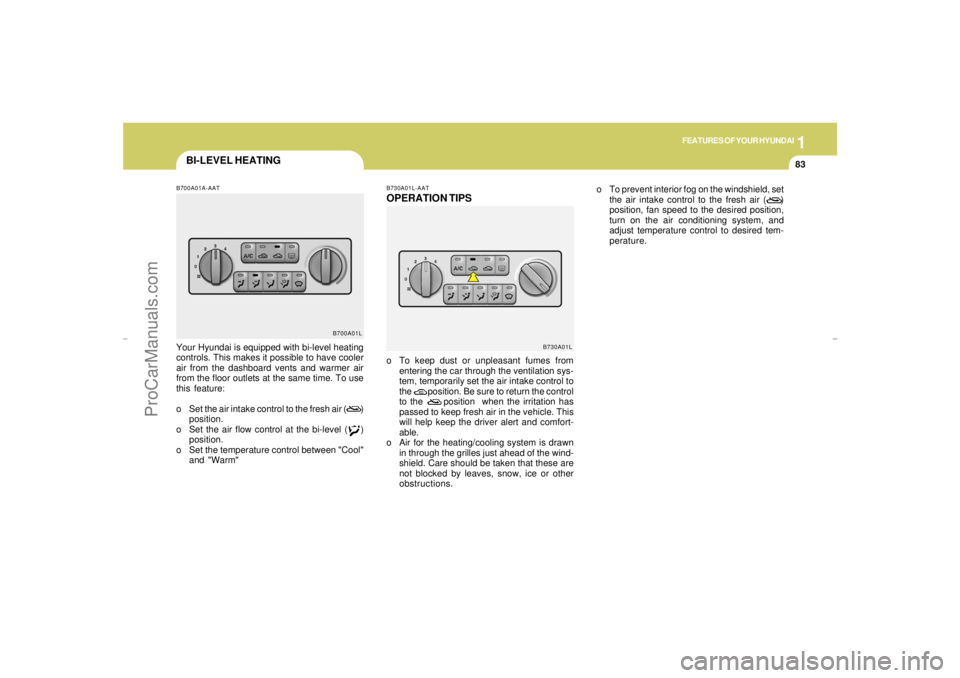

BI-LEVEL HEATINGB700A01A-AATYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control to the fresh air ( )
position.
o Set the air flow control at the bi-level ( )
position.
o Set the temperature control between "Cool"
and "Warm"
B700A01L
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
the position. Be sure to return the control
to the position when the irritation has
passed to keep fresh air in the vehicle. This
will help keep the driver alert and comfort-
able.
o Air for the heating/cooling system is drawn
in through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.B730A01L-AATOPERATION TIPS
B730A01L
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position, fan speed to the desired position,
turn on the air conditioning system, and
adjust temperature control to desired tem-
perature.
xgflhma-1.p656/16/04, 3:04 PM 83
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI84

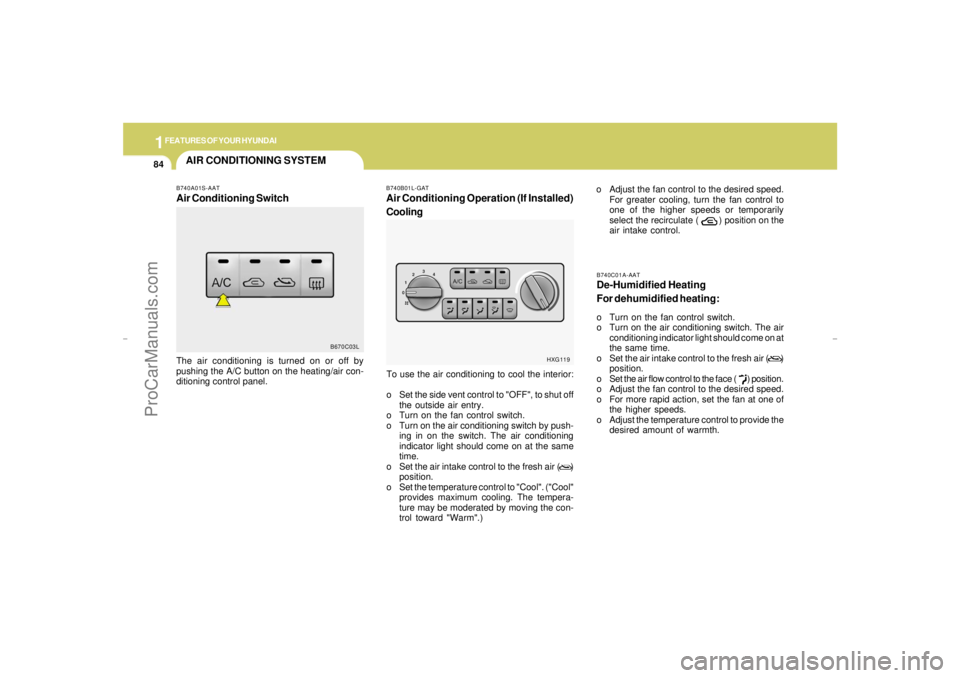

AIR CONDITIONING SYSTEM
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the recirculate ( ) position on the
air intake control.B740C01A-AATDe-Humidified Heating
For dehumidified heating:o Turn on the fan control switch.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on at
the same time.
o Set the air intake control to the fresh air ( )
position.
o Set the air flow control to the face ( ) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth.
B740B01L-GATAir Conditioning Operation (If Installed)
CoolingTo use the air conditioning to cool the interior:
o Set the side vent control to "OFF", to shut off
the outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control to the fresh air ( )
position.
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
HXG119
B740A01S-AATAir Conditioning SwitchThe air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
B670C03L
xgflhma-1.p656/16/04, 3:04 PM 84
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
85
Manual A/Con
Full automatic A/Con
NOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause
fog to form on the exterior windshield. If this occurs set the air flow control to the face level position
( ) and fan speed control to the low position. To remove interior fog on the windshield;
o Set the air flow control to the defrost ( ) position.
(The A/C will turn on automatically and "Fresh" mode
will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield;
o Set the air flow control to the defrost ( ) position.
(The A/C will turn on automatically and "Fresh" mode
will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".B720A01E-AATDEFROSTING/DEFOGGING
B720A02L
B720A03L

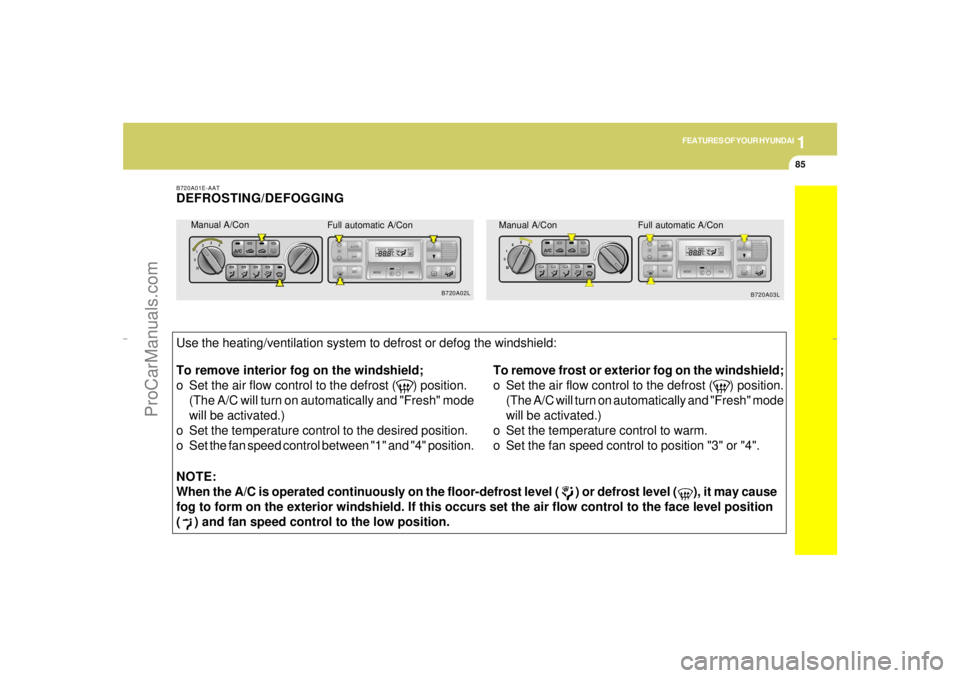

Use the heating/ventilation system to defrost or defog the windshield:
Manual A/Con Full automatic A/Con
xgflhma-1.p656/16/04, 3:04 PM 85
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI86
AUTOMATIC HEATING AND COOLING CONTROL SYSTEMB970A01Y-AAT(If Installed)Your Hyundai is equipped with an automatic
heating and cooling control system controlled
by simply setting the desired temperature.

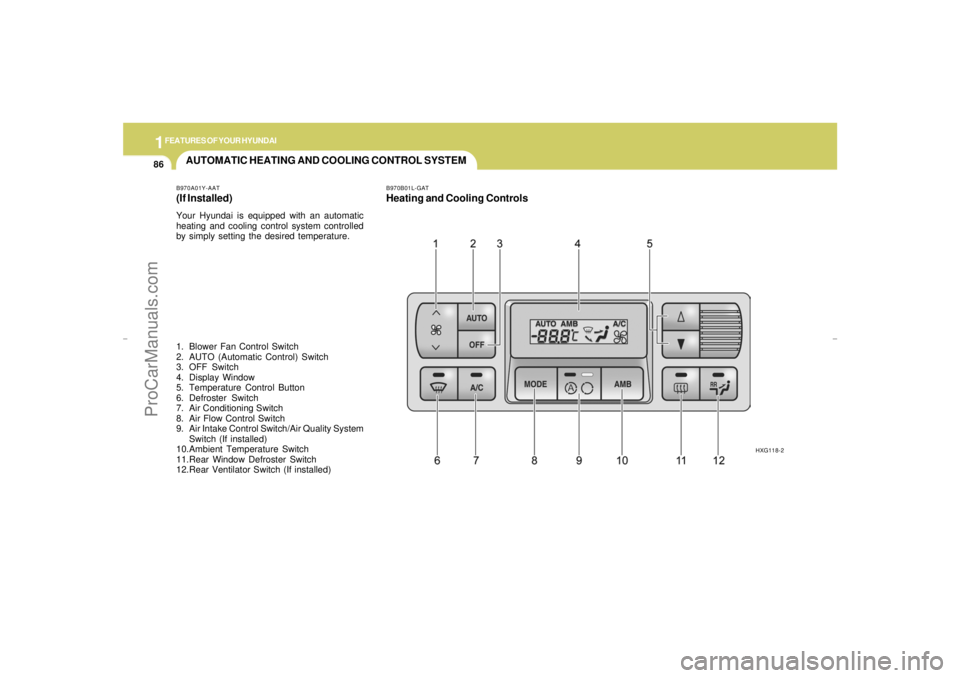

B970B01L-GATHeating and Cooling Controls
1. Blower Fan Control Switch
2. AUTO (Automatic Control) Switch
3. OFF Switch
4. Display Window
5. Temperature Control Button
6. Defroster Switch
7. Air Conditioning Switch
8. Air Flow Control Switch
9. Air Intake Control Switch/Air Quality System
Switch (If installed)
10.Ambient Temperature Switch
11.Rear Window Defroster Switch
12.Rear Ventilator Switch (If installed)
HXG118-2
xgflhma-1.p656/16/04, 3:04 PM 86
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
87

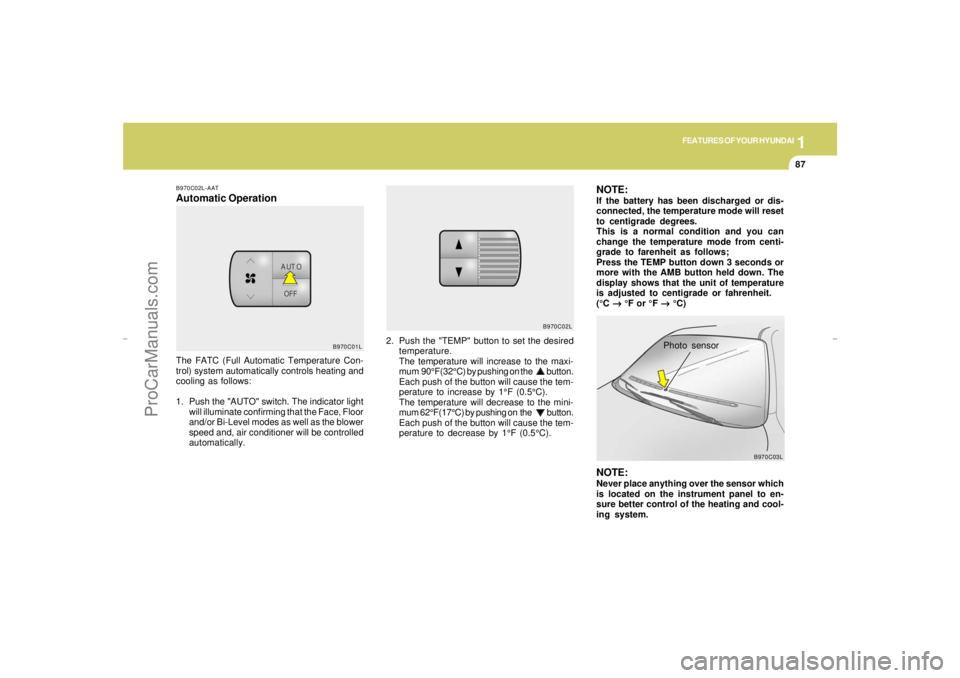

B970C02L-AATAutomatic Operation
2. Push the "TEMP" button to set the desired
temperature.
The temperature will increase to the maxi-
mum 90°F(32°C) by pushing on the button.
Each push of the button will cause the tem-
perature to increase by 1°F (0.5°C).
The temperature will decrease to the mini-
mum 62°F(17°C) by pushing on the button.
Each push of the button will cause the tem-
perature to decrease by 1°F (0.5°C). The FATC (Full Automatic Temperature Con-
trol) system automatically controls heating and
cooling as follows:
1. Push the "AUTO" switch. The indicator light
will illuminate confirming that the Face, Floor
and/or Bi-Level modes as well as the blower
speed and, air conditioner will be controlled
automatically.
NOTE:If the battery has been discharged or dis-
connected, the temperature mode will reset
to centigrade degrees.
This is a normal condition and you can
change the temperature mode from centi-
grade to farenheit as follows;
Press the TEMP button down 3 seconds or
more with the AMB button held down. The
display shows that the unit of temperature
is adjusted to centigrade or fahrenheit.
(°C
→ →→ →
→ °F or °F
→ →→ →
→ °C)NOTE:Never place anything over the sensor which
is located on the instrument panel to en-
sure better control of the heating and cool-
ing system.
Photo sensor
B970C01LB970C02L
B970C03L
xgflhma-1.p656/16/04, 3:04 PM 87
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI88

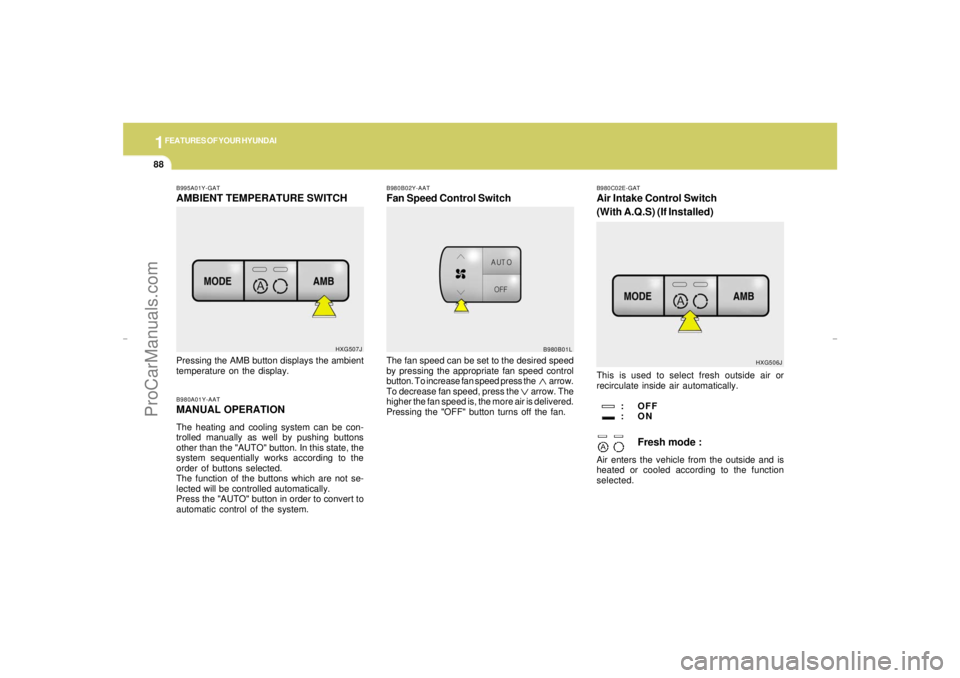

B995A01Y-GATAMBIENT TEMPERATURE SWITCHB980A01Y-AATMANUAL OPERATIONThe heating and cooling system can be con-
trolled manually as well by pushing buttons
other than the "AUTO" button. In this state, the
system sequentially works according to the
order of buttons selected.
The function of the buttons which are not se-
lected will be controlled automatically.
Press the "AUTO" button in order to convert to
automatic control of the system.
B980B02Y-AATFan Speed Control Switch
Pressing the AMB button displays the ambient
temperature on the display.The fan speed can be set to the desired speed
by pressing the appropriate fan speed control
button. To increase fan speed press the arrow.
To decrease fan speed, press the arrow. The
higher the fan speed is, the more air is delivered.
Pressing the "OFF" button turns off the fan.
HXG506J
This is used to select fresh outside air or
recirculate inside air automatically.
: OFF
:ON
Fresh mode :
Air enters the vehicle from the outside and is
heated or cooled according to the function
selected.B980C02E-GATAir Intake Control Switch
(With A.Q.S) (If Installed)
HXG507J
B980B01L
xgflhma-1.p656/16/04, 3:04 PM 88
