HYUNDAI GX350 L 2005 Repair Manual

1
FEATURES OF YOUR HYUNDAI
49
B340F01L-GATAuto Light (If Installed)To operate the automatic light feature, turn the
barrel on the end of the multi-function switch. If
you set the multi-function switch to "AUTO", the
tail lights and headlights will be turned automati-
cally on or off according to external illumination.
3A9CA44B340D01A-AAT
High-beam Switch
B340E01A-AATHeadlight FlasherTo flash the headlights, pull the switch lever
toward you, then release it. The headlights can
be flashed even though the headlight switch is
in the "OFF" position.
HHP268
To turn on the headlight high beams, push the
lever forward (away from you). The High Beam
Indicator Light will come on at the same time. For
low beams, pull the lever back toward you.
HHP269
xgflhma-1.p656/16/04, 3:03 PM 49
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI50
WINDSHIELD WIPER AND WASHER
SWITCH
Mist Wiper OperationIf a single wipe is desired in mist, push the MIST
operation switch at the end of the windshield
wiper and washer control lever.
B350B01Y-GATWindshield Washer OperationTo use the windshield washer, pull the wiper/
washer lever toward the steering wheel. When
the washer lever is operated, the wipers auto-
matically make two passes across the wind-
shield. The washer continues to operate until
the lever is released.NOTE:o Do not operate the washer more than 15
seconds at a time or when the fluid
reservoir is empty.
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glass
prior to operating the wipers.
o In areas where water freezes in winter,
use windshield washer antifreeze.
B350B01LB350B02L
B350A01A-AATThe windshield wiper switch has three posi-
tions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operationNOTE:To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula-
tions of snow or ice. Accumulated snow
and ice should be removed manually. If
there is only a light layer of snow or ice,
operate the heater in the defrost mode to
melt the snow or ice before using the wiper.
B350A01L1
2
3
xgflhma-1.p656/16/04, 3:03 PM 50
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
51
!

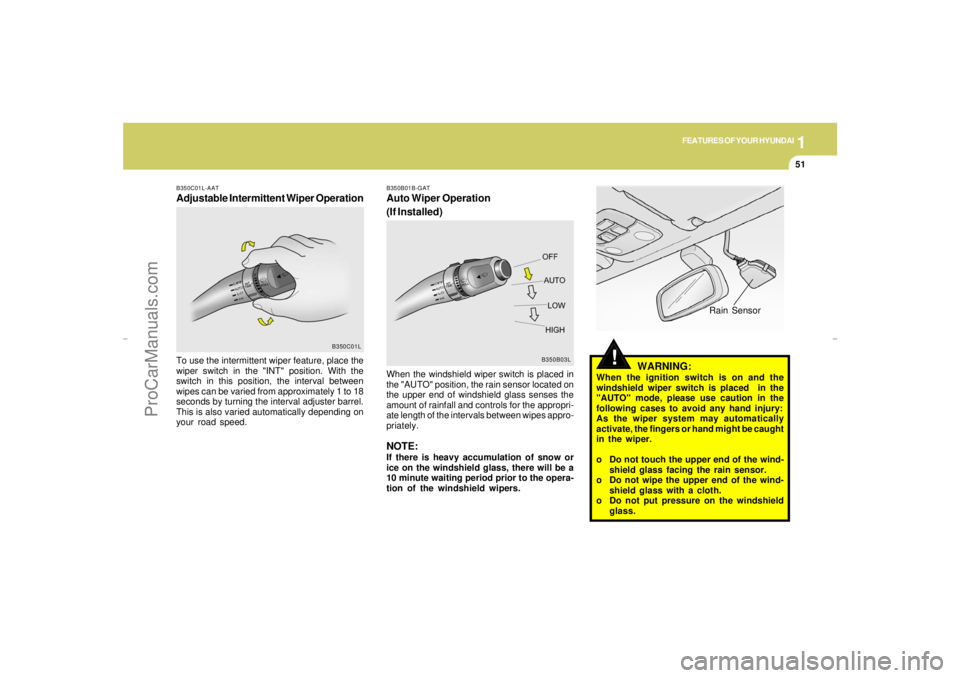

B350B01B-GATAuto Wiper Operation
(If Installed)
B350B03L
When the windshield wiper switch is placed in
the "AUTO" position, the rain sensor located on
the upper end of windshield glass senses the
amount of rainfall and controls for the appropri-
ate length of the intervals between wipes appro-
priately.NOTE:If there is heavy accumulation of snow or
ice on the windshield glass, there will be a
10 minute waiting period prior to the opera-
tion of the windshield wipers.
Rain Sensor
WARNING:
When the ignition switch is on and the
windshield wiper switch is placed in the
"AUTO" mode, please use caution in the
following cases to avoid any hand injury:
As the wiper system may automatically
activate, the fingers or hand might be caught
in the wiper.
o Do not touch the upper end of the wind-
shield glass facing the rain sensor.
o Do not wipe the upper end of the wind-
shield glass with a cloth.
o Do not put pressure on the windshield
glass.
B350C01L-AATAdjustable Intermittent Wiper OperationTo use the intermittent wiper feature, place the
wiper switch in the "INT" position. With the
switch in this position, the interval between
wipes can be varied from approximately 1 to 18
seconds by turning the interval adjuster barrel.
This is also varied automatically depending on
your road speed.
B350C01L
xgflhma-1.p656/16/04, 3:03 PM 51
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI52

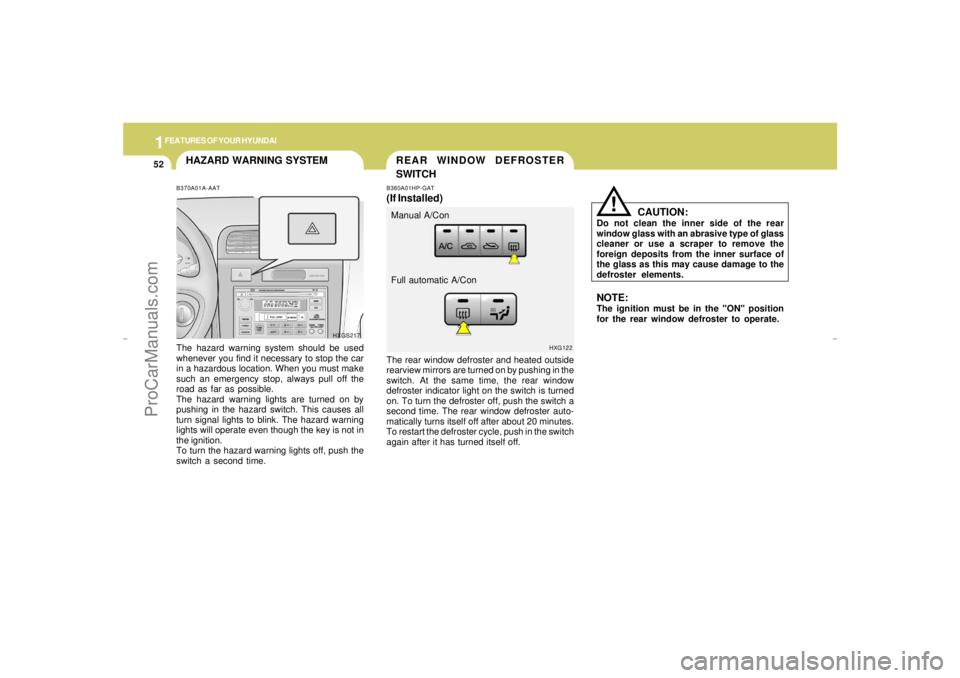

REAR WINDOW DEFROSTER
SWITCH
HAZARD WARNING SYSTEM
The rear window defroster and heated outside
rearview mirrors are turned on by pushing in the
switch. At the same time, the rear window
defroster indicator light on the switch is turned
on. To turn the defroster off, push the switch a
second time. The rear window defroster auto-
matically turns itself off after about 20 minutes.
To restart the defroster cycle, push in the switch
again after it has turned itself off.B380A01HP-GAT(If Installed)
HXG122
Manual A/Con
Full automatic A/Con
CAUTION:
Do not clean the inner side of the rear
window glass with an abrasive type of glass
cleaner or use a scraper to remove the
foreign deposits from the inner surface of
the glass as this may cause damage to the
defroster elements.
!
NOTE:The ignition must be in the "ON" position
for the rear window defroster to operate.
B370A01A-AATThe hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time.
HXGS217
xgflhma-1.p656/16/04, 3:03 PM 52
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
53

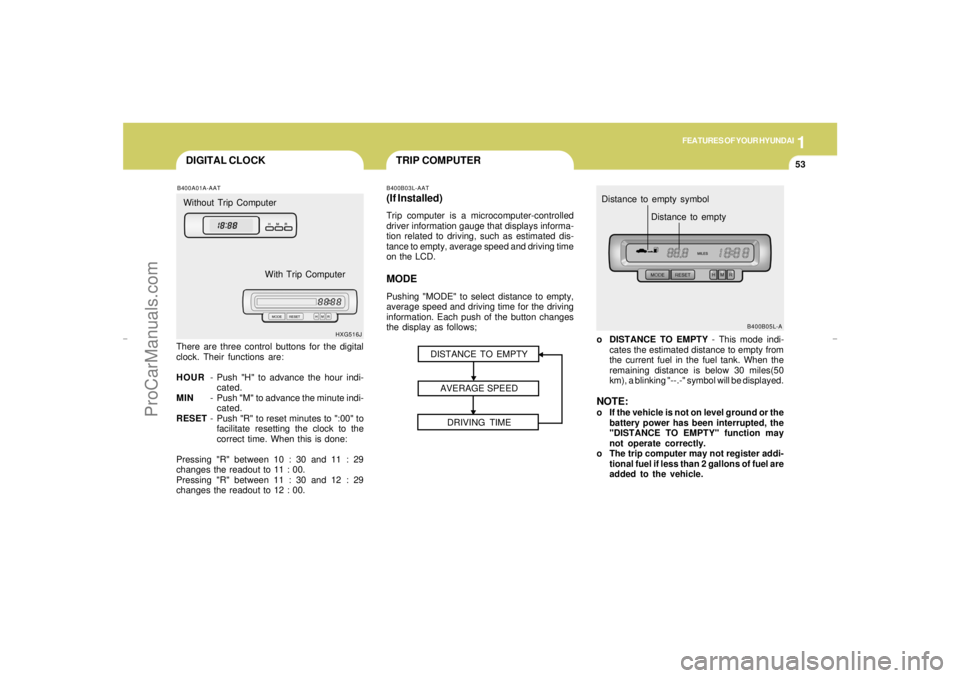

TRIP COMPUTER
DIGITAL CLOCKB400A01A-AAT
HXG516J
Without Trip Computer
With Trip Computer
There are three control buttons for the digital
clock. Their functions are:
HOUR- Push "H" to advance the hour indi-
cated.
MIN- Push "M" to advance the minute indi-
cated.
RESET- Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the
correct time. When this is done:
Pressing "R" between 10 : 30 and 11 : 29
changes the readout to 11 : 00.
Pressing "R" between 11 : 30 and 12 : 29
changes the readout to 12 : 00.o DISTANCE TO EMPTY - This mode indi-
cates the estimated distance to empty from
the current fuel in the fuel tank. When the
remaining distance is below 30 miles(50
km), a blinking "--.-" symbol will be displayed.
NOTE:o If the vehicle is not on level ground or the
battery power has been interrupted, the
"DISTANCE TO EMPTY" function may
not operate correctly.
o The trip computer may not register addi-
tional fuel if less than 2 gallons of fuel are
added to the vehicle.
B400B05L-A
Distance to empty symbol
Distance to empty
B400B03L-AAT(If Installed)Trip computer is a microcomputer-controlled
driver information gauge that displays informa-
tion related to driving, such as estimated dis-
tance to empty, average speed and driving time
on the LCD.MODEPushing "MODE" to select distance to empty,
average speed and driving time for the driving
information. Each push of the button changes
the display as follows;
DISTANCE TO EMPTY
AVERAGE SPEED
DRIVING TIME
xgflhma-1.p656/16/04, 3:03 PM 53
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI54

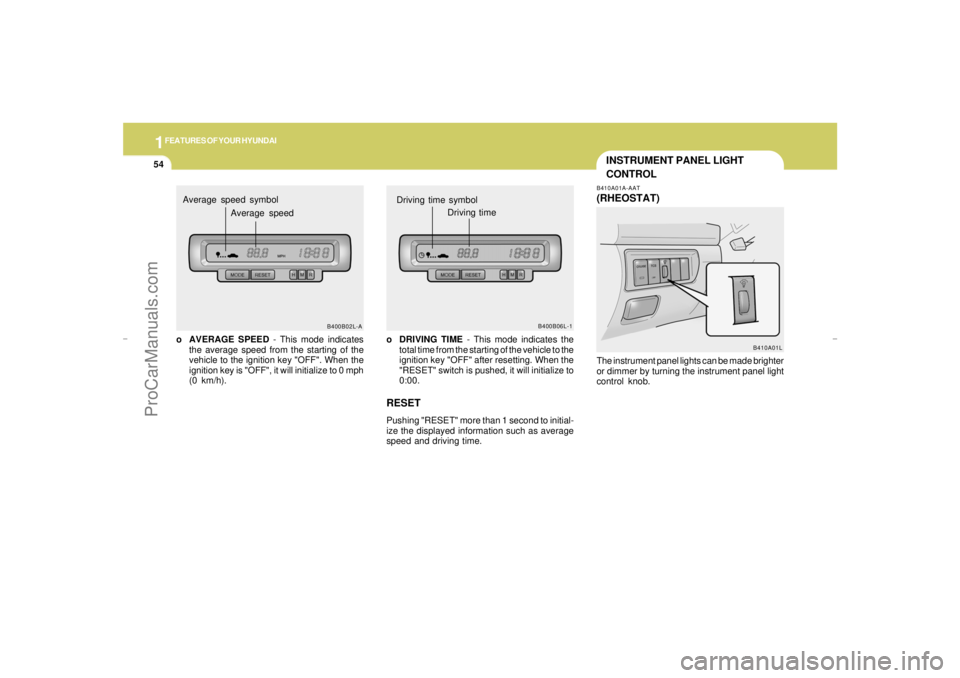

INSTRUMENT PANEL LIGHT
CONTROLB410A01A-AAT(RHEOSTAT)
o DRIVING TIME - This mode indicates the
total time from the starting of the vehicle to the
ignition key "OFF" after resetting. When the
"RESET" switch is pushed, it will initialize to
0:00.RESETPushing "RESET" more than 1 second to initial-
ize the displayed information such as average
speed and driving time.
B400B06L-1
Driving time symbol
Driving time
B410A01L
o AVERAGE SPEED - This mode indicates
the average speed from the starting of the
vehicle to the ignition key "OFF". When the
ignition key is "OFF", it will initialize to 0 mph
(0 km/h).
B400B02L-A
Average speed symbol
Average speed
The instrument panel lights can be made brighter
or dimmer by turning the instrument panel light
control knob.
xgflhma-1.p656/16/04, 3:03 PM 54
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
55

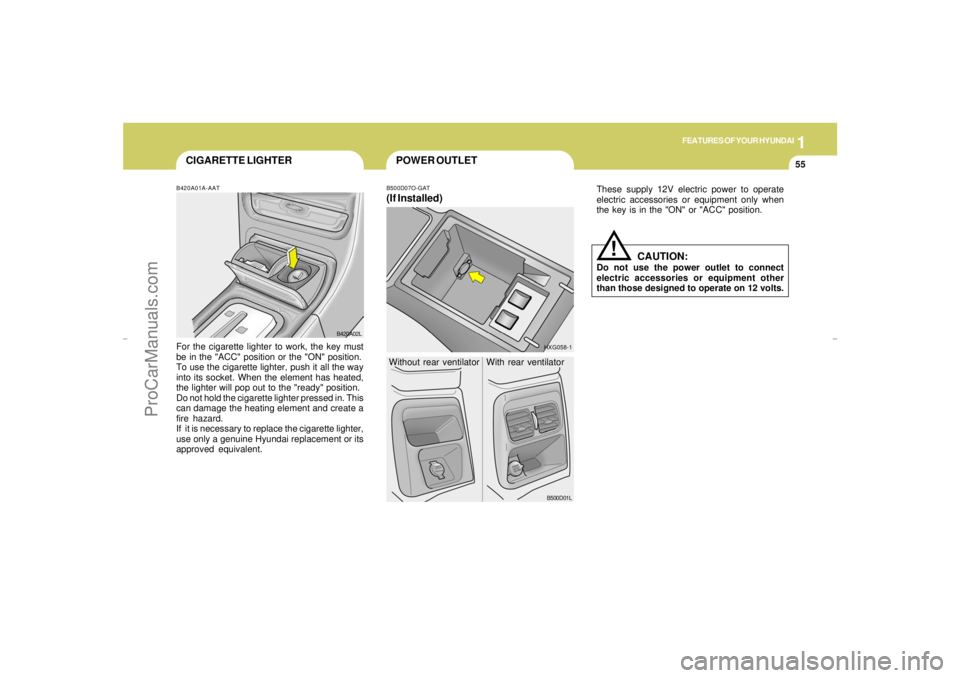

POWER OUTLET
CIGARETTE LIGHTERB420A01A-AATFor the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
B420A02L
B500D07O-GAT(If Installed)
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
HXG058-1
B500D01L
Without rear ventilator With rear ventilator
CAUTION:
Do not use the power outlet to connect
electric accessories or equipment other
than those designed to operate on 12 volts.
!
xgflhma-1.p656/16/04, 3:03 PM 55
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI56

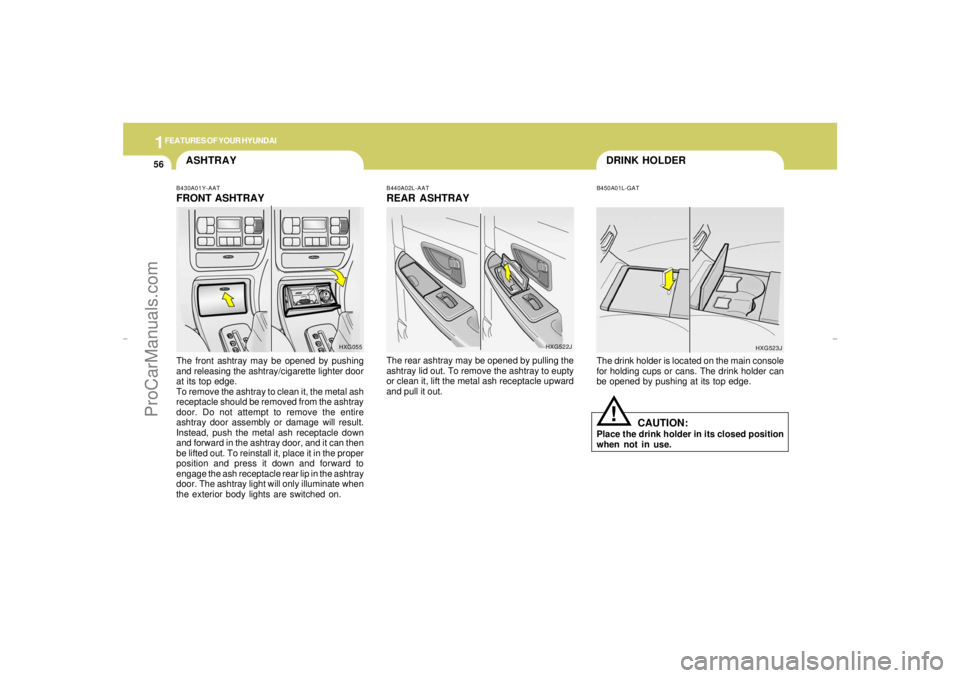

DRINK HOLDER
ASHTRAY
HXG523J
The drink holder is located on the main console
for holding cups or cans. The drink holder can
be opened by pushing at its top edge.B450A01L-GAT
CAUTION:
Place the drink holder in its closed position
when not in use.
!
B430A01Y-AATFRONT ASHTRAYThe front ashtray may be opened by pushing
and releasing the ashtray/cigarette lighter door
at its top edge.
To remove the ashtray to clean it, the metal ash
receptacle should be removed from the ashtray
door. Do not attempt to remove the entire
ashtray door assembly or damage will result.
Instead, push the metal ash receptacle down
and forward in the ashtray door, and it can then
be lifted out. To reinstall it, place it in the proper
position and press it down and forward to
engage the ash receptacle rear lip in the ashtray
door. The ashtray light will only illuminate when
the exterior body lights are switched on.
B440A02L-AATREAR ASHTRAYThe rear ashtray may be opened by pulling the
ashtray lid out. To remove the ashtray to eupty
or clean it, lift the metal ash receptacle upward
and pull it out.
HXG055
HXG522J
xgflhma-1.p656/16/04, 3:03 PM 56
ProCarManuals.com

1
FEATURES OF YOUR HYUNDAI
57
SUNROOF
REAR DRINK HOLDER!
!
B450B01L-GATThe rear drink holder is located on front of the rear
seat arm rest for holding cups. The drink holder can
be used by pushing it in first and then releasing it.
HXGS223
WARNING:
Do not place anything except drinks in the
drink holder. Such objects can be thrown
out, possibly injuring persons in the ve-
hicle during sudden braking or in the event
of an accident.
CAUTION:
Place the drink holder in its closed position
when not in use.
WARNING:
Do not place anything except drinks in the
drink holder. Such objects can be thrown
out, possibly injuring persons in the ve-
hicle during sudden braking or in the event
of an accident.
!
!
B460A01Y-AATSUNROOF (If Installed)
Sun ShadeYour HYUNDAI is equipped with a sliding sun-
shade which you can manually adjust to let in
light with the sunroof closed, or to block sunlight.
WARNING:
Never adjust the sunshade while driving.
B460A01L
xgflhma-1.p656/16/04, 3:03 PM 57
ProCarManuals.com

1FEATURES OF YOUR HYUNDAI58
CAUTION:
o Do not open the sunroof in severely cold
temperature or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
!
B460C01Y-AATTilting the SunroofThe sunroof can be tilted and closed with the
ignition key in the "ON" position. Release the
button when the sunroof reaches the desired
position.NOTE:After washing the car or after there is rain,
be sure to wipe off any water that is on the
sunroof before operating it.
HXGS233
!
B460B01Y-AATOpening the Sunroof SystemThe sunroof can be electrically opened or closed
with the ignition key in the "ON" position. To open
or to close, press and hold the button located
in the front of the roof panel. Release the button
when the sunroof reaches the desired position.
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.
o Do not place your head or arms out of the
sunroof opening at any time.
HXGS232
xgflhma-1.p656/16/04, 3:03 PM 58
ProCarManuals.com
