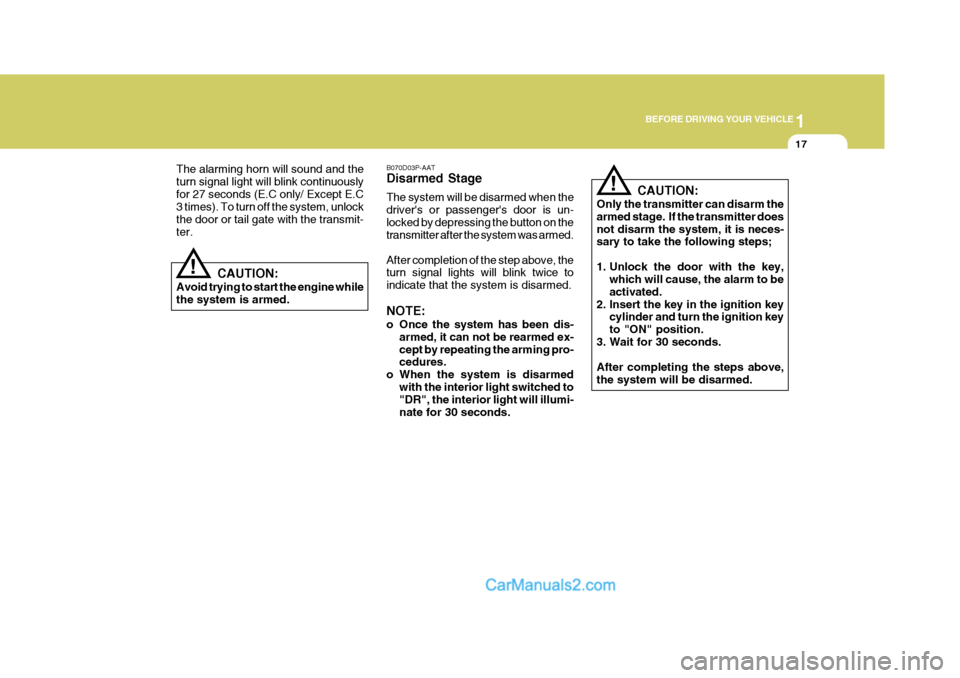

BEFORE DRIVING YOUR VEHICLE
17
B070D03P-AAT Disarmed Stage The system will be disarmed when the driver's or passenger's door is un-locked by depressing the button on the transmitter after the system was armed. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. NOTE:
o Once the system has been dis- armed, it can not be rearmed ex- cept by repeating the arming pro- cedures.
o When the system is disarmed
with the interior light switched to"DR", the interior light will illumi- nate for 30 seconds.
The alarming horn will sound and theturn signal light will blink continuouslyfor 27 seconds (E.C only/ Except E.C 3 times). To turn off the system, unlock the door or tail gate with the transmit-ter.
CAUTION:
Avoid trying to start the engine whilethe system is armed.
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

1BEFORE DRIVING YOUR VEHICLE
18
B070F02A-GAT Keyless Entry System (If installed) Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal lights will blink once toindicate that the system is armed.
Unlocking doors 1. Push the button on the transmitter once more after all doors were locked.
2. At the same time all doors unlock,
the turn signal lights will blink twiceto indicate that the system is dis- armed. 3. Remove four screws at the back
side of the built-in circuit. HTB054
HTB055
B070E02P-AAT Replacing the battery When the transmitter's battery be- comes weak, it may take several pushes on the button to lock or unlockthe doors, and the LED will not light. Replace the battery as soon as pos- sible. Battery type : CR1220 (Minibus/Van)
CR2032 (Truck)
Replacement instructions: (Minibus/Van)
1. Remove the screw with a phillips screwdriver.
2. Carefully separate the case with a flat-head screwdriver as shown in the illustration. HTB053
4. Remove the old battery from thecase and note the polarity. Makesure the polarity of the new battery is the same (+side facing up), theninsert it in the transmitter.

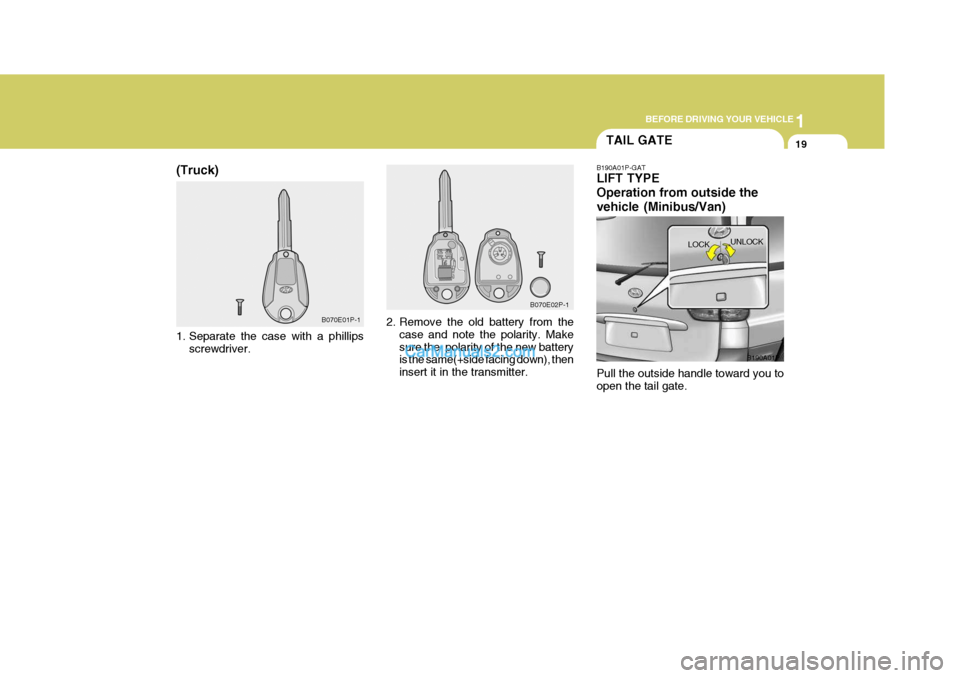

1
BEFORE DRIVING YOUR VEHICLE
19
B070E02P-1
B070E01P-1
(Truck)
1. Separate the case with a phillips
screwdriver.
TAIL GATE
B190A01P-GAT LIFT TYPE Operation from outside thevehicle (Minibus/Van) Pull the outside handle toward you to open the tail gate. B190A01P
LOCK
UNLOCK
2. Remove the old battery from the case and note the polarity. Makesure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.

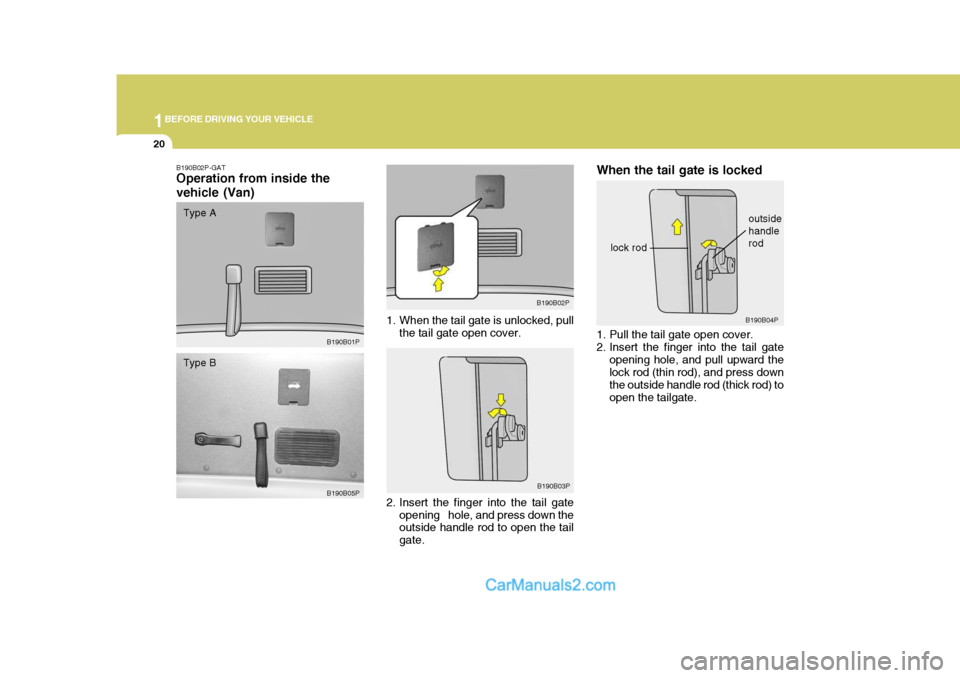

1BEFORE DRIVING YOUR VEHICLE
20
1. Pull the tail gate open cover.
2. Insert the finger into the tail gate
opening hole, and pull upward the lock rod (thin rod), and press down the outside handle rod (thick rod) toopen the tailgate.
When the tail gate is locked
lock rod outside handlerod
B190B04P
B190B02P-GAT Operation from inside the vehicle (Van)
1. When the tail gate is unlocked, pullthe tail gate open cover.
B190B01P B190B02P
2. Insert the finger into the tail gate opening hole, and press down the outside handle rod to open the tail gate. B190B03P
B190B05P
Type A Type B

1
BEFORE DRIVING YOUR VEHICLE
21
B190E01P
When opening the left door, pull the lever toward your side.

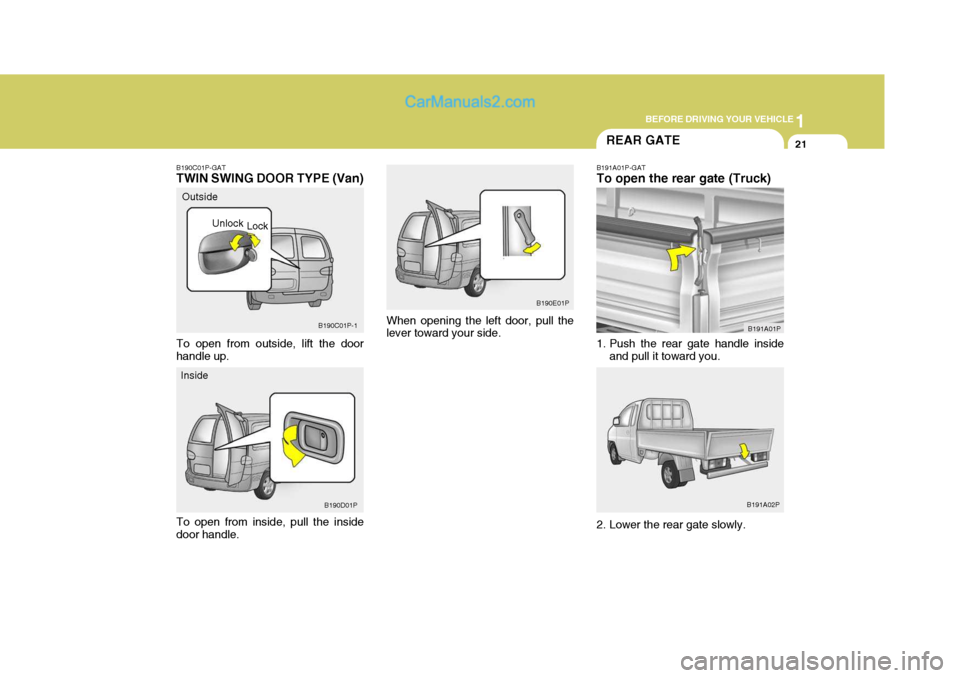

B190C01P-GAT TWIN SWING DOOR TYPE (Van) To open from inside, pull the inside door handle. Outside
Inside B190C01P-1
B190D01P
To open from outside, lift the door handle up.
Lock
Unlock
REAR GATE
B191A01P-GAT To open the rear gate (Truck)
1. Push the rear gate handle inside and pull it toward you.
2. Lower the rear gate slowly. B191A01P
B191A02P

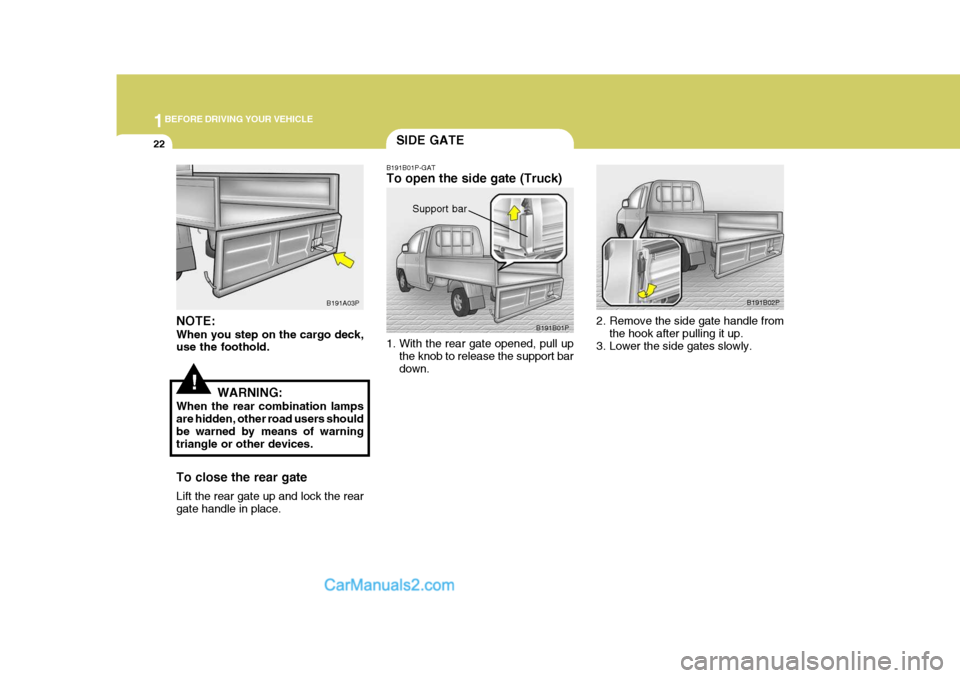

1BEFORE DRIVING YOUR VEHICLE
22
B191B02P
2. Remove the side gate handle from the hook after pulling it up.
3. Lower the side gates slowly.
NOTE: When you step on the cargo deck, use the foothold.
WARNING:
When the rear combination lamps are hidden, other road users should be warned by means of warning triangle or other devices. To close the rear gate Lift the rear gate up and lock the rear gate handle in place.
!
B191A03P
SIDE GATE
B191B01P-GAT To open the side gate (Truck)
1. With the rear gate opened, pull up the knob to release the support bar down. B191B01P
Support bar

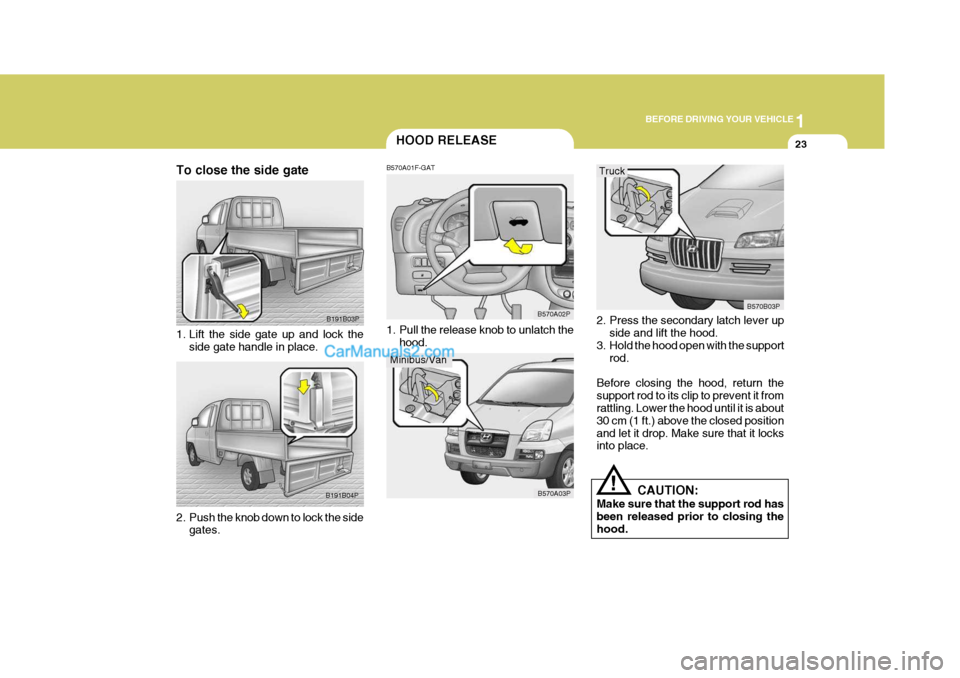

1
BEFORE DRIVING YOUR VEHICLE
23HOOD RELEASE
B570A01F-GAT
1. Pull the release knob to unlatch the hood. B570A02P
B570A03P
B191B03P
B191B04P
To close the side gate
1. Lift the side gate up and lock the
side gate handle in place.
2. Push the knob down to lock the side gates. Minibus/Van
CAUTION:
Make sure that the support rod has been released prior to closing thehood.
!
2. Press the secondary latch lever up
side and lift the hood.
3. Hold the hood open with the support
rod.
Before closing the hood, return the support rod to its clip to prevent it from rattling. Lower the hood until it is about 30 cm (1 ft.) above the closed positionand let it drop. Make sure that it locks into place. B570B03P
Truck

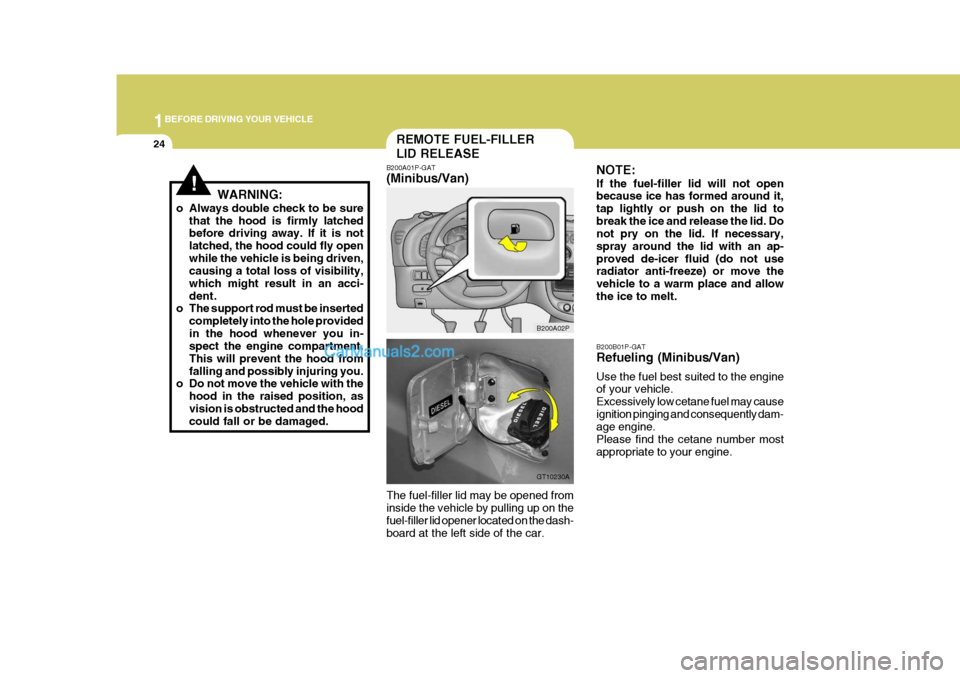

1BEFORE DRIVING YOUR VEHICLE
24
B200B01P-GAT Refueling (Minibus/Van) Use the fuel best suited to the engine of your vehicle. Excessively low cetane fuel may causeignition pinging and consequently dam- age engine. Please find the cetane number mostappropriate to your engine.
NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allowthe ice to melt.
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is not latched, the hood could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an acci-dent.
o The support rod must be inserted
completely into the hole providedin the hood whenever you in- spect the engine compartment. This will prevent the hood fromfalling and possibly injuring you.
o Do not move the vehicle with the
hood in the raised position, asvision is obstructed and the hood could fall or be damaged.
REMOTE FUEL-FILLER LID RELEASE
B200A01P-GAT (Minibus/Van) The fuel-filler lid may be opened from inside the vehicle by pulling up on thefuel-filler lid opener located on the dash- board at the left side of the car. B200A02P
GT10230A

1

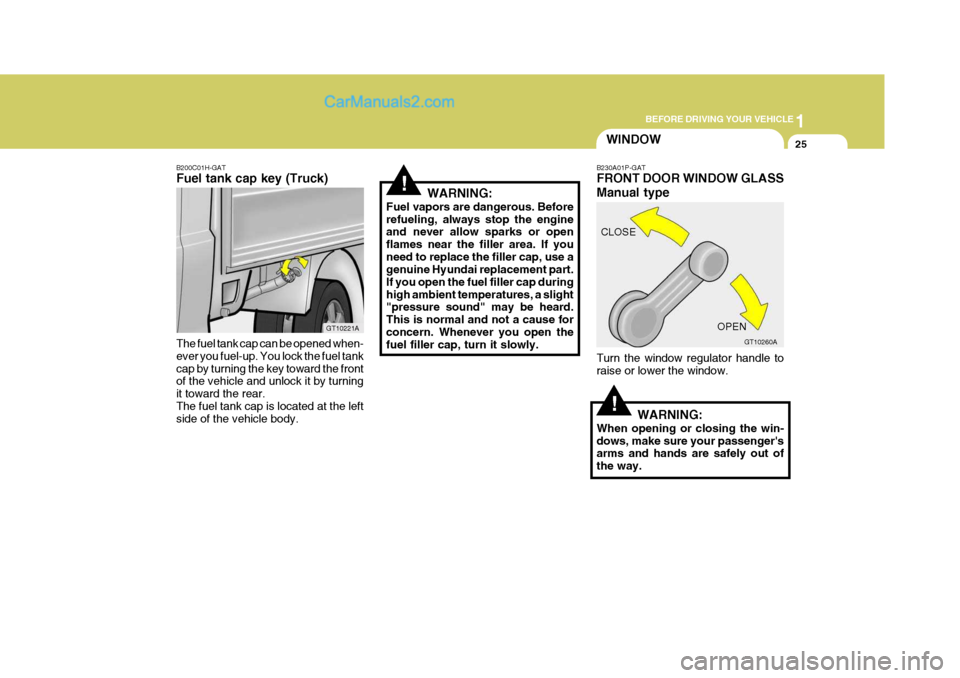

BEFORE DRIVING YOUR VEHICLE
25
B200C01H-GAT Fuel tank cap key (Truck) The fuel tank cap can be opened when- ever you fuel-up. You lock the fuel tankcap by turning the key toward the front of the vehicle and unlock it by turning it toward the rear.The fuel tank cap is located at the left side of the vehicle body. GT10221A
!WARNING:
Fuel vapors are dangerous. Before refueling, always stop the engine and never allow sparks or open flames near the filler area. If youneed to replace the filler cap, use a genuine Hyundai replacement part. If you open the fuel filler cap duringhigh ambient temperatures, a slight "pressure sound" may be heard. This is normal and not a cause forconcern. Whenever you open the fuel filler cap, turn it slowly.
WINDOW
!
B230A01P-GAT FRONT DOOR WINDOW GLASS Manual type Turn the window regulator handle to raise or lower the window.
WARNING:
When opening or closing the win- dows, make sure your passenger's arms and hands are safely out of the way. CLOSE
GT10260A
OPEN

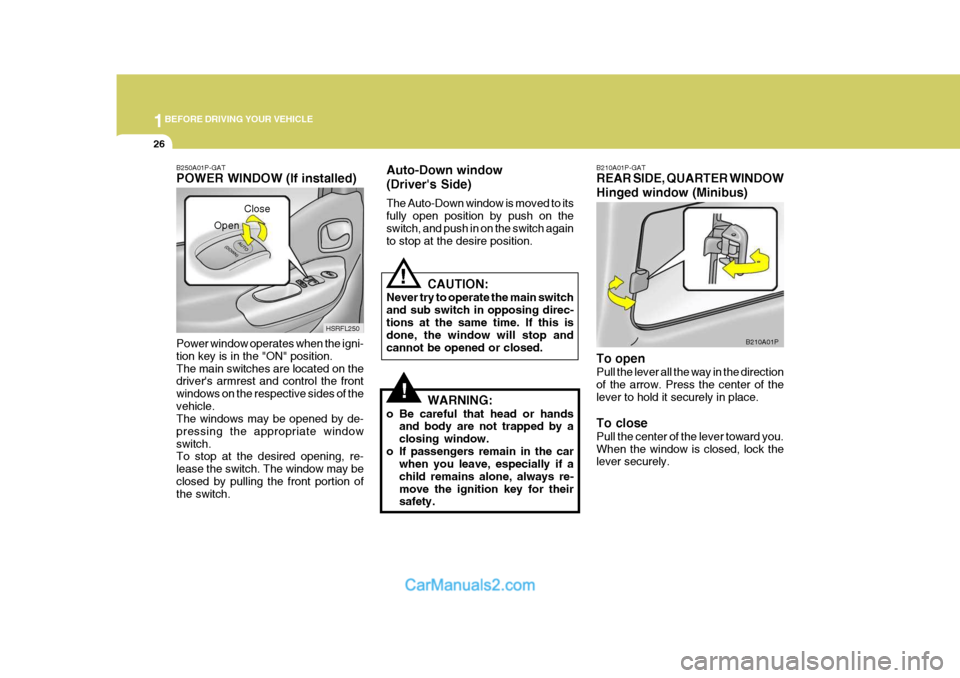

1BEFORE DRIVING YOUR VEHICLE
26
B210A01P-GAT REAR SIDE, QUARTER WINDOW Hinged window (Minibus) To open Pull the lever all the way in the direction of the arrow. Press the center of the lever to hold it securely in place. To close Pull the center of the lever toward you. When the window is closed, lock the lever securely. B210A01P
B250A01P-GAT POWER WINDOW (If installed) Power window operates when the igni- tion key is in the "ON" position.The main switches are located on the driver's armrest and control the front windows on the respective sides of thevehicle. The windows may be opened by de- pressing the appropriate windowswitch. To stop at the desired opening, re- lease the switch. The window may beclosed by pulling the front portion of the switch. Close
HSRFL250
Open
!
Auto-Down window (Driver's Side) The Auto-Down window is moved to its fully open position by push on theswitch, and push in on the switch again to stop at the desire position.
CAUTION:
Never try to operate the main switch and sub switch in opposing direc-tions at the same time. If this is done, the window will stop and cannot be opened or closed.
WARNING:
o Be careful that head or hands and body are not trapped by aclosing window.
o If passengers remain in the car when you leave, especially if achild remains alone, always re-move the ignition key for their safety.
!
