BEFORE DRIVING YOUR VEHICLE
27

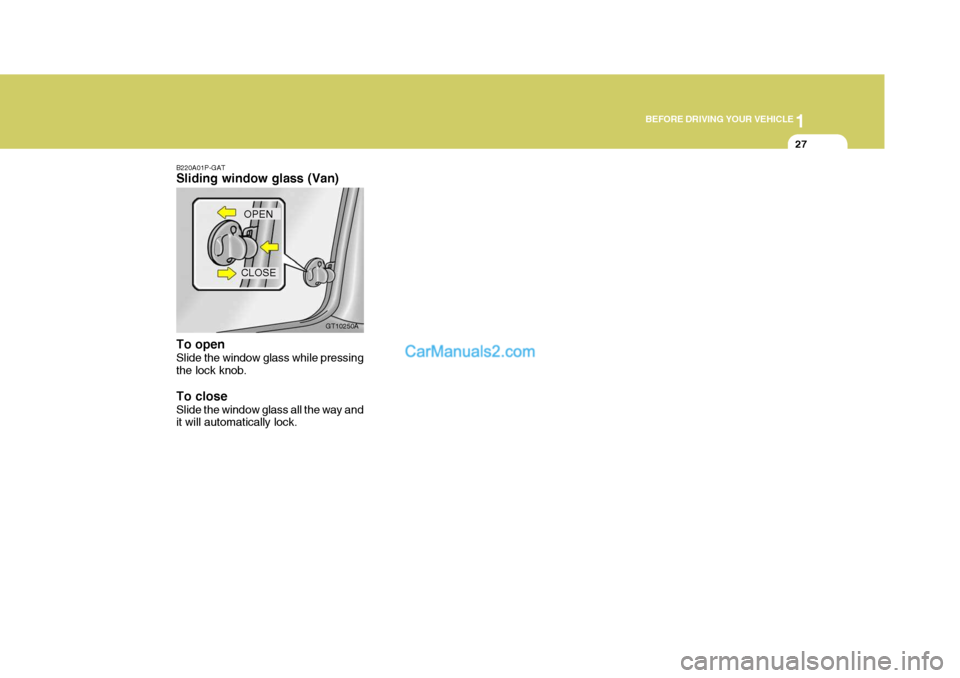

B220A01P-GAT Sliding window glass (Van) To open Slide the window glass while pressing the lock knob. To close Slide the window glass all the way and it will automatically lock. CLOSE
GT10250A
OPEN

1BEFORE DRIVING YOUR VEHICLE
28SEATS
HSRFL859

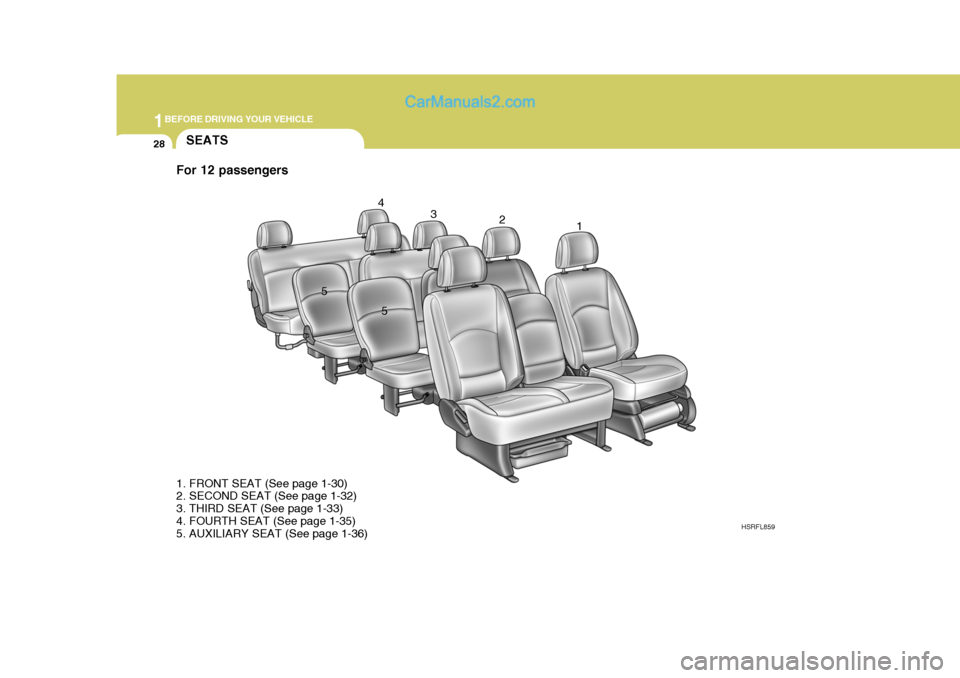

1. FRONT SEAT (See page 1-30)
2. SECOND SEAT (See page 1-32)
3. THIRD SEAT (See page 1-33)
4. FOURTH SEAT (See page 1-35)
5. AUXILIARY SEAT (See page 1-36) 1
2
3
4
5 5
For 12 passengers

1
BEFORE DRIVING YOUR VEHICLE
29
HSRFL859-2

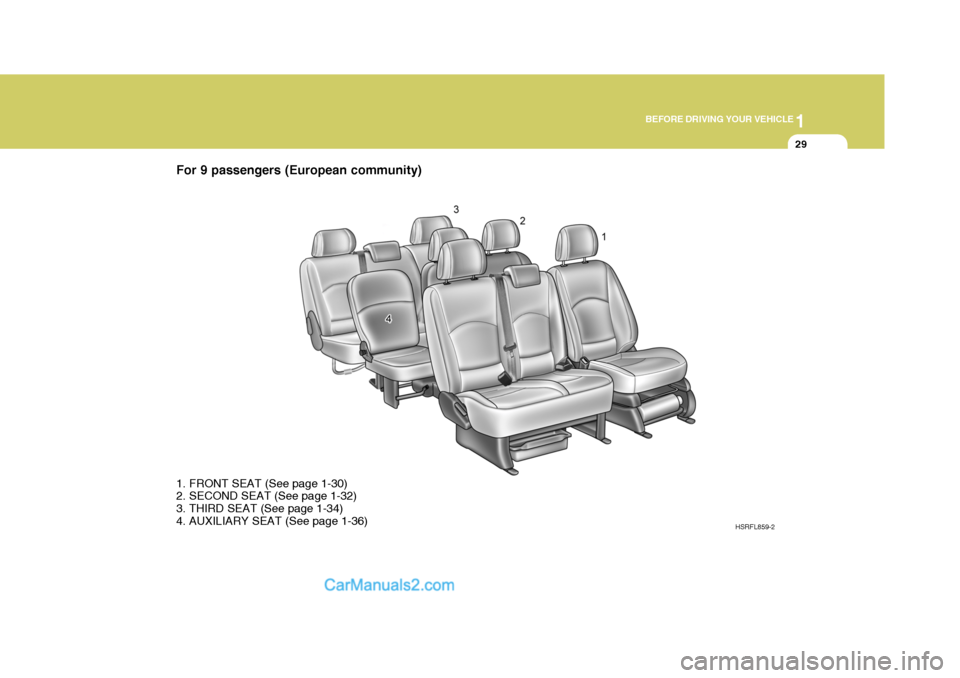

1. FRONT SEAT (See page 1-30)
2. SECOND SEAT (See page 1-32)
3. THIRD SEAT (See page 1-34)
4. AUXILIARY SEAT (See page 1-36)
For 9 passengers (European community)

1BEFORE DRIVING YOUR VEHICLE
30
!
!

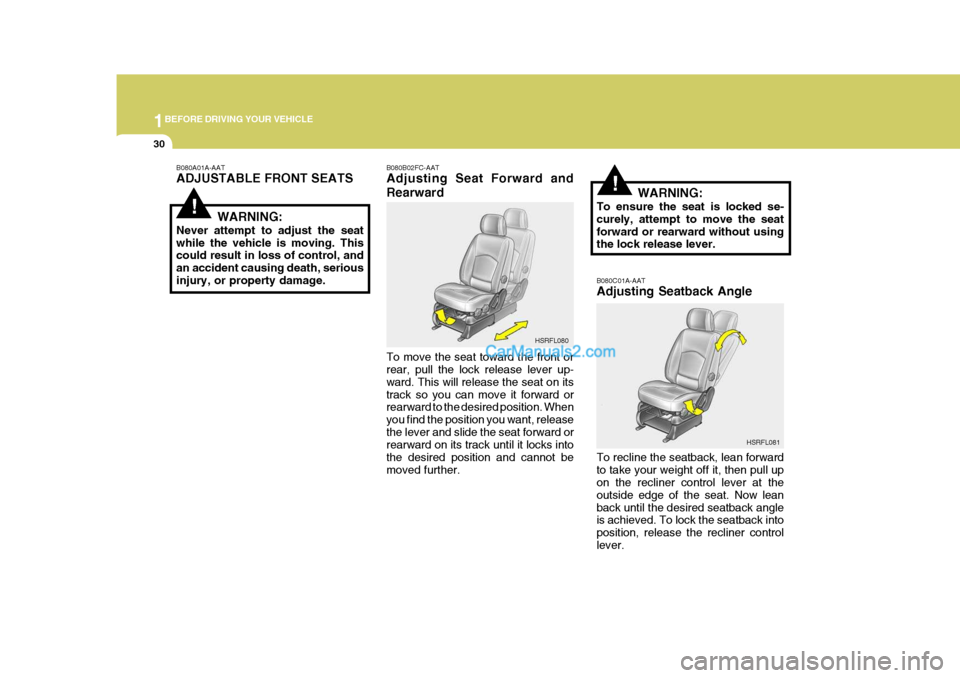

B080A01A-AAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, seriousinjury, or property damage. B080B02FC-AAT Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further. B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now leanback until the desired seatback angle is achieved. To lock the seatback into position, release the recliner controllever.
HSRFL080
HSRFL081
WARNING:
To ensure the seat is locked se-curely, attempt to move the seatforward or rearward without using the lock release lever.

1
BEFORE DRIVING YOUR VEHICLE
31
!WARNING:

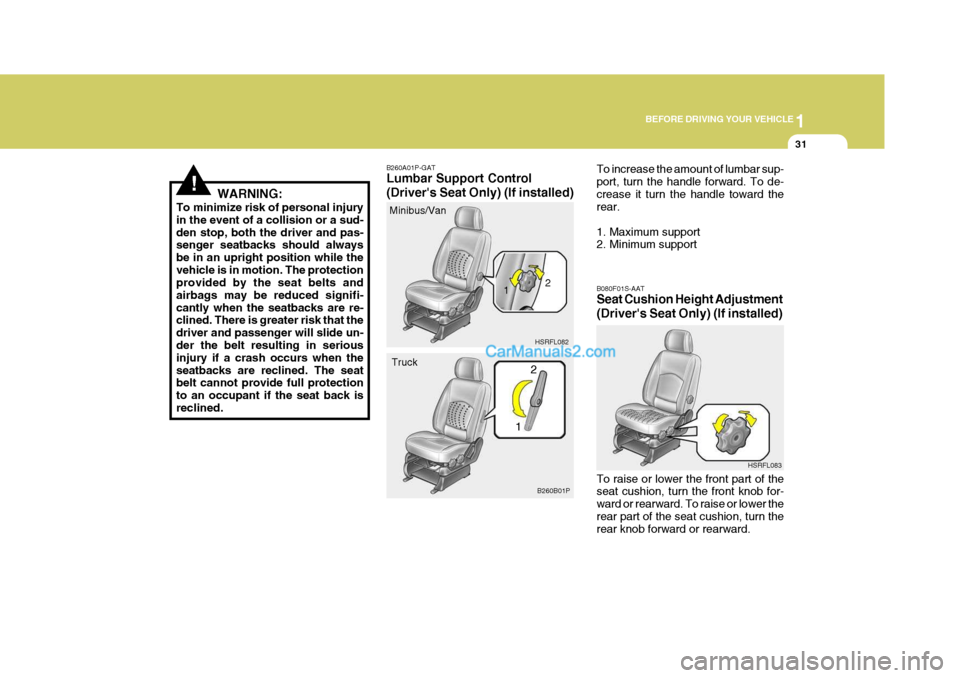

To minimize risk of personal injury in the event of a collision or a sud-den stop, both the driver and pas- senger seatbacks should always be in an upright position while thevehicle is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is greater risk that the driver and passenger will slide un- der the belt resulting in serious injury if a crash occurs when theseatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back isreclined. B260A01P-GAT Lumbar Support Control (Driver's Seat Only) (If installed)
Minibus/Van
1HSRFL082 B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If installed) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward.
Truck To increase the amount of lumbar sup- port, turn the handle forward. To de-crease it turn the handle toward the rear.
1. Maximum support
2. Minimum support
B260B01P HSRFL083
2
1 2

1BEFORE DRIVING YOUR VEHICLE
32
5
!
B290C03P-GAT Pull the lever and rotate the seat clock- wise.
WARNING:
o Never rotate the seat while the vehicle is in motion.
o When the seat is rotated, be sure
that the seat is securely locked inposition.

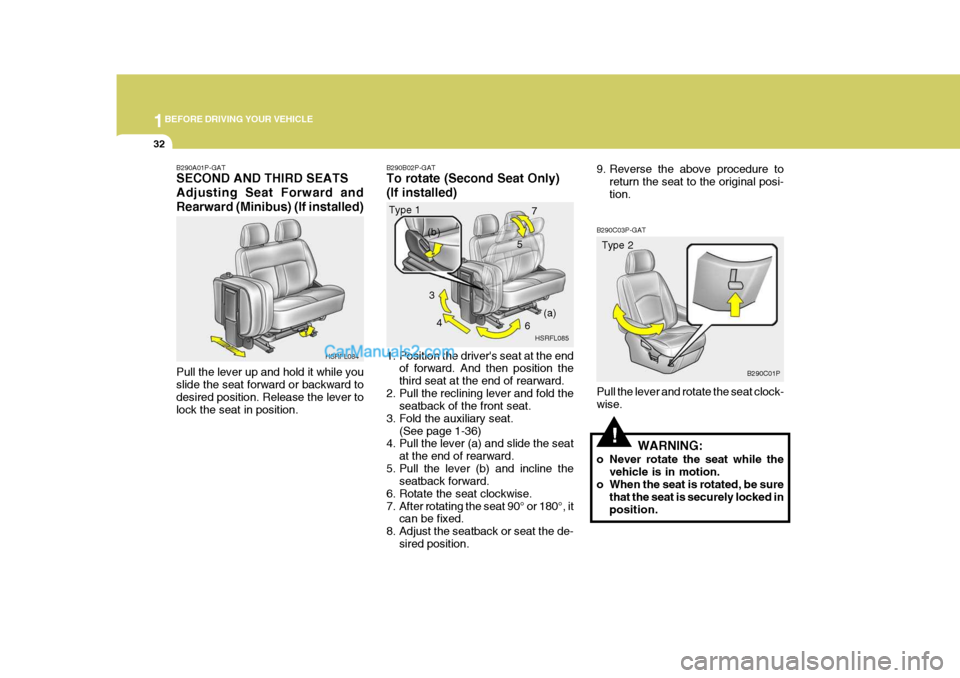

B290A01P-GAT SECOND AND THIRD SEATS Adjusting Seat Forward andRearward (Minibus) (If installed) Pull the lever up and hold it while you slide the seat forward or backward to desired position. Release the lever tolock the seat in position.
B290B02P-GAT To rotate (Second Seat Only) (If installed)
1. Position the driver's seat at the end
of forward. And then position the third seat at the end of rearward.
2. Pull the reclining lever and fold the seatback of the front seat.
3. Fold the auxiliary seat. (See page 1-36)
4. Pull the lever (a) and slide the seat
at the end of rearward.
5. Pull the lever (b) and incline the seatback forward.
6. Rotate the seat clockwise.
7. After rotating the seat 90° or 180°, it can be fixed.
8. Adjust the seatback or seat the de-
sired position.
HSRFL084
Type 1
HSRFL085Type 2
B290C01P
3
4 67
(a)
(b)
9. Reverse the above procedure to
return the seat to the original posi-tion.

1
BEFORE DRIVING YOUR VEHICLE
33

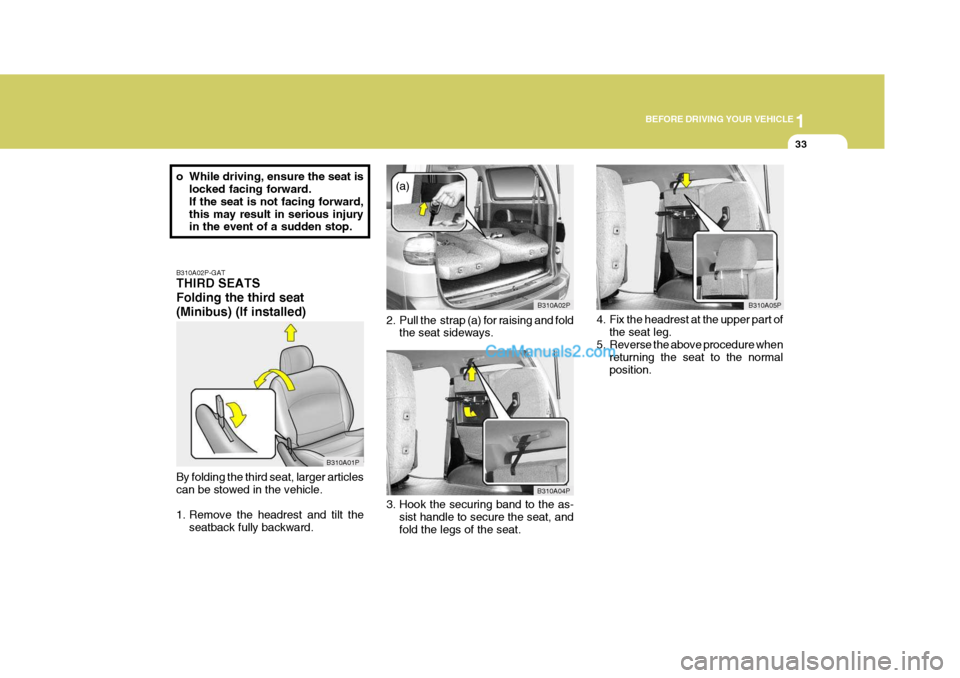

B310A02P-GAT THIRD SEATS Folding the third seat(Minibus) (If installed) By folding the third seat, larger articles can be stowed in the vehicle.
1. Remove the headrest and tilt the
seatback fully backward. 2. Pull the strap (a) for raising and fold
the seat sideways.
3. Hook the securing band to the as- sist handle to secure the seat, and fold the legs of the seat.
B310A01P B310A02P
B310A04P B310A05P
(a)
4. Fix the headrest at the upper part ofthe seat leg.
5. Reverse the above procedure when returning the seat to the normalposition.
o While driving, ensure the seat is
locked facing forward.If the seat is not facing forward,this may result in serious injury in the event of a sudden stop.

1BEFORE DRIVING YOUR VEHICLE
34

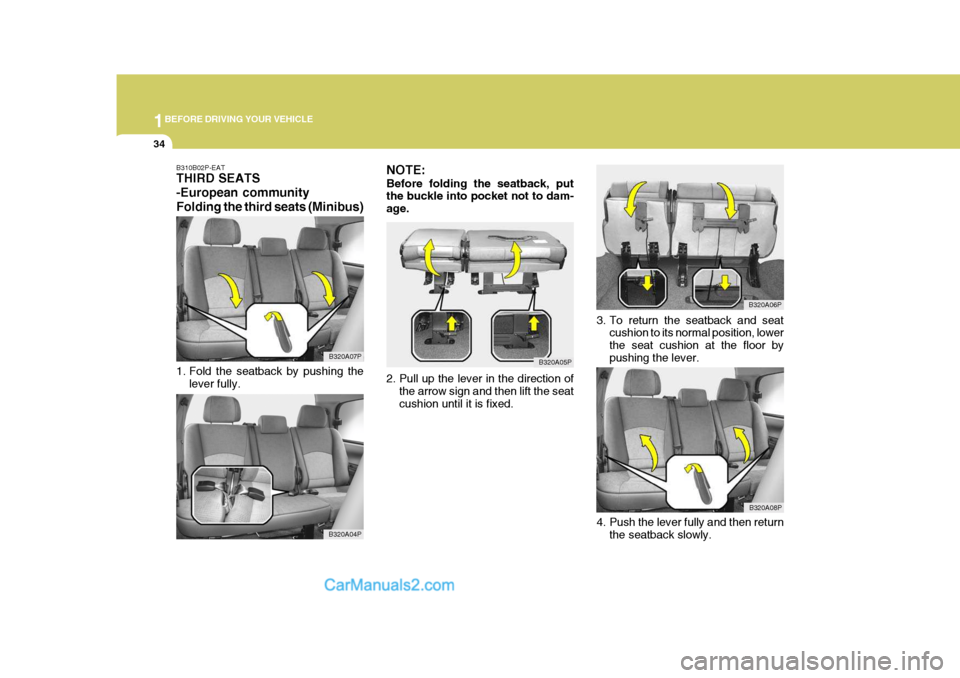

B310B02P-EAT THIRD SEATS -European communityFolding the third seats (Minibus)
1. Fold the seatback by pushing the
lever fully. B320A07PNOTE: Before folding the seatback, put the buckle into pocket not to dam- age.
B320A04P
B320A06P
2. Pull up the lever in the direction of the arrow sign and then lift the seat cushion until it is fixed. 3. To return the seatback and seat
cushion to its normal position, lowerthe seat cushion at the floor bypushing the lever.
B320A05P
4. Push the lever fully and then returnthe seatback slowly.
B320A08P

1
BEFORE DRIVING YOUR VEHICLE
35
CAUTION
When you return the seatback to its upright position, always be sure it is locked into position by pullingand pushing the top of seatback.
WARNING
o Be careful not the caught by hand or foot under the seat while ad-justing the seat.
o Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control,and an accident causing death, serious injury or damage.
!
!
2. Pull the lever (b) and lift the seat
cushion until it is fixed.

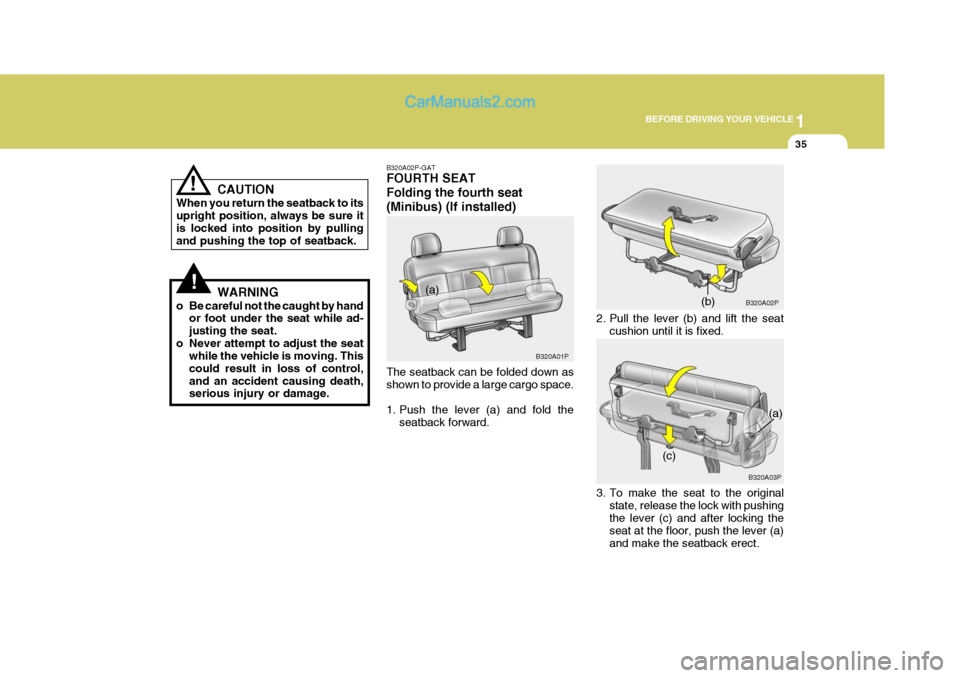

B320A02P-GAT FOURTH SEAT Folding the fourth seat(Minibus) (If installed) The seatback can be folded down as shown to provide a large cargo space.
1. Push the lever (a) and fold the
seatback forward. B320A01P
B320A02P
B320A03P
(c) (b)
(a)
3. To make the seat to the originalstate, release the lock with pushing the lever (c) and after locking the seat at the floor, push the lever (a) and make the seatback erect.
(a)

1BEFORE DRIVING YOUR VEHICLE
36
B350A02P-GAT MAKING A FLAT SEAT (If installed)
1. Remove the headrests. HA1FL2010
!
NOTE: To recline the auxiliary seatback rearward, pull the lever and recline the seatback rearward to the lock-ing position.
CAUTION:
Avoid full flat condition while driv-ing.
!
WARNING:
Be careful not to be caught by hand or foot under the seat while fixing the auxiliary seat at the suitable position.
HSRFL084

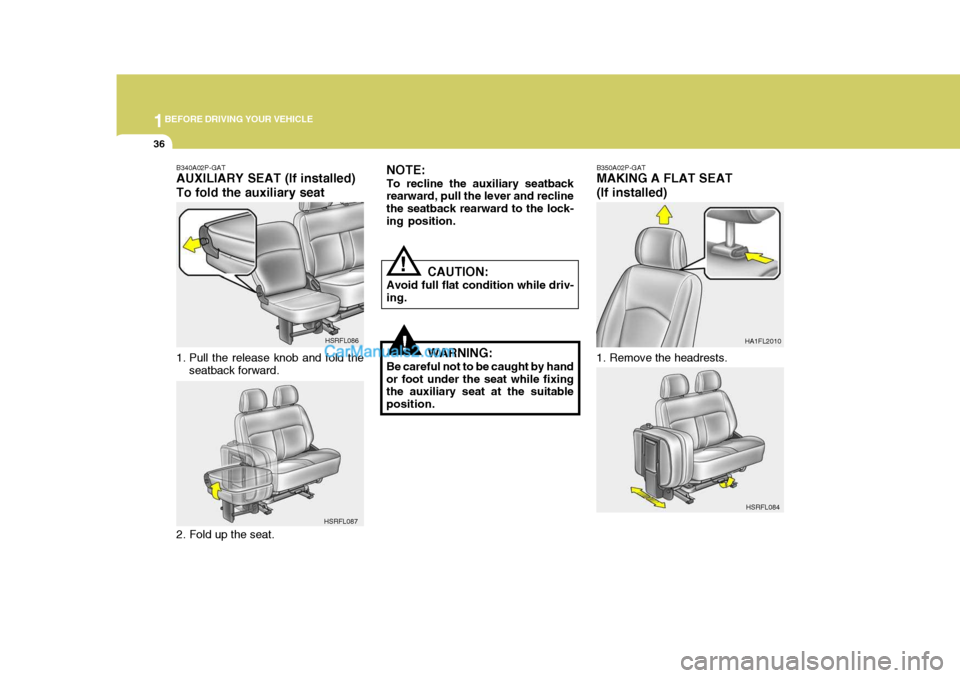

B340A02P-GAT AUXILIARY SEAT (If installed) To fold the auxiliary seat
1. Pull the release knob and fold theseatback forward. HSRFL086
HSRFL087
2. Fold up the seat.
