Page 181 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 4
CORROSION PREVENTION AND APPEARANCE CARE
3
4
IN CASE OF EMERGENCY
3

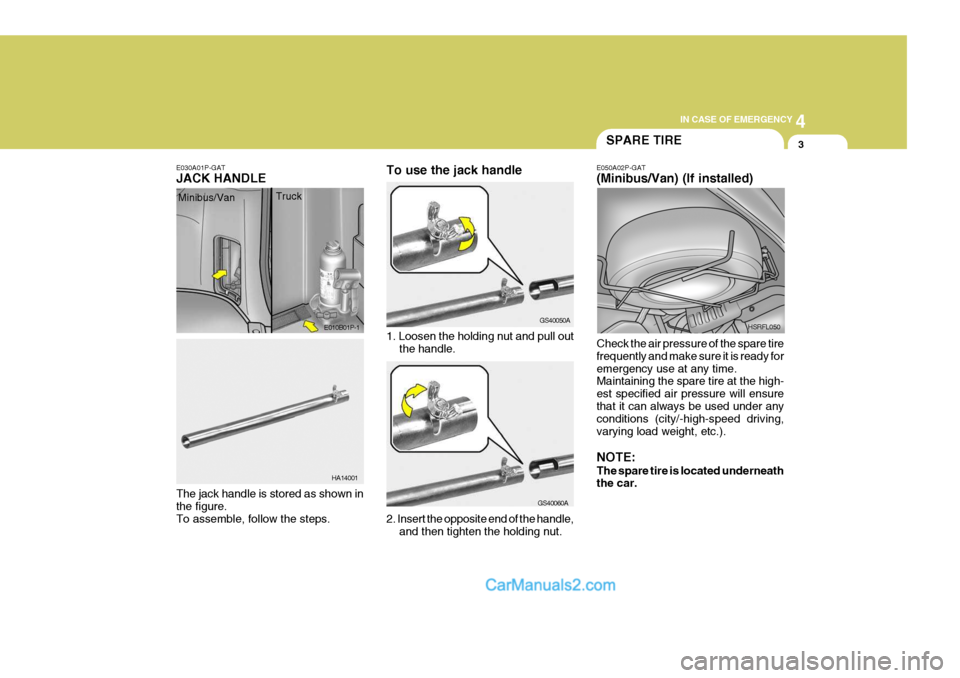

E030A01P-GAT JACK HANDLE
1. Loosen the holding nut and pull outthe handle.
The jack handle is stored as shown in the figure. To as

Page 182 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 44IN CASE OF EMERGENCY
4

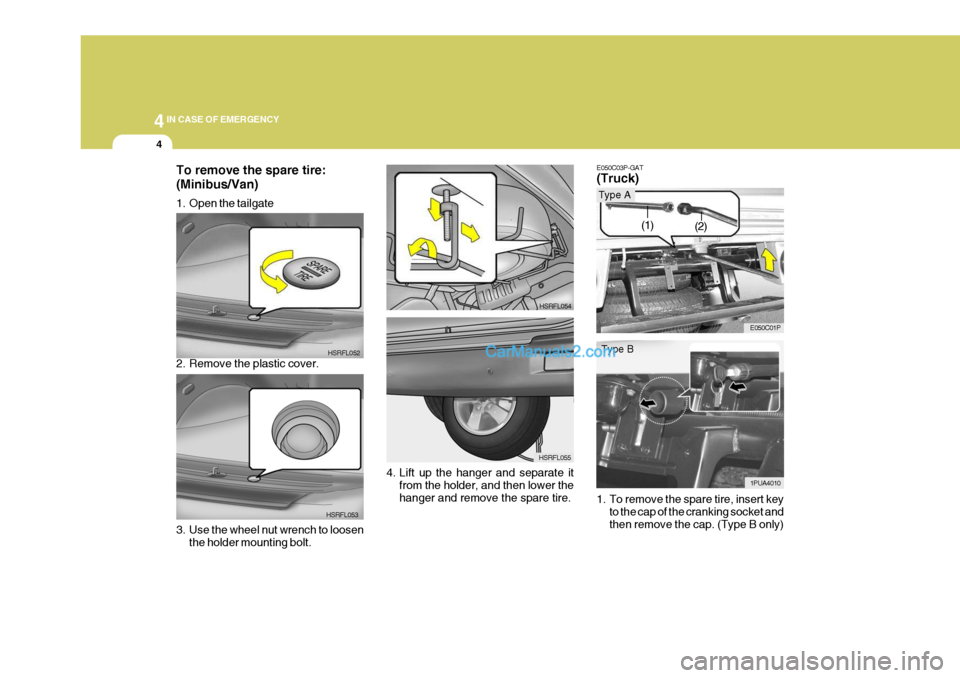

To remove the spare tire: (Minibus/Van)
1. Open the tailgate
2. Remove the plastic cover. HSRFL052
HSRFL053
3. Use the wheel nut wrench to loosen the holder mounting bolt. H

Page 183 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 4
CORROSION PREVENTION AND APPEARANCE CARE
5
4
IN CASE OF EMERGENCY
5

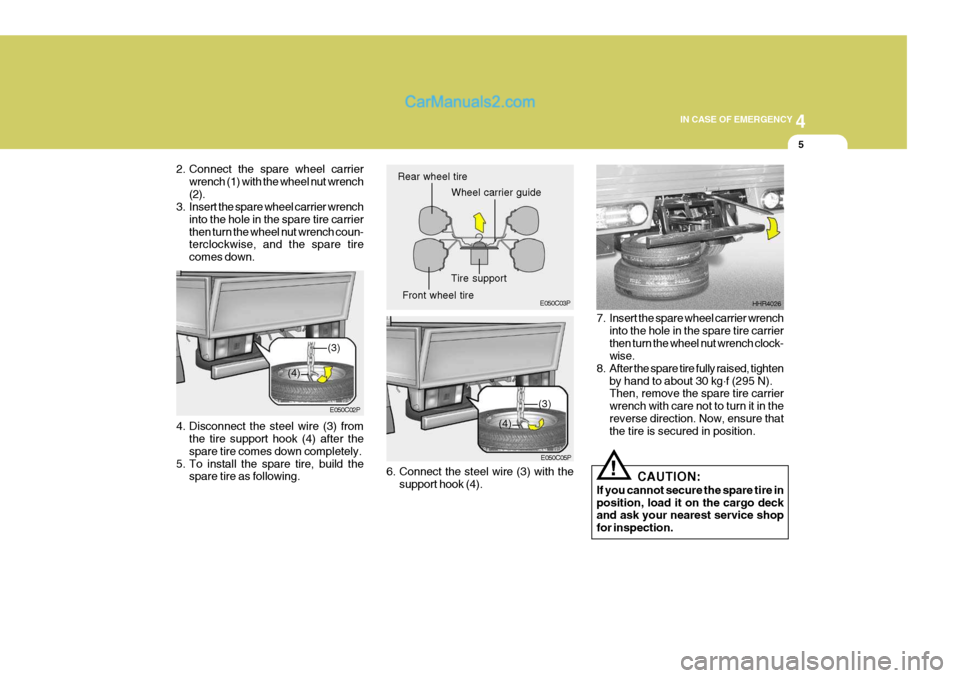

4. Disconnect the steel wire (3) from
the tire support hook (4) after the spare tire comes down completely.
5. To install the spar

Page 184 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 44IN CASE OF EMERGENCY
6IF YOU HAVE A FLAT TIRE
E050D01P-GAT Spare tire anti-theft device (If installed) This device is designed to protect the spare tire theft. After fitting the latch plate hole in

Page 185 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 4
CORROSION PREVENTION AND APPEARANCE CARE
7
4
IN CASE OF EMERGENCY
7CHANGING A FLAT TIRE

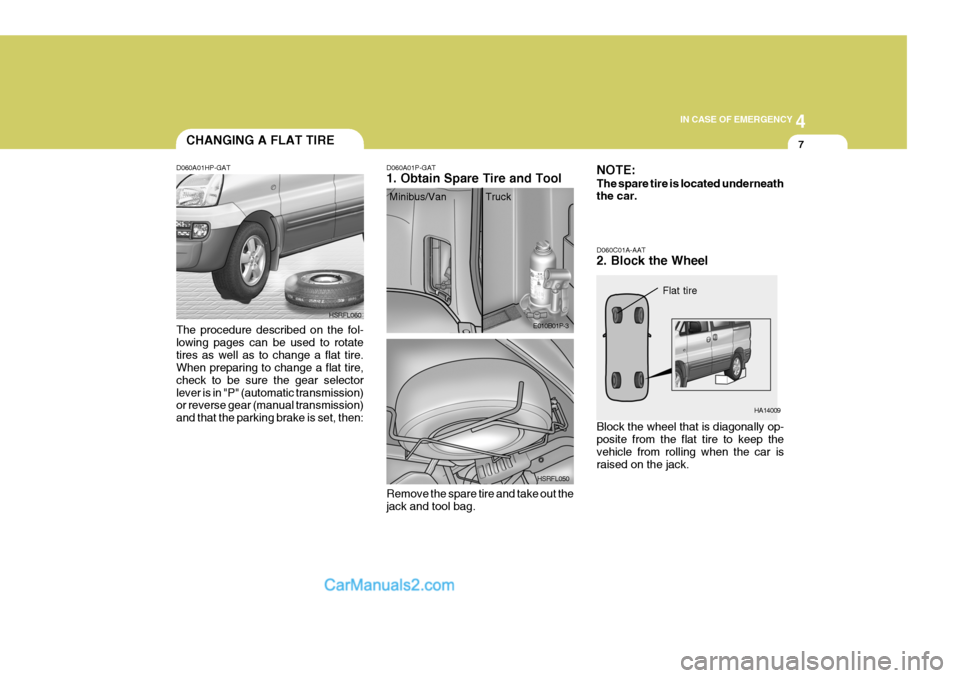

D060A01HP-GAT The procedure described on the fol- lowing pages can be used to rotatetires as well as to change

Page 186 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 44IN CASE OF EMERGENCY
8
D060D01A-AAT 3. Loosen Wheel Nuts The wheel nuts should be loosened slightly before raising the car. To loosenthe nuts, turn the wrench handle coun- terclockwise. When doing t

Page 187 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 4
CORROSION PREVENTION AND APPEARANCE CARE
9
4
IN CASE OF EMERGENCY
9
D060F02P-GAT 5. Raising the Car Open the lid at the right corner of the luggage compartment  (minibus/van)or on the floor behind t

Page 188 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 44IN CASE OF EMERGENCY
10
!

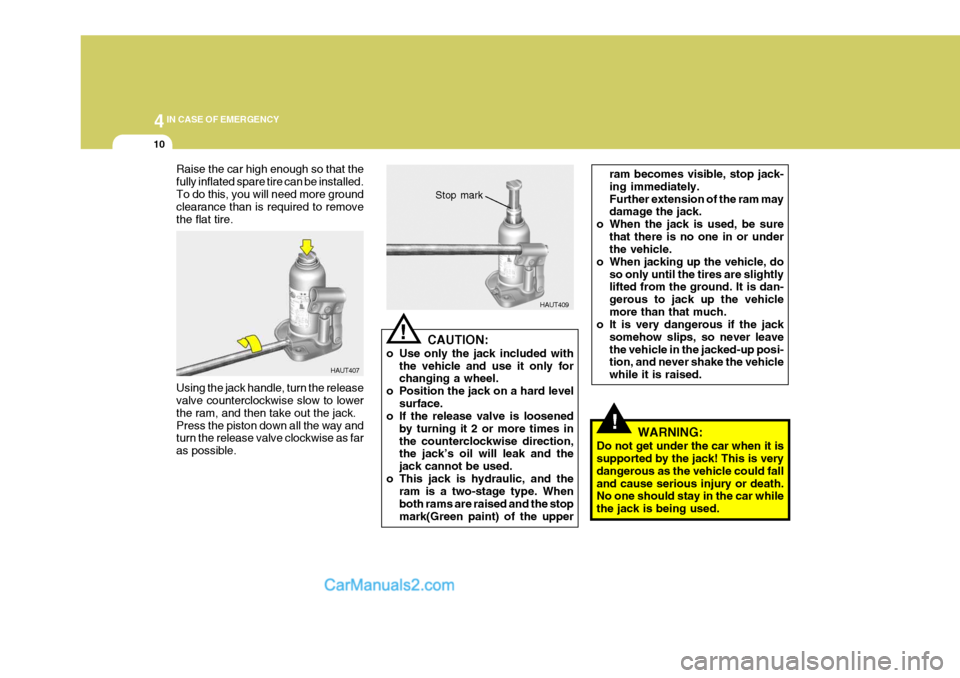

Raise the car high enough so that the fully inflated spare tire can be installed.To do this, you will need more ground clearance than is required to remove the flat tire. U

Page 189 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 4
CORROSION PREVENTION AND APPEARANCE CARE
11
4
IN CASE OF EMERGENCY
11

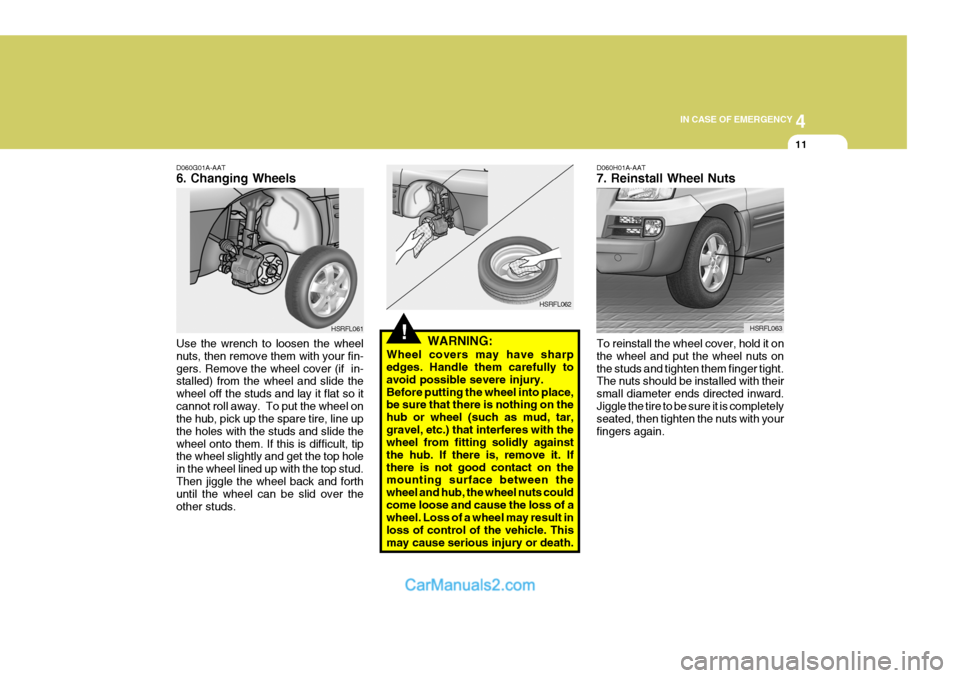

D060G01A-AAT 6. Changing Wheels Use the wrench to loosen the wheel nuts, then remove them with your fin-gers. Remove the wheel c

Page 190 of 284

Hyundai H-1 (Grand Starex) 2006  Owners Manual 44IN CASE OF EMERGENCY
12

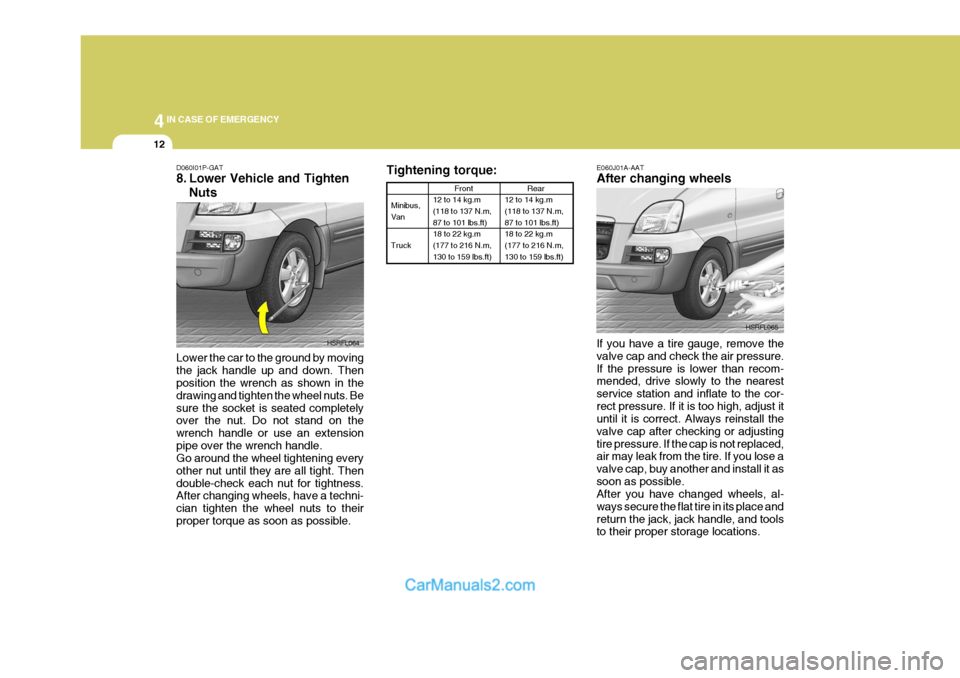

Tightening torque:
Minibus, Van Truck Front
12 to 14 kg.m (118 to 137 N.m, 87 to 101 lbs.ft) 18 to 22 kg.m(177 to 216 N.m, 130 to 159 lbs.ft)
Rear
12 to 14 kg.m (118 to 137 N
