BEFORE DRIVING YOUR VEHICLE
19
B070F03A-GAT Keyless Entry System (If installed) Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the turn signal lights will blink once toindicate that the system is armed.
Unlocking doors 1. Push the button on the transmitter once more after all doors were locked.
2. At the same time all doors unlock,
the turn signal lights will blink twiceto indicate that the system is dis- armed. NOTE:
o The transmitter will not work if any
of following occur:
- The ignition key is in ignition
switch.
- You exceed the operating dis-
tance limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a
radio transmitter such as a radio station or an airport which can interfere with normal operationof the transmitter.
When the transmitter does not workcorrectly, open and close the doorwith the ignition key. If you have a problem with the transmitter, con- tact an authorized Hyundai Dealer.
o Keep the transmitter away from water or any liquid. If the keylessentry system is inoperative due toexposure to water or liquids, it will not be covered by your manufac- turer vehicle warranty.
B070E02P-AAT Replacing the battery When the transmitter's battery be- comes weak, it may take several pushes on the button to lock or unlockthe doors, and the LED will not light. Replace the battery as soon as pos- sible. Battery type : CR1220 (Minibus/Van) CR2032 (Truck)
Replacement instructions: (Minibus/Van)
1. Remove the screw with a phillips screwdriver.
2. Carefully separate the case with a flat-head screwdriver as shown in the illustration. HTB053

1BEFORE DRIVING YOUR VEHICLE
20
B070E01P-1
(Truck)
1. Separate the case with a phillips
screwdriver.3. Remove four screws at the back side of the built-in circuit. HTB054
HTB055
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), theninsert it in the transmitter.

1
BEFORE DRIVING YOUR VEHICLE
21
B070E02P-1
TAIL GATE
B190A01P-GAT LIFT TYPE Operation from outside thevehicle (Minibus/Van) Pull the outside handle toward you to open the tail gate. B190A01P
LOCK
UNLOCK
2. Remove the old battery from the case and note the polarity. Makesure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.
B190B02P-GAT Operation from inside the vehicle (Van)
B190B01P
B190B05P
Type A Type B

1BEFORE DRIVING YOUR VEHICLE
22
1. Pull the tail gate open cover.
2. Insert the finger into the tail gate
opening hole, and pull upward the lock rod (thin rod), and press down the outside handle rod (thick rod) toopen the tailgate.
When the tail gate is locked
lock rod outside handlerod
B190B04P
1. When the tail gate is unlocked, pull the tail gate open cover. B190B02P
2. Insert the finger into the tail gateopening hole, and press down the outside handle rod to open the tailgate. B190B03P

1
BEFORE DRIVING YOUR VEHICLE
23
B190E01P
When opening the left door, pull the lever toward your side.
B190C01P-GAT TWIN SWING DOOR TYPE (Van) To open from inside, pull the inside door handle. Outside
Inside B190C01P-1
B190D01P
To open from outside, lift the door handle up.
Lock
Unlock
REAR GATE
B191A01P-GAT To open the rear gate (Truck)
1. Push the rear gate handle inside and pull it toward you.
2. Lower the rear gate slowly. B191A01P
B191A02P

1BEFORE DRIVING YOUR VEHICLE
24
B191B02P
the hook after pulling it up.
3. Lower the side gates slowly.
NOTE: When you step on the cargo deck, use the foothold.
WARNING:
When the rear combination lamps are hidden, other road users should be warned by means of warning triangle or other devices. To close the rear gate Lift the rear gate up and lock the rear gate handle in place.
!
B191A03P
SIDE GATE
B191B01P-GAT To open the side gate (Truck)
1. With the rear gate opened, pull up the knob to release the support bar down.
2. Remove the side gate handle from B191B01P
Support bar

1
BEFORE DRIVING YOUR VEHICLE
25HOOD RELEASE
B570A01F-GAT
1. Pull the release knob to unlatch the hood. B570A02P
B570A03P
B191B03P
B191B04P
To close the side gate
1. Lift the side gate up and lock the side
gate handle in place.
2. Push the knob down to lock the side gates. Minibus/Van
CAUTION:
Make sure that the support rod has been released prior to closing thehood.
!
2. Press the secondary latch lever up
side and lift the hood.
3. Hold the hood open with the support
rod.
Before closing the hood, return the support rod to its clip to prevent it from rattling. Lower the hood until it is about 30 cm (1 ft.) above the closed positionand let it drop. Make sure that it locks into place. B570B03P
Truck

1BEFORE DRIVING YOUR VEHICLE
26
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is not latched, the hood could fly openwhile the vehicle is being driven, causing a total loss of visibility, which might result in an acci-dent.
o The support rod must be inserted
completely into the hole providedin the hood whenever you in- spect the engine compartment. This will prevent the hood fromfalling and possibly injuring you.
o Do not move the vehicle with the
hood in the raised position, asvision is obstructed and the hood could fall or be damaged.
REMOTE FUEL-FILLER LID RELEASE

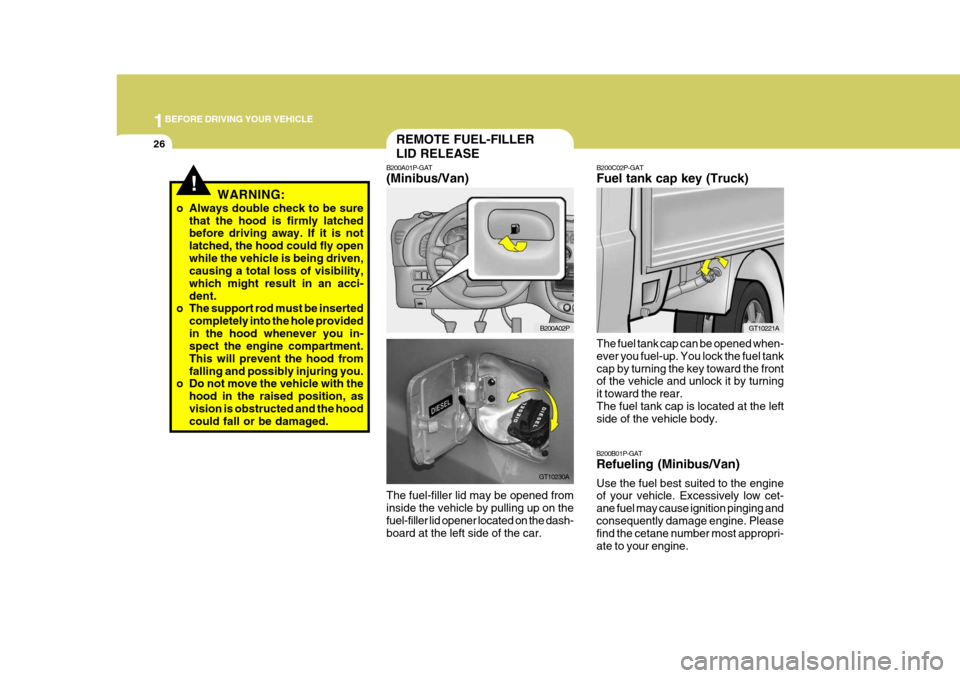

B200A01P-GAT (Minibus/Van) The fuel-filler lid may be opened from inside the vehicle by pulling up on thefuel-filler lid opener located on the dash- board at the left side of the car. B200A02P
GT10230A
B200C02P-GAT Fuel tank cap key (Truck) The fuel tank cap can be opened when- ever you fuel-up. You lock the fuel tankcap by turning the key toward the front of the vehicle and unlock it by turning it toward the rear.The fuel tank cap is located at the left side of the vehicle body. GT10221A
B200B01P-GAT Refueling (Minibus/Van) Use the fuel best suited to the engine of your vehicle. Excessively low cet- ane fuel may cause ignition pinging andconsequently damage engine. Please find the cetane number most appropri- ate to your engine.

1
BEFORE DRIVING YOUR VEHICLE
27

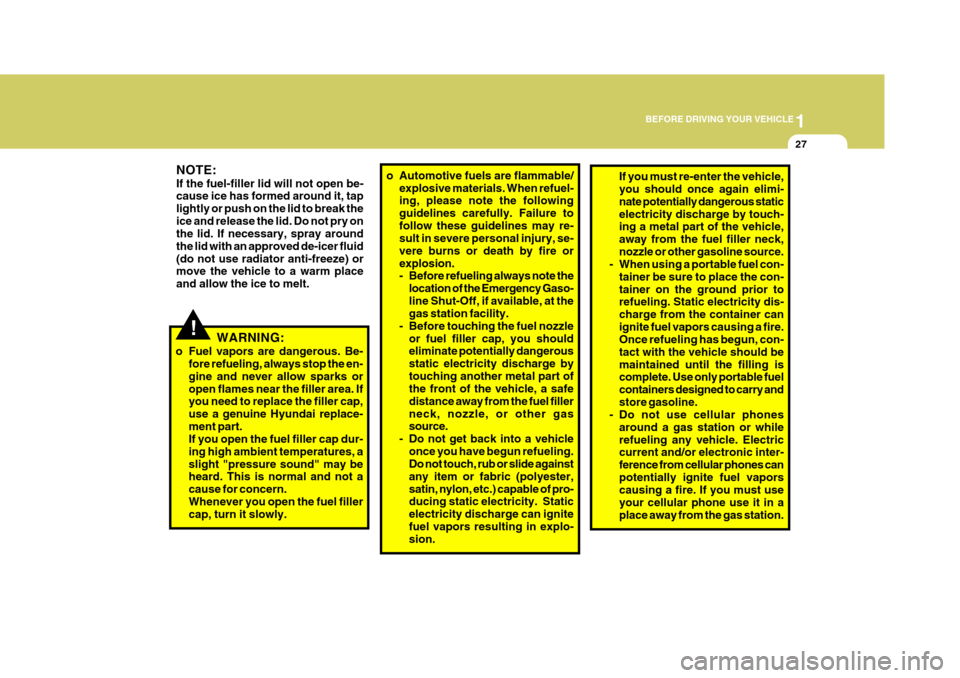

!WARNING:
o Fuel vapors are dangerous. Be- fore refueling, always stop the en- gine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler cap, turn it slowly. o Automotive fuels are flammable/
explosive materials. When refuel-ing, please note the following guidelines carefully. Failure tofollow these guidelines may re- sult in severe personal injury, se- vere burns or death by fire orexplosion.
- Before refueling always note thelocation of the Emergency Gaso- line Shut-Off, if available, at the gas station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other gas source.
- Do not get back into a vehicle once you have begun refueling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapors resulting in explo- sion. If you must re-enter the vehicle,you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other gasoline source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore gasoline.
- Do not use cellular phones
around a gas station or whilerefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the gas station.
NOTE: If the fuel-filler lid will not open be- cause ice has formed around it, tap lightly or push on the lid to break theice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid(do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.

1BEFORE DRIVING YOUR VEHICLE
28

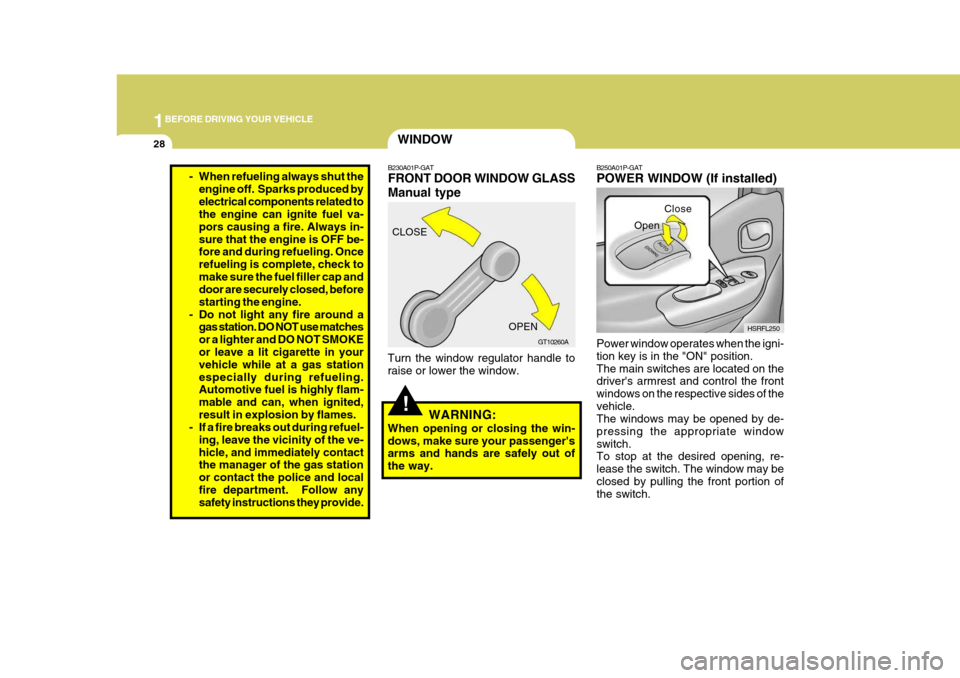

B250A01P-GAT POWER WINDOW (If installed) Power window operates when the igni- tion key is in the "ON" position.The main switches are located on the driver's armrest and control the front windows on the respective sides of thevehicle. The windows may be opened by de- pressing the appropriate windowswitch. To stop at the desired opening, re- lease the switch. The window may beclosed by pulling the front portion of the switch. Close
HSRFL250
Open
WINDOW
!
B230A01P-GAT FRONT DOOR WINDOW GLASS Manual type
Turn the window regulator handle to raise or lower the window. WARNING:
When opening or closing the win- dows, make sure your passenger's arms and hands are safely out of the way. CLOSE
GT10260A
OPEN
- When refueling always shut the
engine off. Sparks produced byelectrical components related to the engine can ignite fuel va- pors causing a fire. Always in-sure that the engine is OFF be- fore and during refueling. Once refueling is complete, check tomake sure the fuel filler cap and door are securely closed, before starting the engine.
- Do not light any fire around a gas station. DO NOT use matchesor a lighter and DO NOT SMOKE or leave a lit cigarette in your vehicle while at a gas stationespecially during refueling. Automotive fuel is highly flam- mable and can, when ignited,result in explosion by flames.
- If a fire breaks out during refuel-
ing, leave the vicinity of the ve-hicle, and immediately contact the manager of the gas station or contact the police and localfire department. Follow any safety instructions they provide.
