Hyundai H-1 (Grand Starex) 2013 User Guide

A090000AEN
As with other vehicles of this type, failure
to operate this vehicle correctly may
result in loss of control, an accident or
vehicle rollover.
Specific design characteristics (higher
ground clearance, track, etc.) give this
vehicle a higher center of gravity than
other types of vehicles. In other words
they are not designed for cornering at the
same speeds as conventional 2-wheel
drive vehicles. Avoid sharp turns or
abrupt maneuvers. Again, failure to oper-
ate this vehicle correctly may result in
loss of control, an accident or vehicle
rollover.Be sure to read the “Reducing
the risk of a rollover” driving guide-
lines, in section 5 of this manual.
A030000AUN
No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
• Do not race the engine.
• While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
• Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
• Avoid hard stops, except in emergen-
cies, to allow the brakes to seat prop-
erly.
• Don't tow a trailer during the first 2,000
km (1,200 miles) of operation.

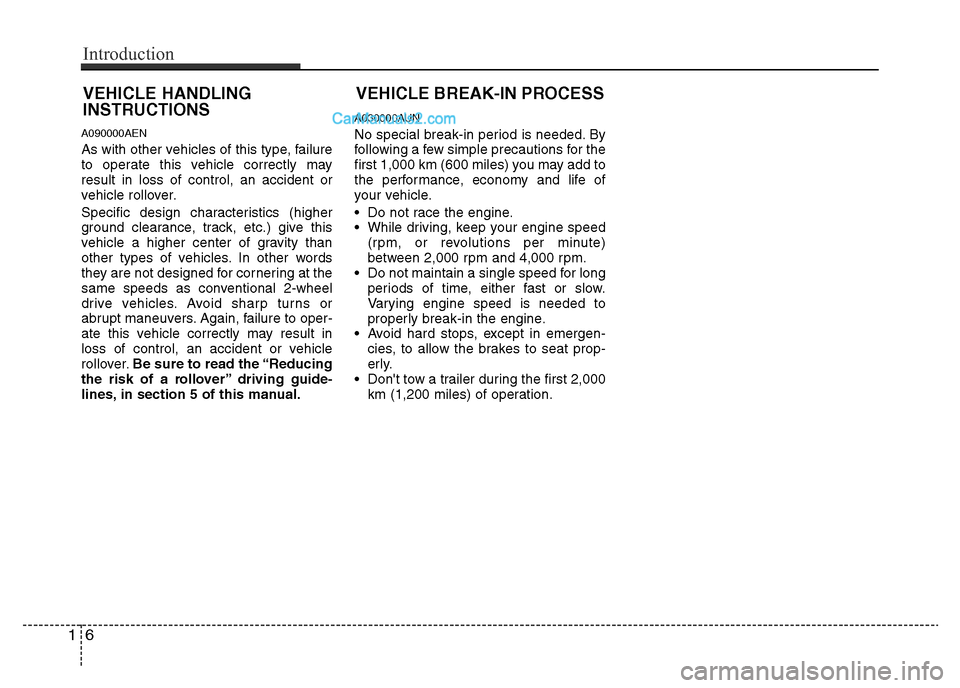

VEHICLE BREAK-IN PROCESS VEHICLE HANDLING
INSTRUCTIONS
16
Introduction

2
Interior overview / 2-2
Instrument panel overview / 2-4
Engine compartment / 2-6
Your vehicle at a glance

Your vehicle at a glance
2 2

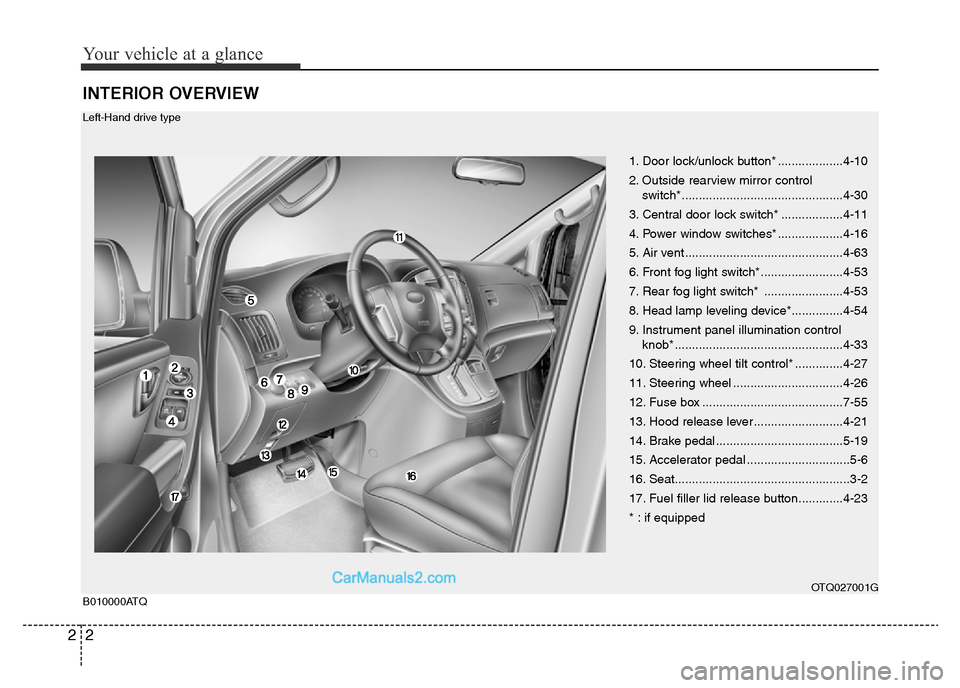

INTERIOR OVERVIEW
1. Door lock/unlock button* ...................4-10
2. Outside rearview mirror control
switch*...............................................4-30
3. Central door lock switch* ..................4-11
4. Power window switches* ...................4-16
5. Air vent ..............................................4-63
6. Front fog light switch*........................4-53
7. Rear fog light switch* .......................4-53
8. Head lamp leveling device*...............4-54
9. Instrument panel illumination control
knob* .................................................4-33
10. Steering wheel tilt control* ..............4-27
11. Steering wheel ................................4-26
12. Fuse box .........................................7-55
13. Hood release lever ..........................4-21
14. Brake pedal .....................................5-19
15. Accelerator pedal ..............................5-6
16. Seat...................................................3-2
17. Fuel filler lid release button.............4-23
* : if equipped
OTQ027001GB010000ATQ
Left-Hand drive type

23
Your vehicle at a glance

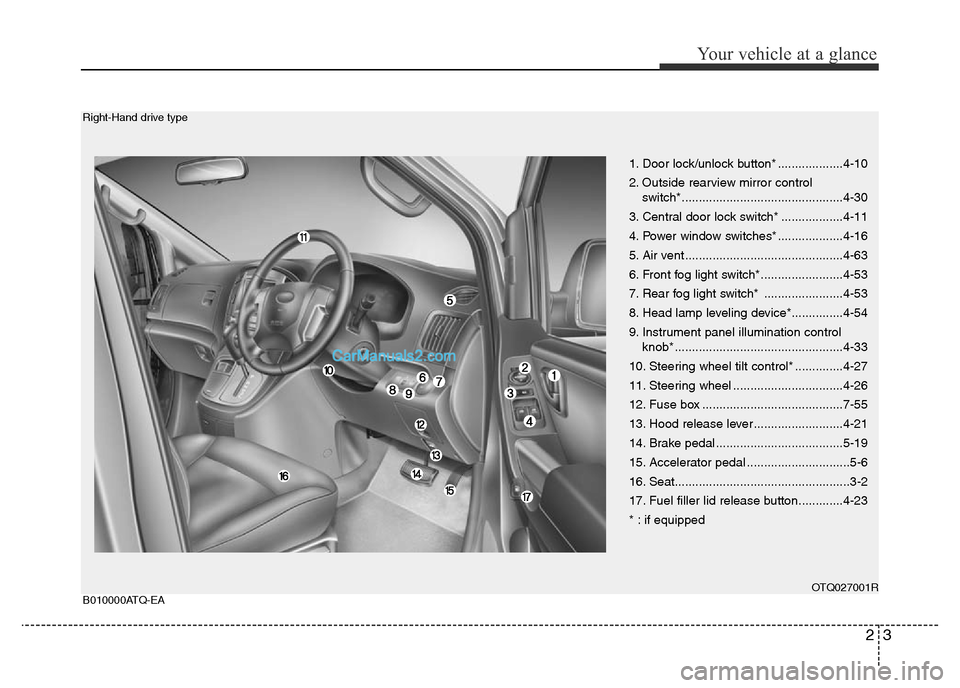

1. Door lock/unlock button* ...................4-10
2. Outside rearview mirror control
switch*...............................................4-30
3. Central door lock switch* ..................4-11
4. Power window switches* ...................4-16
5. Air vent ..............................................4-63
6. Front fog light switch*........................4-53
7. Rear fog light switch* .......................4-53
8. Head lamp leveling device*...............4-54
9. Instrument panel illumination control
knob* .................................................4-33
10. Steering wheel tilt control* ..............4-27
11. Steering wheel ................................4-26
12. Fuse box .........................................7-55
13. Hood release lever ..........................4-21
14. Brake pedal .....................................5-19
15. Accelerator pedal ..............................5-6
16. Seat...................................................3-2
17. Fuel filler lid release button.............4-23
* : if equipped
OTQ027001R
Right-Hand drive type
B010000ATQ-EA

Your vehicle at a glance
4 2
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-32
2. Light control / Turn signals ...............4-50
3. Horn .................................................4-27
4. Wiper/Washer ...................................4-55
5. Steering wheel audio controls* ........4-83
6. Driver’s front air bag* .......................3-44
7. Ignition switch .....................................5-4
8. Digital clock* ....................................4-80
9. Audio* ...............................................4-82
10. Hazard warning flasher
switch ......................................4-50, 6-2
11. Climate control system* .................4-61
12. Parking brake .................................5-20
13. Shift lever ................................5-12, 5-9
14. AUX, USB and iPod port* ..............4-84
15. Passenger’s front air bag* ..............3-44
16. Glove box .......................................4-74
* : if equipped
OTQ027002GB020000BTQ Left-Hand drive type

25
Your vehicle at a glance

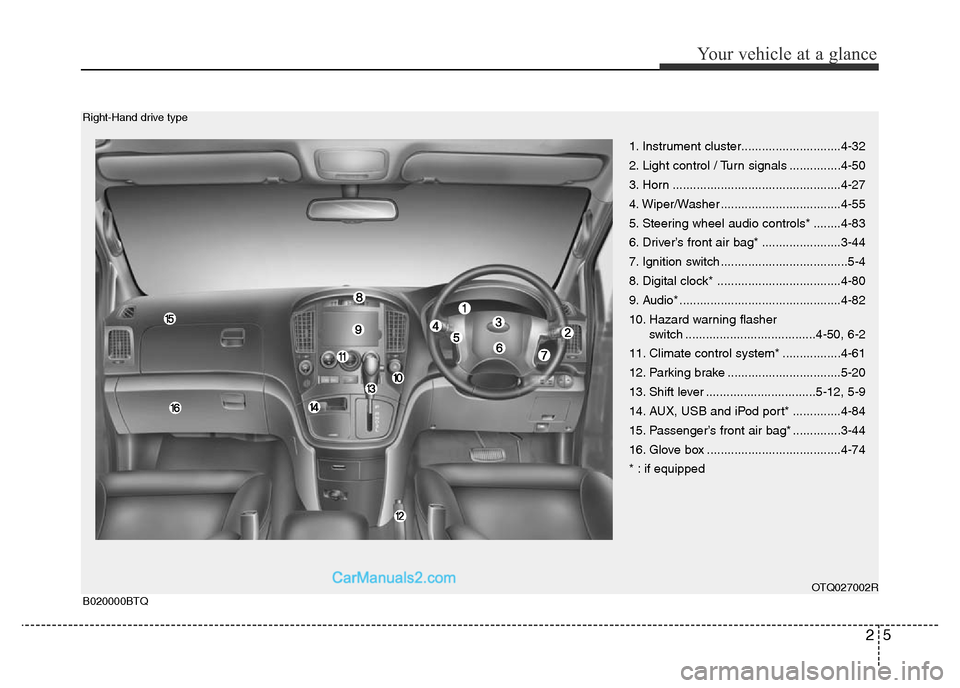

1. Instrument cluster.............................4-32
2. Light control / Turn signals ...............4-50
3. Horn .................................................4-27
4. Wiper/Washer ...................................4-55
5. Steering wheel audio controls* ........4-83
6. Driver’s front air bag* .......................3-44
7. Ignition switch .....................................5-4
8. Digital clock* ....................................4-80
9. Audio* ...............................................4-82
10. Hazard warning flasher
switch ......................................4-50, 6-2
11. Climate control system* .................4-61
12. Parking brake .................................5-20
13. Shift lever ................................5-12, 5-9
14. AUX, USB and iPod port* ..............4-84
15. Passenger’s front air bag* ..............3-44
16. Glove box .......................................4-74
* : if equipped
OTQ027002RB020000BTQ Right-Hand drive type

Your vehicle at a glance
6 2

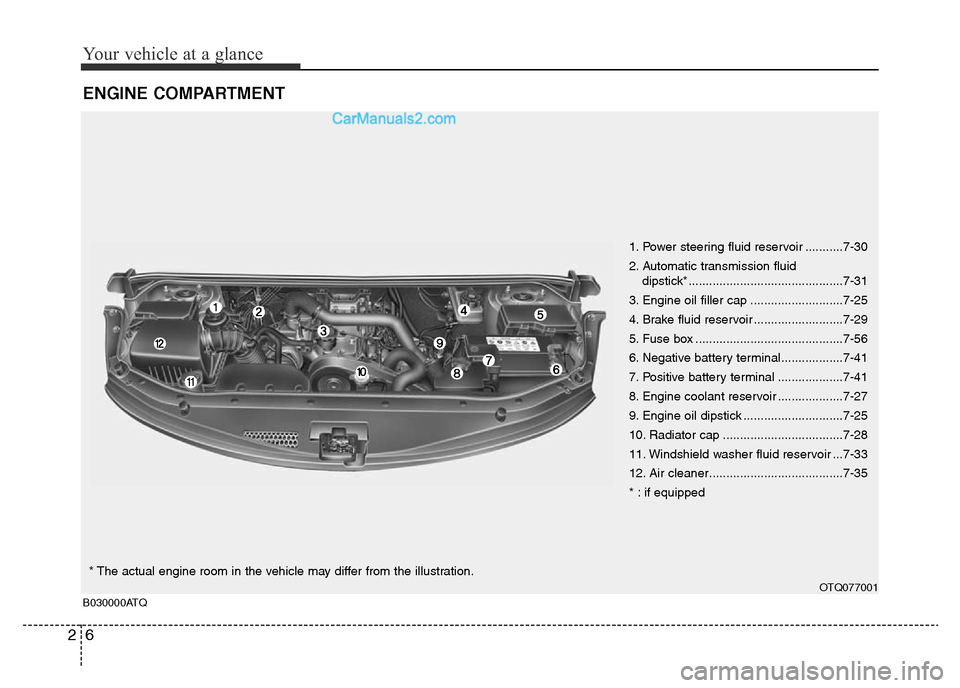

ENGINE COMPARTMENT
1. Power steering fluid reservoir ...........7-30
2. Automatic transmission fluid
dipstick*.............................................7-31
3. Engine oil filler cap ...........................7-25
4. Brake fluid reservoir ..........................7-29
5. Fuse box ...........................................7-56
6. Negative battery terminal..................7-41
7. Positive battery terminal ...................7-41
8. Engine coolant reservoir ...................7-27
9. Engine oil dipstick .............................7-25
10. Radiator cap ...................................7-28
11. Windshield washer fluid reservoir ...7-33
12. Air cleaner.......................................7-35
* : if equipped
OTQ077001B030000ATQ
* The actual engine room in the vehicle may differ from the illustration.

3
Seats / 3-2
Seat belts / 3-15
Child restraint system / 3-26
Air bag - supplemental restraint system / 3-38
Safety features of your vehicle

Safety features of your vehicle
2 3
C010000BTQ
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)*
(4) Seat warmer (Driver’s seat)*
(5) Headrest
2nd row seat* / 3rd row seat*
(6) Forward and backward/
Seat rotation (2nd row seat only)*
(7) Seatback angle
(8) Headrest
4th row seat*
(9) Forward and backward
(10) Seat cushion folding
(11) Headrest
*: if equipped

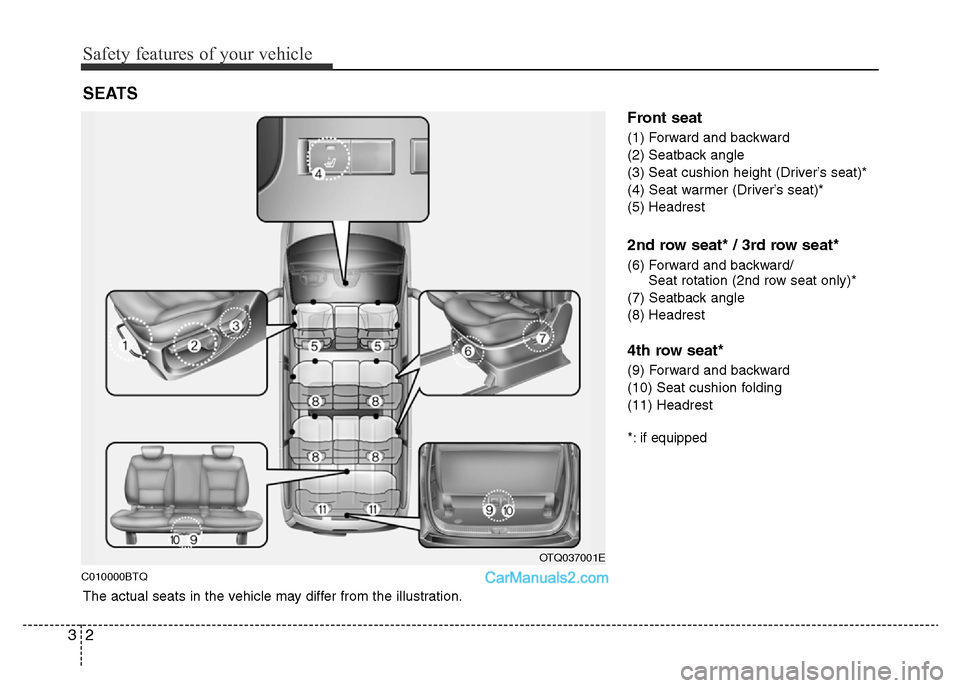

SEATS
OTQ037001E
The actual seats in the vehicle may differ from the illustration.

33
Safety features of your vehicle

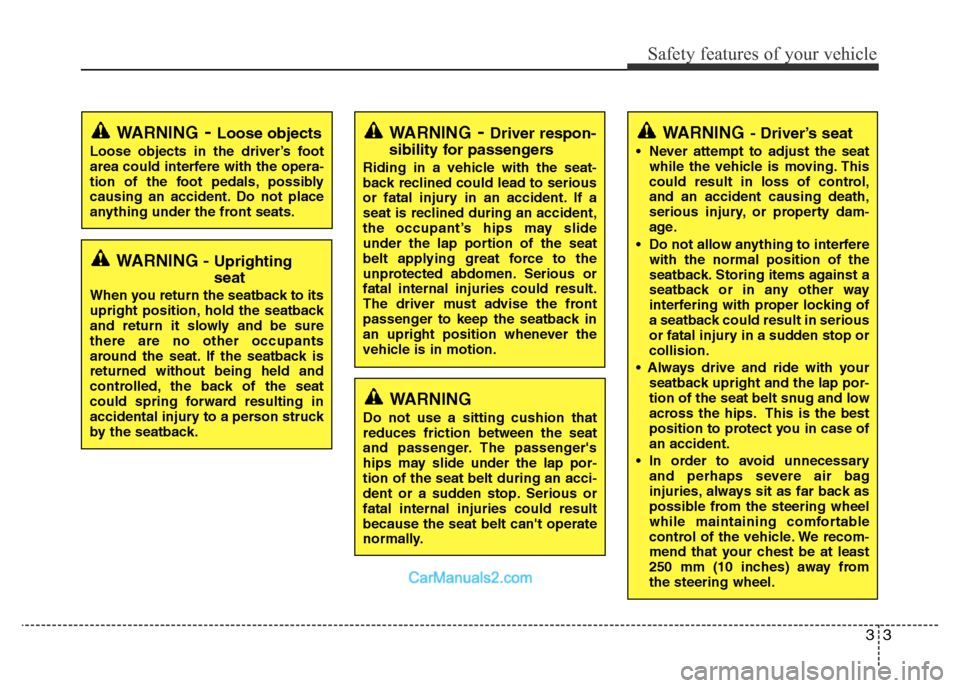

WARNING- Driver’s seat
• Never attempt to adjust the seat
while the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
• Do not allow anything to interfere
with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
• Always drive and ride with your
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away from
the steering wheel.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be sure
there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING- Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt can't operate
normally.
