Consumer information
4 8

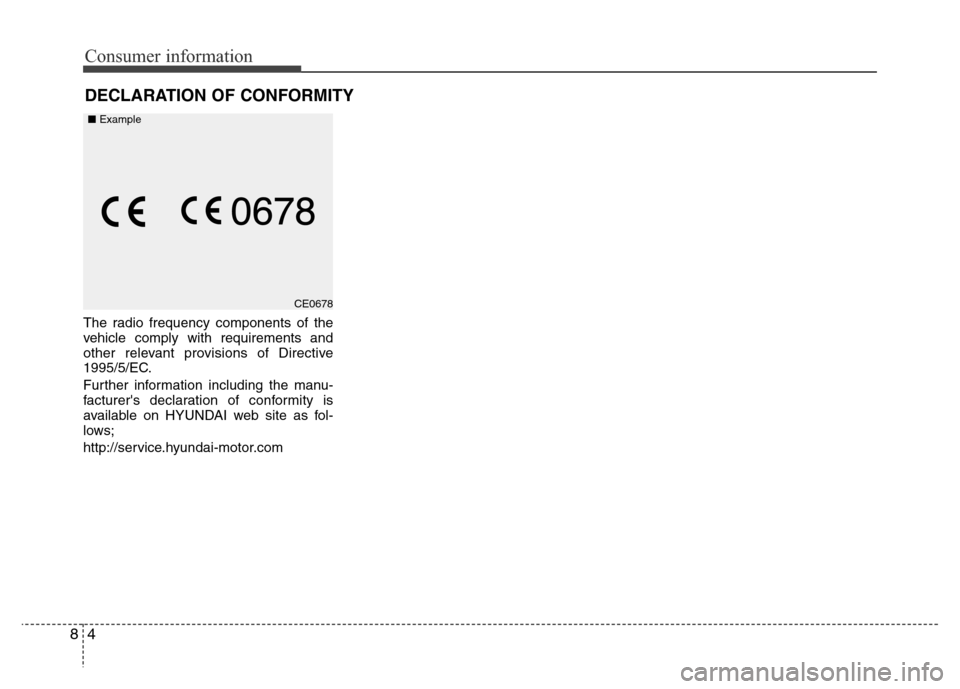

The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.com
DECLARATION OF CONFORMITY
CE0678 ■Example

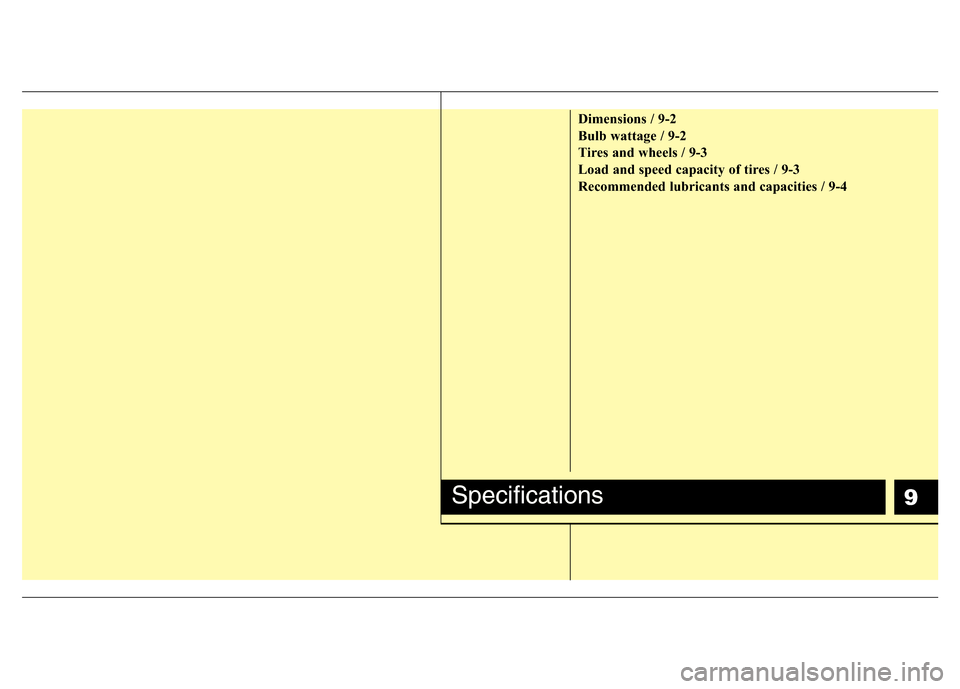

9
Dimensions / 9-2
Bulb wattage / 9-2
Tires and wheels / 9-3
Load and speed capacity of tires / 9-3
Recommended lubricants and capacities / 9-4
Specifications

Specifications
2 9

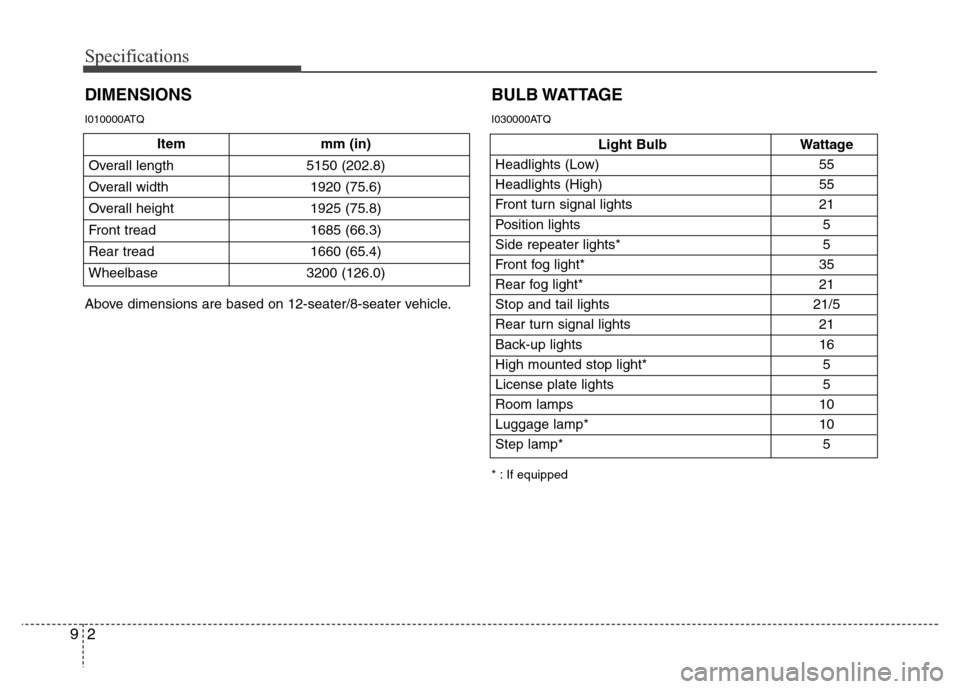

Item mm (in)
Overall length 5150 (202.8)
Overall width 1920 (75.6)
Overall height 1925 (75.8)
Front tread 1685 (66.3)
Rear tread 1660 (65.4)
Wheelbase 3200 (126.0)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side repeater lights* 5
Front fog light* 35
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* 5
License plate lights 5
Room lamps 10
Luggage lamp* 10
Step lamp* 5
BULB WATTAGE
* : If equipped
Above dimensions are based on 12-seater/8-seater vehicle.
I010000ATQI030000ATQ

93
Specifications

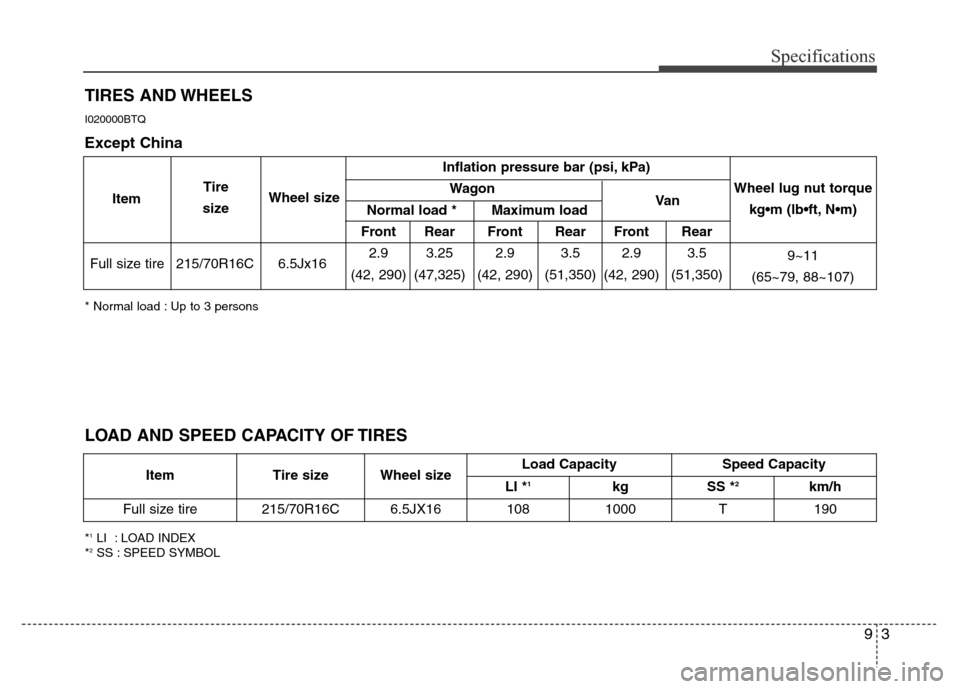

TIRES AND WHEELS
* Normal load : Up to 3 persons
I020000BTQ
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16C 6.5Jx162.9 3.25 2.9 3.5 2.9 3.5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tireWheel lug nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTire
sizeWheel size
Normal load *Maximum loadVa n
Except China
LOAD AND SPEED CAPACITY OF TIRES
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
Item Tire size Wheel sizeLoad Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tire 215/70R16C 6.5JX16 108 1000 T 190

Specifications
4 9

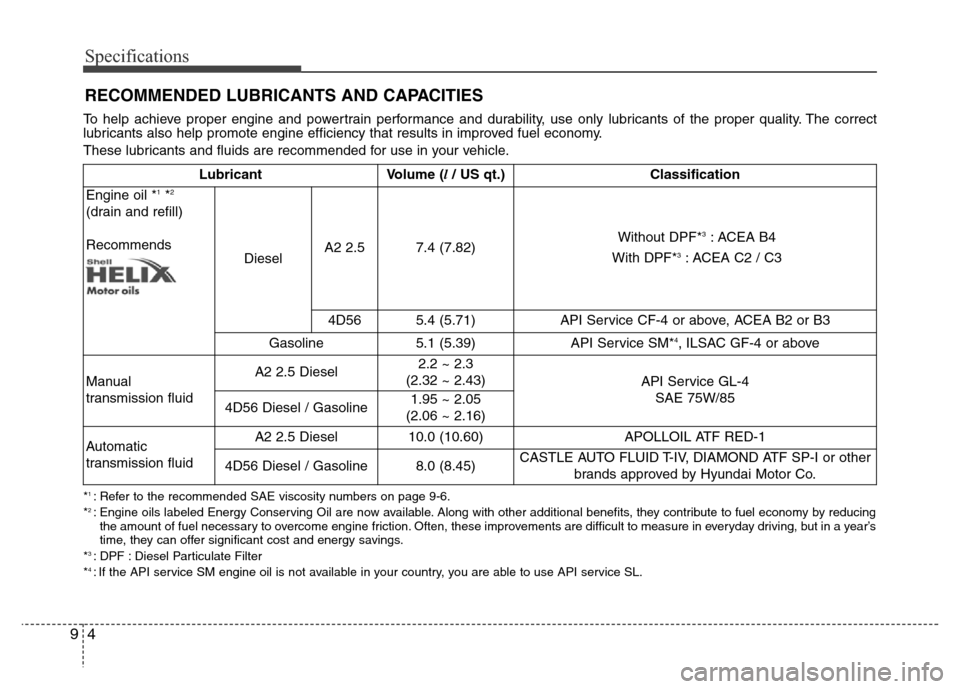

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1 : Refer to the recommended SAE viscosity numbers on page 9-6.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3 : DPF : Diesel Particulate Filter
*4 : If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolume (l/ US qt.)
Classification
Engine oil *
1*2
(drain and refill)
Recommends
DieselA2 2.5 7.4 (7.82)Without DPF*
3: ACEA B4
With DPF*
3: ACEA C2 / C3
4D56 5.4 (5.71) API Service CF-4 or above, ACEA B2 or B3
Gasoline 5.1 (5.39) API Service SM*
4, ILSAC GF-4 or above
Manual
transmission fluid A2 2.5 Diesel2.2 ~ 2.3
(2.32 ~ 2.43)
API Service GL-4
SAE 75W/85
4D56 Diesel / Gasoline 1.95 ~ 2.05
(2.06 ~ 2.16)
Automatic
transmission fluidA2 2.5 Diesel 10.0 (10.60) APOLLOIL ATF RED-1
4D56 Diesel / Gasoline 8.0 (8.45)CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I or other
brands approved by Hyundai Motor Co.

95
Specifications

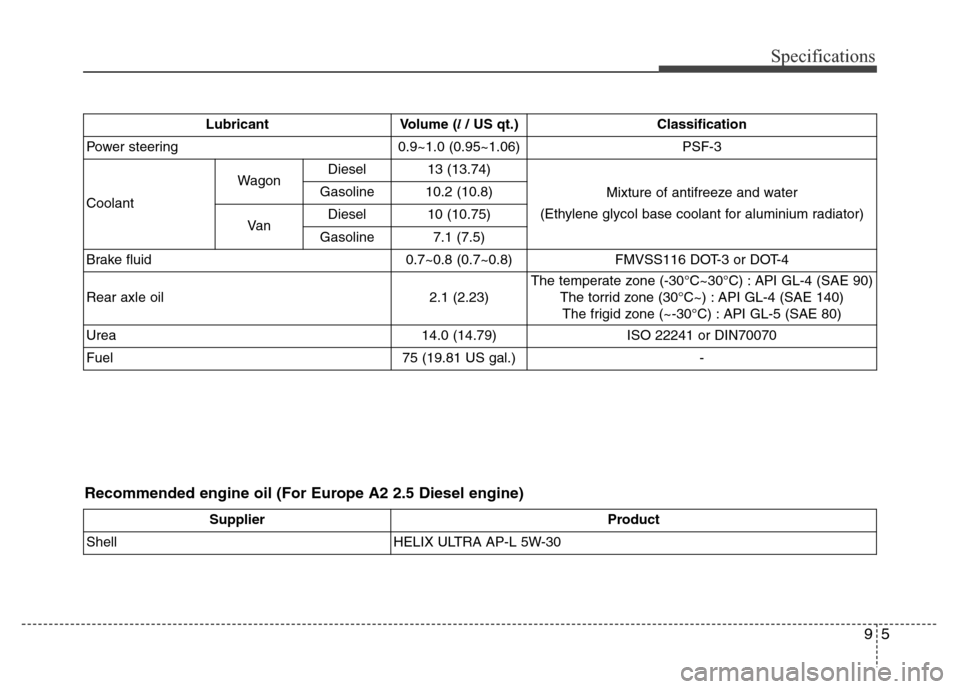

LubricantVolume (l/ US qt.)
Classification
Power steering 0.9~1.0 (0.95~1.06) PSF-3
CoolantWagonDiesel 13 (13.74)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator) Gasoline 10.2 (10.8)
Va nDiesel 10 (10.75)
Gasoline 7.1 (7.5)
Brake fluid 0.7~0.8 (0.7~0.8) FMVSS116 DOT-3 or DOT-4
Rear axle oil 2.1 (2.23)The temperate zone (-30°C~30°C) : API GL-4 (SAE 90)
The torrid zone (30°C~) : API GL-4 (SAE 140)
The frigid zone (~-30°C) : API GL-5 (SAE 80)
Urea 14.0 (14.79) ISO 22241 or DIN70070
Fuel 75 (19.81 US gal.) -
Recommended engine oil (For Europe A2 2.5 Diesel engine)
Supplier Product
Shell HELIX ULTRA AP-L 5W-30

Specifications
6 9
I040100DUN

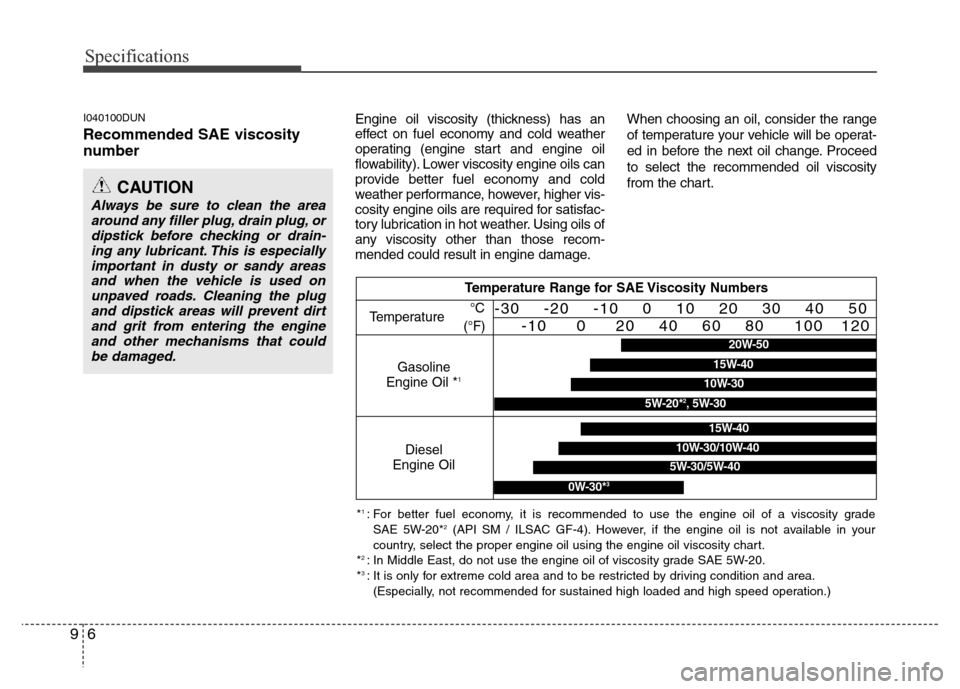

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.When choosing an oil, consider the range
of temperature your vehicle will be operat-
ed in before the next oil change. Proceed
to select the recommended oil viscosity
from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30/5W-40
15W-40
10W-30/10W-40
0W-30*3
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade
SAE 5W-20*2(API SM / ILSAC GF-4). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscosity chart.
*
2 : In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
*3 : It is only for extreme cold area and to be restricted by driving condition and area.
(Especially, not recommended for sustained high loaded and high speed operation.)
20W-50
10W-30
15W-40
5W-20*2, 5W-30
