Hyundai H350 2015 Owner's Manual

3-99
Convenient features of your vehicle
3
Flashing headlights
To flash the headlights, pull the lever
towards you. It will return to the nor-
mal (low-beam) position when
released. The headlight switch doesnot need to be on to use this flashing
feature.
Turn signals and lane change signals
The ignition switch must be on for the
turn signals to function. To turn on
the turn signals, move the lever up or
down (A). Green arrow indicators on
the instrument panel indicate which
turn signal is operating.
They will self-cancel after a turn is
completed. If the indicator continues
to flash after a turn, manually return
the lever to the OFF position.
To signal a lane change, move the
turn signal lever slightly and hold it in
position (B). The lever will return tothe OFF position when released.If an indicator stays on and does not
flash or if it flashes abnormally, one
of the turn signal bulbs may be
burned out and will require replace-ment.
One-touch lane change function
(if equipped)
To activate an one-touch lane
change function, move the turn sig-
nal lever slightly and then release it.
The lane change signals will blink 3
times.
If an indicator flash is abnormally
quick or slow, bulb may be burned
out or have a poor electrical con-
nection in the circuit.
NOTICEOEU044209
OEU044208

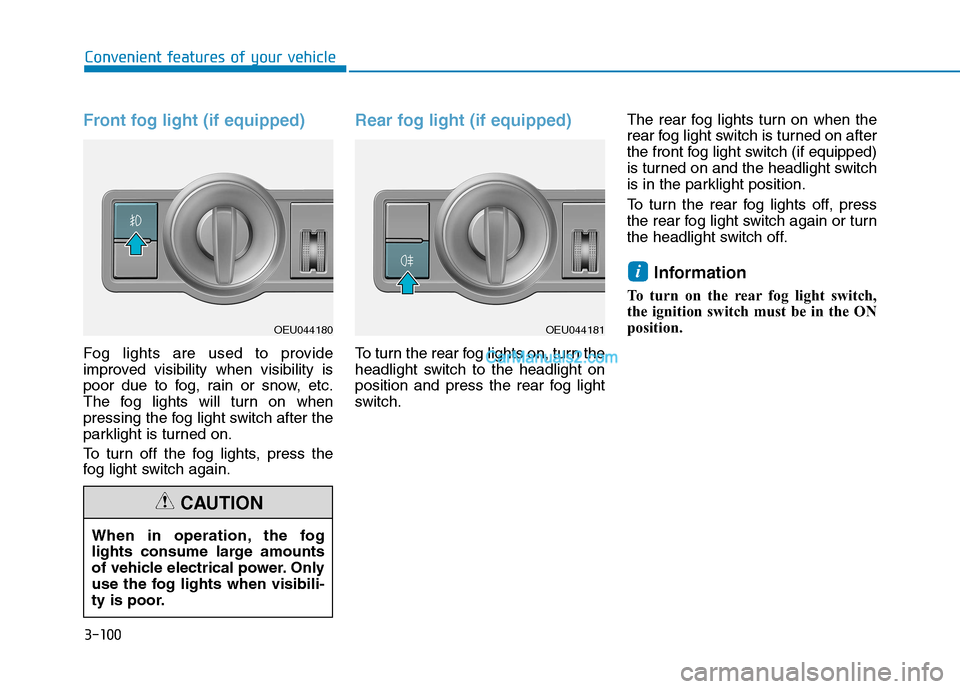

3-100
Convenient features of your vehicle
Front fog light (if equipped)
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
The fog lights will turn on when
pressing the fog light switch after the
parklight is turned on.
To turn off the fog lights, press the
fog light switch again.
Rear fog light (if equipped)
To turn the rear fog lights on, turn the
headlight switch to the headlight on
position and press the rear fog light
switch.The rear fog lights turn on when the
rear fog light switch is turned on after
the front fog light switch (if equipped)
is turned on and the headlight switch
is in the parklight position.
To turn the rear fog lights off, press
the rear fog light switch again or turn
the headlight switch off.
Information
To turn on the rear fog light switch,
the ignition switch must be in the ON
position.
i
When in operation, the fog
lights consume large amounts
of vehicle electrical power. Only
use the fog lights when visibili-
ty is poor.
CAUTION
OEU044181OEU044180

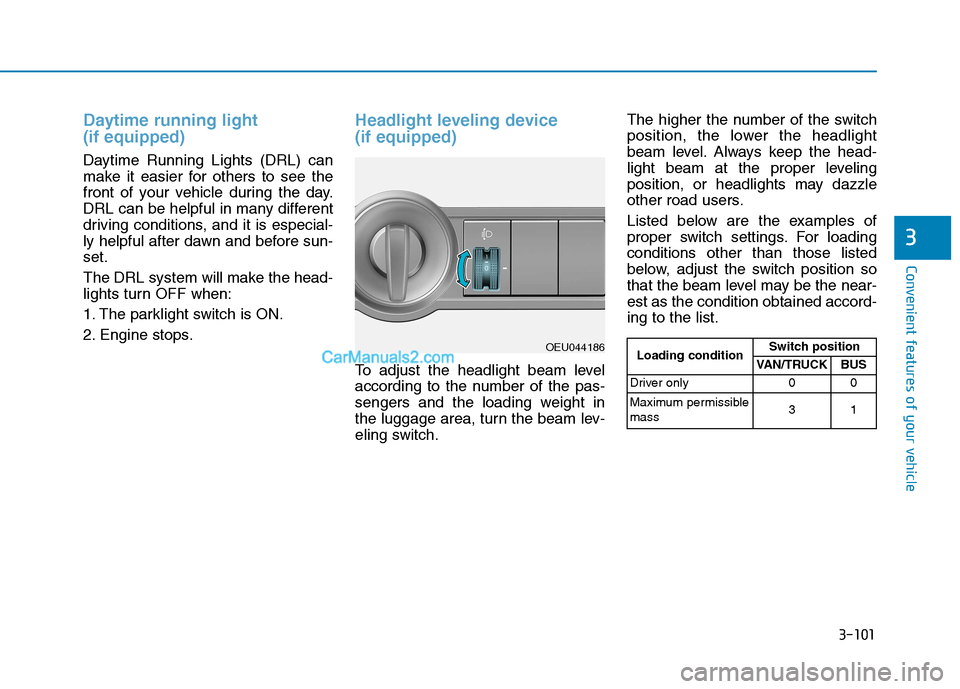

3-101
Convenient features of your vehicle
3
Daytime running light (if equipped)
Daytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especial-
ly helpful after dawn and before sun-set.
The DRL system will make the head-
lights turn OFF when:
1. The parklight switch is ON.
2. Engine stops.
Headlight leveling device (if equipped)
To adjust the headlight beam level
according to the number of the pas-
sengers and the loading weight in
the luggage area, turn the beam lev-
eling switch.The higher the number of the switch
position, the lower the headlight
beam level. Always keep the head-
light beam at the proper leveling
position, or headlights may dazzle
other road users.
Listed below are the examples of
proper switch settings. For loadingconditions other than those listed
below, adjust the switch position so
that the beam level may be the near-est as the condition obtained accord-ing to the list.
OEU044186
Loading condition Switch position
VAN/TRUCK BUS
Driver only 0 0
Maximum permissible mass 31

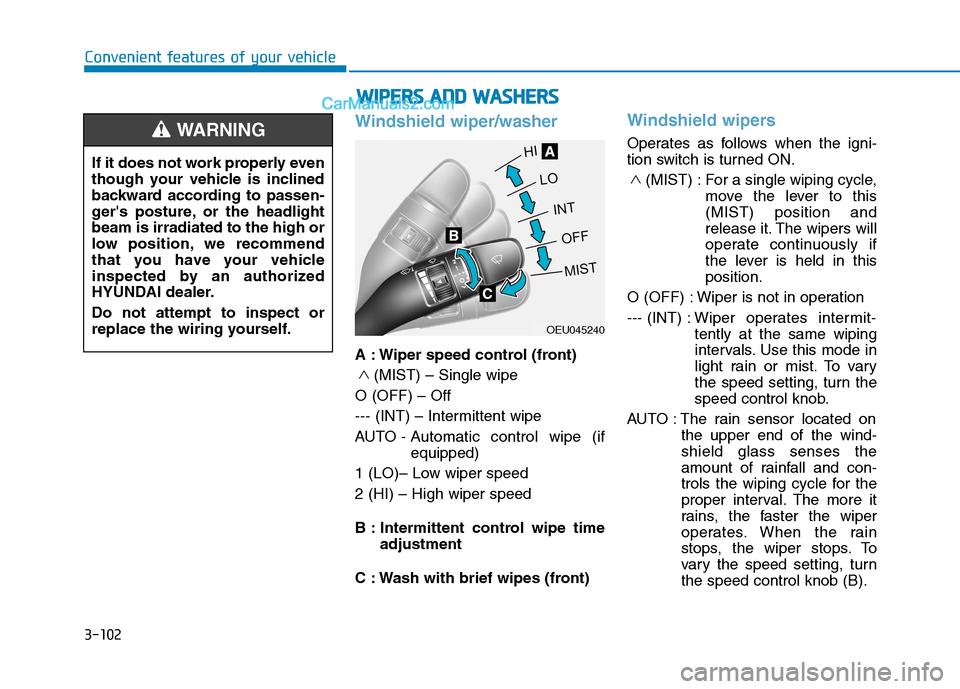

3-102
Convenient features of your vehicle
Windshield wiper/washer
A : Wiper speed control (front)(MIST) – Single wipe
O (OFF) – Off
--- (INT) – Intermittent wipe
AUTO - Automatic control wipe (if equipped)
1 (LO)– Low wiper speed2 (HI) – High wiper speed
B : Intermittent control wipe time adjustment
C : Wash with brief wipes (front)
Windshield wipers
Operates as follows when the igni-
tion switch is turned ON. (MIST) : For a single wiping cycle, move the lever to this(MIST) position and
release it. The wipers will
operate continuously if
the lever is held in thisposition.
O (OFF) : Wiper is not in operation --- (INT) : Wiper operates intermit-
tently at the same wiping
intervals. Use this mode in
light rain or mist. To vary
the speed setting, turn the
speed control knob.
AUTO : The rain sensor located on the upper end of the wind-shield glass senses the
amount of rainfall and con-
trols the wiping cycle for the
proper interval. The more it
rains, the faster the wiper
operates. When the rain
stops, the wiper stops. To
vary the speed setting, turnthe speed control knob (B).


If it does not work properly even
though your vehicle is inclined
backward according to passen-
ger's posture, or the headlightbeam is irradiated to the high or
low position, we recommend
that you have your vehicle
inspected by an authorized
HYUNDAI dealer. Do not attempt to inspect or
replace the wiring yourself.WARNING
WW
IIPP EERR SS AA NN DD WW AASSHH EERR SS
OEU045240

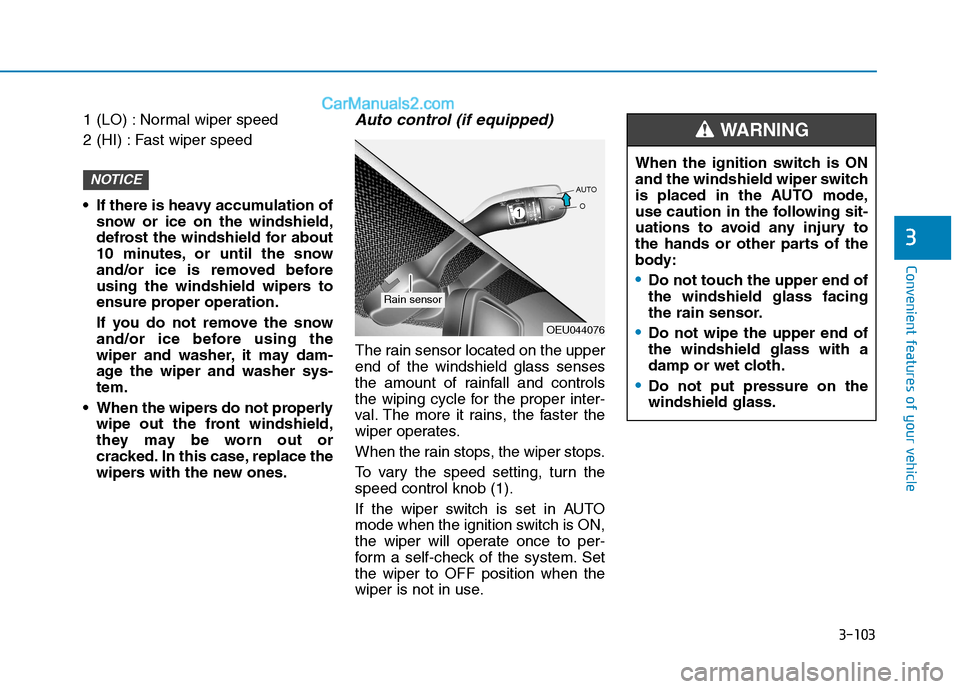

3-103
Convenient features of your vehicle
3
1 (LO) : Normal wiper speed
2 (HI) : Fast wiper speed
If there is heavy accumulation ofsnow or ice on the windshield,
defrost the windshield for about
10 minutes, or until the snow
and/or ice is removed before
using the windshield wipers to
ensure proper operation.
If you do not remove the snow
and/or ice before using the
wiper and washer, it may dam-
age the wiper and washer sys-tem.
When the wipers do not properly wipe out the front windshield,
they may be worn out or
cracked. In this case, replace the
wipers with the new ones.Auto control (if equipped)
The rain sensor located on the upperend of the windshield glass senses
the amount of rainfall and controls
the wiping cycle for the proper inter-
val. The more it rains, the faster the
wiper operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn the speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is ON,
the wiper will operate once to per-
form a self-check of the system. Setthe wiper to OFF position when the
wiper is not in use.
NOTICE
When the ignition switch is ON
and the windshield wiper switch
is placed in the AUTO mode,
use caution in the following sit-
uations to avoid any injury to
the hands or other parts of the
body:
Do not touch the upper end of the windshield glass facing
the rain sensor.
Do not wipe the upper end of the windshield glass with a
damp or wet cloth.
Do not put pressure on the windshield glass.
WARNING
OEU044076
Rain sensor

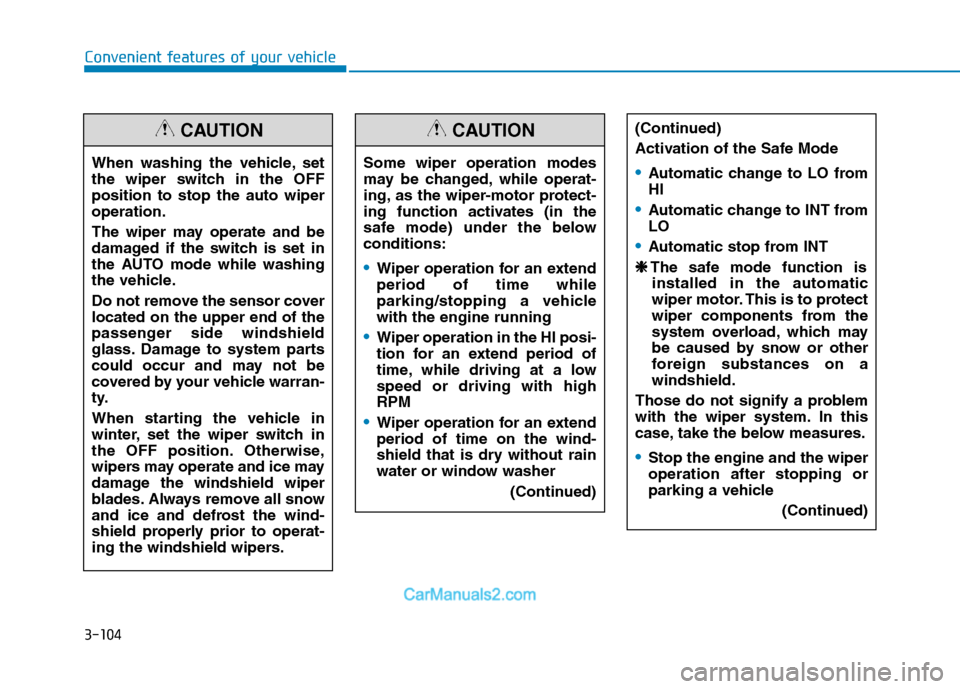

3-104
Convenient features of your vehicle
When washing the vehicle, set
the wiper switch in the OFFposition to stop the auto wiperoperation.
The wiper may operate and be
damaged if the switch is set in
the AUTO mode while washing
the vehicle.
Do not remove the sensor cover located on the upper end of the
passenger side windshield
glass. Damage to system parts
could occur and may not be
covered by your vehicle warran-
ty.
When starting the vehicle in
winter, set the wiper switch in
the OFF position. Otherwise,
wipers may operate and ice may
damage the windshield wiper
blades. Always remove all snow
and ice and defrost the wind-
shield properly prior to operat-
ing the windshield wipers.
CAUTION(Continued)
Activation of the Safe Mode
Automatic change to LO from HI
Automatic change to INT from LO
Automatic stop from INT
❈
❈ The safe mode function is
installed in the automatic
wiper motor. This is to protect
wiper components from the
system overload, which may
be caused by snow or other
foreign substances on awindshield.
Those do not signify a problem
with the wiper system. In this
case, take the below measures.
Stop the engine and the wiper operation after stopping or
parking a vehicle (Continued)
Some wiper operation modes
may be changed, while operat-
ing, as the wiper-motor protect-
ing function activates (in the
safe mode) under the belowconditions:
Wiper operation for an extend period of time while
parking/stopping a vehiclewith the engine running
Wiper operation in the HI posi-
tion for an extend period of
time, while driving at a lowspeed or driving with highRPM
Wiper operation for an extend period of time on the wind-
shield that is dry without rain
water or window washer (Continued)
CAUTION

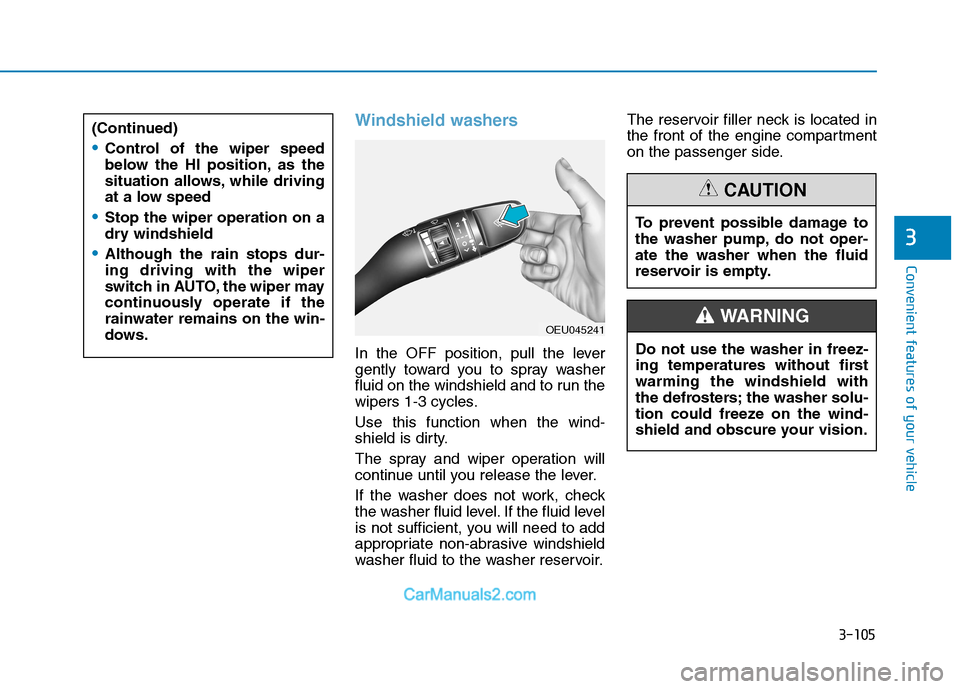

3-105
Convenient features of your vehicle
3
Windshield washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles. Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.
If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir.The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
(Continued)
Control of the wiper speed
below the HI position, as the
situation allows, while driving
at a low speed
Stop the wiper operation on a
dry windshield
Although the rain stops dur- ing driving with the wiper
switch in AUTO, the wiper may
continuously operate if therainwater remains on the win-
dows.
To prevent possible damage to
the washer pump, do not oper-ate the washer when the fluid
reservoir is empty.
CAUTION
Do not use the washer in freez-
ing temperatures without firstwarming the windshield with
the defrosters; the washer solu-
tion could freeze on the wind-
shield and obscure your vision.
WARNING OEU045241

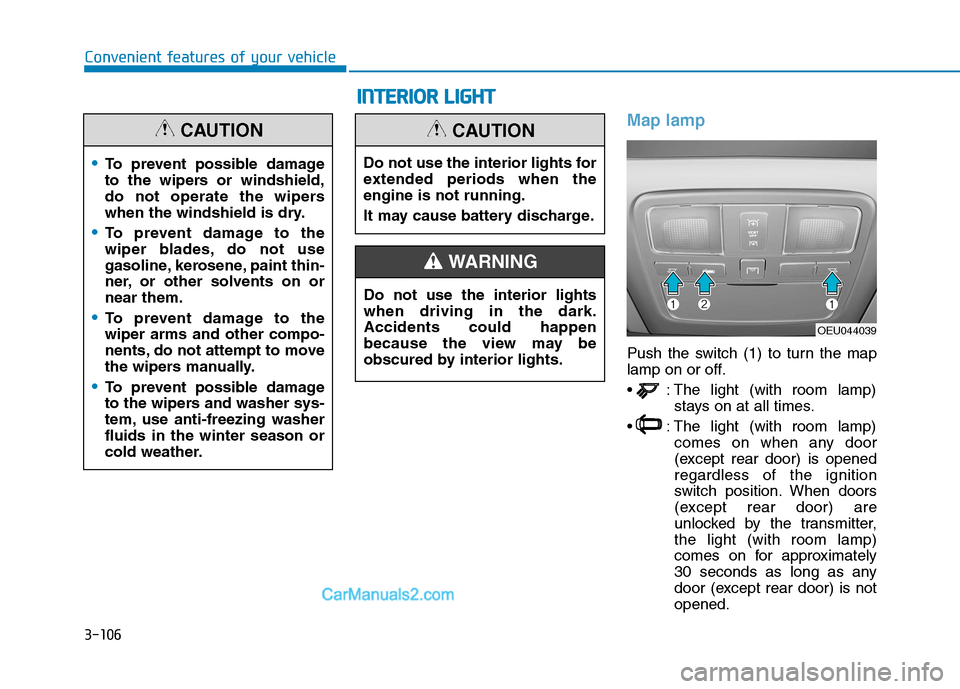

3-106
Convenient features of your vehicle
Map lamp
Push the switch (1) to turn the map
lamp on or off.
: The light (with room lamp)stays on at all times.
: The light (with room lamp) comes on when any door
(except rear door) is openedregardless of the ignition
switch position. When doors
(except rear door) are
unlocked by the transmitter,the light (with room lamp)
comes on for approximately
30 seconds as long as any
door (except rear door) is notopened.
To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
To prevent damage to the
wiper blades, do not use
gasoline, kerosene, paint thin-
ner, or other solvents on ornear them.
To prevent damage to the wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washerfluids in the winter season or
cold weather.
CAUTION
OEU044039
Do not use the interior lights for
extended periods when theengine is not running.
It may cause battery discharge.
CAUTION
Do not use the interior lights when driving in the dark.Accidents could happen
because the view may be
obscured by interior lights.
WARNING
II
NN TTEERR IIOO RR LL IIGG HH TT

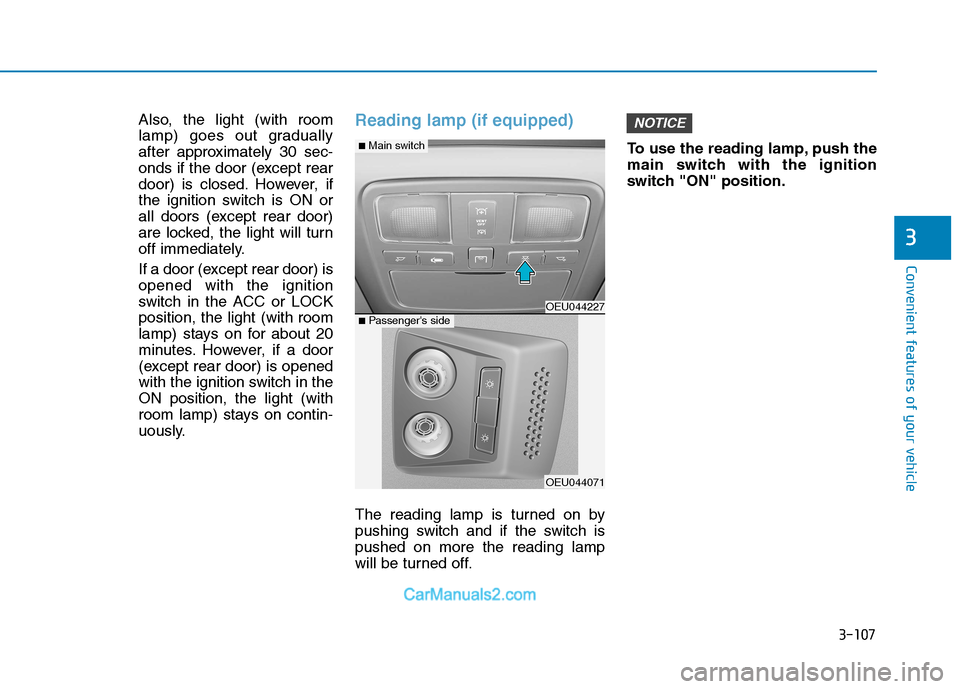

3-107
Convenient features of your vehicle
3
Also, the light (with room
lamp) goes out gradually
after approximately 30 sec-
onds if the door (except rear
door) is closed. However, if
the ignition switch is ON or
all doors (except rear door)
are locked, the light will turn
off immediately.
If a door (except rear door) is opened with the ignition
switch in the ACC or LOCKposition, the light (with room
lamp) stays on for about 20
minutes. However, if a door
(except rear door) is opened
with the ignition switch in theON position, the light (with
room lamp) stays on contin-
uously.Reading lamp (if equipped)
The reading lamp is turned on by
pushing switch and if the switch ispushed on more the reading lamp
will be turned off.To use the reading lamp, push the
main switch with the ignition
switch "ON" position.
NOTICE
OEU044227
OEU044071
■
Main switch
■ Passenger's side

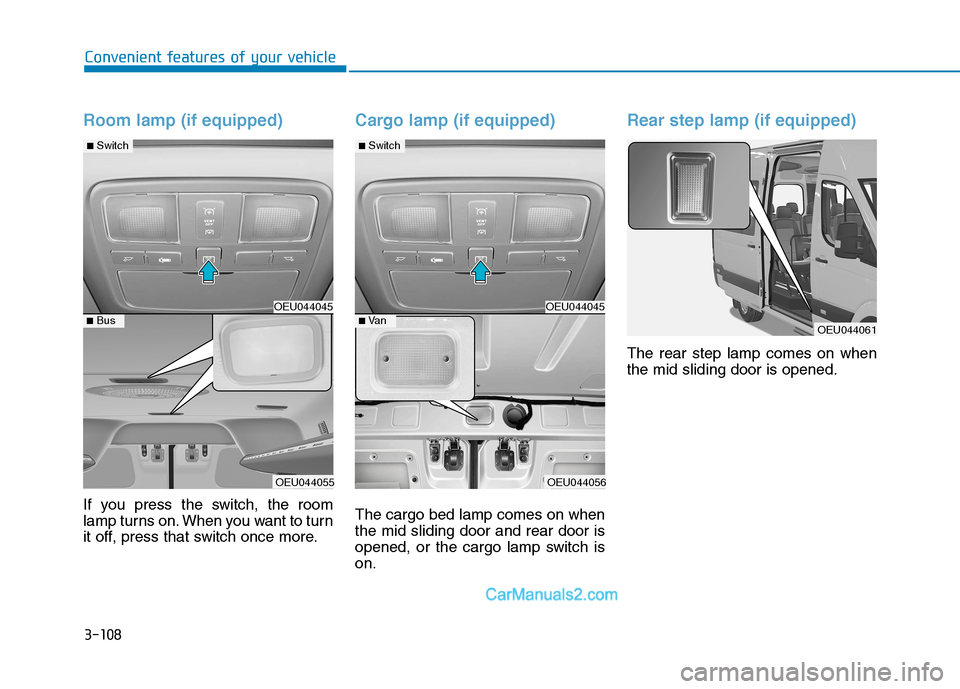

3-108
Convenient features of your vehicle
Room lamp (if equipped)
If you press the switch, the room
lamp turns on. When you want to turn
it off, press that switch once more.
Cargo lamp (if equipped)
The cargo bed lamp comes on when the mid sliding door and rear door is
opened, or the cargo lamp switch ison.
Rear step lamp (if equipped)
The rear step lamp comes on when the mid sliding door is opened.
OEU044061
OEU044045
OEU044055
■Switch
■BusOEU044045
OEU044056
■Switch
■Va n
