Convenient features of your vehicle

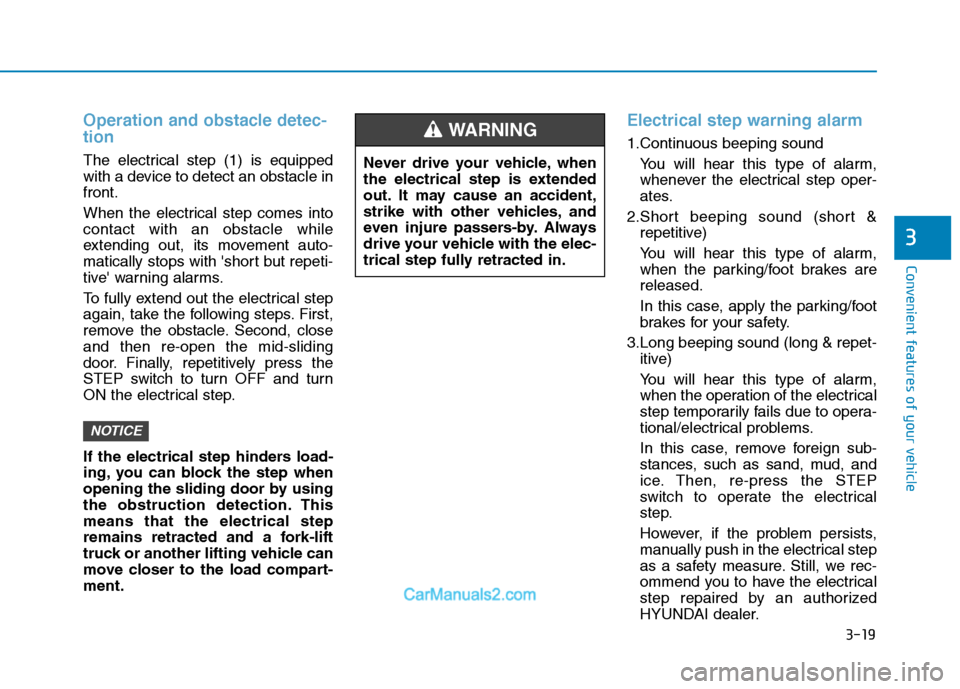

Operation and obstacle detec- tion
The electrical step (1) is equipped
with a device to detect an obstacle infront.
When the electrical step comes into contact with an obstacle while
extending out, its movement auto-
matically stops with 'short but repeti-
tive' warning alarms.
To fully extend out the electrical step
again, take the following steps. First,
remove the obstacle. Second, closeand then re-open the mid-sliding
door. Finally, repetitively press the
STEP switch to turn OFF and turn
ON the electrical step.
If the electrical step hinders load-
ing, you can block the step when
opening the sliding door by using
the obstruction detection. Thismeans that the electrical step
remains retracted and a fork-lift
truck or another lifting vehicle can
move closer to the load compart-ment.
Electrical step warning alarm
1.Continuous beeping sound You will hear this type of alarm,
whenever the electrical step oper-
ates.
2.Short beeping sound (short & repetitive)
You will hear this type of alarm,
when the parking/foot brakes arereleased.
In this case, apply the parking/foot
brakes for your safety.
3.Long beeping sound (long & repet- itive)
You will hear this type of alarm,
when the operation of the electrical
step temporarily fails due to opera-
tional/electrical problems.
In this case, remove foreign sub-
stances, such as sand, mud, and
ice. Then, re-press the STEP
switch to operate the electrical
step.
However, if the problem persists,
manually push in the electrical step
as a safety measure. Still, we rec-
ommend you to have the electrical
step repaired by an authorized
HYUNDAI dealer.
NOTICE
3
Never drive your vehicle, when
the electrical step is extended
out. It may cause an accident,
strike with other vehicles, and
even injure passers-by. Always
drive your vehicle with the elec-
trical step fully retracted in.
WARNING

3-20
The emergency measures,
which you may take in case ofthe electrical-step failures.
The step friction surface is con-taminated with the foreign sub-
stances.
The electrical step may not normally
operate, when its friction surface is
contaminated. Repetitively operate
either the step switch or the mid-slid-
ing door 2-to-3 times. When the step
operation completely stops for the
same reason, manually push in the
step and turn OFF the switch.
Remove the foreign substances with
washing equipment at a vehicle
wash (Refer to the regular cleaning
in the chapter 3). Then, turn ON the
step switch, and operate the mid-
sliding door. When the electrical step
does not still normally operate, we
recommend that the electrical step
be checked by an authorized
HYUNDAI dealer.

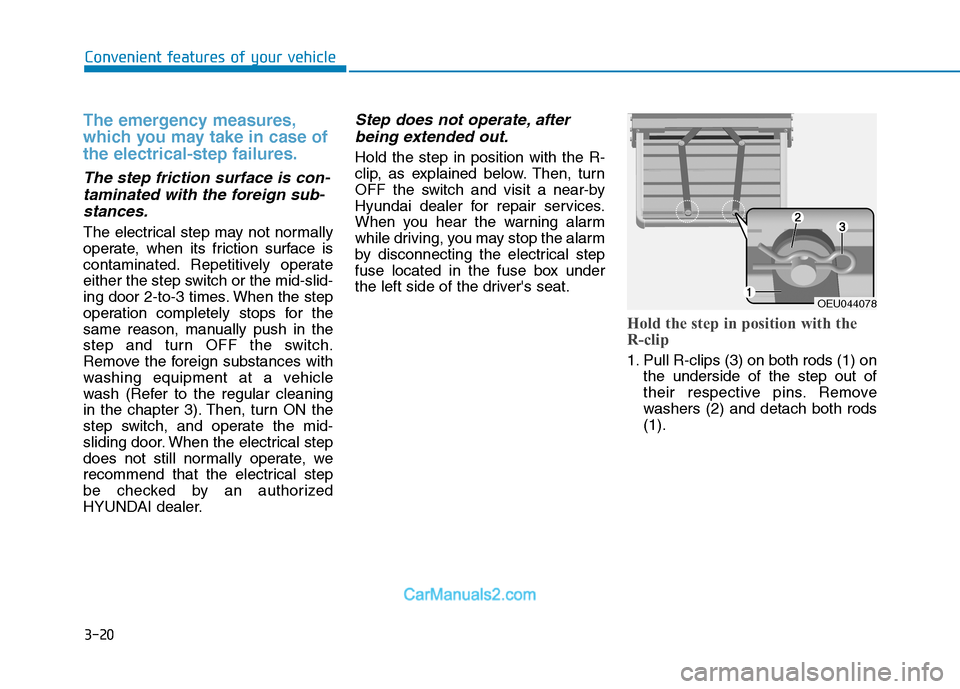

Step does not operate, after being extended out.
Hold the step in position with the R-
clip, as explained below. Then, turn
OFF the switch and visit a near-by
Hyundai dealer for repair services.
When you hear the warning alarm
while driving, you may stop the alarm
by disconnecting the electrical step
fuse located in the fuse box under
the left side of the driver's seat.
Hold the step in position with the
R-clip
1. Pull R-clips (3) on both rods (1) on the underside of the step out of
their respective pins. Remove
washers (2) and detach both rods(1).
Convenient features of your vehicle
OEU044078

3-21
Convenient features of your vehicle
2. Fold rods (1) into the housing inthe step.
Push the step into its housing 3. Insert R-clips (2) into the step as
far as they will go through the holes on both sides of the hous-ing.
The step is secured in its housing.
When securing the step for the
first time, you must pierce a film
with the spring cotters.

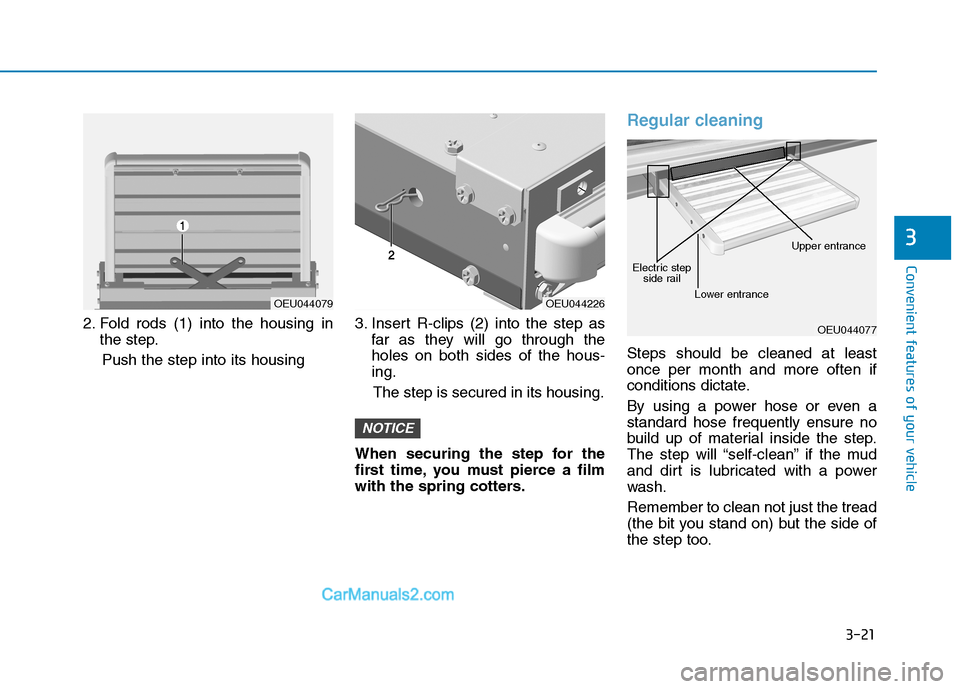

Regular cleaning
Steps should be cleaned at least once per month and more often if
conditions dictate.
By using a power hose or even a standard hose frequently ensure no
build up of material inside the step.
The step will “self-clean” if the mud
and dirt is lubricated with a power
wash. Remember to clean not just the tread
(the bit you stand on) but the side of
the step too.
NOTICE
3
OEU044079OEU044226
OEU044077
Electric step side rail
Lower entrance Upper entrance

3-22

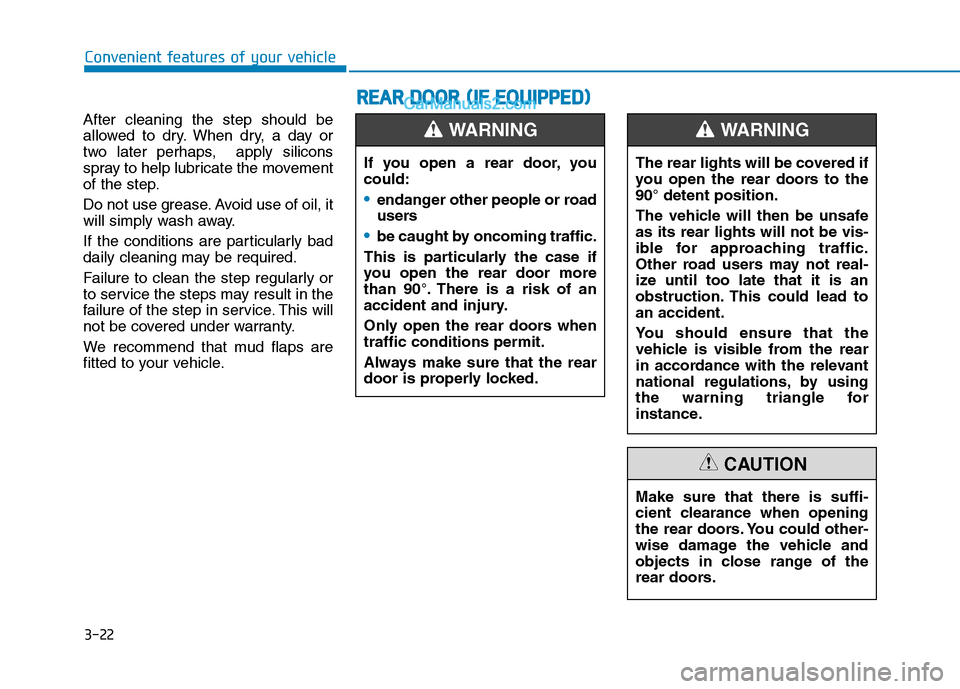

After cleaning the step should be
allowed to dry. When dry, a day or
two later perhaps, apply silicons
spray to help lubricate the movement
of the step.
Do not use grease. Avoid use of oil, it
will simply wash away.
If the conditions are particularly bad
daily cleaning may be required.
Failure to clean the step regularly or
to service the steps may result in the
failure of the step in service. This will
not be covered under warranty.
We recommend that mud flaps are
fitted to your vehicle.
Convenient features of your vehicle
RR
EEAA RR DD OO OORR (( IIFF EE QQ UUIIPP PPEEDD ))
If you open a rear door, you could:
endanger other people or road
users
be caught by oncoming traffic.
This is particularly the case if
you open the rear door more
than 90°. There is a risk of an
accident and injury.
Only open the rear doors when traffic conditions permit.
Always make sure that the rear
door is properly locked.
WARNING
The rear lights will be covered if
you open the rear doors to the90° detent position.
The vehicle will then be unsafe as its rear lights will not be vis-
ible for approaching traffic.
Other road users may not real-
ize until too late that it is an
obstruction. This could lead toan accident.
You should ensure that the
vehicle is visible from the rear
in accordance with the relevant
national regulations, by using
the warning triangle for
instance.
WARNING
Make sure that there is suffi-
cient clearance when opening
the rear doors. You could other-
wise damage the vehicle and
objects in close range of the
rear doors.
CAUTION

3-23
Convenient features of your vehicle
3

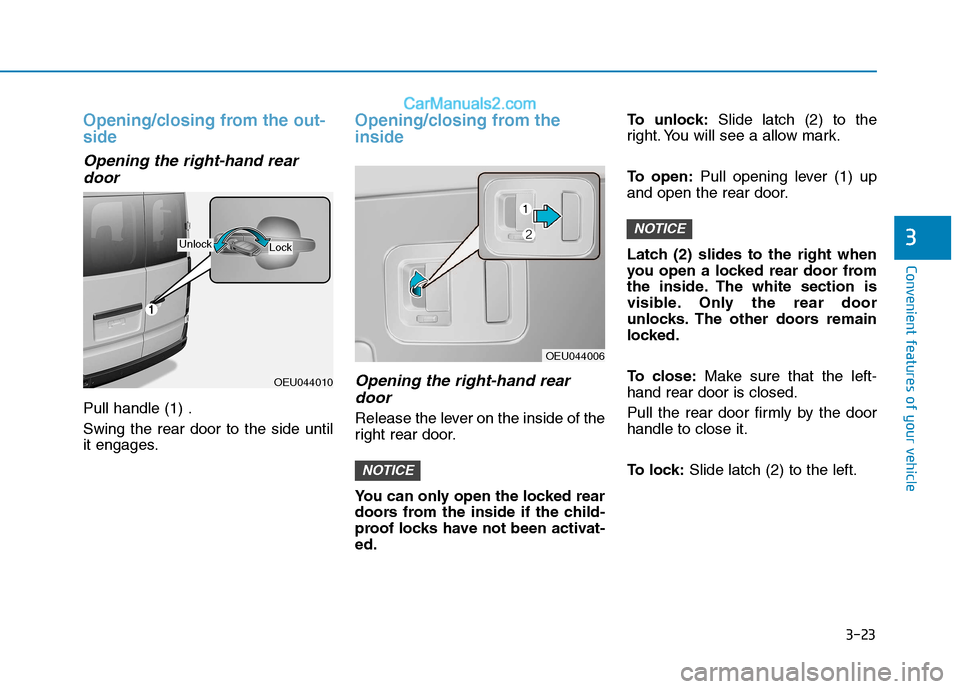

Opening/closing from the out- side
Opening the right-hand reardoor
Pull handle (1) . Swing the rear door to the side until
it engages.
Opening/closing from the inside
Opening the right-hand reardoor
Release the lever on the inside of the
right rear door.
You can only open the locked rear
doors from the inside if the child-
proof locks have not been activat-ed. To unlock:
Slide latch (2) to the
right. You will see a allow mark.
To open: Pull opening lever (1) up
and open the rear door.
Latch (2) slides to the right when
you open a locked rear door from
the inside. The white section is
visible. Only the rear door
unlocks. The other doors remain
locked.
To close: Make sure that the left-
hand rear door is closed.
Pull the rear door firmly by the door handle to close it.
To lock: Slide latch (2) to the left.
NOTICE
NOTICE
OEU044010
OEU044006
UnlockLock

3-24
Convenient features of your vehicle

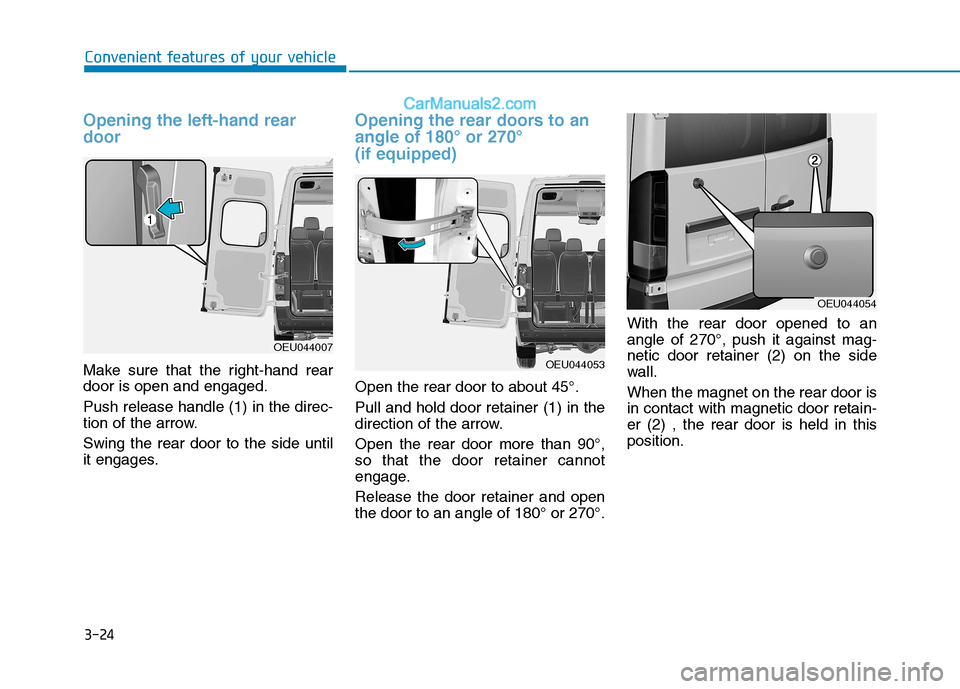

Opening the left-hand rear door
Make sure that the right-hand rear door is open and engaged. Push release handle (1) in the direc-
tion of the arrow. Swing the rear door to the side until
it engages.
Opening the rear doors to an angle of 180° or 270° (if equipped)
Open the rear door to about 45°. Pull and hold door retainer (1) in the
direction of the arrow. Open the rear door more than 90°, so that the door retainer cannot
engage. Release the door retainer and open the door to an angle of 180° or 270°.With the rear door opened to anangle of 270°, push it against mag-netic door retainer (2) on the side
wall. When the magnet on the rear door is in contact with magnetic door retain-er (2) , the rear door is held in thisposition.
OEU044053
OEU044054
OEU044007

3-25
Convenient features of your vehicle
3
Vehicles with 270° pivoting rear
doors: If door retainer (1) malfunctions
while loading, you can swivel it
180° against the spring force and
onto the door and engage it. Thedoor retainer remains in this posi-
tion and will not swivel back to itsoriginal position.
Before closing the door, release
door retainer (1) from the detentand return it to its original posi-tion.
Closing the rear doors from the outside (if equipped)
Pull the rear door away from mag-
netic door retainer.
Close the left-hand rear door firmly
from the outside.

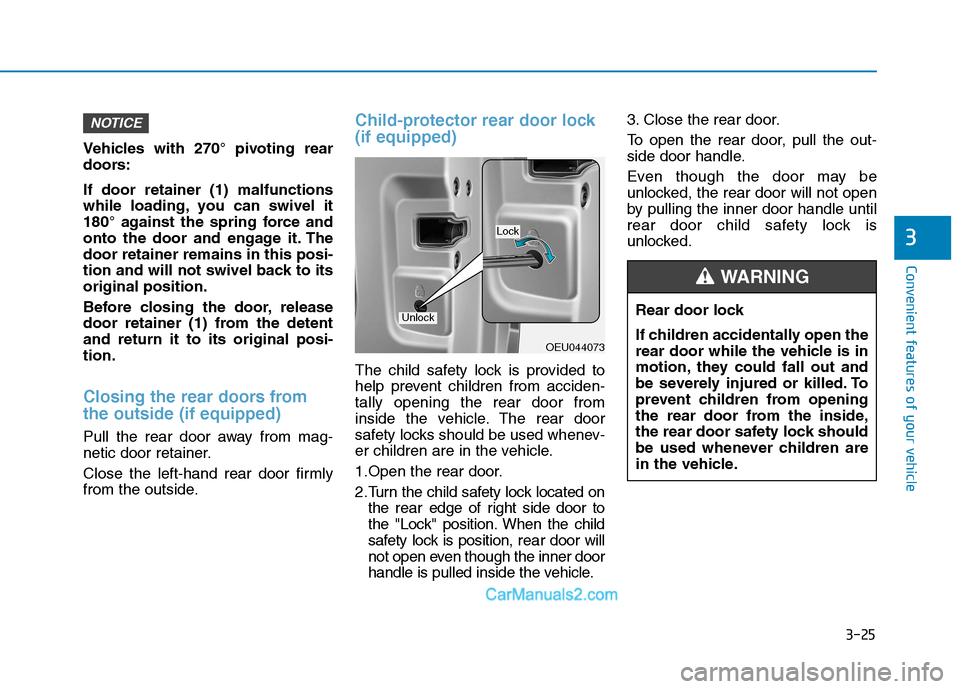

Child-protector rear door lock (if equipped)
The child safety lock is provided to
help prevent children from acciden-tally opening the rear door from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1.Open the rear door.
2.Turn the child safety lock located onthe rear edge of right side door to
the "Lock" position. When the child
safety lock is position, reardoor will
not open even though the inner door
handle is pulled inside the vehicle. 3. Close the rear door.
To open the rear door, pull the out-
side door handle.
Even though the door may be
unlocked, the rear door will not open
by pulling the inner door handle until
rear door child safety lock is
unlocked.
NOTICE
OEU044073
Rear door lock
If children accidentally open the
rear door while the vehicle is in
motion, they could fall out and
be severely injured or killed. To
prevent children from opening
the rear door from the inside,
the rear door safety lock should
be used whenever children are
in the vehicle.
WARNING
Lock
Unlock

3-26
Convenient features of your vehicle

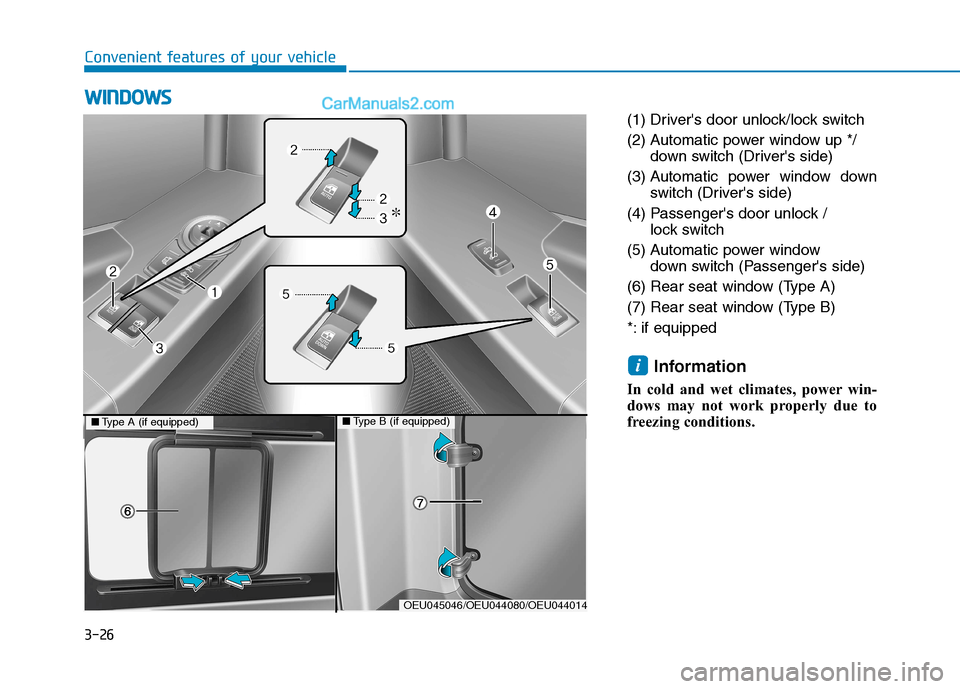

(1) Driver's door unlock/lock switch
(2) Automatic power window up */down switch (Driver's side)
(3) Automatic power window down switch (Driver's side)
(4) Passenger's door unlock / lock switch
(5) Automatic power window down switch (Passenger's side)
(6) Rear seat window (Type A)
(7) Rear seat window (Type B)
*: if equipped
Information
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
i
WW IINN DDOO WW SS
OEU045046/OEU044080/OEU044014
■Type A (if equipped)■Type B (if equipped)

3-27
Convenient features of your vehicle
3

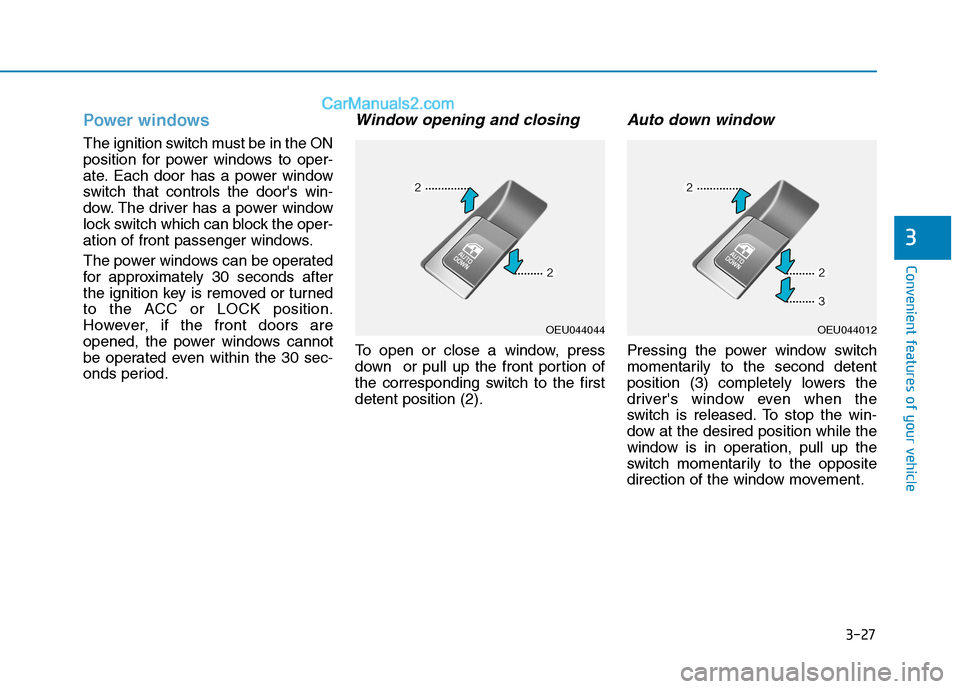

Power windows
The ignition switch must be in the ON
position for power windows to oper-
ate. Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock switch which can block the oper-
ation of front passenger windows.
The power windows can be operated
for approximately 30 seconds after
the ignition key is removed or turned
to the ACC or LOCK position.
However, if the front doors are
opened, the power windows cannot
be operated even within the 30 sec-
onds period.
Window opening and closing
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the firstdetent position (2).
Auto down window
Pressing the power window switch
momentarily to the second detent
position (3) completely lowers the
driver's window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
OEU044044OEU044012

3-28
Convenient features of your vehicle

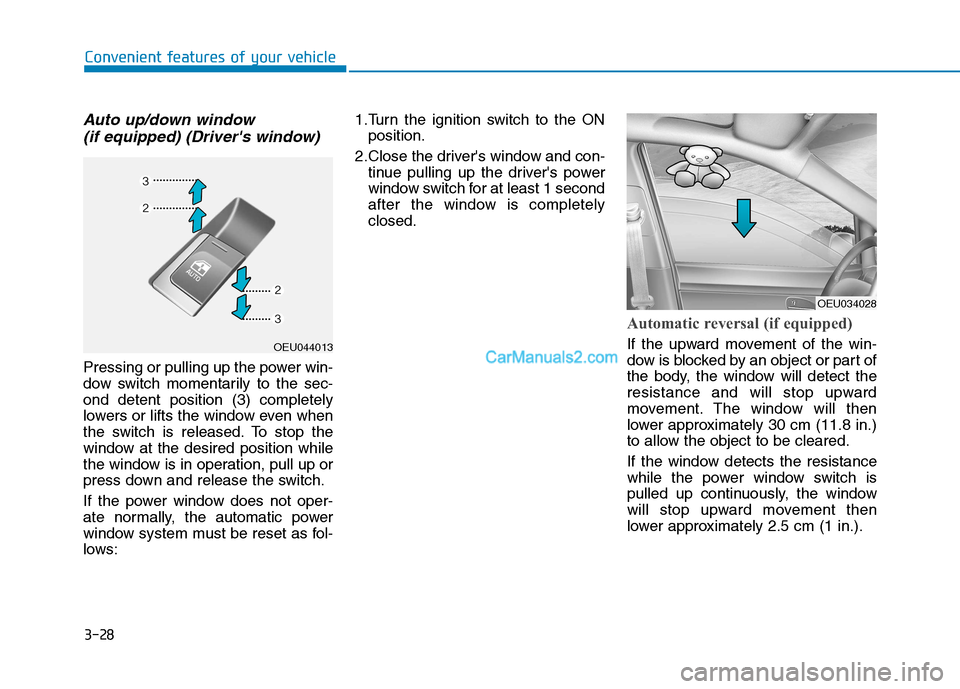

Auto up/down window (if equipped) (Driver's window)
Pressing or pulling up the power win-
dow switch momentarily to the sec-ond detent position (3) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press down and release the switch.
If the power window does not oper-
ate normally, the automatic power
window system must be reset as fol-
lows: 1.Turn the ignition switch to the ON
position.
2.Close the driver's window and con- tinue pulling up the driver's power
window switch for at least 1 second
after the window is completelyclosed.
Automatic reversal (if equipped)
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 30 cm (11.8 in.)
to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 in.).OEU044013
OEU034028
