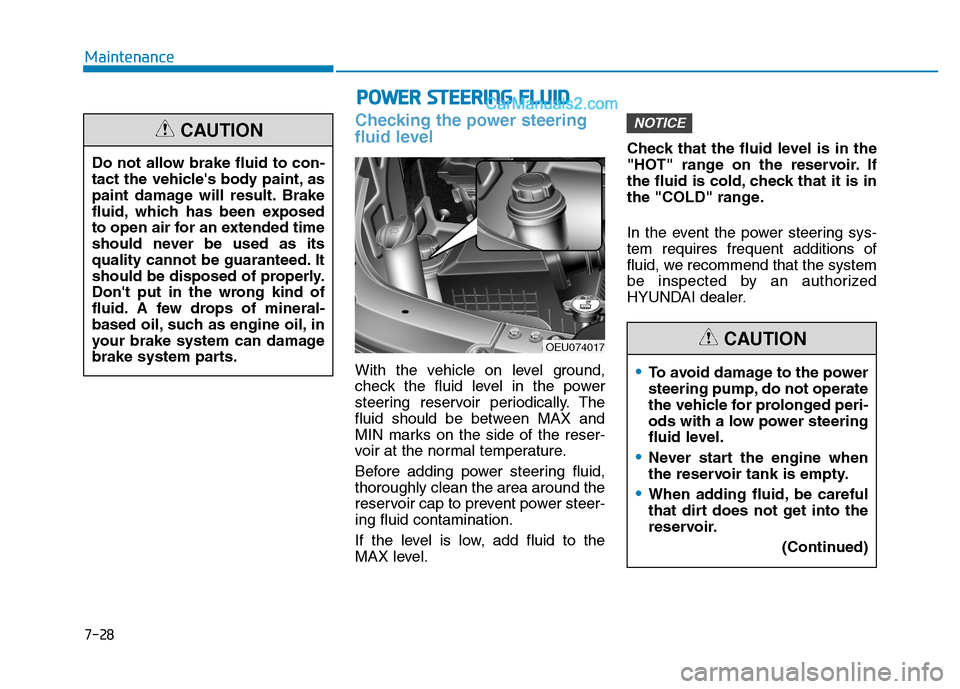

Checking the power steering
fluid level
With the vehicle on level ground,
check the fluid level in the power
steering reservoir periodically. The
fluid should be between MAX and
MIN marks on the side of the reser-
voir at the normal temperature.
Before adding power steering fluid, thoroughly clean the area around the
reservoir cap to prevent power steer-ing fluid contamination.
If the level is low, add fluid to the
MAX level.Check that the fluid level is in the
"HOT" range on the reservoir. If
the fluid is cold, check that it is in
the "COLD" range.
In the event the power steering sys- tem requires frequent additions of
fluid, we recommend that the system
be inspected by an authorized
HYUNDAI dealer.
NOTICE
Do not allow brake fluid to con-
tact the vehicle's body paint, as
paint damage will result. Brake
fluid, which has been exposed
to open air for an extended time
should never be used as its
quality cannot be guaranteed. It
should be disposed of properly.
Don't put in the wrong kind of
fluid. A few drops of mineral-
based oil, such as engine oil, in
your brake system can damage
brake system parts.
CAUTION
PP
OO WW EERR SS TT EEEE RR IINN GG FF LLUU IIDD
OEU074017
To avoid damage to the power
steering pump, do not operate
the vehicle for prolonged peri-
ods with a low power steering
fluid level.
Never start the engine when
the reservoir tank is empty.
When adding fluid, be careful
that dirt does not get into the
reservoir.
(Continued)
CAUTION

7-29
7
MaintenanceUse only the specified power steer-ing fluid. (Refer to "Recommendedlubricants or capacities" in section 9.)
Checking the power steering hose
Check the connections for oil leaks,
damage and twists in the power
steering hose before driving.
Checking the washer fluid
level
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary.
Plain water may be used if washer
fluid is not available. However, use
washer solvent with antifreeze char-
acteristics in cold climates to preventfreezing.
(Continued)
Too little fluid can result in
increased steering effort
and/or noise from the powersteering system.
The use of the non-specified
fluid could reduce the effec-
tiveness of the power steering
system and cause damage toit.
WW
AASSHH EERR FF LLUU IIDD
OEU074015
Do not use radiator coolant or
antifreeze in the washer fluid
reservoir.
Radiator coolant can severely obscure visibility when
sprayed on the windshield
and may cause loss of vehicle
control or damage to paint
and body trim.
Windshield Washer fluid
agents contain some amountsof alcohol and can be flamma-
ble under certain circum-
stances. Do not allow sparksor flame to contact the washerfluid or the washer fluid reser-
voir. Damage to the vehicle or
occupants could occur.
Windshield washer fluid is poisonous to humans and
animals. Do not drink and
avoid contacting windshield
washer fluid. Serious injury or
death could occur.
WARNING

7-30
Maintenance

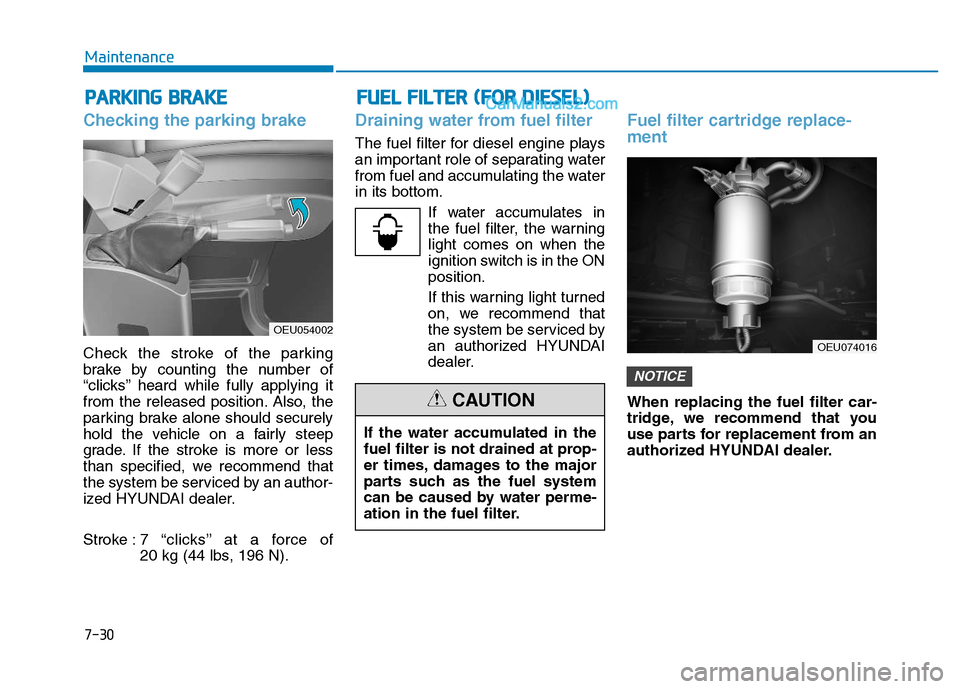

Checking the parking brake
Check the stroke of the parking
brake by counting the number of
“clicks’’ heard while fully applying it
from the released position. Also, the
parking brake alone should securely
hold the vehicle on a fairly steep
grade. If the stroke is more or less
than specified, we recommend that
the system be serviced by an author-
ized HYUNDAI dealer.
Stroke : 7 “clicks’’ at a force of
20 kg (44 lbs, 196 N).
Draining water from fuel filter
The fuel filter for diesel engine plays
an important role of separating water
from fuel and accumulating the waterin its bottom.
If water accumulates inthe fuel filter, the warninglight comes on when the
ignition switch is in the ONposition.
If this warning light turned
on, we recommend that
the system be serviced by
an authorized HYUNDAI
dealer.
Fuel filter cartridge replace- ment
When replacing the fuel filter car-
tridge, we recommend that you
use parts for replacement from an
authorized HYUNDAI dealer.
NOTICE
PP AA RRKK IINN GG BB RRAA KKEE FFUU EELL FF IILL TT EERR (( FF OO RR DD IIEE SSEE LL))
OEU054002
If the water accumulated in the
fuel filter is not drained at prop-
er times, damages to the major
parts such as the fuel system
can be caused by water perme-
ation in the fuel filter.
CAUTION
OEU074016

7-31
7
Maintenance

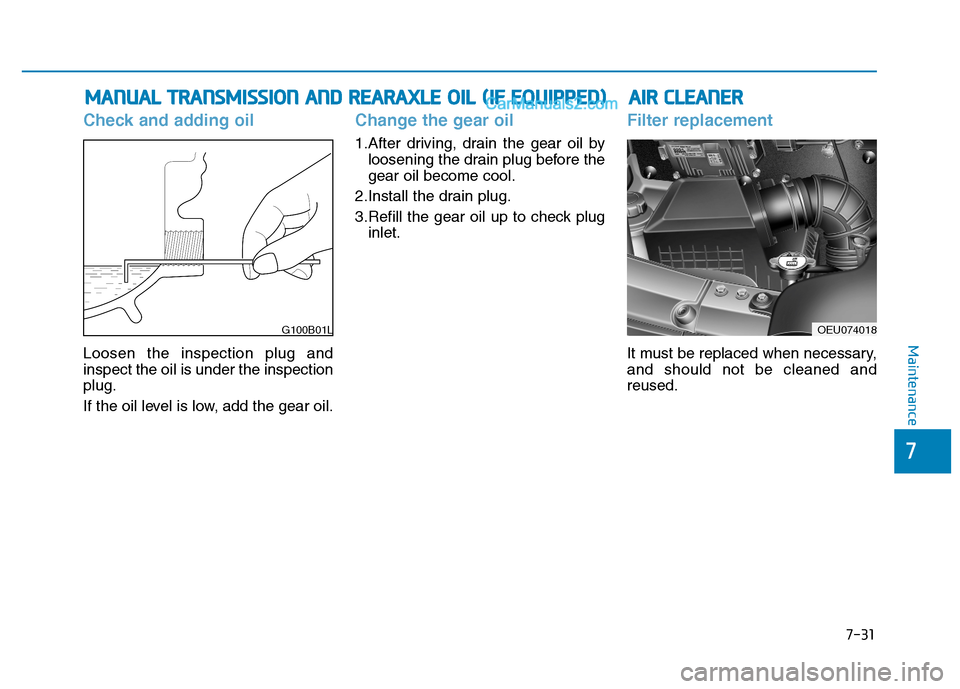

Check and adding oil
Loosen the inspection plug and inspect the oil is under the inspectionplug.
If the oil level is low, add the gear oil.
Change the gear oil
1.After driving, drain the gear oil byloosening the drain plug before the gear oil become cool.
2.Install the drain plug.
3.Refill the gear oil up to check plug inlet.
Filter replacement
It must be replaced when necessary, and should not be cleaned andreused.
MM AANN UU AALL TT RR AA NN SSMM IISS SSIIOO NN AA NN DD RR EEAA RRAA XX LLEE OO IILL (( IIFF EE QQ UUIIPP PPEEDD ))
G100B01LOEU074018
AA IIRR CC LLEE AA NN EERR

7-32
Maintenance

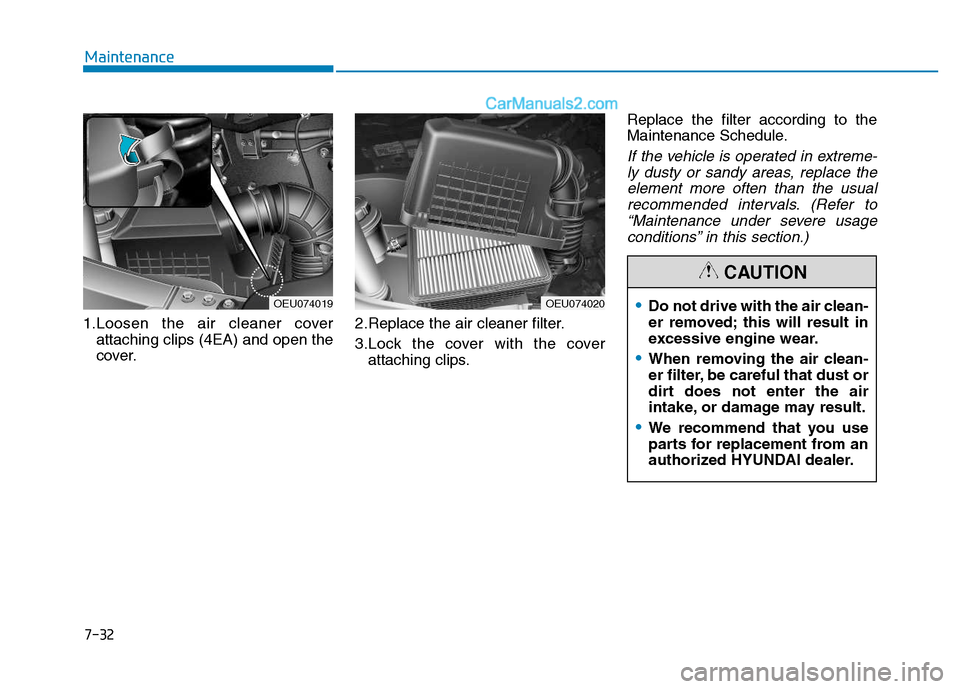

1.Loosen the air cleaner coverattaching clips (4EA) and open the
cover. 2.Replace the air cleaner filter.
3.Lock the cover with the cover
attaching clips. Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to “Maintenance under severe usageconditions” in this section.)
OEU074019OEU074020Do not drive with the air clean-
er removed; this will result in
excessive engine wear.
When removing the air clean-
er filter, be careful that dust or
dirt does not enter the air
intake, or damage may result.
We recommend that you use
parts for replacement from an
authorized HYUNDAI dealer.
CAUTION

7-33
7
Maintenance

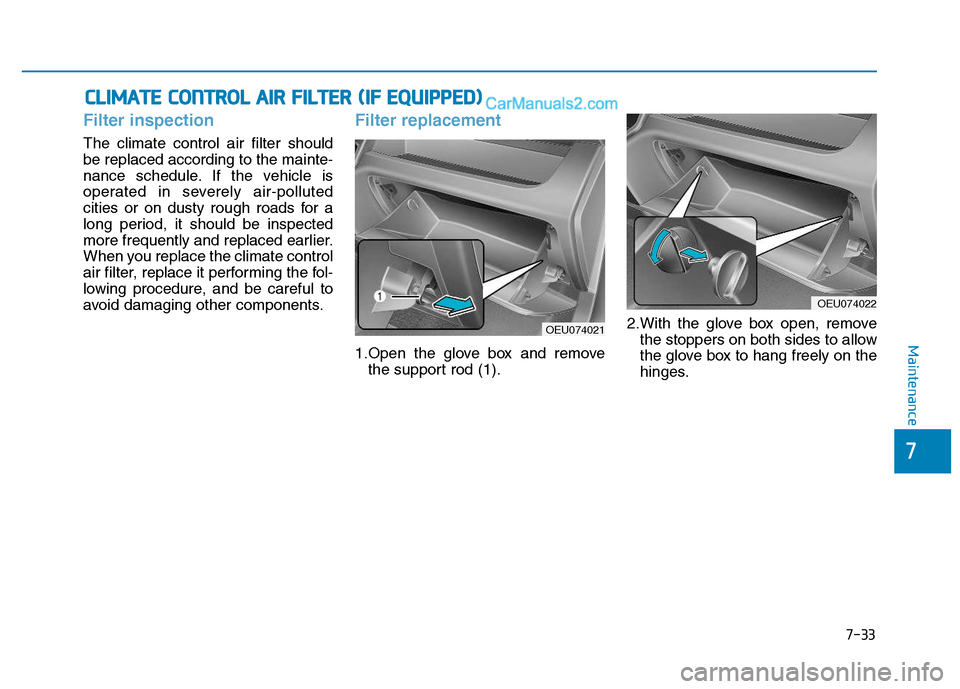

Filter inspection
The climate control air filter should be replaced according to the mainte-
nance schedule. If the vehicle is
operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
Filter replacement
1.Open the glove box and removethe support rod (1). 2.With the glove box open, remove
the stoppers on both sides to allow
the glove box to hang freely on the
hinges.
CCLLIIMM AATTEE CC OO NNTTRR OO LL AA IIRR FF IILL TT EERR (( IIFF EE QQ UUIIPP PP EEDD ))
OEU074021
OEU074022

7-34
Maintenance

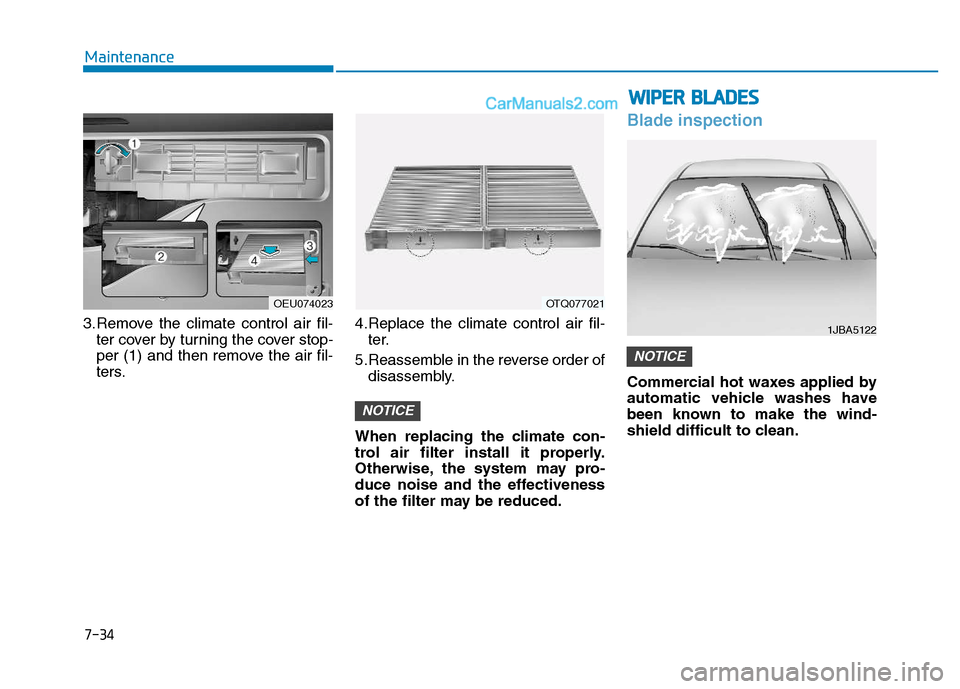

3.Remove the climate control air fil-ter cover by turning the cover stop-
per (1) and then remove the air fil-
ters. 4.Replace the climate control air fil-
ter.
5.Reassemble in the reverse order of disassembly.
When replacing the climate con-
trol air filter install it properly.
Otherwise, the system may pro-
duce noise and the effectiveness
of the filter may be reduced.
Blade inspection
Commercial hot waxes applied by
automatic vehicle washes have
been known to make the wind-
shield difficult to clean.
NOTICE
NOTICE
OEU074023OTQ077021
WW IIPP EERR BB LLAA DDEESS
1JBA5122

7-35
7
Maintenance
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial vehicle washes. If the blades are
not wiping properly, clean both the
window and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.Blade replacement

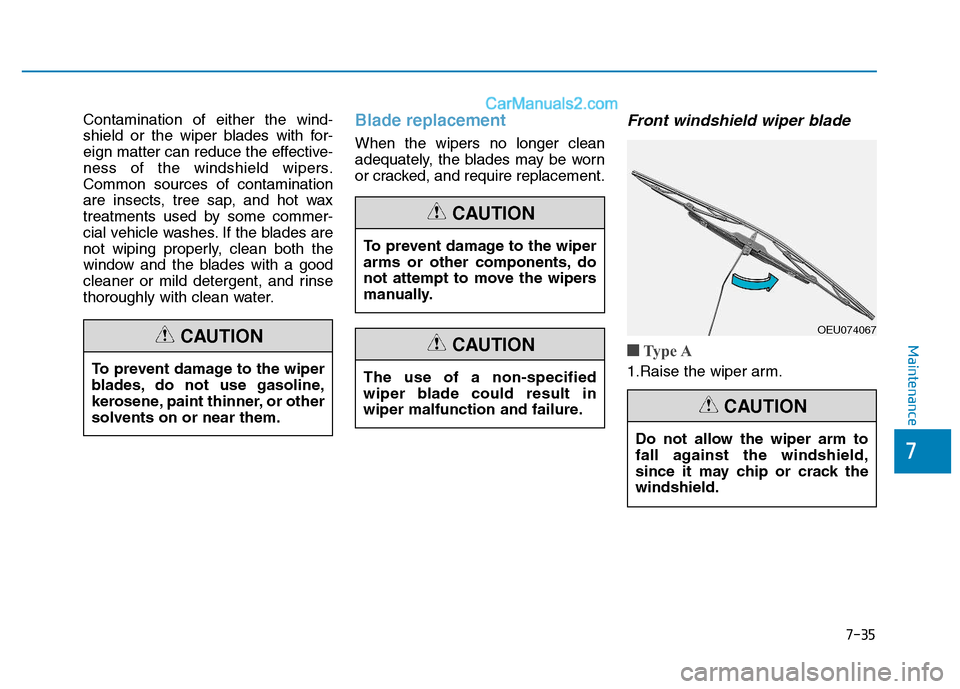

When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
Front windshield wiper blade
■■Type A
1.Raise the wiper arm.
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or othersolvents on or near them.
CAUTION
To prevent damage to the wiper
arms or other components, do
not attempt to move the wipers
manually.
CAUTION
The use of a non-specified
wiper blade could result in
wiper malfunction and failure.
CAUTION
OEU074067
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack thewindshield.
CAUTION

7-36
Maintenance

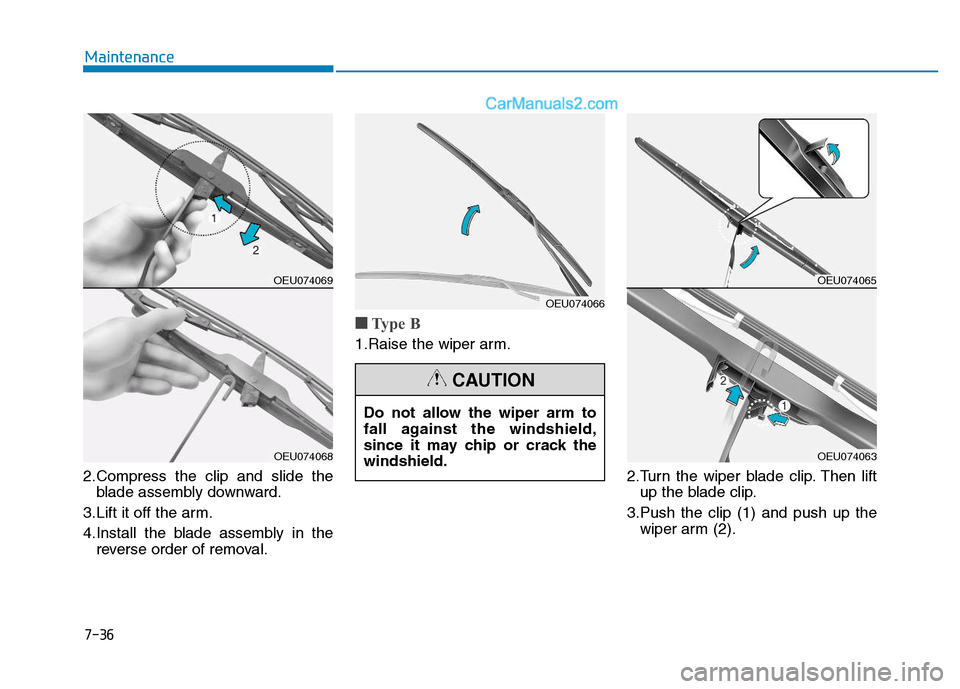

2.Compress the clip and slide theblade assembly downward.
3.Lift it off the arm.
4.Install the blade assembly in the reverse order of removal.
■■ Type B
1.Raise the wiper arm.
2.Turn the wiper blade clip. Then liftup the blade clip.
3.Push the clip (1) and push up the wiper arm (2).
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack thewindshield.
CAUTION
OEU074069
OEU074068
OEU074066
OEU074065
OEU074063

7-37
7
Maintenance
4.Push down the wiper arm (3) andinstall the new blade assembly in
the reverse order of removal.
5.Return the wiper arm on the wind

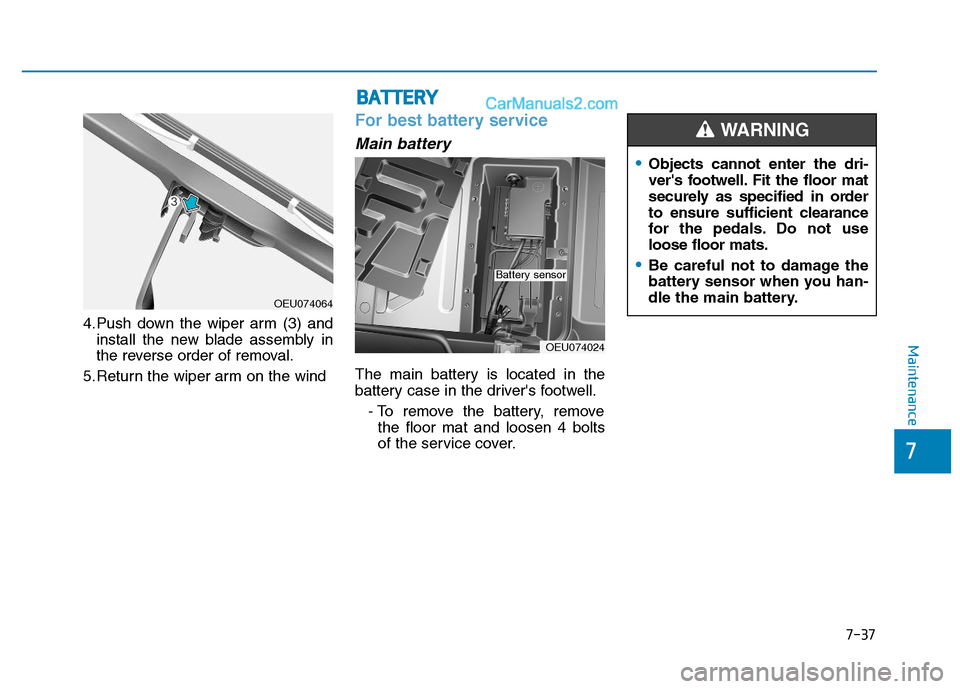

For best battery service
Main battery
The main battery is located in the
battery case in the driver's footwell. - To remove the battery, removethe floor mat and loosen 4 bolts
of the service cover.
OEU074024
BB AA TTTTEERR YY

Objects cannot enter the dri-
ver's footwell. Fit the floor mat
securely as specified in order
to ensure sufficient clearance
for the pedals. Do not useloose floor mats.
Be careful not to damage the
battery sensor when you han-
dle the main battery.
WARNING
OEU074064
Battery sensor
