window Hyundai H350 2016 Owner's Manual

1-9
Your vehicle at a glance

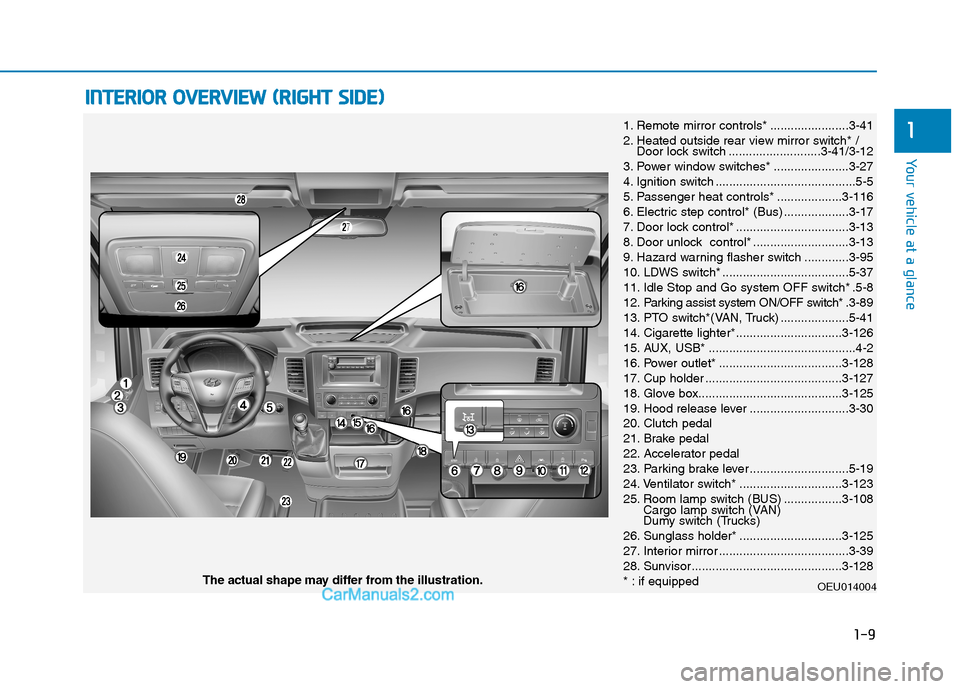

IINN TTEERR IIOO RR OO VVEERR VV IIEE WW (( RR IIGG HH TT SS IIDD EE))
11. Remote mirror controls* .......................3-41
2. Heated outside rear view mirror switch* /
Door lock switch ...........................3-41/3-12
3. Power window switches* ......................3-27
4. Ignition switch .........................................5-5
5. Passenger heat controls* ...................3-116
6. Electric step control* (Bus) ...................3-17
7. Door lock control* .................................3-13
8. Door unlock control* ............................3-13
9. Hazard warning flasher switch .............3-95
10. LDWS switch* .....................................5-37
11. Idle Stop and Go system OFF switch* .5-8
12. Parking assist system ON/OFF switch* .3-89
13. PTO switch*(VAN, Truck) ....................5-41
14. Cigarette lighter*...............................3-126
15. AUX, USB* ...........................................4-2
16. Power outlet* ....................................3-128
17. Cup holder ........................................3-127
18. Glove box..........................................3-125
19. Hood release lever .............................3-30
20. Clutch pedal
21. Brake pedal
22. Accelerator pedal
23. Parking brake lever .............................5-19
24. Ventilator switch* ..............................3-123
25. Room lamp switch (BUS) .................3-108 Cargo lamp switch (VAN)
Dumy switch (Trucks)
26. Sunglass holder* ..............................3-125
27. Interior mirror ......................................3-39
28. Sunvisor............................................3-128
* : if equipped OEU014004
The actual shape may differ from the illustration.

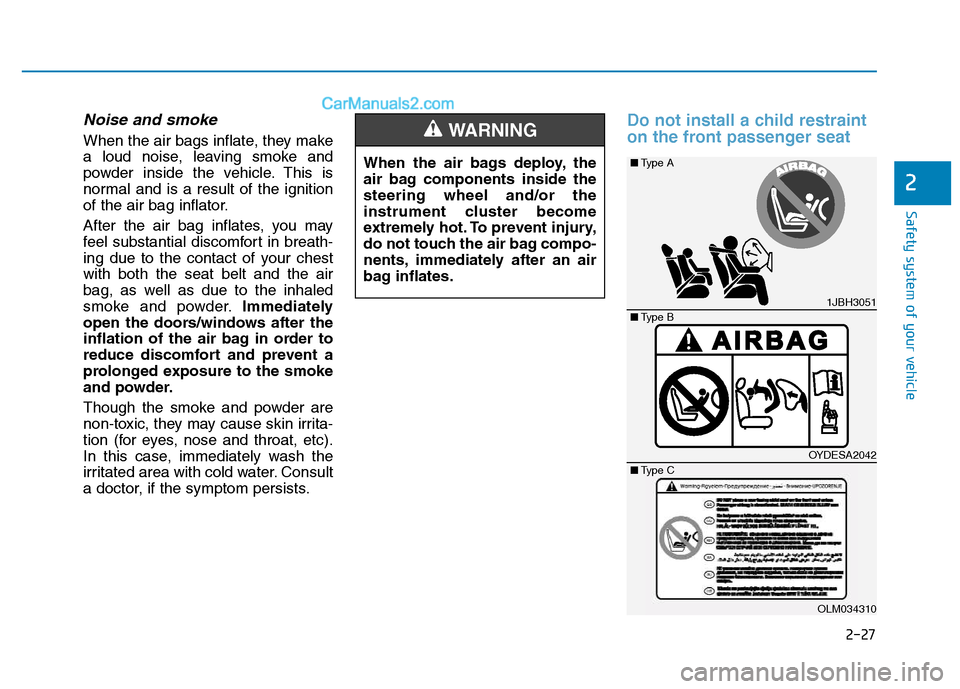

2-27
Safety system of your vehicle
2
Noise and smoke
When the air bags inflate, they make
a loud noise, leaving smoke and
powder inside the vehicle. This is
normal and is a result of the ignition
of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chestwith both the seat belt and the air
bag, as well as due to the inhaled
smoke and powder.Immediately
open the doors/windows after the
inflation of the air bag in order to
reduce discomfort and prevent a
prolonged exposure to the smoke
and powder.
Though the smoke and powder are
non-toxic, they may cause skin irrita-
tion (for eyes, nose and throat, etc).
In this case, immediately wash the
irritated area with cold water. Consult
a doctor, if the symptom persists.
Do not install a child restraint
on the front passenger seat
When the air bags deploy, the
air bag components inside thesteering wheel and/or the
instrument cluster become
extremely hot. To prevent injury,
do not touch the air bag compo-
nents, immediately after an air
bag inflates.
WARNING
1JBH3051
OYDESA2042
OLM034310
■ Type B
■
Type A
■ Type C

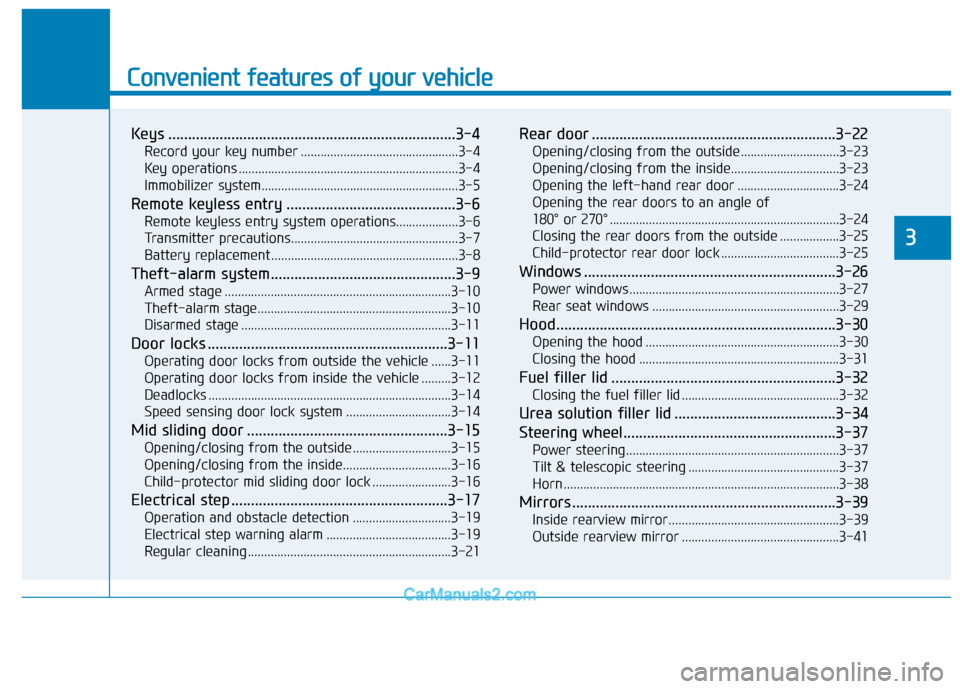

Convenient features of your vehicle
Keys .........................................................................3-4Record your key number ................................................3-4
Key operations ...................................................................3-4
Immobilizer system............................................................3-5
Remote keyless entry ...........................................3-6 Remote keyless entry system operations...................3-6
Transmitter precautions...................................................3-7
Battery replacement .........................................................3-8
Theft-alarm system...............................................3-9 Armed stage .....................................................................3-10
Theft-alarm stage...........................................................3-10
Disarmed stage ................................................................3-11
Door locks .............................................................3-11 Operating door locks from outside the vehicle ......3-11
Operating door locks from inside the vehicle .........3-12
Deadlocks ..........................................................................3-14
Speed sensing door lock system ................................3-14
Mid sliding door ...................................................3-15 Opening/closing from the outside..............................3-15
Opening/closing from the inside.................................3-16
Child-protector mid sliding door lock ........................3-16
Electrical step .......................................................3-17 Operation and obstacle detection ..............................3-19
Electrical step warning alarm ......................................3-19
Regular cleaning ..............................................................3-21 Rear door ..............................................................3-22
Opening/closing from the outside..............................3-23
Opening/closing from the inside.................................3-23
Opening the left-hand rear door ...............................3-24
Opening the rear doors to an angle of
180° or 270° ......................................................................3-24 Closing the rear doors from the outside ..................3-25
Child-protector rear door lock ....................................3-25
Windows ................................................................3-26 Power windows ................................................................3-27
Rear seat windows .........................................................3-29
Hood.......................................................................3-30 Opening the hood ...........................................................3-30
Closing the hood .............................................................3-31
Fuel filler lid .........................................................3-32 Closing the fuel filler lid ................................................3-32
Urea solution filler lid .........................................3-34
Steering wheel......................................................3-37 Power steering.................................................................3-37
Tilt & telescopic steering ..............................................3-37
Horn ....................................................................................3-38
Mirrors ...................................................................3-39 Inside rearview mirror....................................................3-39
Outside rearview mirror ................................................3-41
3

3-13
Convenient features of your vehicle
3

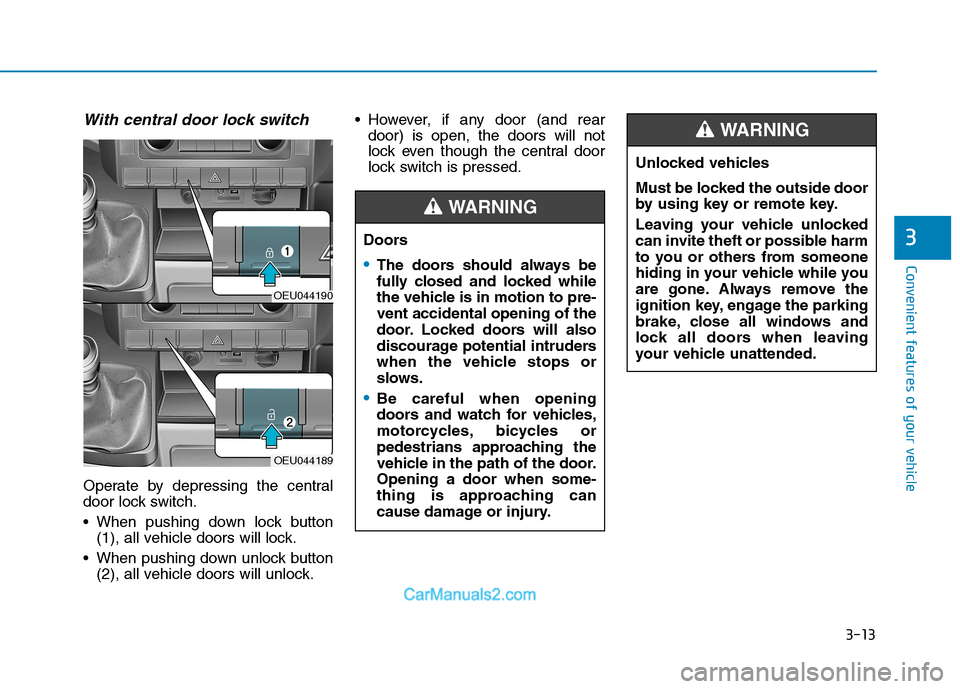

With central door lock switch
Operate by depressing the central
door lock switch.
When pushing down lock button(1), all vehicle doors will lock.
When pushing down unlock button (2), all vehicle doors will unlock. However, if any door (and rear
door) is open, the doors will not
lock even though the central door
lock switch is pressed.
OEU044190
OEU044189
Doors
The doors should always be
fully closed and locked while
the vehicle is in motion to pre-vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
Be careful when opening
doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.Opening a door when some-
thing is approaching can
cause damage or injury.
WARNING
Unlocked vehicles
Must be locked the outside door
by using key or remote key.
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving
your vehicle unattended.
WARNING

3-26
Convenient features of your vehicle

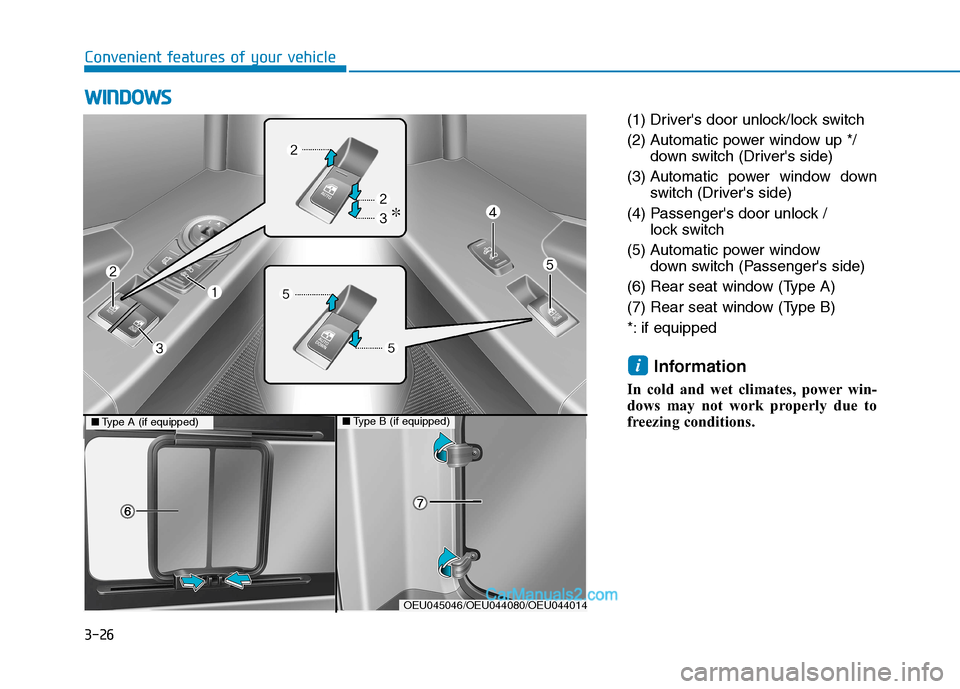

(1) Driver's door unlock/lock switch
(2) Automatic power window up */down switch (Driver's side)
(3) Automatic power window down switch (Driver's side)
(4) Passenger's door unlock / lock switch
(5) Automatic power window down switch (Passenger's side)
(6) Rear seat window (Type A)
(7) Rear seat window (Type B)
*: if equipped
Information
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
i
WW IINN DDOO WW SS
OEU045046/OEU044080/OEU044014
■Type A (if equipped)■Type B (if equipped)

3-27
Convenient features of your vehicle
3

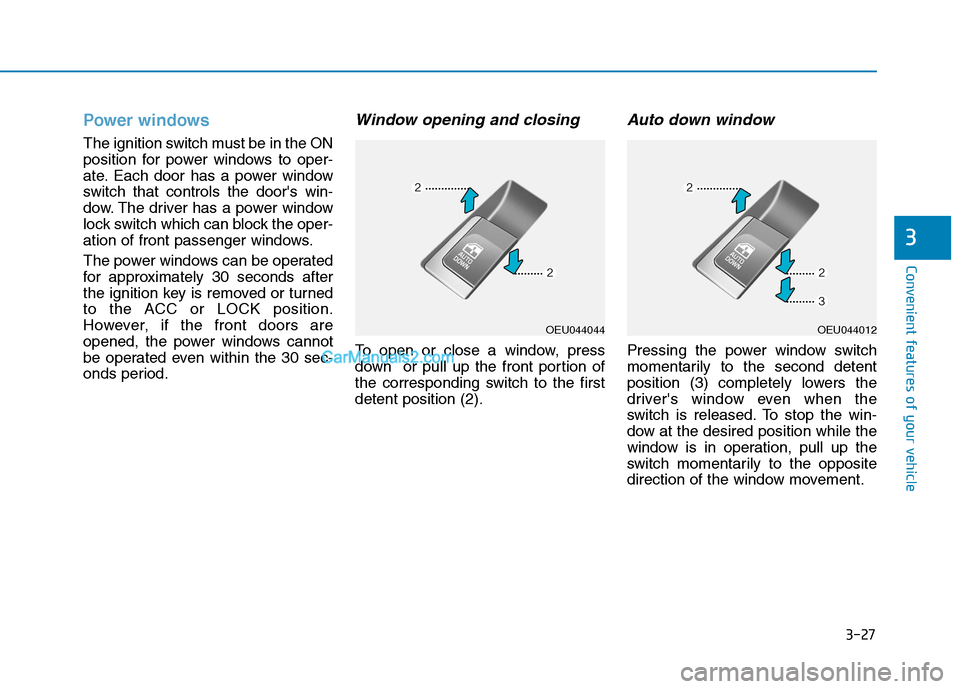

Power windows
The ignition switch must be in the ON
position for power windows to oper-
ate. Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock switch which can block the oper-
ation of front passenger windows.
The power windows can be operated
for approximately 30 seconds after
the ignition key is removed or turned
to the ACC or LOCK position.
However, if the front doors are
opened, the power windows cannot
be operated even within the 30 sec-
onds period.
Window opening and closing
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the firstdetent position (2).
Auto down window
Pressing the power window switch
momentarily to the second detent
position (3) completely lowers the
driver's window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
OEU044044OEU044012

3-28
Convenient features of your vehicle

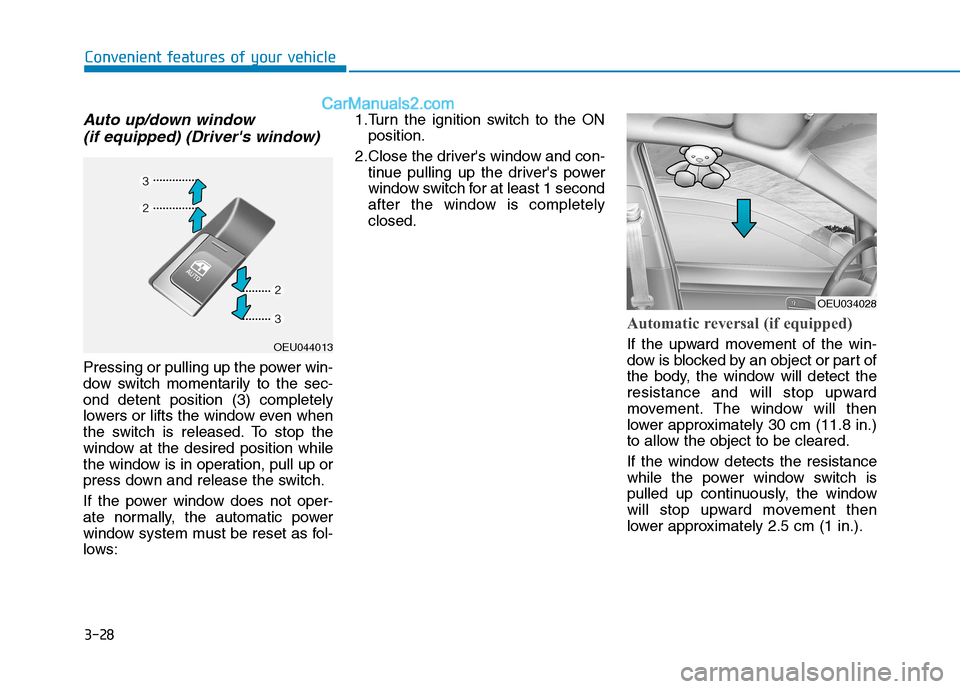

Auto up/down window (if equipped) (Driver's window)
Pressing or pulling up the power win-
dow switch momentarily to the sec-ond detent position (3) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press down and release the switch.
If the power window does not oper-
ate normally, the automatic power
window system must be reset as fol-
lows: 1.Turn the ignition switch to the ON
position.
2.Close the driver's window and con- tinue pulling up the driver's power
window switch for at least 1 second
after the window is completelyclosed.
Automatic reversal (if equipped)
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 30 cm (11.8 in.)
to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 in.).OEU044013
OEU034028

3-29
Convenient features of your vehicle
3

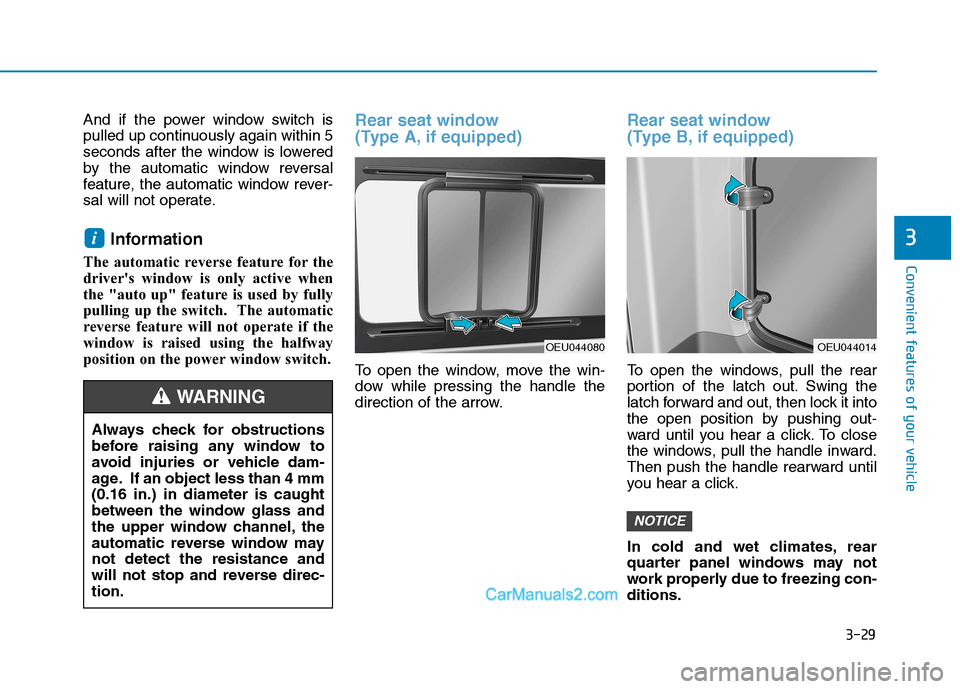

And if the power window switch is
pulled up continuously again within 5
seconds after the window is lowered
by the automatic window reversal
feature, the automatic window rever-
sal will not operate.Information
The automatic reverse feature for the
driver's window is only active when
the "auto up" feature is used by fully
pulling up the switch. The automatic
reverse feature will not operate if the
window is raised using the halfway
position on the power window switch.Rear seat window
(Type A, if equipped)
To open the window, move the win-
dow while pressing the handle the
direction of the arrow.
Rear seat window
(Type B, if equipped)
To open the windows, pull the rear
portion of the latch out. Swing the
latch forward and out, then lock it into
the open position by pushing out-
ward until you hear a click. To close
the windows, pull the handle inward.
Then push the handle rearward until
you hear a click.
In cold and wet climates, rear
quarter panel windows may not
work properly due to freezing con-ditions.
NOTICE
i
OEU044080
Always check for obstructions
before raising any window to
avoid injuries or vehicle dam-
age. If an object less than 4 mm(0.16 in.) in diameter is caught
between the window glass and
the upper window channel, the
automatic reverse window maynot detect the resistance and
will not stop and reverse direc-tion.
WARNING
OEU044014

3-39
Convenient features of your vehicle
3

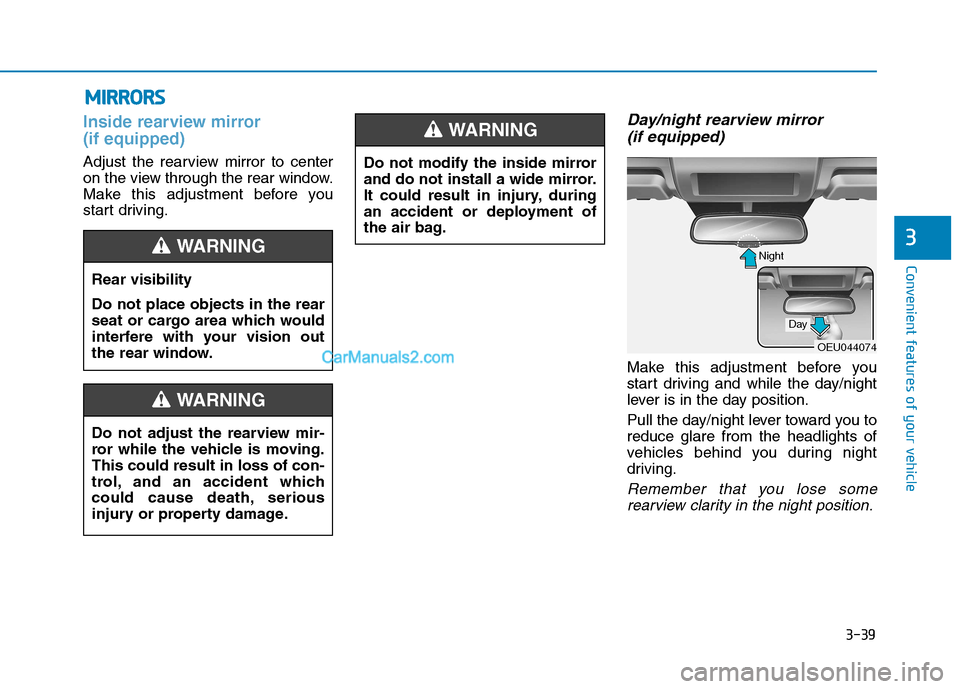

Inside rearview mirror (if equipped)
Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.
Day/night rearview mirror (if equipped)
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to reduce glare from the headlights of
vehicles behind you during night
driving.
Remember that you lose somerearview clarity in the night position.
Rear visibility Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
WARNING
Do not adjust the rearview mir-
ror while the vehicle is moving.This could result in loss of con-
trol, and an accident which
could cause death, serious
injury or property damage.
WARNING
MM IIRR RR OO RRSS
Do not modify the inside mirror
and do not install a wide mirror.
It could result in injury, during
an accident or deployment of
the air bag.
WARNING
OEU044074
Day
Night

3-98

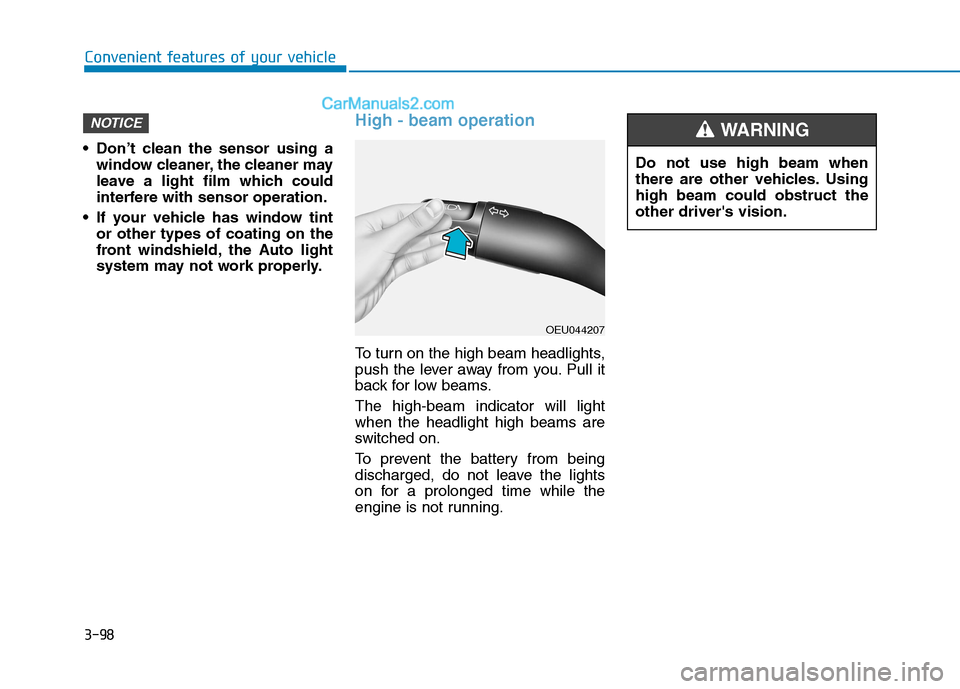

Convenient features of your vehicle
Don’t clean the sensor using awindow cleaner, the cleaner may
leave a light film which could
interfere with sensor operation.
If your vehicle has window tint or other types of coating on the
front windshield, the Auto light
system may not work properly.
High - beam operation
To turn on the high beam headlights,
push the lever away from you. Pull it
back for low beams. The high-beam indicator will light when the headlight high beams are
switched on.
To prevent the battery from being
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.
NOTICE
OEU044207 Do not use high beam when
there are other vehicles. Usinghigh beam could obstruct theother driver's vision.
WARNING
