767
Maintenance
Fuse Name Symbol Fuse rating Circuit Protected
FUSE
F/PUMP15A F/Pump 1 Relay
HORN10A Horn Relay, B/Alarm Horn Relay
A/CON10A A/CON Relay
VACUUM
PUMPVACUUM
PUMP20A Vacuum Pump Relay
HEADLAMP
DIPPED
BEAM15A Headlamp High Beam
HEADLAMP
HIGH BEAM20A Headlamp Low Beam
C/FAN40A C/FAN LO Relay, C/FAN HI Relay
IG240AStart Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With
Button Start)
ECU3E310A PCM
ECU2E210A B3LA : PCM, Shut Off Valve #1/#2
SENSORS110AC/FAN LO Relay, C/FAN HI Relay, A/CON Relay, Start Relay (G3LA, With ISG),
PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve, Camshaft
Position Sensor #1/#2 (IN/EX)
SENSOR2S210A G3LA/G4LA : PCM

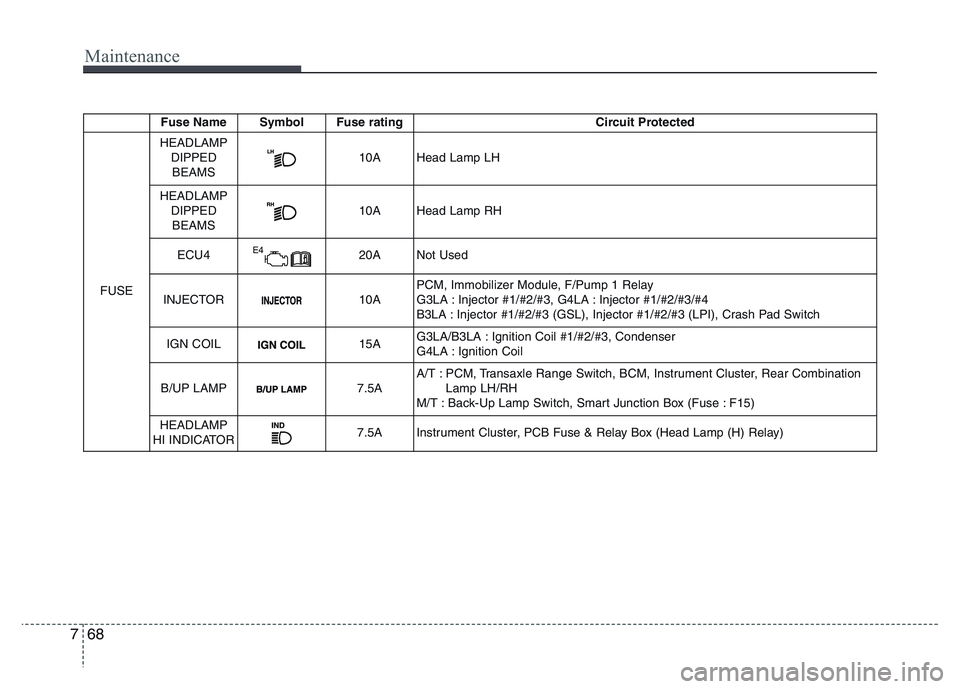

Maintenance
68 7
Fuse Name Symbol Fuse rating Circuit Protected
FUSE
HEADLAMP
DIPPED
BEAMS10A Head Lamp LH
HEADLAMP
DIPPED
BEAMS10A Head Lamp RH
ECU4E420A Not Used
INJECTOR10APCM, Immobilizer Module, F/Pump 1 Relay
G3LA : Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4
B3LA : Injector #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Crash Pad Switch
IGN COIL15AG3LA/B3LA : Ignition Coil #1/#2/#3, Condenser
G4LA : Ignition Coil
B/UP LAMP7.5AA/T : PCM, Transaxle Range Switch, BCM, Instrument Cluster, Rear Combination
Lamp LH/RH
M/T : Back-Up Lamp Switch, Smart Junction Box (Fuse : F15)
HEADLAMP
HI INDICATOR7.5A Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay)
